USEFUSE: Uniform Stride for Enhanced Performance in Fused Layer Architecture of Deep Neural Networks

T0 review · 4 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read USEFUSE, a fused CNN accelerator using most-significant-digit-first arithmetic, reports 1.43x-1.87x speedups and 42-49% energy savings without accuracy loss.

desk verdict The uniform-stride scheduling idea is solid and worth a look; the early-termination scheme is the load-bearing part that isn't proven. read the letter →

arxiv 2412.13724 v2 pith:MSL2YDDW submitted 2024-12-18 cs.LG cs.ARcs.PF

Muhammad Sohail Ibrahim , Muhammad Usman , Jeong-A Lee This is my paper · ORCID
classification cs.LGcs.ARcs.PF
keywords onlinearithmeticmost-significant-digit-firstCNNacceleratorlayerfusionuniformtilestrideearlynegativedetectionReLUFPGAimplementation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper proposes an FPGA accelerator for CNNs that fuses several convolution layers into one pyramid of tiles and computes every sum-of-products with most-significant-digit-first online arithmetic, so partial results stream directly into the next layer instead of going back to off-chip memory. It also chooses a uniform tile stride across pyramid levels, which removes synchronization stalls and duplicate recomputation, and adds an early negative-detection unit that stops computations that ReLU would zero out. The central claim is that this combination is faster and more energy-efficient than conventional bit-serial fused designs: 1.43x, 1.58x, and 1.87x speedups on VGG, AlexNet, and LeNet-5 with 42.6-48.5% energy savings and no measured accuracy loss. A second, temporal design trades area for latency and still achieves 1.46x-1.68x speedups with far fewer logic resources, making the approach relevant for both mission-critical and resource-constrained edge devices.

What carries the argument

The load-bearing mechanism is the fusion pyramid combined with most-significant-digit-first online arithmetic. Tile dimensions are propagated backward from an output region with $D_l = (D_o - 1)S_l + K_l$, and a uniform tile stride is chosen per layer so that the number of tile movements $\alpha = (IFM_j - H_j)/p + 1$ is the same integer at every level, maximizing the stride to minimize overlap. Inside each pixel processing unit, window processing units compute $K \times K \times N$ inner products with online serial-parallel multipliers using radix-2 signed digits $\{-1,0,1\}$ and online delay $\delta = 2$; an early negative detection unit compares the accumulated positive and negative output digit streams $z^+[j]$ and $z^-[j]$ and stops a convolution when $z^+[j] < z^-[j]$. The most-significant-digit-first output lets the next pyramid level start before the previous one finishes, which is what reduces intermediate buffering.

What would settle it

Take one fused convolution layer with fixed n-bit quantized inputs and weights and compare the exact signed convolution output against the early-termination decision of Algorithm 2 for all input patches, or a large randomized sample. If any patch has a negative prefix but a positive exact output, the skipped computation would change the ReLU result and the no-accuracy-loss claim fails; a brute-force search over 8-bit operands should reveal such a case if the missing tail bound is false.

Watch

Extended reading notes

Core claim

On its own terms, the paper claims that the bottleneck in fused CNN accelerators is not just arithmetic speed but the stride of the moving tile: if each pyramid level strides by its own convolution stride, levels move at different rates, forcing stalls, extra overlap, and re-buffering. USEFUSE selects, for each layer, the largest tile stride that keeps the number of tile movements integer and identical across all pyramid levels, and it shows this uniform stride improves operational intensity while reusing overlapped output pixels rather than recomputing them. The compute units are sum-of-products (SOP) engines built from online serial-parallel multipliers operating in a radix-2 signed-digit representation, whose most-significant-digit-first output lets an early negative detection unit terminate a convolution as soon as the redundant positive and negative digit streams show a negative prefix. Measured on an FPGA at 100 MHz, the spatial design outperforms the conventional bit-serial fused design by 1.43x-1.87x and cuts energy by 42.6-48.5% for VGG-16, AlexNet, and LeNet-5, while the temporal design achieves 1.46x-1.68x speedups with a fraction of the logic area.

Load-bearing premise

The load-bearing premise is that once the most-significant-digit partial sum is negative, the uncomputed lower-order digits cannot make the final convolution output positive, so terminating early never changes the post-ReLU result; the paper verifies this empirically on selected filters but gives no mathematical bound.

Editorial extensions

If this is right

  • If the measured speedups hold, fused-layer CNN accelerators can shrink on-chip buffers, because most-significant-digit-first output digits can be fed to the next layer immediately, cutting BRAM use by up to 5.2x on VGG-16 in the temporal design.
  • Uniform tile stride would make multi-layer fusion practical for deeper networks, such as the four fused convolution layers tested in VGG-16, without cross-level synchronization stalls.
  • Early negative detection would reduce energy for any ReLU-based CNN, with roughly 41-43% of first-layer activations detected negative on AlexNet and VGG-16 in the paper's measurements.
  • The temporal design gives a resource-constrained path to similar speedups, achieving 1.46x-1.68x over the conventional bit-serial fused baseline while using a fraction of the logic resources.
  • For ResNet-18, the early detection technique saves up to 50.1% of effective computation cycles in an end-to-end fused run in the paper's experiment.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The no-accuracy-loss claim is only as strong as an unproven tail bound: if low-order digits can flip a negative prefix to a positive total, some pruned convolutions would be computed incorrectly. A conservative detector that waits until the maximum possible tail contribution is below the current negative margin would make the guarantee rigorous at some cost in savings.
  • The reported energy savings are measured on ten random filters of first convolution layers over 10,000 images; real deployments with different data and weights could see different fractions of negative activations and thus different savings.
  • The uniform-stride idea is a general nested-tiling principle and could be applied outside CNNs, for example to fused transformer attention or multi-stage stencil pipelines where tiles of different sizes must move in lockstep.
  • Because early termination relies on ReLU, the method's benefit is tied to ReLU-dominated networks; extending it to GELU or softmax would require implementing those activations in online arithmetic, which the paper leaves as future work.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes USEFUSE, a fused-layer CNN accelerator built around most-significant-digit-first (MSDF) online arithmetic sum-of-products units. The contributions are (i) online-arithmetic window processing units, (ii) a layer-fusion methodology with a uniform tile stride computed by Algorithm 4, (iii) early termination of convolutions whose activations would be zeroed by ReLU (Algorithm 2), and (iv) two accelerator variants, a spatial design DS-1 and a temporal design DS-2. Against three baselines, the paper reports 1.43x-1.87x speedups and 42.6%-48.5% energy savings, and it also compares with several previous FPGA accelerators. The main claims are that the uniform stride improves operational intensity and that early termination saves energy without accuracy loss.

Significance. If the speedup, energy, and no-accuracy-loss claims are established, the paper makes a useful contribution: it combines online arithmetic with fused-layer tiling in a concrete FPGA-oriented design, and the Baseline-3 comparison isolates the benefit of the proposed tile stride from the benefit of online arithmetic. The paper also provides RTL descriptions and FPGA implementation results, which is a strength. However, the central correctness property of the early termination rule is asserted rather than proved, and the cycle counts underlying the headline speedups are not validated against RTL simulation, which leaves the quantitative claims less firmly supported than they could be.

major comments (4)
  1. [Section 3.2, Algorithm 2] The no-accuracy-loss claim for early termination is not rigorously established. The condition z+[j] < z−[j] can be made correct by a short tail-bound argument: because the positive and negative bit strings are compared as length-j binary fractions, a strict negative prefix is at most −2^{−j}, while the maximum contribution of all remaining radix-2 signed digits is 2^{−j}, so the final result cannot be positive. The manuscript, however, does not provide this or any equivalent argument, and instead relies on the post-hoc feature-map inspection in Section 4.3 (Fig. 12), which covers only 10 random filters of the first convolution layers and does not report end-to-end classification accuracy with and without END. Please add a formal correctness proof for Algorithm 2 and report accuracy comparisons for the full tested networks; otherwise the phrase 'without accuracy loss' is unsupported.
  2. [Section 3.3.2, Algorithm 4] The uniform stride method is not shown to be always feasible. Algorithm 4 collects candidate strides p that make alpha(i,j,p) integral, and the text states that values of ST resulting in the same alpha for every layer 'can be evaluated' and 'obtained,' but no proof is given that such a common integer alpha exists for arbitrary CNN layer dimensions and tile sizes. Since the central fusion claim is that a uniform tile movement is guaranteed, please either prove existence under explicit conditions, state the conditions under which Algorithm 4 succeeds, or describe the fallback when no common alpha exists, and report the chosen alpha/ST values for LeNet-5, AlexNet, VGG, and ResNet-18.
  3. [Section 4.2, Eqs. (3)-(4); Section 4.3, Tables 1-4] The performance and latency numbers appear to be computed from analytic cycle formulas, but the paper does not validate Eqs. (3)-(4) against cycle-accurate RTL simulation or on-FPGA timing. The RTL is described as 'functionally verified,' which does not establish that the analytic cycle counts capture pipeline stalls, tile-movement overhead, or memory conflicts. This is load-bearing because the 1.43x-1.87x speedups are derived from these durations. In addition, Table 2 contains an arithmetically inconsistent VGG CONV1 row: 173,408,256 operations at 1243.10 GOPS requires 139.5 microseconds, not 13.95 microseconds, and the proposed-design entry correspondingly requires 86.4 microseconds, not 8.64 microseconds; with these corrected values the per-layer durations no longer sum to the reported fused duration. Please validate the cycle model against RTL and correct the table.
  4. [Section 4.3, Figs. 12-14 and Section 5] The claimed energy savings from early termination are not accompanied by an accuracy measurement. Figures 12-14 quantify how many activations are terminated and how many cycles are saved, but the paper never reports classification accuracy of the full network with and without the END mechanism. The statement in the limitations section that END 'limits the applicability to models relying on ReLU' is appropriate, but it does not replace a correctness or accuracy evaluation. Please report top-1 accuracy for the evaluated workloads under both configurations.
minor comments (5)
  1. [Section 3.3.2] The pseudocode of Algorithm 4 uses the expression 'IFM_j −H_j /p + 1' without parentheses; it should be written as (IFM_j − H_j)/p + 1 to avoid ambiguity.
  2. [Section 4.1] The text refers to 'Xilinx Ultrascale+ Vertix-7 VU19P'; the correct spelling is Virtex-7, and the device family should be stated consistently in Tables 3-4.
  3. [Abstract and Section 6] The phrase 'utile stride' appears in the abstract, while the paper otherwise uses 'uniform stride'; please make the terminology consistent.
  4. [Section 4.3, Table 5] The comparison with previous accelerators uses different FPGA devices, frequencies, and resource budgets; the throughput and latency ratios should be accompanied by a caveat that these are not iso-resource or iso-technology comparisons.
  5. [Section 4.3, Figs. 12-14] The figures report results for '10 randomly selected filters' and '10 randomly selected output feature maps,' but no random seed or confidence interval is given; please state whether these selections are representative and add variability information.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the fused-layer, tile-stride, and online-arithmetic claims are self-contained; the early-termination safety gap is a correctness risk, not circular reasoning.

full rationale

The paper's central claims—fused-layer tiling, uniform stride selection, online-arithmetic SOP units, and the reported performance/energy numbers—are evaluated against external baselines rather than derived from the claims themselves. Baseline-3 shares the proposed tile stride, isolating the contribution of online arithmetic. Algorithms 3 and 4 select tile strides by an integer-movement and uniformity constraint, not by fitting the reported speedups. The only author self-citation is [54] for the online serial-parallel multiplier, but that component has independent derivations in the cited digital-arithmetic literature [20] and is not the target claim being verified. Algorithm 2's early-termination rule lacks a tail bound, so the 'without accuracy loss' statement is unsupported; however, this is an unproven correctness assumption about radix-2 online arithmetic, not a reduction of the output claim to its own inputs. No fitted parameter is renamed as a prediction, and no uniqueness theorem is imported from the authors' prior work. Therefore the derivation chain is not circular, though the END claim needs additional proof of safety.

Assumptions & free parameters 0 free parameters · 4 assumptions · 0 invented entities

The central results depend on the safety of the early termination rule and on the existence of uniform integer strides for the tested networks. Both are assumed rather than established with external benchmarks or formal proofs. The cycle equations use standard online arithmetic delays from Ercegovac and Lang and the authors' prior multiplier design; no fitted parameters are introduced. No new physical or conceptual entities are proposed.

assumptions (4)
  • ad hoc to paper The early termination condition z+[j] < z-[j] reliably indicates a final negative result in radix-2 signed-digit online arithmetic.
    Algorithm 2 in Section 3.2; no bound on the tail's contribution is given, so the safety of early termination is assumed.
  • ad hoc to paper An integer tile stride exists for every layer such that the movement counts alpha are equal across all fusion pyramid levels.
    Algorithm 4 searches for such strides but provides no existence proof for arbitrary CNN configurations; only the tested networks are shown to have solutions.
  • domain assumption ReLU is the activation function in the fused layers, and negative convolution outputs are discarded.
    Used throughout Section 3.2 and the END mechanism; the paper itself acknowledges in Section 5 that this limits applicability to ReLU-based models.
  • domain assumption Square tiles are used at every pyramid level.
    Stated in Section 3.3.1; this restricts the generality of the tile size and stride calculations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of USEFUSE: Uniform Stride for Enhanced Performance in Fused Layer Architecture of Deep Neural Networks." pith.science (2026). https://pith.science/paper/MSL2YDDW

@misc{pith2026241213724,
  author       = {Pith},
  title        = {Pith review of: USEFUSE: Uniform Stride for Enhanced Performance in Fused Layer Architecture of Deep Neural Networks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MSL2YDDW}},
  note         = {Machine review of arXiv:2412.13724}
}
read the original abstract

Convolutional Neural Networks (CNNs) are crucial in various applications, but their deployment on resource-constrained edge devices poses challenges. This study presents the Sum-of-Products (SOP) units for convolution, which utilize low-latency left-to-right bit-serial arithmetic to minimize response time and enhance overall performance. The study proposes a methodology for fusing multiple convolution layers to reduce off-chip memory communication and increase overall performance. An effective mechanism detects and skips inefficient convolutions after ReLU layers, minimizing power consumption without compromising accuracy. Furthermore, efficient tile movement guarantees uniform access to the fusion pyramid. An analysis demonstrates the utile stride strategy improves operational intensity. Two designs cater to varied demands: one focuses on minimal response time for mission-critical applications, and another focuses on resource-constrained devices with comparable latency. This approach notably reduced redundant computations, improving the efficiency of CNN deployment on edge devices.

Figures

Figures reproduced from arXiv: 2412.13724 by the authors.

Figure 1
Figure 1. A general CNN architecture. A generic CNN architecture is illustrated in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Proposed layer fusion accelerator design pipeline [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

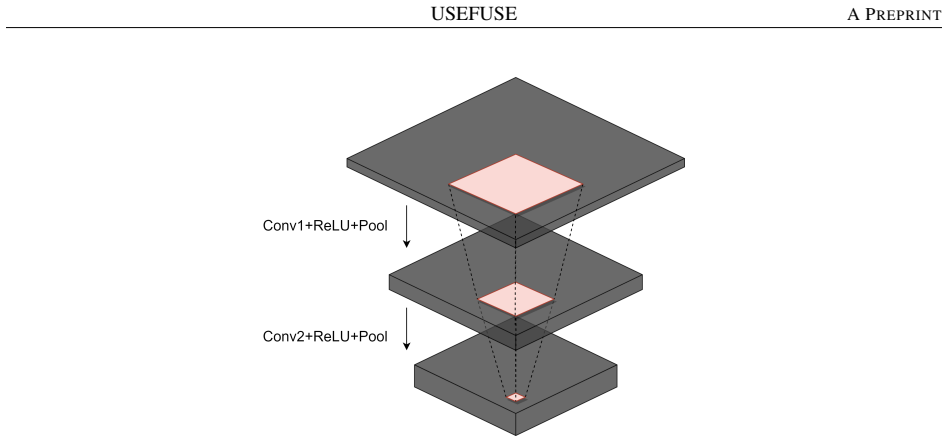

Figure 3. General layer fusion scheme the tile sizes of the respective layers in the fusion pyramid. Consider an example of a simple CNN such as LeNet-5 whose first two convolution layers are to be fused. Each convolution layer is followed by a sub-sampling layer, like Maxpooling. In a fusion of two convolution layers, R = C = 1 output pixels from the second sub-sampling layer serve as input to the third layer. To determine t… view at source ↗
Figures from the paper (11 more)
Figure 4

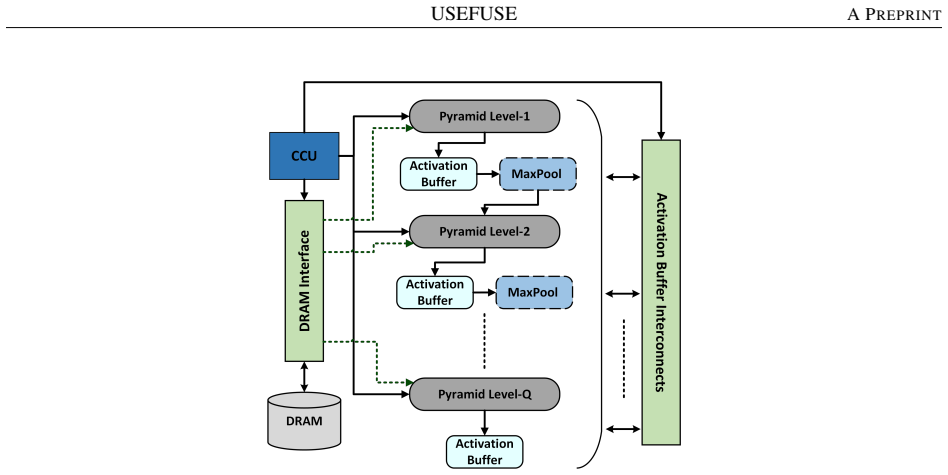

Figure 4. Figure 4: Overall Architecture. The solid black arrows represent the input, output, and control connections, while the [PITH_FULL_IMAGE:figures/full_fig_p010_4.png]
Figure 5
Figure 5. Figure 5: Tile/Pyramid Level Design [PITH_FULL_IMAGE:figures/full_fig_p011_5.png]
Figure 6
Figure 6. Figure 6: Internal Architecture of the Proposed Pixel Processing Unit with the window processing unit (WPU-S) that [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: Architecture of the proposed window processing unit (WPU-T) that leverages the temporal computation [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8
Figure 8. Figure 8: Architecture of the window processing unit (WPU-S), for conventional bit-serial design, that performs [PITH_FULL_IMAGE:figures/full_fig_p012_8.png]
Figure 9
Figure 9. Figure 9: Architecture of the window processing unit (WPU-T), for conventional bit-serial design, that performs [PITH_FULL_IMAGE:figures/full_fig_p013_9.png]
Figure 10
Figure 10. Figure 10: Performance vs. operational intensity comparison of the proposed spatial design (DS-1) with the baseline [PITH_FULL_IMAGE:figures/full_fig_p014_10.png]
Figure 11
Figure 11. Figure 11: Performance vs. operational intensity comparison of the proposed spatial (DS-1) and temporal (DS-2) [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 12
Figure 12. Figure 12: Percentage of detected negative/ineffective activations for [PITH_FULL_IMAGE:figures/full_fig_p017_12.png]
Figure 13
Figure 13. Figure 13: Energy savings with the proposed early negative detection (END) technique for the first convolution layers [PITH_FULL_IMAGE:figures/full_fig_p018_13.png]
Figure 14
Figure 14. Figure 14: The average effective computation cycles for each fusion pyramid were compared between the Baseline-3 design and the proposed design, with and without the END technique. The results showed that the END technique achieved an average savings of 50.1% in computation cycl…
