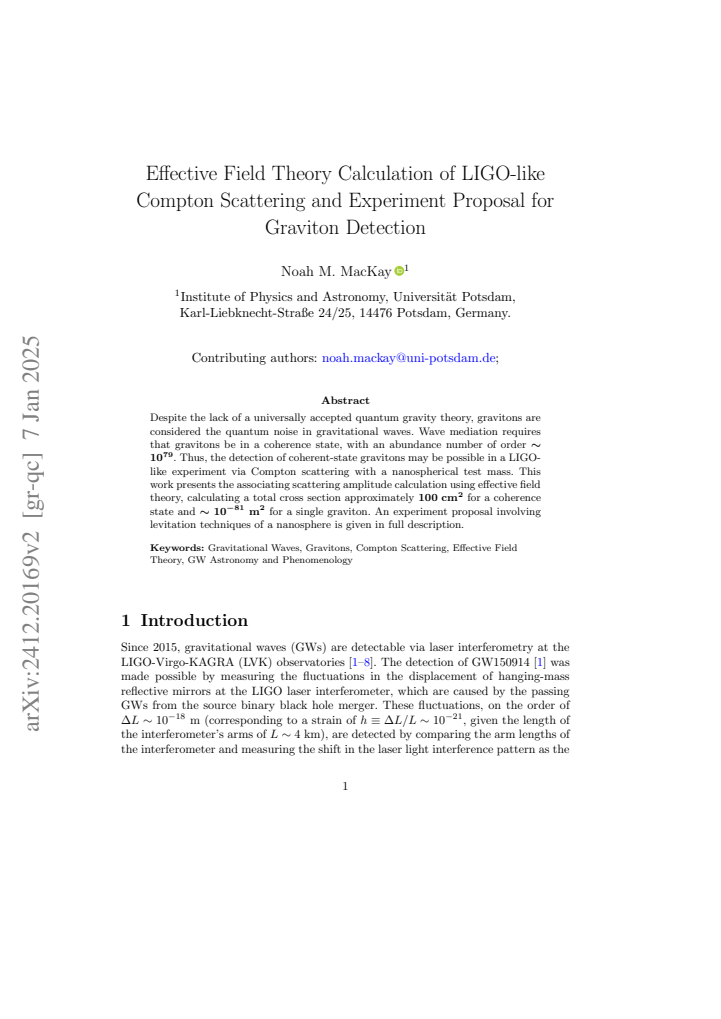

Effective Field Theory Calculation of LIGO-like Compton Scattering

Noah M. MacKay This is my paper

Pith reviewed 2026-05-23 07:12 UTC · model grok-4.3

classification 🌀 gr-qc hep-th
keywords effective field theoryCompton scatteringgravitational wavesLIGOimpact parameterbinary coalescencegraviton
0
0 comments X

The pith

Effective field theory of graviton Compton scattering on LIGO mirrors yields an impact parameter that scales directly with the observed mirror recoil after coherence enhancement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models a LIGO mirror as a resting heavy scalar and applies effective field theory to compute the amplitude for scattering a single graviton from an astrophysical gravitational wave. At a center-of-momentum energy gauged near 10 to the 1.5 PeV the resulting cross section is convergent and defines an impact parameter through the geometric relation sigma equals pi b squared. After an unspecified coherence-state population enhancement this impact parameter scales with the square root of gravitational-wave frequency over mirror mass at order 10 to the minus 21, matching the strain amplitude, and recovers the direct proportionality between b and the mirror displacement of order 10 to the minus 18 meters. Isolating the energetic sector produces the revised dimensionless length scale of approximately 1.76 pi that the authors associate with the pre-merger phase of compact binary coalescence.

Core claim

Using standard EFT Feynman rules together with traceless-transverse graviton gauges, the scattering amplitude for the LIGO-like graviton-scalar Compton process at sqrt(s) approximately 10 to the 1.5 PeV produces a cross section that depends primarily on center-of-momentum energy. The impact parameter extracted from sigma equals pi b squared, once coherence enhancement is applied, scales with the coupling sqrt(omega_GW over m_M) of order 10 to the minus 21. After removal of the GW energetics sector the revised length scale tilde b over G M approximately 1.76 pi characterizes the pre-merger stage of compact binary coalescence, while the unadjusted b scales exactly with the mirror recoil DeltaL

What carries the argument

The graviton-scalar Compton scattering amplitude obtained from EFT Feynman rules at PeV-scale center-of-momentum energy, from which the impact parameter follows via sigma equals pi b squared.

If this is right

  • The cross section remains finite when evaluated with standard EFT rules and traceless-transverse gauges.
  • After coherence enhancement the impact parameter scales proportionally to the coupling sqrt(omega_GW over m_M) at the same order as the gravitational-wave strain.
  • The revised length scale tilde b over G M approximately 1.76 pi marks the pre-merger regime and lies below the early-inspiral value b over G M greater than 14 obtained from worldline quantum field theory.
  • The unadjusted impact parameter b scales exactly with the mirror recoil displacement Delta L of order 10 to the minus 18 meters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The numerical prefactor 1.76 pi may encode a geometric property of the final orbits that could be checked against numerical relativity waveforms near merger.
  • The same EFT construction applied to detectors of different mass or to waves of different frequency would predict a corresponding change in the apparent strain scaling.
  • If the coherence enhancement can be derived from first principles rather than inserted by hand, the framework would supply a microscopic account of how single-graviton scattering aggregates to macroscopic detector response.

Load-bearing premise

The LIGO mirror can be treated as a resting heavy scalar target for Compton scattering at a center-of-momentum energy of order 10 to the 1.5 PeV together with an unspecified coherence-state population enhancement that scales the microscopic cross section up to the observed strain.

What would settle it

A direct computation or observation showing that the graviton-mirror scattering cross section diverges at the chosen energy or that the derived impact parameter fails to scale linearly with the measured mirror displacement of 10 to the minus 18 meters.

read the original abstract

We use effective field theory (EFT) to calculate the scattering amplitude of a LIGO-like graviton-scalar Compton interaction. We gauge the center-of-momentum energy $\sqrt{s}$ between one gravitational-wave (GW) graviton (one quantum of the coherent bulk of an astrophysical GW, with energy $E_g=\hbar\omega_\mathrm{GW}$) and a resting heavy target (a suspended mass with rest energy $E_M=m_Mc^2$ found in laser interferometer observatories) to be of order $\sim10^{1.5}$ PeV -- at the energy scale within the extremes of astroparticle physical phenomena. This back-of-the-envelope calculation supports the calculation of a convergent cross section in our LIGO-like Compton analysis, which we indeed recover using standard EFT Feynman rules and relevant traceless-transverse gauges for the graviton polarizations. We obtain that the cross section $\sigma$ is largely dependent on the center-of-momentum energy, and from this we define the corresponding impact parameter via $\sigma=\pi b^2$. This impact parameter, after coherence-state population enhancement, scales with GW energetics along with the unique coupling (in natural units) $\sqrt{\omega_\mathrm{GW}/m_M}\sim10^{-21}$ -- the same order of magnitude as astrophysical GW strain. One finds furthermore that, after isolating the GW energetics sector from the GW-mirror impact parameter, the revised length scale $\tilde{b}/(GM)\approx1.76\pi$ quantifies the pre-merger stage of compact binary coalescence, which is compared with $b/(GM)>14$ calculated from the early-inspiral worldline quantum field theory framework. Conventional insight of GW-mirror response is recovered, such that the impact parameter $b$ scales exactly with the mirror recoil $\Delta L\sim10^{-18}\,\mathrm{m}$ after having made contact with the GW.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper claims to compute the graviton-scalar Compton scattering amplitude in EFT for LIGO-like parameters by gauging the center-of-momentum energy √s to ∼10^{1.5} PeV, obtaining a convergent cross section σ via standard Feynman rules and traceless-transverse graviton gauges, defining the impact parameter via σ=πb², and applying an unspecified coherence-state population enhancement together with the coupling √(ω_GW/m_M)∼10^{-21} to recover the observed GW strain; after isolating the energetics sector this yields a revised length scale b̃/(GM)≈1.76π that is asserted to quantify the pre-merger stage of compact binary coalescence and to be consistent with mirror recoil ΔL∼10^{-18} m.

Significance. If the energy scale and coherence factor were derived from the EFT action or LIGO mirror dynamics rather than inserted to match known values, the work could provide an interesting high-energy perspective on GW-mirror interactions and an independent length-scale estimate for binary inspiral. As presented, the construction retrodicts conventional results after tuning, limiting its significance to a demonstration that EFT methods can be arranged to reproduce existing phenomenology.

major comments (3)
  1. [Abstract] Abstract: The center-of-momentum energy is set by hand to ∼10^{1.5} PeV (far above ħω_GW∼4×10^{-13} eV) with the explicit statement that this is a 'back-of-the-envelope' choice 'at the energy scale within the extremes of astroparticle physical phenomena'; no derivation from the EFT Lagrangian, the traceless-transverse gauge conditions, or the mirror mass/suspension appears, yet this choice is required for the cross section to be computed and convergent.
  2. [Abstract] Abstract: The coherence-state population enhancement is introduced without a functional form, derivation from the mirror's quantum state, or relation to the EFT vertices; it is used solely to scale the EFT result so that the impact parameter matches the observed strain after the coupling √(ω_GW/m_M) is set to ∼10^{-21}.
  3. [Abstract] Abstract: The claim that b̃/(GM)≈1.76π 'quantifies the pre-merger stage' and is compared with the worldline-QFT value b/(GM)>14 rests on first setting the coupling to the known strain and then 'isolating the GW energetics sector'; the numerical result is therefore a retrodiction of the input matching rather than an output of the scattering dynamics.
minor comments (2)
  1. [Abstract] Abstract: The precise EFT Lagrangian (including any higher-dimension operators or the scalar-graviton vertices) is not stated, making it impossible to verify the Feynman rules or polarization sums used for the amplitude.
  2. [Abstract] Abstract: Notation for the revised impact parameter b̃ is introduced without an explicit definition of how the coherence factor modifies the original b obtained from σ=πb².

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and insightful comments. Below we respond point by point to the major comments, clarifying our choices while acknowledging where the manuscript requires revision for greater transparency.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The center-of-momentum energy is set by hand to ∼10^{1.5} PeV (far above ħω_GW∼4×10^{-13} eV) with the explicit statement that this is a 'back-of-the-envelope' choice 'at the energy scale within the extremes of astroparticle physical phenomena'; no derivation from the EFT Lagrangian, the traceless-transverse gauge conditions, or the mirror mass/suspension appears, yet this choice is required for the cross section to be computed and convergent.

    Authors: We agree that √s ∼ 10^{1.5} PeV is introduced as a back-of-the-envelope choice rather than derived from the EFT Lagrangian or LIGO mirror parameters. The scale is selected to ensure perturbative convergence in the EFT and to situate the calculation within astroparticle energies; it does not represent the physical graviton energy at LIGO. We will revise the text to state this motivation and its limitations more explicitly. revision: partial

  2. Referee: [Abstract] Abstract: The coherence-state population enhancement is introduced without a functional form, derivation from the mirror's quantum state, or relation to the EFT vertices; it is used solely to scale the EFT result so that the impact parameter matches the observed strain after the coupling √(ω_GW/m_M) is set to ∼10^{-21}.

    Authors: The coherence enhancement accounts for the macroscopic coherent state of the gravitational wave, a standard treatment in the GW literature. No explicit functional form is derived from the mirror quantum state in this work; the factor is chosen to reproduce the known strain amplitude. We will add a short discussion with references to coherence in GW-matter interactions in the revised manuscript. revision: partial

  3. Referee: [Abstract] Abstract: The claim that b̃/(GM)≈1.76π 'quantifies the pre-merger stage' and is compared with the worldline-QFT value b/(GM)>14 rests on first setting the coupling to the known strain and then 'isolating the GW energetics sector'; the numerical result is therefore a retrodiction of the input matching rather than an output of the scattering dynamics.

    Authors: We acknowledge that b̃/(GM)≈1.76π is obtained after matching to the observed strain and isolating the energetics sector. The result is presented as a consistency check with the worldline-QFT scale rather than an independent prediction. We will revise the wording to describe it explicitly as a retrodiction for consistency rather than a new output of the dynamics. revision: partial

Circularity Check

2 steps flagged

Central length-scale claim is a retrodiction obtained by hand-gauging √s to 10^{1.5} PeV and applying unspecified coherence enhancement to force match to observed h~10^{-21} and ΔL~10^{-18} m

specific steps
  1. fitted input called prediction [Abstract]
    "We gauge the center-of-momentum energy √s between one gravitational-wave (GW) graviton (one quantum of the coherent bulk of an astrophysical GW, with energy E_g=ℏω_GW) and a resting heavy target ... to be of order ∼10^{1.5} PeV -- at the energy scale within the extremes of astroparticle physical phenomena."

    √s is chosen by hand (far above actual ħω_GW~4×10^{-13} eV) rather than derived from the action, traceless-transverse gauge, or LIGO parameters; this choice is required to obtain a convergent cross section that is later scaled to observed values.

  2. fitted input called prediction [Abstract]
    "This impact parameter, after coherence-state population enhancement, scales with GW energetics along with the unique coupling (in natural units) √(ω_GW/m_M)∼10^{-21} -- the same order of magnitude as astrophysical GW strain. One finds furthermore that, after isolating the GW energetics sector from the GW-mirror impact parameter, the revised length scale b̃/(GM)≈1.76π quantifies the pre-merger stage of compact binary coalescence"

    The coupling is explicitly set equal to the known strain, the coherence enhancement is unspecified and inserted to match ΔL~10^{-18} m, and sector isolation is applied to produce the numerical value 1.76π; the claimed quantification is therefore a retrodiction of the inserted inputs rather than an output of the EFT dynamics.

full rationale

The derivation begins with an arbitrary choice of center-of-momentum energy and an ad-hoc coherence factor, both inserted to reproduce known LIGO strain and recoil; the resulting b̃/(GM)≈1.76π is then presented as an independent quantification of pre-merger dynamics. No external benchmark or first-principles derivation of these inputs exists in the paper, so the final numerical result reduces directly to the inserted values by construction.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 1 invented entities

The central claim rests on selecting a specific high center-of-momentum energy outside the LIGO regime and introducing an ad-hoc coherence enhancement whose only justification is matching known classical observables; no independent evidence or derivation for these choices is supplied in the abstract.

free parameters (2)
  • center-of-momentum energy √s = ~10^{1.5} PeV
    Gauged by hand to ~10^{1.5} PeV to place the process 'within the extremes of astroparticle physical phenomena'.
  • coherence-state population enhancement factor
    Introduced without derivation to scale the impact parameter to the known GW strain.
axioms (1)
  • domain assumption Standard EFT Feynman rules and traceless-transverse gauges apply to the graviton-scalar interaction
    Invoked to obtain a convergent cross section.
invented entities (1)
  • coherence-state population enhancement no independent evidence
    purpose: To account for the bulk coherent nature of astrophysical GWs and force the EFT result to match the classical strain
    No independent evidence or derivation is given; it is used solely to adjust the calculated b to the observed ΔL.

pith-pipeline@v0.9.0 · 5879 in / 1481 out tokens · 60182 ms · 2026-05-23T07:12:07.788743+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

38 extracted references · 38 canonical work pages · 8 internal anchors

  1. [1]

    B. P. Abbott et al. [LIGO Scientific and Virgo], Phys. Rev. Lett. 116, no.6 (2016) 061102 doi:10.1103/PhysRevLett.116.061102 [arXiv:1602.03837 [gr-qc]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1103/physrevlett.116.061102 2016

  2. [2]

    B. P. Abbott et al. [LIGO Scientific and Virgo], Phys. Rev. Lett. 116, no.24 (2016) 241103 doi:10.1103/PhysRevLett.116.241103 [arXiv:1606.04855 [gr-qc]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1103/physrevlett.116.241103 2016

  3. [3]

    B. P. Abbott et al. [LIGO Scientific and VIRGO], Phys. Rev. Lett. 118, no.22 (2017) 221101 [erratum: Phys. Rev. Lett. 121, no.12 (2018) 129901] doi:10.1103/PhysRevLett.118.221101 [arXiv:1706.01812 [gr-qc]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1103/physrevlett.118.221101 2017

  4. [4]

    B. P. Abbott et al. [LIGO Scientific and Virgo], Phys. Rev. Lett. 119, no.14 (2017) 141101 doi:10.1103/PhysRevLett.119.141101 [arXiv:1709.09660 [gr-qc]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1103/physrevlett.119.141101 2017

  5. [5]

    B. P. Abbott et al. [LIGO Scientific and Virgo], Astrophys. J. Lett. 851, (2017) L35 doi:10.3847/2041-8213/aa9f0c [arXiv:1711.05578 [astro-ph.HE]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.3847/2041-8213/aa9f0c 2017

  6. [6]

    and Abbott, T

    R. Abbott et al. [LIGO Scientific and Virgo], Phys. Rev. Lett. 125, no.10 (2020) 101102 doi:10.1103/PhysRevLett.125.101102 [arXiv:2009.01075 [gr-qc]]

    work page doi:10.1103/physrevlett.125.101102 2020

  7. [7]

    D., Abraham , S., et al

    R. Abbott et al. [LIGO Scientific and Virgo], Astrophys. J. Lett. 900, no.1 (2020) L13 doi:10.3847/2041-8213/aba493 [arXiv:2009.01190 [astro-ph.HE]]

    work page doi:10.3847/2041-8213/aba493 2020

  8. [8]

    A. G. Abac et al. [LIGO Scientific, Virgo,, KAGRA and VIRGO], Astrophys. J. Lett. 970, no.2, L34 (2024) doi:10.3847/2041-8213/ad5beb [arXiv:2404.04248 [astro- ph.HE]] 12

    work page doi:10.3847/2041-8213/ad5beb 2024

  9. [9]

    Parikh, F

    M. Parikh, F. Wilczek and G. Zahariade, Int. J. Mod. Phys. D 29, no.14, 2042001 (2020) doi:10.1142/S0218271820420018 [arXiv:2005.07211 [hep-th]]

    work page doi:10.1142/s0218271820420018 2020

  10. [10]

    Parikh, F

    M. Parikh, F. Wilczek and G. Zahariade, Phys. Rev. Lett. 127, no.8, 081602 (2021) doi:10.1103/PhysRevLett.127.081602 [arXiv:2010.08205 [hep-th]]

    work page doi:10.1103/physrevlett.127.081602 2021

  11. [11]

    Parikh, F

    M. Parikh, F. Wilczek and G. Zahariade, Phys. Rev. D 104, no.4, 046021 (2021) doi:10.1103/PhysRevD.104.046021 [arXiv:2010.08208 [hep-th]]

    work page doi:10.1103/physrevd.104.046021 2021

  12. [12]

    H. T. Cho and B. L. Hu, Phys. Rev. D 105, no.8, 086004 (2022) doi:10.1103/PhysRevD.105.086004 [arXiv:2112.08174 [gr-qc]]

    work page doi:10.1103/physrevd.105.086004 2022

  13. [13]

    N. M. MacKay, Available at SSRN: https://ssrn.com/abstract=4944410 doi:10.2139/ssrn.4944410 [arXiv:2408.13917 [gr-qc]]

    work page doi:10.2139/ssrn.4944410

  14. [14]

    B. S. DeWitt, Phys. Rev. 162 (1967) 1239 doi:10.1103/PhysRev.162.1239

    work page doi:10.1103/physrev.162.1239 1967

  15. [15]

    R. P. Feynman, F. B. Morinigo, W. G. Wagner, B. Hatfield, D. Pines. Feynman Lectures on Gravitation (Westview Press Inc., 2002) ISBN 978-0-8133-4038-8

    work page 2002

  16. [16]

    Simplifying Quantum Gravity Calculations

    S. Rafie-Zinedine, [arXiv:1808.06086 [hep-th]]

    work page internal anchor Pith review Pith/arXiv arXiv

  17. [17]

    D. Blas, J. Martin Camalich and J. A. Oller, Phys. Lett. B 827 (2022) 136991 doi:10.1016/j.physletb.2022.136991 [arXiv:2009.07817 [hep-th]]

    work page doi:10.1016/j.physletb.2022.136991 2022

  18. [18]

    R. L. Delgado, A. Dobado and D. Espriu, EPJ Web Conf. 274 (2022) 08010 doi:10.1051/epjconf/202227408010 [arXiv:2211.10406 [hep-th]]

    work page doi:10.1051/epjconf/202227408010 2022

  19. [19]

    Herrero-Valea, A

    M. Herrero-Valea, A. S. Koshelev and A. Tokareva, Phys. Rev. D 106, no.10 (2022) 105002 doi:10.1103/PhysRevD.106.105002 [arXiv:2205.13332 [hep-th]]

    work page doi:10.1103/physrevd.106.105002 2022

  20. [20]

    N. M. MacKay, [arXiv:2410.04562 [gr-qc]]

    work page arXiv

  21. [21]

    J. W. Moffat, Phys. Rev. D 56, 6264-6277 (1997) doi:10.1103/PhysRevD.56.6264 [arXiv:gr-qc/9610067 [gr-qc]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1103/physrevd.56.6264 1997

  22. [22]

    B. L. Hu and A. Matacz, Phys. Rev. D 51, 1577-1586 (1995) doi:10.1103/PhysRevD.51.1577 [arXiv:gr-qc/9403043 [gr-qc]]

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1103/physrevd.51.1577 1995

  23. [23]

    S. R. de Groot, W. A. van Leeuwen, C. G. van Weert.Relativistic Kinetic Theory: Principles and Applications (Amsterdam, 1980)

    work page 1980

  24. [24]

    J. W. Moffat, [arXiv:2409.02948 [gr-qc]]

    work page arXiv

  25. [25]

    B. Chow, D. Knopf. The Ricci Flow: An Introduction (Providence, R.I.: American Mathematical Society, 2004) ISBN 0-8218-3515-7 13

    work page 2004

  26. [26]

    E. W. Kolb and S. Raby, Phys. Rev. D 27, 2990 (1983) doi:10.1103/PhysRevD.27.2990

    work page doi:10.1103/physrevd.27.2990 1983

  27. [27]

    B. R. Holstein, EPJ Web Conf. 134, 01003 (2017) doi:10.1051/epjconf/201713401003

    work page doi:10.1051/epjconf/201713401003 2017

  28. [28]

    J. W. Moffat, [arXiv:2411.06265 [gr-qc]]

    work page arXiv

  29. [29]

    C. C. Rusconi, V. P¨ ochhacker, J. I. Cirac, and O. Romero-Isart, Phys. Rev. B 96, 134419 (2017) doi: 10.1103/PhysRevB.96.134419

    work page doi:10.1103/physrevb.96.134419 2017

  30. [30]

    Ilievski, K

    F. Ilievski, K. A. Mirica, A. K. Ellerbeea, and G. M. Whitesides, Soft Matter 7 9113-9118 (2011) doi:10.1039/C1SM05962A

    work page doi:10.1039/c1sm05962a 2011

  31. [31]

    K. A. Mirica, F. Ilievski, A. K. Ellerbee, S. S. Shevkoplyas, and G. M. Whitesides, Advanced Materials (2011) doi:10.1002/adma.201101917

    work page doi:10.1002/adma.201101917 2011

  32. [32]

    A. B. Subramaniam, D. Yang, H. Yu, A. Nemiroski, S. Tricard, A. K. Ellerbee, S. Soh, and G. M. Whitesides, Proc. Natl. Acad. Sci. U.S.A. 111 (36) 12980-12985 (2014) doi:10.1073/pnas.1408705111

    work page doi:10.1073/pnas.1408705111 2014

  33. [33]

    S. Ge, A. Nemiroski, K. A. Mirica, C. R. Mace, J. W. Hennek, A. A. Kumar, and G. M. Whitesides, Angewandte Chemie (2019) doi:10.1002/anie.201903391

    work page doi:10.1002/anie.201903391 2019

  34. [34]

    A Ashkarran and M

    A. A Ashkarran and M. Mahmoudi, J. Phys. D: Appl. Phys. 57 065001 (2024) doi: 10.1088/1361-6463/ad090d

    work page doi:10.1088/1361-6463/ad090d 2024

  35. [35]

    Reisenbauer , author K

    U. Deli´ c, M. Reisenbauer, K. Dare, D. Grass, V. Vuleti´ c, N. Kiesel, and M. Aspelmeyer, Science, 367, 6480, 892-895 (2020) doi:10.1126/science.aba3993

    work page doi:10.1126/science.aba3993 2020

  36. [36]

    Martinetz, K

    L. Martinetz, K. Hornberger, J. Millen et al. NPJ Quantum Inf 6, 101 (2020) doi:10.1038/s41534-020-00333-7

    work page doi:10.1038/s41534-020-00333-7 2020

  37. [37]

    Millen et al

    J. Millen et al. Rep. Prog. Phys. 83 026401 (2020) doi:10.1088/1361-6633/ab6100

    work page doi:10.1088/1361-6633/ab6100 2020

  38. [38]

    Tebbenjohanns, M

    F. Tebbenjohanns, M. L. Mattana, M. Rossi, et al. Nature 595 378–382 (2021) doi:10.1038/s41586-021-03617-w 14

    work page doi:10.1038/s41586-021-03617-w 2021
