From Flow to Form: Emergence of the Cytokinetic Ring via Active Cortical Dynamics

Sabyasachi Mukherjee , Anirban Sain This is my paper

Pith reviewed 2026-05-10 05:45 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.bio-ph
keywords actomyosin cortexcytokinetic ringcell divisionnematic orderactive flowsphase field modelcortical dynamicsinvagination
0
0 comments X

The pith

Active cortical flows in a cell model spontaneously form a nematic actomyosin ring at the equator that drives sharp invagination.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models the thin gel-like cortex beneath the cell surface as an active deformable shell whose internal flows and filament alignments interact. Simulations show that a ring of aligned actomyosin filaments emerges on its own at the cell's midplane. This ring then produces the inward forces that create a sharp pinch during division. Flow patterns around the pinch site, including counter-rotating streams, appear when the initial filament alignment carries a directional bias, producing a memory effect that does not require the filaments themselves to be chiral. A simpler flat-interface model isolates the activity gradients and compressive flows that trigger the surface instability responsible for both the ring and the pinch.

Core claim

Using 3D phase field simulations that couple cortical velocity and nematic order in an active deformable shell, a nematic-like actomyosin ring forms spontaneously at the equator and generates the stresses for sharp invagination. Cortical flow patterns, including counter-rotating flows near the furrow, arise from bias in the initial nematic alignment rather than intrinsic chirality of the filaments, revealing a memory effect. Analysis of a reduced model of activity-gradient-driven compressive flow on a flat interface identifies the key ingredients for the surface instability that produces both invagination and opposing flows.

What carries the argument

The coupled dynamics of cortical velocity and nematic order captured in a 3D phase field model of an active deformable shell.

If this is right

  • A contractile ring can assemble at the equator purely from internal cortical activity and alignment dynamics without external positioning signals.
  • Counter-rotating flows near the division site can be produced by initial nematic bias alone, removing the need to invoke intrinsic filament chirality.
  • The surface instability that leads to invagination is driven by compressive flows from activity gradients on the cortex.
  • Memory of the initial nematic configuration persists and shapes subsequent flow patterns during division.
  • The same active-gel ingredients may operate in other contexts where cortical flows reshape cells.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Experiments could test the memory effect by preparing cells with controlled initial filament alignment and checking whether counter-rotating flows appear only when bias is present.
  • If the mechanism is confirmed, models of cytokinesis could be simplified by treating alignment history as a controllable variable rather than assuming built-in chirality.
  • The instability analysis on a flat interface suggests similar activity-gradient rules may apply to other active nematic surfaces, such as those in wound healing or tissue morphogenesis.

Load-bearing premise

The 3D phase field simulation of the active deformable shell accurately captures the real coupled dynamics of cortical velocity and nematic order without the observed behaviors being artifacts of the chosen parameters or initial conditions.

What would settle it

If live-cell imaging shows that counter-rotating flows near the furrow persist when initial nematic alignment is made isotropic, or that no equatorial ring and sharp invagination form under activity gradients matching the model, the proposed mechanism would not hold.

Figures

Figures reproduced from arXiv: 2604.17349 by Anirban Sain, Sabyasachi Mukherjee.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

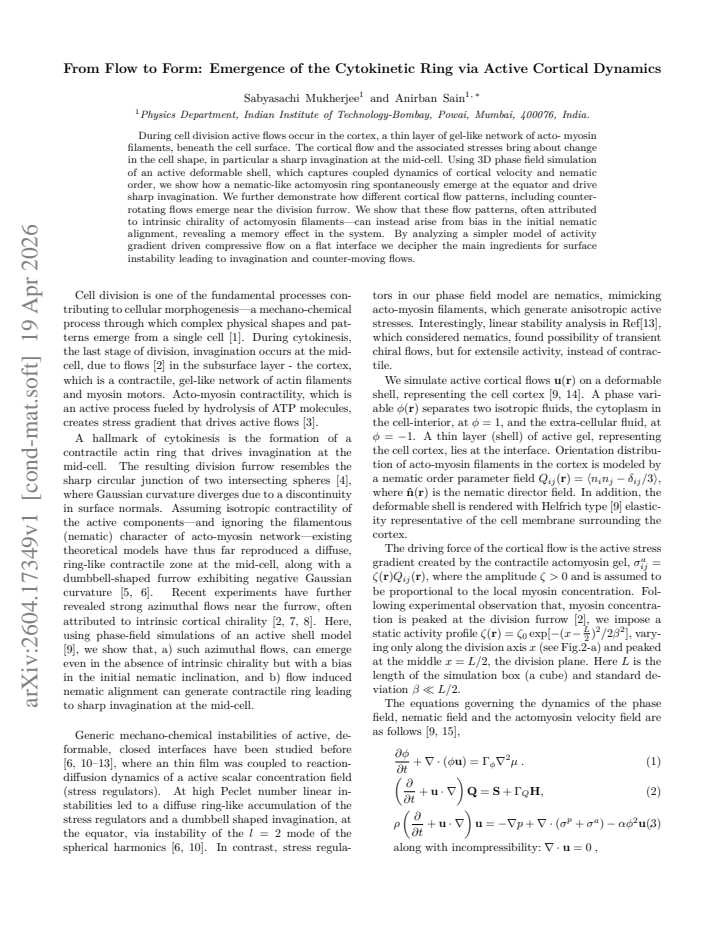

read the original abstract

During cell division active flows occur in the cortex, a thin layer of gel like network of acto myosin filaments, beneath the cell surface. The cortical flow and the associated stresses bring about change in the cell shape, in particular a sharp invagination at the mid cell. Using 3D phase field simulation of an active deformable shell, which captures coupled dynamics of cortical velocity and nematic order, we show how a nematic like actomyosin ring spontaneously emerge at the equator and drive sharp invagination. We further demonstrate how different cortical flow patterns, including counter rotating flows emerge near the division furrow. We show that these flow patterns, often attributed to intrinsic chirality of actomyosin filaments can instead arise from bias in the initial nematic alignment, revealing a memory effect in the system. By analyzing a simpler model of activity gradient driven compressive flow on a flat interface we decipher the main ingredients for surface instability leading to invagination and counter moving flows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper uses 3D phase-field simulations of an active deformable shell to model the cell cortex during division. It claims that a nematic actomyosin ring spontaneously forms at the equator and drives sharp invagination, while counter-rotating flows near the furrow arise from initial nematic alignment bias (revealing a memory effect) rather than intrinsic filament chirality. A reduced flat-interface model of activity-gradient-driven compressive flow is analyzed to identify the instability ingredients responsible for invagination and counter-moving flows.

Significance. If the central claims hold, the work provides a mechanism for cytokinetic ring emergence and cortical flow patterns based on coupled velocity-nematic dynamics and initial conditions, without explicit chirality. The dual approach of 3D simulations plus a simpler flat model is a strength for identifying generic instability mechanisms. This could influence models of cell division in active matter and biophysics, particularly if the behaviors prove robust beyond the specific parameter choices.

major comments (2)
  1. [3D phase-field simulation results] 3D phase-field simulation results: The spontaneous equatorial ring formation, invagination, and bias-driven counter-rotating flows are demonstrated for one set of activity parameters and initial nematic alignment. No systematic variation of the free-energy functional, anchoring conditions, or activity gradient is reported, so it remains unclear whether these outcomes are generic or sensitive to the chosen implementation (as flagged by the weakest assumption in the stress-test note).
  2. [Flat-interface model analysis] Flat-interface model analysis: The compressive-flow instability ingredients identified on the flat interface are invoked to explain the 3D shell behaviors, yet the mapping is not shown to be one-to-one. Curvature and geometry terms present in the 3D deformable shell (absent in the flat reduction) could modify the instability threshold or flow patterns, weakening the claim that the flat model fully accounts for the observed 3D ring and counter-rotating flows.
minor comments (2)
  1. [Abstract] The abstract refers to a 'nematic like actomyosin ring' without specifying the precise definition of the nematic order parameter or its coupling to the velocity field; this should be clarified with an equation in the methods.
  2. [Figures] Figure captions for the 3D simulation snapshots should explicitly state the values of activity strength and initial alignment bias used, to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major point below and indicate the revisions made to strengthen the work.

read point-by-point responses

  1. Referee: [3D phase-field simulation results] 3D phase-field simulation results: The spontaneous equatorial ring formation, invagination, and bias-driven counter-rotating flows are demonstrated for one set of activity parameters and initial nematic alignment. No systematic variation of the free-energy functional, anchoring conditions, or activity gradient is reported, so it remains unclear whether these outcomes are generic or sensitive to the chosen implementation (as flagged by the weakest assumption in the stress-test note).

    Authors: We agree that demonstrating robustness through systematic variation would strengthen the claims. In the revised manuscript we have added a new supplementary figure and accompanying text that explores variations in activity strength, activity gradient magnitude, and initial nematic alignment bias (while keeping the free-energy functional and anchoring conditions fixed to the biologically motivated values used in the main text). These additional simulations confirm that equatorial ring formation, sharp invagination, and bias-driven counter-rotating flows persist across the explored range, with the onset of instability consistent with the activity-gradient threshold identified in the flat model. We have also expanded the discussion of the stress-test note to clarify the sensitivity to anchoring and to note the parameter regime in which the reported behaviors remain stable. revision: yes

  2. Referee: [Flat-interface model analysis] Flat-interface model analysis: The compressive-flow instability ingredients identified on the flat interface are invoked to explain the 3D shell behaviors, yet the mapping is not shown to be one-to-one. Curvature and geometry terms present in the 3D deformable shell (absent in the flat reduction) could modify the instability threshold or flow patterns, weakening the claim that the flat model fully accounts for the observed 3D ring and counter-rotating flows.

    Authors: We appreciate the referee’s observation that the mapping between the reduced flat model and the full 3D geometry is not one-to-one. The flat-interface analysis was intended to isolate the minimal dynamical ingredients (activity-gradient-driven compression coupled to nematic alignment) responsible for the instability, rather than to provide a quantitative surrogate for the curved shell. In the revised manuscript we have added a dedicated paragraph in the discussion that compares the predicted instability threshold and the resulting flow topology from the flat model with the corresponding quantities extracted from the 3D simulations. We explicitly state that curvature and global geometry shift the quantitative thresholds and can modulate flow amplitudes, but do not change the qualitative sequence of ring emergence and bias-induced counter-rotation. The text now frames the flat model as identifying the core mechanism rather than claiming a complete one-to-one account. revision: partial

Circularity Check

0 steps flagged

No circularity: claims are direct numerical outcomes of defined phase-field model

full rationale

The paper demonstrates spontaneous equatorial ring formation, invagination, and bias-driven counter-rotating flows via 3D phase-field simulations of an active deformable shell that couples velocity and nematic order, plus analysis of a simpler flat-interface compressive-flow model. These are explicit simulation results from the stated free-energy functional, activity implementation, and initial conditions rather than any derivation that reduces a prediction to its own inputs by construction. No self-definitional loops, fitted parameters renamed as predictions, load-bearing self-citations, or ansatzes imported via prior work appear in the abstract or described approach; the model is presented as capturing the dynamics without the target behaviors being presupposed in the equations.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Based on abstract only; the central claim rests on the validity of the active matter model assumptions and simulation parameters not detailed here.

free parameters (1)
  • Activity parameters and initial nematic alignment
    The model likely involves parameters for activity gradients and initial conditions that are chosen to produce the observed behaviors, but specifics not in abstract.
axioms (1)
  • domain assumption The phase field approach can model the active gel-like behavior of the acto-myosin cortex with coupled velocity and orientation fields.
    This is the basis for the 3D simulation described.
