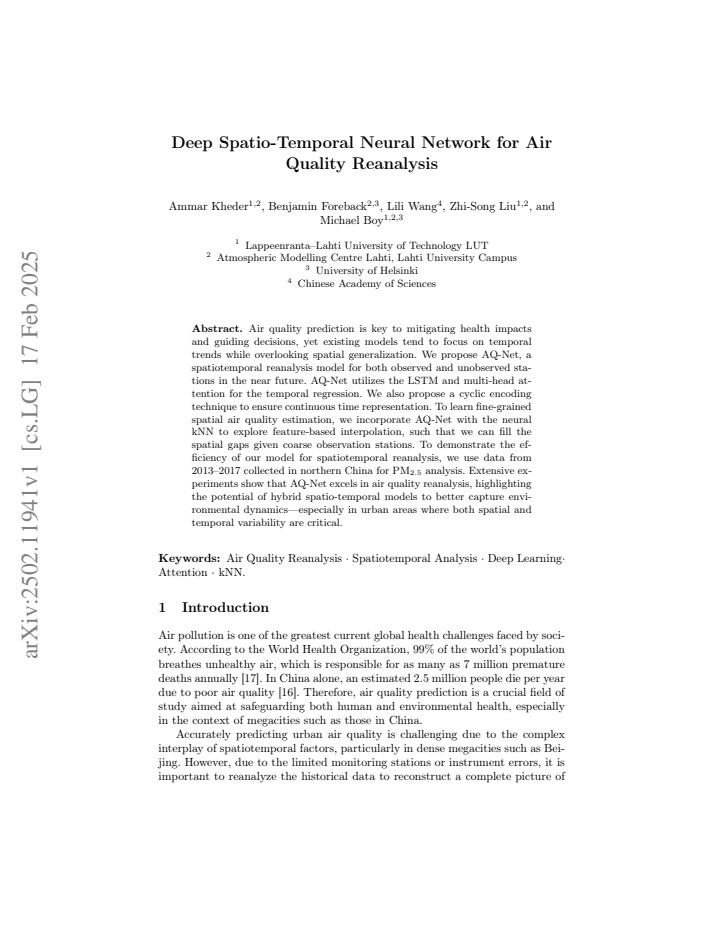

arxiv: 2502.11941 · v1 · submitted 2025-02-17 · 💻 cs.LG · cs.AI

Deep Spatio-Temporal Neural Network for Air Quality Reanalysis

Ammar Kheder , Benjamin Foreback , Lili Wang , Zhi-Song Liu , Michael Boy This is my paper

Pith reviewed 2026-05-23 02:51 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords air quality reanalysisspatio-temporal modelLSTMmulti-head attentionneural kNNPM2.5spatial interpolationcyclic encoding
0
0 comments X

The pith

AQ-Net combines LSTM with attention and neural kNN to reanalyze air quality at both observed and unobserved stations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents AQ-Net as a way to overcome the focus on temporal trends alone in existing air quality models by adding explicit spatial generalization. It processes time series with LSTM and multi-head attention, adds cyclic encoding to represent continuous time without breaks, and uses neural kNN to interpolate air quality values at locations lacking direct measurements. Experiments on 2013-2017 PM2.5 observations from northern China test whether this hybrid approach fills spatial gaps while maintaining temporal accuracy. A sympathetic reader would care because many monitoring networks remain sparse, so models that can extend estimates to unmonitored sites could support better environmental tracking in cities. The work centers on showing that such combined temporal and spatial components improve reanalysis performance under real-world station distributions.

Core claim

AQ-Net performs spatiotemporal reanalysis by applying LSTM and multi-head attention to temporal regression of air quality, using cyclic encoding for continuous time representation, and incorporating neural kNN for feature-based spatial interpolation that fills gaps from coarse observation stations, as shown through experiments on PM2.5 data collected 2013-2017 in northern China.

What carries the argument

Neural kNN for feature-based spatial interpolation, paired with LSTM and multi-head attention for temporal regression.

If this is right

  • The model can estimate air quality values at stations not included in the original observation network.
  • Performance gains appear especially where both spatial layout and time trends matter, such as dense urban zones.
  • Cyclic time encoding supports continuous representation across periodic cycles without discontinuity.
  • Hybrid designs that join recurrent temporal modules with nearest-neighbor spatial modules can address reanalysis tasks beyond the tested region.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same temporal-plus-spatial structure could be tested on other pollutants or on temperature fields that also vary across uneven sensor grids.
  • Replacing the neural kNN block with alternative spatial operators might reveal whether the feature-based interpolation step is the main source of any accuracy lift.
  • Real-time versions could ingest streaming station data to update estimates for nearby unmonitored areas on a daily or hourly basis.
  • Extending the cyclic encoding to additional periodic signals, such as weekly traffic patterns, might improve handling of human-activity-driven variability.

Load-bearing premise

The neural kNN component can accurately estimate air quality at unobserved stations through feature-based interpolation from the available coarse stations.

What would settle it

Compare AQ-Net predictions against direct measurements at a set of held-out stations never used in training or interpolation; if error exceeds that of simple distance-based methods on the same test stations, the spatial interpolation claim fails.

Figures

Figures reproduced from arXiv: 2502.11941 by Ammar Kheder, Benjamin Foreback, Lili Wang, Michael Boy, Zhi-Song Liu.

Figure 1
Figure 1. Figure 1: Daily mean PM2.5 prediction over northern China using AQ-Net. ⃝ in￾dicates “visible” stations, which provided historical data for training, whereas △ represents “hidden” stations for which only geographic coordinates were avail￾able (handled by our neural kNN module). The color scale ranges from blue (low PM2.5) to red (high PM2.5), highlighting pollution hotspots in specific provinces. air pollution acros… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the proposed AQ-Net. The input includes historical pollutant concentrations, and visible station coordinates. An LSTM extracts temporal dependencies, enhanced by Multi-Head Attention to highlight critical time steps. After temporal pooling, a neural kNN module performs spatial in￾terpolation for unobserved stations (red markers). (Spatio-Temporal Transformer Networks) [35], have demonstrated st… view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of the evolu￾tion of attention weights for se￾lected two heads. Head 2 reacts to short-term variations, while Head 1 maintains stable attention, capturing long-term patterns. is more practical for extended reanalysis, as hourly fluctuations are less relevant when planning long-term air quality strategies. Therefore, the evaluation metrics in [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Visualization of the atten￾tion heatmap across reanalysis and training days. A diagonal trend suggests the model prioritizes recent observations, while deviations indicate potential long-term dependencies [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Daily mean PM2.5 reanalysis over northern China. Higher PM2.5 is in yellow color. It highlights pollution hotspots in specific provinces. Overlapped markers indicate that multiple stations are located in very close proximity [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Visualization of prediction errors for hidden stations. The bubbles indicate the RMSE or MAE. Both the color and size of the bubbles are propor￾tional to the magnitude of the error: higher error values appear in warmer colors (yellow) and with larger circles. 5 Conclusion In this work, we addressed the challenge of reanlyzing air quality in complex urban environments, focusing on Northern China as a test b… view at source ↗
read the original abstract

Air quality prediction is key to mitigating health impacts and guiding decisions, yet existing models tend to focus on temporal trends while overlooking spatial generalization. We propose AQ-Net, a spatiotemporal reanalysis model for both observed and unobserved stations in the near future. AQ-Net utilizes the LSTM and multi-head attention for the temporal regression. We also propose a cyclic encoding technique to ensure continuous time representation. To learn fine-grained spatial air quality estimation, we incorporate AQ-Net with the neural kNN to explore feature-based interpolation, such that we can fill the spatial gaps given coarse observation stations. To demonstrate the efficiency of our model for spatiotemporal reanalysis, we use data from 2013-2017 collected in northern China for PM2.5 analysis. Extensive experiments show that AQ-Net excels in air quality reanalysis, highlighting the potential of hybrid spatio-temporal models to better capture environmental dynamics, especially in urban areas where both spatial and temporal variability are critical.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes AQ-Net, a hybrid spatio-temporal model for air quality reanalysis of PM2.5. It uses LSTM and multi-head attention for temporal regression, cyclic encoding for continuous time representation, and neural kNN for feature-based spatial interpolation to estimate values at unobserved stations from coarse observations. Experiments on 2013-2017 data from northern China claim that the model excels at reanalysis, especially in urban areas.

Significance. If the spatial interpolation claim holds under proper validation, the hybrid architecture could advance reanalysis methods that generalize across both space and time in environmental monitoring. The work highlights a potentially useful combination of recurrent, attention, and nearest-neighbor components, but the current experimental support is too thin to establish this contribution.

major comments (2)
  1. [Abstract; Experiments section] The central claim that AQ-Net performs reanalysis at unobserved stations via neural kNN feature-based interpolation requires spatial cross-validation (training on a subset of stations and testing on completely withheld stations). The abstract and experimental description give no indication that such hold-out was performed; evaluation appears limited to temporally held-out data from the same stations seen during training, so the interpolation performance at new locations remains untested.
  2. [Abstract; Experiments section] No details are provided on baselines, error bars, data splits, ablation studies, or statistical significance tests. Without these, the claim of 'extensive experiments' showing that AQ-Net 'excels' cannot be evaluated and is not load-bearing for the reanalysis contribution.
minor comments (1)
  1. [Abstract] The abstract is overly vague on model architecture details (e.g., how neural kNN is integrated with the LSTM/attention stack) and on the precise definition of 'reanalysis' versus forecasting.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the opportunity to improve the manuscript. We address each major comment below and will revise the paper accordingly to strengthen the experimental validation.

read point-by-point responses

  1. Referee: [Abstract; Experiments section] The central claim that AQ-Net performs reanalysis at unobserved stations via neural kNN feature-based interpolation requires spatial cross-validation (training on a subset of stations and testing on completely withheld stations). The abstract and experimental description give no indication that such hold-out was performed; evaluation appears limited to temporally held-out data from the same stations seen during training, so the interpolation performance at new locations remains untested.

    Authors: We agree that validating the neural kNN spatial interpolation component at truly unobserved stations requires spatial cross-validation. The current experiments primarily use temporal hold-out on the same stations, which does not fully test generalization to new locations. In the revised manuscript we will add spatial cross-validation results: training on a random subset of stations and evaluating on completely withheld stations, with metrics reported separately for the spatial interpolation task. revision: yes

  2. Referee: [Abstract; Experiments section] No details are provided on baselines, error bars, data splits, ablation studies, or statistical significance tests. Without these, the claim of 'extensive experiments' showing that AQ-Net 'excels' cannot be evaluated and is not load-bearing for the reanalysis contribution.

    Authors: We acknowledge the experimental section is insufficiently detailed. The revised manuscript will expand the Experiments section to explicitly describe: the temporal (and new spatial) data splits, the full set of baselines (including standard LSTM, attention-only, and spatial interpolation methods), error bars across multiple runs, ablation studies isolating each component (LSTM-attention, cyclic encoding, neural kNN), and statistical significance tests (e.g., paired t-tests with p-values) to support all performance claims. revision: yes

Circularity Check

0 steps flagged

No circularity: model is trained end-to-end on data with empirical claims

full rationale

The paper describes a hybrid LSTM + attention + neural kNN architecture trained on 2013-2017 PM2.5 observations. Performance claims rest on experimental results rather than any equation reducing to its own fitted parameters by construction, self-definitional loops, or load-bearing self-citations. The neural kNN interpolation is presented as a learned component whose spatial generalization is asserted via experiments; no quoted derivation shows the output being definitionally identical to the input. This is the normal non-circular case for a data-driven model.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard neural network assumptions and the domain assumption that air quality exhibits learnable spatio-temporal patterns; no new entities are postulated.

free parameters (2)
  • LSTM and attention hyperparameters
    Model architecture parameters such as hidden sizes, number of heads, and learning rates are fitted during training on the China dataset.
  • neural kNN parameters
    Parameters controlling the feature-based interpolation in the neural kNN component are learned from data.
axioms (2)
  • domain assumption Air quality observations contain both temporal autocorrelation and spatial correlations that neural networks can capture.
    This underpins the choice of LSTM-attention plus neural kNN architecture.
  • domain assumption Cyclic encoding provides a continuous and periodic representation of time suitable for environmental time series.
    Invoked to justify the time representation technique.

pith-pipeline@v0.9.0 · 5697 in / 1393 out tokens · 28457 ms · 2026-05-23T02:51:43.033848+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

39 extracted references · 39 canonical work pages · 1 internal anchor

  1. [1]

    Geoscientific Model Development10(4), 1703–1732 (2017)

    Appel, K., et al.: Description and evaluation of the community multiscale air qual- ity (cmaq) modeling system version 5.1. Geoscientific Model Development10(4), 1703–1732 (2017)

    work page 2017

  2. [2]

    Geo- scientific Model Development10(8), 2971–2999 (2017)

    Baklanov, A., et al.: Enviro-hirlam online integrated meteorology–chemistry mod- elling system: strategy, methodology, developments and applications (v7.2). Geo- scientific Model Development10(8), 2971–2999 (2017)

    work page 2017

  3. [3]

    1–11 (2011)

    Baklanov, A.: Introduction – Integrated Systems: On-line and Off-line Coupling of Meteorological and Air Quality Models, Advantages and Disadvantages, pp. 1–11 (2011)

    work page 2011

  4. [4]

    Sustainable Agriculture, Agriculture, and Ecosystem Modeling (2024)

    Bashir, O., et al.: Machine learning and deep learning for air pollution forecasting: A review. Sustainable Agriculture, Agriculture, and Ecosystem Modeling (2024)

    work page 2024

  5. [5]

    Computational Intelligence and Neuroscience2020, 8834699 (2020)

    Bingchun, L., et al.: Air pollutant concentration forecasting using long short-term memory based on wavelet transform and information gain: A case study of beijing. Computational Intelligence and Neuroscience2020, 8834699 (2020)

    work page 2020

  6. [6]

    785–794 (2016)

    Chen, T., et al.: Xgboost: A scalable tree boosting system pp. 785–794 (2016)

    work page 2016

  7. [7]

    Cho, K., et al.: Learning phrase representations using rnn encoder-decoder for sta- tisticalmachinetranslation.In:Proc.ofthe2014ConferenceonEmpiricalMethods in Natural Language Processing (EMNLP). pp. 1724–1734 (2014)

    work page 2014

  8. [8]

    Environmental Pollution227, 334–347 (2017)

    Congbo, S., et al.: Air pollution in china: Status and spatiotemporal variations. Environmental Pollution227, 334–347 (2017)

    work page 2017

  9. [9]

    Atmospheric Environment346, 121054 (2025)

    Du, Z., et al.: Advancements in machine learning for spatiotemporal urban on-road traffic-air quality study: A review. Atmospheric Environment346, 121054 (2025)

    work page 2025

  10. [10]

    Atmospheric Environment43(1), 79–86 (2009), atmospheric Environment - Fifty Years of Endeavour

    Fang,M.,Chan,C.K.,Yao,X.:Managingairqualityinarapidlydevelopingnation: China. Atmospheric Environment43(1), 79–86 (2009), atmospheric Environment - Fifty Years of Endeavour

    work page 2009

  11. [11]

    Big Earth Data 8(2), 397–434 (2024)

    Foreback, B., et al.: A new implementation of flexpart with enviro-hirlam mete- orological input, and a case study during a heavy air pollution event. Big Earth Data 8(2), 397–434 (2024)

    work page 2024

  12. [12]

    Air quality, atmosphere & health (dec 2024)

    Foreback, B., et al.: Severe haze episodes in beijing may be influenced by emissions in far western china. Air quality, atmosphere & health (dec 2024)

    work page 2024

  13. [13]

    Atmospheric Chemistry and Physics22(8), 5265–5329 (2022)

    Gao, C., et al.: Two-way coupled meteorology and air quality models in asia: a systematicreviewandmeta-analysisofimpactsofaerosolfeedbacksonmeteorology and air quality. Atmospheric Chemistry and Physics22(8), 5265–5329 (2022)

    work page 2022

  14. [14]

    Hochreiter,S.,Schmidhuber,J.:Longshort-termmemory.In:NeuralComputation. vol. 9, pp. 1735–1780 (1997)

    work page 1997

  15. [15]

    Atmospheric Environment50, 338–348 (2012)

    Ji, D., et al.: Analysis of heavy pollution episodes in selected cities of northern china. Atmospheric Environment50, 338–348 (2012)

    work page 2012

  16. [16]

    Nature526(7574), 497–499 (Oct 2015)

    Kulmala, M.: Atmospheric chemistry: China’s choking cocktail. Nature526(7574), 497–499 (Oct 2015)

    work page 2015

  17. [17]

    Cardiovascular Research116(11), 1910–1917 (03 2020)

    Lelieveld, J., et al.: Loss of life expectancy from air pollution compared to other risk factors: a worldwide perspective. Cardiovascular Research116(11), 1910–1917 (03 2020)

    work page 1910

  18. [18]

    Li, Y., et al.: Diffusion convolutional recurrent neural network: Data-driven traffic forecasting (2017)

    work page 2017

  19. [19]

    In: 2019 IEEE/CVF International Conference on Computer Vision Work- shop (ICCVW)

    Liu, Z.S., et al.: Image super-resolution via attention based back projection net- works. In: 2019 IEEE/CVF International Conference on Computer Vision Work- shop (ICCVW). pp. 3517–3525 (2019) 14 A. Kheder et al

    work page 2019

  20. [20]

    In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) Workshops (June 2020)

    Liu, Z.S., et al.: Unsupervised real image super-resolution via generative variational autoencoder. In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) Workshops (June 2020)

    work page 2020

  21. [21]

    IEEE Transactions on Circuits and Systems for Video Technology31(4), 1351–1365 (2021)

    Liu, Z.S., et al.: Photo-realistic image super-resolution via variational autoen- coders. IEEE Transactions on Circuits and Systems for Video Technology31(4), 1351–1365 (2021)

    work page 2021

  22. [22]

    In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) Workshops

    Liu,Z.S.,etal.:Variationalautoencoderforreferencebasedimagesuper-resolution. In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR) Workshops. pp. 516–525 (June 2021)

    work page 2021

  23. [23]

    At- mosphere 12(3) (2021)

    Luo, M., et al.: Characteristics and health risk assessment of pm2.5-bound pahs during heavy air pollution episodes in winter in urban area of beijing, china. At- mosphere 12(3) (2021)

    work page 2021

  24. [24]

    A Time Series is Worth 64 Words: Long-term Forecasting with Transformers

    Nie, Y., et al.: A time series is worth 64 words: Long-term forecasting with trans- formers. arXiv preprint arXiv:2211.14730 (2022)

    work page internal anchor Pith review Pith/arXiv arXiv 2022

  25. [25]

    Peckham, S.E.S.E.: Wrf/chem version 3.3 user’s guide (2012), technical Memoran- dum

    work page 2012

  26. [26]

    Pichelstorfer, L., et al.: Towards automated inclusion of autoxidation chemistry in models: from precursors to atmospheric implications. Environ. Sci.: Atmos.4, 879–896 (2024)

    work page 2024

  27. [27]

    Critical Reviews in Environmental Science and Technology53(21), 1888–1911 (2023)

    Qingxin, M., et al.: A review on the heterogeneous oxidation of so2 on solid at- mospheric particles: Implications for sulfate formation in haze chemistry. Critical Reviews in Environmental Science and Technology53(21), 1888–1911 (2023)

    work page 1911

  28. [28]

    Advances in Neural Information Processing Systems28, 802–810 (2015)

    Shi, X., Chen, Z., Wang, H., Yeung, D.Y., Wong, W.K., Woo, W.c.: Convolutional lstm network: A machine learning approach for precipitation nowcasting. Advances in Neural Information Processing Systems28, 802–810 (2015)

    work page 2015

  29. [29]

    Atmospheric Environment40(4), 674–685 (2006)

    Sofiev, M., et al.: A dispersion modelling system silam and its evaluation against etex data. Atmospheric Environment40(4), 674–685 (2006)

    work page 2006

  30. [30]

    In: Proc

    Vaswani, A., et al.: Attention is all you need. In: Proc. of NeurIPS. pp. 5998–6008 (2017)

    work page 2017

  31. [31]

    Journal of Environmental Sciences24(1), 2–13 (2012)

    Wang,S.,Hao,J.:Airqualitymanagementinchina:Issues,challenges,andoptions. Journal of Environmental Sciences24(1), 2–13 (2012)

    work page 2012

  32. [32]

    Machine Learning with Appli- cations 19, 100624 (2025)

    Wei, M., et al.: Apply a deep learning hybrid model optimized by an improved chimp optimization algorithm in pm2.5 prediction. Machine Learning with Appli- cations 19, 100624 (2025)

    work page 2025

  33. [33]

    WHO (World Health Organization): Air quality, energy and health: Health im- pacts., accessed: 2025-01-27

    work page 2025

  34. [34]

    Ad- vances in Atmospheric Sciences35(12), 1522–1532 (Dec 2018)

    Wu, Huangjian, e.a.: Probabilistic automatic outlier detection for surface air qual- ity measurements from the china national environmental monitoring network. Ad- vances in Atmospheric Sciences35(12), 1522–1532 (Dec 2018)

    work page 2018

  35. [35]

    arXiv preprint arXiv:2001.02908 (2020)

    Xu, M., et al.: Spatial-temporal transformer networks for traffic flow forecasting. arXiv preprint arXiv:2001.02908 (2020)

    work page arXiv 2001

  36. [36]

    Yan, S., et al.: Spatial temporal graph convolutional networks for skeleton-based action recognition. Proc. of AAAI (2018)

    work page 2018

  37. [37]

    Science of The Total Environment663, 329–337 (2019)

    Yingying, Z., et al.: Air pollution reduction in china: Recent success but great challenge for the future. Science of The Total Environment663, 329–337 (2019)

    work page 2019

  38. [38]

    Environmental Pollution236, 550–561 (2018)

    Zhi-zhen, N., et al.: Assessment of winter air pollution episodes using long-range transport modeling in hangzhou, china, during world internet conference, 2015. Environmental Pollution236, 550–561 (2018)

    work page 2015

  39. [39]

    Environmental Science and Ecotechnology22, 1000140 (2024)

    Zhou, S., et al.: Deep-learning architecture for pm2.5 concentration prediction: A review. Environmental Science and Ecotechnology22, 1000140 (2024)

    work page 2024
