arxiv: 2504.06176 · v3 · submitted 2025-04-08 · 💻 cs.LG · cs.AI· physics.space-ph

A Self-Supervised Framework for Space Object Behaviour Characterisation

Ian Groves , Andrew Campbell , James Fernandes , Diego Ram\'irez Rodr\'iguez , Paul Murray , Massimiliano Vasile , Victoria Nockles This is my paper

Pith reviewed 2026-05-22 19:58 UTC · model grok-4.3

classification 💻 cs.LG cs.AIphysics.space-ph
keywords space objectslight curvesself-supervised learningvariational autoencoderanomaly detectionmotion predictionspace safetyfoundation models
0
0 comments X

The pith

A Perceiver-VAE pre-trained on light curves detects space object anomalies and predicts motion modes after fine-tuning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a self-supervised framework that pre-trains a Perceiver-Variational Autoencoder on 227,000 unlabelled light curves from the MMT-9 observatory using reconstruction and masked reconstruction tasks. This creates rich representations that support anomaly detection via reconstruction difficulty and enable fine-tuning for classifying motion modes such as sun-pointing, spin, or tumbling. A sympathetic reader would care because growing orbital populations demand scalable automated tools to maintain space safety without exhaustive manual review of observations.

Core claim

The paper claims that a Perceiver-VAE backbone pre-trained self-supervised on observatory light curves reaches a reconstruction mean squared error of 0.009, identifies anomalous curves through reconstruction errors, and after fine-tuning on simulated data from two independent simulators using CAD models of boxwing, Sentinel-3, SMOS, and Starlink platforms, achieves 85 percent accuracy with 0.92 ROC AUC for anomaly detection and 82 percent accuracy with 0.95 ROC AUC for motion mode prediction, while also generating synthetic light curves and revealing patterns like satellite glinting in real data.

What carries the argument

The Perceiver-Variational Autoencoder (VAE) that performs self-supervised reconstruction and masked reconstruction on light curve sequences to learn behavioral representations for anomaly scoring and downstream classification.

If this is right

  • The pre-trained model flags anomalous light curves by their higher reconstruction errors without needing labels.
  • Fine-tuning on simulated data transfers to real observations for classifying behaviors such as sun-pointing, spin, and tumbling.
  • High-confidence outputs on real data expose recurring patterns including characteristic profiles and glinting events.
  • The same representations support generation of synthetic light curves for simulation and testing.
  • This reduces dependence on manual analysis for monitoring expanding orbital populations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach might extend to other time-series observational data in astronomy if similar self-supervised pre-training is applied.
  • Combining the model with live tracking feeds could support earlier alerts for unusual orbital behavior.
  • Pre-training on larger unlabeled datasets from multiple sensors could further improve robustness across varying observation conditions.
  • Synthetic data generation from the VAE might help augment scarce real labels for training other space object classifiers.

Load-bearing premise

Light curves generated by the two simulators from CAD models of selected satellite platforms match real observed behaviors closely enough for fine-tuning to transfer effectively to actual observations.

What would settle it

Testing the fine-tuned model on a large collection of real light curves from independent observatories that carry independently verified labels for anomalies and motion modes, then measuring whether accuracy and AUC scores remain near the reported levels.

Figures

Figures reproduced from arXiv: 2504.06176 by Andrew Campbell, Diego Ram\'irez Rodr\'iguez, Ian Groves, James Fernandes, Massimiliano Vasile, Paul Murray, Victoria Nockles.

Figure 1
Figure 1. Figure 1: Graphical structure of the paper. First, in Section [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Pre-training approach. Input array(s) (M) provide keys (K) which index the data (e.g., timestep in a timecourse) and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

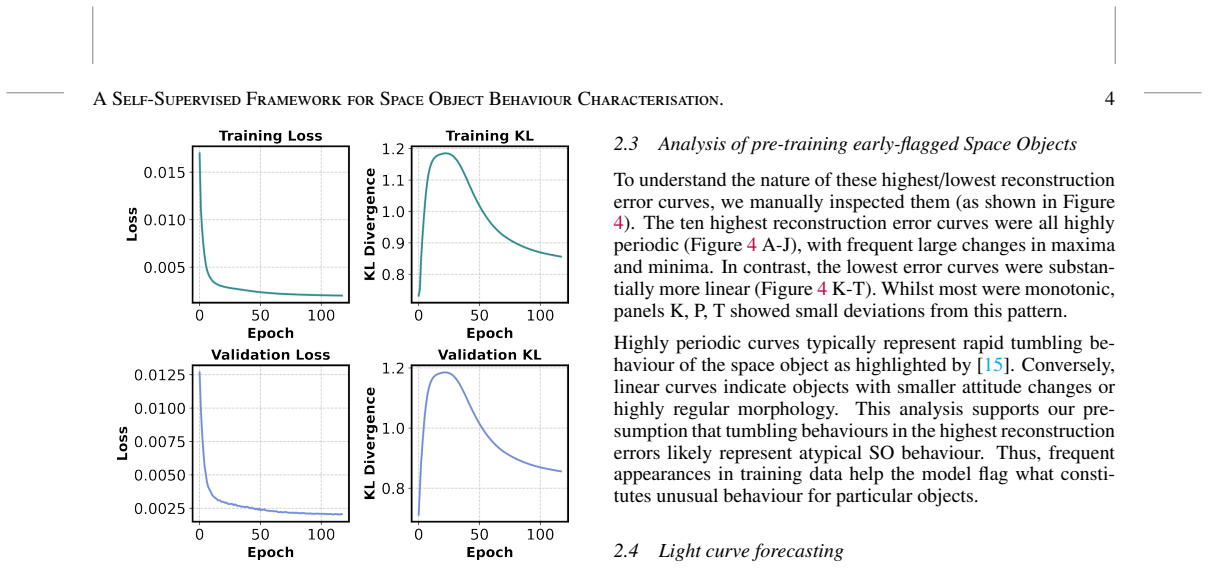

Figure 3. Figure 3: Training curves for a VAE-Perceiver model trained on [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

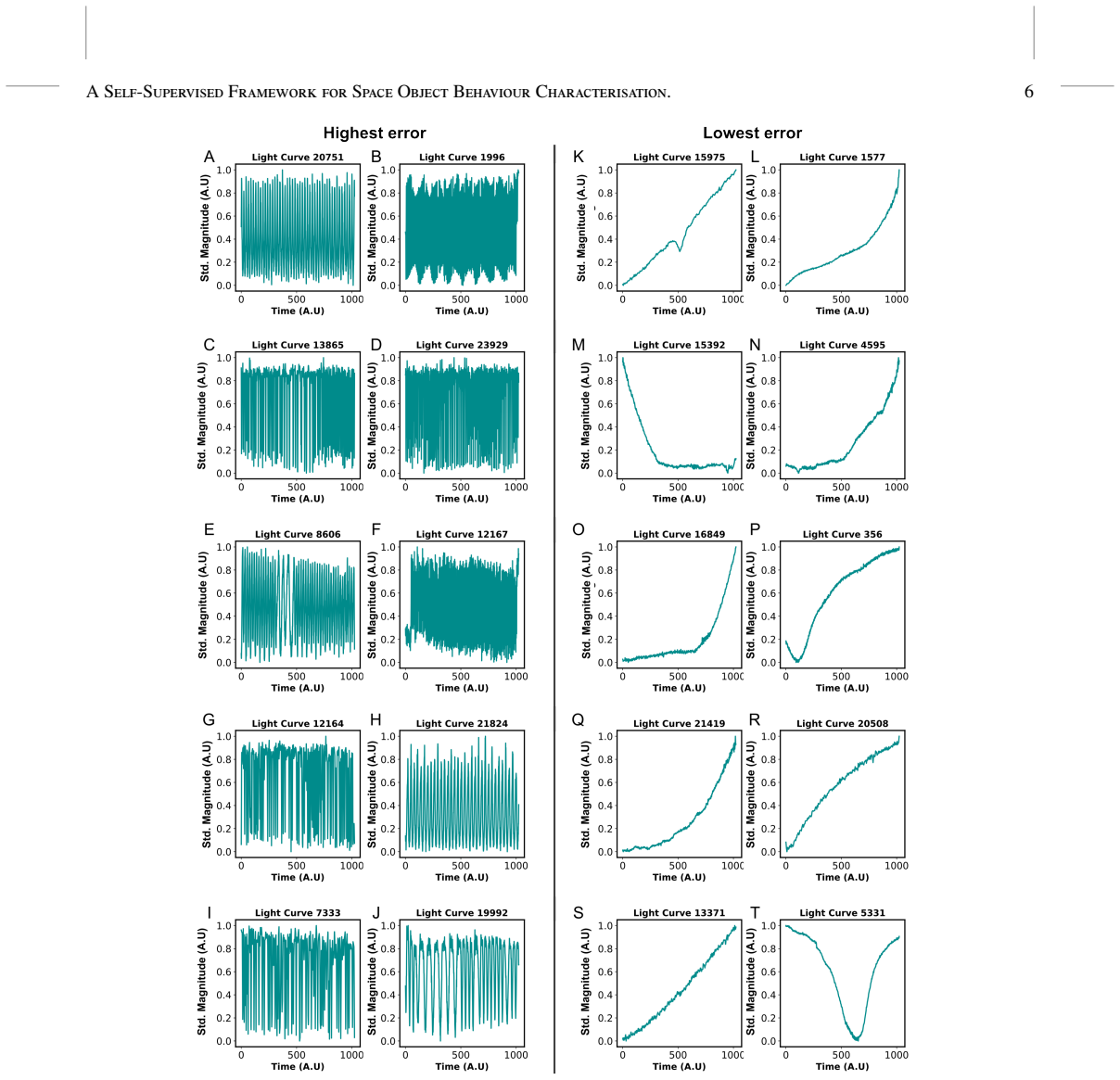

Figure 4. Figure 4: The ten highest reconstruction error test light curves, where A is the highest, and J the tenth highest. These curves [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

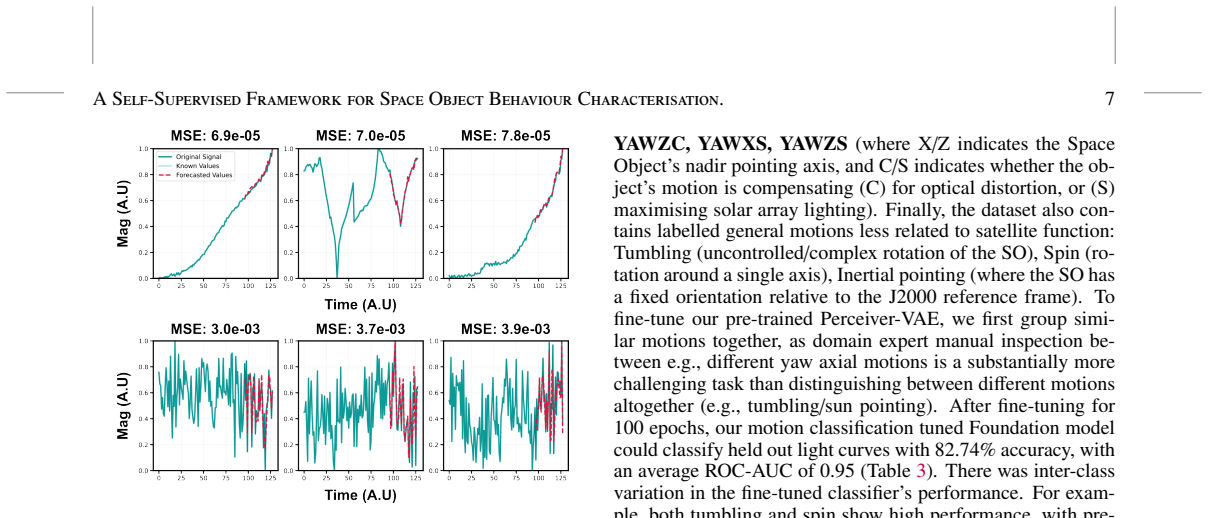

Figure 5. Figure 5: Test light curves with the latter 25% of the timecourse [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Example normal (A-D) and anomalous (E-H) light curves generated by CASSANDRA as a fine-tuning dataset. Normal [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

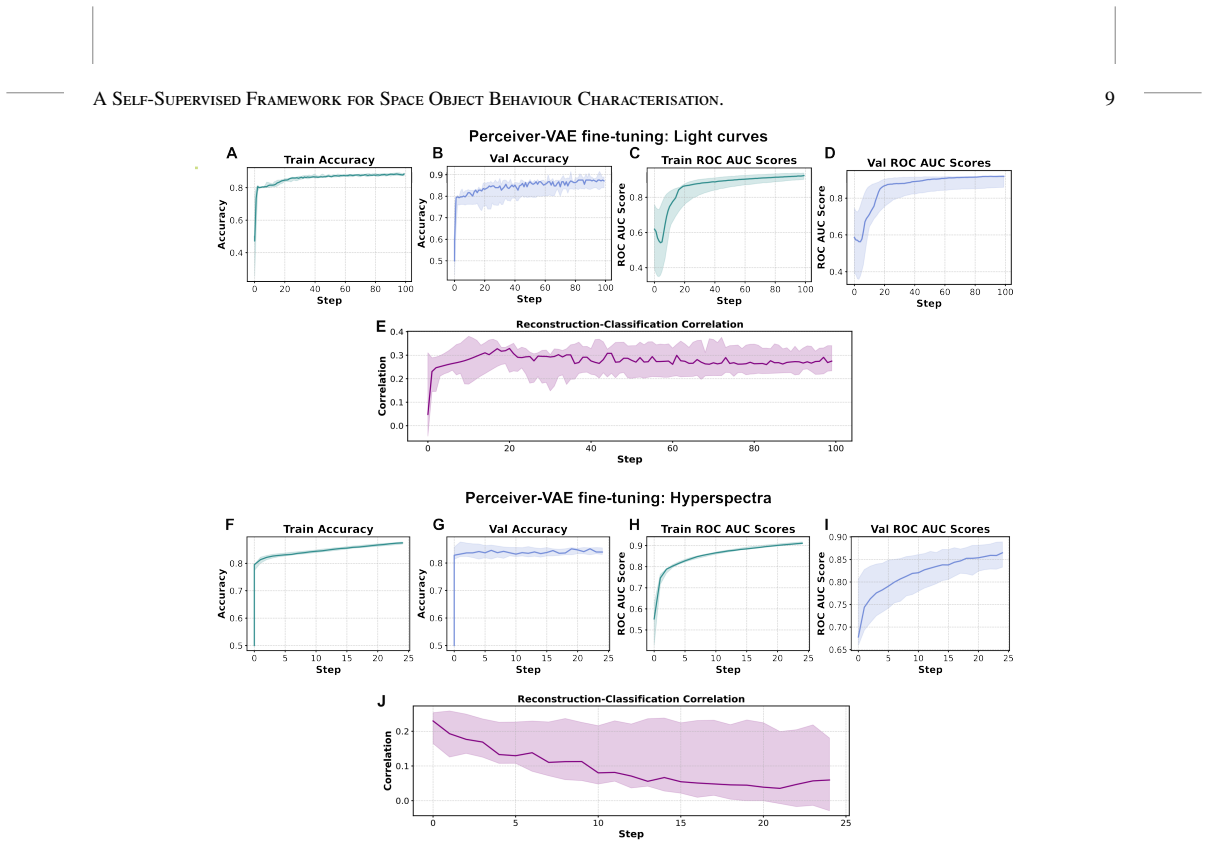

Figure 7. Figure 7: Fine-tuning results for anomaly detection, averaged across five training runs comparing pre-trained light curve [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The top 12 confidence anomaly predictions from the fine-tuned light curve Perceiver-VAE model on an independent [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Example light curves from the GMV GRIAL mo [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Sampling the latent space of our fine-tuned Perceiver-VAE. [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
read the original abstract

Foundation Models, which leverage large neural networks pre-trained on unlabelled data before fine-tuning for specific tasks, are increasingly being applied to specialised domains. Recent examples include ClimaX for climate and Clay for satellite Earth observation, but a Foundation Model for Space Object Behavioural Analysis has not yet been developed. As orbital populations grow, automated methods for characterising space object behaviour are crucial for space safety. Here, we present a self-supervised framework for space object behavioural analysis, representing a first step towards a Foundation Model for SOBA. The backbone is a Perceiver-Variational Autoencoder (VAE) architecture, pre-trained with self-supervised reconstruction and masked reconstruction on 227,000 light curves from the MMT-9 observatory. The VAE enables anomaly detection, motion prediction, and synthetic light curve generation. We fine-tuned the model using two independent light curve simulators (CASSANDRA and GRIAL), with CAD models of boxwing, Sentinel-3, SMOS, and Starlink platforms. Our pre-trained model achieved a reconstruction mean squared error of 0.009, identifying potentially anomalous light curves through reconstruction difficulty. After fine-tuning, the model scored 85% and 82% accuracy, with 0.92 and 0.95 ROC AUC scores in anomaly detection and motion mode prediction (e.g., sun-pointing, spin, tumbling). Analysis of high-confidence predictions on real data revealed distinct patterns including characteristic object profiles and satellite glinting. Our work demonstrates how self-supervised learning can simultaneously enable anomaly detection, motion prediction, and synthetic data generation from rich pre-trained representations, supporting space safety and sustainability through automated monitoring and simulation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript introduces a self-supervised Perceiver-VAE framework pre-trained via reconstruction and masked reconstruction on 227,000 real unlabeled light curves from the MMT-9 observatory. The model is subsequently fine-tuned on synthetic light curves generated by the CASSANDRA and GRIAL simulators using CAD models of boxwing, Sentinel-3, SMOS, and Starlink platforms. It reports a pre-training reconstruction MSE of 0.009, post-fine-tuning accuracies of 85% and 82%, and ROC AUCs of 0.92 and 0.95 for anomaly detection and motion-mode prediction tasks, together with qualitative observations on real data and capabilities for synthetic generation.

Significance. If the reported performance generalizes beyond the simulators to operational real-world light curves, the work would constitute a useful first step toward domain-specific foundation models for space object behavioral analysis, enabling scalable anomaly detection and motion characterization to support space safety. The two-simulator design and use of real pre-training data are positive elements that partially mitigate domain-shift risk.

major comments (3)
  1. [Abstract] Abstract: The headline performance numbers (85%/82% accuracy, 0.92/0.95 ROC AUC) are stated only for fine-tuned evaluation on simulator-generated test sets; no quantitative metrics, confusion matrices, or error breakdowns are supplied for held-out real MMT-9 light curves with ground-truth labels. This directly affects the central claim that the framework supports automated monitoring of real space objects.
  2. [Abstract] Abstract and results section: No information is provided on data partitioning, cross-validation strategy, or simulator fidelity validation (e.g., comparison of simulated vs. real statistical properties such as glint frequency or noise spectra) for the CASSANDRA/GRIAL fine-tuning sets. Without these, the robustness of the reported accuracies cannot be assessed.
  3. [Abstract] Abstract: The claim that the model enables anomaly detection on real data rests on reconstruction difficulty during pre-training and qualitative pattern analysis after fine-tuning; however, no threshold calibration, false-positive rates, or comparison against a real-data baseline is reported, leaving the practical utility of the anomaly-detection pathway unsupported by numbers.
minor comments (1)
  1. [Abstract] The abstract refers to 'SOBA' without an explicit expansion on first use.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their constructive comments, which help clarify the scope and limitations of our evaluation. We address each major comment below. We agree that the abstract should more explicitly distinguish between results on synthetic test sets and capabilities demonstrated on real data. We will revise the manuscript to add details on data partitioning and simulator validation, and to better qualify the anomaly detection claims. However, the absence of ground-truth labels for real MMT-9 light curves prevents quantitative metrics on held-out real data.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline performance numbers (85%/82% accuracy, 0.92/0.95 ROC AUC) are stated only for fine-tuned evaluation on simulator-generated test sets; no quantitative metrics, confusion matrices, or error breakdowns are supplied for held-out real MMT-9 light curves with ground-truth labels. This directly affects the central claim that the framework supports automated monitoring of real space objects.

    Authors: We agree that the reported accuracy and ROC AUC figures apply to held-out test sets from the CASSANDRA and GRIAL simulators after fine-tuning. The 227,000 MMT-9 light curves used for pre-training are unlabeled, so direct computation of these metrics on real data is not possible without external labeling. The self-supervised pre-training step is intended to learn representations from real distributions, while fine-tuning supplies task-specific supervision from simulators. We will revise the abstract to state explicitly that the quantitative results are obtained on synthetic test sets and will add a limitations paragraph discussing domain transfer and the lack of real labeled benchmarks. revision: partial

  2. Referee: [Abstract] Abstract and results section: No information is provided on data partitioning, cross-validation strategy, or simulator fidelity validation (e.g., comparison of simulated vs. real statistical properties such as glint frequency or noise spectra) for the CASSANDRA/GRIAL fine-tuning sets. Without these, the robustness of the reported accuracies cannot be assessed.

    Authors: We will incorporate the requested details. The revised results section will describe the train/validation/test splits used for fine-tuning (including exact proportions and random seed), any cross-validation performed, and statistical comparisons between simulated and real light curves. These comparisons will cover glint frequency histograms, noise power spectra, and other distributional properties to document simulator fidelity. This information will be added to support assessment of the reported accuracies. revision: yes

  3. Referee: [Abstract] Abstract: The claim that the model enables anomaly detection on real data rests on reconstruction difficulty during pre-training and qualitative pattern analysis after fine-tuning; however, no threshold calibration, false-positive rates, or comparison against a real-data baseline is reported, leaving the practical utility of the anomaly-detection pathway unsupported by numbers.

    Authors: Anomaly detection on real data uses reconstruction error from the pre-trained VAE, with higher errors flagging potential outliers. We will expand the methods and results to specify how the decision threshold was selected (e.g., a percentile of reconstruction errors on the pre-training set) and will report the distribution of reconstruction errors observed on real MMT-9 curves. Quantitative false-positive rates and baseline comparisons on real data cannot be computed without labeled anomalies. The revision will therefore qualify the real-data anomaly results as qualitative and exploratory, while outlining plans for future expert-labeled validation. revision: partial

standing simulated objections not resolved
  • Quantitative metrics (accuracy, ROC AUC, confusion matrices) on held-out real MMT-9 light curves, because ground-truth labels for anomaly detection and motion modes are unavailable for these data.

Circularity Check

0 steps flagged

No significant circularity in the self-supervised framework

full rationale

The paper presents a Perceiver-VAE pre-trained via self-supervised reconstruction and masked reconstruction on 227,000 real unlabeled light curves from MMT-9, then fine-tuned on outputs from two independent simulators (CASSANDRA and GRIAL) using CAD models. Reported metrics (85%/82% accuracy, 0.92/0.95 AUC) are standard supervised evaluation scores on held-out simulator data for anomaly detection and motion mode prediction; they do not reduce by construction to any fitted parameter or input definition. No equations, derivations, or load-bearing self-citations appear in the provided text that would make the central claims tautological. The separation between real pre-training data and simulator fine-tuning data keeps the pipeline non-circular, even if generalization to real labeled data remains an open empirical question.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim depends on standard variational autoencoder assumptions and the unstated premise that the chosen simulators faithfully capture real photometric behavior across the tested platforms. No new physical entities are introduced.

axioms (2)
  • standard math Standard VAE assumptions including Gaussian latent distribution and reconstruction loss as proxy for data likelihood
    Implicit in any VAE architecture used for reconstruction and anomaly detection via reconstruction error.
  • domain assumption Light curves from MMT-9 observatory and the two named simulators are representative of real space object photometric behavior
    Required for pre-training to transfer and for fine-tuning accuracies to generalize beyond the simulated platforms.
