A Numerical Gradient Inversion Attack in Variational Quantum Neural-Networks

T0 review · 4 major / 6 minor · reviewed 2026-08-16 · deepseek-v4-flash

Pith's one-line read A numerical gradient inversion attack using adaptive low-pass filtering reconstructs private training inputs from variational quantum neural networks down to about $10^{-10}$ error, when the model is trainable and sufficiently…

desk verdict First numerical gradient inversion attack on VQNNs, but it inverts the model-output gradient, not the loss gradient shared in FL, so the central privacy claim doesn't hold as written. read the letter →

arxiv 2504.12806 v2 pith:XBUUH2RC submitted 2025-04-17 cs.LG cs.AIcs.CR

classification cs.LGcs.AIcs.CR
keywords gradientinversionattackvariationalquantumneuralnetworksfederatedlearningmachinefinitedifferencemethodadaptivelow-passfilteringKalmanfilterparameter-shiftrule
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that the gradients a variational quantum neural network (VQNN) shares during training are not private: a numerical attack can reconstruct the original input data, even when gradients are aggregated over small batches. The attack combines finite-difference gradient estimation with an adaptive low-pass filter and Kalman-filter updates, so that the optimizer finds the global minimum of the gradient-matching loss instead of getting stuck in the VQNN loss landscape's many local minima. In ideal numerical simulations the reconstruction reaches mean squared error around $10^{-10}$ whenever the model is trainable and sufficiently over-parameterized, across regression tasks and classification tasks including credit-card fraud data. If correct, federated or distributed learning setups that share only VQNN gradients should treat those gradients as revealing, and privacy protection has to come from noise or other mechanisms rather than from the circuit's complexity.

What carries the argument

The load-bearing mechanism is the iterative inversion optimizer of the paper's Algorithm 2. For each input dimension it estimates the derivative of the gradient-matching loss with respect to that component by evaluating the VQNN's parameter-shift gradients at perturbed points, forming a central finite difference, and then averaging these estimates over a moving window of size $N$. The window size is adapted during the attack, so high-frequency oscillations of the loss are filtered out early and the optimizer can resolve the global minimum as the loss approaches zero. A Kalman filter update refines each proxy-input step and substantially improves convergence speed and success rate. The scheme requires the model to be over-parameterized: the number of parameters (equations) must be at least the number of unknown inputs and targets, which the paper takes from classical input-reconstruction analysis.

What would settle it

Run the attack with parameter-shift gradients estimated from a finite number of circuit samples, for example $10^3$ to $10^5$ shots per circuit evaluation, instead of exact numerical expectation values; if reconstruction error then stays above the paper's $0.005$ success threshold instead of falling toward $10^{-10}$, the noiseless gradient oracle is the load-bearing idealization.

Watch

Extended reading notes

Core claim

The central claim is that as long as the model is trainable, an adversary who sees the shared gradient $g$ can recover the private input $x$ by minimizing the squared distance $L_{g',g}$ between gradients of a proxy input $x'$ and the true shared gradient $g$. The paper shows this is possible without knowing target labels, for both untrained and trained models, and for batches of size two and three when the model is over-parameterized, reaching errors down to about $10^{-10}$ in the numerical experiments. The dense set of local minima that makes VQNN optimization hard does not stop the attack: adaptive low-pass filtering lets the optimizer escape those minima and converge to the global one.

Load-bearing premise

The attack assumes an essentially noiseless oracle for the VQNN's parameter-shift gradients: Algorithm 2 divides tiny differences of loss values by a small step $2nh$, and the experiments all use ideal numerical simulation, so if realistic measurement shot noise perturbs the gradient values, the claimed $10^{-10}$ reconstruction is not established.

Editorial extensions

If this is right

  • In federated learning setups where clients share only VQNN gradients, the shared gradients are not safe by themselves; the attack recovers inputs from both untrained and trained models.
  • Batch-size-based defenses are weak: the attack recovers batches of size two and three, and making batches larger degrades model accuracy before it restores privacy.
  • Noise added to shared gradients raises inversion error and can preserve some utility, giving VQNNs a privacy-performance trade-off that can be benchmarked against classical neural networks.
  • Vulnerability tracks over-parameterization, not quantum complexity alone, so privacy risk assessments should compare the number of trainable circuit parameters with the number of unknowns.
  • The algorithm is proposed as a benchmark tool for evaluating VQNN privacy in practical applications, on both benchmark and real-world sensitive data.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: the attack assumes noiseless exact gradients, so the practical threat depends on hardware; shot noise may prevent the $10^{-10}$ reconstruction, but the paper does not test how the attack degrades as noise increases.
  • Editorial inference: the same adaptive low-pass-filter optimization that escapes local minima could be applied to VQNN training itself, potentially improving convergence on loss landscapes dense with local minima; the paper only hints at this possibility.
  • Editorial inference: a direct testable extension is to add calibrated Gaussian noise of increasing standard deviation to shared gradients and map the smallest noise level that pushes reconstruction above the $0.005$ success threshold, producing a privacy-utility frontier for each architecture.
  • Editorial inference: the saturation of inversion error near $10^{-10}$ suggests the gradient map from inputs to parameters is locally one-to-one in the trainable regime; testing with random weight initializations and different feature maps would show how generally this injectivity holds.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a numerical gradient inversion attack against variational quantum neural networks (VQNNs) in federated learning. The attack optimizes a proxy input x' to match the gradients g' of a VQNN with the shared gradients g, using finite-difference estimates of the inversion-loss gradient, an adaptive moving-average low-pass filter to avoid local minima, and a Kalman filter for faster convergence. Experiments on cosine regression, MNIST classification, and credit-card fraud data with 2- and 6-qubit models, including batch sizes 2 and 3, report successful input recovery with MSE around 1e-5 to 3e-3 in the main tables, while the abstract and conclusion claim errors down to ~1e-10 in appendix runs. The paper argues that trainable VQNNs are not inherently private and provides a benchmark for evaluating privacy versus utility.

Significance. The contribution is potentially significant: if the central claim holds, it is the first practical gradient-inversion algorithm for VQNNs, challenging earlier results that VQNNs provide inherent privacy. The adaptive low-pass filtering and Kalman acceleration are novel and well-motivated by the oscillatory gradient landscape, and the experiments span regression, classification, real-world fraud data, and batch training. The paper also provides a useful privacy-performance comparison with classical NNs under noise. However, the significance is currently conditional because the attack's proxy gradients (Eq. 6) do not match the defined shared loss gradients (Eq. 1), the headline 1e-10 precision is only reached for near-true starting points, and the attack assumes an exact noiseless gradient oracle. The paper reports experiments on statevector simulators but provides no code, so the pseudocode errors further hinder verification.

major comments (4)
  1. [Section IV-A (Eq. 7); Algorithm 2 (lines 9-13); Eq. (1)] The inversion loss in Eq. (7) compares g' with g, but Algorithm 2 computes g' via the parameter-shift rule of Eq. (6), which yields the derivative of the expectation value y-hat with respect to the parameters, not the derivative of the training loss. For the MSE loss used throughout, Eq. (1) defines the shared gradient as g proportional to 2(y-hat - y) times the parameter-shift derivative, so at the true input x the proxy gradient g'(x) differs from g(x) by a label-dependent factor and the learning-rate/batch scaling. Because the true x is therefore not a stationary point of L_{g',g}, the algorithm as described does not minimize the correct objective; this contradicts Assumption V-E.1, which denies access to y. The authors must resolve this mismatch, either by explicitly attacking model-output gradients (partial y-hat / partial theta) and reframing the threat model, or by explaining how the loss-gradient scale is recovered without labels. As written, the experiments do not support the claim that shared FL loss gradients of VQNNs can be inverted.
  2. [Appendix B (Fig. 15); Assumption V-E.3; Conclusion] The abstract and conclusion claim inversion errors down to ~1e-10, but this value is reported in Appendix Fig. 15 for initial vectors x' that are already within approximately 0.005 of the true x (Assumption V-E.3). The main random-start experiments in Table II obtain average MSE values between 2e-5 and 3e-3, with success rates as low as 40% for some 6-qubit models. The '1e-10' is therefore a local refinement result, not a demonstration that the attack converges to the global optimum from an arbitrary starting point in the full domain. The paper should either show 1e-10 precision from random starts or qualify this claim in the abstract and conclusion.
  3. [Section V-A; Section VI-C; Eq. (8)] All attack experiments are performed with exact parameter-shift evaluations on noiseless statevector simulators (Section V-A). On physical quantum hardware, the measurements underlying Eq. (6) are shot-noise limited, and the finite-difference estimate in Eq. (8), which divides by 2nh, would be dominated by that noise for small h. The authors themselves observe in Section VI-C that hardware noise could serve as a privacy mechanism. Without any experiment or analysis with noisy gradients, the practical relevance of the attack to real federated VQNN deployment is not established; the abstract and conclusion should restrict the claim to exact-gradient oracles, or the paper should include noisy-gradient experiments.
  4. [Algorithm 2 (lines 5-21)] The pseudocode in Algorithm 2 does not match Eqs. (8)-(9). Lines 6-17 accumulate loss+ and loss- over n and then compute (loss+ - loss-)/(2nh) at each n using those cumulative sums, rather than evaluating the per-perturbation finite difference [L(x'+n h e_j) - L(x'-n h e_j)]/(2nh). Lines 18-19 do not specify how the average in Eq. (9) is formed, and line 21 writes a sum over '2N' terms although loss+ and loss- already contain N sums each. As written, the algorithm cannot be implemented or reproduced. The authors should provide a corrected pseudocode and, ideally, a reference implementation or code repository.
minor comments (6)
  1. [Assumption V-E.2] Assumption 2 states that inversion success is measured using Eq. (7), but Eq. (7) is the gradient-distance loss, not the MSE between x' and x; the text should refer to the MSE metric used in the tables.
  2. [Table II, Section V-B] The notation 'One Shot Success %' is ambiguous. The table reports the average over 10 attacks with different starting points, yet 'one shot' suggests a single run; clarify the terminology and state explicitly that successes are counted per starting point within the maximum 250 iterations.
  3. [Section V-B; Table II] The hyperparameters of the attack (initial moving-average window N, finite-difference step h, learning rate lr, and the threshold for reducing N) are not reported for the experiments in Table II. Providing these values or a link to code is necessary for reproducibility.
  4. [Eq. (8)] The truncation error in the finite-difference formula (Eq. (8)) is stated as O(nh); for a centered difference the leading error is O((nh)^2), so the order notation should be corrected.
  5. [Section VI-A, Fig. 7] The statement 'often within a single trial (except 6 qubits at 40%)' is imprecise; specify what constitutes a trial and how the success rate in Table II relates to the trajectories shown in Fig. 7.
  6. [Algorithm 2, line 25] The condition for reducing N uses an unexplained 'threshold (gradient change)'; define what quantity is compared and how the threshold is chosen, otherwise the adaptive-filter behavior cannot be reproduced.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular reduction: the inversion optimizes Eq. 7 against gradients computed by Eq. 6 and uses the true x only for evaluation; the authors' self-citations frame the narrative but do not enter the attack equations.

full rationale

The attack's derivation chain is self-contained. Algorithm 2 receives the shared gradient g (Eq. 1), draws a random proxy x' without using x or y, builds g' by perturbing x' and applying the parameter-shift rule (Eq. 6), and updates x' to minimize the gradient distance Lg',g (Eq. 7). The true input x is used only in the external success metric MSE(x',x); it is not part of the optimization objective. Hence the claimed inversion is not defined in terms of the target, and no fitted parameter is relabeled as a prediction. The self-citations [27] and [61] are used to motivate the difficulty of inverting expressive VQNNs and to position the contribution, but they supply no equation used in Algorithm 2, so they are not load-bearing. The over-parameterization criterion is attributed to an external source [85]. A separate internal-consistency issue exists: Eq. 1 defines shared gradients as loss gradients including the 2(y_hat - y) factor, while Algorithm 2 line 9 computes g' directly as the Eq. 6 output derivative, and Assumption E.1 denies access to y. This is a correctness and threat-model concern, not a circular reduction of the derivation to its inputs, so it does not raise the circularity score beyond the low non-load-bearing self-citation level.

Assumptions & free parameters 6 free parameters · 4 assumptions · 0 invented entities

The attack's central claim rests on exact VQNN gradient evaluations (parameter-shift in an ideal simulator), the hand-chosen hyperparameters of the optimization loop, and the unformalized over-parameterization counting condition. No new physical entities are introduced; the adaptive low-pass filter and Kalman update are numerical techniques, not new objects of nature.

free parameters (6)
  • Moving-average window size N = 16, 32, 64 (per experiment)
    Controls the low-pass filter; Fig. 9 shows N=16 fails without Kalman and N=64 succeeds. The reduction schedule in Algorithm 2 (lines 25-27) is not specified.
  • Finite-difference step h = not reported
    Step size in Eq. 8 and Algorithm 2; not given, so the numerical gradients cannot be reproduced.
  • Learning rate lr = not reported
    Update rate for x' in Eq. 10 and Algorithm 2 line 22; not specified.
  • N-reduction threshold = not reported
    Condition in Algorithm 2 line 25 for halving N; the numerical value is omitted.
  • Kalman covariances Q, R = all-ones (identity)
    Initialized to identity (Appendix A) but no sensitivity analysis or default values for the process and measurement noise, which govern the gain D_k.
  • Success threshold = 0.005 MSE
    Attack success is defined as MSE(x',x) <= 0.005 (Section V-E 3); since long runs reach 1e-10, this threshold is lenient and makes success rates easier to satisfy.
assumptions (4)
  • standard math Parameter-shift rule for VQNN gradient evaluation (Eq. 6)
    The attack and the client both compute gradients via the parameter-shift rule; this assumes the ansatz rotations are Pauli-generated, which holds for the circuits used (Fig. 6).
  • domain assumption Exact, noiseless gradient oracle in all experiments
    Experiments use Qiskit/Pennylane simulation with exact expectations; finite-shot noise is never modeled (Section V-A), which is essential for the finite-difference estimators (Eq. 8) to resolve small gradients.
  • domain assumption Over-parameterization counting condition
    Section V-E 4 states inversion is possible when the number of model parameters is at least the number of unknowns (x, y), imported from classical inversion literature [85] without a VQNN-specific derivation or explicit parameter counts for the tested circuits.
  • domain assumption Attack runs on untrained models with unit-vector or random weights
    Most results (Table II) are for untrained models; the trained-model case appears only in Fig. 17. The claim about real FL settings assumes the attack transfers to trained models without systematic evidence.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Numerical Gradient Inversion Attack in Variational Quantum Neural-Networks." pith.science (2026). https://pith.science/paper/XBUUH2RC

@misc{pith2026250412806,
  author       = {Pith},
  title        = {Pith review of: A Numerical Gradient Inversion Attack in Variational Quantum Neural-Networks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/XBUUH2RC}},
  note         = {Machine review of arXiv:2504.12806}
}
read the original abstract

The loss landscape of Variational Quantum Neural Networks (VQNNs) is characterized by local minima that grow exponentially with increasing qubits. Because of this, it is more challenging to recover information from model gradients during training compared to classical Neural Networks (NNs). In this paper we present a numerical scheme that successfully reconstructs input training, real-world, practical data from trainable VQNNs' gradients. Our scheme is based on gradient inversion that works by combining gradients estimation with the finite difference method and adaptive low-pass filtering. The scheme is further optimized with Kalman filter to obtain efficient convergence. Our experiments show that our algorithm can invert even batch-trained data, given the VQNN model is sufficiently over-parameterized.

Figures

Figures reproduced from arXiv: 2504.12806 by the authors.

Figure 1
Figure 1. Generic architecture of a VQNN. It consists of a quantum feature [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. The surface shows the value of the VQNN model loss gradients for [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. In a standard pipeline of a Federated Learning model, clients ( [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4

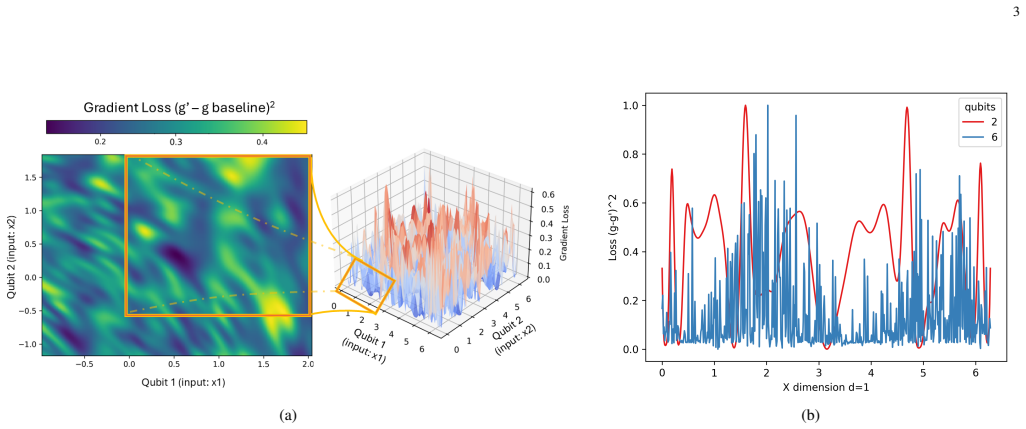

Figure 4. Figure 4: The plots show the gradient loss landscape (Eq. [PITH_FULL_IMAGE:figures/full_fig_p003_4.png]
Figure 5
Figure 5. Figure 5: Gradient inversion attack profile on two qubits ‘Complex’ VQNN [PITH_FULL_IMAGE:figures/full_fig_p003_5.png]
Figure 6
Figure 6. Figure 6: The model architectures which are used in the experiments. A Simple [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: 6-dimensional Complex VQNN model (Fig [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8

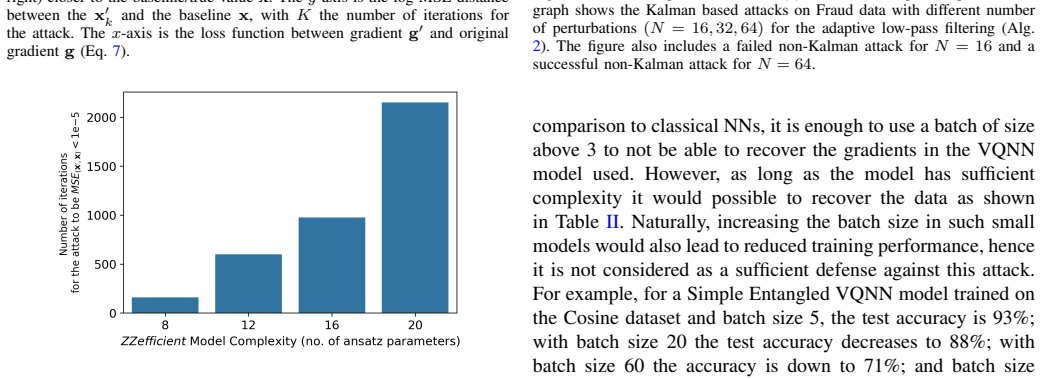

Figure 8. Figure 8: The plot shows the number of iterations required for the attack to [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 11
Figure 11. Figure 11: The plot shows the balanced accuracy (LH [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 12
Figure 12. Figure 12: These plots feature 2 and 6-dimensional Cosine datasets [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: These plots feature 2 and 6-dimensional MNIST data. Fig. [PITH_FULL_IMAGE:figures/full_fig_p013_13.png]
Figure 16

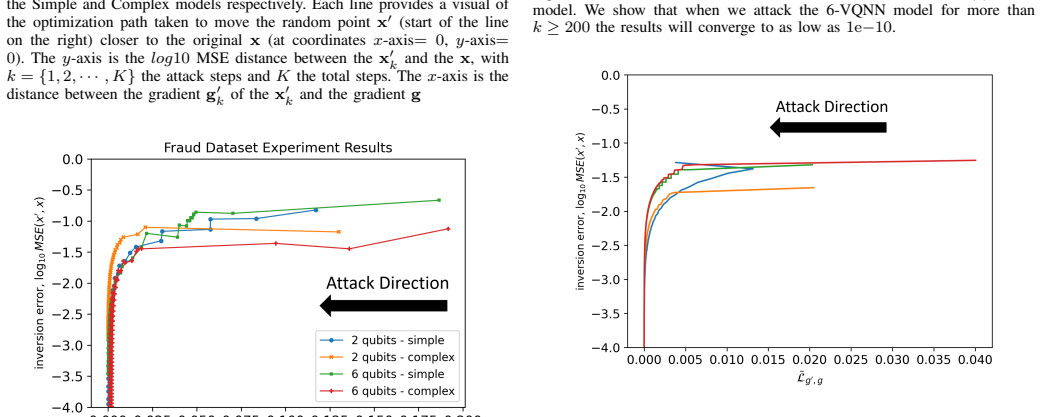

Figure 16. Figure 16: We perform 4 attacks by using different initial model weights each [PITH_FULL_IMAGE:figures/full_fig_p013_16.png]
Figure 17
Figure 17. Figure 17: We perform 3 attacks using as a base gradient [PITH_FULL_IMAGE:figures/full_fig_p014_17.png]
