arxiv: 2504.20906 · v4 · submitted 2025-04-29 · 💻 cs.CR · cs.LG

A Giant-Step Baby-Step Classifier For Scalable and Real-Time Anomaly Detection In Industrial Control Systems and Water Treatment Systems

Sarad Venugopalan , Sridhar Adepu This is my paper

Pith reviewed 2026-05-22 18:35 UTC · model grok-4.3

classification 💻 cs.CR cs.LG
keywords anomaly detectionindustrial control systemswater treatmentreal-time detectionexplainabilitylinearizationcyber-physical systemssensor-actuator relationships
0
0 comments X

The pith

Linearizing sensor-actuator relationships enables millisecond anomaly detection with full traceability in industrial control systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a classifier for anomaly detection in industrial control systems that begins by converting non-linear sensor-actuator relationships into linear forms. This linearization supports a giant-step baby-step procedure that identifies anomalies in milliseconds and traces each detection back to the specific sensor or actuator involved. Experiments on a water treatment testbed report 97.72 percent accuracy while treating deviations that stay inside safe operating limits as normal. The resulting combination of speed and explainability is presented as an advance over prior AI and machine-learning approaches that typically trade one property for the other.

Core claim

After linearizing the non-linear sensor-actuator relationships, a giant-step baby-step classifier detects anomalies in real time, returns millisecond-scale responses, and supplies traceable explanations that identify the responsible sensor or actuation state, reaching 97.72 percent accuracy on a water treatment testbed by classifying safe-limit deviations as non-anomalous.

What carries the argument

Giant-step baby-step classifier applied to linearized sensor-actuator models, performing classification that preserves component-level traceability.

Load-bearing premise

Linear approximations of non-linear sensor-actuator dynamics retain enough information to separate anomalies from normal safe variations.

What would settle it

Applying the classifier to an industrial control system whose non-linear dynamics differ substantially from the water treatment testbed and observing a large drop in accuracy or loss of traceability.

Figures

Figures reproduced from arXiv: 2504.20906 by Sarad Venugopalan, Sridhar Adepu.

Figure 1

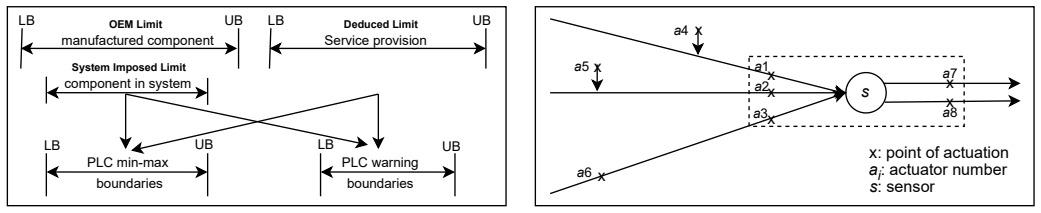

Figure 1. Figure 1: Safe state determination using sensors. Boundaries are fed into a programmable logic controller. Lower bound (LB) and upper bound (UB). ii.) An extended solution is proposed in Section 4 to detect anomalies that stand out over a longer period of time. iii.) We compare our solution results with AI/ML models for anomaly detection and explainable AI (see Section 5). iv.) We discuss how explainability [14] is … view at source ↗
Figure 3

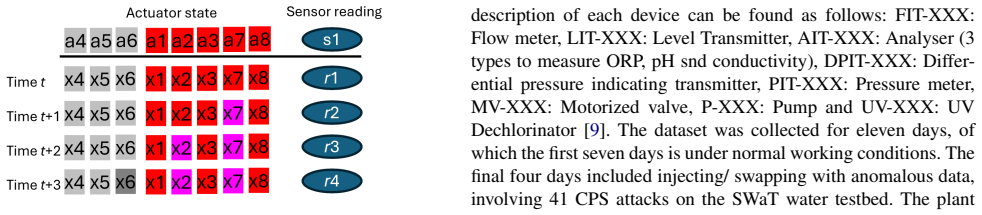

Figure 3. Figure 3: The actuators a4-a6 are for non-nearest neighbors w.r.t [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

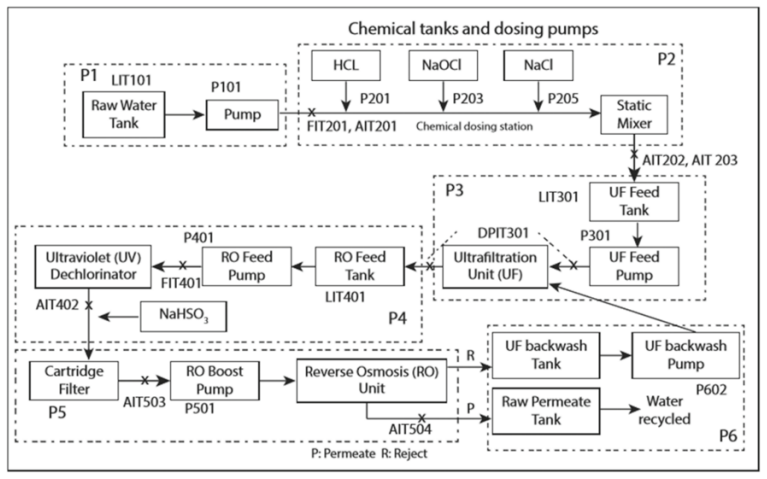

Figure 4. Figure 4: High level system architecture of SWaT water treatment testbed [9]. 2.4 Threat Model An attacker is assumed to have followed an attack vector [17] to gain access into plant OT. This adversary is assumed to be able to inject control commands and modify sensor readings and actuator status in OT. This leads to four attack types [9] — single stage single point (SSSP) where exactly one sensor/actuator data is u… view at source ↗
Figure 5

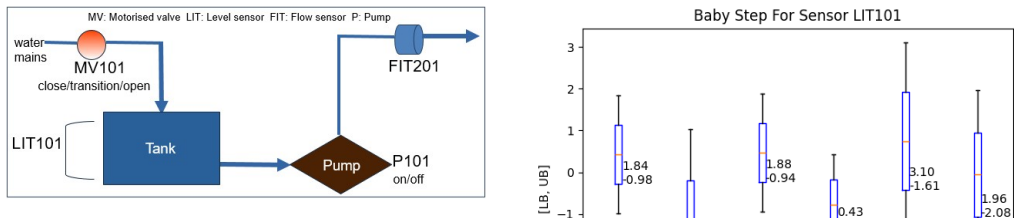

Figure 5. Figure 5: Mid-granular level view of P1 and early P2 SWaT process stages. Pretrain￾sb SWaT￾normal SWaT-nn actuator(s) Pretrain￾diff Training￾gi Training￾by SWaT￾attack Pretest￾sb Pretest￾diff Testing￾gi Testing￾by copy time index, sensor, nn￾acts append switchboard append diff Linearize into groups Linearize into groups Output: [LBg1,UBg1],..., [LBgm,UBgn] Output: [LBb1,UBb1],..., [LBbm,UBbn] Split Split Train Train… view at source ↗
Figure 7

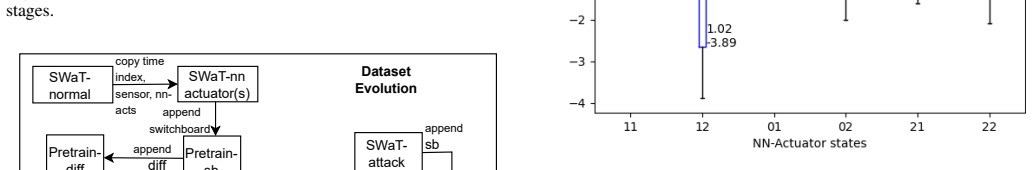

Figure 7. Figure 7: Plot of six [LB, UB] baby-step training bounds for sensor LIT101. SWaT normal dataset is used for training. 3.3.2 Linearized state groups Further, we split the Training-by dataset into linearized groups (LSGsb), for all sb ∈ Training-by dataset. The first group contains only dataset rows associated with the sb = 11 switchboard state for this example, in the exact order it appeared in the Training-by datase… view at source ↗
Figure 6

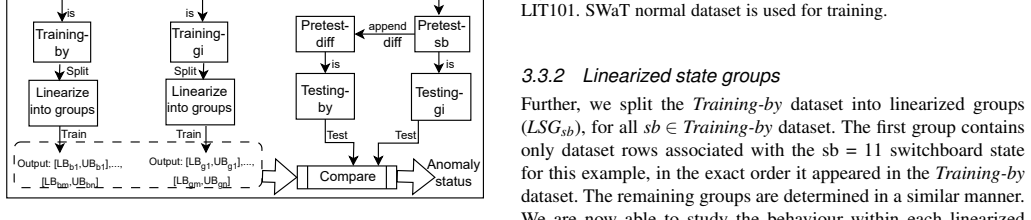

Figure 6. Figure 6: Evolution of training and testing dataset. Pretest, testing and comparison are carried out in real-time, once the output from training is available. 3.3 A switchboard to map actuation state, building lin￾earized state groups, and enable explanation The training dataset is built on the normal SWaT dataset and the testing dataset from the SWaT attack dataset (see [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: A SWaT process P1 water pumping example. In [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The Baby-step training split is similar to the Giant-step shown in [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: This example shows testing and explainability for the sensor trained in Giant-step ( [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: A hypothetical illustration of the distribution probabilities for sensor readings given its nn-actuation state, centred at p = 0.5. The anomaly probability is 0 at the centre and tends towards 1, as it approaches either of the boundaries. The x-axis is range of probability distribution and y-axis, its frequency. For the example with n = 3, we have T = 36, P(senn l ) = 3/36 = 0.083 and P(senn r ) = 31/36 =… view at source ↗
read the original abstract

The continuous monitoring of the interactions between cyber-physical components of any industrial control system (ICS) is required to secure automation of the system controls, and to guarantee plant processes are fail-safe and remain in an acceptably safe state. Safety is achieved by managing actuation (where electric signals are used to trigger physical movement), dependent on corresponding sensor readings; used as ground truth in decision making. Timely detection of anomalies (attacks, faults and unascertained states) in ICSs is crucial for the safe running of a plant, the safety of its personnel, and for the safe provision of any services provided. We propose an anomaly detection method that involves accurate linearization of the non-linear forms arising from sensor-actuator(s) relationships, primarily because solving linear models is easier and well understood. We accomplish this by using a well-known water treatment testbed as a use case. Our experiments show millisecond time response to detect anomalies, all of which are explainable and traceable; this simultaneous coupling of detection speed and explainability has not been achieved by other state of the art Artificial Intelligence (AI)/ Machine Learning (ML) models with eXplainable AI (XAI) used for the same purpose. Our methods explainability enables us to pin-point the sensor(s) and the actuation state(s) for which the anomaly was detected. The proposed algorithm showed an accuracy of 97.72% by flagging deviations within safe operation limits as non-anomalous; indicative that slower detectors with highest detection resolution is unnecessary, for systems whose safety boundaries provide leeway within safety limits.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a Giant-Step Baby-Step Classifier for anomaly detection in industrial control systems (ICS) and water treatment systems. It centers on accurate linearization of inherently non-linear sensor-actuator relationships to enable fast, explainable detection, reporting 97.72% accuracy on a water treatment testbed by treating deviations within safe limits as non-anomalous, along with millisecond response times and traceability to specific sensors/actuators. The authors assert this simultaneously achieves speed and explainability not attained by prior AI/ML models with XAI.

Significance. If the linearization step preserves anomaly-discriminating information and the performance generalizes, the work would offer a useful practical contribution to real-time ICS security by providing both low-latency detection and component-level traceability, addressing a gap where many XAI approaches trade off one for the other. The focus on safe-operation leeway as a design principle is a constructive element.

major comments (2)
  1. [Abstract and method description of linearization] The central performance claims (97.72% accuracy, millisecond latency, and traceability) rest on the linearization procedure, yet the manuscript supplies no quantitative bound on the linearization residual, no sensitivity analysis showing the size of deviation that can be masked by the approximation, and no evaluation on a second ICS domain beyond the single water-treatment testbed. This directly undermines the claim that the method works outside the reported experiments.
  2. [Abstract and experimental results] No baselines, error analysis, or comparative results against SOTA XAI models are presented to support the superiority assertion; the accuracy figure is stated without derivation details, cross-validation, or discussion of how thresholds were chosen, making the experimental evidence insufficient to substantiate the headline claims.
minor comments (1)
  1. [Abstract] The abstract refers to a 'well-known water treatment testbed' without naming it (e.g., SWaT or WADI), which reduces reproducibility; adding the exact testbed identifier and any public dataset references would help.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their careful reading and constructive comments. We address each major comment below and indicate planned revisions to improve the manuscript.

read point-by-point responses

  1. Referee: [Abstract and method description of linearization] The central performance claims (97.72% accuracy, millisecond latency, and traceability) rest on the linearization procedure, yet the manuscript supplies no quantitative bound on the linearization residual, no sensitivity analysis showing the size of deviation that can be masked by the approximation, and no evaluation on a second ICS domain beyond the single water-treatment testbed. This directly undermines the claim that the method works outside the reported experiments.

    Authors: We agree that an explicit quantitative bound on the linearization residual and a sensitivity analysis are not currently provided. The linearization approximates non-linear sensor-actuator relationships within the safe-operation envelope, treating deviations inside those bounds as non-anomalous by design. We will add a dedicated subsection deriving an error bound using the maximum observed deviation from normal-operation data and a first-order Taylor approximation residual. A sensitivity analysis showing the largest masked deviation will also be included. Regarding a second ICS domain, the current work focuses on the water-treatment testbed as a canonical ICS example; adding another domain would require new instrumentation and attack datasets that are outside the scope of this revision. We will explicitly state this limitation in the discussion and revise the abstract to qualify the generalization claim. revision: partial

  2. Referee: [Abstract and experimental results] No baselines, error analysis, or comparative results against SOTA XAI models are presented to support the superiority assertion; the accuracy figure is stated without derivation details, cross-validation, or discussion of how thresholds were chosen, making the experimental evidence insufficient to substantiate the headline claims.

    Authors: The reported accuracy of 97.72% is computed on the labeled testbed dataset by counting detections where the linearized prediction error exceeds the pre-defined safe-limit threshold. We will expand the experimental section with: (i) explicit derivation of the threshold from the 99th-percentile residual on normal data, (ii) 5-fold cross-validation results, and (iii) an error analysis breaking down false positives and negatives by sensor/actuator. Direct quantitative comparisons against SOTA XAI models were not performed because the method’s primary contribution is millisecond latency with built-in traceability rather than post-hoc explanation. We will revise the abstract and conclusion to replace the superiority claim with a statement that the approach simultaneously achieves real-time detection and component-level explainability, and add a qualitative comparison table against representative XAI methods in the related-work section. revision: partial

standing simulated objections not resolved
  • Evaluation on a second ICS domain, which would require new testbed instrumentation and attack data collection not feasible within the current revision timeline.

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper proposes linearization of non-linear sensor-actuator relationships as the core modeling step for anomaly detection, then reports empirical results (97.72% accuracy, millisecond latency, traceability) obtained by running the resulting classifier on a single well-known water-treatment testbed. No equations, parameter-fitting steps, or self-citations are shown that reduce the claimed performance figures or the linearization itself to the inputs by construction. The accuracy metric is an observed outcome on the validation data rather than a tautological prediction, and the method is presented as an engineering approximation whose validity is checked externally against the testbed traces. The derivation is therefore self-contained.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that linearization can be performed accurately for the target systems and that the chosen testbed is representative; these introduce domain assumptions and likely free parameters for the linearization step.

free parameters (1)
  • Linearization coefficients or thresholds
    Parameters required to convert non-linear sensor-actuator relationships into linear forms, presumably fitted or chosen for the water treatment testbed.
axioms (1)
  • domain assumption The water treatment testbed sufficiently represents real-world ICS dynamics for anomaly detection evaluation.
    Validation and accuracy claims are based exclusively on this testbed.
