arxiv: 2506.08332 · v3 · submitted 2025-06-10 · 💻 cs.AI

ORFS-agent: Tool-Using Agents for Chip Design Optimization

Amur Ghose , Andrew B. Kahng , Sayak Kundu , Zhiang Wang This is my paper

Pith reviewed 2026-05-19 11:19 UTC · model grok-4.3

classification 💻 cs.AI
keywords LLM agentschip design optimizationparameter tuningRTL-to-layout flowsBayesian optimizationmulti-objective optimizationtool-using agentsopen-source EDA
0
0 comments X

The pith

An LLM agent tunes thousands of parameters in open-source chip design flows more efficiently than Bayesian optimization, improving wirelength and clock period with 40% fewer iterations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ORFS-agent, an LLM-based iterative agent that automates parameter tuning for register-transfer level to physical layout workflows in integrated circuit design. It shows that frontier thinking-model backends can explore high-dimensional configuration spaces adaptively, delivering up to 1.0% better geometric-mean normalized wirelength, 1.3% better effective clock period, and 2.7% better co-optimization objectives than OR-AutoTuner across six benchmarks on ASAP7 and SKY130HD while using 40% fewer iterations. The agent remains modular and model-agnostic, requiring no fine-tuning, and supports natural-language objectives for trading off metrics. This approach matters because even small parameter changes in these flows can produce large effects on final power, performance, and area, and current optimization methods consume substantial compute resources.

Core claim

ORFS-agent is an LLM-based iterative optimization agent that automates parameter tuning in open-source hardware design flows by adaptively exploring configurations; across six benchmarks it improves geometric-mean normalized wirelength by up to 1.0%, effective clock period by 1.3%, and co-optimization objectives by 2.7% over OR-AutoTuner while using 40% fewer iterations, with open-weight models staying within 0.24% of the best closed model and optional retrieval tools accelerating early convergence without changing final endpoints.

What carries the argument

The ORFS-agent, an LLM-driven iterative loop that selects parameter configurations, invokes evaluation tools in the RTL-to-layout flow, and reasons over results to refine the next configuration without any model fine-tuning.

If this is right

  • Thinking-model backends improve the same objectives by up to 7.5% over the earlier Sonnet 3.5 backend.
  • Open-weight models enable private deployment while remaining competitive.
  • Natural-language instructions allow explicit trade-offs between metrics in multi-objective settings.
  • Retrieval tools speed early progress but do not raise final performance ceilings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same agent structure could be tested on other high-dimensional engineering optimization tasks such as compiler flag tuning or process-parameter selection in manufacturing.
  • Checkpoint-aligned reasoning traces could support human review or automated auditing of optimization decisions in regulated design environments.
  • If the pattern holds across model generations, the need for bespoke surrogate models in many EDA flows may decrease.

Load-bearing premise

LLM reasoning combined with tool use will consistently yield better or more resource-efficient parameter choices than Bayesian optimization in the high-dimensional configuration space of open-source RTL-to-layout flows.

What would settle it

A controlled comparison on additional unseen benchmarks or with different LLMs showing no reduction in iterations or no improvement in wirelength, clock period, or co-optimization metrics relative to OR-AutoTuner would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 2506.08332 by Amur Ghose, Andrew B. Kahng, Sayak Kundu, Zhiang Wang.

Figure 1
Figure 1. Figure 1: ORFS-agent integrated with OpenROAD-flow-scripts (ORFS); metrics gathered via METRICS2.1 [22]. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

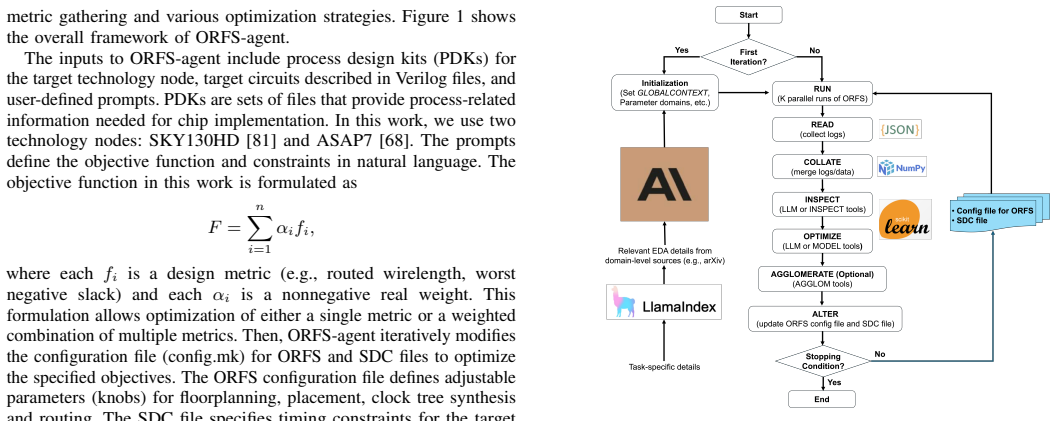

Figure 2. Figure 2: Overall ORFS-agent flowchart. specify the maximum runtime for each batch. Below, we show an example scenario with K = 25, TIMEOUT = 30 minutes and parameters (Core Util, Clock Period) that can be integrated, along with possible function-calling tools. Consider the j th iteration. Assume that we target the routed wirelength and take the CTS wirelength as a surrogate (recalling that the CTS stage is earlier … view at source ↗
Figure 3
Figure 3. Figure 3: Optimization trajectory of ASAP7-IBEX (co-optimization, 600 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Correlation of metrics for ASAP7-IBEX: wirelength ( [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Pareto frontier of ECP vs. W L under 4% tolerance, relative to the baseline. The blue line represents the case with 4 parameters and no tool use, and the red line represents the case with 12 parameters and tool use. APPENDIX D ABLATIONS FOR DATA LEAKAGE, CONFIDENCE AND ROBUSTNESS In this appendix, we analyze statistical significance in Table XV, and study prompt-level ablations in Tables XVI and XVII. Tabl… view at source ↗
read the original abstract

Machine learning has been widely used to optimize complex engineering workflows across numerous domains. In integrated circuit design, modern flows (e.g., register-transfer level to physical layout) involve extensive configuration via thousands of parameters, and small changes can have large downstream impacts on design performance, power, and area. Recent advances in Large Language Models (LLMs) offer new opportunities for learning and reasoning within such high-dimensional optimization tasks. In this work, we introduce ORFS-agent, an LLM-based iterative optimization agent that automates parameter tuning in an open-source hardware design flow. ORFS-agent adaptively explores parameter configurations, demonstrating improvements over standard Bayesian optimization approaches in terms of resource efficiency and final design metrics. Across six benchmarks on ASAP7 and SKY130HD, thinking-model backends (Sonnet 4.6 [69] and Kimi K2.5 [28]) improve the geometric-mean normalized wirelength, effective clock period, and co-optimization objectives by up to 1.0%, 1.3%, and 2.7% over OR-AutoTuner while using 40% fewer iterations; the open-weight Kimi K2.5 remains within 0.24% of Sonnet 4.6, enabling private deployment. Relative to the earlier Sonnet 3.5 backend, these thinking models improve the same objectives by up to 7.5%, 3.1%, and 4.0%. Optional retrieval tools accelerate early convergence but do not improve final endpoints. By following natural language objectives to trade off certain metrics for others, ORFS-agent demonstrates a flexible and interpretable framework for multi-objective and constrained optimization. Crucially, ORFS-agent is modular and model-agnostic, and can be plugged into any frontier LLM without any further fine-tuning. We also report checkpoint-aligned trajectories and reasoning summaries that document the agent's decision process.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces ORFS-agent, an LLM-based iterative optimization agent for automating parameter tuning in open-source RTL-to-physical-layout flows. It claims that tool-using agents powered by advanced thinking-model LLMs (Sonnet 4.6 and Kimi K2.5) outperform Bayesian optimization baselines (OR-AutoTuner) across six benchmarks on ASAP7 and SKY130HD, delivering geometric-mean improvements of up to 1.0% in normalized wirelength, 1.3% in effective clock period, and 2.7% in co-optimization objectives while using 40% fewer iterations. The framework is modular and model-agnostic, supports natural-language multi-objective trade-offs, and supplies checkpoint-aligned trajectories plus reasoning summaries.

Significance. If the empirical gains are shown to be statistically reliable, the work would offer a concrete demonstration that general-purpose LLMs can be applied to high-dimensional engineering optimization in electronic design automation without domain-specific fine-tuning. The explicit provision of reasoning traces and the near-parity of an open-weight model with a closed model are genuine strengths that enhance interpretability and practical deployability.

major comments (1)
  1. [§5] §5 (Experimental Results) and associated tables/figures: the headline geometric-mean improvements (1.0%/1.3%/2.7%) and 40% iteration reduction are reported as single point estimates per benchmark without standard deviations, confidence intervals, or statistical significance tests across replicate runs. Because both Bayesian optimization and LLM sampling are stochastic and early parameter choices can produce divergent local optima, these point values alone do not establish that the observed deltas exceed run-to-run noise.
minor comments (2)
  1. [§3] The distinction between 'thinking-model backends' and standard models is referenced via citations but lacks a concise operational definition or prompt-template excerpt that would allow readers to reproduce the exact reasoning style.
  2. [Figures 4-6 and Tables 2-3] Figure and table captions would benefit from explicit indication of which data series correspond to Sonnet 4.6 versus Kimi K2.5 to reduce cross-referencing effort.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on the experimental reporting. We address the concern regarding the statistical reliability of the reported results below.

read point-by-point responses

  1. Referee: [§5] §5 (Experimental Results) and associated tables/figures: the headline geometric-mean improvements (1.0%/1.3%/2.7%) and 40% iteration reduction are reported as single point estimates per benchmark without standard deviations, confidence intervals, or statistical significance tests across replicate runs. Because both Bayesian optimization and LLM sampling are stochastic and early parameter choices can produce divergent local optima, these point values alone do not establish that the observed deltas exceed run-to-run noise.

    Authors: We agree that the results are presented as single-point estimates and that the lack of standard deviations, confidence intervals, or formal statistical tests across replicate runs is a limitation, particularly given the stochastic nature of both Bayesian optimization and LLM sampling. Each full optimization trajectory requires multiple executions of the complete RTL-to-GDSII flow, making replicate runs across all six benchmarks computationally prohibitive within our experimental budget. The improvements were nevertheless observed consistently in direction across all benchmarks and objectives. In the revised manuscript we will add an explicit discussion in §5 acknowledging the single-run design, the sources of stochasticity, and the resulting limitation on claims of statistical significance. We will also attempt to obtain limited replicate data for at least one benchmark to provide preliminary variance estimates if resources allow. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical results stand alone

full rationale

The paper reports direct experimental outcomes from running ORFS-agent trajectories on six fixed benchmarks (ASAP7 and SKY130HD), measuring wirelength, clock period, and co-optimization objectives against the OR-AutoTuner baseline. These are observed point estimates from tool-using LLM sessions, not quantities derived from equations, fitted parameters, or self-referential definitions. No load-bearing self-citations, ansatzes, or uniqueness theorems underpin the central claims; the evaluation is self-contained against external benchmarks and does not reduce any result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is empirical and does not introduce mathematical derivations, free parameters fitted to target results, or new postulated entities; it relies on standard LLM capabilities and existing design tools.

pith-pipeline@v0.9.0 · 5886 in / 1274 out tokens · 57622 ms · 2026-05-19T11:19:01.108706+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Bridging the Last Mile of Circuit Design: PostEDA-Bench, a Hierarchical Benchmark for PPA Convergence and DRC Fixing

    cs.AR 2026-05 unverdicted novelty 7.0

    PostEDA-Bench shows LLM agents succeed reasonably on basic DRC and single-objective PPA tasks but struggle on practical DRC reasoning (best 36.66% success) and multi-objective PPA (best 20% success).

Reference graph

Works this paper leans on

85 extracted references · 85 canonical work pages · cited by 1 Pith paper · 9 internal anchors
