Relation3D: Enhancing Relation Modeling for Point Cloud Instance Segmentation

T0 review · 2 major / 8 minor · reviewed 2026-08-15 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Relation3D claims that adding explicit relation modeling at the superpoint level and between instance queries improves point cloud instance segmentation beyond current transformer-based methods, reporting gains on ScanNetV2, ScanNet++…

desk verdict Solid incremental gains in 3D instance segmentation with an unvalidated superpoint assumption that needs addressing before full acceptance. read the letter →

arxiv 2506.17891 v1 pith:BIVVLMNE submitted 2025-06-22 cs.CV

Jiahao Lu , Jiacheng Deng This is my paper · ORCID
classification cs.CV
keywords pointcloudinstancesegmentationsuperpointaggregationcontrastivelearningrelation-awareself-attentiontransformerdecoder3DsceneunderstandingScanNetV2S3DIS
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

3D instance segmentation means labeling every object in a scanned scene with a class and a per-object mask. Relation3D argues that transformer-based systems for this task neglect two internal relations: those among the precomputed point clusters called superpoints, and those among instance queries. To fix this, it adds an adaptive superpoint aggregation module, a contrastive-learning-guided refinement module that pulls superpoint features of the same instance together and pushes different instances apart, and a relation-aware self-attention that adds position and geometry biases between queries. The paper reports consistent gains over other transformer-based methods on ScanNetV2, ScanNet++, ScanNet200, and S3DIS; on ScanNetV2 validation it reports mAP 62.5, AP@50 80.2, and AP@25 87.0. The claim matters because relation modeling could let an end-to-end query-based segmenter resolve nearby, similar-looking objects without extra proposal or grouping stages.

What carries the argument

The machinery is the superpoint with its instance-relation prior. ASAM aggregates point features into superpoints by predicting per-point weights from max-pooling and mean-pooling differences, so boundaries and corners get higher weight. CLSR then refines superpoint features in a cross-attention path every few decoder layers, and a contrastive loss drives the normalized superpoint similarity matrix toward a ground-truth instance relation matrix. RSA takes each query's predicted mask, computes its bounding box, builds six log features (three center offsets scaled by query size and three size ratios), encodes them, and adds the embedding to the self-attention logits. The ablation sequence in the paper shows these components together moving the validation mAP from 59.8 to 62.5.

What would settle it

Measure the fraction of superpoints that contain points from more than one ground-truth instance on ScanNetV2, or rerun Relation3D after deliberately merging superpoints across object boundaries; if the reported gains persist when superpoints are impure, the homogeneous-superpoint assumption is not what carries the result.

Watch

Extended reading notes

Core claim

The central claim is that pair-wise relation priors belong inside the superpoint features and between instance queries, not only between scene and query through mask attention. A superpoint is a precomputed cluster of points that should belong to a single surface or object. Relation3D replaces plain pooling with learned per-point weights that emphasize boundaries and corners, then refines superpoint features in a decoder-side cross-attention path in which superpoints attend to instance queries; a contrastive loss measures the normalized superpoint similarity matrix against an instance-derived relation prior, pulling same-instance superpoints together and pushing different-instance superpoints apart. On the query side, relation-aware self-attention computes each pair of queries' relative mask-box center distances and size ratios, encodes them with sinusoidal encoding, and adds the resulting bias to the attention logits. On ScanNetV2 validation the paper reports mAP 62.5, AP@50 80.2, and AP@25 87.0, with higher numbers than the Maft baseline on the hidden test set, and gains on ScanNet++, ScanNet200, and S3DIS.

Load-bearing premise

The method depends on the preprocessing step that groups points into superpoints being accurate: if a superpoint contains points from two different objects, the contrastive signal and the aggregation weights get contradictory information.

Editorial extensions

If this is right

  • The ablation sequence shows the three modules are complementary: ASAM alone, CLSR alone, and RSA alone each add a gain, and the full combination gives the largest improvement.
  • The relation priors remain useful as the number of categories and instances grows, which is where the reported gains on ScanNet++ and ScanNet200 are largest.
  • The reported convergence curves and attention maps show the relation priors pull attention toward relevant queries earlier in training.
  • Compared with the Maft baseline, Relation3D adds about 2.0M parameters and a modest runtime increase, so the gains are not bought by a substantially larger model.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper, the same relation-aware attention bias could be applied to 2D mask transformers, because the positional and geometric features are computed from predicted masks rather than from 3D structure.
  • Beyond the paper, the contrastive relation prior could be produced from the model's own predicted masks at test time, making superpoint refinement self-supervised and removing the need for ground-truth instance labels in this module.
  • Beyond the paper, a soft relation prior encoding geometric compatibility such as coplanarity, symmetry, or containment would test whether the method's gains come specifically from the binary same-instance relation or from any informative pairwise signal.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 8 minor

Summary. The paper proposes Relation3D, a transformer-based 3D instance segmentation method that introduces three components: an adaptive superpoint aggregation module (ASAM), a contrastive learning-guided superpoint refinement module (CLSR), and relation-aware self-attention (RSA). The authors claim state-of-the-art results on ScanNetV2, ScanNet++, ScanNet200, and S3DIS, with ablations showing that each module contributes to the final performance. The work is positioned as addressing the lack of explicit relation modeling among scene features and among instance queries in existing transformer-based methods.

Significance. If the reported results are reproducible, the paper makes a solid empirical contribution: it evaluates on four benchmarks, provides per-category breakdowns in the supplementary material, reports runtime/parameter analysis, and includes ablations for each proposed module. The convergence analysis and weight visualizations give additional insight into why the components help. However, the central modules rely on an unvalidated superpoint input, the code link is a placeholder, and the headline improvement numbers are computed against inconsistent baselines. These issues limit the verifiability of the claimed state of the art.

major comments (2)
  1. [3.3-3.4 (Eqs. 3-5)] The contrastive relation prior and ASAM both assume that each superpoint is internally homogeneous with respect to instance identity, but the manuscript does not describe how superpoints are generated, what geometric partition parameters are used, or how many superpoints result per scene. If a superpoint straddles two ground-truth instances or an instance and background, the binary relation in Eq. (3) is ill-defined and the BCE loss in Eq. (5) gives conflicting supervision. This is load-bearing because Table 6 shows that ASAM+CLSR contribute 1.7 mAP over the baseline (59.8 to 61.5) and the full model reaches 62.5. Please specify the superpoint generation procedure, report instance-purity statistics (e.g., the fraction of superpoints contained in a single ground-truth instance on each benchmark), or modify the formulation to handle impure superpoints.
  2. [4.2, Table 2] The headline gains in Section 4.2 are computed against inconsistent baselines: mAP +2.6 and AP@50 +3.7 are relative to Maft‡ (59.9/76.5), AP@25 +2.5 is relative to Maft (84.5), while the ablation baseline [A] (Maft with surface normals and NMS) is 59.8/77.4/85.4. Please report a single consistent baseline for all metrics or explicitly show the per-metric baseline for each reported delta; as written, the claimed improvements cannot be directly verified from Table 2.
minor comments (8)
  1. [3.4, Eq. (5)] The expression 'S+ 1 2' is ambiguous; please write (S+1)/2 and state that S is the cosine similarity after L2-normalization, so that the argument to BCE lies in [0,1].
  2. [Abstract, Section 1, Section 4.1] The code link 'this website' is a placeholder; please provide an actual URL or an explicit statement about the code release timeline.
  3. [Section 4.1 and all result tables] No error bars or multiple-seed results are reported. Please either report mean and standard deviation over at least three runs or explicitly state that results are from a single run.
  4. [Section 3.3] The text says 'we concatenate F′max and F′mean to [F′max,F′min]'; the final bracket should read [F′max,F′mean] (or the notation should be made consistent).
  5. [Supplementary Table 9 caption] The caption says 'Best performance of box supervised methods is in boldface,' which appears to be a copy-paste artifact; this table compares fully supervised methods and the caption should be corrected.
  6. [Supplementary Section 8] The sentence 'The two of them work together to achieve 14 out of 18 categories' is unclear; please rephrase to state which methods are combined and what comparison is being made.
  7. [Section 4.3] The sentence 'their contributes comparably' should read 'their contributions are comparable.'
  8. [Section 4.1] Consider reporting sensitivity to the number of queries K, since K changes from 400 to 500 across datasets and no ablation is shown for this hyperparameter.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: Relation3D is a standard supervised method evaluated on external benchmarks, with no prediction that reduces to a fitted input by construction.

full rationale

The paper's claimed contributions—ASAM, CLSR, and RSA—are all supervised components whose outputs are evaluated against held-out benchmarks. ASAM computes point-level aggregation weights from MLPs and softmax normalizes them over each superpoint; this is a learned pooling operation, not a parameter fitted to the final metric. CLSR uses ground-truth instance annotations to build the binary relation prior of Eq. 3 and applies a BCE contrastive loss in Eq. 5 to pull same-instance superpoint features together; this is standard labeled supervision, not a derivation of the labels from the model. RSA injects positional and geometric biases computed from each query's predicted mask and bounding box into self-attention (Eq. 7), an iterative refinement mechanism common in detection and segmentation; the predicted masks are not forced to equal the input. The reported gains in Tables 2–5 are measured on ScanNetV2, ScanNet++, ScanNet200, and S3DIS validation/test splits, which are external to the training procedure. No parameter is fitted to the benchmark metric and then renamed as a prediction. The paper does cite prior work by the same authors (e.g., QueryFormer, BSNet, PAMBA), but these citations are not load-bearing: no central premise, uniqueness theorem, or forced choice depends on them, and the main architectural ideas are compared against and built upon external baselines such as Maft and Relation-DETR. The code URL being a placeholder and the lack of details about superpoint generation are reproducibility limitations, not circularity. The superpoint instance-homogeneity assumption is an input modeling assumption whose violation would add noise, but it is not an equation that makes the output equal to the input by construction. Therefore no circular step is present, and a score of 0 is appropriate.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The method rests on several domain assumptions about superpoint quality and the usefulness of predicted masks as geometric priors, plus a few manually tuned hyperparameters. There are no new physical or mathematical entities introduced.

free parameters (3)
  • number of queries K = 400 (500 for ScanNet++ and ScanNet200)
    Tuned on validation sets; larger datasets use more queries.
  • superpoint refinement interval r = 3
    Chosen via ablation on ScanNetV2 and ScanNet200 validation (Table 14).
  • loss weights lambda_1 through lambda_6 = 0.5, 1, 1, 0.5, 0.5, 1
    Manually set and not ablated.
assumptions (3)
  • domain assumption Superpoints are homogeneous with respect to instance boundaries
    The contrastive relationship matrix R_GT in Eq. 3 labels superpoint pairs as same-instance or different-instance, which is only valid if superpoints do not mix objects. If superpoints straddle boundaries, the BCE target is inconsistent. This is invoked throughout Section 3.4.
  • domain assumption Predicted masks from earlier decoder layers provide bounding boxes that are useful for relation modeling
    The RSA uses masks computed from queries to derive bounding boxes; early in training these masks are noisy, yet the method assumes they still encode useful geometric relations. This appears in Section 3.5.
  • ad hoc to paper The log-scaled positional and geometric relationship encoding captures useful inductive biases
    The specific encoding of relative position and size differences in Section 3.5 is a design choice not motivated by theory, though it is adapted from Relation-DETR.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Relation3D: Enhancing Relation Modeling for Point Cloud Instance Segmentation." pith.science (2026). https://pith.science/paper/BIVVLMNE

@misc{pith2026250617891,
  author       = {Pith},
  title        = {Pith review of: Relation3D: Enhancing Relation Modeling for Point Cloud Instance Segmentation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/BIVVLMNE}},
  note         = {Machine review of arXiv:2506.17891}
}
read the original abstract

3D instance segmentation aims to predict a set of object instances in a scene, representing them as binary foreground masks with corresponding semantic labels. Currently, transformer-based methods are gaining increasing attention due to their elegant pipelines and superior predictions. However, these methods primarily focus on modeling the external relationships between scene features and query features through mask attention. They lack effective modeling of the internal relationships among scene features as well as between query features. In light of these disadvantages, we propose \textbf{Relation3D: Enhancing Relation Modeling for Point Cloud Instance Segmentation}. Specifically, we introduce an adaptive superpoint aggregation module and a contrastive learning-guided superpoint refinement module to better represent superpoint features (scene features) and leverage contrastive learning to guide the updates of these features. Furthermore, our relation-aware self-attention mechanism enhances the capabilities of modeling relationships between queries by incorporating positional and geometric relationships into the self-attention mechanism. Extensive experiments on the ScanNetV2, ScanNet++, ScanNet200 and S3DIS datasets demonstrate the superior performance of Relation3D.

Figures

Figures reproduced from arXiv: 2506.17891 by the authors.

Figure 1
Figure 1. T-SNE visualization of the superpoint-level feature distributions on ScanNetV2 validation set. Different colors rep￾resent different instances. Our method highlights better inter-object diversity and intra-object similarity. Point feature variation (Maft) 1.8603 (Excessive) Setting Maft Ours (Stage 1) Ours (Stage 2) Ours (Stage 3) Lcont 1.057 0.7255 0.5841 0.5739 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. (a) The overall framework of our method Relation3D. (b) The details of our proposed adaptive superpoint aggregation module. (c) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. The superpoint refinement module. Superpoint-level [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (6 more)
Figure 4
Figure 4. Figure 4: Visualization of instance segmentation results on Scan￾NetV2 and ScanNet++ validation set. The red boxes highlight the key regions. learning rate of 0.0002. Point clouds are voxelized with a size of 0.02m. For hyperparameters, we tune K, r as 400, 3 respectively. λ1, λ…
Figure 5
Figure 5. Figure 5: (a) Comparison of attention maps for traditional self-attention vs. relation-aware self-attention. We display the progression of attention maps from layer 1, 3, 5. (b) Comparison of attention weight distributions for traditional self-attention vs. relation-aware self-a…
Figure 7

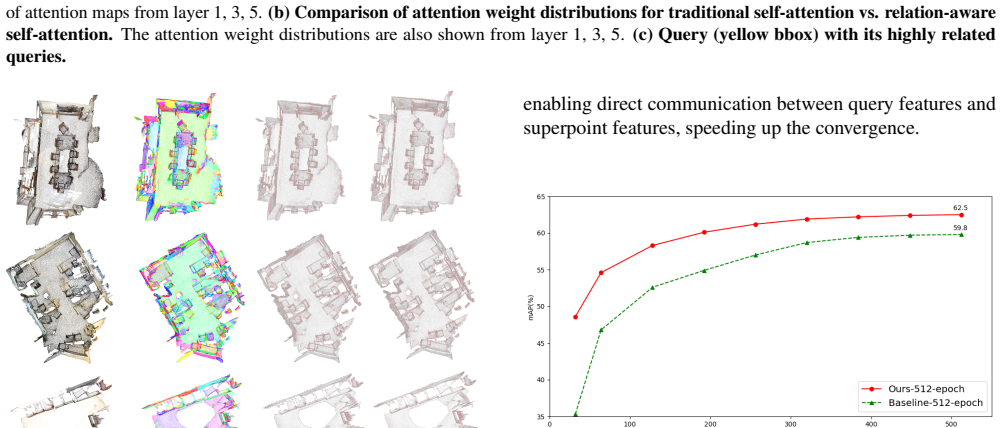

Figure 7. Figure 7: , our method demonstrates a faster convergence speed compared to the baseline. This improvement can be attributed to the relation priors introduced by CLSR and RSA: contrastive learning provides relation priors for super￾points to guide feature aggregation, while RSA i…
Figure 8
Figure 8. Figure 8: More visualization of instance segmentation results on ScanNetV2 validation set. The red boxes highlight the key regions 5 [PITH_FULL_IMAGE:figures/full_fig_p016_8.png]
Figure 9
Figure 9. Figure 9: More T-SNE visualization of the superpoint-level feature distributions on ScanNetV2 validation set. 6 [PITH_FULL_IMAGE:figures/full_fig_p017_9.png]
Figure 10
Figure 10. Figure 10: More visualization of weights in the adaptive superpoint aggregation module. 7 [PITH_FULL_IMAGE:figures/full_fig_p018_10.png]
