Analytical Study on the Exposedness of Potential Positions for External Human-Machine Interfaces

Jose Gonzalez-Belmonte , Jaerock Kwon This is my paper

Pith reviewed 2026-05-19 04:44 UTC · model grok-4.3

classification 💻 cs.HC
keywords autonomous vehiclesexternal human-machine interfacesvisibility simulationpedestrian crossingvehicle surface exposuresignaling designUnity simulation
0
0 comments X

The pith

Simulation of pedestrian viewpoints shows wheels, front fenders and headlights are the most visible vehicle surfaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper sets out to determine the best locations for external displays on autonomous vehicles by measuring how often different surfaces can be seen by pedestrians on the sidewalk. It uses a Unity simulation to test fifteen vehicles across fifty-seven scenarios that vary vehicle position, camera angle, distance, and number of other cars on the road. The results indicate that wheels, front fenders, and headlights appear in view most frequently. A reader would care because placing signals where people actually look could make interactions with self-driving cars safer and more intuitive. The work also provides a simulation platform that others can reuse for similar visibility studies.

Core claim

The analysis of simulated viewpoints concludes that the areas of the vehicle most often seen by pedestrians on the sidewalk attempting to cross the road were the wheels, front fenders, and headlights. Based on these results, the paper suggests implementing displays on at least two of the following regions: windshield, front fenders, side mirrors. These findings aim to help ensure that pedestrians are able to see signaling on approaching autonomous vehicles.

What carries the argument

Unity-based simulation that records visibility frequency of vehicle surfaces by positioning virtual cameras at multiple sidewalk locations with varying distances and directions.

If this is right

  • Designers should consider placing external human-machine interfaces on high-visibility areas like the front fenders and headlights.
  • Using at least two display regions increases the likelihood that pedestrians notice the signals.
  • The simulation method can be applied to test visibility in additional traffic or environmental conditions.
  • Vehicle manufacturers may use these exposure rankings to standardize interface placements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Real-world validation of the simulation results could lead to regulatory guidelines for display placement on autonomous vehicles.
  • Extending the model to include cyclist or driver viewpoints might reveal different optimal positions.
  • The emphasis on visible surfaces could influence how other road users like cyclists or drivers are signaled to in mixed traffic.

Load-bearing premise

The simulation's camera placements, distances, and traffic setups accurately reflect the typical viewpoints of real pedestrians observing vehicles from the sidewalk.

What would settle it

Conducting an experiment where real pedestrians wear eye-tracking devices while watching approaching vehicles in actual traffic and comparing the observed gaze points to the simulation's visibility counts.

Figures

Figures reproduced from arXiv: 2507.08973 by Jaerock Kwon, Jose Gonzalez-Belmonte.

Figure 1
Figure 1. Figure 1: Top-Down View of the Virtual Street Layout. [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2

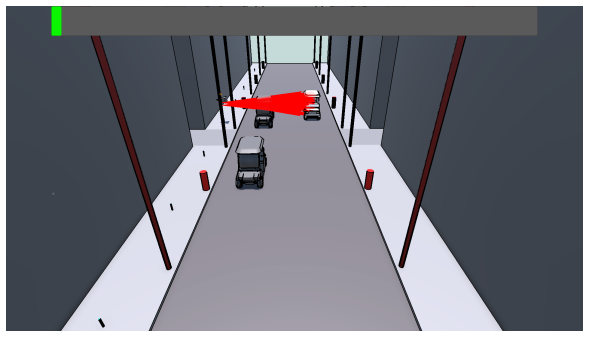

Figure 2. Figure 2: Screenshot of the simulation running. Red lines indicate the trajectory of the [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Top-Down View of the fifteen vehicles used in the simulations. Color denotes [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4

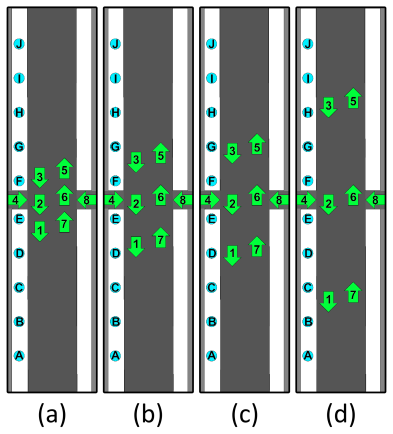

Figure 4. Figure 4: Diagram illustrating the ten possible sidewalk camera positions, and the eight [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Diagram illustrating all sixteen setups based on the [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Visualization of the three ranges used for [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7

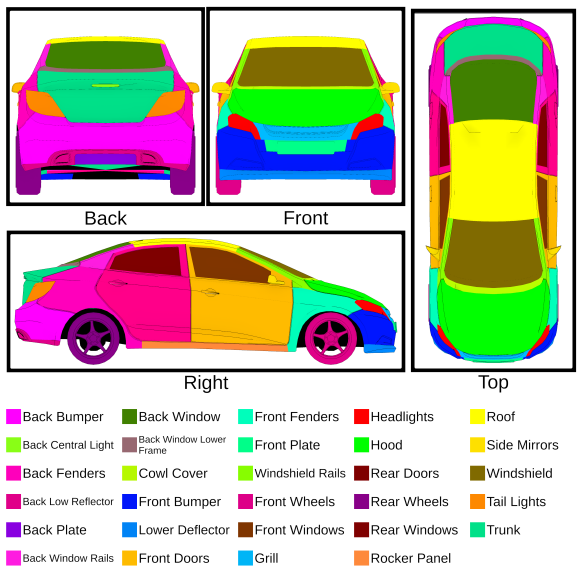

Figure 7. Figure 7: Illustration of the different exterior parts of a sedan, and the terminology used [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗
Figure 8

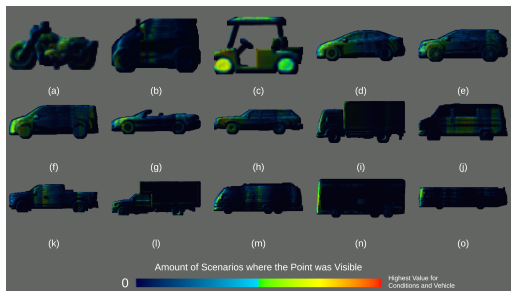

Figure 8. Figure 8: Comparison of the right side of the heatmap of all vehicle types that is produced [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Results showing how many times a Grid Point was recorded, across all scenarios where the vehicle was a SUV driving: (a) North, on the right side of the virtual environ￾ment; (b) East, out of the alleyway on the left side of the virtual environment; (c) South, on the left side of the virtual environment; (d) West, out of the alleyway on the right side of the virtual environment. 19 [PITH_FULL_IMAGE:figures… view at source ↗
Figure 10

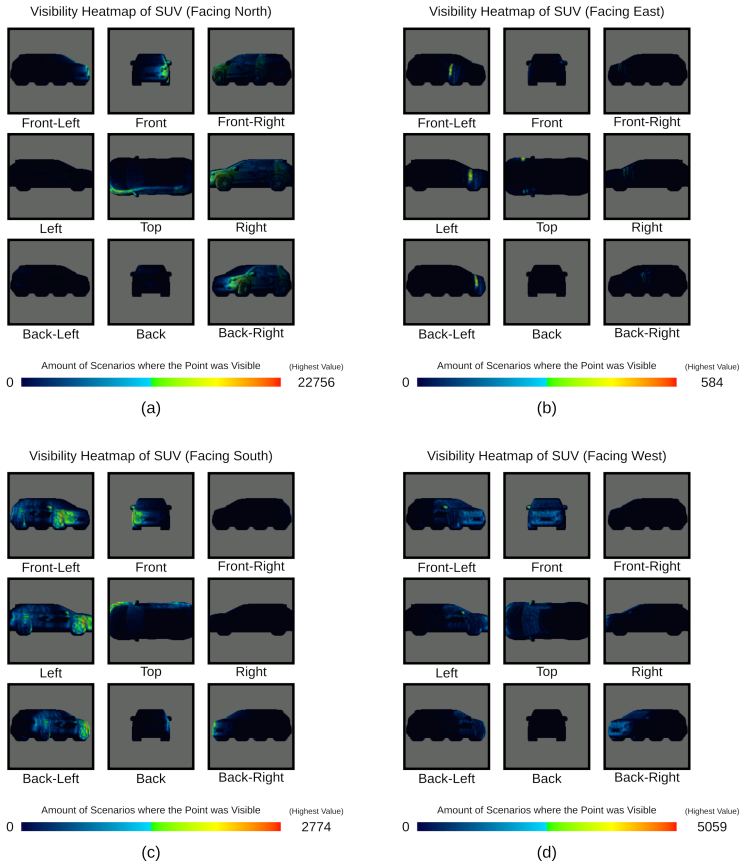

Figure 10. Figure 10: Results showing the heatmap of the SUV at each facing direction, when the [PITH_FULL_IMAGE:figures/full_fig_p022_10.png] view at source ↗
