arxiv: 2508.04427 · v1 · submitted 2025-08-06 · 💻 cs.LG · cs.AI

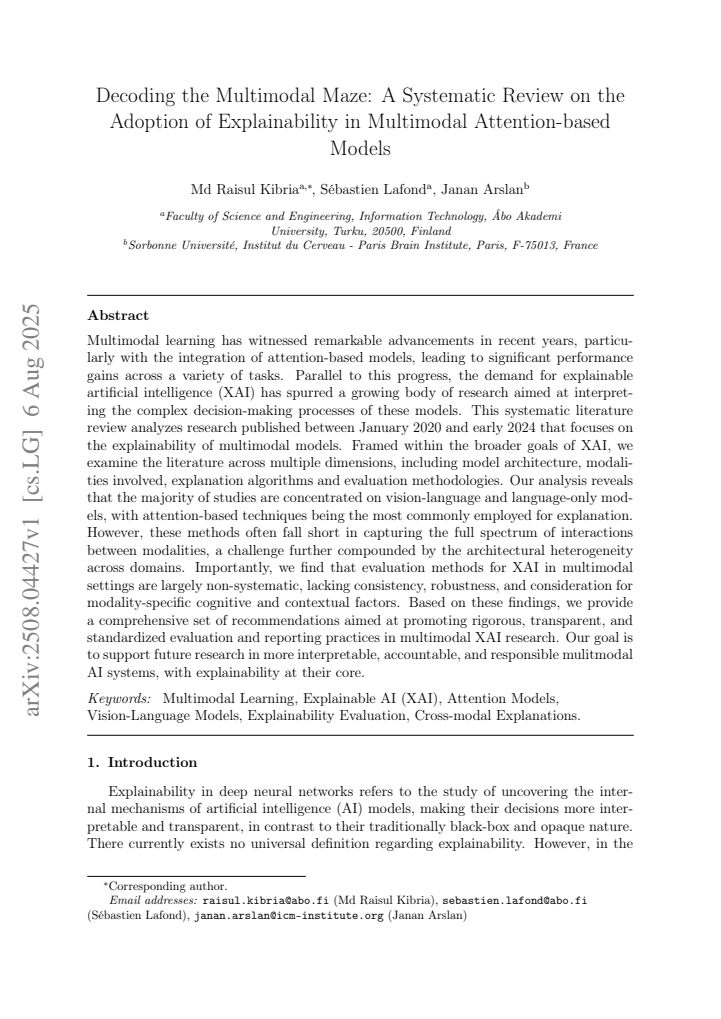

Decoding the Multimodal Maze: A Systematic Review on the Adoption of Explainability in Multimodal Attention-based Models

Md Raisul Kibria , S\'ebastien Lafond , Janan Arslan This is my paper

Pith reviewed 2026-05-19 00:30 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords explainable AImultimodal learningattention mechanismssystematic reviewevaluation methodologiesvision-language modelsXAI
0
0 comments X

The pith

Evaluation methods for XAI in multimodal attention models are inconsistent and overlook modality-specific factors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This systematic review examines research published from January 2020 to early 2024 on explainability techniques for multimodal attention-based models. It organizes the literature by model architecture, input modalities, explanation algorithms, and evaluation approaches. The analysis finds heavy concentration on vision-language and language-only models that rely on attention mechanisms, yet these techniques rarely capture complete cross-modal interactions. The central observation is that current evaluation methods remain non-systematic, lack consistent metrics, and ignore cognitive or contextual differences tied to each modality. Readers would care because weak evaluation practices make it difficult to verify whether explanations actually support trustworthy decisions in applied multimodal systems.

Core claim

The paper establishes that evaluation methods for XAI in multimodal settings are largely non-systematic, lacking consistency, robustness, and consideration for modality-specific cognitive and contextual factors. Studies predominantly address vision-language models and employ attention-based explanation algorithms, but these approaches fall short of capturing the full range of modality interactions because of architectural heterogeneity across domains. The authors respond with recommendations for rigorous, transparent, and standardized evaluation and reporting practices to advance more interpretable and accountable multimodal AI.

What carries the argument

Multi-dimensional analysis of the literature across model architecture, modalities, explanation algorithms, and evaluation methodologies.

If this is right

  • Standardized evaluation protocols would increase consistency when comparing XAI techniques across multimodal tasks.
  • Explanation algorithms would need to be redesigned to capture interactions between modalities more completely.
  • Evaluations would incorporate modality-specific cognitive and contextual factors as a required component.
  • Transparent reporting standards would improve accountability in multimodal AI development.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Inconsistent evaluations could delay safe adoption of multimodal models in domains that require high trust, such as medical imaging or autonomous navigation.
  • The observed emphasis on vision-language pairs leaves explainability in other combinations, like audio-text or sensor fusion, relatively unexamined.
  • Following the recommendations could enable direct benchmarking of different XAI approaches and speed cumulative progress in the area.

Load-bearing premise

The literature search from January 2020 to early 2024 and the chosen analysis dimensions capture a representative and unbiased sample of research in the field.

What would settle it

A new survey that identifies multiple studies sharing the same consistent, robust evaluation protocol that explicitly incorporates modality-specific cognitive and contextual factors would challenge the claim.

Figures

Figures reproduced from arXiv: 2508.04427 by Janan Arslan, Md Raisul Kibria, S\'ebastien Lafond.

Figure 1
Figure 1. Figure 1: PRISMA flowchart for the number of selected studies during the different steps of the selection [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Publication per year were grouped into themes defined by application domains and tasks. Although each study was assigned to a single theme to streamline the analysis, it is important to note that both the themes and assigned studies are not strictly mutually exclusive and may span multiple disciplines (e.g., Natural Language Processing (NLP) and Translation vs. Question Answering and Summarization). The th… view at source ↗
Figure 3
Figure 3. Figure 3: Key Bibliometric Analytics of the Publications [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Representation of modalities The least amount of work is targeted towards code modeling. These findings are aligned with other surveys on XAI (e.g., [40]). An important decision regarding the eligibility criteria in our study is the inclusion of “multichannel" modeling approaches. These criteria cover models that make decisions based on multiple inputs generated by processing the same source input. For ins… view at source ↗
Figure 5

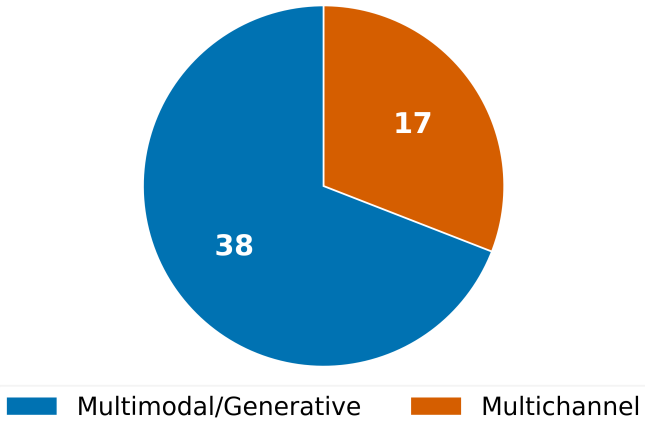

Figure 5. Figure 5: Distribution of multimodal/generative and multichannel modeling approaches [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

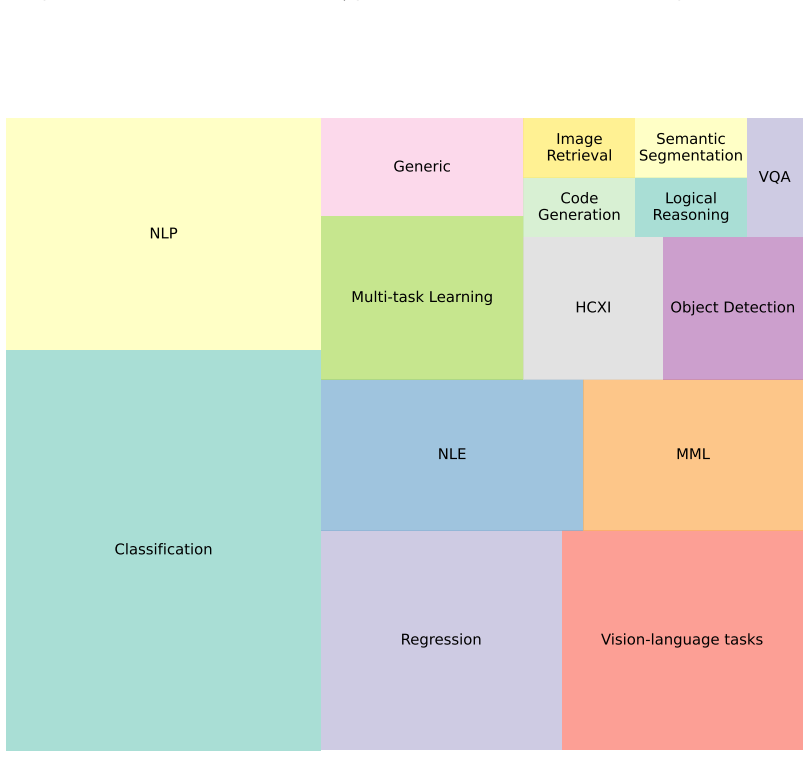

Figure 6. Figure 6: Primary training task objectives 12 [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Block diagram illustrating various fusion architecture types: Early fusion (a, b); Hierarchical [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Classification and distribution of explanation algorithms [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9

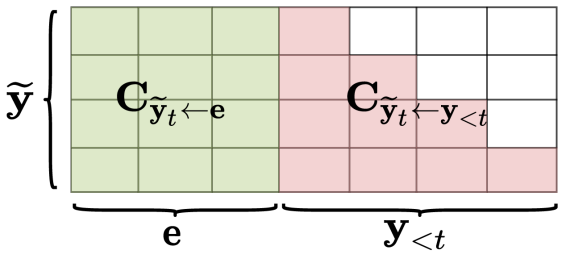

Figure 9. Figure 9: Decoder Layer Contribution Matrix in ALTI+ Method [87] [PITH_FULL_IMAGE:figures/full_fig_p025_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Initially, the unimodal relevance scores are initialized as identity matrices, while bi￾modal (cross-modal) relevance maps are initialized with zeros. The attention map update 27 [PITH_FULL_IMAGE:figures/full_fig_p027_10.png] view at source ↗
Figure 10
Figure 10. Figure 10: Visual explanation using the multimodal attention-composite method by Chefer et al. for ob [PITH_FULL_IMAGE:figures/full_fig_p028_10.png] view at source ↗
Figure 11

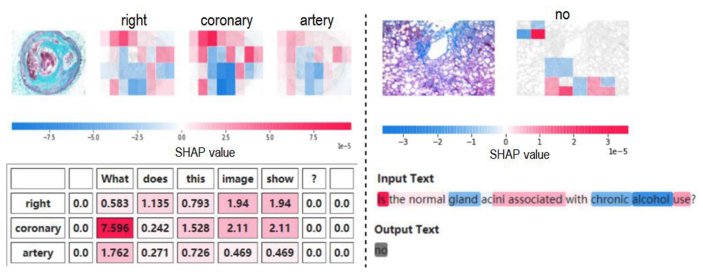

Figure 11. Figure 11: SHAP values to explain pathology images and corresponding questions in VQA tasks [74]. [PITH_FULL_IMAGE:figures/full_fig_p030_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Categories of Explanation Evaluation metrics and distribution [PITH_FULL_IMAGE:figures/full_fig_p033_12.png] view at source ↗
Figure 13

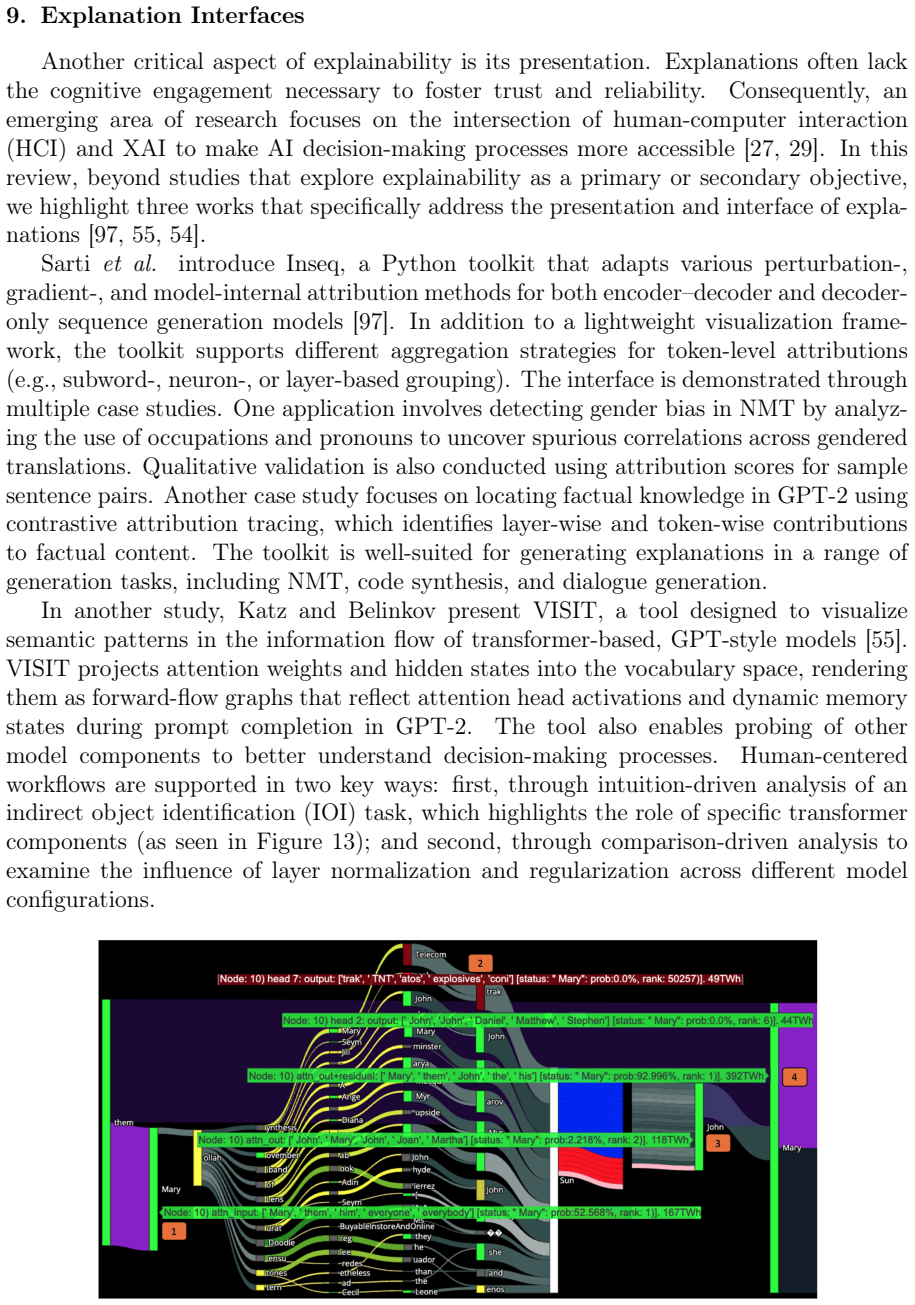

Figure 13. Figure 13: Flow-graph for layer 10 attention from GPT-2 small in VISIT for an IOI task [55]. [PITH_FULL_IMAGE:figures/full_fig_p042_13.png] view at source ↗
read the original abstract

Multimodal learning has witnessed remarkable advancements in recent years, particularly with the integration of attention-based models, leading to significant performance gains across a variety of tasks. Parallel to this progress, the demand for explainable artificial intelligence (XAI) has spurred a growing body of research aimed at interpreting the complex decision-making processes of these models. This systematic literature review analyzes research published between January 2020 and early 2024 that focuses on the explainability of multimodal models. Framed within the broader goals of XAI, we examine the literature across multiple dimensions, including model architecture, modalities involved, explanation algorithms and evaluation methodologies. Our analysis reveals that the majority of studies are concentrated on vision-language and language-only models, with attention-based techniques being the most commonly employed for explanation. However, these methods often fall short in capturing the full spectrum of interactions between modalities, a challenge further compounded by the architectural heterogeneity across domains. Importantly, we find that evaluation methods for XAI in multimodal settings are largely non-systematic, lacking consistency, robustness, and consideration for modality-specific cognitive and contextual factors. Based on these findings, we provide a comprehensive set of recommendations aimed at promoting rigorous, transparent, and standardized evaluation and reporting practices in multimodal XAI research. Our goal is to support future research in more interpretable, accountable, and responsible mulitmodal AI systems, with explainability at their core.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript conducts a systematic literature review of explainability research on multimodal attention-based models, covering publications from January 2020 to early 2024. It analyzes the selected works along the dimensions of model architecture, involved modalities, explanation algorithms, and evaluation methodologies. The central finding is that evaluation methods in this area are largely non-systematic, lacking consistency, robustness, and attention to modality-specific cognitive or contextual factors; the paper concludes with a set of recommendations for more rigorous and standardized practices.

Significance. If the sampled literature accurately reflects the field, the review usefully documents gaps in evaluation rigor for multimodal XAI and supplies concrete recommendations that could help standardize future work. The multi-dimensional framing (architecture, modalities, algorithms, evaluation) is a constructive organizing device for the synthesis.

major comments (1)
  1. [Section 2] Section 2 (Literature Search and Selection Criteria): The description of the search strategy, databases, exact Boolean strings, and inclusion/exclusion criteria is not detailed enough to allow an independent assessment of coverage. This directly affects the load-bearing claim that evaluation methods are 'largely non-systematic' across multimodal XAI, because an under-sampling of non-attention-based or non-vision-language work (e.g., audio-sensor or time-series multimodal models) could artifactually produce the observed pattern.
minor comments (2)
  1. [Abstract] Abstract: 'mulitmodal' is a typographical error and should read 'multimodal'.
  2. Throughout the results sections, some tables summarizing evaluation metrics would benefit from an additional column or footnote clarifying whether the reported metrics are quantitative, qualitative, or human-subject based, to improve readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback on our systematic literature review. We address the major comment point by point below, providing the strongest honest defense of the manuscript while agreeing where revisions are warranted to improve transparency and reproducibility.

read point-by-point responses

  1. Referee: [Section 2] Section 2 (Literature Search and Selection Criteria): The description of the search strategy, databases, exact Boolean strings, and inclusion/exclusion criteria is not detailed enough to allow an independent assessment of coverage. This directly affects the load-bearing claim that evaluation methods are 'largely non-systematic' across multimodal XAI, because an under-sampling of non-attention-based or non-vision-language work (e.g., audio-sensor or time-series multimodal models) could artifactually produce the observed pattern.

    Authors: We thank the referee for this observation. We agree that greater specificity in Section 2 is needed to support independent verification of our search coverage and to strengthen the foundation for our central claim. In the revised manuscript we will expand this section to include: the complete list of databases (IEEE Xplore, ACM Digital Library, Scopus, Web of Science, arXiv, and Google Scholar), the exact Boolean search strings employed (combinations of terms such as 'multimodal attention' AND ('explainability' OR 'XAI' OR 'interpretability') AND modality-specific keywords), the full inclusion/exclusion criteria with justifications, the number of records at each screening stage, and a PRISMA flow diagram. Regarding potential under-sampling, our protocol was deliberately scoped to attention-based multimodal models with explainability components; while vision-language tasks dominate the retrieved literature, we did include qualifying studies involving audio, sensor, and time-series modalities. We will add an explicit limitations subsection discussing the observed distribution across modalities and its implications for generalizing the evaluation-method findings. These changes will make the sampling transparent and allow readers to assess whether the reported patterns in evaluation rigor are representative of the sampled corpus. revision: yes

Circularity Check

0 steps flagged

No circularity: systematic literature review without derivations or self-referential predictions

full rationale

This paper is a systematic literature review that synthesizes published work on explainability in multimodal attention-based models from January 2020 to early 2024. It examines dimensions such as architecture, modalities, explanation algorithms, and evaluation methodologies but contains no equations, fitted parameters, predictions, or derivation chains. The central claim about non-systematic evaluation methods follows directly from the authors' analysis of sampled papers rather than reducing to any self-definition, fitted input, or self-citation load-bearing step. The work is self-contained as an external synthesis with no internal circular reasoning.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The review rests on standard assumptions about literature coverage and categorization without introducing free parameters or new entities.

axioms (1)
  • domain assumption The chosen time period and focus on attention-based multimodal models capture the relevant body of explainability research.
    This premise defines the scope of the systematic review as described in the abstract.

pith-pipeline@v0.9.0 · 5797 in / 1112 out tokens · 57366 ms · 2026-05-19T00:30:03.785396+00:00 · methodology
