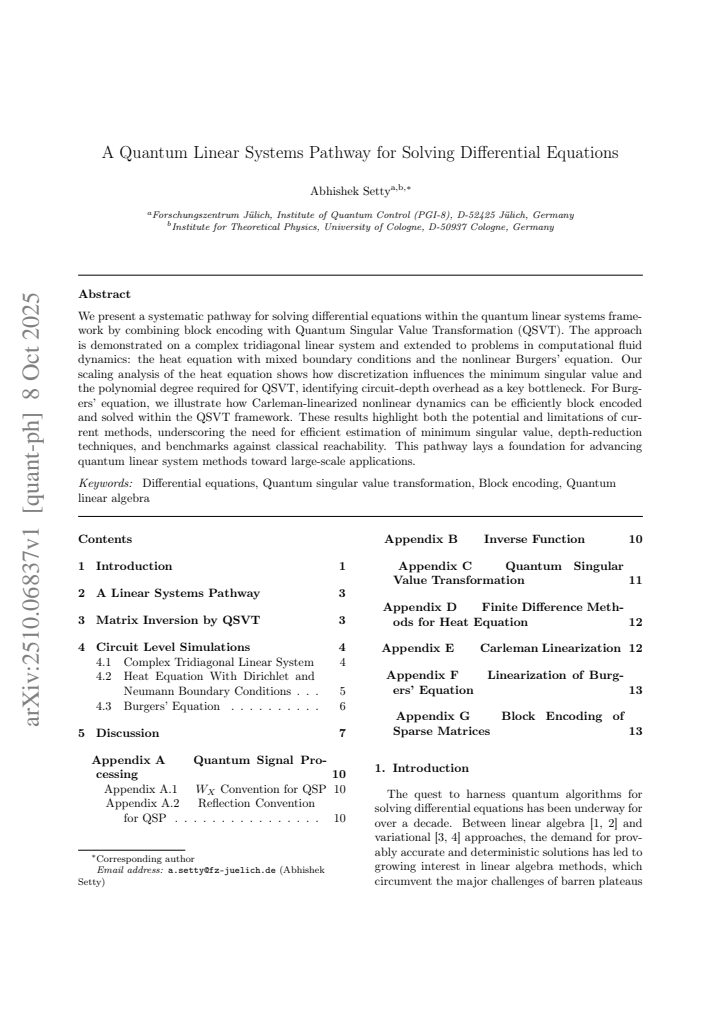

A Quantum Linear Systems Pathway for Solving Differential Equations

Abhishek Setty This is my paper

Pith reviewed 2026-05-18 09:42 UTC · model grok-4.3

classification 🪐 quant-ph physics.comp-phphysics.flu-dyn
keywords quantum linear systemsblock encodingQSVTdifferential equationsheat equationBurgers equationquantum algorithmscomputational fluid dynamics
0
0 comments X p. Extension

The pith

Differential equations are solved by turning them into linear systems handled with block encoding plus QSVT on quantum hardware.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a pathway to solve differential equations on quantum computers by first discretizing them into linear systems. These systems are then addressed using block encoding to make the matrices quantum-accessible, followed by Quantum Singular Value Transformation to extract the solutions. The method is shown on a tridiagonal linear system and then extended to the heat equation with mixed boundary conditions and to a Carleman-linearized form of the nonlinear Burgers equation. Scaling analysis identifies regimes where quantum approaches could compete with classical solvers, while circuit depth and post-selection probability estimates are given for implementation on IBM superconducting processors.

Core claim

A systematic pathway for solving differential equations within the quantum linear systems framework by combining block encoding with Quantum Singular Value Transformation (QSVT), demonstrated on a complex tridiagonal linear system and extended to the heat equation with mixed boundary conditions and Carleman-linearized nonlinear Burgers' equation, together with scaling analysis and hardware resource estimates.

What carries the argument

Block encoding combined with Quantum Singular Value Transformation (QSVT) applied to linear systems obtained from discretized differential equations.

Load-bearing premise

Differential equations can be converted into linear systems whose block encodings and QSVT circuits have depths and post-selection probabilities practical for near-term or future quantum hardware without prohibitive overhead from discretization or linearization.

What would settle it

Implementing the block encoding and QSVT circuits on IBM hardware for the presented heat or Burgers problems and finding two-qubit gate depths or post-selection probabilities that render the computation infeasible.

Figures

Figures reproduced from arXiv: 2510.06837 by Abhishek Setty.

Figure 1
Figure 1. Figure 1: Quantum linear systems pathway for solving differential equations using QSVT. Here [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

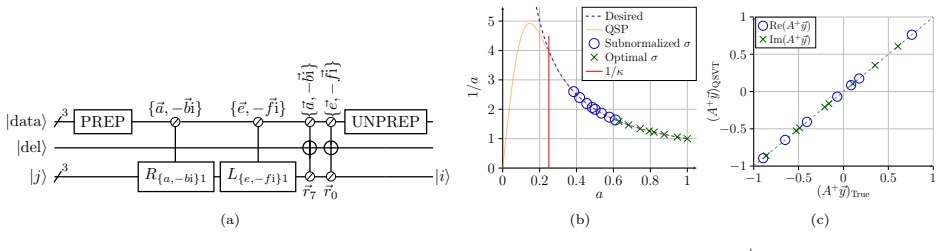

Figure 2. Figure 2: Quantum circuit for solving the linear system [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Solution of the complex tridiagonal linear system Section 4.1. a Circuit for block encoding [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Solution of the heat equation Section 4.2. a Circuit for block encoding [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

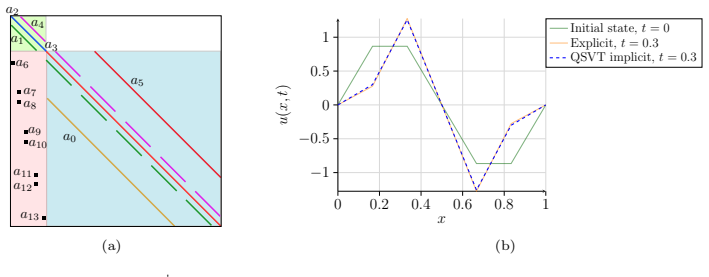

Figure 5. Figure 5: a Matrix representation of L† for solving Burgers’ equation. Colored sub-blocks highlight distinct matrix components, while the uncolored block corresponds to A2 1 = 0 in Eq. (F.5). Data items are labeled [ai] 13 i=0. Continuous colored lines indicate repeating ai values along diagonals with fixed offsets, and black square dots mark single, non-repeating entries. b Initial condition at t = 0, and compariso… view at source ↗
read the original abstract

We present a systematic pathway for solving differential equations within the quantum linear systems framework by combining block encoding with Quantum Singular Value Transformation (QSVT). The approach is demonstrated on a complex tridiagonal linear system and extended to problems in computational fluid dynamics: the heat equation with mixed boundary conditions and Carleman-linearized nonlinear Burgers' equation. Our scaling analysis of the heat equation identifies regimes where classical computation remains feasible and estimates circuit depths required to achieve potential quantum advantage. We further evaluate post-selection success probabilities for the presented examples and provide hardware resource estimates for block encoding and QSVT circuits in terms of two-qubit gate depth, evaluated on IBM superconducting processors with heavy-hex and square lattice topologies. These results highlight both the practical limitations of current hardware and key directions for depth reduction and scalable quantum linear solvers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a systematic pathway for solving differential equations within the quantum linear systems framework by combining block encoding with Quantum Singular Value Transformation (QSVT). It demonstrates the approach on a complex tridiagonal linear system and extends it to computational fluid dynamics problems: the heat equation with mixed boundary conditions and the Carleman-linearized nonlinear Burgers' equation. Scaling analysis for the heat equation identifies classical feasibility regimes and estimates circuit depths for potential quantum advantage; post-selection success probabilities and hardware resource estimates (two-qubit gate depths on IBM heavy-hex and square lattices) are also provided.

Significance. If the central claims hold, the work offers a concrete bridge from quantum linear solvers to CFD applications, with explicit hardware estimates that clarify near-term limitations and depth-reduction needs. The extension to nonlinear problems via Carleman linearization and the reproducible resource calculations for specific topologies are notable strengths that could guide future implementations.

major comments (2)
  1. [Carleman linearization for Burgers' equation] Carleman linearization section for Burgers' equation: the scaling analysis and resource estimates focus on circuit depth and post-selection probabilities but provide no explicit error bounds on the truncation order N as a function of Reynolds number or grid size. Without these, the approximation error from linearization remains uncontrolled and is load-bearing for the claim that the truncated system faithfully represents the original nonlinear dynamics without erasing potential quantum advantage.
  2. [Scaling analysis of the heat equation] Heat equation scaling analysis: the identification of regimes where classical computation remains feasible and the circuit-depth estimates for quantum advantage depend on unstated modeling choices for discretization and mixed boundary conditions; the manuscript should derive or cite how these affect block-encoding efficiency and overall system size.
minor comments (2)
  1. Notation for QSVT parameters and block-encoding operators could be introduced more explicitly in the methods section to improve readability for readers unfamiliar with the prior quantum linear systems literature.
  2. Figure captions for circuit diagrams and resource tables should include explicit two-qubit gate counts and post-selection probabilities to allow direct comparison with the text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive summary and constructive major comments. We address each point below and will revise the manuscript accordingly to strengthen the rigor and clarity of the presentation.

read point-by-point responses

  1. Referee: Carleman linearization section for Burgers' equation: the scaling analysis and resource estimates focus on circuit depth and post-selection probabilities but provide no explicit error bounds on the truncation order N as a function of Reynolds number or grid size. Without these, the approximation error from linearization remains uncontrolled and is load-bearing for the claim that the truncated system faithfully represents the original nonlinear dynamics without erasing potential quantum advantage.

    Authors: We agree that explicit error bounds on the truncation order N would improve the manuscript. Our current demonstrations use a fixed truncation order chosen to keep the approximation error small for the presented Reynolds numbers and grid sizes. In the revised version we will add a dedicated subsection deriving or citing bounds on the Carleman truncation error (drawing from existing analyses in the literature) as a function of Reynolds number and grid resolution, thereby controlling the approximation error and clarifying the regimes in which the quantum advantage claims remain valid. revision: yes

  2. Referee: Heat equation scaling analysis: the identification of regimes where classical computation remains feasible and the circuit-depth estimates for quantum advantage depend on unstated modeling choices for discretization and mixed boundary conditions; the manuscript should derive or cite how these affect block-encoding efficiency and overall system size.

    Authors: We acknowledge that the scaling analysis would benefit from greater explicitness. The manuscript already specifies a second-order central finite-difference discretization on a uniform grid with mixed (Dirichlet-Neumann) boundary conditions, which produces a tridiagonal system whose sparsity pattern directly determines the block-encoding cost. In the revision we will expand this section to derive the resulting matrix dimension and block-encoding query complexity explicitly from the discretization parameters and boundary conditions, and we will cite standard references on finite-difference schemes for the heat equation to make these modeling choices transparent. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation applies standard QSVT and block encoding to DEs

full rationale

The paper constructs a pathway by combining block encoding with QSVT to solve linear systems arising from differential equations, including demonstrations on tridiagonal matrices, the heat equation, and Carleman-linearized Burgers' equation. Scaling analysis and resource estimates (circuit depth, post-selection probabilities) are derived from the problem discretization and hardware models rather than being tautological to any fitted inputs or self-citations. No load-bearing step reduces by construction to a prior result from the same authors, a renamed empirical pattern, or a parameter fit presented as a prediction. The approach remains self-contained against external benchmarks in quantum linear systems literature, with the central claims resting on explicit circuit constructions and evaluations rather than definitional equivalence.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach relies on standard assumptions from quantum computing and numerical methods for linear systems; no new free parameters or invented entities are introduced in the abstract description.

axioms (2)
  • domain assumption Block encoding of the linear system matrices can be performed with polynomial overhead in system size.
    Implicit in the use of block encoding for quantum linear systems solvers applied to discretized DEs.
  • standard math QSVT can be applied to implement the required matrix functions with controlled error.
    Relies on established properties of Quantum Singular Value Transformation from prior literature.

pith-pipeline@v0.9.0 · 5660 in / 1341 out tokens · 27803 ms · 2026-05-18T09:42:52.633139+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

49 extracted references · 49 canonical work pages · 6 internal anchors

  1. [1]

    A. W. Harrow, A. Hassidim, S. Lloyd, Quan- tum algorithm for linear systems of equations, Physical review letters 103 (15) (2009) 150502

    work page 2009

  2. [2]

    A.M.Childs, R.Kothari, R.D.Somma, Quan- tum algorithm for systems of linear equations with exponentially improved dependence on precision, SIAM Journal on Computing 46 (6) (2017) 1920–1950

    work page 2017

  3. [3]

    Setty, R

    A. Setty, R. Abdusalamov, F. Motzoi, Self- adaptive physics-informed quantum machine learning for solving differential equations, Ma- chine Learning: Science and Technology 6 (1) (2025) 015002

    work page 2025

  4. [4]

    Lubasch, J

    M. Lubasch, J. Joo, P. Moinier, M. Kiffner, D. Jaksch, Variational quantum algorithms for nonlinear problems, Physical Review A 101 (1) (2020) 010301

    work page 2020

  5. [5]

    R. J. LeVeque, R. J. Leveque, Numerical meth- ods for conservation laws, Vol. 132, Springer, 1992

    work page 1992

  6. [6]

    R. J. LeVeque, Finite difference methods for ordinary and partial differential equations: steady-state and time-dependent problems, SIAM, 2007

    work page 2007

  7. [7]

    J. C. Strikwerda, Finite difference schemes and partial differential equations, SIAM, 2004

    work page 2004

  8. [8]

    O. C. Zienkiewicz, R. L. Taylor, The finite ele- ment method for solid and structural mechan- ics, Elsevier, 2005

    work page 2005

  9. [9]

    S. C. Brenner, L. R. Scott, The mathemati- cal theory of finite element methods, Springer, 2008. 7

    work page 2008

  10. [10]

    R. J. LeVeque, Finite volume methods for hy- perbolic problems, Vol. 31, Cambridge univer- sity press, 2002

    work page 2002

  11. [11]

    K. W. Morton, D. F. Mayers, Numerical solu- tion of partial differential equations: an intro- duction, Cambridge university press, 2005

    work page 2005

  12. [12]

    Patankar, Numerical heat transfer and fluid flow, CRC press, 2018

    S. Patankar, Numerical heat transfer and fluid flow, CRC press, 2018

    work page 2018

  13. [13]

    Carleman, Application of the theory of lin- ear integral equations to systems of nonlinear differential equations (1932)

    T. Carleman, Application of the theory of lin- ear integral equations to systems of nonlinear differential equations (1932)

    work page 1932

  14. [14]

    Kowalski, W.-h

    K. Kowalski, W.-h. Steeb, Nonlinear dynami- cal systems and Carleman linearization, World Scientific, 1991

    work page 1991

  15. [15]

    J.-P. Liu, H. Ø. Kolden, H. K. Krovi, N. F. Loureiro, K. Trivisa, A. M. Childs, Efficient quantum algorithm for dissipative nonlinear differential equations, Proceedings of the Na- tional Academy of Sciences 118 (35) (2021) e2026805118

    work page 2021

  16. [16]

    Bakker, T

    B. Bakker, T. W. Watts, Quantum carleman linearization of the lattice boltzmann equa- tion with boundary conditions, arXiv preprint arXiv:2312.04781 (2023)

    work page arXiv 2023

  17. [17]

    Akiba, Y

    T. Akiba, Y. Morii, K. Maruta, Carleman lin- earization approach for chemical kinetics inte- gration toward quantum computation, Scien- tific Reports 13 (1) (2023) 3935

    work page 2023

  18. [18]

    Lewis, S

    D. Lewis, S. Eidenbenz, B. Nadiga, Y. Subaşı, Limitations for quantum algorithms to solve turbulent and chaotic systems, Quantum 8 (2024) 1509

    work page 2024

  19. [19]

    H.-C. Wu, J. Wang, X. Li, Quantum algo- rithms for nonlinear dynamics: Revisiting car- leman linearization with no dissipative condi- tions, SIAM Journal on Scientific Computing 47 (2) (2025) A943–A970

    work page 2025

  20. [20]

    Explicit Error Bounds for Carleman Linearization

    M. Forets, A. Pouly, Explicit error bounds for carleman linearization, arXiv preprint arXiv:1711.02552 (2017)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  21. [21]

    Amini, C

    A. Amini, C. Zheng, Q. Sun, N. Motee, Carle- man linearization of nonlinear systems and its finite-section approximations, arXiv preprint arXiv:2207.07755 (2022)

    work page arXiv 2022

  22. [22]

    Gonzalez-Conde, D

    J. Gonzalez-Conde, D. Lewis, S. S. Bharadwaj, M. Sanz, Quantum carleman linearization ef- ficiency in nonlinear fluid dynamics, Physical Review Research 7 (2) (2025) 023254

    work page 2025

  23. [23]

    Golub, W

    G. Golub, W. Kahan, Calculating the singular values and pseudo-inverse of a matrix, Journal oftheSocietyforIndustrialandAppliedMath- ematics, Series B: Numerical Analysis 2 (2) (1965) 205–224

    work page 1965

  24. [24]

    Spielman, S.-H

    D. Spielman, S.-H. Teng, Smoothed analysis of algorithms: Why the simplex algorithm usu- ally takes polynomial time, in: Proceedings of the thirty-third annual ACM symposium on Theory of computing, 2001, pp. 296–305

    work page 2001

  25. [25]

    Kannan, S

    R. Kannan, S. Vempala, et al., Spectral algo- rithms, Foundations and Trends®in Theoret- ical Computer Science 4 (3–4) (2009) 157–288

    work page 2009

  26. [26]

    Rudelson, R

    M. Rudelson, R. Vershynin, Smallest singular value of a random rectangular matrix, Com- munications on Pure and Applied Mathemat- ics: A Journal Issued by the Courant Institute of Mathematical Sciences 62 (12) (2009) 1707– 1739

    work page 2009

  27. [27]

    Smallest singular value of sparse random matrices

    A. Litvak, O. Rivasplata, Smallest singu- lar value of sparse random matrices, arXiv preprint arXiv:1106.0938 (2011)

    work page internal anchor Pith review Pith/arXiv arXiv 2011

  28. [28]

    M. B. Cohen, Y. T. Lee, C. Musco, C. Musco, R. Peng, A. Sidford, Uniform sampling for matrix approximation, in: Proceedings of the 2015 conference on innovations in theoretical computer science, 2015, pp. 181–190

    work page 2015

  29. [29]

    Musco, C

    C. Musco, C. Musco, Randomized block krylov methods for stronger and faster approx- imate singular value decomposition, Advances in neural information processing systems 28 (2015)

    work page 2015

  30. [30]

    Götze, A

    F. Götze, A. Tikhomirov, On the largest and the smallest singular value of sparse rectan- gular random matrices, Electronic Journal of Probability 28 (2023) 1–18

    work page 2023

  31. [31]

    R. Chao, D. Ding, A. Gilyen, C. Huang, M. Szegedy, Finding angles for quantum sig- nal processing with machine precision, arXiv preprint arXiv:2003.02831 (2020). 8

    work page arXiv 2003

  32. [32]

    Y. Dong, X. Meng, K. B. Whaley, L. Lin, Efficient phase-factor evaluation in quantum signal processing, Physical Review A 103 (4) (2021) 042419

    work page 2021

  33. [33]

    J. M. Martyn, Z. M. Rossi, A. K. Tan, I. L. Chuang, Grand unification of quantum algo- rithms, PRX quantum 2 (4) (2021) 040203

    work page 2021

  34. [34]

    Block Encoding of Sparse Matrices via Coherent Permutation

    A. Setty, Block encoding of sparse matri- ces via coherent permutation, arXiv preprint arXiv:2508.21667 (2025)

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  35. [35]

    Gilyén, Y

    A. Gilyén, Y. Su, G. H. Low, N. Wiebe, Quan- tumsingularvaluetransformationandbeyond: exponential improvements for quantum matrix arithmetics, in: Proceedings of the 51st annual ACM SIGACT symposium on theory of com- puting, 2019, pp. 193–204

    work page 2019

  36. [36]

    Cramer, M

    M. Cramer, M. B. Plenio, S. T. Flam- mia, R. Somma, D. Gross, S. D. Bartlett, O. Landon-Cardinal, D. Poulin, Y.-K. Liu, Efficient quantum state tomography, Nature communications 1 (1) (2010) 149

    work page 2010

  37. [37]

    Aaronson, Quantum machine learning algo- rithms: Read the fine print, Nature Physics (2014) 5

    S. Aaronson, Quantum machine learning algo- rithms: Read the fine print, Nature Physics (2014) 5

    work page 2014

  38. [38]

    Cerezo, A

    M. Cerezo, A. Sone, T. Volkoff, L. Cincio, P. J. Coles, Cost function dependent barren plateaus in shallow parametrized quantum cir- cuits, Nature communications 12 (1) (2021) 1791

    work page 2021

  39. [39]

    Larocca, S

    M. Larocca, S. Thanasilp, S. Wang, K. Sharma, J. Biamonte, P. J. Coles, L. Cincio, J. R. McClean, Z. Holmes, M. Cerezo, Barren plateaus in variational quantum computing, Nature Reviews Physics (2025) 1–16

    work page 2025

  40. [40]

    PennyLane: Automatic differentiation of hybrid quantum-classical computations

    V. Bergholm, J. Izaac, M. Schuld, C. Gogolin, S. Ahmed, V. Ajith, M. S. Alam, G. Alonso- Linaje, B. AkashNarayanan, A. Asadi, et al., Pennylane: Automatic differentiation of hy- brid quantum-classical computations, arXiv preprint arXiv:1811.04968 (2018)

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  41. [41]

    Transformation of quantum states using uniformly controlled rotations

    M. Mottonen, J. J. Vartiainen, V. Bergholm, M. M. Salomaa, Transformation of quantum states using uniformly controlled rotations, arXiv preprint quant-ph/0407010 (2004)

    work page internal anchor Pith review Pith/arXiv arXiv 2004

  42. [42]

    Möttönen, J

    M. Möttönen, J. J. Vartiainen, V. Bergholm, M. M. Salomaa, Quantum circuits for gen- eral multiqubit gates, Physical review letters 93 (13) (2004) 130502

    work page 2004

  43. [43]

    Virtanen, R

    P. Virtanen, R. Gommers, T. E. Oliphant, M. Haberland, T. Reddy, D. Cournapeau, E. Burovski, P. Peterson, W. Weckesser, J. Bright, et al., Scipy 1.0: fundamental algo- rithms for scientific computing in python, Na- ture methods 17 (3) (2020) 261–272

    work page 2020

  44. [44]

    Margolus, L

    N. Margolus, L. B. Levitin, The maximum speed of dynamical evolution, Physica D: Non- linear Phenomena 120 (1-2) (1998) 188–195

    work page 1998

  45. [45]

    L. B. Levitin, T. Toffoli, Fundamental limit on the rate of quantum dynamics: the unified bound is tight, Physical review letters 103 (16) (2009) 160502

    work page 2009

  46. [46]

    Deffner, S

    S. Deffner, S. Campbell, Quantum speed lim- its: from heisenberg’s uncertainty principle to optimal quantum control, Journal of Physics A: Mathematical and Theoretical 50 (45) (2017) 453001

    work page 2017

  47. [47]

    G. H. Low, I. L. Chuang, Hamiltonian simula- tion by uniform spectral amplification, arXiv preprint arXiv:1707.05391 (2017)

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  48. [48]

    W. F. Ames, Numerical methods for partial differential equations, Academic press, 2014. 9 Appendix To make the paper self-contained, we include here essential background material. Each section intro- duces a specific topic with its own notations and conventions. Appendix A. Quantum Signal Processing Quantum Signal Processing (QSP) is a frame- work for imp...

    work page 2014

  49. [49]

    (A.3), withθ=−2 cos −1 x

    RX (θ) RZ(−2ϕ ′ d) H (a) 0 0.2 0.4 0.6 0.8 1 0 1 2 3 4 5 x 1/x True QSP 1/κ (b) Figure A.6: a Circuit for QSP in theW X convention Eq. (A.3), withθ=−2 cos −1 x. The central dots indicate continuation of the pattern. b Approximation of the inverse function using QSP overx∈[0,1]. For demonstration, de- sired inverse values are truncated. The best approximat...

    work page
