arxiv: 2510.15545 · v4 · submitted 2025-10-17 · 💻 cs.CL · cs.AI

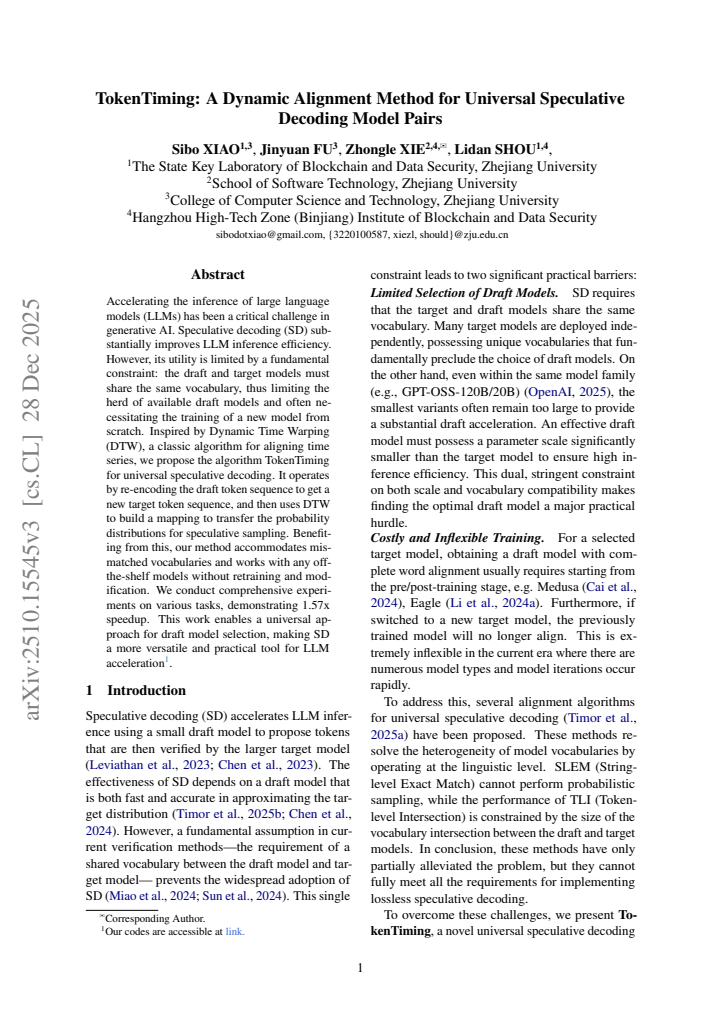

TokenTiming: A Dynamic Alignment Method for Universal Speculative Decoding Model Pairs

Sibo Xiao , Jinyuan Fu , Zhongle Xie , Lidan Shou This is my paper

Pith reviewed 2026-05-18 06:23 UTC · model grok-4.3

classification 💻 cs.CL cs.AI
keywords speculative decodingdynamic time warpingLLM inferencetoken alignmentmismatched vocabulariesdraft model selectionacceleration
0
0 comments X p. Extension

The pith

TokenTiming uses dynamic time warping on re-encoded tokens to enable speculative decoding between any pair of off-the-shelf LLMs regardless of vocabulary mismatch.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents TokenTiming as a way to remove the shared-vocabulary requirement that currently restricts speculative decoding. It re-encodes the draft model's output sequence into the target's vocabulary and then applies dynamic time warping to find an alignment that lets probability distributions be transferred for the acceptance test. This change means practitioners can pick any smaller model as a draft without training a new one or forcing vocabulary changes. If the alignment preserves enough signal, the method delivers measured speedups while keeping the target model's output distribution intact. The approach turns speculative decoding from a narrow technique into one that works across the full range of available models.

Core claim

TokenTiming re-encodes the draft token sequence into the target vocabulary, then runs dynamic time warping to produce a mapping between the two sequences so that the draft model's next-token probabilities can be used directly in the speculative sampling step of the target model, allowing correct and accelerated generation even when the models have completely different tokenizers.

What carries the argument

TokenTiming, the algorithm that re-encodes draft tokens and applies dynamic time warping to construct a probability-transfer mapping for speculative sampling.

If this is right

  • Any smaller off-the-shelf model can now serve as a draft model for a larger target without vocabulary matching or retraining.
  • Speculative decoding becomes applicable to model pairs drawn from entirely different families or training regimes.
  • The 1.57x speedup observed in experiments extends to a much larger set of practical model combinations.
  • No architectural changes or additional training steps are required on either the draft or target model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same re-encoding-plus-warping pattern could be tested on other sequence-alignment tasks where probability transfer between models is needed.
  • Overhead from the DTW step might be reduced by caching common alignments or using approximate variants for longer sequences.
  • Mixing a very small draft model from one family with a large target from another could produce speed-accuracy trade-offs not previously accessible.

Load-bearing premise

The dynamic time warping alignment between re-encoded sequences produces a mapping that transfers probabilities with enough fidelity to keep speculative decoding's acceptance rate and final output distribution unchanged.

What would settle it

Measure acceptance rate and output correctness when running TokenTiming on model pairs whose tokenizers differ substantially; a clear drop below the rates achieved by same-vocabulary speculative decoding on the same target model would falsify the claim.

Figures

Figures reproduced from arXiv: 2510.15545 by Jinyuan Fu, Lidan Shou, Sibo Xiao, Zhongle Xie.

Figure 1

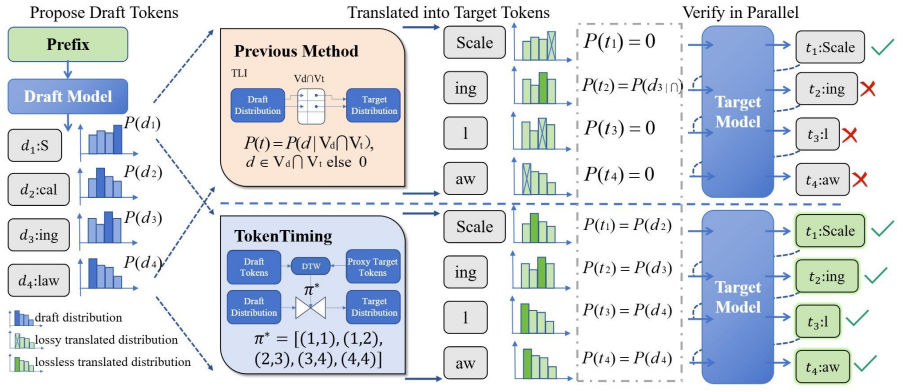

Figure 1. Figure 1: Comparison of core points of TokenTiming with previous work. Previous methods (TLI) carries the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Phase illustrations of TokenTiming. (a) illustrates the re-tokenization of Draft Tokens into Proxy Target Tokens, which are used to construct the mapping in the DTW. (b) DTW calculation process (token distance matrix) and aligned token mapping π ∗ = [(S, Scale),(cal, Scale),(ing, ing),(Law, L),(Law, aw)]. The calculation rules for this mapping are presented in Alg. 1. (c) Probability distribution of draft … view at source ↗
Figure 4
Figure 4. Figure 4: Speed-up vs. homogeneous-vocabulary SOTA on various target [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Performance metrics under various settings of [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

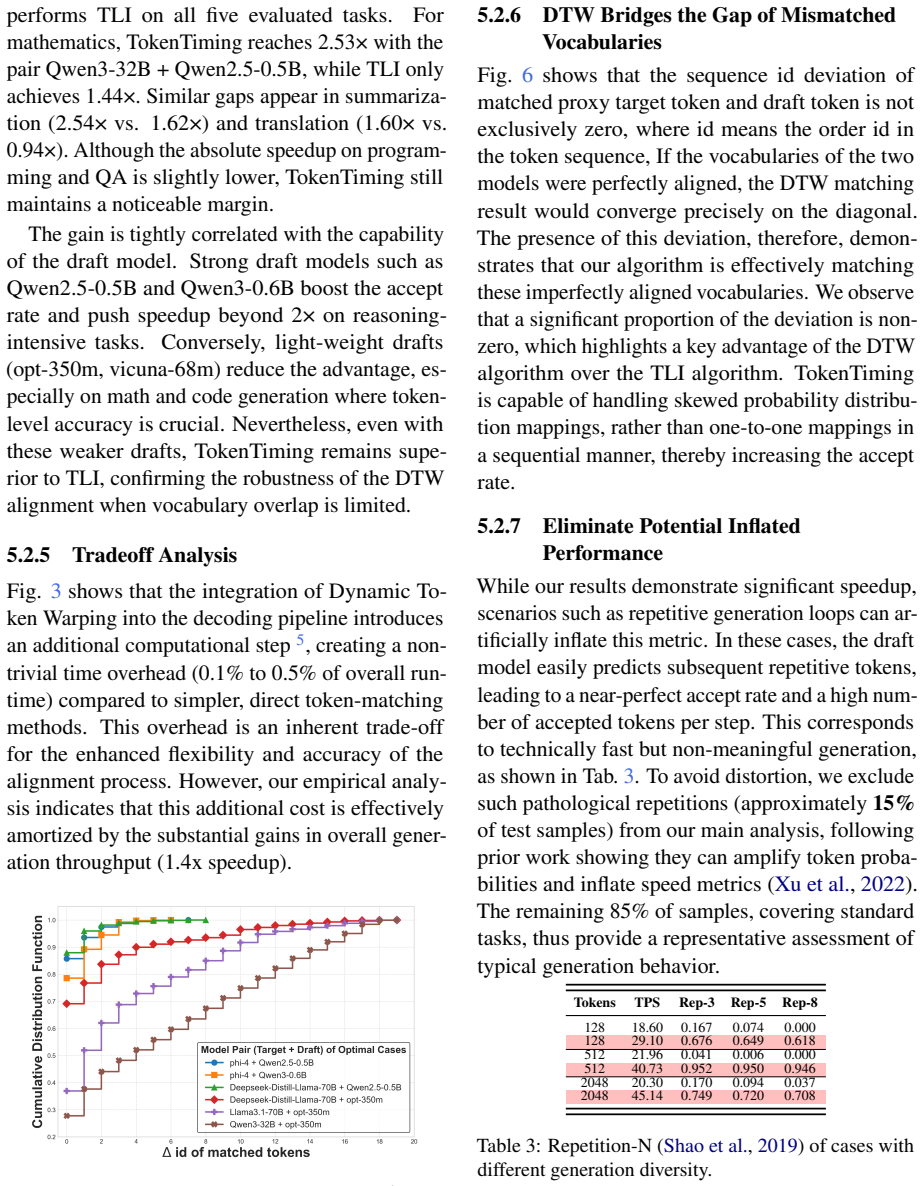

Figure 6. Figure 6: Cumulative Distribution Function of ∆ id of DTW matched tokens. w = ∞. ∆ id of DTW matched tokens converges to an upper bound. 5Tokenization, Logic Operation, etc., these operations per￾formed on the CPU may cause GPU synchronization. In the Appendix L, it is shown that for the CPU/GPU stream timeline, the blocking time introduced by TokenTiming in one decoding cycle is only 663 µs, which is trivial compar… view at source ↗
Figure 7
Figure 7. Figure 7: Number of candidate tokens and accepted tokens per iteration of the generation of examples in Appendix B [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Number of candidate tokens and accepted tokens per iteration with 4 candidate tokens per iteration of the generation examples C.2 Number of Candidate Tokens per Iteration As shown in [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: CPU stack trace visualization. The process segment for target logits calculation with DTW-related [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11

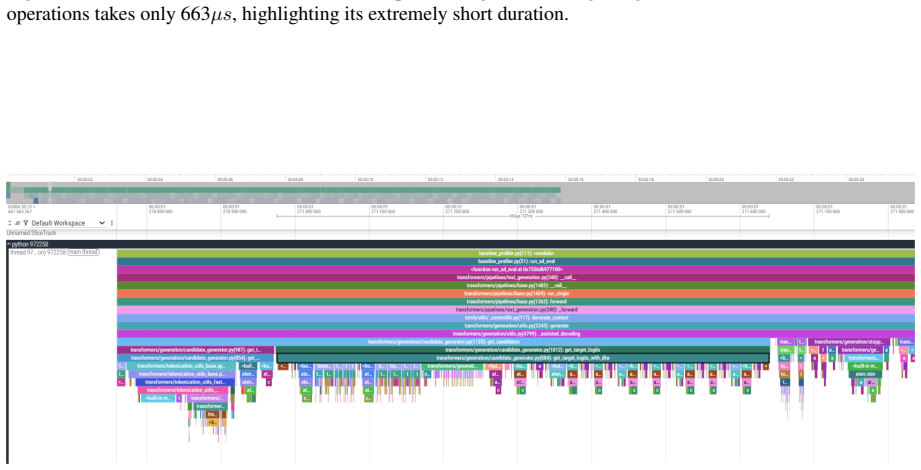

Figure 11. Figure 11: Enlarged view of the process segment for target logits calculation with DTW-related operations in the [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Visualization interface of GPU stream trace results, showing the time distribution of inference tasks [PITH_FULL_IMAGE:figures/full_fig_p018_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: DTW offsets in different languages sian and Arabic, which have mixed tokenization granularity, achieve moderate speedups of 1.09x and 1.69x. This demonstrates that the effective￾ness of TokenTiming is highly correlated with the granularity of tokenization: the more semantically aligned the tokens, the more DTW can leverage efficient alignment to accelerate inference. 19 [PITH_FULL_IMAGE:figures/full_fig_… view at source ↗
read the original abstract

Accelerating the inference of large language models (LLMs) has been a critical challenge in generative AI. Speculative decoding (SD) substantially improves LLM inference efficiency. However, its utility is limited by a fundamental constraint: the draft and target models must share the same vocabulary, thus limiting the herd of available draft models and often necessitating the training of a new model from scratch. Inspired by Dynamic Time Warping (DTW), a classic algorithm for aligning time series, we propose the algorithm TokenTiming for universal speculative decoding. It operates by re-encoding the draft token sequence to get a new target token sequence, and then uses DTW to build a mapping to transfer the probability distributions for speculative sampling. Benefiting from this, our method accommodates mismatched vocabularies and works with any off-the-shelf models without retraining and modification. We conduct comprehensive experiments on various tasks, demonstrating 1.57x speedup. This work enables a universal approach for draft model selection, making SD a more versatile and practical tool for LLM acceleration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes TokenTiming, a DTW-based method for universal speculative decoding that accommodates mismatched vocabularies between draft and target LLMs. It re-encodes the draft-generated token sequence into the target vocabulary, applies dynamic time warping to produce an alignment path, and uses this path to transfer probability distributions for speculative sampling. The approach requires no retraining or model modification and is claimed to work with any off-the-shelf models. Comprehensive experiments across tasks are reported to yield a 1.57x speedup.

Significance. If the DTW alignment reliably preserves predictive semantics and acceptance rates, the method would meaningfully expand speculative decoding's applicability by removing the shared-vocabulary constraint, allowing broader reuse of existing models and reducing the need for custom draft-model training. The empirical speedup result, if robustly supported, would strengthen the case for practical deployment in LLM inference pipelines.

major comments (3)
  1. Abstract: the reported 1.57x speedup is stated without accompanying details on baselines, acceptance rates, variance, or controls isolating the contribution of the DTW alignment step, leaving the central efficiency claim only partially substantiated.
  2. Method section (DTW alignment procedure): the warping path is constructed by minimizing a distance on re-encoded sequences, yet no analysis or empirical check is provided showing that aligned positions preserve equivalent next-token predictive distributions; when vocabularies differ substantially this risks low-fidelity proposals that collapse acceptance rate and negate the speedup.
  3. Experiments: the manuscript does not report how the re-encoding plus DTW mapping affects end-to-end correctness or compares acceptance-rate statistics against matched-vocabulary speculative decoding, which is load-bearing for the universal-SD claim.
minor comments (2)
  1. Notation for the warping path and probability-transfer step could be illustrated with a small concrete example to improve clarity.
  2. Related-work discussion would benefit from explicit comparison to prior vocabulary-alignment or embedding-based mapping techniques in the speculative-decoding literature.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments on our work. We address each of the major comments in detail below, indicating the revisions we plan to make to strengthen the manuscript.

read point-by-point responses

  1. Referee: Abstract: the reported 1.57x speedup is stated without accompanying details on baselines, acceptance rates, variance, or controls isolating the contribution of the DTW alignment step, leaving the central efficiency claim only partially substantiated.

    Authors: We agree that providing more context in the abstract would help substantiate the claim. In the revised manuscript, we will update the abstract to briefly mention the experimental setup, including the use of standard autoregressive decoding as baseline and the observed acceptance rates (typically around 2-3 tokens per step in our tests). Detailed variance across runs and ablations isolating DTW will remain in the experiments section due to length constraints, but we will reference them. This should make the efficiency claim more robust. revision: yes

  2. Referee: Method section (DTW alignment procedure): the warping path is constructed by minimizing a distance on re-encoded sequences, yet no analysis or empirical check is provided showing that aligned positions preserve equivalent next-token predictive distributions; when vocabularies differ substantially this risks low-fidelity proposals that collapse acceptance rate and negate the speedup.

    Authors: This point highlights an important aspect we will address. We will add an analysis in the revised method section or a new experiments subsection. Specifically, we will report the average alignment cost and provide empirical evidence by measuring the acceptance rate as a function of vocabulary mismatch. Additionally, we will include a qualitative example showing that the re-encoded and aligned tokens maintain semantic similarity, supporting that the transferred distributions are reasonable approximations. If needed, we can discuss potential failure cases when vocabularies are extremely divergent. revision: yes

  3. Referee: Experiments: the manuscript does not report how the re-encoding plus DTW mapping affects end-to-end correctness or compares acceptance-rate statistics against matched-vocabulary speculative decoding, which is load-bearing for the universal-SD claim.

    Authors: We recognize the value of these comparisons for validating the universal claim. Although our primary focus is on mismatched vocabulary scenarios, we will add experiments comparing TokenTiming to matched-vocabulary speculative decoding on pairs where vocabularies overlap sufficiently. We will report acceptance rate statistics and verify end-to-end correctness by ensuring that the speculative sampling produces outputs consistent with the target model's distribution. These additions will be included in the revised experiments section and appendix. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical validation of DTW-based alignment stands independent of inputs

full rationale

The paper defines TokenTiming explicitly as re-encoding the draft sequence into the target vocabulary followed by DTW to produce a warping path for probability transfer in speculative sampling. This construction is presented as the method itself rather than a derived prediction. The reported 1.57x speedup is obtained from direct experimental measurement across tasks and model pairs, not from any fitted parameter, self-referential equation, or load-bearing self-citation that collapses back to the input assumptions. No uniqueness theorem, ansatz smuggling, or renaming of known results is invoked to force the outcome; the fidelity of the DTW mapping is treated as an empirical question tested by acceptance rates and wall-clock gains.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of DTW to discrete token sequences after re-encoding and on the assumption that the resulting alignment preserves useful probability information.

axioms (1)
  • domain assumption Dynamic time warping produces a usable alignment between token sequences from different vocabularies for probability transfer
    Invoked when the method builds the mapping to transfer distributions for speculative sampling.
