arxiv: 2510.26766 · v2 · submitted 2025-10-30 · ⚛️ nucl-ex · hep-ex

Characterizing the initial state and dynamical evolution in XeXe and PbPb collisions using multiparticle cumulants

Pith reviewed 2026-05-18 03:22 UTC · model grok-4.3

classification ⚛️ nucl-ex hep-ex
keywords heavy-ion collisionsflow harmonicsmultiparticle cumulantsnuclear deformationinitial-state geometryXeXe collisionsPbPb collisionsquark-gluon plasma
0
0 comments X

The pith

Mixed-order moment correlations of flow harmonics in XeXe collisions reveal sensitivity to nuclear deformation compared to PbPb.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures for the first time correlations among mixed-order moments of two or three flow harmonics in xenon-xenon collisions and compares them to lead-lead results at similar energies. It uses these to probe collective behavior in the quark-gluon plasma and to show how initial-state geometry fluctuations respond to the triaxial deformation of the xenon nucleus versus the spherical lead nucleus. The work studies how results depend on the shape and size of the nuclear overlap region and highlights the roles of higher harmonics in the nonlinear hydrodynamic response. A sympathetic reader cares because the approach constrains initial-state models that govern the evolution from nuclear geometry to final particle distributions.

Core claim

For the first time, correlations among mixed-order moments of two or three flow harmonics (v_n^k, v_m^l) and (v_n^k, v_m^l, v_p^q) are measured in XeXe collisions and compared with PbPb results. These measurements compare a nearly spherical, doubly-magic 208Pb nucleus to a triaxially deformed 129Xe nucleus, emphasizing the sensitivity to initial-state geometry fluctuations arising from nuclear deformation. The dependence of these results on the shape and size of the nuclear overlap region is studied. Comparisons between v2, v3, and v4 demonstrate the importance of v3 and v4 in exploring the nonlinear hydrodynamic response of the QGP to the initial spatial anisotropy. The results constrain初始态

What carries the argument

Multiparticle mixed-harmonic cumulants up to eight particles that extract correlations between mixed-order moments of flow harmonics v_n from charged particles in |η| < 2.4 and 0.5 < p_T < 3 GeV/c.

If this is right

  • The results constrain initial-state model parameters that influence the evolution of the QGP.
  • v3 and v4 play a key role in capturing the nonlinear hydrodynamic response to initial spatial anisotropy.
  • The nuclear overlap region's shape and size directly affect the measured flow-harmonic correlations.
  • Comparisons between the two systems isolate effects from nuclear deformation in the initial geometry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same mixed-cumulant technique could be applied to other deformed nuclei to map nuclear shapes more systematically.
  • These observables may help disentangle geometric fluctuations from viscous response in hydrodynamic models of the QGP.
  • Extending the analysis to lower energies or smaller systems could test whether deformation effects persist across different regimes.

Load-bearing premise

Observed differences between XeXe and PbPb mixed cumulant results are driven primarily by the triaxial deformation of the 129Xe nucleus rather than by the small differences in collision energy, system size, or other initial-state effects.

What would settle it

If the mixed-harmonic correlations measured in XeXe at 5.44 TeV match those in PbPb after correcting only for the 0.08 TeV energy difference and slight system-size variation, without needing to invoke nuclear deformation, the central sensitivity claim would be falsified.

Figures

Figures reproduced from arXiv: 2510.26766 by CMS Collaboration.

Figure 1
Figure 1. Figure 1: The upper row shows vn{2, |∆η| > 2} for elliptic (n = 2, left) and triangular (n = 3, right) flow, as a function of centrality in XeXe and PbPb collisions, calculated using the 2- particle correlation method. The vertical bars (mostly smaller than the marker size) and the open boxes represent the statistical and systematic uncertainties, respectively. The middle row compares various theoretical predictions… view at source ↗
Figure 2
Figure 2. Figure 2: The upper plots show vn{4}/vn{2, |∆η| > 2} for elliptic (n = 2, left) and triangular (n = 3, right) flow, calculated from multiparticle cumulants, as a function of centrality in XeXe and PbPb collisions. The vertical bars (mostly smaller than the marker size) on the dots and the open boxes represent the statistical and systematic uncertainties in the data, respectively. The red and blue solid lines show th… view at source ↗
Figure 3

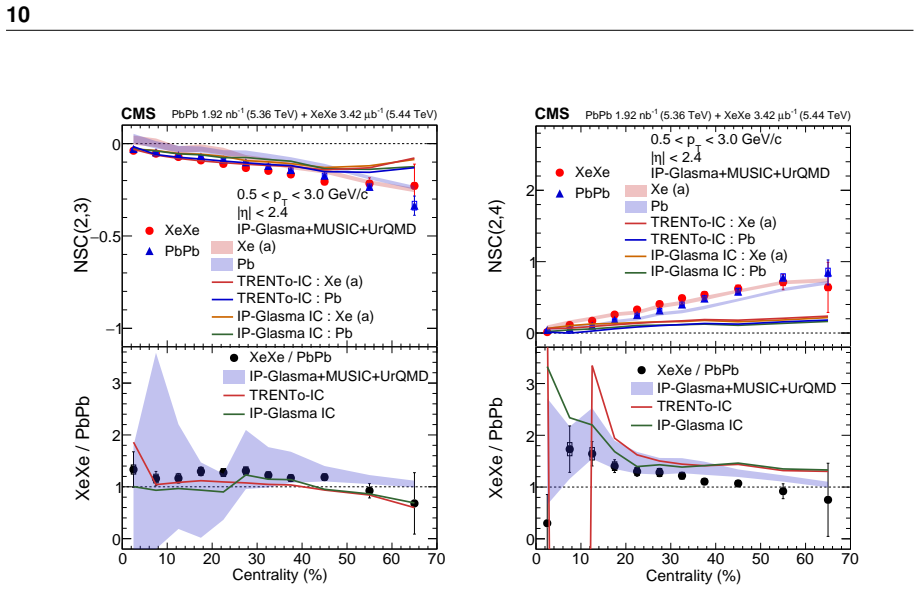

Figure 3. Figure 3: The upper plots show the normalized symmetric cumulants NSC(2, 3) (left) and [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

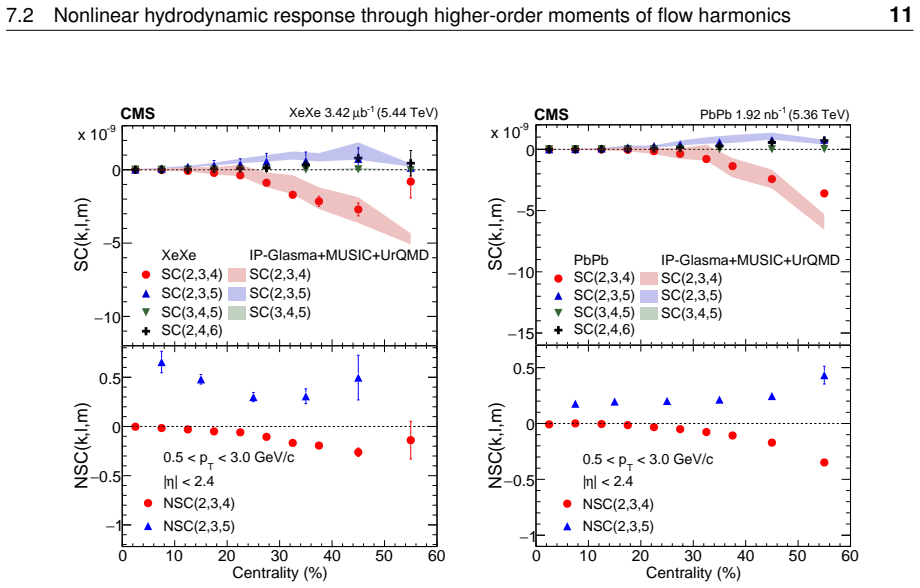

Figure 4. Figure 4: A selection of six-particle three-harmonic SC and NSC cumulants as functions of [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

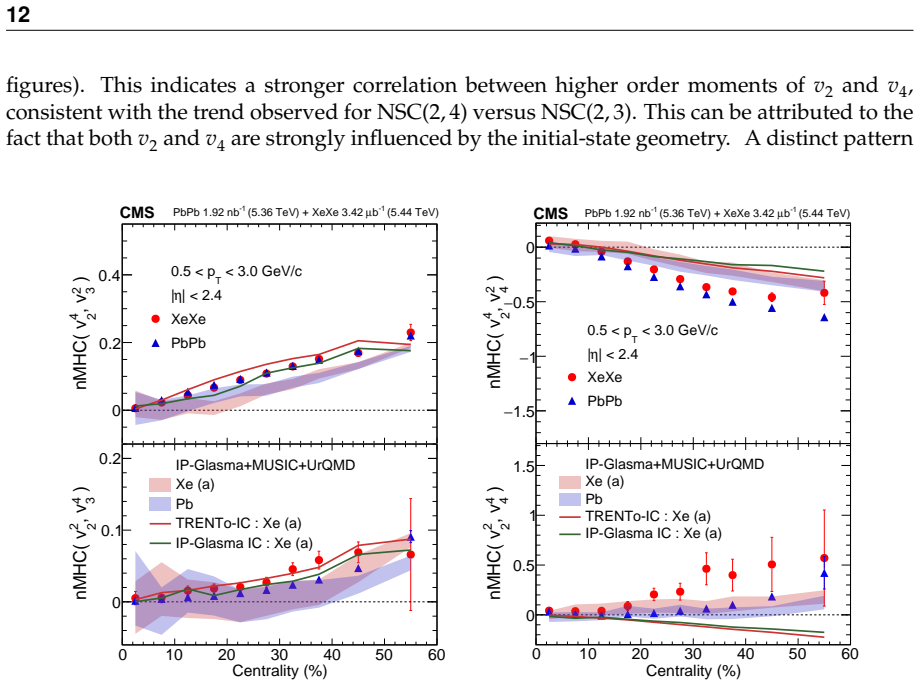

Figure 5. Figure 5: Six-particle normalized mixed harmonic cumulants (nMHC) as functions of cen [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Eight-particle normalized mixed harmonic cumulants (nMHC) as functions of cen [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗

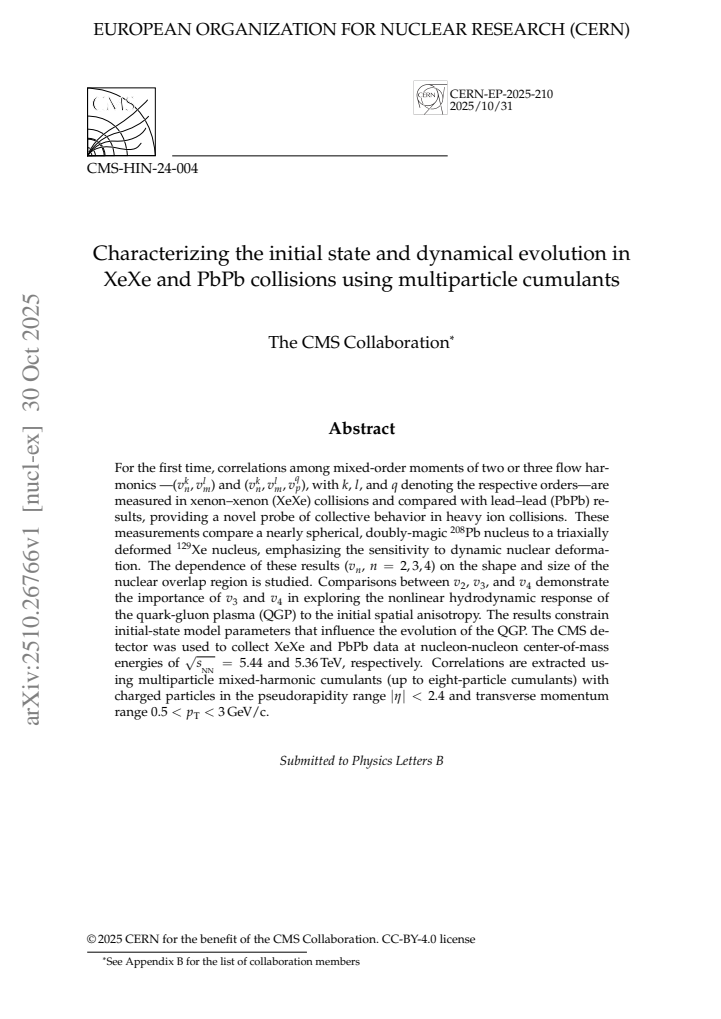

read the original abstract

For the first time, correlations among mixed-order moments of two or three flow harmonics$-$($v_{n}^{k},v_{m}^{l}$) and ($v_{n}^{k},v_{m}^{l}, v_{p}^{q}$), with $k$, $l$, and $q$ denoting the respective orders$-$are measured in xenon-xenon (XeXe) collisions and compared with lead-lead (PbPb) results, providing a novel probe of collective behavior in heavy ion collisions. These measurements compare a nearly spherical, doubly-magic ${}^{208}$Pb nucleus to a triaxially deformed ${}^{129}$Xe nucleus, emphasizing the sensitivity to initial-state geometry fluctuations arising from nuclear deformation. The dependence of these results ($v_{n}$, $n$ = 2, 3, 4) on the shape and size of the nuclear overlap region is studied. Comparisons between $v_{2}$, $v_{3}$, and $v_{4}$ demonstrate the importance of $v_{3}$ and $v_{4}$ in exploring the nonlinear hydrodynamic response of the quark-gluon plasma (QGP) to the initial spatial anisotropy. The results constrain initial-state model parameters that influence the evolution of the QGP. The CMS detector was used to collect XeXe and PbPb data at nucleon-nucleon center-of-mass energies of $\sqrt{s_\mathrm{NN}}$ = 5.44 and 5.36 TeV, respectively. Correlations are extracted using multiparticle mixed-harmonic cumulants (up to eight-particle cumulants) with charged particles in the pseudorapidity range $\lvert\eta\rvert$ $\lt$ 2.4 and transverse momentum range 0.5 $\lt$ $p_\mathrm{T}$ $\lt$ 3 GeV/$c$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports the first measurements of correlations among mixed-order moments of two or three flow harmonics, (v_n^k, v_m^l) and (v_n^k, v_m^l, v_p^q), extracted via multiparticle cumulants (up to eight-particle) in XeXe collisions at √s_NN = 5.44 TeV. These are compared to existing PbPb results at 5.36 TeV to probe collective behavior, with emphasis on sensitivity to initial-state geometry fluctuations from the triaxial deformation of 129Xe versus the nearly spherical 208Pb. The dependence of v2, v3, and v4 on nuclear overlap shape and size is studied, and the importance of v3 and v4 for nonlinear hydrodynamic response is highlighted. Data are from CMS with charged particles in |η| < 2.4 and 0.5 < p_T < 3 GeV/c.

Significance. If the central results hold after addressing potential confounders, the work supplies a new experimental handle on initial-state fluctuations and QGP response through mixed cumulants, which can tighten constraints on nuclear deformation parameters and hydrodynamic modeling. The multiparticle approach and direct XeXe-PbPb comparison add value beyond single-harmonic measurements.

major comments (1)
  1. [Abstract and results section on XeXe-PbPb comparisons] Abstract: The central claim that the XeXe-PbPb differences emphasize sensitivity to triaxial deformation of 129Xe requires that the comparison isolates this effect from other initial-state differences. The 1.5% mismatch in √s_NN (5.44 vs 5.36 TeV) and the large difference in A (129 vs 208) alter participant density, eccentricity distributions, and hydrodynamic response independently of β and γ. The manuscript states that dependence on overlap shape and size is studied, but does not appear to include explicit model runs (deformed vs spherical initial conditions at fixed energy and matched multiplicity) that would quantify the deformation-induced shift against these confounders.
minor comments (2)
  1. [Abstract] The abstract lists the p_T and η ranges but does not specify the exact orders (k, l, q) or the precise cumulant combinations used for the mixed moments; adding this would improve clarity for readers.
  2. [Analysis or systematic uncertainties section] The manuscript would benefit from an explicit statement of how systematic uncertainties on the mixed cumulants are evaluated, particularly for the cross-system comparison.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thoughtful and detailed review of our manuscript. The major comment raises a valid concern about isolating the effects of nuclear deformation in the XeXe-PbPb comparison. We address this point directly below and have revised the manuscript to clarify the scope of our claims and acknowledge potential confounders.

read point-by-point responses
  1. Referee: [Abstract and results section on XeXe-PbPb comparisons] Abstract: The central claim that the XeXe-PbPb differences emphasize sensitivity to triaxial deformation of 129Xe requires that the comparison isolates this effect from other initial-state differences. The 1.5% mismatch in √s_NN (5.44 vs 5.36 TeV) and the large difference in A (129 vs 208) alter participant density, eccentricity distributions, and hydrodynamic response independently of β and γ. The manuscript states that dependence on overlap shape and size is studied, but does not appear to include explicit model runs (deformed vs spherical initial conditions at fixed energy and matched multiplicity) that would quantify the deformation-induced shift against these confounders.

    Authors: We agree that a fully isolated quantification of the triaxial deformation effect would benefit from dedicated hydrodynamic simulations comparing deformed versus spherical 129Xe initial conditions at fixed √s_NN and matched multiplicity. Our work is an experimental measurement focused on new multiparticle cumulant observables; we do not present new model calculations. The 1.5% energy difference is small, and the energy dependence of flow harmonics is known to be weak in this regime. To address the A difference, results are presented versus charged-particle multiplicity as a proxy for overlap size and participant number. Existing hydrodynamic calculations incorporating the measured β and γ deformation parameters for 129Xe are referenced and compared to the data. In the revised manuscript we have added a dedicated paragraph in the discussion section that explicitly lists these confounders, notes that the observed XeXe-PbPb differences are consistent with deformation expectations but cannot be attributed solely to them, and softens the abstract language to avoid overclaiming isolation of the effect. We believe this revision improves the interpretation while preserving the value of the new mixed-order cumulant measurements. revision: partial

Circularity Check

0 steps flagged

No significant circularity in experimental cumulant measurements

full rationale

The paper reports direct experimental measurements of mixed-order multiparticle cumulants extracted from XeXe and PbPb collision data collected by the CMS detector. The central results consist of observed correlations among flow harmonics v_n, v_m, v_p without any first-principles derivation chain, parameter fitting renamed as prediction, or load-bearing self-citation that reduces the reported quantities to their inputs by construction. System comparisons are presented as data-driven observations, and statements about sensitivity to nuclear deformation are interpretive rather than definitional. The analysis remains self-contained against external benchmarks because the quantities are computed from raw detector data using standard cumulant techniques, with no equations that equate outputs to fitted inputs or prior author results by tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions of collective hydrodynamic behavior in heavy-ion collisions and the accuracy of nuclear deformation models for 129Xe versus 208Pb; no new free parameters, axioms, or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption The quark-gluon plasma produced in these collisions behaves as a nearly perfect fluid whose expansion is governed by hydrodynamics.
    Invoked when the abstract states that the results demonstrate the importance of v3 and v4 in exploring the nonlinear hydrodynamic response.
  • domain assumption Differences in measured correlations between XeXe and PbPb are attributable to nuclear shape differences rather than other initial-state or final-state effects.
    Central to the comparison emphasized in the abstract.

pith-pipeline@v0.9.0 · 5871 in / 1502 out tokens · 17011 ms · 2026-05-18T03:22:58.838969+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

36 extracted references · 36 canonical work pages · 18 internal anchors

  1. [1]

    Quark gluon plasma and color glass condensate at RHIC? The perspective from the BRAHMS experiment

    BRAHMS Collaboration, “Quark gluon plasma and color glass condensate at RHIC? the perspective from the BRAHMS experiment”,Nucl. Phys. A757(2005) 1, doi:10.1016/j.nuclphysa.2005.02.130,arXiv:nucl-ex/0410020

  2. [2]

    Hayrapetyan et al

    CMS Collaboration, “Overview of high-density QCD studies with the CMS experiment at the LHC”,Phys. Rept.(2025)doi:10.48550/arXiv.2405.10785, arXiv:2405.10785

  3. [3]

    Anisotropy as a signature of transverse collective flow

    J.-Y. Ollitrault, “Anisotropy as a signature of transverse collective flow”,Phys. Rev. D46 (1992) 229,doi:10.1103/PhysRevD.46.229

  4. [4]

    Observation of correlated azimuthal anisotropy Fourier harmonics in pp and pPb collisions at the LHC

    CMS Collaboration, “Observation of correlated azimuthal anisotropy fourier harmonics in pp and p+Pb collisions at the LHC”,Phys. Rev. Lett.120(2018) 092301, doi:10.1103/PhysRevLett.120.092301,arXiv:1709.09189

  5. [5]

    Investigations of anisotropic flow using multiparticle azimuthal correlations in pp, p-Pb, Xe-Xe, and Pb-Pb collisions at the LHC

    ALICE Collaboration, “Investigations of anisotropic flow using multiparticle azimuthal correlations in pp, p-Pb, Xe-Xe, and Pb-Pb collisions at the LHC”,Phys. Rev. Lett.123 (2019) 142301,doi:10.1103/PhysRevLett.123.142301,arXiv:1903.01790

  6. [6]

    Linear and cubic response to the initial eccentricity in heavy-ion collisions

    J. Noronha-Hostler, L. Yan, F. G. Gardim, and J.-Y. Ollitrault, “Linear and cubic response to the initial eccentricity in heavy-ion collisions”,Phys. Rev. C93(2016) 014909, doi:10.1103/PhysRevC.93.014909,arXiv:1511.03896

  7. [7]

    Shape of atomic nuclei in heavy ion collisions

    J. Jia, “Shape of atomic nuclei in heavy ion collisions”,Phys. Rev. C105(2022) 014905, doi:10.1103/PhysRevC.105.014905,arXiv:2106.08768

  8. [8]

    Precision luminosity measurement in proton-proton collisions at√s=13 TeV in 2015 and 2016 at CMS

    CMS Collaboration, “Precision luminosity measurement in proton-proton collisions at√s=13 TeV in 2015 and 2016 at CMS”,Eur. Phys. J. C81(2021) 800, doi:10.1140/epjc/s10052-021-09538-2,arXiv:2104.01927

  9. [9]

    CMS luminosity measurement using 2017 proton-proton collisions at √s=13 TeV

    CMS Collaboration, “CMS luminosity measurement using 2017 proton-proton collisions at √s=13 TeV”, 2018. CMS Physics Analysis Summary CMS-PAS-LUM-17-004, 2018

  10. [10]

    CMS luminosity measurement using nucleus–nucleus collisions at√sNN =5.02 TeV in 2018

    CMS Collaboration, “CMS luminosity measurement using nucleus–nucleus collisions at√sNN =5.02 TeV in 2018”, 2022. CMS Physics Analysis Summary CMS-PAS-LUM-18-002, 2022

  11. [11]

    HEPData record for this analysis, 2025.doi:10.17182/hepdata.161536

  12. [12]

    Description and performance of track and primary-vertex reconstruction with the CMS tracker

    CMS Collaboration, “Description and performance of track and primary-vertex reconstruction with the CMS tracker”,JINST9(2014) P10009, doi:10.1088/1748-0221/9/10/P10009,arXiv:1405.6569. References 17

  13. [13]

    The CMS experiment at the CERN LHC

    CMS Collaboration, “The CMS experiment at the CERN LHC”,JINST3(2008) S08004, doi:10.1088/1748-0221/3/08/S08004

  14. [14]

    GEANT4 — a simulation toolkit

    GEANT4 Collaboration, “GEANT4—a simulation toolkit”,Nucl. Instrum. Meth. A506 (2003) 250,doi:10.1016/S0168-9002(03)01368-8

  15. [15]

    Charged-particle angular correlations in XeXe collisions at√sNN =5.44 TeV

    CMS Collaboration, “Charged-particle angular correlations in XeXe collisions at√sNN =5.44 TeV”,Phys. Rev. C100(2019) 044902, doi:10.1103/PhysRevC.100.044902,arXiv:1901.07997

  16. [16]

    The CMS trigger system

    CMS Collaboration, “The CMS trigger system”,JINST12(2017) P01020, doi:10.1088/1748-0221/12/01/P01020,arXiv:1609.02366

  17. [17]

    Measurement of the pseudorapidity and centrality dependence of the transverse energy density in PbPb collisions at sqrt(s[NN]) = 2.76 TeV

    CMS Collaboration, “Measurement of the pseudorapidity and centrality dependence of the transverse energy density in PbPb collisions at √sNN =2.76 TeV”,Phys. Rev. Lett. 109(2012) 152303,doi:10.1103/PhysRevLett.109.152303,arXiv:1205.2488

  18. [18]

    Measurements of mixed harmonic cumulants in Pb–Pb collisions at √sNN =5.02 TeV

    ALICE Collaboration, “Measurements of mixed harmonic cumulants in Pb–Pb collisions at √sNN =5.02 TeV”,Phys. Lett. B818(2021) 136354, doi:10.1016/j.physletb.2021.136354,arXiv:2102.12180

  19. [19]

    Evidence for collectivity in pp collisions at the LHC

    CMS Collaboration, “Evidence for collectivity in pp collisions at the LHC”,Phys. Lett. B 765(2017) 193,doi:10.1016/j.physletb.2016.12.009,arXiv:1606.06198

  20. [20]

    Flow analysis with cumulants: direct calculations

    A. Bilandzic, R. Snellings, and S. Voloshin, “Flow analysis with cumulants: Direct calculations”,Phys. Rev. C83(2011) 044913,doi:10.1103/PhysRevC.83.044913, arXiv:1010.0233

  21. [21]

    Generic framework for anisotropic flow analyses with multi-particle azimuthal correlations

    A. Bilandzic et al., “Generic framework for anisotropic flow analyses with multiparticle azimuthal correlations”,Phys. Rev. C89(2014) 064904, doi:10.1103/PhysRevC.89.064904,arXiv:1312.3572

  22. [22]

    Correlated event-by-event fluctuations of flow harmonics in Pb-Pb collisions at $\sqrt{s_{_{\rm NN}}}=2.76$ TeV

    ALICE Collaboration, “Correlated event-by-event fluctuations of flow harmonics in Pb-Pb collisions at √sNN =2.76 TeV”,Phys. Rev. Lett.117(2016) 182301, doi:10.1103/PhysRevLett.117.182301,arXiv:1604.07663

  23. [23]

    Higher order symmetric cumulants

    C. Mordasini, A. Bilandzic, D. Karakoc ¸, and S. F. Taghavi, “Higher order symmetric cumulants”,Phys. Rev. C102(2020) 024907,doi:10.1103/PhysRevC.102.024907, arXiv:1901.06968

  24. [24]

    Generic algorithm for multiparticle cumulants of azimuthal correlations in high energy nucleus collisions

    Z. Moravcova, K. Gulbrandsen, and Y. Zhou, “Generic algorithm for multiparticle cumulants of azimuthal correlations in high energy nucleus collisions”,Phys. Rev. C103 (2021) 024913,doi:10.1103/PhysRevC.103.024913,arXiv:2005.07974

  25. [25]

    A model of jet quenching in ultrarelativistic heavy ion collisions and high-pt hadron spectra at RHIC

    I. P . Lokhtin and A. M. Snigirev, “A model of jet quenching in ultrarelativistic heavy ion collisions and high-pT hadron spectra at RHIC”,Eur. Phys. J. C45(2006) 211, doi:10.1140/epjc/s2005-02426-3,arXiv:hep-ph/0506189

  26. [26]

    Fluctuating Glasma initial conditions and flow in heavy ion collisions

    B. Schenke, P . Tribedy, and R. Venugopalan, “Fluctuating glasma initial conditions and flow in heavy ion collisions”,Phys. Rev. Lett.108(2012) 252301, doi:10.1103/PhysRevLett.108.252301,arXiv:1202.6646

  27. [27]

    A Detailed Study and Synthesis of Flow Observables in the IP-Glasma+MUSIC+UrQMD Framework

    S. McDonald et al., “A detailed study and synthesis of flow observables in the IP-Glasma+MUSIC+UrQMD framework”,Nucl. Phys. A967(2017) 393, doi:10.1016/j.nuclphysa.2017.05.053,arXiv:1704.05362. 18

  28. [28]

    Hydrodynamic Modeling of Heavy-Ion Collisions

    C. Gale, S. Jeon, and B. Schenke, “Hydrodynamic modeling of heavy-ion collisions”,Int. J. Mod. Phys. A28(2013) 1340011,doi:10.1142/S0217751X13400113, arXiv:1301.5893

  29. [29]

    Microscopic Models for Ultrarelativistic Heavy Ion Collisions

    S. A. Bass et al., “Microscopic models for ultrarelativistic heavy ion collisions”,Prog. Part. Nucl. Phys.41(1998) 255,doi:10.1016/S0146-6410(98)00058-1, arXiv:nucl-th/9803035

  30. [30]

    Alternative ansatz to wounded nucleon and binary collision scaling in high-energy nuclear collisions

    J. S. Moreland, J. E. Bernhard, and S. A. Bass, “Alternative ansatz to wounded nucleon and binary collision scaling in high-energy nuclear collisions”,Phys. Rev. C92(2015) 011901,doi:10.1103/PhysRevC.92.011901,arXiv:1412.4708

  31. [31]

    Hydrodynamic predictions for 5.44 TeV Xe+Xe collisions

    G. Giacalone, J. Noronha-Hostler, M. Luzum, and J.-Y. Ollitrault, “Hydrodynamic predictions for 5.44 TeV Xe+Xe collisions”,Phys. Rev. C97(2018) 034904, doi:10.1103/PhysRevC.97.034904,arXiv:1711.08499

  32. [32]

    Probing nuclear structure of heavy ions at energies available at the CERN Large Hadron Collider

    H. M ¨antysaari, B. Schenke, C. Shen, and W. Zhao, “Probing nuclear structure of heavy ions at energies available at the CERN Large Hadron Collider”,Phys. Rev. C110(2024) 054913,doi:10.1103/PhysRevC.110.054913,arXiv:2409.19064

  33. [33]

    Exploring the nuclear shape phase transition in ultra-relativistic 129Xe+ 129 Xe collisions at the LHC

    S. Zhao et al., “Exploring the nuclear shape phase transition in ultra-relativistic 129Xe+ 129 Xe collisions at the LHC”,Phys. Rev. Lett.133(2024) 192301, doi:10.1103/PhysRevLett.133.192301,arXiv:2403.07441

  34. [34]

    Core-Corona Separation in Ultra-Relativistic Heavy Ion Collisions

    K. Werner, “Core-corona separation in ultrarelativistic heavy ion collisions”,Phys. Rev. Lett.98(2007) 152301,doi:10.1103/PhysRevLett.98.152301, arXiv:0704.1270

  35. [35]

    Multiharmonic correlations of different flow amplitudes in Pb-Pb collisions at √sNN =2.76 TeV

    ALICE Collaboration, “Multiharmonic correlations of different flow amplitudes in Pb-Pb collisions at √sNN =2.76 TeV”,Phys. Rev. Lett.127(2021) 092302, doi:10.1103/PhysRevLett.127.092302,arXiv:2101.02579

  36. [36]

    Collective flow in 2.76 A TeV and 5.02 A TeV Pb+Pb collisions

    W. Zhao, H.-j. Xu, and H. Song, “Collective flow in 2.76 A TeV and 5.02 A TeV Pb+Pb collisions”,Eur. Phys. J. C77(2017) 645,doi:10.1140/epjc/s10052-017-5186-x, arXiv:1703.10792. 19 Av 2,v 3,v 4 vs.centrality A.1v 4{2,|∆η|>2}vs.centrality Figure A.1 shows the same information as the upper and middle rows of Fig. 1, but now forv4. 0 10 20 30 40 50 60 70 Cen...
