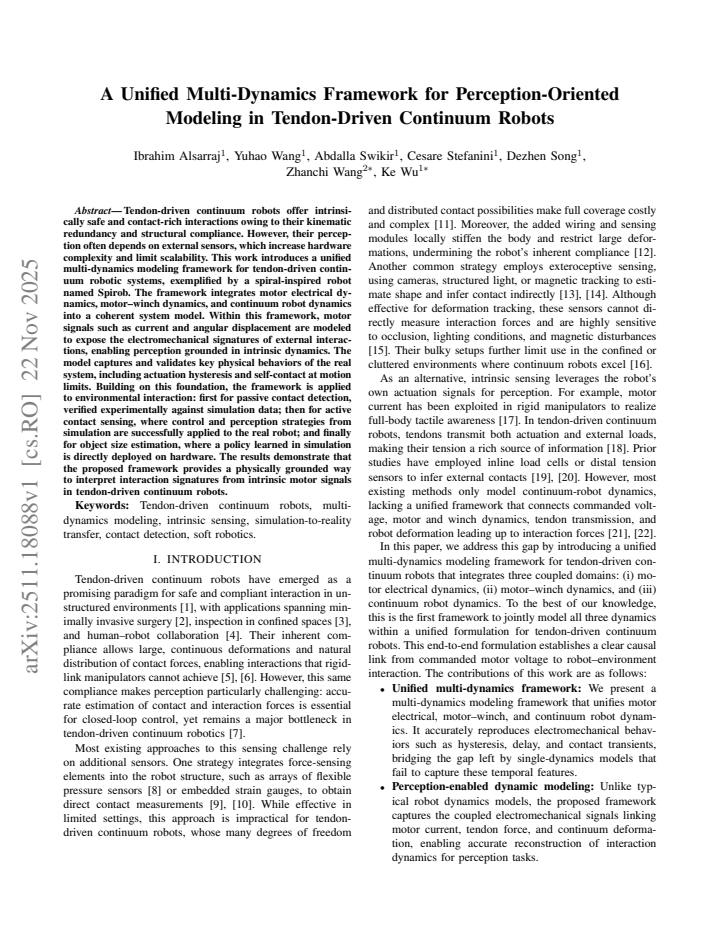

A Unified Multi-Dynamics Framework for Perception-Oriented Modeling in Tendon-Driven Continuum Robots

Ibrahim Alsarraj , Yuhao Wang , Abdalla Swikir , Cesare Stefanini , Dezhen Song , Zhanchi Wang , Ke Wu This is my paper

Pith reviewed 2026-05-17 05:53 UTC · model grok-4.3

classification 💻 cs.RO
keywords continuum robotstendon-driven actuationmulti-dynamics modelingintrinsic perceptioncontact detectionsimulation-to-real transfermotor signal analysissoft robotics
0
0 comments X

The pith

A unified model of motor, winch, and robot dynamics allows tendon-driven continuum robots to perceive contacts and object sizes using only their intrinsic motor signals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a modeling framework that links the electrical dynamics of the driving motors, the mechanics of the tendon winch, and the flexible motion of the continuum robot into one system. This integration makes it possible to read external interactions directly from motor current and angular position data. A reader would care because it offers a way to add perception to safe, compliant robots without adding extra hardware that could reduce their advantages. The framework is tested on a spiral-shaped robot for detecting contacts and estimating sizes, with methods moving from computer simulation to actual hardware experiments.

Core claim

The authors establish that integrating motor electrical dynamics, motor-winch dynamics, and continuum robot dynamics creates a coherent model capable of exposing electromechanical signatures of external interactions. This model validates behaviors like actuation hysteresis and self-contact at motion limits, and enables the successful transfer of perception strategies for passive contact detection, active contact sensing, and object size estimation from simulation to the physical robot.

What carries the argument

The unified multi-dynamics framework, which couples electrical motor behavior with winch mechanics and continuum flexibility to interpret motor signals as indicators of external forces and contacts.

Load-bearing premise

The combined dynamics model correctly represents the physical system and that results from simulation apply to the physical robot with little change.

What would settle it

An experiment in which motor current and position data fail to distinguish contact events or object sizes despite using the model, or where simulation-based perception does not perform on the hardware robot.

Figures

Figures reproduced from arXiv: 2511.18088 by Abdalla Swikir, Cesare Stefanini, Dezhen Song, Ibrahim Alsarraj, Ke Wu, Yuhao Wang, Zhanchi Wang.

Figure 1
Figure 1. Figure 1: (A) Commanded motor current producing motor torque and tendon tension that drives the robot to deform. (B) Investigated Soft Robot - SpiRob. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematic of the multi-dynamics modeling framework. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

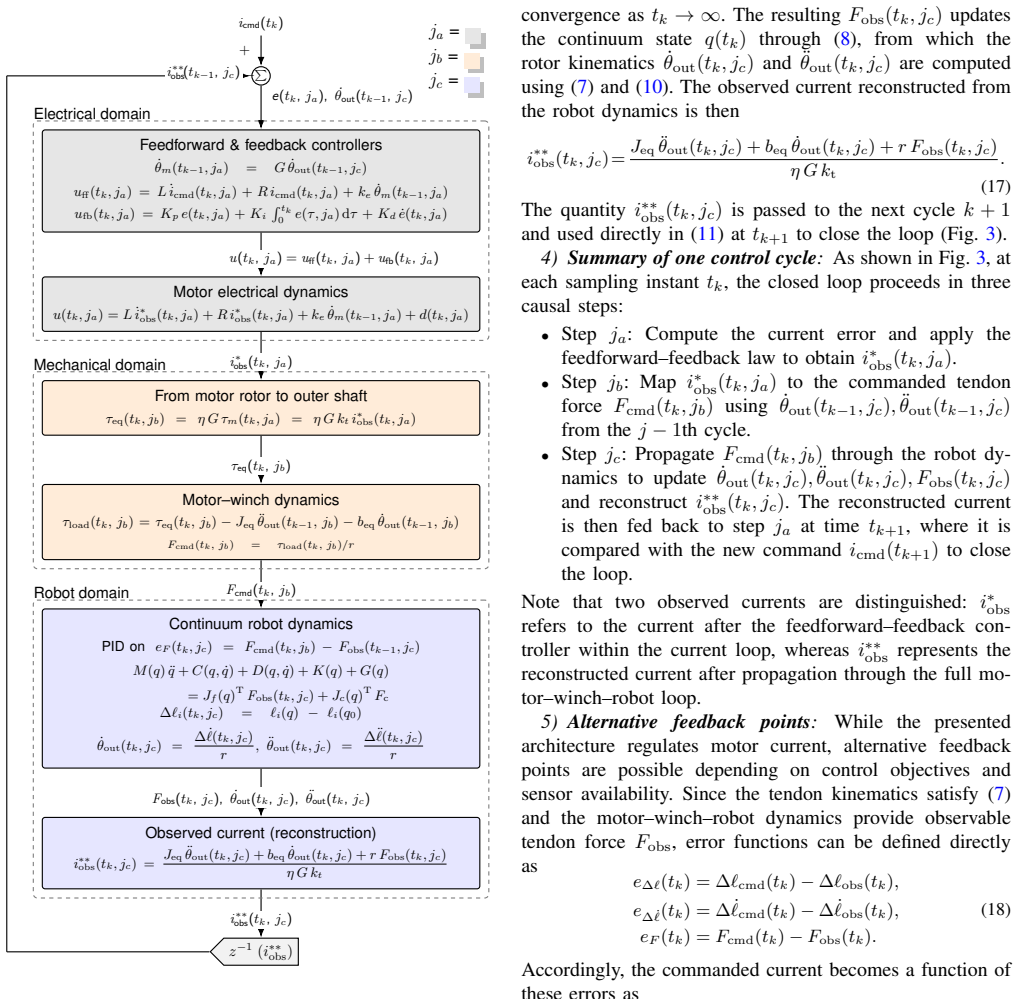

Figure 3. Figure 3: Proposed numerical implementation of the multi-dynamics frame [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

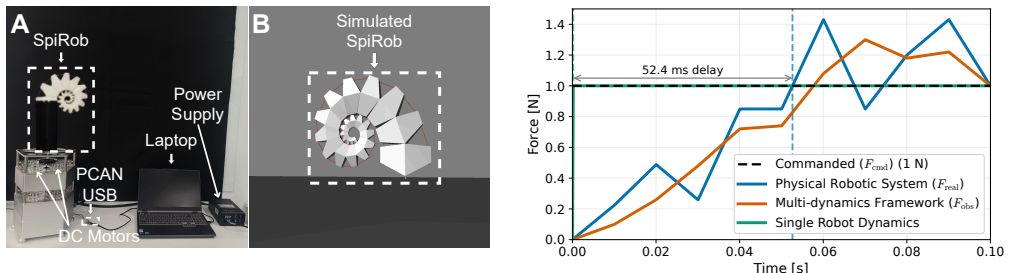

Figure 4. Figure 4: Platform setup: (A) Experimental continuum robotic system; (B) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6

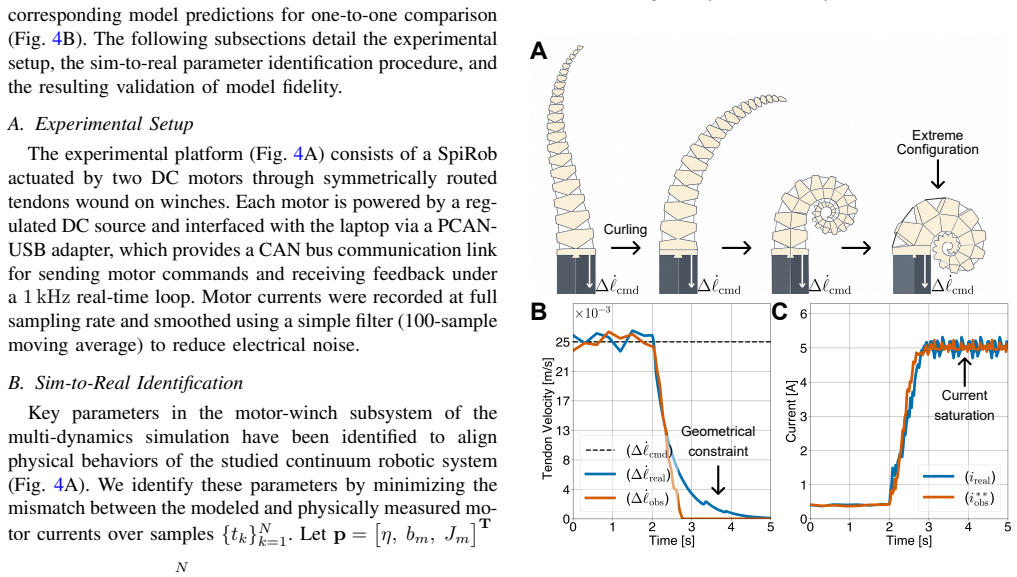

Figure 6. Figure 6: Comparison of experimental and simulated motor responses during [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7

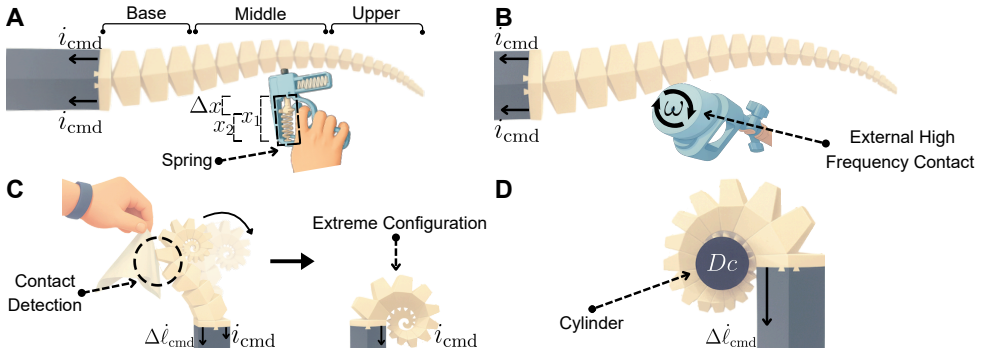

Figure 7. Figure 7: Evaluation scenarios: (A) Passive perception under constant current; (B) Passive perception with high-frequency contacts; (C) Active perception [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8

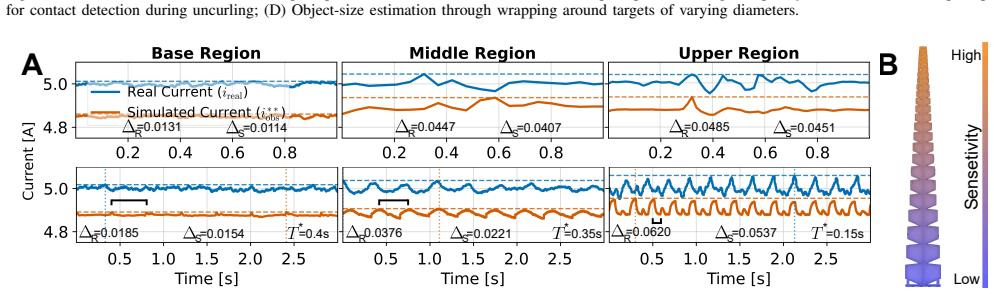

Figure 8. Figure 8: (A) Real and simulated motor-current responses under single (top) and periodic (bottom) contacts at different body regions. (B) Sensitivity [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Ensemble learning pipeline. 10 20 30 40 50 60 70 True Diameter Dc [mm] 10 20 30 40 50 60 70 Pre dicte d Dia m eter ^Dc [m m] Simulation: MAE = 1.12 mm, R 2 = 0.98 Experimental: MAE = 3.95 mm, R 2 = 0.76 Perfect Prediction (y=x) Simulation Training Samples (35) Simulation Validation Samples Experimental Samples [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 9

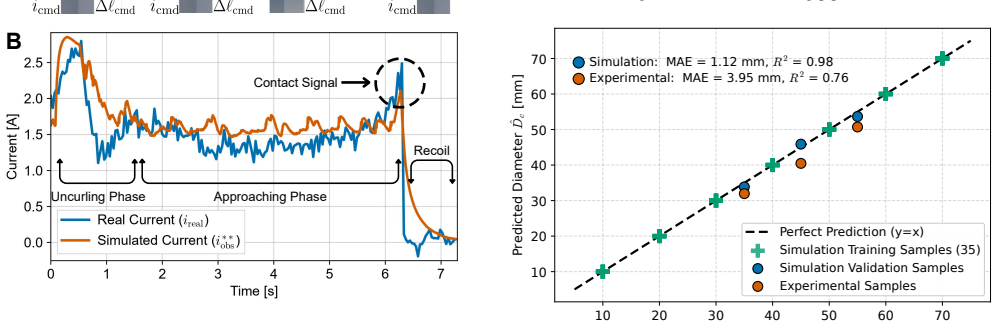

Figure 9. Figure 9: Comparison of real and simulated motor currents during active [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
