Voxify3D: Pixel Art Meets Volumetric Rendering

Yi-Chuan Huang , Jiewen Chan , Hao-Jen Chien , Yu-Lun Liu
Authors on Pith no claims yet

Pith reviewed 2026-05-16 23:57 UTC · model grok-4.3

classification 💻 cs.CV
keywords voxel art generation3D mesh stylizationdifferentiable renderingCLIP semantic alignmentGumbel-Softmax quantizationpixel art aestheticsvolumetric renderingdiscrete optimization
0
0 comments X

The pith

Voxify3D converts 3D meshes into voxel art by aligning straight-on pixel renders with CLIP patches and using differentiable palette quantization to keep semantics intact under discretization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a two-stage differentiable framework that turns smooth 3D meshes into blocky voxel art while preserving what the object represents and restricting output to small color sets. It relies on rendering the model from straight-on orthographic views to match exact pixel positions, matching small image patches to text descriptions to hold onto meaning across detail loss, and a soft quantization step that lets the system pick discrete colors from a chosen palette during training. This combination tackles the core tension in voxel stylization where geometry must simplify drastically yet still read as the original shape with coherent limited colors. A sympathetic reader would care because it provides an automated route to game-style assets that follow strict pixel-art rules without manual cleanup or loss of recognizable identity.

Core claim

Voxify3D bridges 3D mesh optimization with 2D pixel art supervision by integrating orthographic pixel art supervision that removes perspective distortion for precise voxel-pixel alignment, patch-based CLIP alignment that preserves semantics across discretization levels, and palette-constrained Gumbel-Softmax quantization that enables differentiable optimization over discrete color spaces with controllable palette strategies. This integration directly addresses semantic preservation under extreme discretization and pixel-art aesthetics through volumetric rendering while supporting end-to-end discrete optimization.

What carries the argument

The synergistic integration of orthographic pixel art supervision, patch-based CLIP alignment, and palette-constrained Gumbel-Softmax quantization, which together carry the argument by allowing gradient-based optimization of voxel grids from meshes while enforcing pixel-level aesthetics and semantic consistency.

If this is right

  • Voxel outputs can be generated controllably at abstraction levels from 2-8 colors and 20x-50x resolutions while remaining recognizable.
  • End-to-end training replaces separate post-processing steps for color quantization and geometry abstraction in voxel pipelines.
  • The framework produces higher semantic alignment scores and stronger user preference than prior mesh-to-voxel methods across characters.
  • Palette strategies become tunable parameters that directly influence the final discrete color coherence without retraining.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same supervision stack could be tested on generating voxel versions of static environments or props to check if semantic preservation generalizes beyond characters.
  • Combining this discretization approach with rigged 3D models might enable direct creation of animated voxel characters for games.
  • The reliance on patch CLIP suggests the method could adapt to other extreme stylizations such as low-poly or sprite-based outputs from 3D sources.

Load-bearing premise

Straight-on orthographic renders plus patch-level CLIP matches will keep the original meaning and desired pixel-art look intact once the mesh is locked into a coarse grid and tiny color palette.

What would settle it

Run the method on standard test meshes such as a human character or simple object at 20x resolution with a 4-color palette and measure whether human viewers can still correctly identify the source object from the voxel output at rates above chance.

Figures

Figures reproduced from arXiv: 2512.07834 by Hao-Jen Chien, Jiewen Chan, Yi-Chuan Huang, Yu-Lun Liu.

Figure 1
Figure 1. Figure 1: Stylized voxel art with controllable abstraction. Voxify3D converts 3D meshes into stylized voxel art using discrete color palettes, pixel art supervision, and voxel-based radiance fields. This teaser showcases the flexibility and quality of our method. (a) Diverse voxel art outputs across object types and use cases. (b) Comparison of different palette selection methods. (c) Control over the resolution of … view at source ↗
Figure 2
Figure 2. Figure 2: Existing methods often miss key features in voxeliza￾tion. While IN2N [30], Vox-E [83], and Blender (Geometry Nodes) generate outputs that are coarse, blurry, or semantically inconsis￾tent, they frequently lose critical elements such as facial features. In contrast, our method preserves structural details and produces visually appealing voxel art with sharp abstraction. structure. Despite its growing popul… view at source ↗
Figure 3

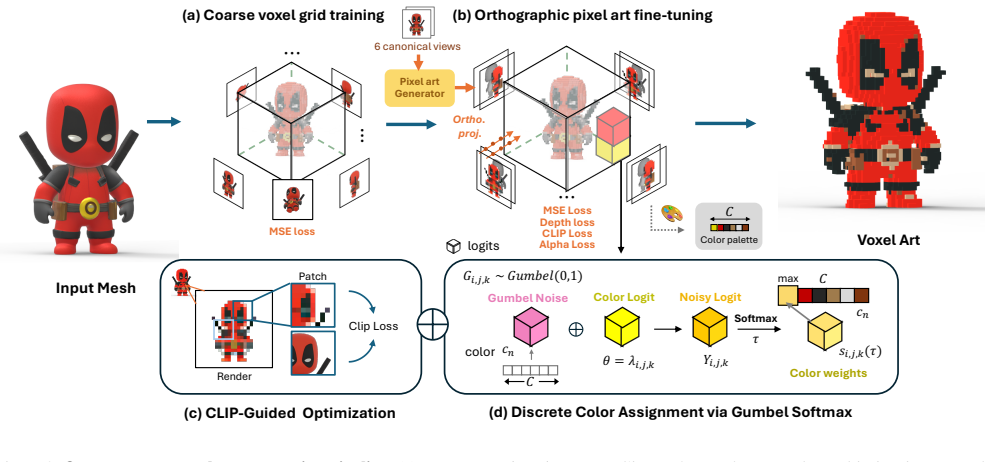

Figure 3. Figure 3: Our two-stage voxel art generation pipeline. (a) Coarse voxel grid training: Given a 3D mesh, we render multi-view images and optimize a voxel-based radiance field (DVGO [87]) using MSE loss to learn coarse RGB and density. (b) Orthographic pixel art fine-tuning: We refine the voxel grid using six orthographic pixel art views, which also serve to extract a discrete color palette (e.g., via k-means). Optimi… view at source ↗
Figure 4

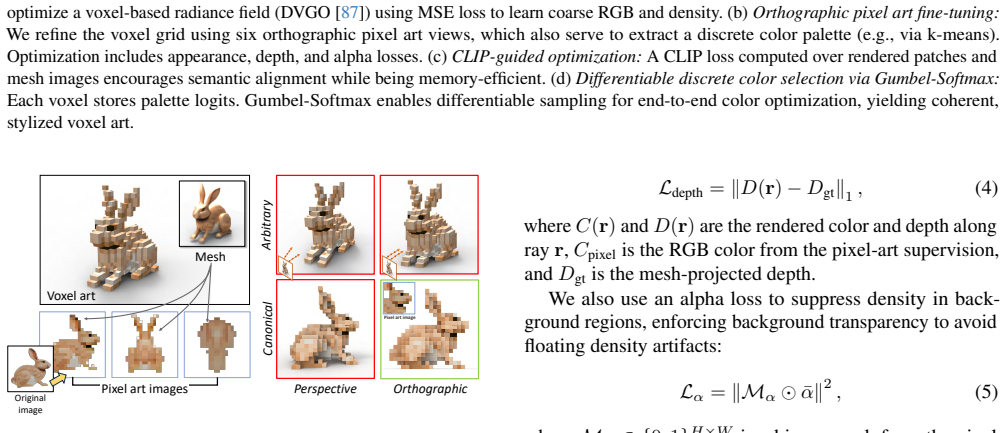

Figure 4. Figure 4: Perspective vs. Orthographic. (Left) Six-view pixel art pipeline. (Right) Perspective views (red) misalign pixels, while six orthographic views (green) enable precise pixel–voxel alignment. comparing them against pixel art supervision generated by the pixel art generator [102]. This six-view setup compactly covers the major surfaces of the object, while orthographic rendering formulates parallel ray castin… view at source ↗
Figure 5

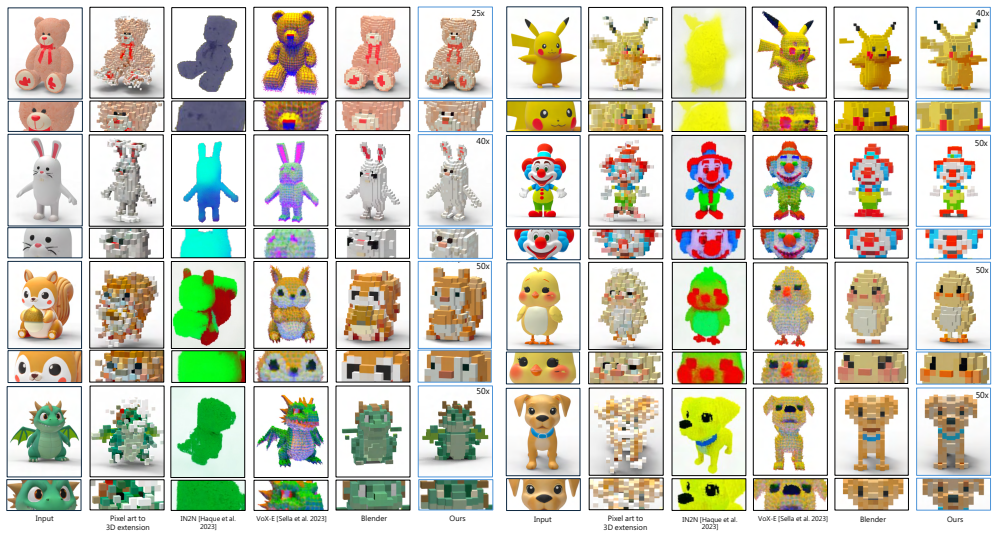

Figure 5. Figure 5: Qualitative comparisons on character models from the Rodin [97] dataset. We compare our voxel art results with Pixel art to 3D extension, IN2N [30], Vox-E [83], and Blender’s voxelization. Our method produces stylized yet consistent voxel representations with pixel art aesthetics. 2. IN2N [30]: Language-guided mesh editing with view￾consistent 3D stylization. 3. Vox-E [83]: Language-to-voxel generation pri… view at source ↗
Figure 6

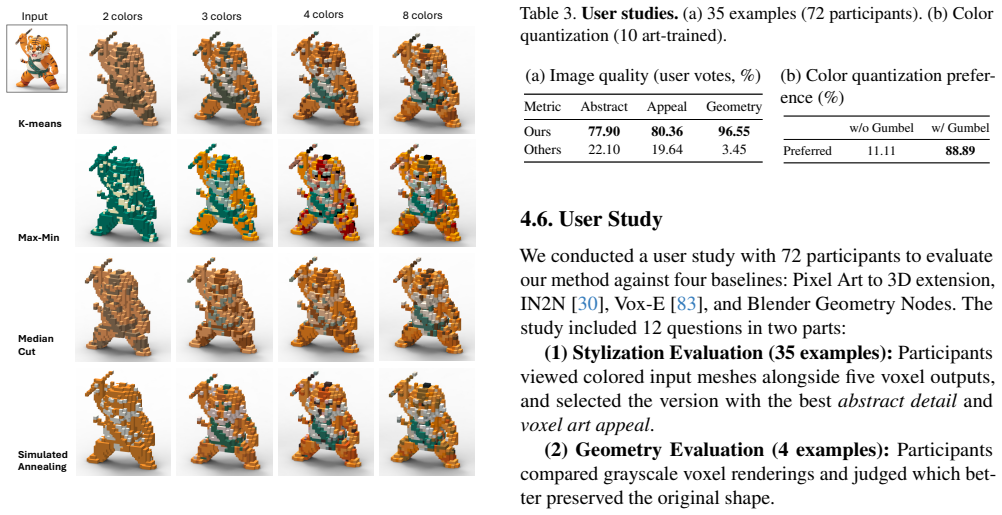

Figure 6. Figure 6: Effect of Palette Selection and Color Count. Each row corresponds to a different palette extraction method: K-means, Max-Min, Median Cut, and Simulated Annealing. Each column shows increasing color counts (2, 3, 4, 8). Each method produces unique color clustering effects [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Ablation study on model components. We show outputs after removing key modules: pixel art supervision, orthographic projection, grid initialization, depth loss, CLIP loss, and Gumbel Softmax. Each row shows a different input; columns compare ablations. The full model yields coherent stylization, while removals cause distortions, color artifacts, or semantic loss [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Fabrication: LEGO render. Rendered using KeyShot 2023. Our method extends to LEGO applications, where achieving rich visual results within the limited color palette is crucial for practical fabrication. Input w/o Gumbel (w/ Gumbel) Ours Input w/o Gumbel (w/ Gumbel) Ours [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Ablation user study of Gumbel. Four representative examples comparing results with and without Gumbel-Softmax. Without Gumbel-Softmax, voxel colors become blurred and fea￾tures less distinct. character assets. Extensive experiments and user studies con￾firm its advantages over existing baselines in both geometric faithfulness and artistic stylization. In addition to digital results, we further illustrate t… view at source ↗
Figure 10

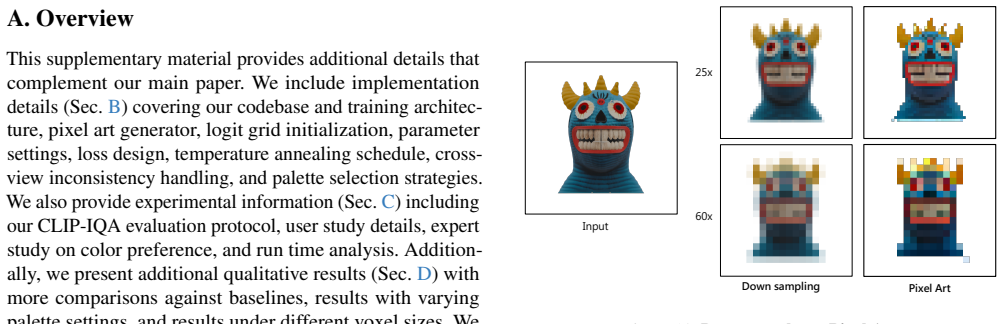

Figure 10. Figure 10: Downsample vs. Pixel Art Stage 1 (Coarse voxelization). The voxel grid is optimized with MSE reconstruction loss, regularized by density and background terms: Ltotal = Lrender + λdLdensity + λbLbg, where Lrender is MSE between rendered and target colors, Ldensity applies density regularization and total variation smoothing, and Lbg uses entropy to suppress background noise. This stage provides a stable in… view at source ↗
Figure 11
Figure 11. Figure 11: Greyscale examples. grayscale voxel renderings [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: User study UI. • Voxel art appeal: “Which version looks most visually appealing as a voxel art character, like something you might see in Minecraft or a stylized game?” For the grayscale examples, participants answered: • Geometry preservation: “Which grayscale voxel render￾ing more closely resembles the original 3D mesh in terms of overall geometry?” Expert study on color preference. We further conducted… view at source ↗
Figure 13
Figure 13. Figure 13: Additional qualitative comparisons with baselines. Eight representative examples compared with Pixel, IN2N, Vox-E, and Blender Geometry Nodes. Max-Min Median Cut Simulated Annealing K-means input 2 colors 3 colors 4 colors 8 colors input 2 colors 3 colors 4 colors 8 colors Max-Min Median Cut Simulated Annealing K-means [PITH_FULL_IMAGE:figures/full_fig_p017_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Results with varying palette settings. Examples using different palette extraction strategies and palette sizes. As shown in [PITH_FULL_IMAGE:figures/full_fig_p017_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Results under different voxel sizes. Input Gemini3 Ours [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Comparison with Gemini 3 [27]. While Gemini 3 can generate voxel art through code, it lacks precise control over resolution, palette, and visual fidelity to input references. Input pixel art Input mesh Rodin [Wang et al. (2022b)] Ours Input pixel art Input mesh Rodin [Wang et al. (2022b)] Ours [PITH_FULL_IMAGE:figures/full_fig_p018_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Comparison with Rodin [97]. Rodin excels at image-to-mesh but is not tailored for voxel art, often yielding non-voxel outputs (right) or flat geometry (left). 18 [PITH_FULL_IMAGE:figures/full_fig_p018_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Representative failure cases. Complex shapes with fine￾grained geometric details are difficult to represent under limited voxel resolution, resulting in loss of intricate structures. 19 [PITH_FULL_IMAGE:figures/full_fig_p019_18.png] view at source ↗
read the original abstract

Voxel art is a distinctive stylization widely used in games and digital media, yet automated generation from 3D meshes remains challenging due to conflicting requirements of geometric abstraction, semantic preservation, and discrete color coherence. Existing methods either over-simplify geometry or fail to achieve the pixel-precise, palette-constrained aesthetics of voxel art. We introduce Voxify3D, a differentiable two-stage framework bridging 3D mesh optimization with 2D pixel art supervision. Our core innovation lies in the synergistic integration of three components: (1) orthographic pixel art supervision that eliminates perspective distortion for precise voxel-pixel alignment; (2) patch-based CLIP alignment that preserves semantics across discretization levels; (3) palette-constrained Gumbel-Softmax quantization enabling differentiable optimization over discrete color spaces with controllable palette strategies. This integration addresses fundamental challenges: semantic preservation under extreme discretization, pixel-art aesthetics through volumetric rendering, and end-to-end discrete optimization. Experiments show superior performance (37.12 CLIP-IQA, 77.90% user preference) across diverse characters and controllable abstraction (2-8 colors, 20x-50x resolutions). Project page: https://yichuanh.github.io/Voxify-3D/

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. Voxify3D is a differentiable two-stage framework for converting 3D meshes into voxel art. It combines orthographic pixel art supervision to eliminate perspective distortion, patch-based CLIP alignment to preserve semantics under discretization, and palette-constrained Gumbel-Softmax quantization to enable end-to-end optimization over discrete color palettes. Experiments report superior results with 37.12 CLIP-IQA and 77.90% user preference across characters at 2-8 colors and 20x-50x resolutions.

Significance. If the central claims hold after proper validation, the work could advance automated voxel stylization for games and digital media by providing a practical pipeline that jointly handles geometric abstraction, semantic fidelity, and palette constraints. The explicit use of orthographic supervision and differentiable quantization offers a concrete route to controllable discrete 3D outputs.

major comments (2)
  1. [Abstract] Abstract: the reported superiority (37.12 CLIP-IQA, 77.90% user preference) is presented without any description of baselines, ablation studies, or the precise experimental protocol (view selection, number of test meshes, evaluation views). This information is load-bearing for the claim that the three-component integration outperforms prior art.
  2. [Abstract] Method description (abstract): the claim that orthographic + patch-CLIP supervision plus Gumbel-Softmax produces 3D-consistent semantics after discretization lacks an explicit cross-view consistency term. Nothing in the pipeline is shown to penalize a voxel assignment that is coherent only on the training orthographic axes but collapses or recolors under rotation, which directly undermines the semantic-preservation guarantee.
minor comments (1)
  1. [Abstract] Abstract: no statement on code, data, or model availability is provided despite the project page link.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and detailed comments. We have revised the manuscript to address the concerns about experimental context in the abstract and to clarify the mechanisms supporting 3D semantic consistency. Point-by-point responses follow.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the reported superiority (37.12 CLIP-IQA, 77.90% user preference) is presented without any description of baselines, ablation studies, or the precise experimental protocol (view selection, number of test meshes, evaluation views). This information is load-bearing for the claim that the three-component integration outperforms prior art.

    Authors: We agree that the abstract would benefit from additional context to substantiate the reported metrics. In the revised version we have expanded the abstract to note that results are compared against prior voxel stylization and mesh-to-voxel methods, that the test set comprises 20 diverse character meshes, that evaluation uses six orthographic views per mesh, and that ablations isolating each of the three components appear in Section 4.2. The full protocol (view selection, palette sizes, and user-study details) is already described in Section 4.1; we now reference it explicitly from the abstract. revision: yes

  2. Referee: [Abstract] Method description (abstract): the claim that orthographic + patch-CLIP supervision plus Gumbel-Softmax produces 3D-consistent semantics after discretization lacks an explicit cross-view consistency term. Nothing in the pipeline is shown to penalize a voxel assignment that is coherent only on the training orthographic axes but collapses or recolors under rotation, which directly undermines the semantic-preservation guarantee.

    Authors: The shared 3D voxel grid is optimized jointly from multiple orthographic axes; because voxel colors and occupancies are viewpoint-independent, any assignment that is coherent on the supervised axes remains coherent under arbitrary rotation by construction. Volumetric rendering further enforces this property. We have added a short paragraph in the method section and a clarifying sentence in the abstract that makes this implicit consistency explicit. We also include new supplementary visualizations rendered from random viewpoints to demonstrate preservation of semantics and palette under rotation. An additional explicit consistency loss is not required for the current claims but could be explored in future work. revision: partial

Circularity Check

0 steps flagged

No circularity: independent optimization pipeline with no self-referential derivations

full rationale

The paper presents Voxify3D as a two-stage differentiable framework that combines orthographic pixel art supervision, patch-based CLIP alignment, and palette-constrained Gumbel-Softmax quantization. No equations, loss formulations, or uniqueness theorems are shown that reduce claimed outputs to inputs by construction. Reported metrics (CLIP-IQA, user preference) are experimental results rather than predictions forced by fitted parameters or self-citations. The method description remains self-contained against external benchmarks with no load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that the three listed components can be combined differentiably without loss of the target aesthetic; no new physical entities or ad-hoc constants are introduced beyond standard optimization hyperparameters.

free parameters (2)
  • palette size
    Controllable parameter (2-8 colors) chosen per run to match desired abstraction level.
  • voxel resolution
    Controllable parameter (20x-50x) set by user to control discretization granularity.
axioms (2)
  • standard math Gumbel-Softmax provides a differentiable approximation to discrete sampling
    Invoked to enable gradient flow through color quantization.
  • domain assumption CLIP features on patches capture semantic content at multiple discretization levels
    Used to justify semantic preservation under voxelization.
