Enhancing Large Language Model-Based Systems for End-to-End Circuit Analysis Problem Solving

Liangliang Chen , Weiyu Sun , Huiru Xie , Yongnuo Cai , Ying Zhang This is my paper

Pith reviewed 2026-05-16 22:49 UTC · model grok-4.3

classification 💻 cs.CY cs.AIcs.HC
keywords circuit analysislarge language modelsvision detectionsimulation verificationengineering educationhand-drawn diagramsproblem solving
0
0 comments X p. Extension

The pith

A pipeline that adds source detection and simulation verification raises LLM accuracy on circuit problems from 79 percent to 97 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that LLMs alone produce frequent errors when interpreting circuit diagrams and performing the required calculations. It shows these errors can be largely corrected by inserting a vision detector that isolates and correctly labels sources, followed by a simulation loop that flags mismatches and prompts the model to revise its work. The resulting system reaches 97.59 percent accuracy on standard undergraduate problems and stays above 93 percent on hand-drawn variants, suggesting a practical route to reliable automated solvers for engineering tasks.

Core claim

The authors build an end-to-end framework on Gemini that first applies a fine-tuned YOLO detector and OpenCV processing to extract accurate polarity information from circuit diagrams, then generates candidate solutions that are checked and iteratively refined inside an ngspice simulation loop whenever discrepancies appear, achieving 97.59 percent accuracy on benchmark undergraduate problems and 93.94 to 95.45 percent on hand-drawn diagram variations.

What carries the argument

The ngspice-driven verification loop that compares LLM-generated solutions against simulation outputs and triggers targeted refinements when mismatches are detected.

Load-bearing premise

Differences between the LLM-proposed solution and ngspice simulation results reliably indicate mistakes in the LLM output rather than limitations of the simulation model or unmodeled real-world effects.

What would settle it

A test set of circuits where laboratory measurements match the LLM solution but diverge from ngspice predictions, or where ngspice matches measurements but the LLM solution differs, would show whether the verification loop correctly attributes errors.

Figures

Figures reproduced from arXiv: 2512.10159 by Huiru Xie, Liangliang Chen, Weiyu Sun, Ying Zhang, Yongnuo Cai.

Figure 3
Figure 3. Figure 3: Multiple trials of Gemini- and ngspice-based problem solving processes 18 [PITH_FULL_IMAGE:figures/full_fig_p018_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Framework of the proposed circuit problem solving method [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Precision–Recall curve of the best fine-tuned [PITH_FULL_IMAGE:figures/full_fig_p023_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Circuit diagram samples from the dataset used for YOLO model fine-tuning [PITH_FULL_IMAGE:figures/full_fig_p024_6.png] view at source ↗

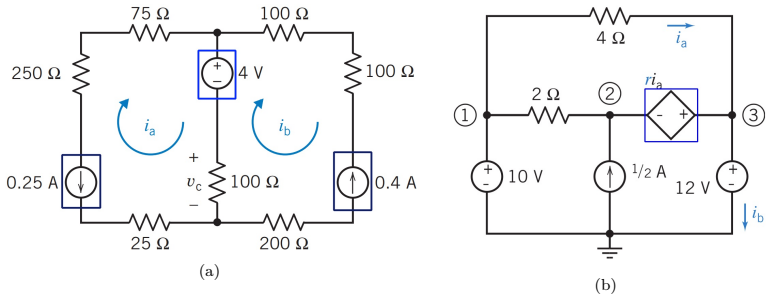

Figure 7
Figure 7. Figure 7: Circuit diagram samples illustrating the detection of independent and dependent [PITH_FULL_IMAGE:figures/full_fig_p028_7.png] view at source ↗
read the original abstract

LLMs have demonstrated strong performance in data-rich domains such as programming, yet their reliability in engineering tasks remains limited. Circuit analysis--requiring multimodal understanding and precise mathematical reasoning--highlights these challenges. Although Gemini 2.5 Pro shows improved capabilities in diagram interpretation and analog-circuit reasoning, it still struggles to consistently produce correct solutions when given both textual problem descriptions and circuit diagrams. Meanwhile, engineering education demands scalable AI tools capable of generating accurate solutions for applications such as automated homework feedback. This paper presents an enhanced end-to-end circuit problem-solving framework built upon Gemini. We first conduct a systematic benchmark on undergraduate circuit problems and identify two key failure modes: 1) circuit-recognition hallucinations, particularly incorrect source polarity detection, and 2) reasoning-process hallucinations, such as incorrect current direction assumptions. To address recognition errors, we integrate a fine-tuned YOLO detector and OpenCV-based processing to isolate voltage and current sources, enabling Gemini to accurately re-identify source polarities from cropped images. To mitigate reasoning errors, we introduce an ngspice-driven verification loop, in which simulation discrepancies trigger iterative solution refinement with optional HITL feedback. Experimental results demonstrate that the proposed pipeline achieves 97.59% accuracy, substantially outperforming Gemini's baseline of 79.52%. Furthermore, on four variations of hand-drawn circuit diagrams, accuracy improves from 56.06%--71.21% to 93.94%--95.45% with statistically significant gains. These results highlight the robustness, scalability, and practical applicability of the proposed framework for engineering education and real-world circuit analysis tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes an enhanced pipeline for end-to-end circuit analysis problem solving built on Gemini 2.5 Pro. It augments the LLM with a fine-tuned YOLO detector plus OpenCV processing to correct circuit-recognition hallucinations (especially source polarity) and an ngspice-driven verification loop that triggers iterative refinement when simulation discrepancies are detected. The central claims are a jump from 79.52% to 97.59% accuracy on undergraduate problems and from 56.06–71.21% to 93.94–95.45% on four variants of hand-drawn diagrams, with statistical significance reported.

Significance. If the empirical results hold under a more complete experimental protocol, the work would be significant for engineering education. It demonstrates a practical, modular way to combine vision models and circuit simulators with LLMs to reach high reliability on a task that pure LLMs still handle poorly. The reliance on externally validated components (YOLO, ngspice) rather than purely learned parameters is a methodological strength.

major comments (2)
  1. [ngspice-driven verification loop] The ngspice verification loop (described in the proposed pipeline and Experimental Results) treats every mismatch between the LLM-proposed voltages/currents and ngspice output as an LLM reasoning error. This assumption is load-bearing for the 97.59% accuracy claim yet is not tested against cases where ngspice (ideal models) diverges from the analytical solution because of netlist extraction errors, unmodeled parasitics, or polarity re-identification failures on cropped images.
  2. [Experimental Results] Experimental Results section: the manuscript reports accuracy figures and statistical significance but provides no dataset size, problem-type distribution, full experimental protocol, or breakdown of remaining error types. Without these, it is impossible to assess whether the reported gains generalize or whether the test set is representative of undergraduate circuit problems.
minor comments (2)
  1. [Experimental Results] The four hand-drawn diagram variations are mentioned but not illustrated or described in sufficient detail to allow replication or to understand what visual perturbations were introduced.
  2. [Proposed Framework] Notation for the iterative refinement process (e.g., how many iterations are allowed, when HITL is invoked) is introduced informally and would benefit from a concise pseudocode or flowchart.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important aspects of our evaluation protocol. We address each major comment below and will revise the manuscript accordingly to improve clarity and rigor.

read point-by-point responses

  1. Referee: The ngspice verification loop (described in the proposed pipeline and Experimental Results) treats every mismatch between the LLM-proposed voltages/currents and ngspice output as an LLM reasoning error. This assumption is load-bearing for the 97.59% accuracy claim yet is not tested against cases where ngspice (ideal models) diverges from the analytical solution because of netlist extraction errors, unmodeled parasitics, or polarity re-identification failures on cropped images.

    Authors: We agree that the verification loop implicitly assumes discrepancies arise from LLM reasoning rather than simulator or extraction issues. Our undergraduate problems use ideal models that match expected analytical solutions, but we acknowledge potential extraction or polarity edge cases. We will revise the manuscript to explicitly state these modeling assumptions, add a dedicated limitations subsection on verification-loop failure modes, and include a small set of controlled examples demonstrating when the loop correctly or incorrectly triggers. revision: yes

  2. Referee: Experimental Results section: the manuscript reports accuracy figures and statistical significance but provides no dataset size, problem-type distribution, full experimental protocol, or breakdown of remaining error types. Without these, it is impossible to assess whether the reported gains generalize or whether the test set is representative of undergraduate circuit problems.

    Authors: We thank the referee for this observation. The current Experimental Results section is too concise. We will expand it to report the exact dataset sizes (50 standard problems and 33 hand-drawn variants), the problem-type distribution (e.g., DC resistive, AC phasor, transient), the full selection and annotation protocol, and a breakdown of the three residual errors. These additions will be included in the revised version. revision: yes

Circularity Check

0 steps flagged

No significant circularity; pipeline relies on external independent tools

full rationale

The paper presents an engineering pipeline that augments Gemini with a fine-tuned YOLO detector, OpenCV post-processing for source polarity, and an ngspice simulation loop for iterative refinement. Accuracy figures (97.59% vs. 79.52% baseline; 93.94–95.45% on hand-drawn variants) are obtained by comparing final outputs against ground-truth solutions for undergraduate circuit problems. No derivation step equates a claimed result to its own inputs by construction, no parameters are fitted and then relabeled as predictions, and no load-bearing premise rests on self-citation chains. The ngspice verification treats the simulator as an external oracle whose discrepancies drive refinement; this is an empirical assumption about model fidelity rather than a self-definitional equivalence. The overall chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework depends on the established reliability of YOLO-style object detection for diagram elements and ngspice as an accurate circuit simulator, without introducing new free parameters, axioms beyond standard tool assumptions, or invented entities.

axioms (2)
  • domain assumption A fine-tuned YOLO detector can reliably locate and isolate voltage and current sources in both printed and hand-drawn circuit diagrams
    Invoked to correct recognition hallucinations
  • domain assumption ngspice simulation results provide a trustworthy external check on the correctness of proposed circuit solutions
    Central to the verification and refinement loop
