· Lean TheoremHeavy neutral bosons and dark matter in the 3-3-1 model with axionlike particle
Pith reviewed 2026-05-16 20:22 UTC · model grok-4.3
The pith
In the 3-3-1 model with axionlike particles, LHC searches set m_h2 at least 600 GeV and m_Z' at least 5.1 TeV while tying dark matter mass to the axion breaking scale.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that within the 331ALP model, current LHC limits on high-mass dilepton resonances and lepton flavor violating decays force the second neutral Higgs boson to satisfy m_h2 ≥ 600 GeV and the new Z' gauge boson to satisfy m_Z' ≥ 5.1 TeV. By retaining Z2 as a residual symmetry after the spontaneous symmetry breaking stages, the odd-parity particles become stable and serve as dark matter; their relic abundance calculation then establishes an explicit relation between the dark matter mass and the axion breaking scale.
What carries the argument
The residual Z2 symmetry that survives spontaneous symmetry breaking and assigns odd parity to the dark matter candidates, thereby protecting them from decay while allowing their relic density to fix the axion scale.
If this is right
- Upcoming LHC runs at higher luminosity can directly test the predicted mass windows through dilepton and Higgs decay signatures.
- The dark matter mass to axion scale relation restricts the parameter space accessible to direct detection experiments.
- Lepton flavor violating branching ratios remain bounded by current limits, which already carves out the allowed region for both new bosons.
- The model supplies a single framework in which axionlike particles simultaneously address the strong CP problem and dark matter stability.
Where Pith is reading between the lines
- Axion searches at beam-dump facilities could indirectly constrain the dark matter mass through the shared breaking scale.
- Detection of the Z' near its lower bound would fix the 3-3-1 breaking scale and thereby predict the full spectrum of heavy Higgs states.
- The same Z2 parity could be extended to additional sectors such as neutrinos to stabilize further dark matter candidates.
- Precision Higgs coupling measurements may reveal small mixing effects with the heavy h2 even when its mass lies above 600 GeV.
Load-bearing premise
Z2 is assumed a residual symmetry after spontaneous symmetry breaking stages that stabilizes odd-Z2 particles as dark matter candidates.
What would settle it
Discovery of a dilepton resonance below 5.1 TeV or a neutral Higgs below 600 GeV in the gluon-fusion channels examined would exclude the viable parameter space.
Figures

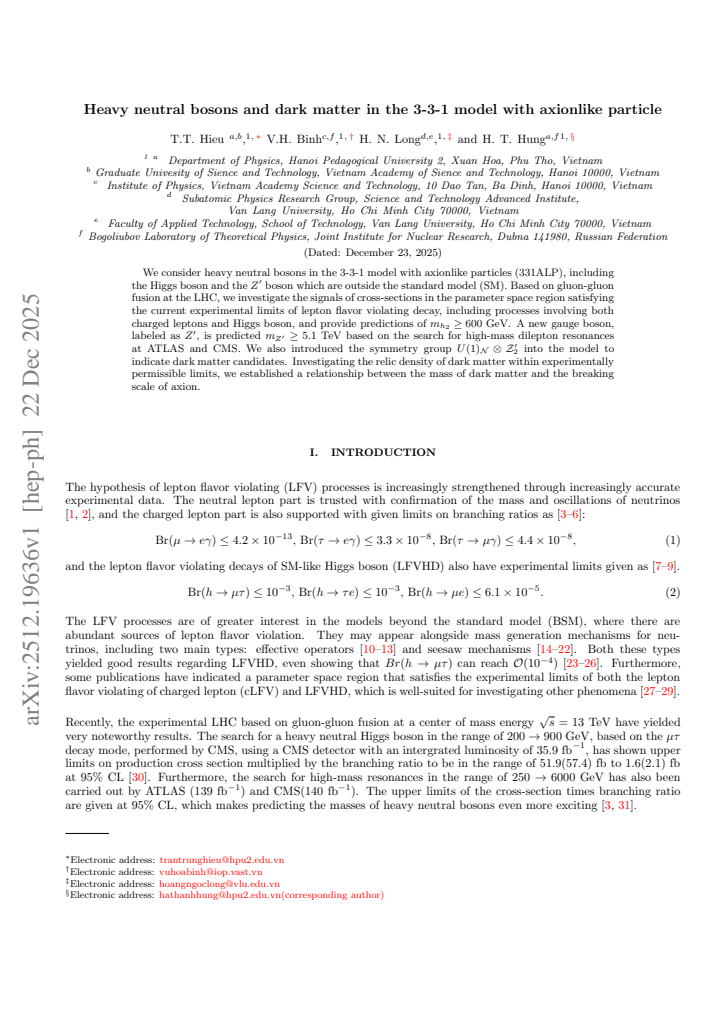

read the original abstract
We consider heavy neutral bosons in the 3-3-1 model with axionlike particles (331ALP), including the Higgs boson and the $Z^\prime$ boson which are outside the standard model (SM). Based on gluon-gluon fusion at the LHC, we investigate the signals of cross-sections in the parameter space region satisfying the current experimental limits of lepton flavor violating decay, including processes involving both charged leptons and Higgs boson, and provide predictions of $m_{h_2}\geq 600 ~\mathrm{GeV}$. A new gauge boson, labeled as $Z^{\prime}$, is predicted $m_{Z^{\prime}}\geq 5.1 ~\mathrm{TeV}$ based on the search for high-mass dilepton resonances at ATLAS and CMS. We consider the stability of odd-$Z_2$ particles, with $Z_2$ is assumed a residual symmetry after spontaneous symmetry breaking stages, to point out dark matter candidates in the model. Investigating the relic density of dark matter within experimentally permissible limits, we established a relationship between the mass of dark matter and the breaking scale of axion.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript examines heavy neutral bosons in the 3-3-1 model extended by an axion-like particle (331ALP). Using gluon-gluon fusion signals and high-mass dilepton resonance searches at the LHC, it derives lower bounds m_h2 ≥ 600 GeV and m_Z' ≥ 5.1 TeV while respecting lepton-flavor-violation limits. It assumes a residual Z2 symmetry after spontaneous symmetry breaking to stabilize dark-matter candidates and reports a relation between dark-matter mass and the axion breaking scale obtained from relic-density constraints within experimental bounds.
Significance. If the central claims hold, the work supplies concrete, LHC-testable mass lower bounds for an extra Higgs and a new gauge boson in the 331ALP framework and links the dark-matter sector to the axion scale via relic density. The direct application of published ATLAS/CMS limits to constrain the model parameters is a clear strength; however, the dark-matter analysis must be placed on firmer footing for the relation to constitute an independent prediction rather than a fitted outcome.
major comments (2)
- [Dark-matter section] Dark-matter section (discussion of Z2 residual symmetry): The statement that Z2 remains unbroken after all spontaneous-symmetry-breaking stages is asserted without an explicit check that every vacuum expectation value in the 3-3-1 scalar sector plus the ALP is Z2-even. Because an odd VEV would break the symmetry and allow decays of the putative DM candidates, this verification is load-bearing for the subsequent relic-density analysis and the claimed mass-breaking-scale relation.
- [Abstract and relic-density subsection] Abstract and relic-density subsection: The relationship between dark-matter mass and axion breaking scale is presented as established within permissible relic-density limits, yet no derivation, explicit parameter scan, or error analysis is supplied. Without these steps it is impossible to determine whether the relation follows from the model dynamics or is the result of parameter tuning, weakening the claim that an independent prediction has been obtained.
minor comments (2)
- [Abstract] The acronym 331ALP is introduced in the abstract without an immediate parenthetical definition.
- [§3] Cross-section formulae for gluon-gluon fusion (presumably in §3) would benefit from an explicit listing of the dependence on the 331 and ALP parameters.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive comments on our manuscript. The points raised concerning the dark-matter sector are well taken and highlight areas where additional clarity will strengthen the presentation. We address each major comment below and will incorporate the necessary revisions in the updated version of the manuscript.
read point-by-point responses
-
Referee: [Dark-matter section] Dark-matter section (discussion of Z2 residual symmetry): The statement that Z2 remains unbroken after all spontaneous-symmetry-breaking stages is asserted without an explicit check that every vacuum expectation value in the 3-3-1 scalar sector plus the ALP is Z2-even. Because an odd VEV would break the symmetry and allow decays of the putative DM candidates, this verification is load-bearing for the subsequent relic-density analysis and the claimed mass-breaking-scale relation.
Authors: We agree that an explicit verification is required to confirm the residual Z2 symmetry. In the original manuscript the Z2 parity assignments were chosen such that the scalar potential and all vacuum expectation values preserve the symmetry, but we did not tabulate the Z2 charges of each field and VEV. In the revised version we will add a dedicated paragraph (or short subsection) that lists the Z2 charges of the 3-3-1 scalar fields and the ALP, demonstrates that every VEV is Z2-even, and thereby confirms that the symmetry remains unbroken after all spontaneous-symmetry-breaking stages. This explicit check will directly support the stability of the odd-Z2 dark-matter candidates and the subsequent relic-density analysis. revision: yes
-
Referee: [Abstract and relic-density subsection] Abstract and relic-density subsection: The relationship between dark-matter mass and axion breaking scale is presented as established within permissible relic-density limits, yet no derivation, explicit parameter scan, or error analysis is supplied. Without these steps it is impossible to determine whether the relation follows from the model dynamics or is the result of parameter tuning, weakening the claim that an independent prediction has been obtained.
Authors: We acknowledge that the manuscript states the mass–scale relation without showing the underlying calculation. The relation is obtained by solving the Boltzmann equation for the relic density of the Z2-odd dark-matter candidate, with the annihilation cross section depending on the axion breaking scale through the ALP–DM portal. In the revised manuscript we will (i) derive the relevant Boltzmann equation and the approximate analytic expression for the relic density, (ii) describe the parameter scan performed over the axion scale and DM mass (with ranges and sampling method), and (iii) present the resulting allowed region together with the 1σ and 2σ experimental relic-density bands. This will make clear that the reported relation is a direct consequence of the model dynamics and the experimental constraints rather than an arbitrary fit. revision: yes
Circularity Check
DM-axion mass relation obtained by fitting relic density to experimental limits rather than independent derivation
specific steps
-
fitted input called prediction
[Abstract]
"Investigating the relic density of dark matter within experimentally permissible limits, we established a relationship between the mass of dark matter and the breaking scale of axion."
The relationship is obtained by scanning parameters until the computed relic density falls inside the experimental window; the resulting correlation is therefore a direct output of the fitting procedure rather than an independent theoretical result.
full rationale
The m_h2 and m_Z' lower bounds are obtained by imposing external ATLAS/CMS limits on the model's cross-sections and resonances; these are not circular. The sole load-bearing step that reduces to input data is the claimed 'relationship' between dark-matter mass and axion breaking scale, which the abstract states is found by requiring the relic density to lie inside permissible limits. This is a parameter-space constraint, not a first-principles prediction independent of the data. The Z2 residual-symmetry assumption is stated without an explicit vev check in the provided text, but does not itself create a definitional loop. No self-citation chains or ansatz smuggling appear in the quoted material. The derivation chain therefore contains one fitted-input step but remains otherwise self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (2)
- axion breaking scale
- 331 breaking scale
axioms (2)
- domain assumption Z2 is a residual symmetry after spontaneous symmetry breaking stages
- domain assumption Parameter space satisfies current experimental limits on lepton flavor violating decays
invented entities (2)
-
Z'
no independent evidence
-
h2 (extra Higgs)
no independent evidence
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AbsoluteFloorClosure.leanabsolute_floor_iff_bare_distinguishability unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Z2 is assumed a residual symmetry after spontaneous symmetry breaking stages that stabilizes odd-Z2 particles as dark matter candidates
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Investigating the relic density of dark matter within experimentally permissible limits, we established a relationship between the mass of dark matter and the breaking scale of axion
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
