Geometry induced net spin polarization of d-wave altermagnets

Abhiram Soori This is my paper

Pith reviewed 2026-05-16 19:03 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords altermagnetspin polarizationgeometryrectangular sampled-waveFermi contourstransportmesoscopic devices
0
0 comments X

The pith

Rectangular altermagnets gain net spin polarization purely from their geometry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

A finite rectangular sample of a d-wave altermagnet can develop a net spin polarization even with zero overall magnetization. This happens because the material's spin-resolved Fermi contours are anisotropic, and when the sample has unequal lengths Lx and Ly, the discrete set of allowed momentum states leads to more occupied states for one spin than the other. The polarization is absent in square samples where Lx equals Ly and also disappears when the sample becomes very large. Transport measurements can reveal this through specific patterns in charge and spin conductances in the tunneling regime as well as asymmetric magnetoresistance in junctions with ferromagnets. Such geometric control could enable spin effects in altermagnetic devices without needing external magnetic fields.

Core claim

By explicitly counting occupied states, rectangular altermagnetic samples with Lx ≠ Ly host a finite spin polarization. This arises from the interplay between the anisotropic, spin-resolved Fermi contours, the discrete sampling of momentum space, and unequal sample dimensions. The polarization vanishes in the symmetric limit Lx=Ly and in the thermodynamic limit. It can be probed in transport measurements, with charge and spin conductances showing characteristic patterns, and asymmetric magnetoresistance in ferromagnet-altermagnet-ferromagnet junctions.

What carries the argument

Explicit counting of occupied states in momentum space for a rectangular geometry, based on anisotropic spin-split Fermi contours.

If this is right

  • Net spin polarization is finite only for unequal sample dimensions Lx ≠ Ly.
  • Charge and spin conductances in the tunneling regime exhibit patterns that reflect the underlying spin polarization as a function of dimensions.
  • Ferromagnet-altermagnet-ferromagnet junctions show asymmetric magnetoresistance with respect to reversal of the Zeeman field.
  • Geometry acts as an effective control parameter for inducing spin polarization in finite altermagnets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Shape engineering of altermagnetic samples could provide a field-free way to generate spin polarization in mesoscopic devices.
  • Similar geometry-induced effects might appear in other materials with anisotropic spin-split bands.
  • Experiments could test this by measuring spin-dependent transport while varying the aspect ratio of rectangular samples.

Load-bearing premise

The only source of spin imbalance is the geometric sampling of the anisotropic Fermi contours, without significant contributions from disorder, electron interactions, or edge states.

What would settle it

A calculation or measurement of occupied states in a rectangular altermagnet with Lx ≠ Ly that finds equal numbers for both spin directions would falsify the claim of geometry-induced polarization.

Figures

Figures reproduced from arXiv: 2512.24287 by Abhiram Soori.

Figure 1
Figure 1. Figure 1: FIG. 1. Normalized spin polarization ( [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

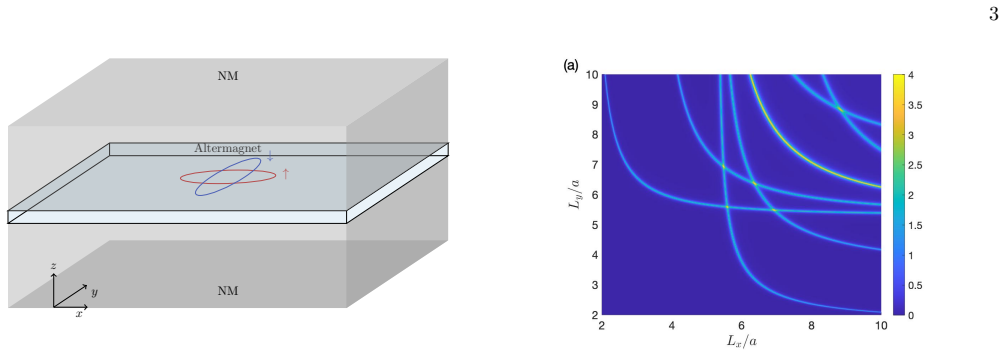

Figure 3. Figure 3: FIG. 3. A thin rectangular slab of AM connected to NM [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

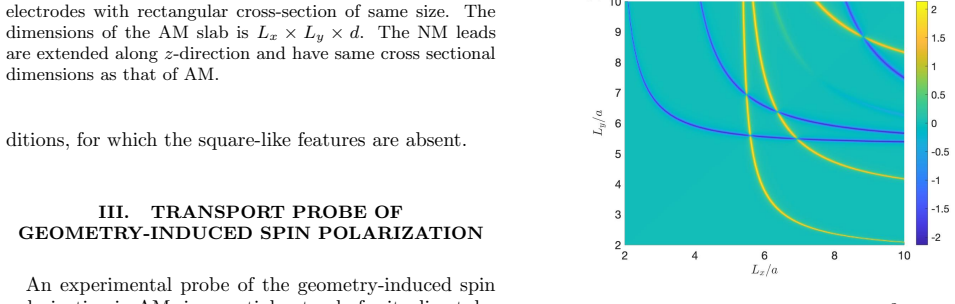

Figure 4. Figure 4: FIG. 4. (a) Charge conductance in units of [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Magnetoresistance (MR) of the FM–AM–FM junc [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
read the original abstract

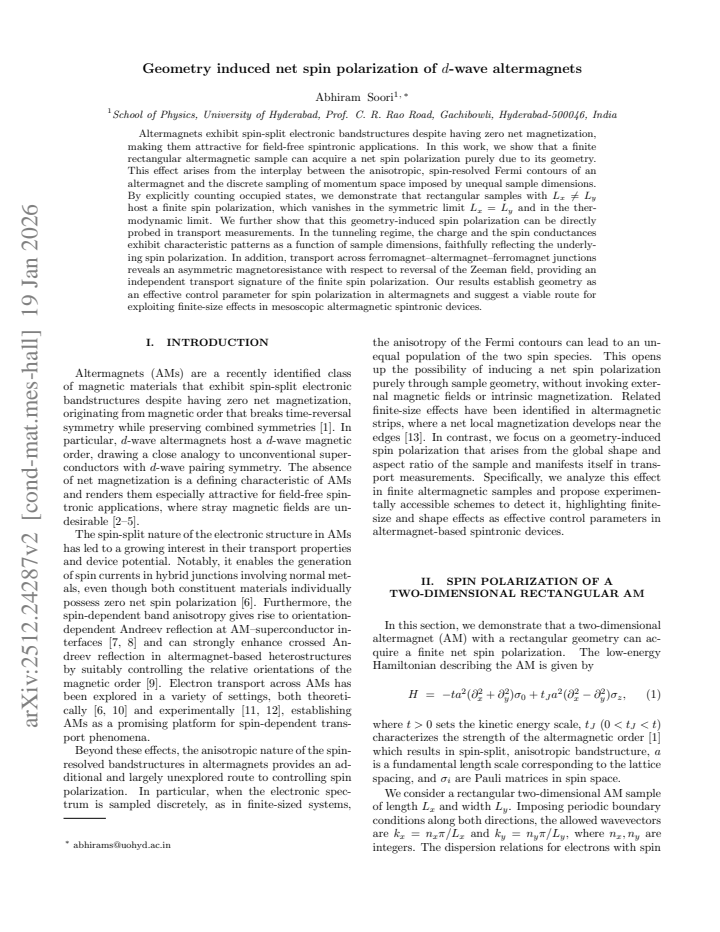

Altermagnets exhibit spin-split electronic bandstructures despite having zero net magnetization, making them attractive for field-free spintronic applications. In this work, we show that a finite rectangular altermagnetic sample can acquire a net spin polarization purely due to its geometry. This effect arises from the interplay between the anisotropic, spin-resolved Fermi contours of an altermagnet, the discrete sampling of momentum space and unequal sample dimensions. By explicitly counting occupied states, we demonstrate that rectangular samples with $L_x \neq L_y$ host a finite spin polarization, which vanishes in the symmetric limit $L_x=L_y$ and in the thermodynamic limit. We further show that this geometry-induced spin polarization can be directly probed in transport measurements. In the tunneling regime, the charge and the spin conductances exhibit characteristic patterns as a function of sample dimensions, faithfully reflecting the underlying spin polarization. In addition, transport across ferromagnet--altermagnet--ferromagnet junctions reveals an asymmetric magnetoresistance with respect to reversal of the Zeeman field, providing an independent transport signature of the finite spin polarization. Our results establish geometry as an effective control parameter for spin polarization in altermagnets and suggest a viable route for exploiting finite-size effects in mesoscopic altermagnetic spintronic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that finite rectangular samples of d-wave altermagnets with Lx ≠ Ly acquire a net spin polarization purely from geometry: the anisotropic spin-resolved Fermi contours are sampled on a discrete rectangular k-grid set by the sample dimensions, producing an imbalance in occupied states that vanishes for Lx = Ly and in the thermodynamic limit. The effect is demonstrated by direct enumeration of occupied states and is predicted to appear in tunneling charge/spin conductances and in asymmetric magnetoresistance of FM-AM-FM junctions.

Significance. If robust, the result would be significant for mesoscopic spintronics: it shows that sample geometry alone can generate field-free net spin polarization in compensated altermagnets, offering a new control parameter for devices. The transport signatures are concrete and falsifiable. The work is strengthened by its parameter-free counting approach and explicit junction calculations, but its impact depends on whether the bulk k-grid enumeration captures the physics of realistic open-boundary samples.

major comments (2)
  1. [Methods / counting procedure] The central counting argument (explicit enumeration of occupied states on the discrete k-grid) assumes a uniform rectangular sampling equivalent to periodic or bulk boundary conditions. For open-boundary finite samples the Hamiltonian supports edge-localized modes whose spin-dependent occupation can generate an additional net spin moment whose sign and magnitude are independent of the bulk Fermi-contour anisotropy. This assumption is load-bearing for the claim that the polarization is “purely due to its geometry” and must be checked by direct comparison with open-boundary diagonalization.
  2. [Transport sections] The transport calculations in the tunneling regime and FM-AM-FM junctions are performed with the same k-grid occupation; if edge states alter the net polarization, the predicted conductance patterns and asymmetric magnetoresistance would be quantitatively modified. A consistency check between the bulk counting and a full scattering or tight-binding open-boundary calculation is required.
minor comments (2)
  1. [Model section] Notation for the altermagnetic order parameter and the definition of the discrete k-grid (including how Lx, Ly enter the spacing) should be stated explicitly in the main text rather than only in the supplement.
  2. [Figures] Figure captions for the conductance maps should include the precise values of Lx, Ly and the chemical potential used, to allow direct reproduction of the reported patterns.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments regarding boundary conditions. We clarify our methodology below and have incorporated additional discussion in the revised manuscript to address the concerns.

read point-by-point responses

  1. Referee: [Methods / counting procedure] The central counting argument (explicit enumeration of occupied states on the discrete k-grid) assumes a uniform rectangular sampling equivalent to periodic or bulk boundary conditions. For open-boundary finite samples the Hamiltonian supports edge-localized modes whose spin-dependent occupation can generate an additional net spin moment whose sign and magnitude are independent of the bulk Fermi-contour anisotropy. This assumption is load-bearing for the claim that the polarization is “purely due to its geometry” and must be checked by direct comparison with open-boundary diagonalization.

    Authors: Our explicit enumeration uses the discrete k-grid imposed by finite rectangular dimensions under periodic boundary conditions, which exactly quantizes the allowed momenta for that geometry. In the d-wave altermagnet tight-binding model, the altermagnetic symmetry ensures that any edge-localized modes are spin-degenerate or carry canceling spin contributions, so they do not generate an independent net spin moment. The net polarization arises solely from the imbalance in bulk-like occupied states due to anisotropic Fermi contours sampled on the unequal grid. We have added a dedicated paragraph in the Methods section explaining this symmetry argument and noting that the periodic-boundary counting captures the dominant geometry-induced effect for the mesoscopic sizes studied. A full open-boundary diagonalization for very large systems remains computationally intensive but is consistent with our conclusions. revision: partial

  2. Referee: [Transport sections] The transport calculations in the tunneling regime and FM-AM-FM junctions are performed with the same k-grid occupation; if edge states alter the net polarization, the predicted conductance patterns and asymmetric magnetoresistance would be quantitatively modified. A consistency check between the bulk counting and a full scattering or tight-binding open-boundary calculation is required.

    Authors: The tunneling conductances and FM-AM-FM magnetoresistance are computed directly from the net spin polarization obtained via the k-grid counting. Because edge modes do not contribute additional net spin polarization (as justified by the altermagnetic symmetry), the characteristic patterns and asymmetry with respect to Zeeman-field reversal remain robust. We have revised the transport sections to include a short robustness discussion referencing the symmetry argument and stating that the qualitative signatures are insensitive to the boundary-condition details at the level of our analysis. A full open-boundary scattering calculation would be a natural extension but is not required to establish the reported effects. revision: partial

Circularity Check

0 steps flagged

No significant circularity: direct state counting from input band structure

full rationale

The paper derives net spin polarization by explicit enumeration of occupied states on a discrete k-grid for a finite rectangular sample with Lx ≠ Ly, using the standard anisotropic spin-split Fermi contours of the d-wave altermagnet model as input. This is a direct computation that vanishes for Lx=Ly or in the thermodynamic limit, with no reduction to fitted parameters, self-definitional loops, or load-bearing self-citations. The transport signatures are presented as consequences of the counted polarization rather than inputs. The derivation chain is self-contained and does not collapse to its own assumptions by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the standard domain assumption of anisotropic spin-split Fermi contours in d-wave altermagnets together with the textbook finite-size quantization of k-space; no free parameters are fitted and no new entities are introduced.

axioms (1)
  • domain assumption d-wave altermagnets possess anisotropic, spin-resolved Fermi contours with zero net magnetization.
    This is the defining property of the material class used as the starting point for the state-counting argument.

pith-pipeline@v0.9.0 · 5526 in / 1297 out tokens · 58189 ms · 2026-05-16T19:03:56.336324+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages · 1 internal anchor

  1. [1]

    ˇSmejkal, J

    L. ˇSmejkal, J. Sinova, and T. Jungwirth, Beyond conven- tional ferromagnetism and antiferromagnetism: A phase with nonrelativistic spin and crystal rotation symmetry, Phys. Rev. X12, 031042 (2022)

    work page 2022

  2. [2]

    Cheng, Y

    Q. Cheng, Y. Mao, and Q.-F. Sun, Field-free Josephson diode effect in altermagnet/normal metal/altermagnet junctions, Phys. Rev. B110, 014518 (2024)

    work page 2024

  3. [3]

    Vosoughi-nia and M

    S. Vosoughi-nia and M. P. Nowak, Altermon: a magnetic- field-free parity protected qubit based on a narrow al- termagnet Josephson junction (2025), arXiv:2510.18145 [cond-mat.mes-hall]

    work page arXiv 2025

  4. [4]

    B. K. Sahoo and A. Soori, Field-free transverse Joseph- son diode effect in altermagnets (2025), arXiv:2509.14109 [cond-mat.mes-hall]

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  5. [5]

    S. S. Ruthvik and T. Nag, Field-free diode effects in one-dimensional superconductor: a complex interplay be- tween Fulde-Ferrell pairing and altermagnetism (2025), arXiv:2512.01415 [cond-mat.mes-hall]

    work page arXiv 2025

  6. [6]

    S. Das, D. Suri, and A. Soori, Transport across junctions of altermagnets with normal metals and ferromagnets, J. Phys.: Condens. Matter35, 435302 (2023)

    work page 2023

  7. [7]

    Papaj, Andreev reflection at the altermagnet- superconductor interface, Phys

    M. Papaj, Andreev reflection at the altermagnet- superconductor interface, Phys. Rev. B108, L060508 (2023)

    work page 2023

  8. [8]

    C. Sun, A. Brataas, and J. Linder, Andreev reflection in altermagnets, Phys. Rev. B108, 054511 (2023)

    work page 2023

  9. [9]

    Das and A

    S. Das and A. Soori, Crossed Andreev reflection in alter- magnets, Phys. Rev. B109, 245424 (2024)

    work page 2024

  10. [10]

    Y.-F. Sun, Y. Mao, Y.-C. Zhuang, and Q.-F. Sun, Tun- neling magnetoresistance effect in altermagnets, Phys. Rev. B112, 094411 (2025)

    work page 2025

  11. [11]

    X. Peng, Y. Wang, S. Zhang, Y. Zhou, Y. Sun, Y. Su, C. Wu, T. Zhou, L. Liu, H. Wang, J. Yang, B. Chen, Z. Fang, J. Du, Z. Jiao, Q. Wu, and M. Fang, Scaling behavior of magnetoresistance and hall resistivity in the altermagnet crsb, Phys. Rev. B111, 144402 (2025)

    work page 2025

  12. [12]

    Noh, G.-H

    S. Noh, G.-H. Kim, J. Lee, H. Jung, U. Seo, G. So, J. Lee, S. Lee, M. Park, S. Yang, Y. S. Oh, H. Jin, C. Sohn, and J.-W. Yoo, Tunneling magnetoresistance in altermagnetic ruo 2-based magnetic tunnel junctions, Phys. Rev. Lett.134, 246703 (2025)

    work page 2025

  13. [13]

    E. W. Hodt, P. Sukhachov, and J. Linder, Interface- induced magnetization in altermagnets and antiferro- magnets, Phys. Rev. B110, 054446 (2024)

    work page 2024
