Light-tight skipper-CCDs for X-ray detection in space

Ana M. Botti , Yikai Wu , Brenda Cervantes , Claudio Chavez , Juan Estrada , Stephen E. Holland , Nathan Saffold , Javier Tiffenberg
show 1 more author
Sho Uemura
This is my paper

Pith reviewed 2026-05-16 17:47 UTC · model grok-4.3

classification 🌌 astro-ph.IM hep-exphysics.space-ph
keywords skipper-CCDsaluminum coatingoptical suppressionX-ray detectionspace instrumentationCCD detectorslight-tight shieldGeant4 simulation
0
0 comments X

The pith

Thin aluminum layers on skipper-CCDs block more than 99.6 percent of optical light while transmitting X-rays with no efficiency loss at 5.9 and 6.4 keV.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that 50 nm and 100 nm aluminum films deposited on skipper charge-coupled devices suppress over 99.6 percent of light across 650 to 1000 nm wavelengths. Experimental tests with a monochromator and an iron-55 source confirm that these coatings leave X-ray detection efficiency unchanged at the tested energies. Geant4 simulations then map how transmission behaves over a wider X-ray range for varying thicknesses. This combination creates a practical optical shield that keeps the detectors usable in space without added complexity or cost.

Core claim

We deposited thin aluminum layers on the CCD surface using an e-beam evaporator and evaluated their blinding performance across wavelengths from 650 to 1000 nm using a monochromator, as well as the X-ray transmission using an 55Fe source. We find that 50 and 100 nm layers provide greater than 99.6 percent light suppression, with no efficiency loss for 5.9 and 6.4 keV X-rays. In addition, we used Geant4 simulations to extend these results to a broader energy range and quantify the efficiency loss for different aluminum thicknesses.

What carries the argument

Thin aluminum layers (50 nm and 100 nm) deposited by e-beam evaporation on the CCD surface, which absorb or reflect optical photons while allowing X-ray photons to reach the silicon pixels.

If this is right

  • 50 nm and 100 nm aluminum coatings allow skipper-CCDs to operate in space without optical saturation from background light.
  • X-ray detection efficiency remains unchanged at 5.9 keV and 6.4 keV for the tested thicknesses.
  • Geant4 modeling predicts acceptable transmission losses across a wider X-ray band for chosen aluminum thicknesses.
  • The coating method supplies a low-cost optical shield suitable for space-based X-ray instruments using skipper-CCDs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the coating survives launch vibration and long-term space exposure, it could eliminate the need for separate optical filters in future X-ray missions.
  • The same deposition process might be applied to other pixelated silicon sensors that face optical noise in orbital environments.
  • Thinner coatings below 50 nm could be tested to reduce any high-energy X-ray absorption while still meeting light-suppression targets.

Load-bearing premise

The aluminum coating remains mechanically and optically stable under space radiation, thermal cycling, and vacuum, while the Geant4 simulations correctly predict transmission at energies other than the two tested lines.

What would settle it

Measure light suppression and X-ray quantum efficiency on coated devices after exposure to simulated space radiation doses and repeated thermal cycles between operating and survival temperatures, then compare results against both the lab data and the Geant4 curves at additional energies such as 2 keV and 10 keV.

Figures

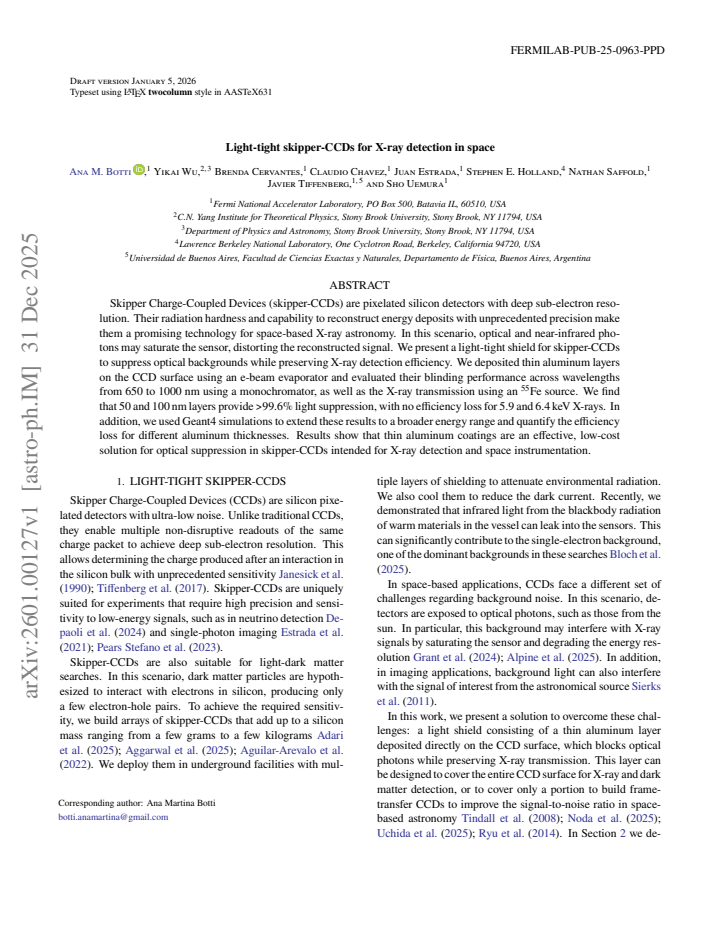

Figures reproduced from arXiv: 2601.00127 by Ana M. Botti, Brenda Cervantes, Claudio Chavez, Javier Tiffenberg, Juan Estrada, Nathan Saffold, Sho Uemura, Stephen E. Holland, Yikai Wu.

Figure 1
Figure 1. Figure 1: Experimental configuration for testing the skipper-CCD with the aluminum shield. With this setup, we first determined the blinding factor for different wavelengths using a monochromator, and then estimated the X-ray transfer efficiency using a 55Fe source inside the vacuum vessel. into the vessel, dark current, and read-out contributions such as amplifier light and spurious charge Barak et al. (2022). We o… view at source ↗
Figure 2

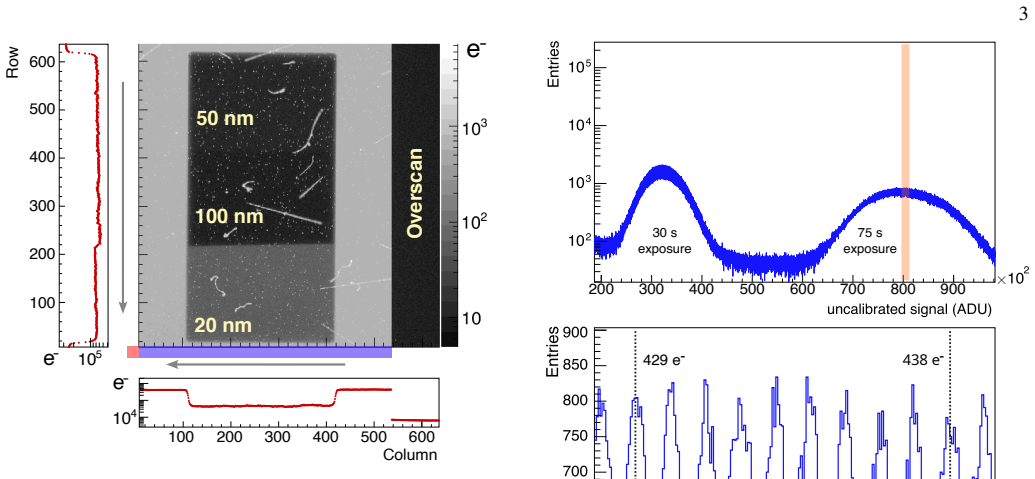

Figure 2. Figure 2: Image obtained with one quadrant of the skipper-CCD. We illuminate the sensor with 950 nm photons and the 55Fe radioac￾tive source. The x(y)-axis in the image correspond to the columns (rows), the blue rectangle represents the position of the serial regis￾ter, and the red square the readout amplifier. Gray arrows indicate the direction of the read-out. We show the projections on the rows and columns after … view at source ↗
Figure 5
Figure 5. Figure 5: Light transmission factor through the aluminum shield as a function of wavelength for different aluminum thicknesses. We calculate the transmission as the ratio of the signal in unshielded and shielded pixels. form by comparing their pixel charge distribution. At wave￾lengths below 650 nm, the light is absorbed in the CCD sur￾face structures, which consist of SiO2, Si3N4, and polysilicon layers before the … view at source ↗
Figure 6
Figure 6. Figure 6: Number of X-ray events per image as a function of exposure time for different regions of the CCD. The difference in the number of events across regions corresponds to X-rays hitting the sensor during readout. This vertical offset corresponds to the 76-second time to read each region. Lines correspond to the linear fits for the shielded (solid) and unshielded (dashed) regions. We show the fit results in [P… view at source ↗
Figure 9

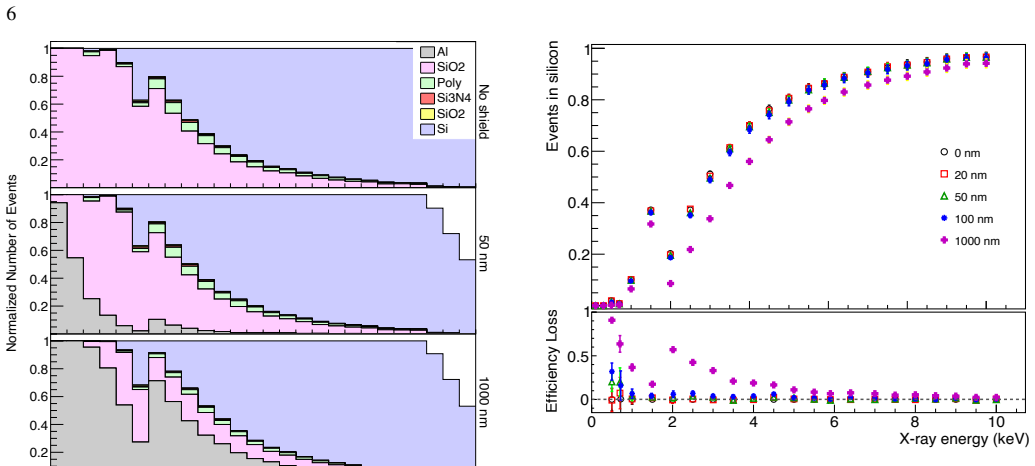

Figure 9. Figure 9: (Top) Ratio between the number of events interacting in the silicon bulk and the total number of events interacting in a front-illuminated CCD as a function of the X-ray energy for different aluminum shield thicknesses. (Bottom) Efficiency loss due to the aluminum layer as a function of the X-ray energy [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: (Top) Ratio between the number of events interacting in the silicon bulk and the total number of events interacting in a back-illuminated CCD as a function of the X-ray energy for different aluminum shield thicknesses. (Bottom) Efficiency loss due to the aluminum layer as a function of the X-ray energy. above 85%. It should be noted that these efficiency estimates do not account for losses due to data sel… view at source ↗
read the original abstract

Skipper Charge-Coupled Devices (skipper-CCDs) are pixelated silicon detectors with deep sub-electron resolution. Their radiation hardness and capability to reconstruct energy deposits with unprecedented precision make them a promising technology for space-based X-ray astronomy. In this scenario, optical and near-infrared photons may saturate the sensor, distorting the reconstructed signal. We present a light-tight shield for skipper-CCDs to suppress optical backgrounds while preserving X-ray detection efficiency. We deposited thin aluminum layers on the CCD surface using an e-beam evaporator and evaluated their blinding performance across wavelengths from 650 to 1000 nm using a monochromator, as well as the X-ray transmission using an $^{55}$Fe source. We find that 50 and 100 nm layers provide >99.6% light suppression, with no efficiency loss for 5.9 and 6.4 keV X-rays. In addition, we used Geant4 simulations to extend these results to a broader energy range and quantify the efficiency loss for different aluminum thicknesses. Results show that thin aluminum coatings are an effective, low-cost solution for optical suppression in skipper-CCDs intended for X-ray detection and space instrumentation.
