arxiv: 2601.01527 · v2 · submitted 2026-01-04 · ✦ hep-ph

Recognition: 2 theorem links

· Lean Theorem

Top-quark pair production in electron-positron collisions within the minimal noncommutative Standard Model

Fatma Zohra Bara , Slimane Zaiem , Yazid Delenda
Authors on Pith no claims yet

Pith reviewed 2026-05-16 17:39 UTC · model grok-4.3

classification ✦ hep-ph
keywords noncommutative standard modeltop quark pair productionelectron positron collisionsseiberg-witten mapcross sectionangular distributionsforward-backward asymmetryspace-time noncommutativity
0
0 comments X

The pith

Noncommutative geometry induces deviations in top-quark pair production at electron-positron colliders.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies the minimal noncommutative Standard Model to the process of top-quark pair production in electron-positron collisions. Using the Seiberg-Witten map, it calculates the squared amplitude to second order in the noncommutativity parameter and extracts the total cross section, angular distributions, and forward-backward asymmetry. These quantities differ from their Standard Model values in ways that increase with center-of-mass energy. A reader would care because the differences could be detected at proposed linear colliders and would constitute an indirect test of whether space-time is noncommutative.

Core claim

Within the minimal noncommutative Standard Model, the scattering amplitude for e^{+}e^{-} → t t-bar is computed to second order in Θ^μν. The total cross section, polar and azimuthal angular distributions, and forward-backward asymmetry all receive corrections that depend on the noncommutativity parameter. Numerical results at ILC and CLIC energies indicate that these corrections can reach sizes large enough to serve as an observable signature of space-time noncommutativity.

What carries the argument

The Seiberg-Witten map, which re-expresses noncommutative gauge fields in terms of ordinary fields order by order in Θ to allow consistent computation of the electroweak vertices.

Load-bearing premise

The Seiberg-Witten map remains consistent when applied to the full electroweak sector and the truncation at second order in Θ captures the leading physical effects.

What would settle it

A precision measurement at 500 GeV or 1 TeV center-of-mass energy showing that the forward-backward asymmetry and angular distributions for top-pair production match Standard Model predictions to within a few percent would indicate that any noncommutative scale lies well above collider reach.

Figures

Figures reproduced from arXiv: 2601.01527 by Fatma Zohra Bara, Slimane Zaiem, Yazid Delenda.

Figure 1
Figure 1. Figure 1: Feynman diagrams for the process e−e+ → γ/Z → tt¯ in the mNCSM. Up to O(Θ), the scattering amplitudes for photon- and Z-boson exchange can [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Total cross-section for transverse (left) and longi [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3

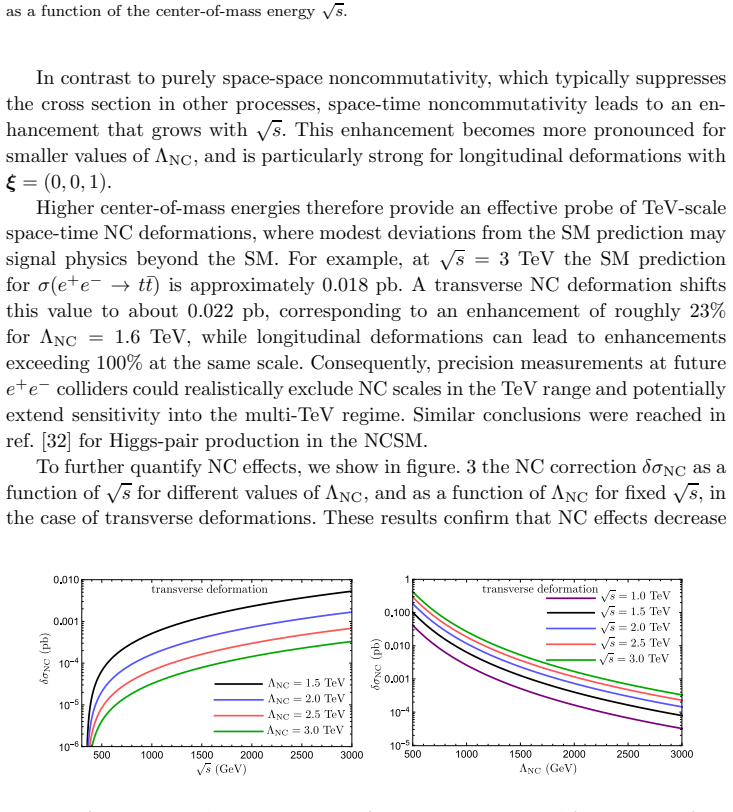

Figure 3. Figure 3: NC correction to the total cross-section for transve [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Threshold centre-of-mass energy √s0 as a function of the NC scale ΛNC for transverse space-time deformations. To quantify this behaviour, we perform a linear interpolation of the numerical results shown in figure 4. This yields the following empirical parametrization for the threshold energy, √ s0 = A ΛNC + B , A = 0.3 , B = 640 GeV . (26) This result indicates that, as the NC scale increases, the required… view at source ↗
Figure 5
Figure 5. Figure 5: Differential polar-angle distribution of the top qua [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Forward-backward asymmetry of the top quark for tran [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

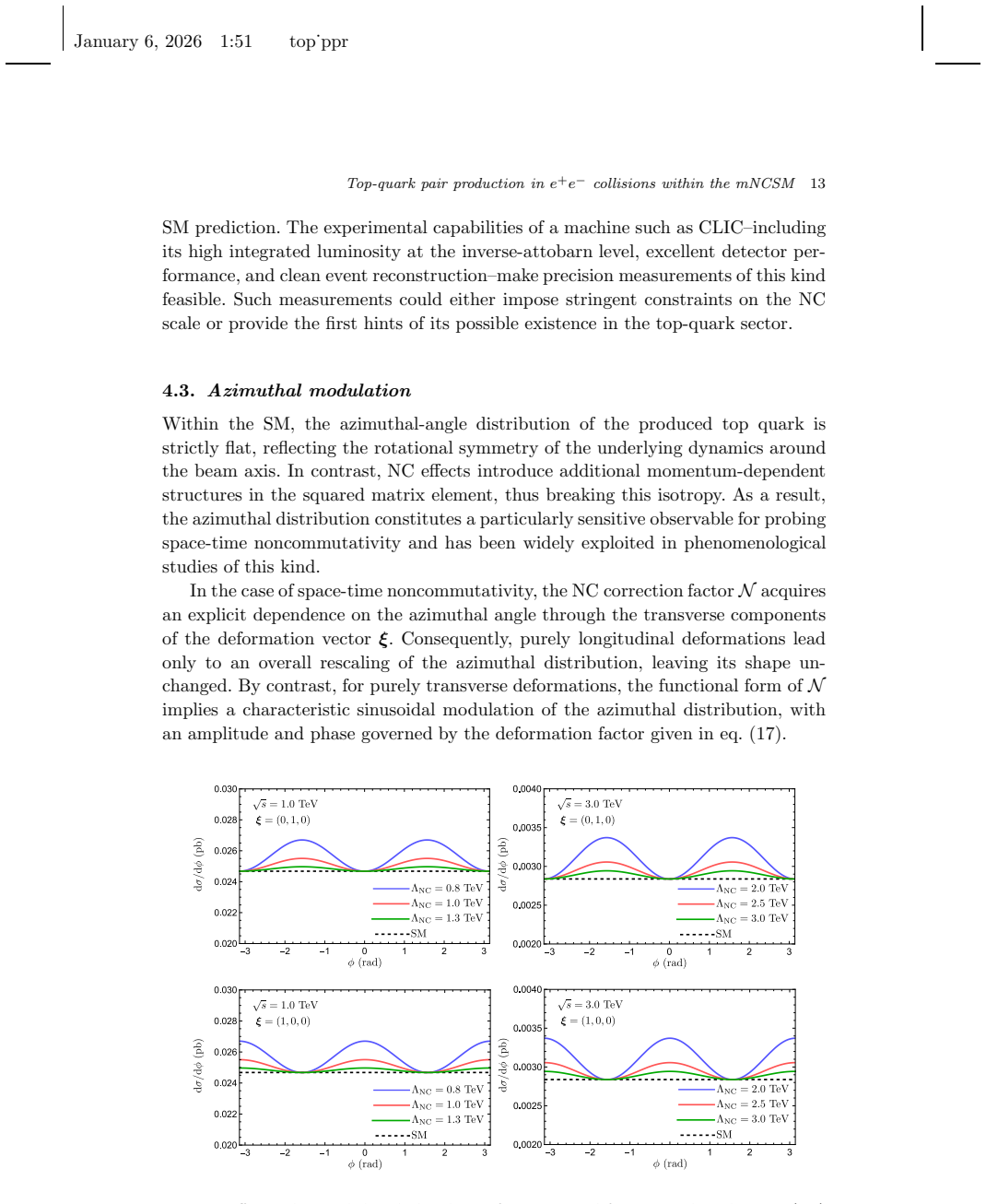

Figure 7. Figure 7: Differential azimuthal-angle distribution for tran [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The f fγ/Z vertex in the mNCSM. The fermion momentum pin flows into the vertex and pout flows out, while the gauge-boson momentum k is taken to flow into the vertex. line entering the vertex, while pout corresponds to the momentum of the fermion line leaving the vertex. Fermion momentum flow follows the direction of the fermion line, and the gauge-boson momentum k is always taken to flow into the vertex. M… view at source ↗
read the original abstract

We study top-quark pair production in electron-positron collisions within the framework of the minimal noncommutative Standard Model. Noncommutative effects are incorporated using the Seiberg-Witten map, and the scattering squared amplitude for the process $e^+e^-\to t\bar{t}$ is computed consistently up to second order in the noncommutativity parameter $\Theta^{\mu\nu}$. We derive the total cross-section, the polar and azimuthal angular distributions, and the forward-backward asymmetry, all of which exhibit sensitivity to space-time noncommutativity. Numerical results are evaluated for center-of-mass energies relevant to future linear colliders, such as the ILC and CLIC. Our analysis demonstrates that noncommutative geometry can induce significant characteristic deviations from the Standard Model predictions, offering a potential indirect probe of space-time noncommutativity at high-energy $e^+e^-$ collisions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript studies top-quark pair production in e⁺e⁻ collisions within the minimal noncommutative Standard Model. Noncommutative effects are incorporated via the Seiberg-Witten map, and the scattering amplitude for e⁺e⁻ → t t̄ is computed to O(Θ^{μν}²). The authors derive the total cross section, polar and azimuthal angular distributions, and forward-backward asymmetry, presenting numerical results at ILC and CLIC energies that exhibit deviations from Standard Model predictions, which they propose as an indirect probe of space-time noncommutativity.

Significance. If the Seiberg-Witten map application is shown to be consistent and gauge-invariant at O(Θ²) for the full electroweak sector, the work would supply concrete, collider-relevant predictions for observables sensitive to noncommutativity. It extends the minimal NCSM framework to a high-precision process and identifies characteristic angular and asymmetry signatures that could be tested at future linear colliders. The absence of such verification, however, limits the immediate phenomenological impact.

major comments (2)
  1. [§3] §3 (amplitude computation): The claim that the amplitude is computed consistently to O(Θ²) requires explicit demonstration that all second-order Seiberg-Witten corrections to the SU(2)×U(1) field strengths and covariant derivatives preserve the gauge algebra and Ward identities for the t t̄ γ and t t̄ Z vertices. The manuscript provides no such check or full derivation, which is load-bearing for the reliability of the reported deviations.
  2. [§5] §5 (numerical results): The angular distributions and forward-backward asymmetry are stated to show significant deviations, yet the text does not specify the numerical value of Θ used, the size of the O(Θ²) terms relative to SM contributions, or any estimate of higher-order effects. This prevents assessment of whether the claimed sensitivity is physically meaningful.
minor comments (2)
  1. [Figure 2] Figure 2 (angular distributions): The polar-angle plots lack error bands or a direct overlay of the pure SM prediction, making it difficult to quantify the size of the noncommutative correction by eye.
  2. [Throughout] Notation: The noncommutativity parameter is written interchangeably as Θ and Θ^{μν}; a single consistent symbol and explicit statement of its antisymmetry should be used throughout.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and valuable comments on our manuscript. We address each major comment point by point below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: §3 (amplitude computation): The claim that the amplitude is computed consistently to O(Θ²) requires explicit demonstration that all second-order Seiberg-Witten corrections to the SU(2)×U(1) field strengths and covariant derivatives preserve the gauge algebra and Ward identities for the t t̄ γ and t t̄ Z vertices. The manuscript provides no such check or full derivation, which is load-bearing for the reliability of the reported deviations.

    Authors: We agree that an explicit check would strengthen the presentation. In the revised manuscript, we have included a new appendix that derives the second-order Seiberg-Witten map corrections to the gauge fields and covariant derivatives, and explicitly verifies that the gauge algebra is preserved and that the Ward identities hold for the relevant vertices. This confirms the consistency of our O(Θ²) amplitude. revision: yes

  2. Referee: §5 (numerical results): The angular distributions and forward-backward asymmetry are stated to show significant deviations, yet the text does not specify the numerical value of Θ used, the size of the O(Θ²) terms relative to SM contributions, or any estimate of higher-order effects. This prevents assessment of whether the claimed sensitivity is physically meaningful.

    Authors: We acknowledge the need for more quantitative details. The revised version now specifies the value of the noncommutativity parameter Θ employed in the numerical analysis (consistent with existing bounds), quantifies the relative magnitude of the O(Θ²) contributions to the cross section and asymmetries, and includes an estimate showing that higher-order terms in Θ are suppressed at the energies considered. These additions demonstrate that the deviations are physically meaningful and potentially observable at ILC and CLIC. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained from NC Lagrangian

full rationale

The paper constructs the e+e- -> ttbar amplitude directly from the minimal noncommutative SM Lagrangian via the Seiberg-Witten map expanded to O(Θ²). No equations reduce the final cross section, angular distributions or asymmetry to a fitted parameter or to a self-citation that itself assumes the result. Numerical evaluations at ILC/CLIC energies are genuine model predictions, not tautological outputs. The framework is externally falsifiable via comparison to SM limits and future data.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the existence of a consistent minimal noncommutative Standard Model and the validity of the Seiberg-Witten map to second order; no new free parameters beyond the noncommutativity scale Θ are introduced in the abstract.

free parameters (1)
  • noncommutativity scale Θ
    The magnitude of Θ is left as a free parameter whose effects are evaluated numerically; no specific fitted value is given.
axioms (1)
  • domain assumption Seiberg-Witten map provides a consistent expansion of noncommutative fields to ordinary fields up to O(Θ²)
    Invoked to incorporate noncommutative effects into the Standard Model Lagrangian without explicit reference to a full noncommutative gauge theory.
