Do MLLMs Really Understand Space? A Mathematical Reasoning Evaluation

Shuo Lu , Jianjie Cheng , Yinuo Xu , Yongcan Yu , Lijun Sheng , Peijie Wang , Siru Jiang , Yongguan Hu
show 11 more authors
Run Ling Yihua Shao Ao Ma Wei Feng Lingxiao He Meng Wang Qianlong Xie Xingxing Wang Nicu Sebe Ran He Jian Liang
Authors on Pith no claims yet

Pith reviewed 2026-05-16 03:35 UTC · model grok-4.3

classification 💻 cs.AI
keywords multimodal large language modelsspatial reasoningmathematical reasoningbenchmarksAI evaluationgeometric problemsdeductive reasoningtraining datasets
0
0 comments X

The pith

Multimodal models lag humans by more than 35 points on mathematical spatial reasoning tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that current multimodal large language models have a clear weakness in mathematical spatial reasoning, defined as parsing and manipulating two- and three-dimensional relations. Humans solve the same textbook problems with over 95 percent accuracy while most models stay below 60 percent. The authors built MathSpatial-Bench with 2000 quality-controlled problems across three categories and eleven subtypes, plus an 8000-problem training corpus with verified solutions. Results from 16 leading models confirm spatial reasoning as a persistent bottleneck, especially on abstract deduction, and demonstrate that training on the corpus produces consistent gains.

Core claim

Multimodal large language models exhibit a fundamental limitation in mathematical spatial reasoning. On the MathSpatial-Bench of 2000 problems spanning three categories and eleven subtypes, even GPT-5 trails human performance by more than 35 percentage points, with the largest shortfalls on abstract deduction tasks. Training on the MathSpatial-Corpus of 8000 problems equipped with verified solutions and structured traces yields consistent improvements across model families.

What carries the argument

MathSpatial-Bench, a set of 2000 problems in three categories and eleven subtypes that uses multi-stage quality control including geometric consistency checks to isolate spatial reasoning from perceptual noise.

If this is right

  • Spatial reasoning constitutes a core bottleneck that current MLLMs must overcome for broader mathematical competence.
  • Training on dedicated spatial-reasoning data produces measurable gains across different model families.
  • Abstract deduction tasks expose the largest performance deficits compared with other spatial subtypes.
  • The dataset supplies both an evaluation standard and a training resource for future model development.
  • Closing the gap with human performance would require targeted advances beyond general scaling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Current architectures may depend more on statistical correlations than on genuine internal spatial representations.
  • Dedicated spatial modules or training regimes could narrow the remaining gap with human-level performance.
  • The identified weakness may constrain downstream applications such as automated geometry solvers or robotic planning.

Load-bearing premise

The multi-stage quality controls successfully separate spatial reasoning ability from perceptual shortcuts or pattern matching in the problems.

What would settle it

An MLLM reaching 95 percent accuracy on MathSpatial-Bench without any exposure to the training corpus or similar spatial problems would show the performance gap is not a fundamental architectural limit.

Figures

Figures reproduced from arXiv: 2602.11635 by Ao Ma, Jianjie Cheng, Jian Liang, Lijun Sheng, Lingxiao He, Meng Wang, Nicu Sebe, Peijie Wang, Qianlong Xie, Ran He, Run Ling, Shuo Lu, Siru Jiang, Wei Feng, Xingxing Wang, Yihua Shao, Yinuo Xu, Yongcan Yu, Yongguan Hu.

Figure 1
Figure 1. Figure 1: Left: On MathSpatial-Bench, humans achieve over 95% accuracy while most MLLMs remain below 60%. Right: Three core challenges of spatial reasoning and the design of MathSpatial to address them. provided large-scale, high-quality training corpora for spatial rea￾soning, as shown in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: MathSpatial source data construction pipeline: Data Collection and Curation → Standardization → Geometric Consistency Checking → Solution Verification. 2 Related Work 2.1 MLLM Spatial Reasoning Multimodal large language models (MLLMs) integrate textual and visual modalities and have demonstrated remarkable potential across vision–language tasks [4, 7, 18, 24]. Recent studies indi￾cate that MLLMs exhibit em… view at source ↗
Figure 3
Figure 3. Figure 3: Selected examples demonstrating the diverse prob [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

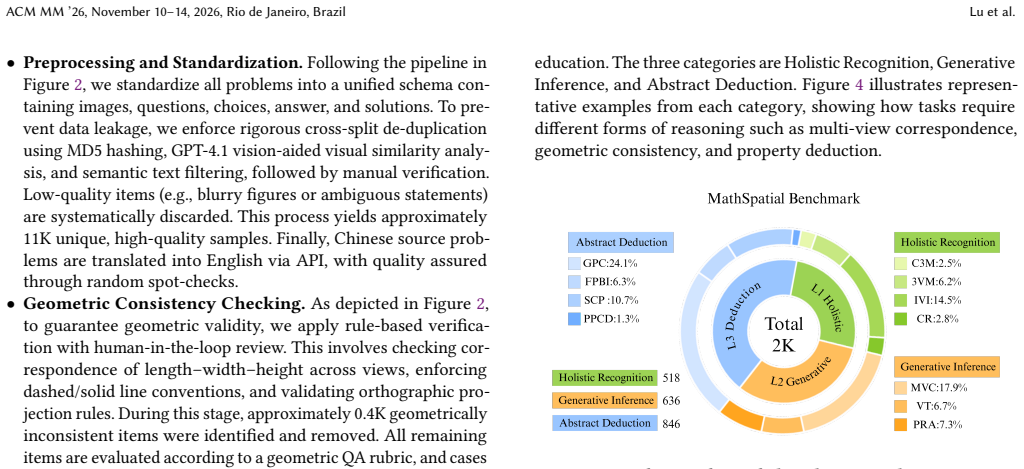

Figure 4. Figure 4: MathSpatial-Bench distribution and composition. In total, the benchmark consists of 518 problems in Holistic Recognition, 636 in Generative Inference, and 846 in Abstract De￾duction. The detailed distribution across all subcategories is shown in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Fine-grained error analysis on MathSpatial-Bench. (a) Error frequency distribution for baselines across 6 subcategories. (b) Overall error rate breakdown by failure mode. 7B variant (17.8%). Multiple models score 0.0% on GPC, indicating a complete inability to perform geometric property calculations. GLM-4.5V (21.0%) is the strongest base open-source model on this benchmark, yet still trails most closed-so… view at source ↗
read the original abstract

Multimodal large language models (MLLMs) have achieved strong performance on perception-oriented tasks, yet their ability to perform mathematical spatial reasoning, defined as the capacity to parse and manipulate two- and three-dimensional relations, remains unclear. Humans easily solve textbook-style spatial reasoning problems with over 95\% accuracy, but we find that most leading MLLMs fail to reach even 60\% on the same tasks. This striking gap highlights spatial reasoning as a fundamental weakness of current models. To investigate this gap, we present \emph{MathSpatial}, the first large-scale and systematic dataset resource dedicated to mathematical spatial reasoning in MLLMs. \emph{MathSpatial} provides two complementary subsets: (i)~\emph{MathSpatial-Bench}, a rigorously curated evaluation set of 2{,}000 problems spanning 3 categories and 11 subtypes, designed to isolate spatial reasoning from perceptual noise; and (ii)~\emph{MathSpatial-Corpus}, a training set of 8{,}000 problems equipped with verified solutions and structured reasoning traces. All problems are sourced from authentic educational materials and undergo multi-stage quality control including deduplication, geometric consistency checking, and cross-validated solution verification. Benchmarking 16 leading MLLMs on \emph{MathSpatial-Bench} reveals that spatial reasoning remains a fundamental bottleneck: even GPT-5 lags behind human performance by over 35 percentage points, with particularly poor results on abstract deduction tasks. We further show that training on \emph{MathSpatial-Corpus} yields consistent improvements across model families, demonstrating the dataset's practical value for advancing spatial reasoning capabilities. \emph{MathSpatial} is publicly available at https://shuolucs.github.io/MathSpatial.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces MathSpatial, a new dataset resource for mathematical spatial reasoning in MLLMs consisting of MathSpatial-Bench (a 2,000-problem evaluation set spanning 3 categories and 11 subtypes) and MathSpatial-Corpus (an 8,000-problem training set with verified solutions). It benchmarks 16 leading MLLMs on the bench, reports that even GPT-5 lags human performance by over 35 percentage points with especially weak results on abstract deduction, and shows consistent gains from training on the corpus.

Significance. If the curation successfully isolates spatial reasoning, the work is significant: it supplies the first large-scale, education-sourced benchmark and training resource for this capability, quantifies a clear performance gap, and demonstrates that targeted data can improve results across model families.

major comments (3)
  1. [§3] §3 (Dataset Construction): the multi-stage quality control (deduplication, geometric consistency checking, cross-validated solution verification) is described only at a high level; no quantitative metrics (inter-annotator agreement, post-verification error rates, or ablation showing isolation from perceptual factors) are reported, leaving the central isolation claim without direct empirical support.
  2. [§4.1] §4.1 (Benchmarking): overall accuracy figures are given for 16 models, but per-subtype breakdowns and statistical significance tests for the abstract-deduction category are missing, so the claim of “particularly poor results” on those tasks cannot be fully evaluated from the presented data.
  3. [§4.2] §4.2 (Training Experiments): gains from fine-tuning on MathSpatial-Corpus are shown, yet no controls for dataset size, content overlap with existing pre-training corpora, or comparison to generic math data are included, weakening attribution of improvements specifically to spatial-reasoning enhancement.
minor comments (2)
  1. [Abstract] Abstract and §1: the model referred to as “GPT-5” should be clarified (version, access date, or whether it is a stand-in) for reproducibility.
  2. [§4] Figure captions and Table 1: ensure all subtype labels match the 11 subtypes listed in §3.1 and that axis labels include units or scale information.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the validity of the dataset as a pure measure of spatial reasoning, which is assumed after quality controls but not independently verified in the abstract.

axioms (1)
  • domain assumption The selected problems from educational materials test mathematical spatial reasoning independently of perceptual abilities
    Invoked in the description of MathSpatial-Bench to isolate the capability.

pith-pipeline@v0.9.0 · 5675 in / 1132 out tokens · 156560 ms · 2026-05-16T03:35:19.177346+00:00 · methodology
