Explicit Block Encodings of Discrete Laplacians with Mixed Boundary Conditions

Alexandre Boutot , Viraj Dsouza
Authors on Pith no claims yet

Pith reviewed 2026-05-15 11:37 UTC · model grok-4.3

classification 🪐 quant-ph
keywords block encodingdiscrete Laplacianquantum circuitsboundary conditionsfinite differenceHamiltonian simulation
0
0 comments X

The pith

Block encodings now support discrete Laplacians with mixed boundary conditions per axis.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops explicit quantum circuit constructions that block-encode finite-difference discretizations of the Laplacian operator. These circuits accommodate Dirichlet, periodic, or Neumann boundary conditions chosen independently along each spatial dimension, including anisotropic grids in one to three dimensions. The approach uses a single modular architecture instead of separate designs for each boundary type. A reader would care because this reduces circuit depth relative to general-purpose block encodings and raises the success probability of the resulting quantum algorithms for PDEs or Hamiltonian simulation.

Core claim

We present a unified framework for efficiently block encoding finite-difference discretizations of the Laplacian that supports Dirichlet, periodic, and Neumann boundary conditions in arbitrary spatial dimensions. Our construction allows different boundary conditions and grid sizes to be specified independently along each coordinate axis, enabling mixed-boundary and anisotropic discretizations within a single modular circuit architecture. We provide analytical gate-complexity estimates and perform circuit-level benchmarks after transpilation to an IBM hardware gate set. Across one-, two-, and three-dimensional examples, the resulting circuits exhibit substantially lower gate counts and higher

What carries the argument

A modular circuit architecture that composes one-dimensional discrete-Laplacian block encodings along each axis while inserting boundary-specific adjustments through selective additions of shifted identity blocks.

If this is right

  • Gate counts drop substantially for 1D, 2D, and 3D Laplacians relative to generic block-encoding techniques.
  • Success probabilities increase on hardware simulation for the same accuracy target.
  • Anisotropic grids and mixed boundaries are handled by the same circuit skeleton without redesign.
  • Analytical complexity expressions scale with dimension count and local grid size.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same modular blocks could be reused inside larger quantum PDE solvers that alternate between different boundary types over time.
  • Combining these encodings with product-formula time evolution would yield circuits for the heat or wave equation on irregular domains.
  • Numerical tests on grids larger than those benchmarked would show whether the reported depth advantage persists under realistic noise.

Load-bearing premise

The analytical gate counts remain favorable once the circuit is fully transpiled and that the underlying finite-difference stencil stays accurate enough for the target applications.

What would settle it

Transpile the 3D mixed-boundary construction to the IBM gate set for a 16-point grid per axis and compare measured success probability against the paper's reported benchmark value.

Figures

Figures reproduced from arXiv: 2603.12405 by Alexandre Boutot, Viraj Dsouza.

Figure 1
Figure 1. Figure 1: Block encoding circuit for the 1D Laplacian with periodic boundary, as provided in [ [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Block encoding circuit for the 1D Laplacian with Dirichlet boundary. [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Block encoding circuit for the 1D Laplacian with Neumann boundary. [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Block encoding circuit for the D−dimensional Laplacian with boundaries b0, b1, · · · bD−1 where each bi can be Dirichlet, periodic or Neumann. The circuits for each Ubi can be inferred from the 1D constructions provided earlier. For example, if a dimension m has a periodic boundary, Ubm is just the Identity matrix. Proof. Similar to the 1D cases, we verify the block encoding relation on computational basis… view at source ↗
Figure 5
Figure 5. Figure 5: State preparation circuit (Uprep_k) for D = 3, 4. The rotation angles for the RY and controlled-RY gates are θ0 = 2 arccos (√ ω0 + ω2), θ1 = 2 arccos (q ω0 ω0+ω2 ), θ2 = 2 arccos (q ω1 ω1+ω3 ). goal is to express the implementation cost in the Clifford+T basis, which is the standard metric for fault-tolerant quantum computation. The circuit contains three types of components: (i) single-qubit Clifford gate… view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8

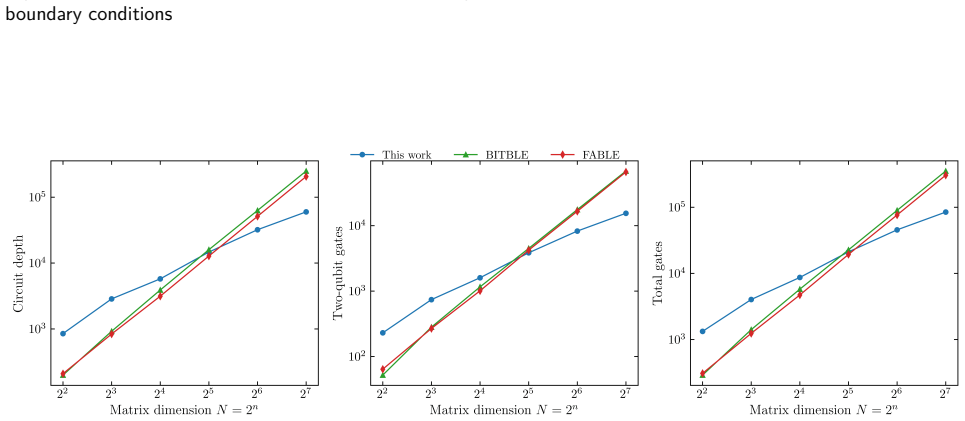

Figure 8. Figure 8: Comparison of resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Success probability of different block encoding constructions for the [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Comparison of resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Success probability of block encoding constructions for the [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Comparison of resources for block encoding constructions of a [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Success probability of block encoding constructions for the [PITH_FULL_IMAGE:figures/full_fig_p017_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Heat maps of the matrices obtained from the top-left block of the block encoding unitaries [PITH_FULL_IMAGE:figures/full_fig_p020_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Heat maps of the matrices obtained from the top-left block of the block encoding unitary [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗
Figure 16

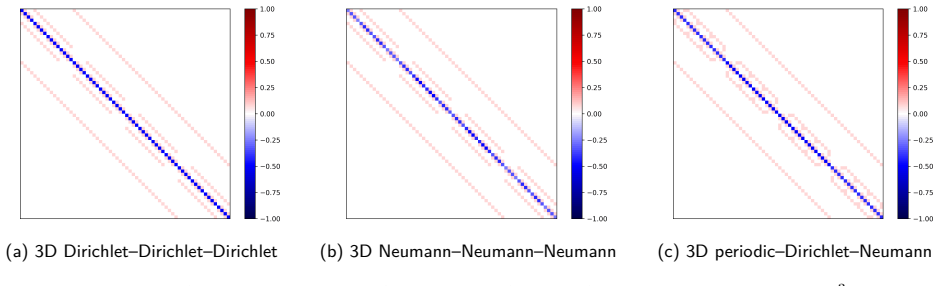

Figure 16. Figure 16: Heat maps of the matrices obtained from the top-left block of the block encoding unitary [PITH_FULL_IMAGE:figures/full_fig_p021_16.png] view at source ↗
Figure 17

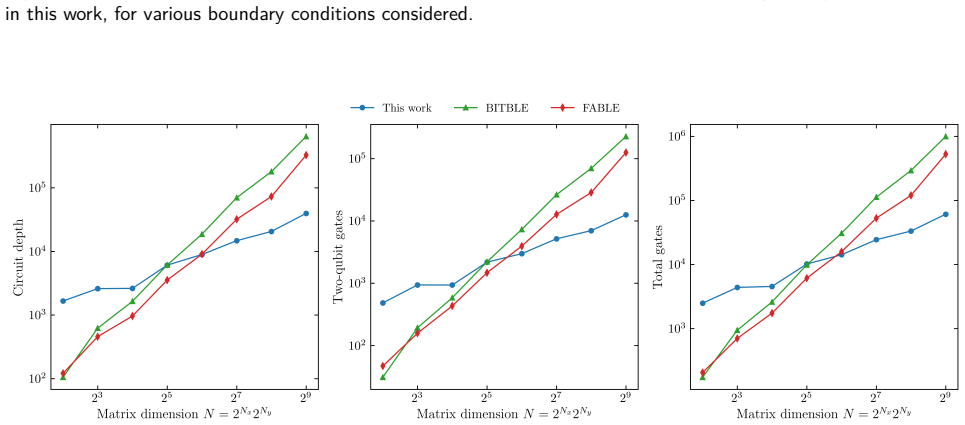

Figure 17. Figure 17: Comparison of circuit resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p021_17.png] view at source ↗
Figure 18

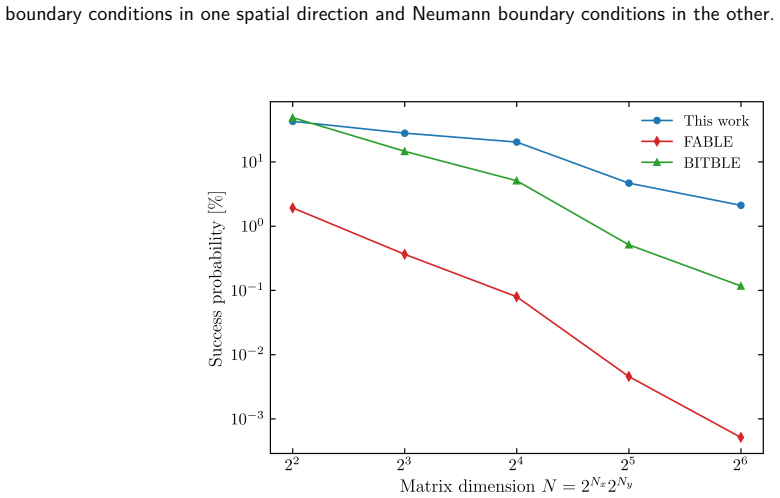

Figure 18. Figure 18: Success probability of the block encoding constructions for the [PITH_FULL_IMAGE:figures/full_fig_p021_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Comparison of circuit resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p022_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Comparison of circuit resources for block encoding constructions of the [PITH_FULL_IMAGE:figures/full_fig_p022_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Success probability of the block encoding constructions for the [PITH_FULL_IMAGE:figures/full_fig_p022_21.png] view at source ↗
read the original abstract

Discrete Laplacian operators arise ubiquitously in scientific computing and frequently appear in quantum algorithms for tasks such as linear algebra, Hamiltonian simulation, and partial differential equations. Block encoding provides the standard method for accessing matrix data within quantum circuits. Efficient implementations of such algorithms require efficient block encodings of the discretized operator. While several general-purpose techniques exist for block encoding arbitrary matrices, they usually require deep quantum circuits. Moreover, existing efficient constructions that exploit Laplacian structure are limited in scope, typically assuming fixed boundary conditions or uniform grid resolutions. In this work, we present a unified framework for efficiently block encoding finite-difference discretizations of the Laplacian that supports Dirichlet, periodic, and Neumann boundary conditions in arbitrary spatial dimensions. Our construction allows different boundary conditions and grid sizes to be specified independently along each coordinate axis, enabling mixed-boundary and anisotropic discretizations within a single modular circuit architecture. We provide analytical gate-complexity estimates and perform circuit-level benchmarks after transpilation to an IBM hardware gate set. Across one-, two-, and three-dimensional examples, the resulting circuits exhibit substantially lower gate counts and higher success probabilities when compared to certain existing approaches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents a unified framework for explicitly block-encoding finite-difference discretizations of the Laplacian that supports Dirichlet, periodic, and Neumann boundary conditions in arbitrary dimensions. The construction decomposes the multi-dimensional operator as a sum of Kronecker products of independent 1D finite-difference operators, each block-encoded according to its own boundary condition and grid size, enabling mixed-boundary and anisotropic discretizations within a single modular circuit architecture. Analytical gate-complexity estimates are provided along with post-transpilation benchmarks on an IBM hardware gate set showing lower gate counts and higher success probabilities than certain existing approaches.

Significance. If the central construction holds, the result would provide a practical modular primitive for quantum algorithms involving PDEs, Hamiltonian simulation, and linear systems, extending existing block-encoding techniques to flexible boundary conditions and grid resolutions without requiring global adjustments or additional cross terms. The tensor-product structure and reported circuit metrics represent a concrete advance in making such discretizations implementable on near-term hardware.

major comments (2)
  1. [Abstract and construction overview] The abstract and construction summary indicate that analytical gate counts are derived from LCU or product-formula techniques applied to the sum of Kronecker products, but the manuscript does not appear to include a full step-by-step derivation of the block-encoding unitary or the precise scaling with dimension and grid size; this makes it difficult to verify the claimed parameter-free nature of the estimates.
  2. [Numerical benchmarks section] Benchmarks are reported after transpilation, but without explicit error-bar details or the exact baseline circuits used for comparison, it is unclear whether the reported reduction in gate count and improvement in success probability is robust across different grid sizes or merely holds for the specific 1D/2D/3D examples shown.
minor comments (2)
  1. [Section 2] Notation for the 1D operators and their boundary-condition-specific block encodings should be introduced with explicit matrix forms or circuit diagrams in an early section to improve readability for readers unfamiliar with the LCU decomposition.
  2. [Analytical estimates] The manuscript would benefit from a short table summarizing the gate-complexity scaling for each boundary-condition type (Dirichlet, Neumann, periodic) as a function of grid size n.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and recommendation for minor revision. The comments highlight opportunities to improve clarity in the construction and benchmarks, which we will address in the revised manuscript.

read point-by-point responses

  1. Referee: [Abstract and construction overview] The abstract and construction summary indicate that analytical gate counts are derived from LCU or product-formula techniques applied to the sum of Kronecker products, but the manuscript does not appear to include a full step-by-step derivation of the block-encoding unitary or the precise scaling with dimension and grid size; this makes it difficult to verify the claimed parameter-free nature of the estimates.

    Authors: We agree that additional detail would aid verification. The 1D block encodings and their Kronecker-sum combination via LCU are derived in Section 3, but we will expand this section in the revision to include an explicit step-by-step construction of the overall unitary, together with the closed-form gate-complexity scaling in dimension d and grid size N that confirms the parameter-free estimates. revision: yes

  2. Referee: [Numerical benchmarks section] Benchmarks are reported after transpilation, but without explicit error-bar details or the exact baseline circuits used for comparison, it is unclear whether the reported reduction in gate count and improvement in success probability is robust across different grid sizes or merely holds for the specific 1D/2D/3D examples shown.

    Authors: The reported benchmarks use representative 1D/2D/3D grids with mixed boundary conditions. In the revision we will add error bars obtained from repeated transpilation runs, explicitly document the baseline circuits, and include results for a broader range of grid sizes to demonstrate that the observed improvements hold more generally. revision: yes

Circularity Check

0 steps flagged

Minor self-citation not load-bearing; derivation self-contained

full rationale

The central construction decomposes the multi-dimensional discrete Laplacian as a sum of Kronecker products of independent 1D finite-difference operators, each block-encoded according to its own boundary condition and grid size. This tensor-product structure directly supports the claimed modularity for mixed BCs and anisotropic grids without requiring additional cross terms or global adjustments. The provided analytical gate counts and post-transpilation benchmarks are consistent with standard LCU or product-formula techniques for such sums; no internal contradiction appears in the derivation or the reported circuit metrics. Self-citations to prior block-encoding primitives exist but are not load-bearing for the explicit constructions presented.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on standard quantum circuit primitives for block encoding and finite-difference stencils; no new free parameters, ad-hoc axioms, or invented entities are introduced.

axioms (1)
  • standard math Standard properties of block encodings and finite-difference discretizations hold
    The construction invokes known quantum primitives and grid-based approximations without additional proof.
