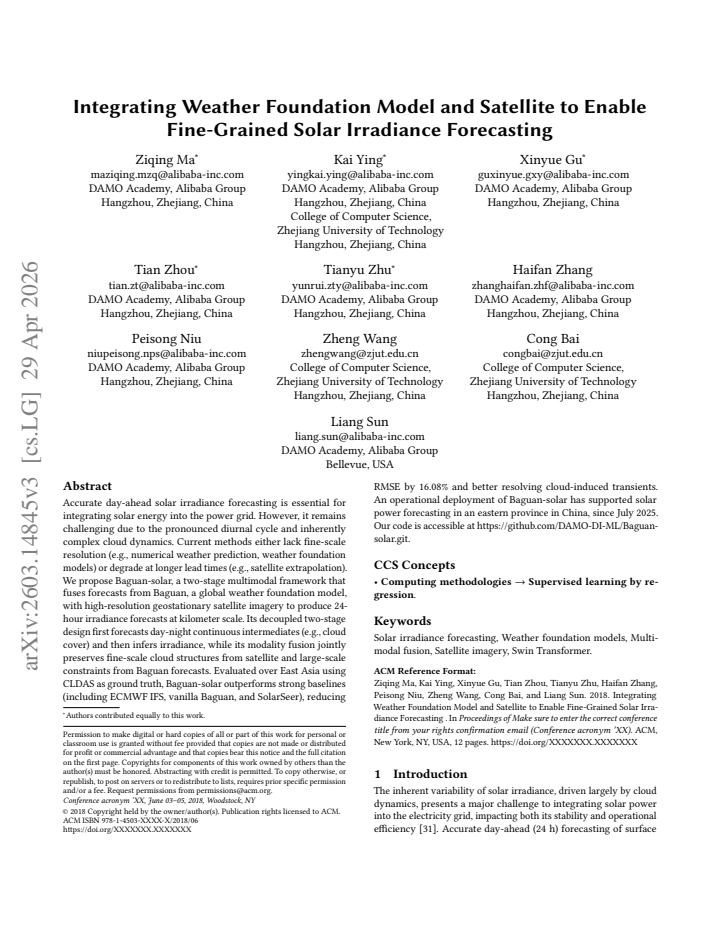

Integrating Weather Foundation Model and Satellite to Enable Fine-Grained Solar Irradiance Forecasting

Authors on Pith no claims yet

Pith reviewed 2026-05-15 10:36 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords solar irradiance forecastingweather foundation modelsatellite imagery fusioncloud cover predictionfine-grained forecastingmultimodal integrationday-ahead solar prediction
0
0 comments X

The pith

A two-stage fusion of weather foundation model forecasts and satellite imagery produces kilometer-scale solar irradiance predictions for the next 24 hours.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Baguan-solar, a multimodal framework that combines outputs from the global weather foundation model Baguan with high-resolution geostationary satellite data. Its decoupled design first generates day-night continuous fields such as cloud cover from the foundation model, then infers irradiance while preserving fine-scale cloud structures through joint modality fusion. This addresses the coarse resolution of numerical weather predictions and the limited lead-time accuracy of satellite extrapolation alone. Over East Asia, using CLDAS as ground truth, the approach reduces forecast RMSE by 16.08 percent relative to strong baselines including ECMWF IFS and prior satellite methods.

Core claim

Baguan-solar employs a decoupled two-stage multimodal architecture: Baguan first produces continuous intermediate forecasts including cloud cover, after which irradiance is inferred by fusing those fields with high-resolution satellite imagery to retain kilometer-scale cloud details while respecting large-scale weather constraints.

What carries the argument

Decoupled two-stage multimodal fusion that first predicts continuous intermediates from the weather foundation model and then jointly incorporates satellite imagery for irradiance inference.

If this is right

  • Delivers 24-hour solar irradiance forecasts at kilometer resolution suitable for day-ahead power grid scheduling.
  • Improves resolution of transient cloud effects on irradiance compared to global numerical weather models.
  • Supports operational solar power forecasting as demonstrated by deployment in an eastern Chinese province.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same two-stage fusion pattern could be tested on other cloud-sensitive variables such as precipitation or surface temperature.
  • Regional fine-tuning of the satellite component might further reduce errors in areas with distinct cloud regimes.
  • Extending the intermediates to include additional variables like aerosol optical depth could broaden applicability to air-quality-linked solar attenuation.

Load-bearing premise

The fusion step accurately preserves fine-scale cloud structures from satellite data without adding systematic bias when deriving irradiance values from the predicted cloud fields.

What would settle it

Direct pixel-level comparison of the model's inferred cloud cover fields against independent high-resolution satellite observations or ground-based measurements over a multi-day period would reveal any consistent spatial biases in the resulting irradiance forecasts.

Figures

Figures reproduced from arXiv: 2603.14845 by Cong Bai, Haifan Zhang, Kai Ying, Liang Sun, Peisong Niu, Tianyu Zhu, Tian Zhou, Xinyue Gu, Zheng Wang, Ziqing Ma.

Figure 1

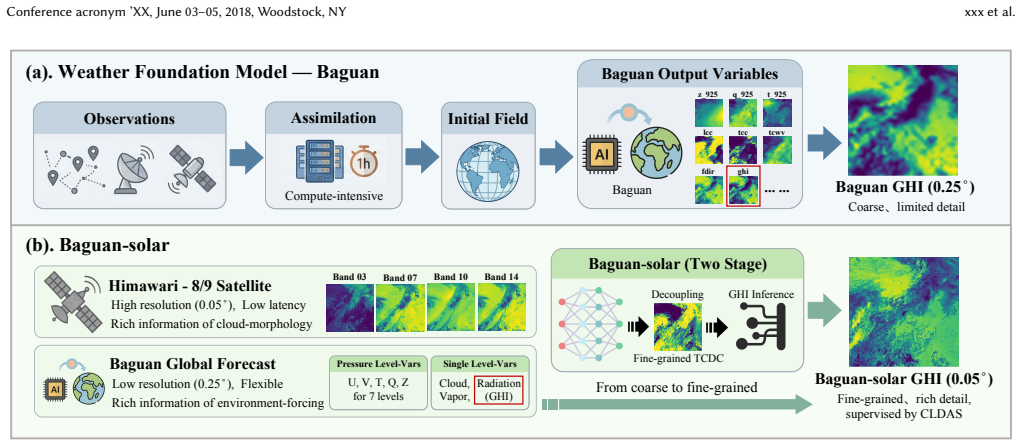

Figure 1. Figure 1: From coarse Baguan forecasts to fine-grained GHI: the Baguan-solar overall framework. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

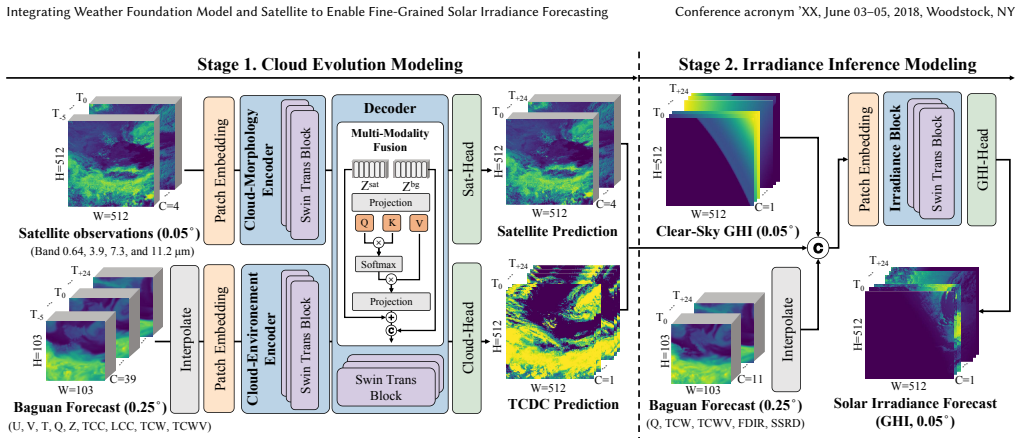

Figure 2. Figure 2: Baguan-solar model architecture. Baguan-solar uses a two-stage Swin Transformer framework that fuses Himawari [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

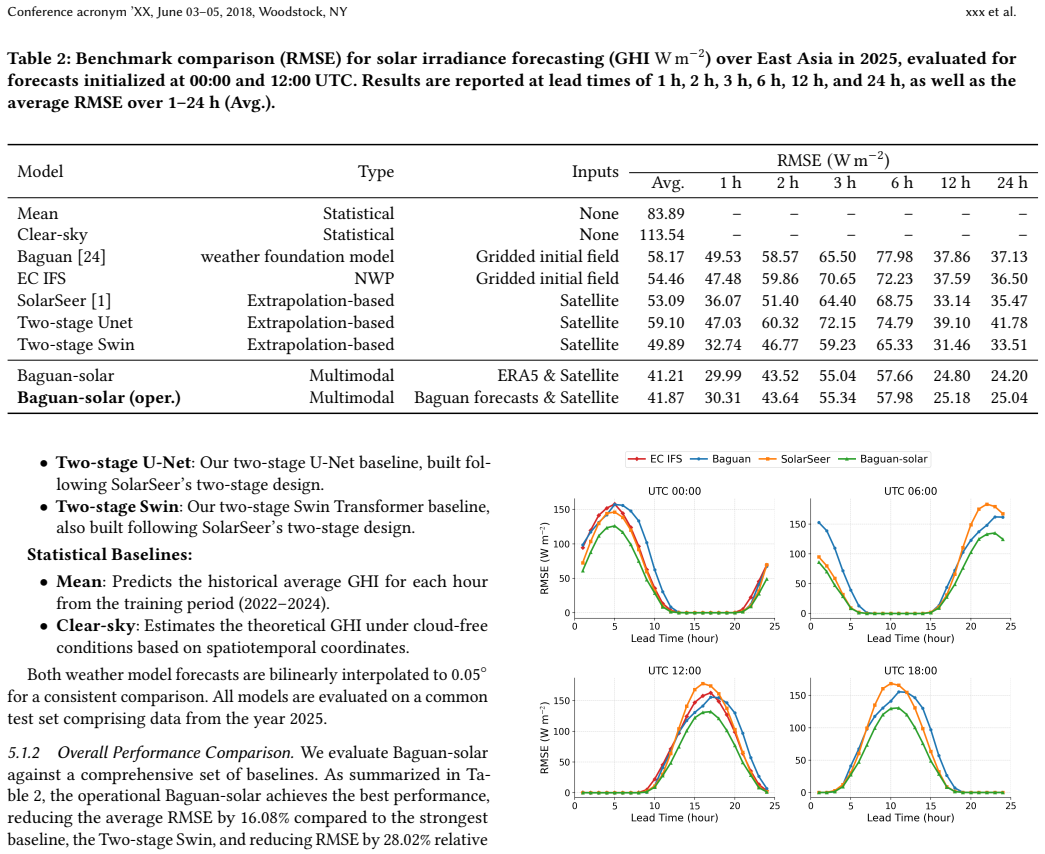

Figure 3. Figure 3: RMSE of GHI forecasts as a function of lead time [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

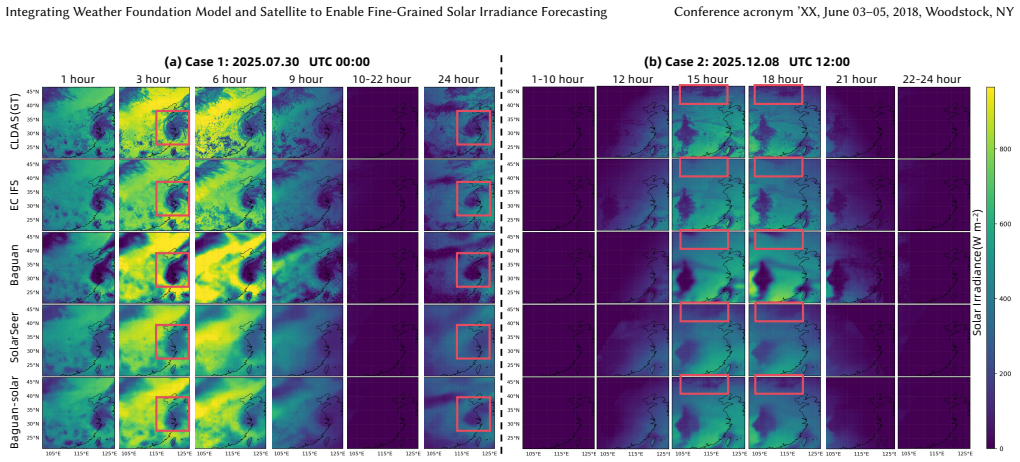

Figure 4. Figure 4: Qualitative comparison of GHI forecast fields for two representative cases initialized at UTC 00:00 and 12:00. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

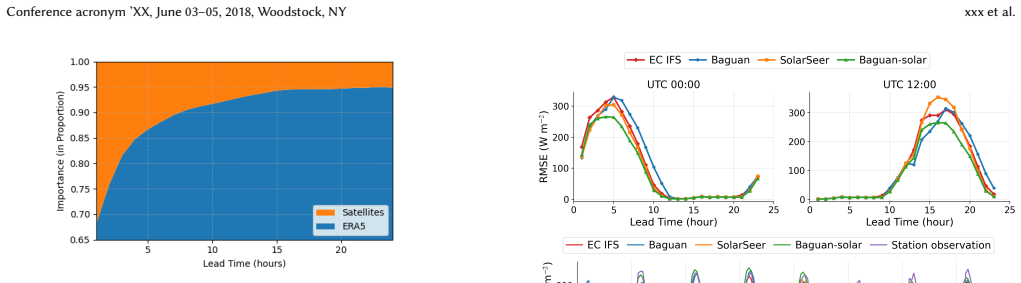

Figure 5. Figure 5: Importance of ERA5 vs Satellites across lead times. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

Accurate day-ahead solar irradiance forecasting is essential for integrating solar energy into the power grid. However, it remains challenging due to the pronounced diurnal cycle and inherently complex cloud dynamics. Current methods either lack fine-scale resolution (e.g., numerical weather prediction, weather foundation models) or degrade at longer lead times (e.g., satellite extrapolation). We propose Baguan-solar, a two-stage multimodal framework that fuses forecasts from Baguan, a global weather foundation model, with high-resolution geostationary satellite imagery to produce 24-hour irradiance forecasts at kilometer scale. Its decoupled two-stage design first forecasts day-night continuous intermediates (e.g., cloud cover) and then infers irradiance, while its modality fusion jointly preserves fine-scale cloud structures from satellite and large-scale constraints from Baguan forecasts. Evaluated over East Asia using CLDAS as ground truth, Baguan-solar outperforms strong baselines (including ECMWF IFS, vanilla Baguan, and SolarSeer), reducing RMSE by 16.08% and better resolving cloud-induced transients. An operational deployment of Baguan-solar has supported solar power forecasting in an eastern province in China, since July 2025. Our code is accessible at https://github.com/DAMO-DI-ML/Baguan-solar.git.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper proposes Baguan-solar, a two-stage multimodal framework for 24-hour solar irradiance forecasting at kilometer scale. It first generates day-night continuous intermediates (e.g., cloud cover) from the Baguan global weather foundation model, then fuses these forecasts with high-resolution geostationary satellite imagery to infer irradiance. Evaluated over East Asia against CLDAS ground truth, it reports a 16.08% RMSE reduction relative to baselines including ECMWF IFS, vanilla Baguan, and SolarSeer, with improved resolution of cloud-induced transients, and notes an operational deployment supporting solar power forecasting in an eastern Chinese province since July 2025. Code is released at a public GitHub repository.

Significance. If the central fusion mechanism is shown to preserve fine-scale satellite cloud structures without bias, the work would offer a practical advance in solar forecasting by combining large-scale constraints from weather foundation models with local satellite detail. The reported performance gain, explicit baseline comparisons, and real-world operational use would strengthen its relevance for grid integration of solar energy, while the open code supports reproducibility.

major comments (1)
  1. [§3] §3 (Method, two-stage fusion description): The decoupled design claims that modality fusion 'jointly preserves fine-scale cloud structures from satellite and large-scale constraints from Baguan forecasts,' yet no quantitative validation is provided (e.g., cloud-mask IoU, power-spectrum comparison of cloud fields, or per-pixel bias maps against raw satellite imagery). This check is load-bearing for attributing the 16.08% RMSE reduction and improved transient resolution to true fine-scale preservation rather than large-scale Baguan skill alone.
minor comments (2)
  1. [Abstract] Abstract: The operational deployment statement ('since July 2025') should include the exact start date, duration, and any performance metrics from the live system to allow assessment of real-world impact.
  2. [Experiments] Experiments section: The RMSE comparisons would be strengthened by reporting error bars, number of test periods, or statistical significance tests for the 16.08% reduction.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment below and have revised the manuscript to incorporate additional quantitative validation as suggested.

read point-by-point responses
  1. Referee: [§3] §3 (Method, two-stage fusion description): The decoupled design claims that modality fusion 'jointly preserves fine-scale cloud structures from satellite and large-scale constraints from Baguan forecasts,' yet no quantitative validation is provided (e.g., cloud-mask IoU, power-spectrum comparison of cloud fields, or per-pixel bias maps against raw satellite imagery). This check is load-bearing for attributing the 16.08% RMSE reduction and improved transient resolution to true fine-scale preservation rather than large-scale Baguan skill alone.

    Authors: We agree that direct quantitative validation of fine-scale preservation is important to rigorously attribute the performance gains to the multimodal fusion rather than Baguan skill alone. In the revised manuscript, we have added a new analysis subsection in §3 that includes: (i) cloud-mask IoU scores between the fused intermediates and raw geostationary satellite imagery, (ii) power-spectral-density comparisons of cloud fields to quantify retention of high-frequency spatial structures, and (iii) per-pixel bias maps against satellite observations. These metrics confirm that the decoupled fusion preserves satellite-derived fine-scale cloud details while respecting large-scale constraints from Baguan, thereby supporting the reported 16.08% RMSE reduction and improved transient resolution. revision: yes

Circularity Check

0 steps flagged

No significant circularity; performance claims rest on external validation against CLDAS

full rationale

The paper presents an empirical ML framework whose central claims (16.08% RMSE reduction and improved transient resolution) are measured directly against an external ground-truth dataset (CLDAS) and compared to named public baselines (ECMWF IFS, vanilla Baguan, SolarSeer). The two-stage decoupled fusion architecture is described as a design choice that takes Baguan intermediates as input and fuses them with satellite imagery; no equation or derivation step reduces the reported irradiance output to a fitted parameter or self-citation by construction. No self-definitional loops, fitted-input-as-prediction patterns, or load-bearing uniqueness theorems appear in the provided text. The evaluation remains falsifiable outside the model's own fitted values.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that Baguan's intermediate cloud-cover forecasts are sufficiently accurate to serve as large-scale constraints and that CLDAS provides unbiased kilometer-scale ground truth; no free parameters or invented physical entities are described in the abstract.

axioms (2)
  • domain assumption Baguan foundation model produces usable day-night continuous cloud-cover intermediates
    Invoked in the description of the first stage of the two-stage framework.
  • domain assumption CLDAS reanalysis constitutes accurate ground truth for irradiance at kilometer scale
    Used as the evaluation benchmark over East Asia.
