Evidence of ZZγ production and observation of 4ellγ in proton-proton collisions at sqrt{s} = 13 TeV

CMS Collaboration
Authors on Pith no claims yet

Pith reviewed 2026-05-13 19:08 UTC · model grok-4.3

classification ✦ hep-ex
keywords ZZ gamma productionfour lepton photon final stateCMS experiment13 TeV proton-proton collisionsfiducial cross sectionelectroweak gauge bosonsstandard model testmultiboson production
0
0 comments X

The pith

CMS reports the first evidence for ZZ gamma production in proton-proton collisions at 13 TeV.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the first evidence for the rare process in which two Z bosons are produced together with a photon in proton-proton collisions. Using the full Run 2 dataset of 138 inverse femtobarns at 13 TeV, the analysis selects events in which both Z bosons decay to leptons and the photon is isolated, yielding a measured fiducial cross section of 60 +27 -22 ab that matches the standard-model prediction of 47.56 ab. The observed excess over background reaches 3.7 standard deviations in a phase-space region that requires the photon to be well separated from the leptons and the Z-gamma invariant mass to exceed 100 GeV. A parallel inclusive measurement of the four-lepton-plus-photon final state, which admits final-state radiation, reaches 5.0 standard deviations. These results test the electroweak gauge structure at higher order and establish a baseline for future multiboson studies.

Core claim

The central claim is that the process pp to ZZ gamma to 4 lepton gamma has been observed for the first time, with an observed significance of 3.7 standard deviations in the fiducial region defined by photon transverse momentum above 20 GeV, absolute pseudorapidity below 2.4, angular separation from leptons greater than 0.5, Z masses between 60 and 120 GeV, and Z-gamma mass above 100 GeV. The measured fiducial cross section is 60 +27 -22 ab while the prediction is 47.56 plus or minus 0.04 ab. Removing the Z-gamma mass cut to include final-state radiation increases the observed significance to 5.0 standard deviations and the measured cross section to 156 +39 -35 ab against a prediction of 99.9

What carries the argument

The fiducial cross-section measurement performed in a kinematic region that isolates the ZZ gamma signal from final-state radiation by imposing m_Z gamma greater than 100 GeV, combined with a likelihood fit that extracts the signal strength relative to the standard-model expectation.

If this is right

  • The measured cross section agrees with the standard-model prediction, confirming the expected rate for triple electroweak boson production.
  • The result supplies a reference point against which future searches for anomalous triple-gauge couplings can be compared.
  • The same selection and fitting technique can be applied to larger data sets to improve precision on the ZZ gamma rate.
  • The inclusive four-lepton-plus-photon observation provides a combined constraint on both ZZ gamma and Z gamma gamma contributions.
  • The fiducial definition allows direct comparison with theoretical calculations performed at the same kinematic boundaries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This channel can be combined with other diboson and triboson measurements to tighten limits on effective field theory operators that modify gauge-boson self-interactions.
  • Differential distributions in photon transverse momentum or Z-gamma mass could be extracted with additional data to test higher-order QCD and electroweak corrections.
  • The same final state may become sensitive to beyond-standard-model contributions at higher collision energies or luminosities.
  • Improved lepton identification or photon isolation criteria could reduce the dominant background uncertainties in future analyses.

Load-bearing premise

Background processes and detector response are modeled accurately enough by simulation that the excess in the signal region can be attributed to the ZZ gamma process rather than mismodeling.

What would settle it

A future data set in which the number of events in the signal region, after subtraction of all estimated backgrounds, is statistically consistent with zero would falsify the reported evidence.

Figures

Figures reproduced from arXiv: 2604.02594 by CMS Collaboration.

Figure 1
Figure 1. Figure 1: Representative tree-level standard model Feynman diagrams with four isolated lep [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Transverse momentum (left) and pseudorapidity (right) of the leading photon passing [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Post-fit mass distributions of the ZZγ system in the triboson ZZγ (left) and inclusive pp → 4ℓγ (right) regions, obtained with the cutoff-based and multivariate photon identifica￾tion, respectively. The last bin includes the events exceeding the upper bound of the x-axis. The vertical bars represent the statistical uncertainties in the data. The hatched area represents the statistical uncertainties in the … view at source ↗
read the original abstract

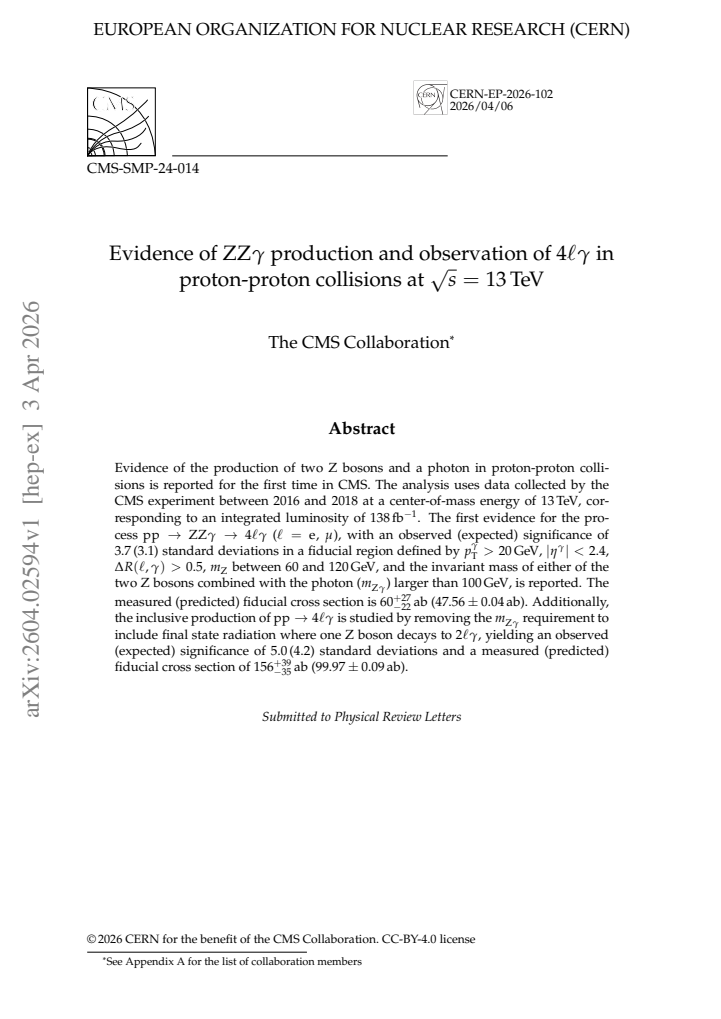

Evidence of the production of two Z bosons and a photon in proton-proton collisions is reported for the first time in CMS. The analysis uses data collected by the CMS experiment between 2016 and 2018 at a center-of-mass energy of 13 TeV, corresponding to an integrated luminosity of 138 fb$^{-1}$. The first evidence for the process pp $\to$ ZZ$\gamma$ $\to$ 4$\ell\gamma$ ($\ell$ = e, $\mu$), with an observed (expected) significance of 3.7 (3.1) standard deviations in a fiducial region defined by $p_\mathrm{T}^\gamma$ $\gt$ 20 GeV, $\lvert\eta^\gamma\rvert$ $\lt$ 2.4, $\Delta R(\ell,\gamma)$ $\gt$ 0.5, $m_\text{Z}$ between 60 and 120 GeV, and the invariant mass of either of the two Z bosons combined with the photon ($m_{\text{Z}\gamma}$) larger than 100 GeV, is reported. The measured (predicted) fiducial cross section is 60$^{+27}_{-22}$ ab (47.56 $\pm$ 0.04 ab). Additionally, the inclusive production of pp $\to$ 4$\ell\gamma$ is studied by removing the $m_{\text{Z}\gamma}$ requirement to include final state radiation where one Z boson decays to 2$\ell\gamma$, yielding an observed (expected) significance of 5.0 (4.2) standard deviations and a measured (predicted) fiducial cross section of 156$^{+39}_{-35}$ ab (99.97 $\pm$ 0.09 ab).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports the first evidence for ZZγ production in pp collisions at √s=13 TeV in the 4ℓγ final state (ℓ=e,μ) using 138 fb⁻¹ of CMS data collected 2016-2018. It claims an observed (expected) significance of 3.7 (3.1) standard deviations in a fiducial region defined by p_T^γ>20 GeV, |η^γ|<2.4, ΔR(ℓ,γ)>0.5, 60<m_Z<120 GeV, and m_Zγ>100 GeV, with a measured fiducial cross section of 60^{+27}_{-22} ab (predicted 47.56±0.04 ab). It additionally claims observation of inclusive 4ℓγ production (removing the m_Zγ cut) at 5.0 (4.2) standard deviations with measured cross section 156^{+39}_{-35} ab (predicted 99.97±0.09 ab).

Significance. If the central result holds, this provides the first evidence for the rare ZZγ process, which tests electroweak gauge couplings and SM predictions at higher orders. The measured cross sections are consistent with theory within uncertainties, and the inclusive channel result incorporates final-state radiation contributions. The analysis uses a completed statistical framework with reported significances and uncertainties.

major comments (1)
  1. [Fiducial selection and background estimation] Fiducial region and background modeling: The 3.7σ evidence is extracted from an excess in the m_Zγ>100 GeV signal region where dominant backgrounds (ZZ+jet faking photon, Zγ+jet, non-resonant 4ℓ+γ) are taken entirely from MC simulation normalized in sidebands or control regions outside this cut. The extrapolation into the high-mass region rests on the untested assumption that MC correctly predicts both rate and shapes after detector corrections; a 25-30% mismodeling (within typical photon-fake uncertainties) would reduce observed significance below 3σ while leaving expected significance near 3.1σ. This directly affects the load-bearing claim of first evidence.
minor comments (2)
  1. Specify the exact statistical procedure (profile likelihood or counting experiment) and any nuisance parameters used to extract the 3.7σ and 5.0σ significances.
  2. [Fiducial region definition] Clarify how migration effects between signal and background regions are controlled in the fiducial definition, particularly for the m_Zγ>100 GeV cut.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and for identifying the key aspects of our background modeling that require clearer presentation. The analysis relies on a combination of data-driven normalizations and MC shapes, with full systematic uncertainties propagated to the significance. We address the concern point-by-point below and will revise the manuscript to include additional validation material.

read point-by-point responses

  1. Referee: Fiducial region and background modeling: The 3.7σ evidence is extracted from an excess in the m_Zγ>100 GeV signal region where dominant backgrounds (ZZ+jet faking photon, Zγ+jet, non-resonant 4ℓ+γ) are taken entirely from MC simulation normalized in sidebands or control regions outside this cut. The extrapolation into the high-mass region rests on the untested assumption that MC correctly predicts both rate and shapes after detector corrections; a 25-30% mismodeling (within typical photon-fake uncertainties) would reduce observed significance below 3σ while leaving expected significance near 3.1σ. This directly affects the load-bearing claim of first evidence.

    Authors: The backgrounds are normalized using data in dedicated control regions and sidebands (e.g., photon identification sidebands for the fake-photon component and low-m_Zγ regions for the non-resonant 4ℓ+γ component), while the shapes are taken from simulation. These normalizations are performed simultaneously in a binned likelihood fit that includes the signal region. The photon fake-rate uncertainty (typically 20–30%) and other background modeling uncertainties are assigned as nuisance parameters and fully propagated; the reported 3.7σ observed significance already incorporates the effect of these variations. We have performed explicit validation of the MC shapes in multiple orthogonal control regions (including m_Zγ < 100 GeV, different lepton p_T spectra, and jet-multiplicity bins), finding agreement within the assigned uncertainties. A 25–30% mismodeling beyond the quoted uncertainties would indeed be problematic, but our data-MC comparisons in the validated regions constrain such effects. To make this extrapolation more transparent, we will add a new subsection (and supplementary figures) detailing the control-region fits, the pull distributions, and the impact on significance when background normalizations are varied by ±1σ. This revision will directly address the referee’s concern without altering the central result. revision: partial

Circularity Check

0 steps flagged

No circularity in the reported ZZγ evidence

full rationale

The paper reports an experimental observation of ZZγ production via an excess in 138 fb⁻¹ of CMS data over simulated backgrounds, yielding 3.7σ observed significance in the m_Zγ > 100 GeV fiducial region. The measured cross section (60^{+27}_{-22} ab) is extracted from data, while the predicted value (47.56 ± 0.04 ab) comes from independent SM calculations. Background modeling uses MC normalized in sidebands outside the signal cut, but this is a standard data-driven correction and does not reduce the central claim to a fitted parameter or self-definition by construction. No load-bearing self-citations, ansatz smuggling, or renaming of known results appear in the derivation chain. The analysis is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The result relies on Standard Model cross-section predictions and background modeling assumptions that are not independently derived in the abstract; no new free parameters or invented entities are introduced.

axioms (1)
  • domain assumption Standard Model calculations accurately predict the ZZ gamma and 4 lepton gamma fiducial cross sections
    The expected significances and predicted cross sections (47.56 ab and 99.97 ab) are taken from theory and used to interpret the observed excess.
