Learning Locomotion on Complex Terrain for Quadrupedal Robots with Foot Position Maps and Stability Rewards

Matthew Hwang , Yubin Liu , Ryo Hakoda , Takeshi Oishi
Authors on Pith no claims yet

Pith reviewed 2026-05-13 20:30 UTC · model grok-4.3

classification 💻 cs.RO
keywords quadrupedal locomotionreinforcement learningfoot position mapstability rewardcomplex terraingeneralizationout-of-domainattention-based policy
0
0 comments X

The pith

Adding foot position maps to heightmaps and stability rewards to policies lets quadrupedal robots walk more precisely and stably on complex terrains.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that embedding an explicit foot position map into the terrain heightmap and adding a dynamic locomotion-stability reward to an attention-based reinforcement learning policy produces more precise and stable quadrupedal movement. Standard RL methods infer foot placements only implicitly from joint angles, which limits accuracy on rough ground. A sympathetic reader would care because reliable navigation over unpredictable surfaces is essential for practical robot deployment. The work validates the approach through extensive tests on both training terrains and out-of-domain ones, reporting higher success rates.

Core claim

By integrating a foot position map into the heightmap and employing a locomotion-stability reward in an attention-based policy, the method achieves precise and stable quadrupedal locomotion on complex terrain, with demonstrated improvements in success rates for both in-domain and out-of-domain cases.

What carries the argument

The foot position map integrated into the heightmap observation together with a dynamic locomotion-stability reward inside an attention-based reinforcement learning framework, supplying explicit placement data and stability signals to the policy.

If this is right

  • Locomotion success rates increase on terrains seen during training.
  • Performance improves on out-of-domain terrains not encountered in training.
  • Foot placement becomes more precise than in policies that infer positions only from joint angles.
  • Movement stability rises during traversal of complex surfaces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The explicit map could narrow the difference between learning-based and classical optimization methods for foot placement.
  • Similar observation and reward structures might transfer to other legged platforms with minimal redesign.
  • Further tests with altered terrain generation parameters in simulation would help isolate whether gains are truly distribution-robust.

Load-bearing premise

That the foot position map and stability reward produce genuine generalization to new terrains rather than overfitting to the specific simulation distributions and reward shaping.

What would settle it

Transferring the trained policy to a physical quadruped and measuring locomotion success rates on real-world complex terrains that differ from simulation; a large drop relative to simulation results would falsify the generalization claim.

Figures

Figures reproduced from arXiv: 2604.02744 by Matthew Hwang, Ryo Hakoda, Takeshi Oishi, Yubin Liu.

Figure 1

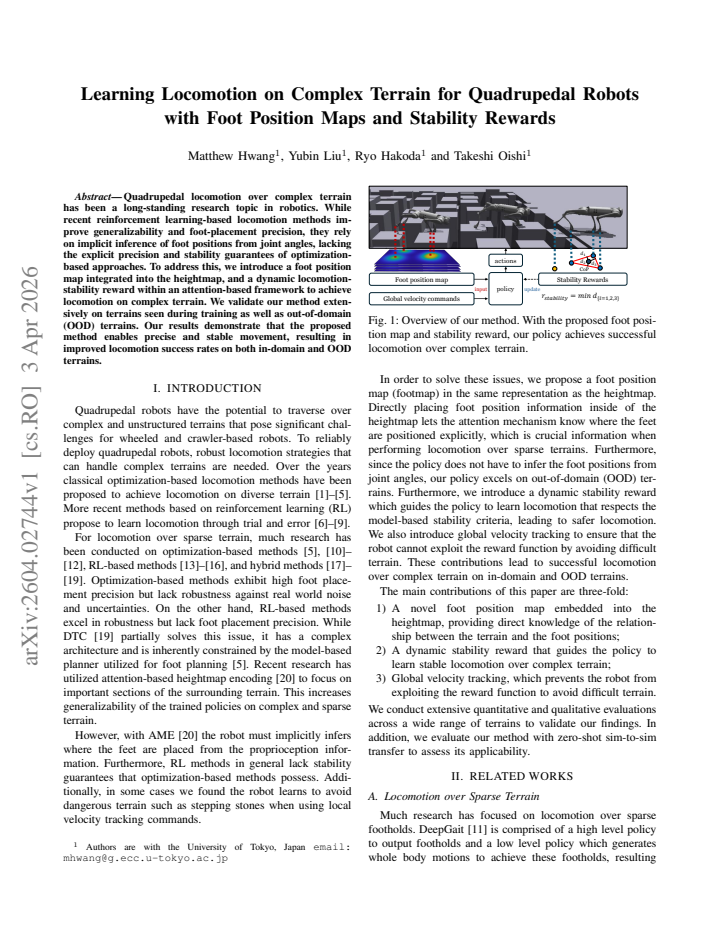

Figure 1. Figure 1: Overview of our method. With the proposed foot posi [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: We propose a foot position map which is concatenated with the heightmap providing information of the foot positions [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

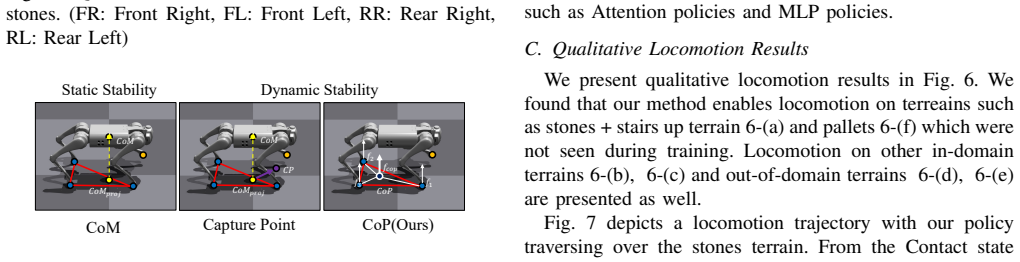

Figure 3. Figure 3: CoP-based stability rewards. We calculate the mini [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4

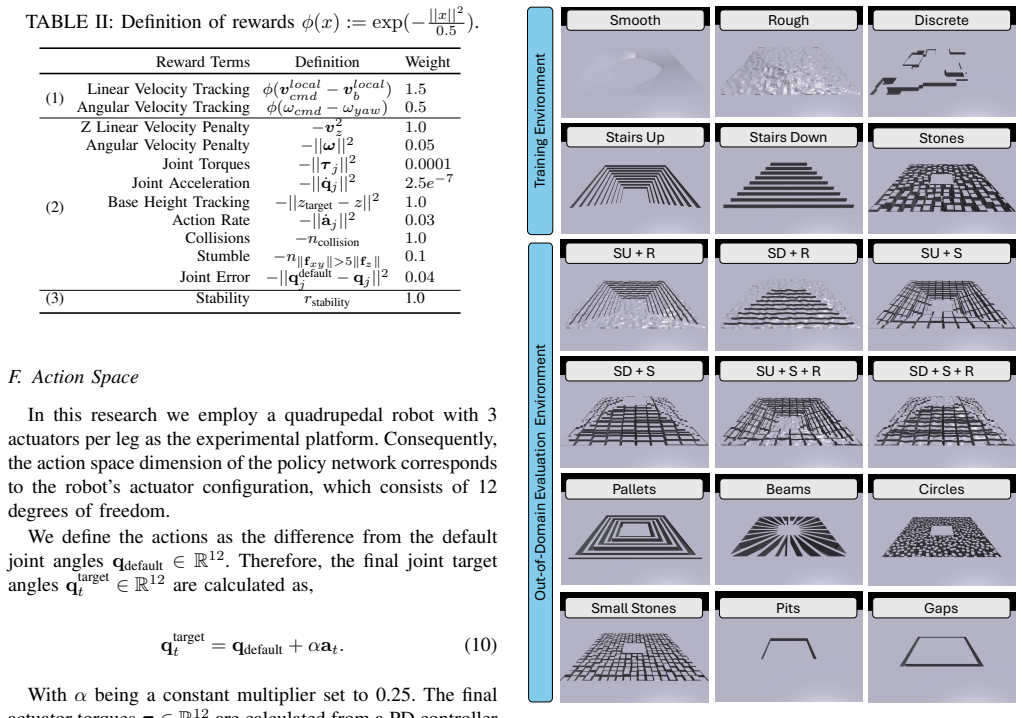

Figure 4. Figure 4: The training environment consists of smooth, rough, [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

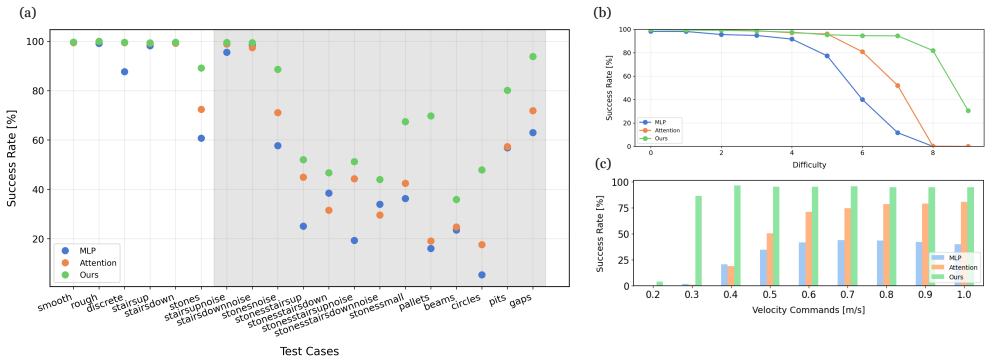

Figure 5. Figure 5: The success rate results. (a) Our proposed method produces higher success rates across the board for all terrains. (b) [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Qualitative locomotion results of our proposed method on different terrains. (a) stones + stairs up, (b) stairs up, (c) [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Qualitative locomotion results of our method on [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: We implement stability rewards based on the CoM [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9

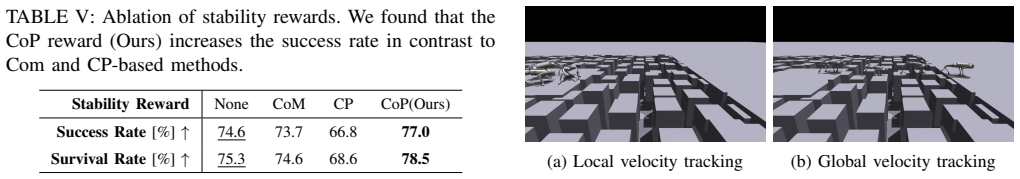

Figure 9. Figure 9: When using global velocity tracking the issue of [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10

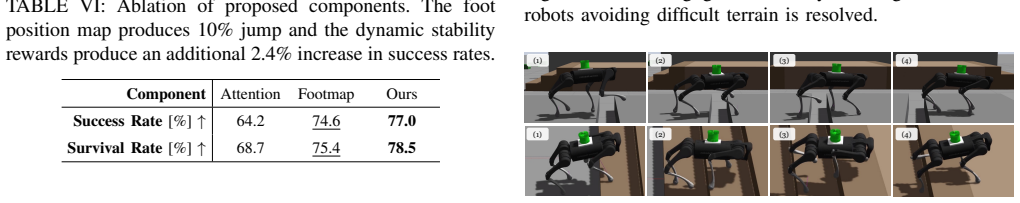

Figure 10. Figure 10: Locomotion results on gaps (top) of 20cm and stairs [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
