arxiv: 2604.03450 · v1 · submitted 2026-04-03 · 🧮 math.OC · cs.SY· eess.SY

Recognition: no theorem link

High-Order Matrix Control Barrier Functions: Well-Posedness and Feasibility via Matrix Relative Degree

Samuel G. Gessow , Pio Ong , Aaron D. Ames , Brett T. Lopez

Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:50 UTC · model grok-4.3

classification 🧮 math.OC cs.SYeess.SY

keywords matrix control barrier functionshigh-order control barrier functionsmatrix relative degreesafety constraintsquadratic programmingforward invariancepositive definitenessdynamical systems

0 comments

The pith

High-order matrix control barrier functions ensure well-posedness and feasibility for enforcing matrix-valued safety constraints in high-order dynamical systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops high-order matrix control barrier functions to handle safety conditions expressed directly as matrix inequalities, such as positive definiteness, rather than scalar approximations that can introduce nonsmoothness. It establishes conditions based on the matrix relative degree that make the associated quadratic program for control synthesis both well-posed and feasible. This allows enforcement of forward invariance for systems where the control input appears only after multiple derivatives of the matrix safety function. An optimal-decay variant further restricts the required control effort to the minimum-eigenspace direction. The approach is illustrated on a double-integrator localization problem that keeps an information matrix positive definite under a nonlinear measurement model.

Core claim

High-order matrix control barrier functions are constructed by successive Lie derivatives of a matrix-valued safety function until the control input appears at a finite order determined by the matrix relative degree; the paper proves that this construction yields a well-posed quadratic program whose feasible solutions render the safe matrix set forward invariant, and that an optimal-decay formulation achieves invariance by acting only on the minimum-eigenspace.

What carries the argument

High-order matrix control barrier function defined via successive matrix Lie derivatives, with matrix relative degree fixing the order at which the input enters and ensuring the resulting constraint is well-posed.

If this is right

The quadratic program for control remains feasible for any safe initial state.
Forward invariance of matrix-defined safe sets, including positive-definiteness sets, is guaranteed.
In the optimal-decay formulation, control effort is required only along the minimum-eigenvalue direction.
The method applies to high-relative-degree systems such as double integrators without scalarization of the matrix constraint.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same relative-degree machinery could be applied to time-varying matrix constraints arising in adaptive or learning-based controllers.
Covariance or Gram-matrix safety specifications in multi-sensor fusion problems become directly enforceable without eigenvalue extraction at every step.
Hardware experiments on vehicles or manipulators with nonlinear range sensors would reveal how measurement noise interacts with the matrix barrier margin.

Load-bearing premise

The system admits a well-defined matrix relative degree for the chosen matrix safety function so that the control input appears after a finite number of derivatives.

What would settle it

A concrete system in which the matrix relative degree is undefined yet the high-order matrix barrier constraint is imposed, resulting in an infeasible quadratic program or violation of the matrix safety condition.

Figures

Figures reproduced from arXiv: 2604.03450 by Aaron D. Ames, Brett T. Lopez, Pio Ong, Samuel G. Gessow.

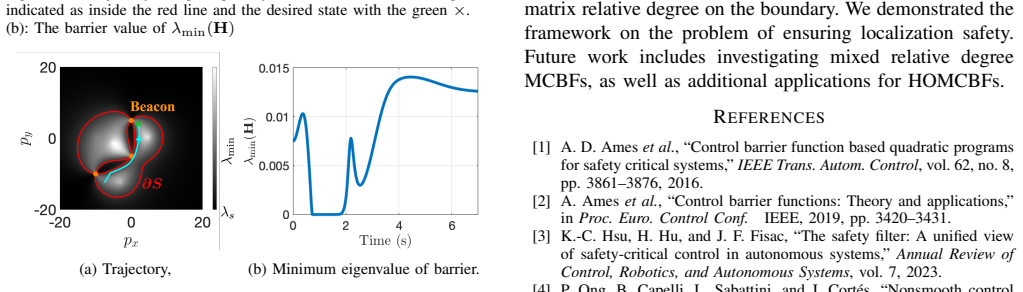

**Figure 2.** Figure 2: (a): Trajectory using heading-only measurements; the safe region is [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

read the original abstract

Control barrier functions (CBFs) provide an effective framework for enforcing safety in dynamical systems with scalar constraints. However, many safety constraints are more naturally expressed as matrix-valued conditions, such as positive definiteness or eigenvalue bounds - scalar formulations introduce potential nonsmoothness that complicates analysis. Matrix control barrier functions (MCBFs) address this limitation by directly enforcing matrix-valued safety constraints. Yet for constraints where the control input does not appear in the first derivative, high-order formulations are required. While such extensions are well understood in the scalar case, they remain largely unexplored in the matrix case. This paper develops high-order matrix control barrier functions (HOMCBFs) and establishes conditions ensuring well-posedness and feasibility of the associated constraints, enabling enforcement of matrix-valued safety constraints for systems with high-order dynamics. We further show that, using an optimal-decay HOMCBF formulation, forward invariance can be ensured while requiring control only over the minimum eigenspace. The framework is demonstrated on a localization safety problem by enforcing positive definiteness of the information matrix for a double integrator system with a nonlinear measurement model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper lifts high-order scalar CBFs to matrices by defining a matrix relative degree and deriving explicit feasibility conditions for the QP.

read the letter

The main contribution is a direct extension of high-order control barrier functions to matrix-valued constraints. They define the necessary higher-order Lie derivatives for matrix functions, state a clean matrix relative degree assumption, and show that the resulting quadratic program is feasible under that assumption. An optimal-decay formulation is included that only requires control action on the minimum-eigenspace direction to keep the matrix positive definite. The double-integrator localization example is worked through explicitly and confirms the control appears at the predicted order for the information matrix constraint.

Referee Report

1 major / 3 minor

Summary. The paper introduces high-order matrix control barrier functions (HOMCBFs) to enforce matrix-valued safety constraints (e.g., positive definiteness or eigenvalue bounds) in control systems whose dynamics have relative degree greater than one. It defines a matrix relative degree, derives explicit well-posedness and feasibility conditions for the associated quadratic-program constraints, proves forward invariance under an optimal-decay formulation that requires actuation only on the minimum-eigenspace, and illustrates the method on a double-integrator localization task that maintains positive-definiteness of an information matrix under a nonlinear measurement model.

Significance. If the derivations hold, the work supplies a direct, nonsmoothness-free route from scalar high-order CBF theory to matrix-valued constraints, which is relevant for covariance, Gramian, or positive-definiteness specifications that arise in estimation and multi-agent control. The explicit feasibility conditions and the minimum-eigenspace localization result are concrete technical advances; the worked double-integrator example supplies a reproducible test case.

major comments (1)

[§4.2, Theorem 2] §4.2, Theorem 2: the feasibility condition is stated to hold whenever the matrix relative degree is well-defined and the minimum eigenvalue of the barrier function lies above a prescribed threshold; however, the proof sketch does not explicitly address the case in which the control matrix that multiplies the highest-order Lie derivative becomes rank-deficient exactly when the barrier is active.

minor comments (3)

The term 'optimal-decay HOMCBF' is introduced in the abstract and used in §5 without an inline definition; a one-sentence reminder of its precise form (i.e., the QP that minimizes the decay rate subject to the matrix inequality) would aid readers who skip to the example.
[§6] In the double-integrator localization example (§6), the successive Lie derivatives of the matrix-valued barrier are written out, but the final expression for the highest-order term is not accompanied by a numerical check that the relative-degree assumption indeed holds for the chosen nonlinear measurement function.
[§3] Notation: the symbol for the matrix Lie derivative is introduced in §3 but reused with a subscript indicating order; a short table collecting the definitions for orders 0 through r would eliminate ambiguity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the constructive comment. We address the single major comment below and will incorporate the necessary clarification into the revised manuscript.

read point-by-point responses

Referee: [§4.2, Theorem 2] §4.2, Theorem 2: the feasibility condition is stated to hold whenever the matrix relative degree is well-defined and the minimum eigenvalue of the barrier function lies above a prescribed threshold; however, the proof sketch does not explicitly address the case in which the control matrix that multiplies the highest-order Lie derivative becomes rank-deficient exactly when the barrier is active.

Authors: We thank the referee for identifying this subtlety. Definition 3 of matrix relative degree requires that the highest-order control matrix G(x) has constant rank in an open neighborhood of the safe set; the feasibility statement in Theorem 2 is therefore conditioned on this rank being full. Nevertheless, the proof sketch does not explicitly treat the boundary case in which rank(G(x)) drops precisely when the minimum eigenvalue reaches the threshold. In the revision we will augment the proof of Theorem 2 with a short case analysis: when rank deficiency occurs on the boundary we project the quadratic-program constraint onto the column space of G(x) and invoke the optimal-decay formulation to guarantee that the Lie derivative remains strictly negative in the relevant eigen-directions. This addition preserves the theorem statement while closing the gap in the argument. revision: yes

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on the existence of a matrix relative degree and standard Lie-derivative constructions from nonlinear control theory; no free parameters or new invented entities are described in the abstract.

axioms (1)

domain assumption The dynamical system possesses a well-defined matrix relative degree
Invoked by the title and abstract to enable the high-order formulation

pith-pipeline@v0.9.0 · 5510 in / 1165 out tokens · 69436 ms · 2026-05-13T17:50:33.257224+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

[1]

Control barrier function based quadratic programs for safety critical systems,

A. D. Ameset al., “Control barrier function based quadratic programs for safety critical systems,”IEEE Trans. Autom. Control, vol. 62, no. 8, pp. 3861–3876, 2016

work page 2016
[2]

Control barrier functions: Theory and applications,

A. Ameset al., “Control barrier functions: Theory and applications,” inProc. Euro. Control Conf.IEEE, 2019, pp. 3420–3431

work page 2019
[3]

The safety filter: A unified view of safety-critical control in autonomous systems,

K.-C. Hsu, H. Hu, and J. F. Fisac, “The safety filter: A unified view of safety-critical control in autonomous systems,”Annual Review of Control, Robotics, and Autonomous Systems, vol. 7, 2023

work page 2023
[4]

Nonsmooth control barrier function design of continuous constraints for network connec- tivity maintenance,

P. Ong, B. Capelli, L. Sabattini, and J. Cort ´es, “Nonsmooth control barrier function design of continuous constraints for network connec- tivity maintenance,”automatica, vol. 156, p. 111209, 2023

work page 2023
[5]

Information control barrier functions: Preventing localization failures in mobile systems through control,

S. G. Gessow, D. Thorne, and B. T. Lopez, “Information control barrier functions: Preventing localization failures in mobile systems through control,”IEEE Control Systems Letters, 2024

work page 2024
[6]

Matrix control barrier functions,

P. Ong, Y . Xu, R. M. Bena, F. Jabbari, and A. D. Ames, “Matrix control barrier functions,”arXiv preprint arXiv:2508.11795, 2025

work page arXiv 2025
[7]

Nonsmooth barrier func- tions with applications to multi-robot systems,

P. Glotfelter, J. Cort ´es, and M. Egerstedt, “Nonsmooth barrier func- tions with applications to multi-robot systems,”IEEE Control Syst. Lett., vol. 1, no. 2, pp. 310–315, 2017

work page 2017
[8]

Blanchini, S

F. Blanchini, S. Mianiet al.,Set-theoretic methods in control. Springer, 2008, vol. 78

work page 2008
[9]

Control barrier functions for systems with high relative degree,

W. Xiao and C. Belta, “Control barrier functions for systems with high relative degree,” inProc. IEEE Conf. Decis. Control, 2019, pp. 474–479

work page 2019
[10]

A scalable safety critical control framework for nonlinear systems,

T. Gurriet, M. Mote, A. Singletary, P. Nilsson, E. Feron, and A. D. Ames, “A scalable safety critical control framework for nonlinear systems,”IEEE Access, vol. 8, pp. 187 249–187 275, 2020

work page 2020
[11]

Safety-critical control using optimal-decay control barrier function with guaranteed point- wise feasibility,

J. Zeng, B. Zhang, Z. Li, and K. Sreenath, “Safety-critical control using optimal-decay control barrier function with guaranteed point- wise feasibility,” in2021 American Control Conference (ACC). IEEE, 2021, pp. 3856–3863

work page 2021
[12]

On the properties of optimal-decay control barrier functions,

P. Ong, M. H. Cohen, T. G. Molnar, and A. D. Ames, “On the properties of optimal-decay control barrier functions,” inProc. IEEE Conf. Decis. Control (CDC). IEEE, 2025, pp. 7375–7382

work page 2025
[13]

High-order control barrier functions,

W. Xiao and C. Belta, “High-order control barrier functions,”IEEE Trans. Autom. Control, vol. 67, no. 7, pp. 3655–3662, 2021

work page 2021
[14]

Stabilization with relaxed controls,

Z. Artstein, “Stabilization with relaxed controls,”Nonlinear Analysis, vol. 7, no. 11, pp. 1163–1173, 1983

work page 1983
[15]

Kato,Perturbation Theory for Linear Operators, ser

T. Kato,Perturbation Theory for Linear Operators, ser. Grundlehren der mathematischen Wissenschaften: a series of comprehensive studies in mathematics. Berlin: Springer, 1966

work page 1966
[16]

Keyframe-based visual–inertial odometry using nonlinear optimization,

S. Leuteneggeret al., “Keyframe-based visual–inertial odometry using nonlinear optimization,”Int. J. Robot. Res., vol. 34, no. 3, pp. 314– 334, 2015

work page 2015
[17]

T. D. Barfoot,State estimation for robotics. Cambridge Univ. Press, 2024

work page 2024
[18]

Direct lidar-inertial odome- try: Lightweight lio with continuous-time motion correction,

K. Chen, R. Nemiroff, and B. T. Lopez, “Direct lidar-inertial odome- try: Lightweight lio with continuous-time motion correction,” in2023 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2023, pp. 3983–3989

work page 2023
[19]

Perception-aware path planning,

G. Costanteet al., “Perception-aware path planning,” arXiv:1605.04151, 2016

work page arXiv 2016
[20]

Pampc: Perception-aware model predictive control for quadrotors,

D. Falangaet al., “Pampc: Perception-aware model predictive control for quadrotors,” inIEEE Int. Conf. Intell. Robots Syst., 2018, pp. 1–8

work page 2018
