arxiv: 2604.04324 · v1 · submitted 2026-04-06 · 💻 cs.AI · cs.SE

Recognition: no theorem link

RESCORE: LLM-Driven Simulation Recovery in Control Systems Research Papers

Vineet Bhat , Shiqing Wei , Ali Umut Kaypak , Prashanth Krishnamurthy , Ramesh Karri , Farshad Khorrami
Authors on Pith no claims yet

Pith reviewed 2026-05-10 20:22 UTC · model grok-4.3

classification 💻 cs.AI cs.SE
keywords simulation recoveryLLM agentscontrol systemsreproducibilitypaper to codeagentic frameworkiterative verificationbenchmark
0
0 comments X

The pith

An LLM agentic framework recovers executable simulations from 40.7% of control systems papers by iteratively analyzing, coding, and verifying outputs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper defines the task of recovering runnable simulations from research papers that often leave parameters underspecified. It presents RESCORE, a three-part LLM system that breaks down the paper, writes code, and checks results through repeated execution and visual matching. The method succeeds on 40.7 percent of a 500-paper benchmark from the IEEE Conference on Decision and Control, beating direct generation approaches. Success here would let researchers verify published claims much faster than manual recreation. The authors also release the benchmark to support further work on automated replication.

Core claim

RESCORE is a three-component LLM agentic framework consisting of an Analyzer that parses paper content, a Coder that produces simulation code, and a Verifier that runs the code and compares outputs visually to the paper's results. Iterative loops of execution feedback allow the system to refine the code until it produces task-coherent simulations. On a curated benchmark of 500 papers from the IEEE Conference on Decision and Control, this process recovers matching simulations for 40.7 percent of instances while outperforming single-pass generation and delivering an estimated 10X speedup relative to manual human replication.

What carries the argument

The RESCORE pipeline that combines LLM-driven paper analysis, code generation, and iterative verification through execution feedback plus visual comparison to resolve ambiguities.

If this is right

  • Published control methodologies become easier to verify and build upon without full manual reimplementation.
  • The 10X estimated speedup over human replication lowers the barrier to checking claims in the literature.
  • The released benchmark of 500 CDC papers provides a standard test set for measuring progress on automated replication.
  • Agentic loops that incorporate runtime checks outperform one-shot code generation for recovering complex simulations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar iterative LLM pipelines could be tested on papers from neighboring fields that rely on numerical simulations, such as robotics or signal processing.
  • The benchmark enables direct comparison of future recovery systems against the 40.7 percent baseline.
  • Success on this task suggests LLMs can infer missing details when given concrete execution and visual signals rather than relying on text alone.
  • Widespread adoption would shift research practice toward routine automated checks of published results.

Load-bearing premise

Iterative LLM analysis, code generation, and verification via execution feedback and visual comparison can reliably overcome underspecified parameters and ambiguous implementation details in control systems papers.

What would settle it

Applying RESCORE to the 500-paper benchmark and obtaining a success rate below 25 percent for simulations that match both numerical outputs and published figures would falsify the reported recovery performance.

Figures

Figures reproduced from arXiv: 2604.04324 by Ali Umut Kaypak, Farshad Khorrami, Prashanth Krishnamurthy, Ramesh Karri, Shiqing Wei, Vineet Bhat.

Figure 1
Figure 1. Figure 1: RESCORE framework automates code recovery from control system papers. After filtering, expert screening, and annotation, Analyzer, Coder, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Prompt for Coder Agent. The agent performs both initial code [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: Prompt for Analyzer Agent. The agent performs two tasks: [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Prompt for Verifier Agent: The agent receives the generated and [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

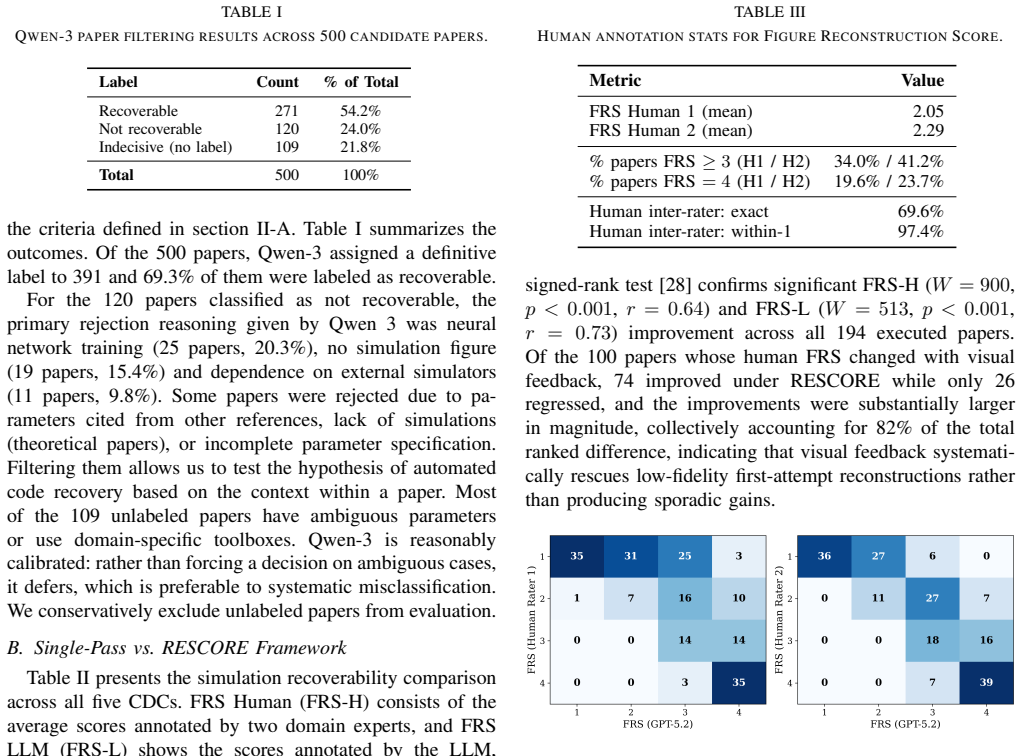

Figure 5
Figure 5. Figure 5: Confusion matrices: Human raters vs. LLM grader on RESCORE [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

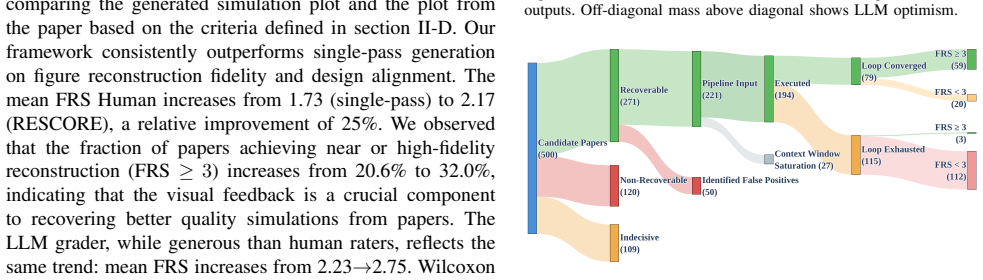

Figure 6
Figure 6. Figure 6: End-to-end attrition of the 500 candidate papers. Domain expert [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Distribution of papers for which the RESCORE loop converged [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Mean FRS by category (RESCORE, n = 194). Categories assigned by keyword match of paper titles. Human FRS avg. of both raters. minutes. When successful (FRS ≥ 3), it yields ∼10× speed￾up over manual replication. Even for partial reconstructions, the codebase is a structurally sound foundation and can reduce the effort to complete the simulation. G. Case Study As a case study, consider the paper [33] from CD… view at source ↗

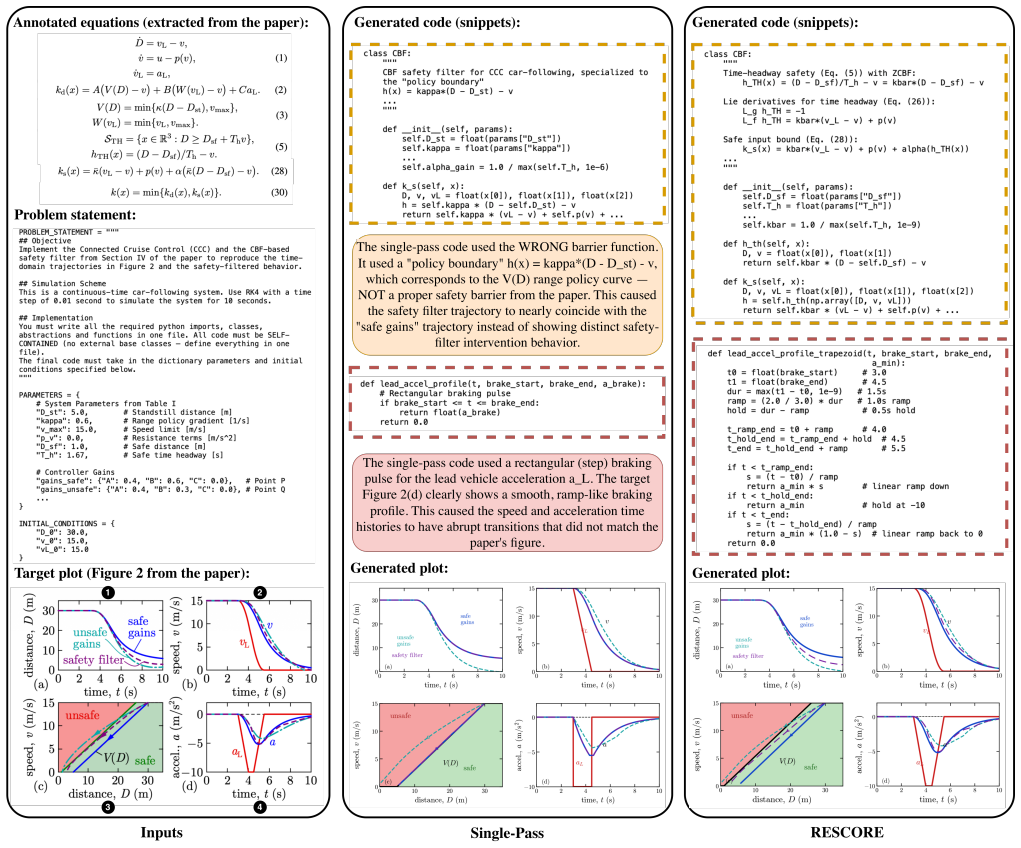

Figure 9
Figure 9. Figure 9: Case study for Connected Cruise Control system from [33]. [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

Reconstructing numerical simulations from control systems research papers is often hindered by underspecified parameters and ambiguous implementation details. We define the task of Paper to Simulation Recoverability, the ability of an automated system to generate executable code that faithfully reproduces a paper's results. We curate a benchmark of 500 papers from the IEEE Conference on Decision and Control (CDC) and propose RESCORE, a three component LLM agentic framework, Analyzer, Coder, and Verifier. RESCORE uses iterative execution feedback and visual comparison to improve reconstruction fidelity. Our method successfully recovers task coherent simulations for 40.7% of benchmark instances, outperforming single pass generation. Notably, the RESCORE automated pipeline achieves an estimated 10X speedup over manual human replication, drastically cutting the time and effort required to verify published control methodologies. We will release our benchmark and agents to foster community progress in automated research replication.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript defines the task of Paper to Simulation Recoverability and introduces RESCORE, a three-component LLM agentic framework consisting of Analyzer, Coder, and Verifier modules. The system employs iterative execution feedback and visual comparison to reconstruct executable code from control systems papers. It evaluates the approach on a new benchmark of 500 papers from the IEEE Conference on Decision and Control, claiming a 40.7% success rate in recovering task-coherent simulations (outperforming single-pass generation) and an estimated 10X speedup relative to manual human replication. The benchmark and agents are to be released.

Significance. If the performance claims hold under precise definitions of success and rigorous baselines, the work could meaningfully advance automated replication and verification in control theory and related engineering fields by lowering the barrier to reproducing published simulations. The curation of a 500-paper benchmark and the agentic iterative design represent constructive steps toward scalable research assistance tools.

major comments (3)
  1. [Abstract and §4] Abstract and §4 (Method): The central performance claim of 40.7% task-coherent recoveries is load-bearing for the outperformance and speedup assertions, yet the abstract and method description provide no explicit definition or operationalization of 'task coherent,' no quantitative single-pass baseline numbers, no error bars, and no scoring protocol for the visual comparison step. Without these, it is impossible to determine whether the metric requires numerical agreement on key control metrics (e.g., settling time, gain margins) or merely qualitative plot similarity.
  2. [§5] §5 (Experiments): The reported 40.7% success rate and 10X human speedup lack accompanying details on how benchmark instances were labeled successful, how the single-pass comparator was implemented, or any statistical analysis; this directly affects the validity of the cross-method comparison and the speedup estimate.
  3. [§4.3] Verifier component (§4.3): Execution feedback confirms runtime and basic behavior, while visual comparison (presumably LLM-mediated) can accept plausible but non-matching simulations generated with inferred or altered parameters. If the benchmark does not enforce exact reproduction of reported numerical results, the recoverability claim overstates fidelity to the original published methodology.
minor comments (2)
  1. [Abstract] The abstract would benefit from a one-sentence parenthetical gloss on 'task coherent' to improve immediate readability.
  2. [§5] Ensure all figures in the results section include clear captions specifying the exact success criterion used for each bar or table entry.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their detailed and constructive report. We address each major comment below, indicating planned revisions where appropriate to strengthen the clarity and rigor of the manuscript.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (Method): The central performance claim of 40.7% task-coherent recoveries is load-bearing for the outperformance and speedup assertions, yet the abstract and method description provide no explicit definition or operationalization of 'task coherent,' no quantitative single-pass baseline numbers, no error bars, and no scoring protocol for the visual comparison step. Without these, it is impossible to determine whether the metric requires numerical agreement on key control metrics (e.g., settling time, gain margins) or merely qualitative plot similarity.

    Authors: We agree that explicit definitions and metrics are necessary for interpreting the central claims. We will revise the abstract and Section 4 to include a precise operational definition of 'task-coherent,' specifying that it requires the generated simulation to reproduce the primary dynamical behaviors, stability characteristics, and key performance indicators described in the paper (with tolerance thresholds for quantitative metrics where reported). We will also add the single-pass baseline results with error bars from repeated evaluations and detail the LLM-mediated visual comparison scoring protocol, including the prompt criteria used to assess plot similarity and behavioral fidelity. revision: yes

  2. Referee: [§5] §5 (Experiments): The reported 40.7% success rate and 10X human speedup lack accompanying details on how benchmark instances were labeled successful, how the single-pass comparator was implemented, or any statistical analysis; this directly affects the validity of the cross-method comparison and the speedup estimate.

    Authors: We acknowledge the need for greater transparency in the experimental reporting. In the revised manuscript, we will expand Section 5 to describe the success labeling process (a combination of automated execution checks and human review against paper-reported outcomes), the exact implementation of the single-pass baseline (direct LLM code generation without iterative feedback), and statistical analysis including confidence intervals and significance testing for the performance differences. We will also provide additional details on the basis for the 10X speedup estimate, including the data collection method for human replication times. revision: yes

  3. Referee: [§4.3] Verifier component (§4.3): Execution feedback confirms runtime and basic behavior, while visual comparison (presumably LLM-mediated) can accept plausible but non-matching simulations generated with inferred or altered parameters. If the benchmark does not enforce exact reproduction of reported numerical results, the recoverability claim overstates fidelity to the original published methodology.

    Authors: The referee accurately notes that our verifier prioritizes executable and behaviorally coherent simulations over exact numerical matches, which is a deliberate design choice given that many control papers omit full parameter sets or implementation specifics. This aligns with the defined recoverability task but can indeed lead to acceptance of inferred parameters. We will revise Section 4.3 to explicitly state this limitation, clarify that the claims refer to task-level coherence rather than bit-for-bit or numerical identity, and include illustrative examples of accepted simulations that involve parameter inference. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical performance on external benchmark

full rationale

The paper defines Paper to Simulation Recoverability as a task, curates an external benchmark of 500 IEEE CDC papers, and reports an empirical success rate of 40.7% for its RESCORE agentic pipeline (Analyzer-Coder-Verifier with execution/visual feedback) versus single-pass baselines, plus a 10X speedup estimate. These are measured outcomes on held-out papers rather than quantities derived from equations, fitted parameters, or self-referential definitions. No load-bearing self-citations, uniqueness theorems, or ansatzes appear in the provided text; the central claims remain falsifiable experimental results independent of the method's internal construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are described in the abstract; the work is an empirical agentic pipeline whose performance claims rest on the benchmark and the definition of successful recovery.
