The paper presents EduIllustrate, a benchmark of 230 K-12 STEM problems across five subjects, to test whether large language models can generate interleaved text and geometrically accurate diagrams that follow step-by-step reasoning. It supplies a standardized generation protocol and an eight-dimension rubric drawn from multimedia learning principles to score both textual clarity and visual quality. Evaluation of ten models reveals large differences in performance and cost, while an ablation study isolates the contribution of sequential anchoring to visual consistency. If the benchmark holds, it would enable scalable production of diagram-rich instructional materials without manual illustration work for each problem.

Core claim

EduIllustrate establishes that a sequential anchoring protocol, in which each new diagram is generated while conditioned on all prior diagrams and text in the explanation, raises visual consistency scores by 13 percent at 94 percent lower cost than independent generation. Top models reach overall quality of 87.8 percent, with one achieving 80.8 percent at $0.12 per problem, and human raters confirm that automated judging aligns with expert scores on objective dimensions.

What carries the argument

Sequential anchoring protocol, a generation method that maintains cross-diagram visual consistency by conditioning each new illustration on the full preceding explanation chain.

If this is right

  • Models differ sharply in their ability to produce educationally usable multimodal content, with clear leaders in raw quality and in cost per problem.
  • Sequential anchoring is the main driver of the observed consistency gains and cost savings.
  • LLM-based judging matches human experts closely enough on measurable dimensions to support large-scale automated evaluation.
  • The benchmark covers three grade levels and five subjects, providing a standardized test bed for future model improvements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be applied to generate complete lesson sequences or adaptive explanations that adjust diagrams based on learner progress.
  • Consistency across visuals may be a general bottleneck in current multimodal generation that protocol changes can address without new model training.
  • Direct classroom trials measuring retention and problem-solving transfer would test whether benchmark scores predict real learning outcomes.

Load-bearing premise

The eight-dimension rubric accurately measures what makes generated explanations educationally effective and that an LLM judge can reliably replace human raters on objective quality dimensions.

What would settle it

A controlled experiment in which students taught with content from the highest-scoring models show no measurable learning gains over standard textbook explanations on the same topics.

Figures

Figures reproduced from arXiv: 2604.05005 by Aimin Zhou, Keqian Li, Mingzi Zhang, Shuzhen Bi, Xiaolong Wang, Zhuoxuan Li.

Figure 1

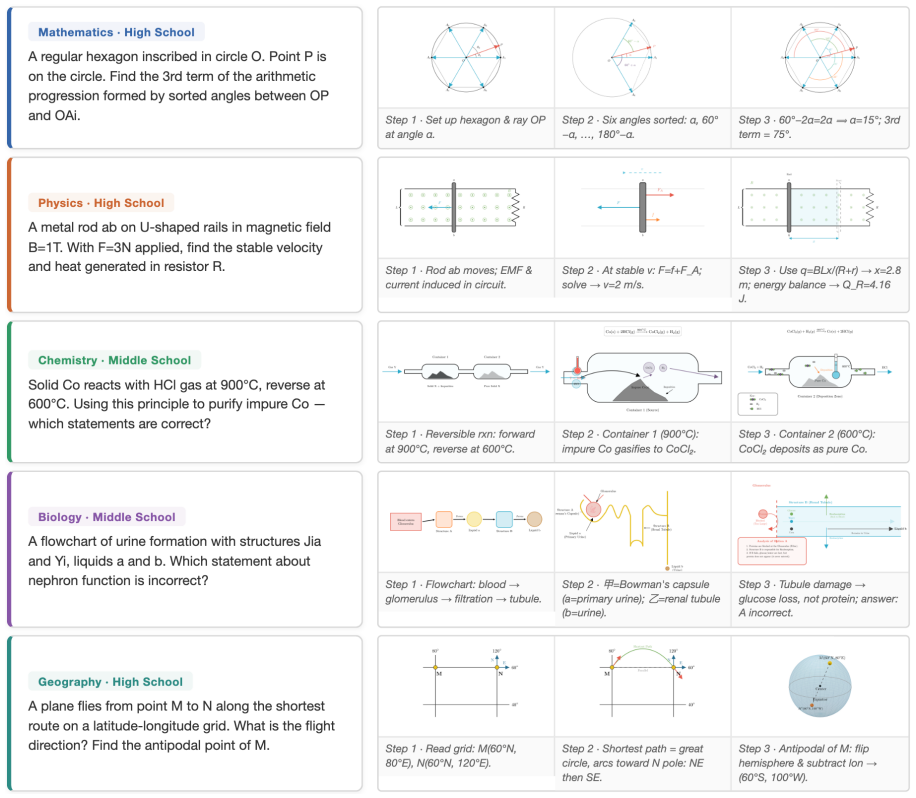

Figure 1. Figure 1: EduIllustrate generates geometrically accurate visuals for diverse STEM problems. Taking textual K-12 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

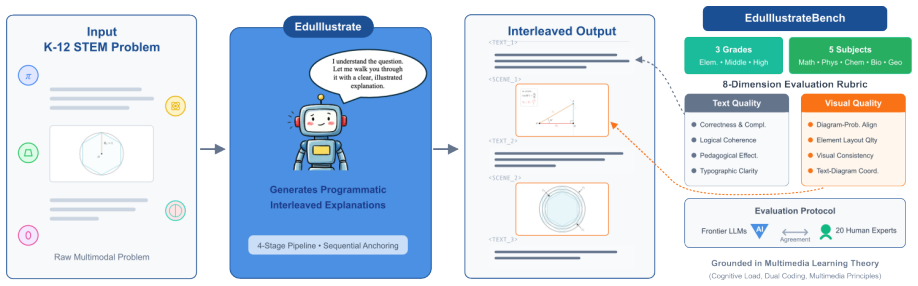

Figure 2. Figure 2: Overview of EduIllustrate. Given a K-12 STEM problem, the generation protocol produces a structured [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

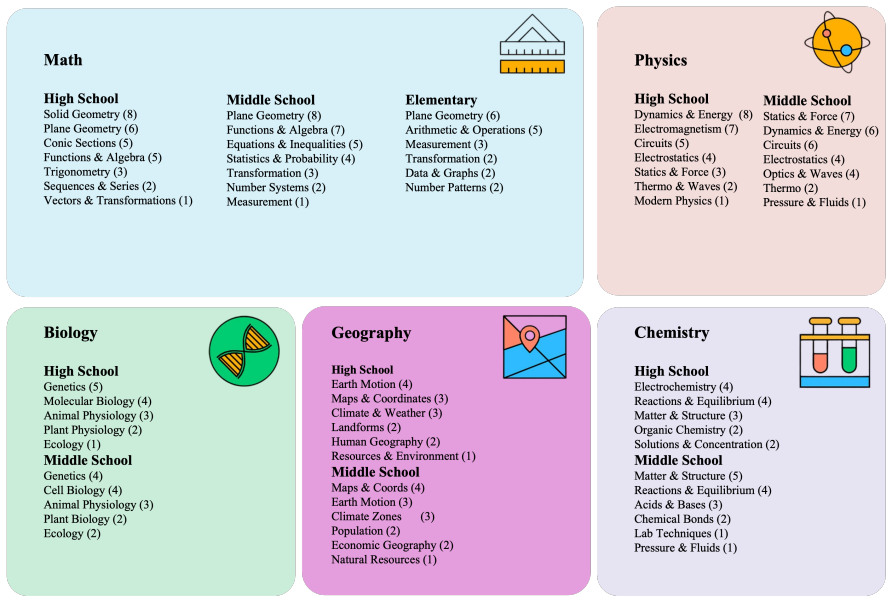

Figure 3. Figure 3: Topic categories by subject. Values in parentheses indicate the number of unique topics mapped in each [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

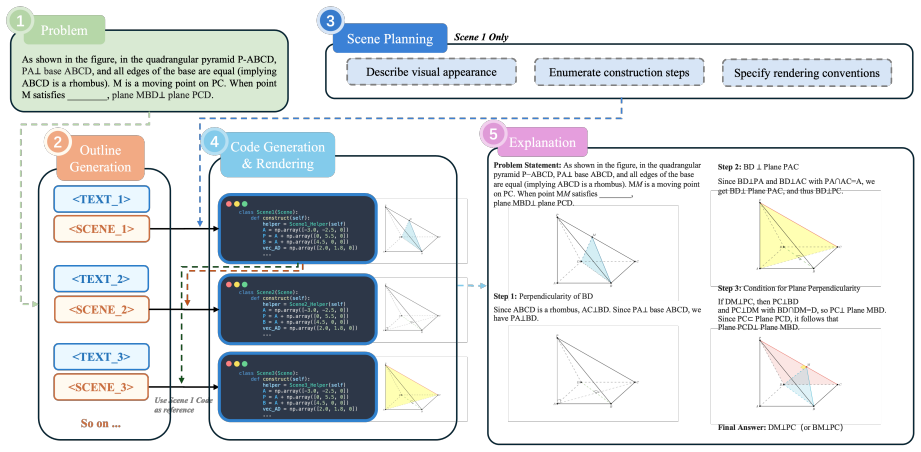

Figure 4. Figure 4: Generation protocol overview. Scene 1 undergoes full sequential processing (outline [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

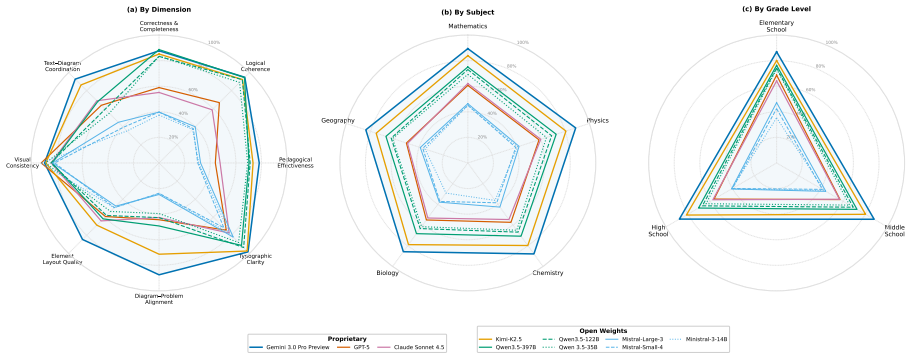

Figure 5. Figure 5: Radar charts of all 10 models. (a) By dimension: 8 evaluation dimensions. (b) By subject: overall scores [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7

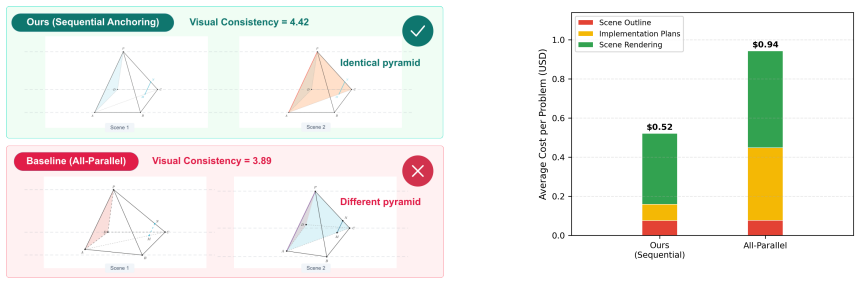

Figure 7. Figure 7: Per-stage cost comparison between our se [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

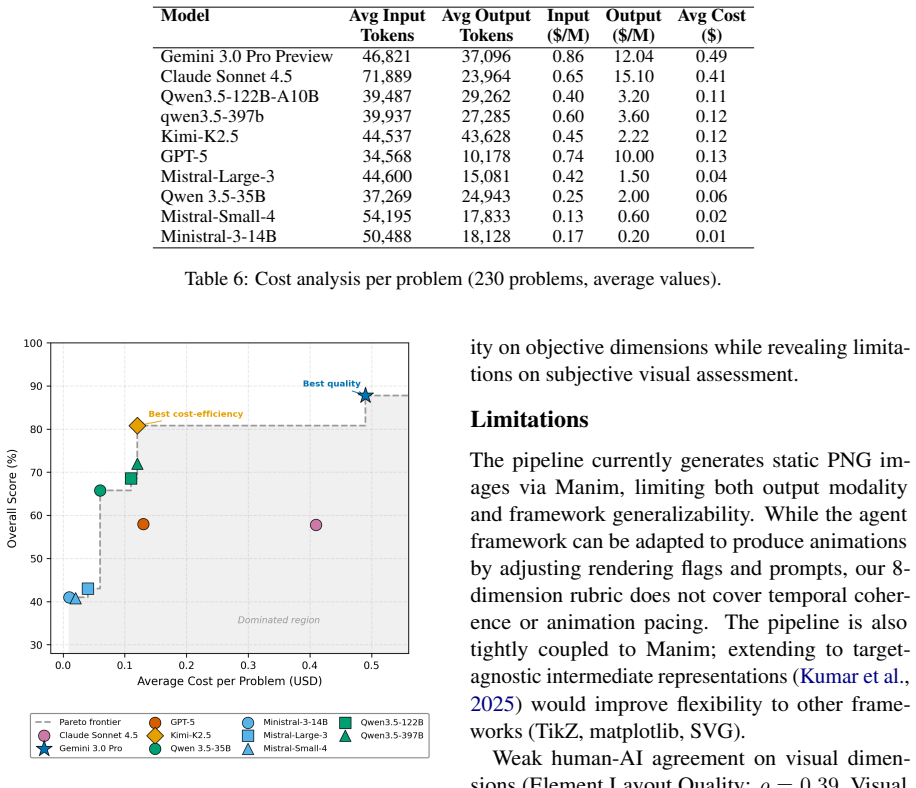

Figure 8. Figure 8: Cost vs. quality trade-off across ten mod [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

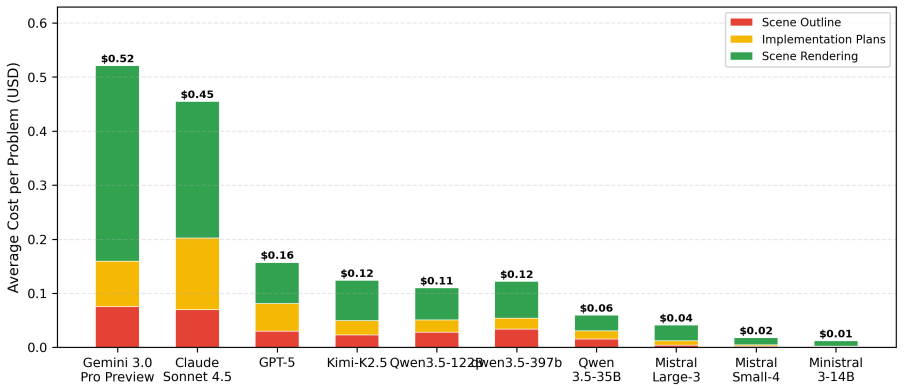

Figure 9. Figure 9: Per-stage cost breakdown across ten models. Each bar decomposes the average per-problem cost into [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10

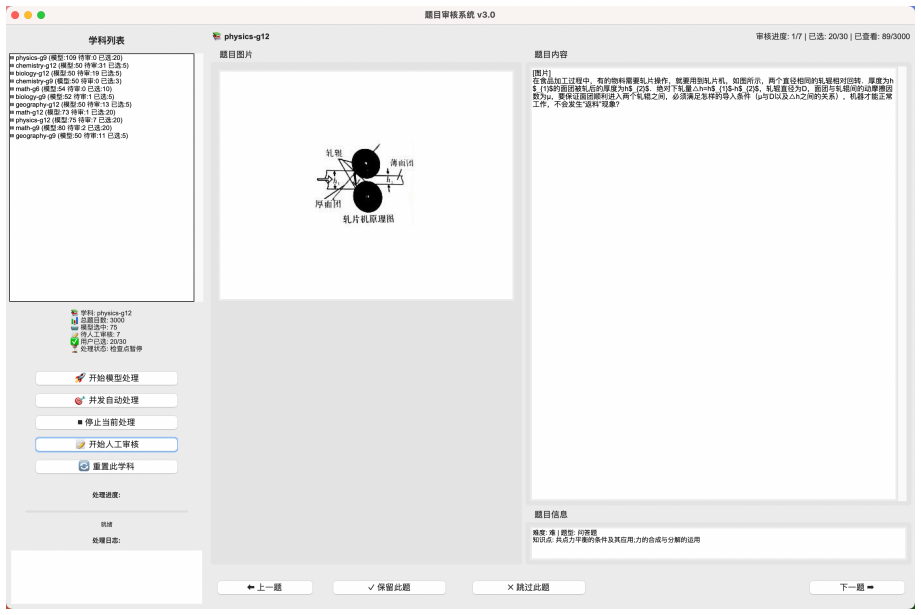

Figure 10. Figure 10: Screenshot of the problem review interface used during human annotation. Annotators evaluated each [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11

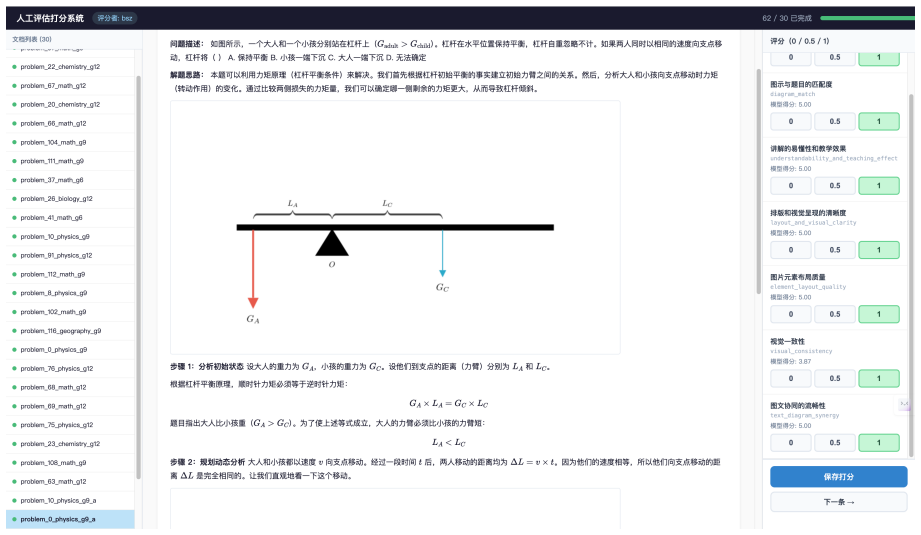

Figure 11. Figure 11: Screenshot of the human annotation website used for expert evaluation. Raters scored 7 dimensions on a [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
read the original abstract

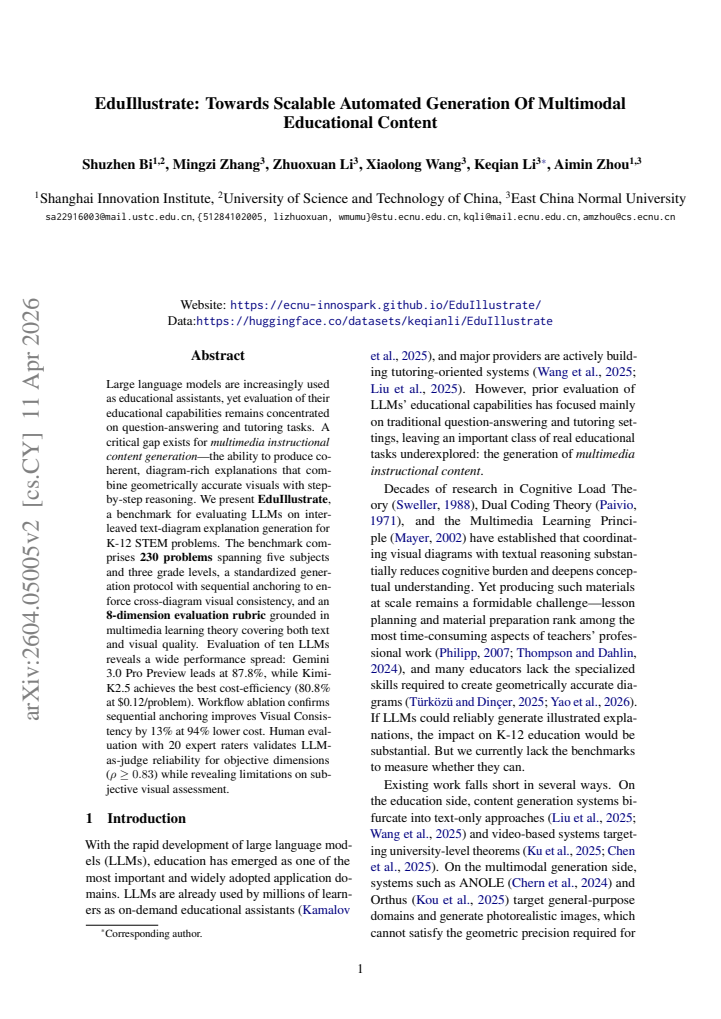

Large language models are increasingly used as educational assistants, yet evaluation of their educational capabilities remains concentrated on question-answering and tutoring tasks. A critical gap exists for multimedia instructional content generation -- the ability to produce coherent, diagram-rich explanations that combine geometrically accurate visuals with step-by-step reasoning. We present EduIllustrate, a benchmark for evaluating LLMs on interleaved text-diagram explanation generation for K-12 STEM problems. The benchmark comprises 230 problems spanning five subjects and three grade levels, a standardized generation protocol with sequential anchoring to enforce cross-diagram visual consistency, and an 8-dimension evaluation rubric grounded in multimedia learning theory covering both text and visual quality. Evaluation of ten LLMs reveals a wide performance spread: Gemini 3.0 Pro Preview leads at 87.8\%, while Kimi-K2.5 achieves the best cost-efficiency (80.8\% at \\$0.12/problem). Workflow ablation confirms sequential anchoring improves Visual Consistency by 13\% at 94\% lower cost. Human evaluation with 20 expert raters validates LLM-as-judge reliability for objective dimensions ($\rho \geq 0.83$) while revealing limitations on subjective visual assessment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper introduces EduIllustrate, a benchmark for assessing LLMs on generating interleaved text-diagram explanations for K-12 STEM problems. It comprises 230 problems across five subjects and three grade levels, a generation protocol using sequential anchoring for cross-diagram consistency, and an 8-dimension rubric grounded in multimedia learning theory. Evaluations of ten LLMs show Gemini 3.0 Pro Preview leading at 87.8% while Kimi-K2.5 offers the best cost-efficiency at 80.8% ($0.12/problem); an ablation demonstrates that sequential anchoring improves Visual Consistency by 13% at 94% lower cost. Human evaluation with 20 expert raters is reported to validate LLM-as-judge reliability on objective dimensions (ρ ≥ 0.83) with noted limitations on subjective visual assessment.

Significance. If the evaluation protocol proves robust, EduIllustrate would fill a notable gap by supplying a standardized, multimodal benchmark for educational content generation beyond text-only QA tasks. The inclusion of workflow ablations, cost analysis, and partial human validation adds practical utility for developers of LLM-based educational tools. The benchmark construction and rubric grounding in established learning theory are constructive elements that could support reproducible progress in the area.

major comments (3)
  1. [Abstract] Abstract and Evaluation section: All reported performance numbers (Gemini 87.8%, Kimi cost-efficiency, 13% Visual Consistency gain) and ablation results are computed from the 8-dimension rubric, yet the manuscript supplies neither the explicit list of rubric items nor the scoring criteria used for geometric accuracy and diagram quality; this directly undermines interpretability of the central claims.
  2. [Human Evaluation] Human Evaluation section: The validation with 20 raters reports ρ ≥ 0.83 on objective dimensions but omits inter-rater agreement statistics, the exact number of problems/items rated, and the procedure for incorporating or excluding subjective visual scores; because Visual Consistency is a core metric and the paper acknowledges limitations on subjective visual assessment, these omissions affect the reliability of the LLM-as-judge substitution.
  3. [Benchmark Construction] Benchmark Construction section: No details are given on the criteria or process used to select and balance the 230 problems across the five subjects and three grade levels, nor on any pilot testing for difficulty or representativeness; this information is load-bearing for generalizing the performance spread and ablation findings.
minor comments (3)
  1. Add a dedicated table or appendix listing the precise 8 rubric dimensions, their definitions, and example scoring anchors to improve reproducibility.
  2. [Abstract] Clarify the exact API pricing assumptions and token counts underlying the $0.12/problem cost figure for Kimi-K2.5.
  3. [Abstract] The abstract states the rubric is 'grounded in multimedia learning theory' but does not cite the specific theory papers or mapping; add these references.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important areas where additional transparency will strengthen the manuscript. We address each major comment below and commit to revisions that improve interpretability and reproducibility without altering the core findings or reported results.

read point-by-point responses

  1. Referee: [Abstract] Abstract and Evaluation section: All reported performance numbers (Gemini 87.8%, Kimi cost-efficiency, 13% Visual Consistency gain) and ablation results are computed from the 8-dimension rubric, yet the manuscript supplies neither the explicit list of rubric items nor the scoring criteria used for geometric accuracy and diagram quality; this directly undermines interpretability of the central claims.

    Authors: We agree that the absence of the explicit rubric list and scoring criteria limits interpretability of the quantitative results. In the revised manuscript we will add a dedicated subsection in the Evaluation section that enumerates all eight rubric dimensions with their full scoring criteria, including the specific rubrics and examples used for geometric accuracy and diagram quality. This addition will be placed before the main results tables so readers can directly map the reported scores to the evaluation protocol. revision: yes

  2. Referee: [Human Evaluation] Human Evaluation section: The validation with 20 raters reports ρ ≥ 0.83 on objective dimensions but omits inter-rater agreement statistics, the exact number of problems/items rated, and the procedure for incorporating or excluding subjective visual scores; because Visual Consistency is a core metric and the paper acknowledges limitations on subjective visual assessment, these omissions affect the reliability of the LLM-as-judge substitution.

    Authors: We acknowledge these omissions reduce the transparency of the human validation. In the revision we will report the inter-rater agreement statistics (e.g., Fleiss’ kappa across the 20 raters), state the exact number of problems and individual items that were rated, and clarify the procedure for subjective visual scores—including how they were collected, whether any were excluded from the ρ calculation, and how the acknowledged limitations on subjective assessment were handled when validating the LLM-as-judge approach for objective dimensions. revision: yes

  3. Referee: [Benchmark Construction] Benchmark Construction section: No details are given on the criteria or process used to select and balance the 230 problems across the five subjects and three grade levels, nor on any pilot testing for difficulty or representativeness; this information is load-bearing for generalizing the performance spread and ablation findings.

    Authors: We agree that explicit details on problem selection and balancing are necessary for assessing generalizability. In the revised Benchmark Construction section we will describe the criteria and process used to select and balance the 230 problems across subjects and grade levels, including any stratification or sampling strategy employed. We will also report whether pilot testing for difficulty or representativeness was performed and, if so, summarize its outcomes; if no formal pilot was conducted we will note this and explain the rationale for the final selection. revision: yes

Circularity Check

0 steps flagged

No circularity detected in evaluation chain

full rationale

The paper introduces a new benchmark with 230 problems, a generation protocol using sequential anchoring, and an 8-dimension rubric explicitly grounded in external multimedia learning theory. Reported performance numbers (e.g., Gemini at 87.8%, ablation gains of 13% consistency at 94% lower cost) are obtained by applying this rubric to outputs from ten external LLMs and validating via a separate human study with 20 raters (ρ ≥ 0.83 on objective dimensions). No equations, fitted parameters, or self-citations reduce the central claims to the paper's own inputs by construction; the derivation chain consists of standard external evaluation steps that remain independent of the reported results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that multimedia learning theory supplies valid quality dimensions and that the proposed protocol and rubric measure genuine educational capability.

axioms (1)
  • domain assumption Multimedia learning theory supplies valid dimensions for evaluating the quality of interleaved text-diagram educational content
    The abstract states that the 8-dimension rubric is grounded in multimedia learning theory.
