Scale-free congestion clusters in large-scale traffic networks: a continuum modeling study

Yuki Chiba , Norikazu Saito , Yuki Ueda , Hiroaki Yoshida This is my paper

Pith reviewed 2026-05-10 19:17 UTC · model grok-4.3

classification ⚛️ physics.soc-ph cond-mat.stat-mechmath-phmath.MPphysics.flu-dyn
keywords scale-free congestioncontinuum traffic modelspower-law distributionfinite-size scalingAw-Rascle-Zhang modelurban traffic networksself-organized criticalitylattice networks
0
0 comments X

The pith

Continuum traffic models on networks produce power-law congestion clusters with finite-size scaling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether large-scale descriptions of traffic flow can generate the scale-free congestion patterns seen in real cities. Using the Aw-Rascle-Zhang model on lattice networks, solved with a high-order scheme and junction coupling, the authors define congestion by density thresholds and extract connected clusters in space and time. They find that cluster sizes follow a robust power-law distribution across different network sizes. Rescaling those sizes by the network's linear dimension causes the distributions to collapse onto one universal curve. This shows that macroscopic equations alone can reproduce the statistical features of urban congestion without microscopic vehicle details.

Core claim

Numerical solutions of the second-order Aw-Rascle-Zhang model on directed lattice networks, with conservation-enforcing junction conditions, produce spatiotemporal congestion clusters whose sizes obey a power-law distribution. When cluster sizes are normalized by the linear extent of the two-dimensional network, the probability distributions for systems of different sizes fall onto a single approximate curve, revealing finite-size scaling controlled by network geometry. The resulting statistics resemble those of self-organized critical systems.

What carries the argument

Spatiotemporal clusters formed by thresholding road-averaged density in Aw-Rascle-Zhang solutions on networks and extracting connected components in space-time.

Load-bearing premise

The chosen density threshold and the connected-component method in space-time produce clusters whose statistics are not created by the numerical scheme or the junction rules.

What would settle it

Running the same model on identical lattices but with a different density threshold or a different numerical scheme that yields a non-power-law distribution, or a non-lattice topology that breaks the data collapse, would falsify the claim that the continuum equations generate the scale-free behavior.

Figures

Figures reproduced from arXiv: 2604.05439 by Hiroaki Yoshida, Norikazu Saito, Yuki Chiba, Yuki Ueda.

Figure 1
Figure 1. Figure 1: Schematic illustration of congestion clusters. Congested regions on the network (red) at times [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: An example of the network geometry considered in this paper. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

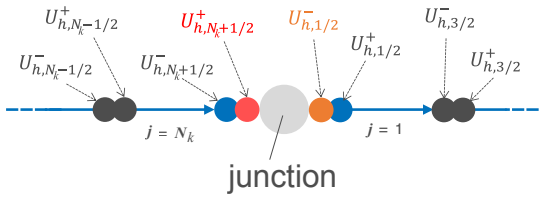

Figure 3. Figure 3: Schematic illustration of the junction boundary treatment in the DG scheme. At the cell interfaces ± [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

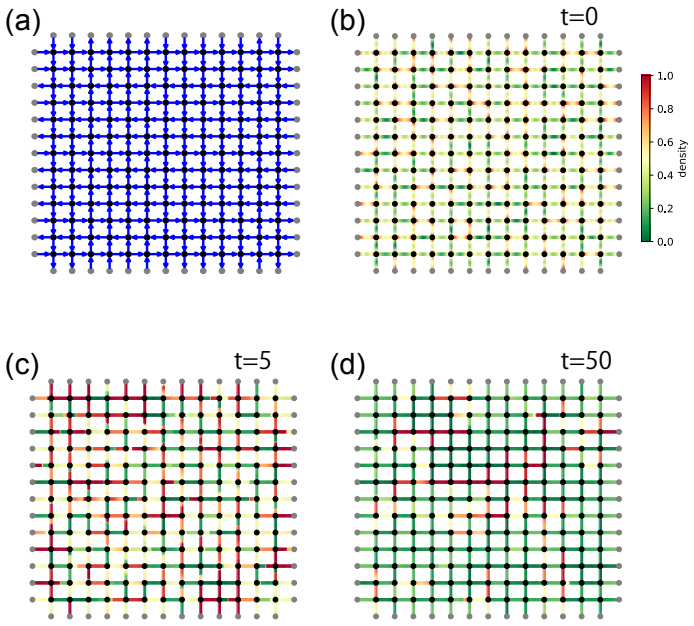

Figure 4. Figure 4: Visualization of density distributions on a lattice network. (a) Overview of the lattice network used in the [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

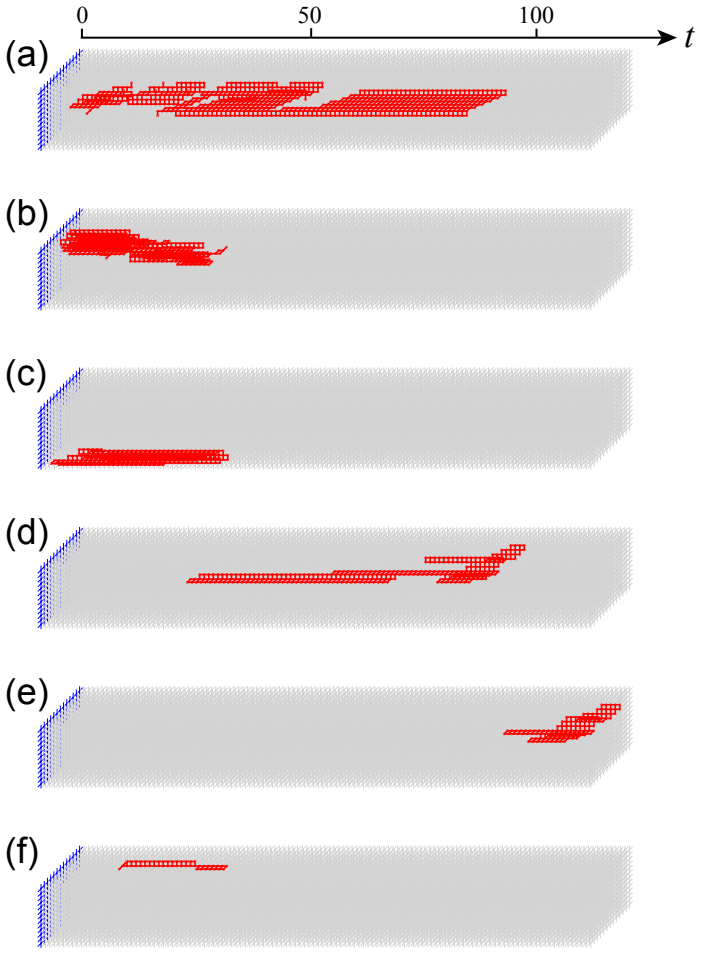

Figure 5. Figure 5: Examples of spatiotemporal structures of extracted congestion clusters. Links whose density exceeds the threshold [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6

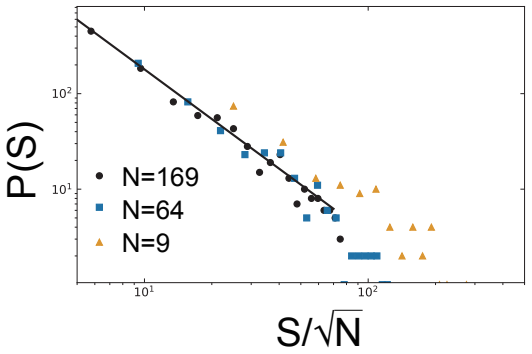

Figure 6. Figure 6: Frequency distribution of congestion cluster size for networks of different sizes. Distribution [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
read the original abstract

Recent empirical studies have reported that spatiotemporal congestion clusters in urban traffic exhibit scale-free statistics, with cluster size following a power-law distribution. In this study, we address whether macroscopic continuum descriptions of traffic flow are capable of generating such scale-free spatiotemporal congestion patterns. To this end, we analyze the second-order Aw-Rascle-Zhang model on directed networks under junction coupling. The governing equations are solved by a high-order discontinuous Galerkin scheme, and junction fluxes are determined by an optimization-based coupling procedure enforcing conservation and admissibility at intersections. Congestion is defined by thresholding the road-averaged density, and spatiotemporal clusters are extracted as connected components in space and time. Numerical experiments on lattice networks of varying sizes reveal that the cluster size follows a robust power-law distribution. Moreover, when rescaled by the linear system size inherent to the two-dimensional network geometry, the distribution collapses onto an approximately universal curve, indicating finite-size scaling governed by the linear system size. The observed power-law statistics and finite-size scaling are reminiscent of scale-invariant dynamics characteristic of self-organized criticality. These results demonstrate that macroscopic continuum traffic models can reproduce large-scale statistical features observed in real urban congestion dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper investigates whether the second-order Aw-Rascle-Zhang (ARZ) continuum traffic model on directed lattice networks can reproduce scale-free spatiotemporal congestion clusters observed empirically. The governing equations are discretized with a high-order discontinuous Galerkin scheme, junctions are coupled via an optimization procedure enforcing conservation and admissibility, congestion is defined by thresholding road-averaged density, and clusters are identified as space-time connected components. Numerical experiments on lattices of varying sizes are reported to yield a power-law cluster-size distribution that collapses onto a universal curve under rescaling by linear system size, interpreted as evidence of finite-size scaling and self-organized criticality in the macroscopic model.

Significance. If the power-law statistics prove robust, the result would be significant for traffic modeling: it shows that standard continuum descriptions, without explicit microscopic heterogeneity, can generate the scale-free cluster statistics seen in real urban networks. The use of a high-order DG scheme together with an optimization-based junction solver is a methodological strength that supports accurate conservation on networks. This provides a potential bridge between macroscopic PDE models and empirical observations of complex congestion dynamics.

major comments (3)
  1. [§4] §4 (Numerical experiments on lattice networks): the power-law distribution and finite-size collapse are reported for a single fixed density threshold used to define congestion; no sensitivity analysis or variation of this threshold is presented. Because cluster extraction is defined directly by this threshold followed by connected-component labeling, the absence of robustness checks makes it impossible to determine whether the scale-free statistics are intrinsic to the ARZ dynamics or an artifact of the particular threshold choice.
  2. [§4] §4 and associated figures: no details are given on the statistical procedure for fitting the power-law (e.g., maximum-likelihood estimation of the exponent, Kolmogorov-Smirnov goodness-of-fit, or lower-cutoff selection), nor are error bars, confidence intervals, or results from multiple independent realizations (different random seeds for initial conditions or demand) reported. These omissions are load-bearing for the central claim that the distribution is 'robust'.
  3. [§3.2] §3.2 (cluster definition) and §4: the space-time connected-component extraction on the lattice is described, but no test is shown that the resulting cluster statistics remain qualitatively unchanged under modest alterations to the DG polynomial degree, mesh resolution, or junction-coupling tolerance. Such checks are needed to rule out numerical artifacts in the reported exponent and scaling collapse.
minor comments (2)
  1. [Figure captions] Figure captions for the rescaled distributions should explicitly define the rescaling variable (linear system size) and state the number of lattice realizations averaged.
  2. [Introduction] The abstract and introduction cite empirical power-law studies but could usefully add a short comparison of the numerically obtained exponent range with the range reported in those empirical works.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and constructive suggestions. We will revise the manuscript to address the concerns regarding robustness checks, statistical details, and numerical validation. Our point-by-point responses are as follows.

read point-by-point responses

  1. Referee: §4 (Numerical experiments on lattice networks): the power-law distribution and finite-size collapse are reported for a single fixed density threshold used to define congestion; no sensitivity analysis or variation of this threshold is presented. Because cluster extraction is defined directly by this threshold followed by connected-component labeling, the absence of robustness checks makes it impossible to determine whether the scale-free statistics are intrinsic to the ARZ dynamics or an artifact of the particular threshold choice.

    Authors: We agree that a sensitivity analysis is necessary to confirm the robustness of the scale-free behavior. The threshold in the original simulations was selected to correspond to the onset of congestion where the density exceeds the critical value for the fundamental diagram in the ARZ model. In the revised manuscript, we will add results for several threshold values (e.g., ±10% and ±20% variations) and demonstrate that the power-law distribution and finite-size scaling persist, with only minor variations in the exponent. revision: yes

  2. Referee: §4 and associated figures: no details are given on the statistical procedure for fitting the power-law (e.g., maximum-likelihood estimation of the exponent, Kolmogorov-Smirnov goodness-of-fit, or lower-cutoff selection), nor are error bars, confidence intervals, or results from multiple independent realizations (different random seeds for initial conditions or demand) reported. These omissions are load-bearing for the central claim that the distribution is 'robust'.

    Authors: We acknowledge the lack of these statistical details in the current version. In the revision, we will describe the fitting procedure in detail, including the use of maximum likelihood estimation for the power-law exponent, the Kolmogorov-Smirnov test for assessing the fit, and the method for selecting the lower cutoff. Additionally, we will perform and report averages over at least 5-10 independent realizations with different initial conditions and random seeds, including error bars on the histograms and confidence intervals for the fitted exponents. revision: yes

  3. Referee: §3.2 (cluster definition) and §4: the space-time connected-component extraction on the lattice is described, but no test is shown that the resulting cluster statistics remain qualitatively unchanged under modest alterations to the DG polynomial degree, mesh resolution, or junction-coupling tolerance. Such checks are needed to rule out numerical artifacts in the reported exponent and scaling collapse.

    Authors: We appreciate this suggestion to verify numerical convergence. The original simulations employed a DG polynomial degree of 2 and a mesh with 10 elements per road segment, with a junction tolerance of 1e-6. For the revision, we will include additional simulations on a representative lattice size using higher polynomial degree (degree 3) and finer mesh (20 elements per road), as well as a stricter tolerance (1e-8). We will show that the cluster size distributions and scaling collapse remain consistent, indicating that the results are not sensitive to these numerical parameters. revision: partial

Circularity Check

0 steps flagged

No significant circularity; observed power-law and finite-size scaling emerge from direct numerical integration of the ARZ model.

full rationale

The paper integrates the second-order Aw-Rascle-Zhang equations on directed lattice networks using a high-order discontinuous Galerkin scheme with optimization-based junction coupling. Congestion clusters are extracted by applying a density threshold and identifying space-time connected components; the power-law distribution of cluster sizes and the collapse under rescaling by linear system size are reported as numerical outcomes. No load-bearing step equates the reported statistics to a fitted parameter, a self-referential definition, or a self-citation chain. The derivation chain is self-contained: the governing PDEs, numerical method, and cluster definition are standard and independent of the target statistics, which arise from the simulation rather than being presupposed.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The claim rests on the validity of the Aw-Rascle-Zhang equations for macroscopic traffic, the chosen numerical scheme, and the post-processing definition of clusters; no new entities are introduced.

free parameters (2)
  • congestion density threshold
    Used to identify congested roads; value not specified in abstract but required to extract clusters.
  • lattice network sizes
    Multiple linear sizes varied to demonstrate finite-size scaling.
axioms (2)
  • domain assumption The second-order Aw-Rascle-Zhang model equations accurately describe traffic flow on directed networks.
    Standard continuum traffic model invoked without re-derivation.
  • domain assumption Junction fluxes computed via optimization enforcing conservation and admissibility.
    Coupling procedure at intersections taken as given.
