MARS-Dragonfly: Agile and Robust Flight Control of Modular Aerial Robot Systems

Rui Huang , Zhiqian Cai , Siyu Tang , Pengxuan Wei , Lidong Li , Xin Chen , Wenhan Cao , Zhenyu Zhang

show 1 more author

Lin Zhao

Authors on Pith no claims yet

Pith reviewed 2026-05-10 20:05 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY

keywords modular aerial robotsdrone reconfigurationflight controlpredictive allocationvirtual quadrotoragile maneuveringpolytope constraints

0 comments

The pith

A force-torque-equivalent virtual quadrotor with polytope constraints enables agile control and smooth reconfiguration of modular drone systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that modular aerial robot systems composed of multiple connected drones can maintain stable, agile flight even while changing shape in the air. Existing approaches rely on simplified models that produce jerky commands and growing errors as more units join, leading to oscillations during docking or separation. The new method replaces those models with a single virtual quadrotor whose feasible forces and torques are bounded by a polytope, then feeds the virtual commands through a two-stage predictive allocator that maps them to balanced, continuous motor signals. If this holds, modular drone teams become practical for missions that require in-flight adaptation without sacrificing precision or speed. Real experiments confirm the result with 40-degree peak pitch angles and an average position error of 0.0896 meters across multiple configurations.

Core claim

The authors present a compact passive docking mechanism and a force-torque-equivalent virtual quadrotor whose polytope-constrained wrench set captures the full coupled dynamics of any connected formation. This abstraction lets any standard quadrotor controller operate unchanged on the whole system. A constrained predictive tracker first computes feasible virtual inputs; a dynamic allocator then distributes them to individual modules under balanced objectives, yielding smooth, trackable motor commands. Simulations and real flights across more than ten configurations demonstrate stable docking, locking, separation, and agile waypoint tracking.

What carries the argument

The force-torque-equivalent and polytope-constraint virtual quadrotor, which encodes the combined feasible wrench set of any MARS formation so that existing single-drone controllers can be applied directly.

If this is right

Stable docking, locking, and separation become possible without attitude error buildup.
Standard quadrotor controllers can be reused across any number of connected modules.
Agility improves through yaw optimization that maximizes available control authority.
Smooth motor commands are generated even as the formation changes shape.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same virtual-abstraction pattern could be tested on modular ground robots or underwater vehicles where connected units must share control authority.
Real-time reconfiguration might be explored in outdoor wind or with changing payloads to check whether the polytope bounds still prevent saturation.
The allocator's balanced objectives suggest possible extensions that minimize total energy use while preserving tracking accuracy.

Load-bearing premise

The virtual quadrotor and its polytope constraints accurately represent the full coupled dynamics of arbitrary MARS configurations without significant unmodeled effects during docking or separation.

What would settle it

Run a real-world experiment in which a multi-unit MARS docks or separates while tracking a trajectory that requires a 40-degree peak pitch change; if average position error stays near 0.0896 m and oscillations remain absent, the claim holds; otherwise it does not.

Figures

Figures reproduced from arXiv: 2604.05499 by Lidong Li, Lin Zhao, Pengxuan Wei, Rui Huang, Siyu Tang, Wenhan Cao, Xin Chen, Zhenyu Zhang, Zhiqian Cai.

**Figure 1.** Figure 1: Overview of the proposed MARS-Dragonfly framework. (a) Dragonfly-inspired MARS design. (b) A virtual quadrotor abstraction for arbitrary MARS [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: Docking, locking and separation sequence inspired by dragonfly mat [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

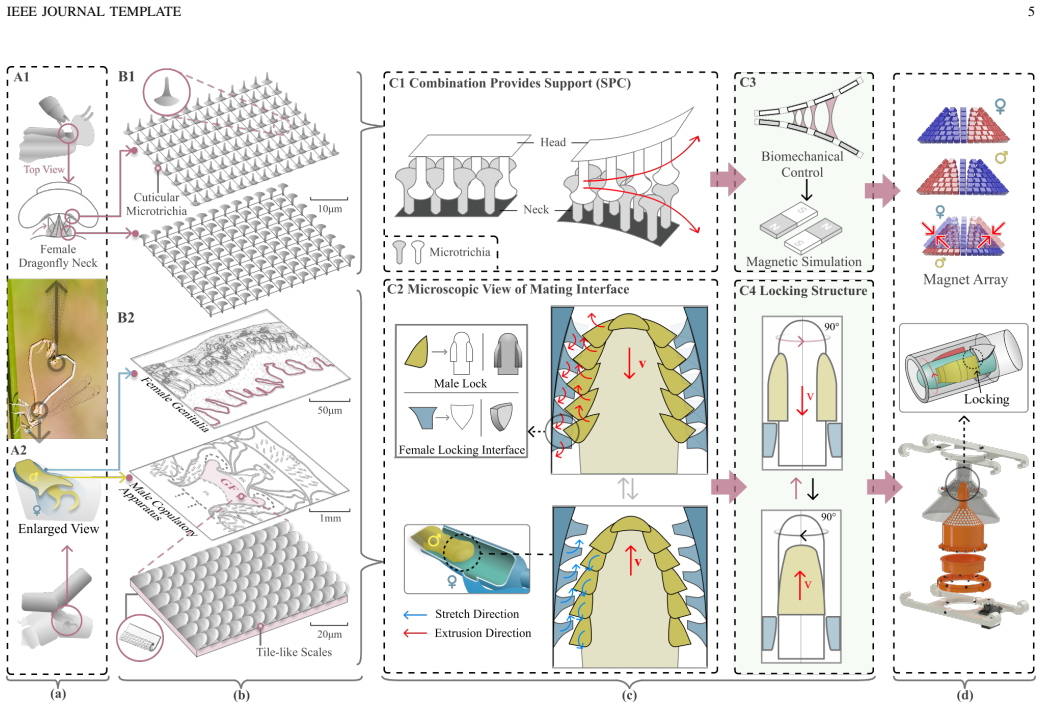

**Figure 3.** Figure 3: Microstructural connections in dragonfly mating that inspire the design of macroscopic mechanical structures. (a) The connection of dragonflies [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

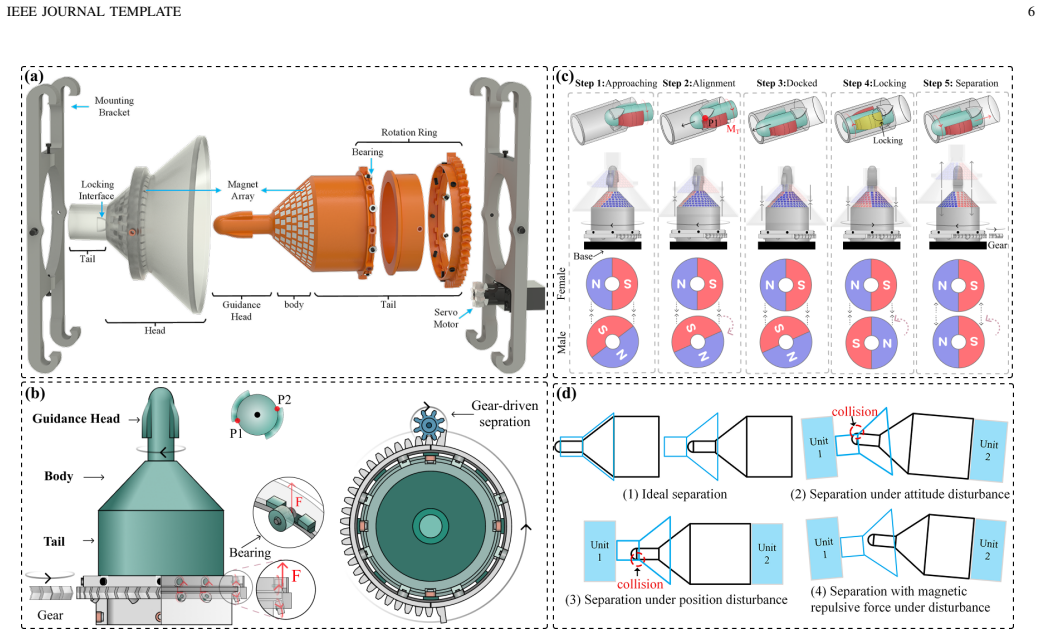

**Figure 4.** Figure 4: Docking and separation mechanism detail. (a) Exploded view of the mechanism. (b) Front and transparent views of the docking structure. Bottom [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 5.** Figure 5: Magnet arrangement optimization. (a) Original and Halbach array for a row of magnets. (b) The magnets are divided into [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

**Figure 6.** Figure 6: Coordinate system representation for a MARS with two units. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

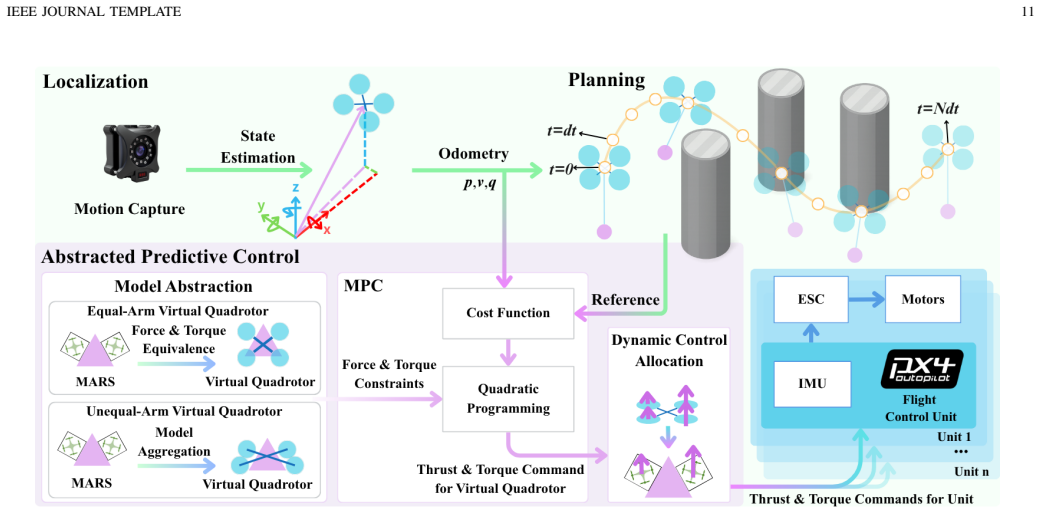

**Figure 7.** Figure 7: Model abstraction and APC framework for MARS. Localization provides odometry for high-level planning. Model abstraction converts a given MARS [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

**Figure 9.** Figure 9: Model abstraction for arbitrary-shaped transportation using MARS. [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗

**Figure 10.** Figure 10: Simulation of trajectory tracking and object transport. (a)–(e) Trajectory tracking over ten consecutive laps along a circular path under different [PITH_FULL_IMAGE:figures/full_fig_p013_10.png] view at source ↗

**Figure 11.** Figure 11: Passive docking and lock sequences. The timer format is [PITH_FULL_IMAGE:figures/full_fig_p014_11.png] view at source ↗

**Figure 12.** Figure 12: Manually triggered active separation rotates the male component to repel the connected module. (a) Initial locking state. (b) At 00:00:00, the male [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗

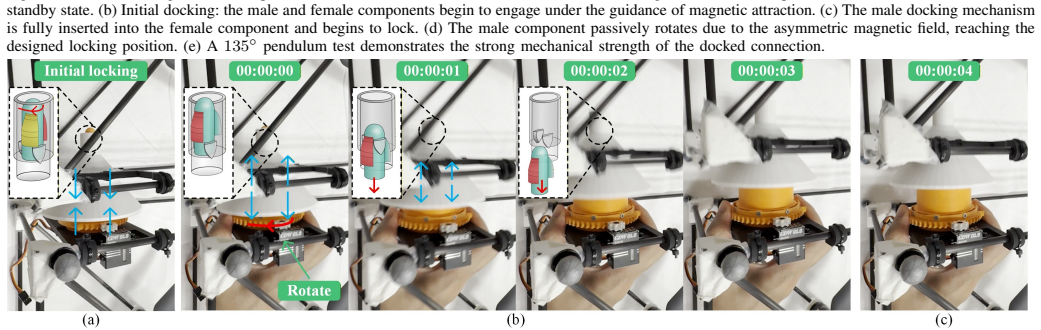

**Figure 13.** Figure 13: Mid-air docking demonstration. The timer format is [PITH_FULL_IMAGE:figures/full_fig_p015_13.png] view at source ↗

**Figure 14.** Figure 14: Mid-air separation demonstration. The timer format is [PITH_FULL_IMAGE:figures/full_fig_p016_14.png] view at source ↗

**Figure 15.** Figure 15: Separation comparison experiments. (a) One side enabled with repulsive force; the other disabled. (b) Initial position at 00:09:13. (c) The mechanism [PITH_FULL_IMAGE:figures/full_fig_p016_15.png] view at source ↗

**Figure 16.** Figure 16: Composite images of trajectory tracking. (a) Trajectory tracking at a velocity of 1 m/s. (b) Circular trajectory tracking with the docking mechanism [PITH_FULL_IMAGE:figures/full_fig_p017_16.png] view at source ↗

**Figure 17.** Figure 17: Agile trajectory tracking. (a) Pitch-angle responses along agile trajectories at [PITH_FULL_IMAGE:figures/full_fig_p017_17.png] view at source ↗

**Figure 19.** Figure 19: Object transportation with a sloshing load. (a) Composite images [PITH_FULL_IMAGE:figures/full_fig_p018_19.png] view at source ↗

**Figure 20.** Figure 20: Agile transport carrying 100 g, 200 g, and 600 g payloads. (a) Pitch angle responses along agile trajectories at [PITH_FULL_IMAGE:figures/full_fig_p019_20.png] view at source ↗

read the original abstract

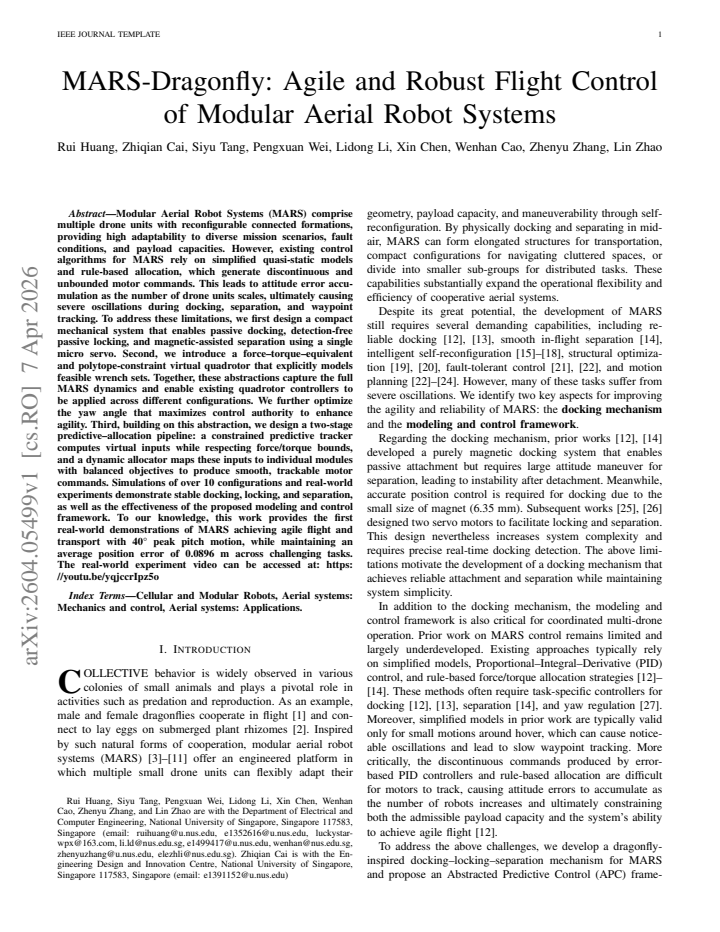

Modular Aerial Robot Systems (MARS) comprise multiple drone units with reconfigurable connected formations, providing high adaptability to diverse mission scenarios, fault conditions, and payload capacities. However, existing control algorithms for MARS rely on simplified quasi-static models and rule-based allocation, which generate discontinuous and unbounded motor commands. This leads to attitude error accumulation as the number of drone units scales, ultimately causing severe oscillations during docking, separation, and waypoint tracking. To address these limitations, we first design a compact mechanical system that enables passive docking, detection-free passive locking, and magnetic-assisted separation using a single micro servo. Second, we introduce a force-torque-equivalent and polytope-constraint virtual quadrotor that explicitly models feasible wrench sets. Together, these abstractions capture the full MARS dynamics and enable existing quadrotor controllers to be applied across different configurations. We further optimize the yaw angle that maximizes control authority to enhance agility. Third, building on this abstraction, we design a two-stage predictive-allocation pipeline: a constrained predictive tracker computes virtual inputs while respecting force/torque bounds, and a dynamic allocator maps these inputs to individual modules with balanced objectives to produce smooth, trackable motor commands. Simulations across over 10 configurations and real-world experiments demonstrate stable docking, locking, and separation, as well as effective control performance. To our knowledge, this is the first real-world demonstration of MARS achieving agile flight and transport with 40 deg peak pitch while maintaining an average position error of 0.0896 m. The video is available at: https://youtu.be/yqjccrIpz5o

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a working virtual-quadrotor-plus-polytope method for controlling reconfigurable drones and backs it with real agile flights, but the transition phases are not checked in detail.

read the letter

The main takeaway is that this group built a passive docking mechanism and then abstracted the whole modular system as a single virtual quadrotor whose wrench limits are captured by a polytope. That lets them run standard quadrotor planners and add a yaw optimizer plus a two-stage allocator that turns virtual commands into smooth motor signals. They show the result in hardware: stable docking, locking, separation, and waypoint tracking across more than ten configurations, with 40-degree peak pitch and 0.09 m average position error. That is the first reported real-world agile MARS flight with those numbers, and it moves past the quasi-static or rule-based methods in earlier work on the same platform family. The experiments and simulations are the strongest part; they actually flew the hardware and measured what matters for agility and accuracy. The mechanical design is compact and uses only one servo, which is a practical plus. The math stays grounded in standard quadrotor dynamics and feasible-set constraints rather than fitted black-box models. The soft spot is exactly where the stress-test note points: during docking and separation the system experiences contact forces, compliance, and magnetic torques that are not folded into the wrench polytope or virtual mapping. The paper gives overall position and attitude numbers but does not break out residuals, oscillation spectra, or prediction errors specifically in those intervals. Without that isolation or an ablation on the polytope bounds, it is hard to know how much the abstraction itself is carrying versus the low-level controllers. Minor gaps like missing error bars and no detailed model-validation plots also make the central claim a bit harder to assess at full strength. This is for aerial-robotics groups that need control that works across changing numbers of modules without rewriting the planner each time. A reader who wants concrete hardware results and a reusable abstraction will get value; someone looking for exhaustive dynamic modeling of every contact phase will want more data. It deserves a serious referee. The real-flight evidence and the clear pipeline are enough to justify review time, even if the transition modeling needs tightening.

Referee Report

2 major / 2 minor

Summary. The manuscript presents MARS-Dragonfly, a modular aerial robot system featuring a compact mechanical design for passive docking, detection-free locking, and magnetic-assisted separation via a single micro servo. It introduces a force-torque-equivalent virtual quadrotor abstraction constrained by wrench polytopes to model feasible sets across configurations, enabling reuse of standard quadrotor controllers. A two-stage predictive allocation pipeline is proposed: a constrained tracker for virtual inputs and a dynamic allocator for smooth motor commands, with yaw optimization to maximize authority. Simulations over 10+ configurations and real-world experiments claim stable agile flight, docking, and transport, with a reported peak pitch of 40 deg and average position error of 0.0896 m, asserted as the first such real-world demonstration.

Significance. If the virtual quadrotor and polytope abstractions hold under dynamic transitions, the work offers a practical unification of MARS control that reduces configuration-specific modeling to standard quadrotor methods with explicit wrench bounds. The real-world experiments across multiple configurations, combined with the mechanically simple docking hardware, provide concrete empirical grounding and could facilitate scalable applications in payload transport and fault-tolerant flight. The predictive allocator's balanced objectives and yaw optimization are constructive extensions of existing allocation techniques.

major comments (2)

[Abstract and real-world experiments section] Abstract and real-world experiments section: The central claim that the force-torque-equivalent virtual quadrotor and polytope constraints 'capture the full MARS dynamics' is load-bearing for applying standard controllers, yet experiments report only aggregate metrics (0.0896 m average position error, 40 deg peak pitch) without isolating model-prediction residuals, wrench-set mismatch, or oscillation spectra specifically during passive docking, locking, and magnetic separation intervals. These phases involve unmodeled contact compliance and transient torques not folded into the polytope, so the two-stage allocator operates on an incomplete feasible set precisely when discontinuities are most likely.
[Methods description of the virtual quadrotor and polytope] Methods description of the virtual quadrotor and polytope: The wrench polytope is constructed from individual module force/torque sets, but no quantitative bound or sensitivity analysis is provided on how docking-induced mechanical coupling alters the effective feasible set relative to the virtual model. This directly affects the constrained predictive tracker's guarantees and the claim of configuration-independent stability.

minor comments (2)

[Abstract] Abstract: The reported position error of 0.0896 m lacks accompanying standard deviation, error bars, or per-phase breakdown, making it difficult to assess consistency across the claimed agile maneuvers.
[Simulation results] Simulation results: While over 10 configurations are mentioned, the manuscript would benefit from an explicit table or figure summarizing per-configuration peak errors and constraint violation rates to strengthen the cross-configuration claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the opportunity to respond to the referee's constructive report. We address each major comment point by point below, providing clarifications on the scope of our abstractions and indicating revisions to strengthen the validation of transient phases and polytope assumptions.

read point-by-point responses

Referee: [Abstract and real-world experiments section] Abstract and real-world experiments section: The central claim that the force-torque-equivalent virtual quadrotor and polytope constraints 'capture the full MARS dynamics' is load-bearing for applying standard controllers, yet experiments report only aggregate metrics (0.0896 m average position error, 40 deg peak pitch) without isolating model-prediction residuals, wrench-set mismatch, or oscillation spectra specifically during passive docking, locking, and magnetic separation intervals. These phases involve unmodeled contact compliance and transient torques not folded into the polytope, so the two-stage allocator operates on an incomplete feasible set precisely when discontinuities are most likely.

Authors: We thank the referee for this observation. The force-torque virtual quadrotor and polytope are formulated for the rigidly connected configuration that constitutes the primary mode of agile flight and transport; the mechanical design (passive docking with detection-free locking) is intended to keep contact transients brief and mechanically constrained. Aggregate metrics and the video evidence show that the two-stage allocator maintains stability without large oscillations through these intervals. We acknowledge that isolating residuals and spectra specifically during docking/separation would provide stronger evidence for the claim of capturing full dynamics. In the revision we will add time-series error plots focused on those phases, a brief discussion of unmodeled compliance, and clarification that the polytope applies to the locked state while the allocator handles short transitions. revision: yes
Referee: [Methods description of the virtual quadrotor and polytope] Methods description of the virtual quadrotor and polytope: The wrench polytope is constructed from individual module force/torque sets, but no quantitative bound or sensitivity analysis is provided on how docking-induced mechanical coupling alters the effective feasible set relative to the virtual model. This directly affects the constrained predictive tracker's guarantees and the claim of configuration-independent stability.

Authors: The polytope is derived from per-module wrench sets under the assumption of rigid post-docking connection, consistent with the passive-locking hardware that minimizes compliance. We did not include a dedicated sensitivity study because the primary contribution centers on control performance across configurations. We agree that quantitative bounds on coupling effects would better support the configuration-independent guarantees. In the revised manuscript we will add a short analysis (simulation-based variation of coupling stiffness) quantifying the deviation of the effective feasible set from the nominal polytope and its influence on the predictive tracker. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper's central modeling step defines a force-torque-equivalent virtual quadrotor and wrench polytope directly from physical actuator limits and configuration geometry using standard rigid-body wrench summation; this equivalence is constructed from first-principles dynamics rather than from the target control performance or any fitted data. The subsequent two-stage allocator and yaw optimization are then derived as standard constrained optimization over that explicitly computed feasible set, without renaming known results or invoking self-cited uniqueness theorems as load-bearing premises. Experiments serve only as external validation and do not retroactively define the model or its predictions. No step reduces by construction to its own inputs.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The approach relies on standard rigid-body dynamics and optimization assumptions rather than new fitted constants or invented physical entities. The virtual quadrotor is an abstraction, not a new postulated object.

free parameters (2)

yaw optimization objective weights
Chosen to maximize control authority; specific values not stated in abstract.
predictive horizon and constraint bounds
Tuned for the two-stage pipeline; not enumerated.

axioms (2)

domain assumption Quadrotor wrench sets can be represented as polytopes that remain valid under module reconfiguration.
Invoked to justify the virtual quadrotor abstraction.
standard math Standard quadrotor dynamics apply to the aggregated MARS system.
Background assumption for applying existing controllers.
