arxiv: 2604.06074 · v1 · submitted 2026-04-07 · 💻 cs.CV · cs.AI· cs.MM

Recognition: 2 theorem links

· Lean Theorem

Graph-PiT: Enhancing Structural Coherence in Part-Based Image Synthesis via Graph Priors

Junbin Zhang , Meng Cao , Feng Tan , Yikai Lin , Yuexian Zou

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:46 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.MM

keywords part-based image synthesisgraph neural networksstructural coherenceimage generationrelational reasoninghierarchical graph neural networkgenerative models

0 comments

The pith

Modeling visual parts as graphs with relational edges produces more structurally coherent images than treating them as unordered sets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that adding explicit graph-based modeling of spatial and semantic relationships between image parts leads to better structural integrity in generated images. Current part-based methods ignore these relationships, resulting in compositions that violate user-specified constraints like adjacency. By introducing a Hierarchical Graph Neural Network and two new losses, the approach refines part embeddings to respect those relationships while fitting into existing pipelines. If correct, this would make fine-grained control in image synthesis more reliable for applications like character design or scene layout. Experiments on synthetic domains demonstrate the gains in coherence.

Core claim

Graph-PiT represents user-provided visual parts as nodes in a graph with edges encoding their spatial-semantic relationships. A Hierarchical Graph Neural Network performs bidirectional message passing between coarse part-level super-nodes and fine-grained token sub-nodes to produce refined, relation-aware embeddings. These embeddings are further shaped by a graph Laplacian smoothness loss and an edge-reconstruction loss before entering the generative model, resulting in outputs that better satisfy adjacency constraints compared to vanilla part-based approaches.

What carries the argument

The Hierarchical Graph Neural Network (HGNN) module, which refines part embeddings through bidirectional message passing across part-level and token-level nodes to incorporate relational priors.

If this is right

Quantitative results on character, product, indoor layout, and jigsaw domains show improved structural coherence over standard PiT.
Explicit relational reasoning via the graph enforces user-specified adjacency constraints more effectively.
The method remains compatible with the original IP-Prior pipeline without major changes.
Ablations confirm that the graph components are necessary for the observed improvements in coherence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Extending this graph prior to dynamic or time-varying graphs could support coherent video generation from parts.
Applying the same relational refinement to other generative backbones might generalize the coherence gains beyond the tested pipeline.
The interpretable graph structure could allow users to debug or adjust relationships interactively for better control.

Load-bearing premise

The spatial-semantic relationships among user-provided parts can be reliably captured by a static graph and that bidirectional message passing plus the added losses will produce refined embeddings that improve coherence without introducing new artifacts.

What would settle it

Running the ablation experiments without the HGNN module or the two losses on the indoor layout or jigsaw tasks and observing no drop in structural coherence metrics compared to the full model.

Figures

Figures reproduced from arXiv: 2604.06074 by Feng Tan, Junbin Zhang, Meng Cao, Yikai Lin, Yuexian Zou.

**Figure 1.** Figure 1: Graph Prior Visualization. To inject structural awareness, we condition generation on an explicit graph prior G. Each part Ii is mapped to a deterministic IP + embedding hi , and the resulting graphconditioned distribution factorizes as: pθ (x|Ii , G) = Z pθ (x|{hi}, A) Y N j=1 δ(hj − IP +(Ii))dhi (2) where the Dirac delta δ(·) simply expresses that each part embedding hi is a deterministic output of the … view at source ↗

**Figure 2.** Figure 2: Illustrates the Overall Graph-PiT Pipeline [5]. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

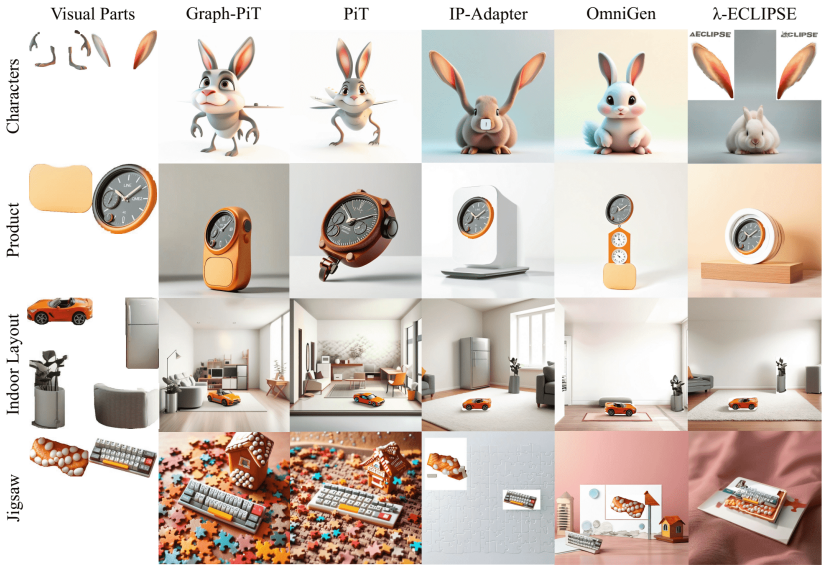

**Figure 3.** Figure 3: Qualitative comparison of Graph-PiT results with other models [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

**Figure 4.** Figure 4: Qualitative testing of Graph-PiT on real data. REFERENCES [1] R. Rombach, A. Blattmann, D. Lorenz, P. Esser, and B. Ommer, “Highresolution image synthesis with latent diffusion models,” in Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2022, pp. 10 684–10 695. [2] A. Radford, J. W. Kim, C. Hallacy, A. Ramesh, G. Goh, S. Agarwal, G. Sastry, A. Askell, P. Mishkin, J. Clar… view at source ↗

**Figure 5.** Figure 5: Qualitative comparisons were made of the generated results of Graph-PiT with different numbers of visual components input on character, product, interior layout, and puzzle datasets. product, indoor layout, and jigsaw—to illustrate how GraphPiT behaves as the number of conditioned parts increases from one to five [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

read the original abstract

Achieving fine-grained and structurally sound controllability is a cornerstone of advanced visual generation. Existing part-based frameworks treat user-provided parts as an unordered set and therefore ignore their intrinsic spatial and semantic relationships, which often results in compositions that lack structural integrity. To bridge this gap, we propose Graph-PiT, a framework that explicitly models the structural dependencies of visual components using a graph prior. Specifically, we represent visual parts as nodes and their spatial-semantic relationships as edges. At the heart of our method is a Hierarchical Graph Neural Network (HGNN) module that performs bidirectional message passing between coarse-grained part-level super-nodes and fine-grained IP+ token sub-nodes, refining part embeddings before they enter the generative pipeline. We also introduce a graph Laplacian smoothness loss and an edge-reconstruction loss so that adjacent parts acquire compatible, relation-aware embeddings. Quantitative experiments on controlled synthetic domains (character, product, indoor layout, and jigsaw), together with qualitative transfer to real web images, show that Graph-PiT improves structural coherence over vanilla PiT while remaining compatible with the original IP-Prior pipeline. Ablation experiments confirm that explicit relational reasoning is crucial for enforcing user-specified adjacency constraints. Our approach not only enhances the plausibility of generated concepts but also offers a scalable and interpretable mechanism for complex, multi-part image synthesis. The code is available at https://github.com/wolf-bailang/Graph-PiT.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Graph-PiT layers a hierarchical GNN and two graph losses onto PiT to enforce part relations, with gains on synthetic coherence but no check on whether sample quality holds up.

read the letter

The main addition here is the HGNN that does bidirectional message passing between part super-nodes and the finer IP+ token nodes, combined with a Laplacian smoothness loss and an edge-reconstruction loss to make connected parts get compatible embeddings. This is then dropped into the existing IP-Prior pipeline without changing its core. On the synthetic test sets for characters, products, layouts, and jigsaws, the ablations show the graph pieces are what drive better adherence to the user-specified adjacency constraints, and the qualitative examples on web images look plausible. That part is straightforward and the controlled domains make the comparison clean. The paper also keeps the method compatible with the original pipeline, which is practical. The soft spot is exactly the one flagged in the stress-test note: there are no FID, precision-recall, or diversity numbers reported for Graph-PiT versus vanilla PiT on the same sets. Coherence metrics alone do not tell us whether the refined embeddings shift the downstream distribution enough to introduce artifacts or cut variety. If that happens, the structural wins could be offset by lower overall usefulness. The real-image transfer is only visual, which is okay for a first pass but limits how far the claims can be pushed. This is aimed at people already working on part-based or controllable synthesis who need to bake in relational constraints. A reader who cares about graph priors in vision or who builds on PiT-style models would get the most out of it. The thinking is clear and the experiments are scoped reasonably, so it deserves a serious referee even if the quality metrics need to be added.

Referee Report

2 major / 2 minor

Summary. The paper proposes Graph-PiT, an extension of the PiT part-based image synthesis framework that incorporates graph priors to model spatial-semantic relationships among user-provided parts. Parts are represented as nodes with edges encoding relationships; a Hierarchical Graph Neural Network (HGNN) performs bidirectional message passing between coarse part-level super-nodes and fine-grained IP+ token sub-nodes to refine embeddings. Two new losses (graph Laplacian smoothness and edge-reconstruction) are added to encourage compatible embeddings for adjacent parts. Quantitative results on four controlled synthetic domains (character, product, indoor layout, jigsaw) plus qualitative results on real web images claim improved structural coherence over vanilla PiT while remaining compatible with the original IP-Prior pipeline; ablations highlight the role of explicit relational reasoning. Public code is released.

Significance. If the central claims hold, the work provides a scalable mechanism for enforcing user-specified adjacency constraints in part-based generation, improving plausibility without altering the base generative pipeline. The public code release supports reproducibility. However, the significance is limited by the current evaluation, which focuses narrowly on coherence metrics and does not verify that generative quality (e.g., realism and diversity) is preserved.

major comments (2)

[Experiments] Experiments section: The quantitative evaluation on the four synthetic domains reports coherence gains and ablation results on relational reasoning but does not include standard generative-quality metrics (FID, precision/recall, or perceptual distances) comparing Graph-PiT to vanilla PiT on the same controlled sets. This omission is load-bearing for the central claim that the HGNN, Laplacian loss, and edge-reconstruction loss improve coherence without shifting the downstream IP-Prior distribution enough to introduce artifacts or reduce sample quality.
[Method] Method section (HGNN module description): The bidirectional message passing between coarse-grained super-nodes and fine-grained sub-nodes is presented as the core refinement step, yet the exact update rules, aggregation functions, and interface to the IP-Prior token embeddings are not specified in sufficient detail to allow independent verification that the refined embeddings remain compatible with the original generative model.

minor comments (2)

[Abstract] The abstract refers to 'IP+ token sub-nodes' without prior definition; the main text should introduce this notation explicitly when describing the integration with the base PiT pipeline.
[Figures] Figure captions and axis labels in the qualitative results should explicitly state the source domain (synthetic vs. real web images) and the exact adjacency constraints provided to each method for fair visual comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and indicate the corresponding revisions.

read point-by-point responses

Referee: Experiments section: The quantitative evaluation on the four synthetic domains reports coherence gains and ablation results on relational reasoning but does not include standard generative-quality metrics (FID, precision/recall, or perceptual distances) comparing Graph-PiT to vanilla PiT on the same controlled sets. This omission is load-bearing for the central claim that the HGNN, Laplacian loss, and edge-reconstruction loss improve coherence without shifting the downstream IP-Prior distribution enough to introduce artifacts or reduce sample quality.

Authors: We agree that reporting standard generative quality metrics would strengthen the evaluation and directly support the compatibility claim. Our experiments prioritized task-specific coherence metrics because the central contribution concerns enforcement of relational constraints; the generative backbone remains unchanged. Nevertheless, to empirically verify that no artifacts or quality degradation are introduced, we will add FID, precision, and recall comparisons between Graph-PiT and vanilla PiT on the four synthetic domains in the revised manuscript. revision: yes
Referee: Method section (HGNN module description): The bidirectional message passing between coarse-grained super-nodes and fine-grained sub-nodes is presented as the core refinement step, yet the exact update rules, aggregation functions, and interface to the IP-Prior token embeddings are not specified in sufficient detail to allow independent verification that the refined embeddings remain compatible with the original generative model.

Authors: We acknowledge that additional mathematical detail is needed for full reproducibility and to confirm embedding compatibility. In the revised Method section we will include the precise bidirectional update equations, the aggregation functions employed (mean pooling with optional attention), the dimensionality-preserving projection that interfaces with IP-Prior tokens, and a short proof sketch showing that the refinement step does not alter the token distribution expected by the downstream generator. revision: yes

Circularity Check

0 steps flagged

No significant circularity; method adds independent graph components validated on external benchmarks

full rationale

The paper introduces an HGNN module and two new losses (Laplacian smoothness and edge-reconstruction) as additions to the existing IP-Prior/PiT pipeline. These are not derived from the target coherence metrics by construction; instead, they are presented as architectural choices whose effect is measured via separate quantitative metrics on controlled synthetic domains (character, product, indoor layout, jigsaw) and qualitative transfer. Ablations isolate the contribution of relational reasoning without reducing the claimed improvement to a redefinition of the inputs. No load-bearing self-citation chain or self-definitional equations appear in the derivation; the evaluation uses independent coherence-specific metrics rather than quantities fitted inside the model itself. This is the normal case of an incremental architectural proposal with external validation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 3 invented entities

The approach rests on the domain assumption that graph neural networks can usefully encode visual part relationships and introduces several new technical components whose effectiveness is asserted rather than derived from first principles.

axioms (1)

domain assumption Bidirectional message passing between coarse part-level super-nodes and fine IP+ token sub-nodes refines embeddings in a way that improves downstream generation
This is the central mechanism claimed to produce better structural coherence.

invented entities (3)

Hierarchical Graph Neural Network (HGNN) module no independent evidence
purpose: Performs bidirectional message passing between part-level and token-level nodes to refine embeddings
New module introduced as the core of the method
Graph Laplacian smoothness loss no independent evidence
purpose: Encourages compatible embeddings for adjacent parts
New loss term added to the training objective
Edge-reconstruction loss no independent evidence
purpose: Enforces relation-aware embeddings by reconstructing graph edges
New loss term added to the training objective

pith-pipeline@v0.9.0 · 5572 in / 1521 out tokens · 51230 ms · 2026-05-10T19:46:53.993613+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Hierarchical Graph Neural Network (HGNN) module that performs bidirectional message passing between coarse-grained part-level super-nodes and fine-grained IP+ token sub-nodes... graph Laplacian smoothness loss and an edge-reconstruction loss
IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Graph-PiT improves structural coherence over vanilla PiT while remaining compatible with the original IP-Prior pipeline

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

24 extracted references · 9 canonical work pages · 3 internal anchors

[1]

High- resolution image synthesis with latent diffusion models,

R. Rombach, A. Blattmann, D. Lorenz, P. Esser, and B. Ommer, “High- resolution image synthesis with latent diffusion models,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2022, pp. 10 684–10 695

2022
[2]

Learning transferable visual models from natural language supervision,

A. Radford, J. W. Kim, C. Hallacy, A. Ramesh, G. Goh, S. Agarwal, G. Sastry, A. Askell, P. Mishkin, J. Clarket al., “Learning transferable visual models from natural language supervision,” inInternational conference on machine learning. PmLR, 2021, pp. 8748–8763

2021
[3]

A style-based generator architecture for generative adversarial networks,

T. Karras, S. Laine, and T. Aila, “A style-based generator architecture for generative adversarial networks,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2019, pp. 4401– 4410

2019
[4]

Mix-of-show: Decentralized low-rank adap- tation for multi-concept customization of diffusion models,

Y . Gu, X. Wang, J. Z. Wu, Y . Shi, Y . Chen, Z. Fan, W. Xiao, R. Zhao, S. Chang, W. Wuet al., “Mix-of-show: Decentralized low-rank adap- tation for multi-concept customization of diffusion models,”Advances in Neural Information Processing Systems, vol. 36, pp. 15 890–15 902, 2023

2023
[5]

Piece it together: Part-based concepting with ip-priors,

E. Richardson, K. Goldberg, Y . Alaluf, and D. Cohen-Or, “Piece it together: Part-based concepting with ip-priors,”arXiv preprint arXiv:2503.10365, 2025

work page arXiv 2025
[6]

Dreambooth: Fine tuning text-to-image diffusion models for subject- driven generation,

N. Ruiz, Y . Li, V . Jampani, Y . Pritch, M. Rubinstein, and K. Aberman, “Dreambooth: Fine tuning text-to-image diffusion models for subject- driven generation,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2023, pp. 22 500–22 510

2023
[7]

SDXL: Improving Latent Diffusion Models for High-Resolution Image Synthesis

D. Podell, Z. English, K. Lacey, A. Blattmann, T. Dockhorn, J. M ¨uller, J. Penna, and R. Rombach, “Sdxl: Improving latent diffusion models for high-resolution image synthesis,”arXiv preprint arXiv:2307.01952, 2023

work page internal anchor Pith review Pith/arXiv arXiv 2023
[8]

Composing parts for expressive object generation,

H. Rangwani, A. Agarwal, K. Kulkarni, R. V . Babu, and S. Karanam, “Composing parts for expressive object generation,” inProceedings of the Computer Vision and Pattern Recognition Conference, 2025, pp. 13 209–13 219

2025
[9]

IP-Adapter: Text Compatible Image Prompt Adapter for Text-to-Image Diffusion Models

H. Ye, J. Zhang, S. Liu, X. Han, and W. Yang, “Ip-adapter: Text compatible image prompt adapter for text-to-image diffusion models,” arXiv preprint arXiv:2308.06721, 2023

work page internal anchor Pith review arXiv 2023
[10]

Ground-r1: Incentivizing grounded visual reasoning via reinforcement learning.arXiv preprint arXiv:2505.20272, 2025

M. Cao, H. Zhao, C. Zhang, X. Chang, I. Reid, and X. Liang, “Ground- r1: Incentivizing grounded visual reasoning via reinforcement learning,” arXiv preprint arXiv:2505.20272, 2025

work page arXiv 2025
[11]

lambda-eclipse: Multi- concept personalized text-to-image diffusion models by leveraging clip latent space,

M. Patel, S. Jung, C. Baral, and Y . Yang, “lambda-eclipse: Multi- concept personalized text-to-image diffusion models by leveraging clip latent space,”arXiv preprint arXiv:2402.05195, 2024

work page arXiv 2024
[12]

Omnigen: Unified image generation,

S. Xiao, Y . Wang, J. Zhou, H. Yuan, X. Xing, R. Yan, C. Li, S. Wang, T. Huang, and Z. Liu, “Omnigen: Unified image generation,” inPro- ceedings of the Computer Vision and Pattern Recognition Conference, 2025, pp. 13 294–13 304

2025
[13]

Diffusionclip: Text-guided diffusion models for robust image manipulation,

G. Kim, T. Kwon, and J. C. Ye, “Diffusionclip: Text-guided diffusion models for robust image manipulation,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2022, pp. 2426– 2435

2022
[14]

Attend-and- excite: Attention-based semantic guidance for text-to-image diffusion models,

H. Chefer, Y . Alaluf, Y . Vinker, L. Wolf, and D. Cohen-Or, “Attend-and- excite: Attention-based semantic guidance for text-to-image diffusion models,”ACM transactions on Graphics (TOG), vol. 42, no. 4, pp. 1– 10, 2023

2023
[15]

Kandinsky: an im- proved text-to-image synthesis with image prior and latent diffusion.arXiv preprint arXiv:2310.03502, 2023

A. Razzhigaev, A. Shakhmatov, A. Maltseva, V . Arkhipkin, I. Pavlov, I. Ryabov, A. Kuts, A. Panchenko, A. Kuznetsov, and D. Dimitrov, “Kandinsky: an improved text-to-image synthesis with image prior and latent diffusion,”arXiv preprint arXiv:2310.03502, 2023

work page arXiv 2023
[16]

Partgen: Part-level 3d generation and reconstruction with multi-view diffusion models,

M. Chen, R. Shapovalov, I. Laina, T. Monnier, J. Wang, D. Novotny, and A. Vedaldi, “Partgen: Part-level 3d generation and reconstruction with multi-view diffusion models,” inProceedings of the Computer Vision and Pattern Recognition Conference, 2025, pp. 5881–5892

2025
[17]

Ip-composer: Semantic composition of visual concepts,

S. Dorfman, D. Cohen-Bar, R. Gal, and D. Cohen-Or, “Ip-composer: Semantic composition of visual concepts,” inProceedings of the Spe- cial Interest Group on Computer Graphics and Interactive Techniques Conference Conference Papers, 2025, pp. 1–11

2025
[18]

pops: Photo-inspired diffusion operators,

E. Richardson, Y . Alaluf, A. Mahdavi-Amiri, and D. Cohen-Or, “pops: Photo-inspired diffusion operators,” inProceedings of the Special Inter- est Group on Computer Graphics and Interactive Techniques Conference Conference Papers, 2025, pp. 1–12

2025
[19]

Image generation from scene graphs,

J. Johnson, A. Gupta, and L. Fei-Fei, “Image generation from scene graphs,” inProceedings of the IEEE conference on computer vision and pattern recognition, 2018, pp. 1219–1228

2018
[20]

Diffuscene: Denoising diffusion models for generative indoor scene synthesis,

J. Tang, Y . Nie, L. Markhasin, A. Dai, J. Thies, and M. Nießner, “Diffuscene: Denoising diffusion models for generative indoor scene synthesis,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2024, pp. 20 507–20 518

2024
[21]

2024.doi:10.48550/arXiv.2402.04717

C. Lin and Y . Mu, “Instructscene: Instruction-driven 3d indoor scene synthesis with semantic graph prior,”arXiv preprint arXiv:2402.04717, 2024

work page arXiv 2024
[22]

Semi-Supervised Classification with Graph Convolutional Networks

T. Kipf, “Semi-supervised classification with graph convolutional net- works,”arXiv preprint arXiv:1609.02907, 2016

work page internal anchor Pith review Pith/arXiv arXiv 2016
[23]

Unifying generation and prediction on graphs with latent graph diffusion, 2024

C. Zhou, X. Wang, and M. Zhang, “Latent graph diffusion: A uni- fied framework for generation and prediction on graphs,”CoRR, abs/2402.02518, 2024

work page arXiv 2024
[24]

Graph laplacian regularization for image denoising: Analysis in the continuous domain,

J. Pang and G. Cheung, “Graph laplacian regularization for image denoising: Analysis in the continuous domain,”IEEE Transactions on Image Processing, vol. 26, no. 4, pp. 1770–1785, 2017. V. RELATEDWORKS A. Controllable Visual Generation Modern diffusion models allow rich conditioning via cross- attention [1]. Methods such as DiffusionCLIP [13] and Attn- a...

2017
