Adversarial Robustness of Time-Series Classification for Crystal Collimator Alignment

Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:45 UTC · model grok-4.3

classification 💻 cs.CR cs.LG
keywords adversarial robustnesstime-series classificationconvolutional neural networkcrystal collimator alignmentbeam-loss monitorLarge Hadron Collideradversarial fine-tuningsequence-level robustness
0
0 comments X

The pith

Adversarial fine-tuning improves robust accuracy of an LHC crystal-collimator CNN by up to 18.6 percentage points without lowering clean accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how a convolutional neural network classifies time-series data from beam-loss monitors to assist crystal-collimator alignment at the Large Hadron Collider. It builds a differentiable wrapper that folds the pipeline's normalization, padding, and structured perturbations into a form compatible with existing attack tools. Adversarial fine-tuning under a threat model grounded in physical plausibility then raises the fraction of inputs that remain correctly classified even after bounded changes. This matters for safety-critical monitoring where an attacker who can influence sensor readings could otherwise force misaligned crystals and beam loss. The work further shows that single-window defenses leave open sequence-level attacks that produce consistent errors across adjacent time windows.

Core claim

The central claim is that a CNN classifying BLM time series for crystal-collimator alignment at CERN can have its adversarial robustness improved by up to 18.6% through adversarial fine-tuning without loss in clean accuracy, after formalizing a local robustness property under a real-world threat model and implementing a preprocessing-aware wrapper to enable gradient-based attacks on the deployed pipeline. The paper further shows that sequence-level adversarial sequences can serve as counterexamples to temporal robustness over full scans.

What carries the argument

a preprocessing-aware differentiable wrapper that encodes time-series normalization, padding constraints, and structured perturbations in front of the CNN, allowing existing gradient-based robustness frameworks to operate on the full deployed pipeline

Load-bearing premise

The chosen adversarial threat model based on real-world plausibility for structured perturbations to BLM time series during crystal rotation accurately captures the inputs an attacker could realistically supply to the deployed system.

What would settle it

Finding a perturbation within the allowed bounds that changes the fine-tuned CNN's classification on a real BLM time series recorded during crystal rotation would show that the reported robustness gain does not hold.

Figures

Figures reproduced from arXiv: 2604.06289 by Alvaro Garcia Gonzales, Borja Fernandez Adiego, Daniele Mirarchi, Eloise Matheson, Gianmarco Ricci, Joost-Pieter Katoen, Xaver Fink.

Figure 1
Figure 1. Figure 1: The principle behind the crystal collimation scheme (visualized for beta [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: On-the-fly classification during a crystal rotation. At time instant [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Conceptual overview of the deployed classification pipeline [Section 2.2] [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Infeasible adversarial example Zˆ i in the normalized space. However, adversarial examples in the normalized space may be un￾sound in the sense that they may vi￾olate the intended threat feasibility constraints. Informally, normalization and padding enforce constraints on the feasible set of adversarial exam￾ples in the signal space that are not captured by a simple L∞ ball [PITH_FULL_IMAGE:figures/full_f… view at source ↗
Figure 5

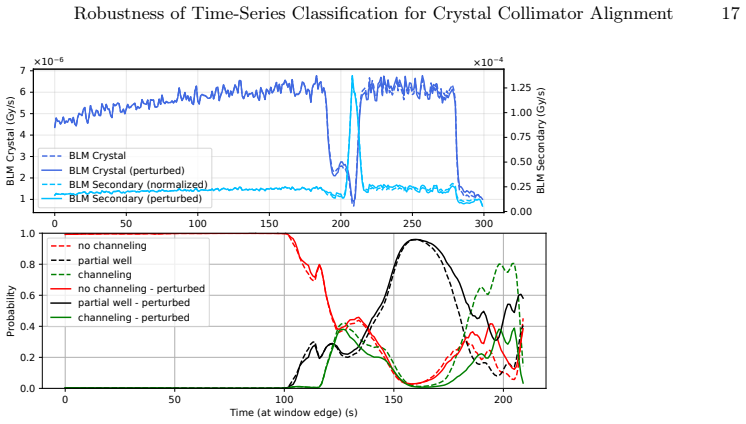

Figure 5. Figure 5: Proof-of-concept adversarial sequence attack. Top: BLM Crystal and Sec [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
read the original abstract

In this paper, we analyze and improve the adversarial robustness of a convolutional neural network (CNN) that assists crystal-collimator alignment at CERN's Large Hadron Collider (LHC) by classifying a beam-loss monitor (BLM) time series during crystal rotation. We formalize a local robustness property for this classifier under an adversarial threat model based on real-world plausibility. Building on established parameterized input-transformation patterns used for transformation- and semantic-perturbation robustness, we instantiate a preprocessing-aware wrapper for our deployed time-series pipeline: we encode time-series normalization, padding constraints, and structured perturbations as a lightweight differentiable wrapper in front of the CNN, so that existing gradient-based robustness frameworks can operate on the deployed pipeline. For formal verification, data-dependent preprocessing such as per-window z-normalization introduces nonlinear operators that require verifier-specific abstractions. We therefore focus on attack-based robustness estimates and pipeline-checked validity by benchmarking robustness with the frameworks Foolbox and ART. Adversarial fine-tuning of the resulting CNN improves robust accuracy by up to 18.6 % without degrading clean accuracy. Finally, we extend robustness on time-series data beyond single windows to sequence-level robustness for sliding-window classification, introduce adversarial sequences as counterexamples to a temporal robustness requirement over full scans, and observe attack-induced misclassifications that persist across adjacent windows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript analyzes the adversarial robustness of a CNN for classifying beam loss monitor (BLM) time series during crystal rotation for collimator alignment at the LHC. It formalizes local robustness under a real-world plausible threat model, develops a differentiable wrapper encoding normalization, padding, and structured perturbations to enable use of Foolbox and ART frameworks, reports that adversarial fine-tuning boosts robust accuracy by up to 18.6% with no clean accuracy degradation, and extends the analysis to sequence-level robustness using adversarial sequences for sliding windows.

Significance. If the threat model is realistic, this provides a practical demonstration of improving robustness in a deployed time-series classifier for a high-stakes scientific application. The use of existing attack libraries via a wrapper and the extension to temporal robustness across sequences are useful contributions. Concrete numerical improvements are reported from standard benchmarks.

major comments (1)
  1. [Threat model (abstract and §2)] The adversarial threat model is described as based on real-world plausibility for structured perturbations to BLM time series, but the manuscript does not include comparisons to recorded LHC beam-loss traces, physics-based collimator misalignment simulators, or measured sensor noise characteristics (see abstract and threat model description). This leaves open whether the perturbation family matches realistic attacker capabilities, which is load-bearing for the transferability of the reported 18.6% robust accuracy gain from adversarial fine-tuning.
minor comments (2)
  1. [Abstract] The claim of 'up to 18.6 %' improvement would benefit from specifying the corresponding attack parameters, baseline accuracy, and dataset details for immediate context.
  2. [Experimental evaluation] Details on data splits, number of samples, and statistical significance testing for the reported accuracy improvements should be clarified to support the empirical claims.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for the constructive feedback on the threat model. We address the single major comment below and propose targeted revisions to improve clarity without altering the core contributions.

read point-by-point responses
  1. Referee: [Threat model (abstract and §2)] The adversarial threat model is described as based on real-world plausibility for structured perturbations to BLM time series, but the manuscript does not include comparisons to recorded LHC beam-loss traces, physics-based collimator misalignment simulators, or measured sensor noise characteristics (see abstract and threat model description). This leaves open whether the perturbation family matches realistic attacker capabilities, which is load-bearing for the transferability of the reported 18.6% robust accuracy gain from adversarial fine-tuning.

    Authors: We acknowledge that the manuscript does not contain direct empirical comparisons to recorded LHC traces, collimator simulators, or measured noise statistics. The threat model in §2 is instead derived from domain knowledge of the BLM system and plausible attack surfaces (e.g., sensor tampering or control-system injection during crystal rotation), with perturbation families chosen to respect physical constraints such as temporal continuity and the deployed normalization/padding pipeline. This choice enables the differentiable wrapper and use of Foolbox/ART while remaining relevant to the high-stakes LHC setting. We will revise §2 and the abstract to (i) cite relevant literature on accelerator sensor security and (ii) explicitly state the assumptions and limitations of the chosen perturbation family, thereby clarifying the scope of the 18.6% robust-accuracy claim. We cannot, however, add the requested empirical matching because operational LHC data are proprietary and not available for this study. revision: partial

standing simulated objections not resolved
  • Direct empirical validation of the perturbation family against recorded LHC beam-loss traces, physics-based simulators, or measured sensor noise, due to lack of access to proprietary operational data.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper reports an empirical result: adversarial fine-tuning on a CNN for BLM time-series classification yields up to 18.6% robust-accuracy gain with no clean-accuracy loss. This is obtained by instantiating a differentiable wrapper around normalization/padding/structured perturbations and running gradient attacks via external libraries (Foolbox, ART). No equations, self-definitional loops, or load-bearing self-citations appear in the provided text that would reduce the accuracy gain to a fitted parameter or input by construction. The threat model is presented as an assumption justified by real-world plausibility rather than derived from prior results of the same authors. The central claim therefore rests on standard adversarial-training methodology applied to an external pipeline and does not collapse into tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the domain assumption that the formalized threat model matches plausible real-world inputs and that the differentiable wrapper faithfully reproduces the deployed preprocessing steps; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption The adversarial threat model based on real-world plausibility for time-series perturbations is appropriate for the LHC crystal-collimator application.
    Used to define the local robustness property and to generate the structured perturbations for benchmarking.

pith-pipeline@v0.9.0 · 5562 in / 1285 out tokens · 54427 ms · 2026-05-10T19:45:29.843718+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

38 extracted references · 10 canonical work pages · 1 internal anchor

  1. [1]

    In: ICML

    Athalye, A., Engstrom, L., Ilyas, A., Kwok, K.: Synthesizing Robust Adversarial Examples. In: ICML. Proceedings of Machine Learning Research, vol. 80, pp. 284–

  2. [2]

    A., Lines, J., Flynn, M., Large, J., Bostrom, A.,

    Bagnall, A.J., Dau, H.A., Lines, J., Flynn, M., Large, J., Bostrom, A., Southam, P., Keogh, E.J.: The UEA multivariate time series classification archive, 2018. CoRR abs/1811.00075(2018)

  3. [3]

    In: IJCAI

    Bai, T., Luo, J., Zhao, J., Wen, B., Wang, Q.: Recent Advances in Adversarial Training for Adversarial Robustness. In: IJCAI. pp. 4312–4321. ijcai.org (2021)

  4. [4]

    In: Lectures on Runtime Verification, Lecture Notes in Computer Science, vol

    Bartocci, E., Deshmukh, J.V., Donzé, A., Fainekos, G., Maler, O., Nickovic, D., Sankaranarayanan, S.: Specification-Based Monitoring of Cyber-Physical Systems: A Survey on Theory, Tools and Applications. In: Lectures on Runtime Verification, Lecture Notes in Computer Science, vol. 10457, pp. 135–175. Springer (2018)

  5. [5]

    In: IJCAI

    Belkhouja, T., Doppa, J.R.: Adversarial Framework with Certified Robustness for Time-Series Domain via Statistical Features (Extended Abstract). In: IJCAI. pp. 6845–6850. ijcai.org (2023)

  6. [6]

    Benedikt, M., Bartmann, W., Burnet, J.P., Carli, C., Chance, A., Craievich, P., Giovannozzi, M., Grojean, C., Gutleber, J., Hanke, K., Henriques, A., Janot, P., Lourenco, C., Mangano, M., Otto, T., Poole, J.H., Rajagopalan, S., Raubenheimer, T., Todesco, E., Ulrici, L., Watson, T.P., Wilkinson, G., Zimmermann, F.: Fu- ture Circular Collider Feasibility St...

  7. [7]

    Brix, C., Müller, M.N., Bak, S., Johnson, T.T., Liu, C.: First three years of the international verification of neural networks competition (VNN-COMP). Int. J. Softw. Tools Technol. Transf.25(3), 329–339 (2023)

  8. [8]

    In: IEEE Symposium on Security and Privacy Workshops

    Carlini, N., Wagner, D.A.: Audio Adversarial Examples: Targeted Attacks on Speech-to-Text. In: IEEE Symposium on Security and Privacy Workshops. pp. 1–7. IEEE Computer Society (2018)

  9. [9]

    In: ICML

    Cohen, J., Rosenfeld, E., Kolter, J.Z.: Certified Adversarial Robustness via Ran- domized Smoothing. In: ICML. Proceedings of Machine Learning Research, vol. 97, pp. 1310–1320. PMLR (2019)

  10. [10]

    Dau, H.A., Bagnall, A., Kamgar, K., Yeh, C.C.M., Zhu, Y., Gharghabi, S., Ratanamahatana,C.A.,Keogh,E.:TheUCRtimeseriesarchive.IEEE/CAAJour- nal of Automatica Sinica6(6), 1293–1305 (Nov 2019).https://doi.org/10.1109/ JAS.2019.1911747,https://ieeexplore.ieee.org/document/8894743/

  11. [11]

    In: AAAI

    Ding, D., Zhang, M., Feng, F., Huang, Y., Jiang, E., Yang, M.: Black-Box Adver- sarial Attack on Time Series Classification. In: AAAI. pp. 7358–7368. AAAI Press (2023)

  12. [12]

    In: INDIN

    Dix, M., Manca, G., Okafor, K.C., Borrison, R., Kirchheim, K., Sharma, D., R, C.K., Maduskar, D., Ortmeier, F.: Measuring the Robustness of ML Models Against Data Quality Issues in Industrial Time Series Data. In: INDIN. pp. 1–8. IEEE (2023)

  13. [13]

    In: CVPR

    Eykholt, K., Evtimov, I., Fernandes, E., Li, B., Rahmati, A., Xiao, C., Prakash, A., Kohno, T., Song, D.: Robust Physical-World Attacks on Deep Learning Visual Classification. In: CVPR. pp. 1625–1634. Computer Vision Foundation / IEEE Computer Society (2018)

  14. [14]

    In: ICLR (Poster) (2015) 20 X

    Goodfellow, I.J., Shlens, J., Szegedy, C.: Explaining and Harnessing Adversarial Examples. In: ICLR (Poster) (2015) 20 X. Fink et al

  15. [15]

    Nature Medicine26(3), 360–363 (Mar 2020).https://doi.org/10.1038/ s41591-020-0791-x,https://www.nature.com/articles/s41591-020-0791-x

    Han, X., Hu, Y., Foschini, L., Chinitz, L., Jankelson, L., Ranganath, R.: Deep learning models for electrocardiograms are susceptible to adversarial at- tack. Nature Medicine26(3), 360–363 (Mar 2020).https://doi.org/10.1038/ s41591-020-0791-x,https://www.nature.com/articles/s41591-020-0791-x

  16. [16]

    In: IEEE Nuclear Science Symposium Conference Record, 2005

    Holzer, E., Dehning, B., Effinger, E., Emery, J., Ferioli, G., Gonzalez, J., Gschwendtner, E., Guaglio, G., Hodgson, M., Kramer, D., Leitner, R., Ponce, L., Prieto, V., Stockner, M., Zamantzas, C.: Beam loss monitoring system for the LHC. In: IEEE Nuclear Science Symposium Conference Record, 2005. vol. 2, pp. 1052–1056 (Oct 2005).https://doi.org/10.1109/N...

  17. [17]

    In: ACM Multimedia

    Jiang, L., Ma, X., Chen, S., Bailey, J., Jiang, Y.G.: Black-box Adversarial Attacks on Video Recognition Models. In: ACM Multimedia. pp. 864–872. ACM (2019)

  18. [18]

    In: CAV (1)

    Katz, G., Barrett, C.W., Dill, D.L., Julian, K., Kochenderfer, M.J.: Reluplex: An Efficient SMT Solver for Verifying Deep Neural Networks. In: CAV (1). Lecture Notes in Computer Science, vol. 10426, pp. 97–117. Springer (2017)

  19. [19]

    Li, H., Cui, Y., Wang, S., Liu, J., Qin, J., Yang, Y.: Multivariate Financial Time- SeriesPredictionWithCertifiedRobustness.IEEEAccess8,109133–109143(2020)

  20. [20]

    In: EANN

    Lopez-Miguel, I.D., Adiego, B.F., Ghawash, F., Viñuela, E.B.: Verification of Neu- ral Networks Meets PLC Code: An LHC Cooling Tower Control System at CERN. In: EANN. Communications in Computer and Information Science, vol. 1826, pp. 420–432. Springer (2023)

  21. [21]

    In: ICLR (Poster)

    Madry, A., Makelov, A., Schmidt, L., Tsipras, D., Vladu, A.: Towards Deep Learn- ing Models Resistant to Adversarial Attacks. In: ICLR (Poster). OpenReview.net (2018)

  22. [22]

    In: Proceedings of 12th Large Hadron Collider Physics Conference — PoS(LHCP2024)

    Malara, A., ATLAS and CMS Collaborations: Exploring jets: substructure and flavour tagging in CMS and ATLAS. In: Proceedings of 12th Large Hadron Collider Physics Conference — PoS(LHCP2024). p. 150. Sissa Medialab, Boston, USA (Dec 2024).https://doi.org/10.22323/1.478.0150,https://pos.sissa.it/478/150

  23. [23]

    In: AIPR

    Mode, G.R., Hoque, K.A.: Adversarial Examples in Deep Learning for Multivariate Time Series Regression. In: AIPR. pp. 1–10. IEEE (2020)

  24. [24]

    In: CVPR

    Mohapatra, J., Weng, T.W., Chen, P.Y., Liu, S., Daniel, L.: Towards Verifying Robustness of Neural Networks Against A Family of Semantic Perturbations. In: CVPR. pp. 241–249. Computer Vision Foundation / IEEE (2020)

  25. [25]

    Reliable evaluation of adversarial robustness with an ensemble of diverse parameter-free attacks

    Nicolae, M.I., Sinn, M., Tran, M.N., Buesser, B., Rawat, A., Wistuba, M., Zant- edeschi, V., Baracaldo, N., Chen, B., Ludwig, H., Molloy, I.M., Edwards, B.: Adver- sarial Robustness Toolbox v1.0.0 (Nov 2019).https://doi.org/10.48550/arXiv. 1807.01069,http://arxiv.org/abs/1807.01069, arXiv:1807.01069 [cs]

  26. [26]

    In: MILCOM

    Papernot, N., McDaniel, P.D., Swami, A., Harang, R.E.: Crafting adversarial input sequences for recurrent neural networks. In: MILCOM. pp. 49–54. IEEE (2016)

  27. [27]

    In: SAFECOMP

    Paterson, C., Wu, H., Grese, J., Calinescu, R., Pasareanu, C.S., Barrett, C.W.: DeepCert: Verification of Contextually Relevant Robustness for Neural Network Image Classifiers. In: SAFECOMP. Lecture Notes in Computer Science, vol. 12852, pp. 3–17. Springer (2021)

  28. [28]

    Rauber,J.,Zimmermann,R.,Bethge,M.,Brendel,W.:FoolboxNative:Fastadver- sarial attacks to benchmark the robustness of machine learning models in PyTorch, TensorFlow, and JAX. J. Open Source Softw.5(53), 2607 (2020)

  29. [29]

    Physical Review Accelerators and Beams28(5), 051001 (May 2025).https://doi.org/ 10.1103/PhysRevAccelBeams.28.051001,https://link.aps.org/doi/10.1103/ PhysRevAccelBeams.28.051001

    Redaelli, S., Aberle, O., Abramov, A., Bruce, R., Cai, R., Calviani, M., D’Andrea, M., Demassieux, Q., Dewhurst, K., Di Castro, M., Esposito, L., Gilardoni, S., Hermes, P., Lindström, B., Lechner, A., Masi, A., Matheson, E., Mirarchi, D., Potoine, J.B., Ricci, G., Rodin, V., Seidenbinder, R., Paiva, S.S., Bandiera, L., Robustness of Time-Series Classifica...

  30. [30]

    Physical Review Accelerators and Beams27(9), 093001 (Sep 2024).https:// doi.org/10.1103/PhysRevAccelBeams.27.093001,https://link.aps.org/doi/ 10.1103/PhysRevAccelBeams.27.093001

    Ricci, G., D’Andrea, M., Di Castro, M., Matheson, E., Mirarchi, D., Mostacci, A., Redaelli, S.: Machine learning based crystal collimator alignment optimization. Physical Review Accelerators and Beams27(9), 093001 (Sep 2024).https:// doi.org/10.1103/PhysRevAccelBeams.27.093001,https://link.aps.org/doi/ 10.1103/PhysRevAccelBeams.27.093001

  31. [31]

    In: Proceedings of 42nd International Conference on High Energy Physics — PoS(ICHEP2024)

    Sarkar, U., CMS Collaboration: Run 3 performance and advances in heavy-flavor jet tagging in CMS. In: Proceedings of 42nd International Conference on High Energy Physics — PoS(ICHEP2024). p. 992. Sissa Medialab, Prague, Czech Re- public (Jan 2025).https://doi.org/10.22323/1.476.0992,https://pos.sissa. it/476/992

  32. [32]

    In: ICLR (Poster) (2014)

    Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan, D., Goodfellow, I.J., Fergus, R.: Intriguing properties of neural networks. In: ICLR (Poster) (2014)

  33. [33]

    In: ICML

    Uesato, J., O’Donoghue, B., Kohli, P., Oord, A.v.d.: Adversarial Risk and the Dangers of Evaluating Against Weak Attacks. In: ICML. Proceedings of Machine Learning Research, vol. 80, pp. 5032–5041. PMLR (2018)

  34. [34]

    Wang, S., Zhang, H., Xu, K., Lin, X., Jana, S., Hsieh, C.J., Kolter, J.Z.: Beta-CROWN: Efficient Bound Propagation with Per-neuron Split Constraints for Complete and Incomplete Neural Network Robustness Verification (Oct 2021).https://doi.org/10.48550/arXiv.2103.06624,http://arxiv.org/abs/ 2103.06624, arXiv:2103.06624 [cs]

  35. [35]

    In: IJCNN

    Wang, Z., Yan, W., Oates, T.: Time series classification from scratch with deep neural networks: A strong baseline. In: IJCNN. pp. 1578–1585. IEEE (2017)

  36. [36]

    In: CAV (2)

    Wu, H., Isac, O., Zeljic, A., Tagomori, T., Daggitt, M.L., Kokke, W., Refaeli, I., Amir, G., Julian, K., Bassan, S., Huang, P., Lahav, O., Wu, M., Zhang, M., Komendantskaya, E., Katz, G., Barrett, C.W.: Marabou 2.0: A Versatile Formal Analyzer of Neural Networks. In: CAV (2). Lecture Notes in Computer Science, vol. 14682, pp. 249–264. Springer (2024)

  37. [37]

    Wu, T., Wang, X., Qiao, S., Xian, X., Liu, Y., Zhang, L.: Small perturbations are enough: Adversarial attacks on time series prediction. Inf. Sci.587, 794–812 (2022)

  38. [38]

    In: IJCAI

    Zügner, D., Akbarnejad, A., Günnemann, S.: Adversarial Attacks on Neural Net- works for Graph Data. In: IJCAI. pp. 6246–6250. ijcai.org (2019) A Sequence-Level Robustness and Extendability This appendix formalizes the notion of extendability of adversarial sequences introduced in Section 3 and clarifies its relationship to local robustness verifica- tion....
