arxiv: 2604.06530 · v1 · submitted 2026-04-08 · ✦ hep-ph · hep-th

Recognition: no theorem link

The non-topological Z^prime string in the 331 model and its classical stability

Zhengyang Bian , Ning Chen , Mian Guo , Zhanpeng Hou , Haoyang Ji , Junyi Wei , Zhuo Zhang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:40 UTC · model grok-4.3

classification ✦ hep-ph hep-th
keywords non-topological Z' strings331 modelclassical stabilitysemilocal limitSU(6) toy modelHiggs tripletssymmetry breakingHelmholtz equations
0
0 comments X

The pith

A non-topological Z' string in the 331 model is classically stable only near the semilocal limit of ϑ_S ≈ π/2.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the classical stability of a non-topological Z' string that emerges from the symmetry breaking pattern in the minimal 331 model, which itself derives from an SU(6) toy model. Two Higgs triplets are introduced to realize the sequential breaking SU(3)_c ⊕ SU(3)_W ⊕ U(1)_X to SU(3)_c ⊕ SU(2)_W ⊕ U(1)_Y. Small perturbations around the string background are analyzed by solving the coupled Helmholtz equations numerically across parameter space. The string remains stable only in the narrow region near the semilocal limit ϑ_S ≈ π/2, even after the Higgs self-couplings are adjusted to minimize instabilities. This leads to the conclusion that such non-topological strings are unlikely to appear in unified theories based on su(N) Lie algebras with N greater than 5.

Core claim

By analyzing small perturbations around the string background and solving the coupled Helmholtz equations numerically, we find that the string is stable only near the semilocal limit of ϑ_S ≈ π/2, even when Higgs self-couplings are tuned to minimize instabilities. This suggests that such non-topological strings are unlikely to exist in unified theories based on su(N>5) Lie algebras.

What carries the argument

Numerical solution of the coupled Helmholtz equations governing small perturbations around the string background, used to map stability as a function of the angle ϑ_S and Higgs couplings.

If this is right

  • Non-topological Z' strings of this type would not persist or form in realistic 331-model realizations.
  • Stability is restricted to a narrow parameter window, limiting any cosmological role for these defects.
  • Larger unification groups based on su(N) with N>5 would suppress the existence of comparable non-topological strings.
  • The result applies specifically to the minimal 331 model with the chosen Higgs content and breaking chain.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar stability analyses could be performed for non-topological strings in other extended gauge models with multiple Higgs fields.
  • The semilocal limit may serve as a general diagnostic for defect stability when global symmetries emerge in the fermionic sector.
  • Embedding the 331 model into a concrete grand unified theory could test whether the required ϑ_S regime is dynamically realized.

Load-bearing premise

The analysis assumes that small perturbations around the string background are sufficient to determine stability and that the coupled Helmholtz equations capture all relevant modes, with the specific choice of two Higgs triplets and the sequential breaking pattern from the SU(6) toy model.

What would settle it

A numerical result showing unstable perturbation modes for all values of ϑ_S, including exactly at ϑ_S = π/2 under the tuned potential, would falsify the claim of stability near the semilocal limit.

Figures

Figures reproduced from arXiv: 2604.06530 by Haoyang Ji, Junyi Wei, Mian Guo, Ning Chen, Zhanpeng Hou, Zhengyang Bian, Zhuo Zhang.

Figure 1
Figure 1. Figure 1: The 331 Z ′ string profile functions of ( ¯f1(ξ), ¯f2(ξ), ¯ζ(ξ)) (upper panels) and the dimensionless string energy densities (lower pannels). The parameters for the left panels are: λ1 = λ2 = 0.15, λ3 = −0.05, λ5 = 0.1, t β˜ = 2, and gZ′ = 1.0592. The parameters for the right panels are: λ1 = λ2 = λ5 = 0.15, λ3 = −0.145, t β˜ = 1, and gZ′ = 1.0592. where we also parametrized the ratios between the Higgs s… view at source ↗
Figure 2
Figure 2. Figure 2: The dependence of the eigenvalue ω 2 on β1 for the one 331 Higgs triplet case by setting ¯f1(ξ) ̸= 0, ¯f2(ξ) = 0, and cϑS = 0. diagonal matrix with the following elements D11 = − ∂ 2 ∂ξ2 − 1 ξ ∂ ∂ξ + 1 ξ 2  ℓ + gZ′ 3 ¯ζ(ξ) 2 + β1( ¯f 2 1 (ξ) − 1), (5.2a) B↑ = B↓ = 0 , (5.2b) D↑ = − ∂ 2 ∂ξ2 − 1 ξ ∂ ∂ξ + ℓ 2 ξ 2 , (5.2c) D↓ = − ∂ 2 ∂ξ2 − 1 ξ ∂ ∂ξ + (ℓ − 2)2 ξ 2 . (5.2d) As was recently pointed out in Ref. … view at source ↗

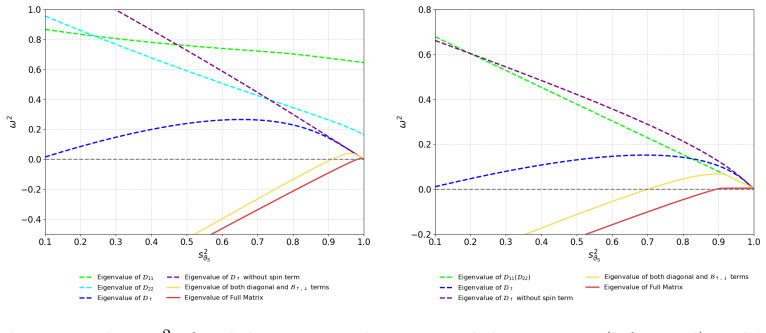

Figure 3
Figure 3. Figure 3: The eigenvalues ω 2 of stability matrix elements with λ3 = −0.05 (left panel) and λ3 = −0.145 (right panel) versus s 2 ϑS , and gZ′ = 1.0592. Parameters in the left panel are: λ1 = λ2 = 0.15, λ4 = λ5 = 0.1, and t β˜ = 2. Parameters in the right panel are: λ1 = λ2 = λ5 = 0.15, λ4 = 0, and t β˜ = 1. from the gauge fixing terms are ∝ c 2 ϑS , while the terms from the Higgs potential that are ∝ β1 ,2 ,3 always… view at source ↗

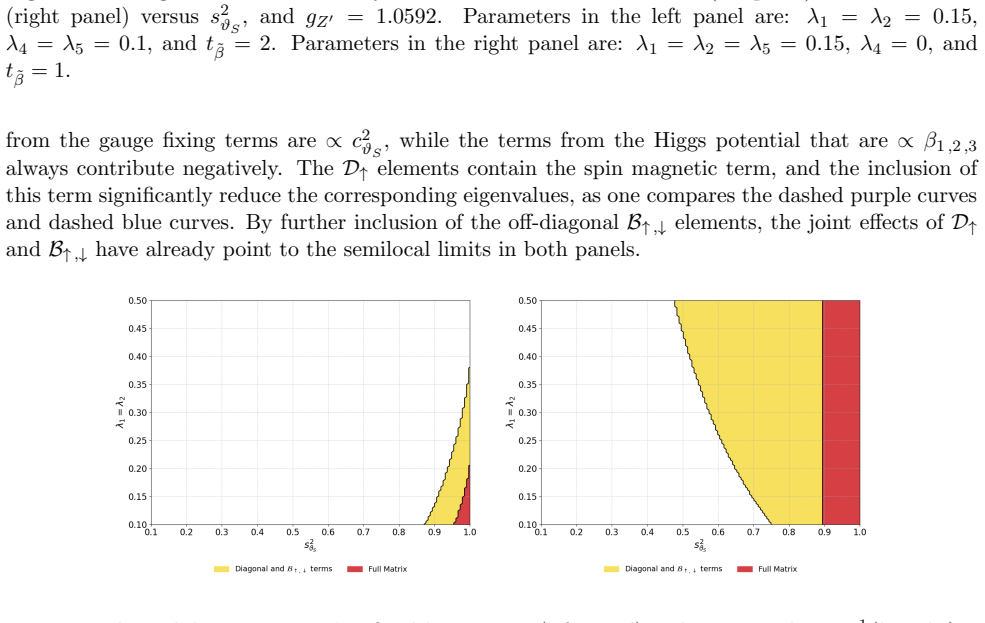

Figure 4
Figure 4. Figure 4: The stability regions with a fixed λ3 = −0.05 (left panel) and a varying λ3 = − 1 2 (λ1 + λ5) + 0.005 (right panel) in the (s 2 ϑS , λ1 = λ2) plane, with gZ′ = 1.0592. Other parameters fixed for all plots are λ4 = λ5 = 0.1, t β˜ = 2 in the left panel, and λ1 = λ2 = λ5, λ4 = 0, t β˜ = 1 in the right panel. With the decompositions of the individual contributions to the eigenvalues, we further demonstrate the… view at source ↗
read the original abstract

We study the classical stability of a non-topological $Z^\prime$ string in the minimal 331 model, which arises from the maximal symmetry breaking pattern of an ${{\mathfrak s}{\mathfrak u}}(6)$ toy model. Two Higgs triplets are introduced according to the emergent global symmetries in the fermionic sector of the ${{\mathfrak s}{\mathfrak u}}(6)$ toy model, which will achieve the sequential symmetry breaking of ${{\mathfrak s}{\mathfrak u}}(3)_c\oplus {{\mathfrak s}{\mathfrak u}}(3)_W \oplus {\mathfrak u}(1)_X\to {{\mathfrak s}{\mathfrak u}}(3)_c\oplus {{\mathfrak s}{\mathfrak u}}(2)_W \oplus {\mathfrak u}(1)_Y$. By analyzing small perturbations around the string background and solving the coupled Helmholtz equations numerically, we find that the string is stable only near the semilocal limit of $\vartheta_S \approx \frac{\pi}{2}$, even when Higgs self-couplings are tuned to minimize instabilities. This suggests that such non-topological strings are unlikely to exist in unified theories based on ${{\mathfrak s}{\mathfrak u}}(N>5)$ Lie algebras.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript examines the classical stability of a non-topological Z' string in the minimal 331 model arising from the maximal symmetry breaking of an SU(6) toy model. Two Higgs triplets are introduced to implement the sequential breaking SU(3)_c × SU(3)_W × U(1)_X → SU(3)_c × SU(2)_W × U(1)_Y. Small perturbations around the string background are analyzed by numerically solving the coupled Helmholtz equations, leading to the conclusion that the string is stable only near the semilocal limit θ_S ≈ π/2 even after tuning Higgs self-couplings to minimize instabilities. This is taken to imply that such non-topological strings are unlikely in unified theories based on su(N>5) Lie algebras.

Significance. If the numerical results prove robust, the finding would constrain the viability of non-topological strings in 331-type models and broader SU(N>5) constructions, with potential implications for early-universe cosmology and defect formation. The direct numerical treatment of the linearized fluctuation equations around the background ansatz is a positive feature, as it provides an independent check without reducing to a fitted parameter by construction.

major comments (1)
  1. [Section describing the numerical solution of the perturbation equations (likely §4)] The stability conclusion rests entirely on the numerical solution of the coupled Helmholtz equations for small perturbations. The manuscript provides no information on the discretization scheme, grid size or spacing, boundary conditions imposed at large radial distances, or any convergence tests, error bars, or checks for missed near-zero modes. This omission is load-bearing because an incomplete basis or insufficient resolution could fail to detect unstable modes away from θ_S ≈ π/2, directly undermining the claim that stability holds only in the semilocal limit even after Higgs-coupling tuning.
minor comments (1)
  1. [Abstract and introduction] The abstract and introduction refer to 'coupled Helmholtz equations' without a brief derivation or reference to the linearized equations of motion from which they arise; adding one sentence would improve accessibility for readers unfamiliar with the fluctuation analysis.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the need for greater transparency in the numerical implementation. We address the major comment below.

read point-by-point responses

  1. Referee: [Section describing the numerical solution of the perturbation equations (likely §4)] The stability conclusion rests entirely on the numerical solution of the coupled Helmholtz equations for small perturbations. The manuscript provides no information on the discretization scheme, grid size or spacing, boundary conditions imposed at large radial distances, or any convergence tests, error bars, or checks for missed near-zero modes. This omission is load-bearing because an incomplete basis or insufficient resolution could fail to detect unstable modes away from θ_S ≈ π/2, directly undermining the claim that stability holds only in the semilocal limit even after Higgs-coupling tuning.

    Authors: We agree that the current manuscript does not provide sufficient technical details on the numerical solution of the coupled Helmholtz equations, and that this information is necessary to allow independent verification of the stability results. In the revised version we will add an explicit description of the discretization (second-order finite differences on a uniform radial grid), the grid parameters (number of points, spacing, and outer cutoff radius at which vacuum boundary conditions are imposed), convergence tests with respect to grid resolution and cutoff, and checks confirming that no spurious near-zero modes are introduced by the truncation. These additions will be placed in the section describing the perturbation analysis. revision: yes

Circularity Check

0 steps flagged

Numerical stability check derives from perturbation equations, not by construction

full rationale

The paper's central result follows from numerically solving the coupled Helmholtz equations for small perturbations around a fixed string background ansatz. No parameter is fitted to data and then relabeled as a prediction; the stability conclusion (only near ϑ_S ≈ π/2) is an output of the eigenvalue computation rather than an input. References to the 331 model and SU(6) toy model supply the background potential and ansatz but do not reduce the numerical finding to a self-definition or self-citation chain. The derivation remains self-contained against the stated equations and boundary conditions.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the standard gauge symmetry breaking pattern of the 331 model, the existence of the non-topological string background solution, and the validity of linear perturbation theory for stability. No new particles or forces are invented beyond the model definition.

free parameters (2)
  • θ_S
    Mixing angle between the two U(1) factors that controls the semilocal limit; varied to locate the stable region.
  • Higgs self-couplings
    Tuned by hand to attempt removal of instabilities; their specific values are not reported in the abstract.
axioms (2)
  • domain assumption The minimal 331 model arises from maximal symmetry breaking of an SU(6) toy model with two Higgs triplets realizing the sequential breaking SU(3)_c × SU(3)_W × U(1)_X → SU(3)_c × SU(2)_W × U(1)_Y.
    Invoked in the abstract to define the Higgs sector and the string background.
  • standard math Linearized perturbation theory around the string background is sufficient to determine classical stability.
    Standard assumption when solving the coupled Helmholtz equations for small fluctuations.
