Toward Generalizable Graph Learning for 3D Engineering AI: Explainable Workflows for CAE Mode Shape Classification and CFD Field Prediction

Tong Duy Son , Kohta Sugiura , Marc Brughmans , Andrey Hense , Zhihao Liu , Amirthalakshmi Veeraraghavan , Ajinkya Bhave , Jay Masters
show 2 more authors
Paolo di Carlo Theo Geluk
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:58 UTC · model grok-4.3

classification 📡 eess.SY cs.AIcs.LGcs.SY
keywords graph neural networks3D engineeringCAE vibration modesCFD field predictionphysics-aware graphsexplainable AIautomotive AIsurrogate modeling
0
0 comments X

The pith

Physics-aware graphs let GNNs generalize CAE mode classification and CFD field prediction across automotive variants with limited labels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a framework that converts finite element models, body-in-white structures, CAD geometry, and CFD meshes into physics-aware graphs for processing by graph neural networks. This setup is tested on classifying vibration mode shapes in car bodies across different designs with few labels, and on predicting pressure and wall shear stress fields in aerodynamics for varying shapes while keeping computational costs down through symmetry-aware sampling. The goal is to create AI tools that engineers can reuse and understand, rather than task-specific black boxes. By providing guidance on useful data to collect next, the approach aims to make development cycles shorter and decisions more reliable in automotive engineering.

Core claim

The central discovery is a practical graph learning framework where heterogeneous 3D engineering assets are transformed into physics-aware graph representations that Graph Neural Networks use for both classification of CAE vibration mode shapes across vehicle and finite element variants under label scarcity, and for prediction of CFD aerodynamic fields across body shape variants, with symmetry preserving down sampling to retain accuracy at reduced cost, along with data generation guidance for engineers.

What carries the argument

Physics-aware graph representations of 3D engineering assets processed by Graph Neural Networks, including region-aware BiW graphs and symmetry-preserving downsampling.

If this is right

  • Region-aware BiW graphs enable explainable mode classification that works across different vehicle and FE variants even with limited labels.
  • Physics-informed GNN surrogates predict pressure and wall shear stress fields for new aerodynamic body shapes.
  • Symmetry preserving down sampling reduces computational cost while maintaining prediction accuracy.
  • The data generation guidance helps identify which simulations or labels would most improve the models.
  • These elements together form a reusable workflow supporting trustworthy decision making in CAE and CFD.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar graph conversion techniques might extend to other engineering simulations involving 3D meshes, such as thermal or structural optimization problems.
  • Explainability in these workflows could facilitate better integration with traditional engineering validation and certification processes.
  • Advances in handling large-scale graphs could further scale this approach to more complex full-vehicle models.

Load-bearing premise

That converting heterogeneous engineering assets into physics-aware graph representations enables GNNs to generalize across vehicle and FE variants under label scarcity while retaining accuracy.

What would settle it

A test showing that a GNN trained on the graph representations fails to maintain classification accuracy or field prediction error rates when applied to a substantially different vehicle or body shape variant compared with traditional methods.

Figures

Figures reproduced from arXiv: 2604.07781 by Ajinkya Bhave, Amirthalakshmi Veeraraghavan, Andrey Hense, Jay Masters, Kohta Sugiura, Marc Brughmans, Paolo di Carlo, Theo Geluk, Tong Duy Son, Zhihao Liu.

Figure 1
Figure 1. Figure 1: Overview of the proposed graph learning framework for 3D engineering AI. Heterogeneous 3D models are mapped into engineering-guided graph representations that support CAE mode shape classification, CFD aerodynamic field prediction, and data generation workflow. also help connect data-driven inference with physical reasoning. 3. Reuse across variants: models should remain useful across related vehicle progr… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of data generation and mode shape labelling pipeline. 3.2 Engineering-Oriented Design Requirements From a practical engineering perspective, three requirements guide the framework. First, the graph must remain inter￾pretable so that inputs and predictions can be traced back to recognizable regions, components, or surface areas already used in engineering review. Second, the same overall formu￾lati… view at source ↗
Figure 3

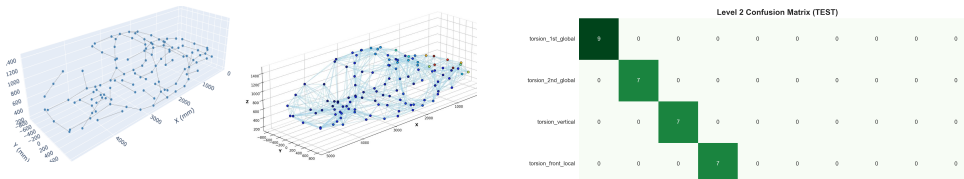

Figure 3. Figure 3: Graph construction from wireframe [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

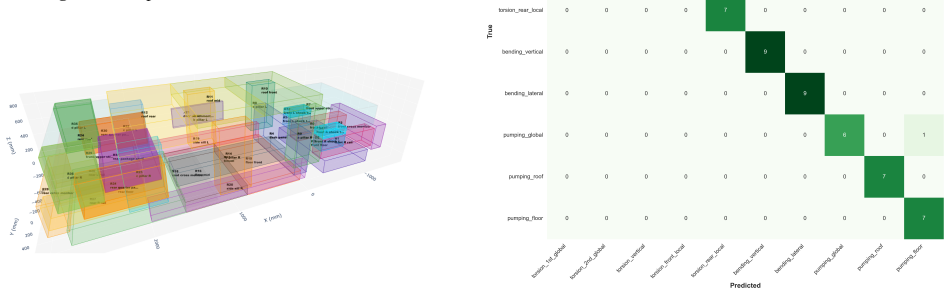

Figure 4. Figure 4: Canonical BiW regional decomposition used for region aware pooling and aggregation. the architecture through differentiable analytical operations rather than through additional physical constraint terms. The application focus spans both early-stage BiW devel￾opment models and more detailed FE variants, where en￾gineers repeatedly inspect modal analysis response to iden￾tify torsional, bending, pumping, and… view at source ↗
Figure 7
Figure 7. Figure 7: The four BiW structures with different body and node layout variants. and global vertical energy uniformity. These features are especially useful for separating physically similar but distinct classes, such as lateral bending versus floor pumping or roof pumping versus floor pumping. The network is trained with a multi-task objective that combines weighted cross-entropy for Level-1 prediction with focal lo… view at source ↗
Figure 6
Figure 6. Figure 6: Illustrative explainability result for a mode shape classification, showing how model attribution can be mapped back to physically meaningful BiW regions. wireframe skeleton, MAC-based mode tracking between de￾sign variations is straightforward and reliable, providing a consistent basis for hierarchical label assignment across the expanded dataset. This consistency does not extend to cross-vehicle or cross… view at source ↗
Figure 8
Figure 8. Figure 8: CFD data representation and preprocessing workflow, based on the DrivAerStar dataset generation [9]. structural regions would be desirable in future work. 5. Use Case B: CFD Aerodynamic Field Prediction This use case evaluates the framework on external aerody￾namic field prediction from CFD-generated vehicle surface data. While use case A focuses on graph-level structural classification, this use case addr… view at source ↗
Figure 9

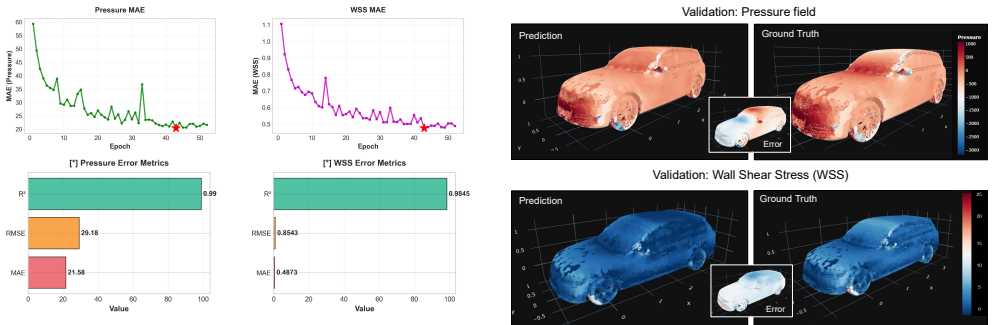

Figure 9. Figure 9: Training and validation performance of the physics-informed aerodynamic surrogate, showing training process and prediction accuracy for pressure and wall shear stress [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Quantitative performance comparison for aerodynamic field prediction: 𝑅 2 = 0.989 for pressure and 𝑅 2 = 0.985 for WSS, outperforming the evaluated baseline models. Fastback, and Notchback [8, 9]. The data are divided into 70% training, 15% validation, and 15% test sets, stratified by configuration, resulting in a held-out test set of about 1500 samples. Compared with the CAE use case, this provides a muc… view at source ↗
Figure 12
Figure 12. Figure 12: Explainability example highlighting regions that contribute to aerodynamic surface field prediction. 5.4 Explainability and Workflow Development The aerodynamic model also provides an interpretable pre￾diction space. Attention based analysis and attribution maps indicate that the learned model focuses on physically mean￾ingful regions such as front stagnation areas, rear end sep￾aration zones, and underbo… view at source ↗
Figure 13
Figure 13. Figure 13: Uncertainty-guided data generation concept. The current framework can indicate where additional CFD samples or simulations are likely to be most valuable. most valuable. Within a well characterized domain, the AI engineering can provide not only efficient aerodynamic field prediction, but also interpretable insight into the flow regions that govern the prediction and practical guidance for tar￾geted data … view at source ↗
read the original abstract

Automotive engineering development increasingly relies on heterogeneous 3D data, including finite element (FE) models, body-in-white (BiW) representations, CAD geometry, and CFD meshes. At the same time, engineering teams face growing pressure to shorten development cycles, improve performance and accelerate innovation. Although artificial intelligence (AI) is increasingly explored in this domain, many current methods remain task-specific, difficult to interpret, and hard to reuse across development stages. This paper presents a practical graph learning framework for 3D engineering AI, in which heterogeneous engineering assets are converted into physics-aware graph representations and processed by Graph Neural Networks (GNNs). The framework is designed to support both classification and prediction tasks. The framework is validated on two automotive applications: CAE vibration mode shape classification and CFD aerodynamic field prediction. For CAE vibration mode classification, a region-aware BiW graph supports explainable mode classification across vehicle and FE variants under label scarcity. For CFD aerodynamic field prediction, a physics-informed surrogate predicts pressure and wall shear stress (WSS) across aerodynamic body shape variants, while symmetry preserving down sampling retains accuracy with lower computational cost. The framework also outlines data generation guidance that can help engineers identify which additional simulations or labels are valuable to collect next. These results demonstrate a practical and reusable engineering AI workflow for more trustworthy CAE and CFD decision support.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes a graph learning framework that converts heterogeneous 3D automotive engineering assets (FE models, BiW, CAD, CFD meshes) into physics-aware graph representations processed by GNNs. It supports both classification and regression tasks and is validated on two applications: (1) region-aware BiW graph-based explainable classification of CAE vibration mode shapes across vehicle/FE variants under label scarcity, and (2) physics-informed GNN surrogate prediction of pressure and wall shear stress fields across aerodynamic body shapes, using symmetry-preserving downsampling to reduce cost while retaining accuracy. The framework also includes guidance for identifying valuable additional simulations or labels.

Significance. If the empirical claims hold with adequate controls, the work offers a reusable, physics-aware workflow that could reduce task-specificity and improve interpretability and generalization in engineering AI. The emphasis on label scarcity, cross-variant reuse, and actionable data-generation guidance addresses practical bottlenecks in CAE/CFD decision support and could shorten automotive development cycles.

major comments (1)
  1. [Abstract] Abstract: The central validation claims (generalization across vehicle/FE variants under label scarcity for mode classification; retention of accuracy across aerodynamic shapes for field prediction) are asserted without any reported quantitative metrics, baselines, error bars, data-split protocols, or ablation results. These details are load-bearing for evaluating whether the physics-aware graph conversion actually enables the claimed generalization.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation for major revision. We address the concern regarding the abstract below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central validation claims (generalization across vehicle/FE variants under label scarcity for mode classification; retention of accuracy across aerodynamic shapes for field prediction) are asserted without any reported quantitative metrics, baselines, error bars, data-split protocols, or ablation results. These details are load-bearing for evaluating whether the physics-aware graph conversion actually enables the claimed generalization.

    Authors: We agree that the abstract should explicitly reference key quantitative results to support the generalization claims. The full manuscript reports these details in the experimental sections, including classification metrics (e.g., accuracy and F1 scores across vehicle/FE variants under varying label scarcity), regression errors (MAE/RMSE for pressure and wall shear stress fields), baseline comparisons, error bars from repeated trials, data-split protocols (cross-variant train/test splits), and ablation studies on graph construction and symmetry-preserving operations. To address the referee's point directly, we will revise the abstract to incorporate representative quantitative highlights and brief protocol references while preserving its length and focus. This change will be implemented in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper describes a graph-based framework converting engineering assets to physics-aware graphs for GNN processing, validated empirically on two automotive tasks (CAE mode classification and CFD field prediction). No equations, derivations, or self-referential steps are present in the provided text that reduce predictions or uniqueness claims to fitted parameters or prior self-citations by construction. Central claims rest on described applications and data guidance rather than self-definitional or load-bearing self-citation chains. This is the expected honest non-finding for a methods/validation paper without internal mathematical reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based on abstract only; central framework rests on the domain assumption that 3D engineering data can be meaningfully converted to physics-aware graphs without loss of critical information.

axioms (1)
  • domain assumption Heterogeneous 3D engineering assets can be converted into physics-aware graph representations that support GNN processing for both classification and regression tasks.
    This conversion is the foundational step stated in the abstract for both applications.
