HistDiT: A Structure-Aware Latent Conditional Diffusion Model for High-Fidelity Virtual Staining in Histopathology

Aasim Bin Saleem , Amr Ahmed , Ardhendu Behera , Hafeezullah Amin , Iman Yi Liao , Mahmoud Khattab , Pan Jia Wern , Haslina Makmur This is my paper

Pith reviewed 2026-05-10 17:28 UTC · model grok-4.3

classification 📡 eess.IV cs.AIcs.CVcs.ETcs.LGq-bio.QM
keywords virtual staininghistopathologydiffusion transformerIHCHER2latent diffusionimage translationstructure preservation
0
0 comments X

The pith

HistDiT uses dual-stream conditioning in a diffusion transformer to balance cellular structure and biochemical accuracy in virtual IHC staining.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to overcome the persistent trade-off in virtual staining, where existing GANs and U-Net diffusion models produce either blurry but structured outputs or realistic textures marred by diagnostic artifacts. HistDiT addresses this by introducing a latent conditional Diffusion Transformer that conditions on both VAE-encoded spatial latents and UNI semantic embeddings, supported by a multi-objective loss and a Structural Correlation Metric focused on morphology. If successful, this would make virtual staining a more reliable, scalable substitute for resource-heavy traditional IHC protocols used to assess biomarkers such as HER2 in breast cancer. The work claims superiority through quantitative and qualitative comparisons against current baselines.

Core claim

HistDiT establishes a new benchmark for visual fidelity in virtual histological staining through a latent conditional Diffusion Transformer architecture whose dual-stream conditioning explicitly balances spatial constraints from VAE-encoded latents with semantic phenotype guidance from UNI embeddings, augmented by a multi-objective loss that promotes sharper morphological detail and the Structural Correlation Metric that prioritizes core structure in quality assessment.

What carries the argument

The dual-stream conditioning strategy that explicitly maintains a balance between spatial constraints via VAE-encoded latents and semantic phenotype guidance via UNI embeddings.

If this is right

  • Generated virtual stains exhibit sharper images with clearer morphological structure than prior methods.
  • Fine-grained cellular structures are preserved while biochemical expressions are translated more accurately.
  • Diagnostic artifacts that compromise use are reduced compared with GAN and standard U-Net diffusion outputs.
  • The model outperforms existing baselines across rigorous quantitative metrics and qualitative evaluations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Reliable virtual staining could shorten turnaround times for biomarker assessment in clinical pathology workflows.
  • The approach may extend to other IHC targets beyond HER2 if the conditioning balance generalizes across tissue types.
  • Adoption could lower costs and reduce tissue damage associated with repeated physical staining procedures.

Load-bearing premise

The dual-stream conditioning from VAE latents and UNI embeddings, together with the multi-objective loss, will preserve fine cellular details and accurate biochemical translation without creating artifacts that affect diagnostic use.

What would settle it

Side-by-side pathologist review or SCM scores showing that HistDiT outputs contain more structural damage or staining mismatches than real IHC slides or the strongest baseline models.

Figures

Figures reproduced from arXiv: 2604.08305 by Aasim Bin Saleem, Amr Ahmed, Ardhendu Behera, Hafeezullah Amin, Haslina Makmur, Iman Yi Liao, Mahmoud Khattab, Pan Jia Wern.

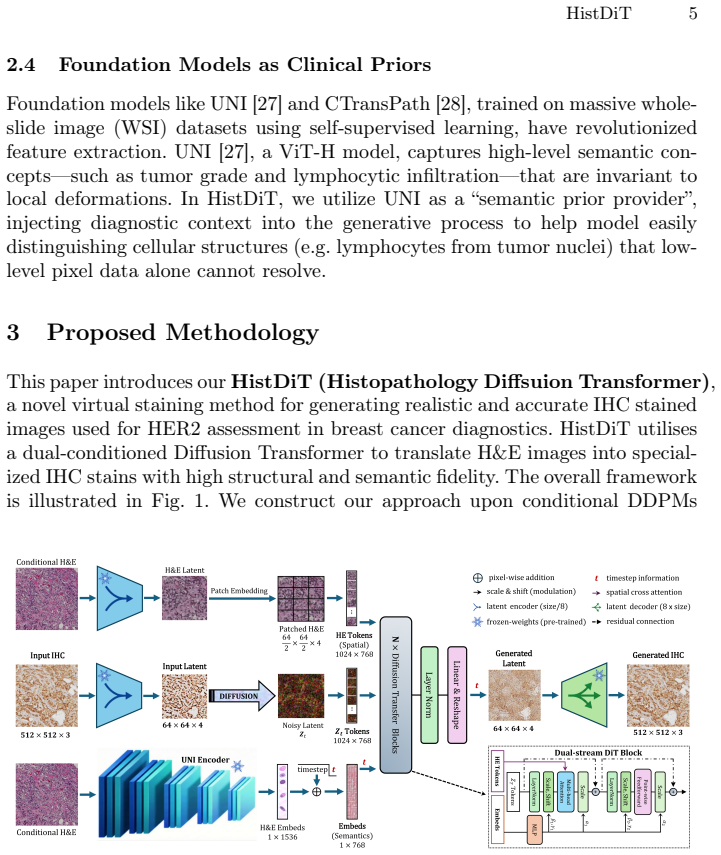

Figure 1
Figure 1. Figure 1: The HistDiT Architecture replaces the standard U-Net with a Transformer backbone that integrates two distinct conditioning streams: (i) Global Semantic Guidance uses frozen UNI embeddings injected via Adaptive Layer Norm (adaLN) to enforce diagnostic consistency; (ii) Spatial Structural Guidance uses VAE-encoded H&E latents injected via Cross-Attention to strictly preserve tissue morphology. [29], which le… view at source ↗

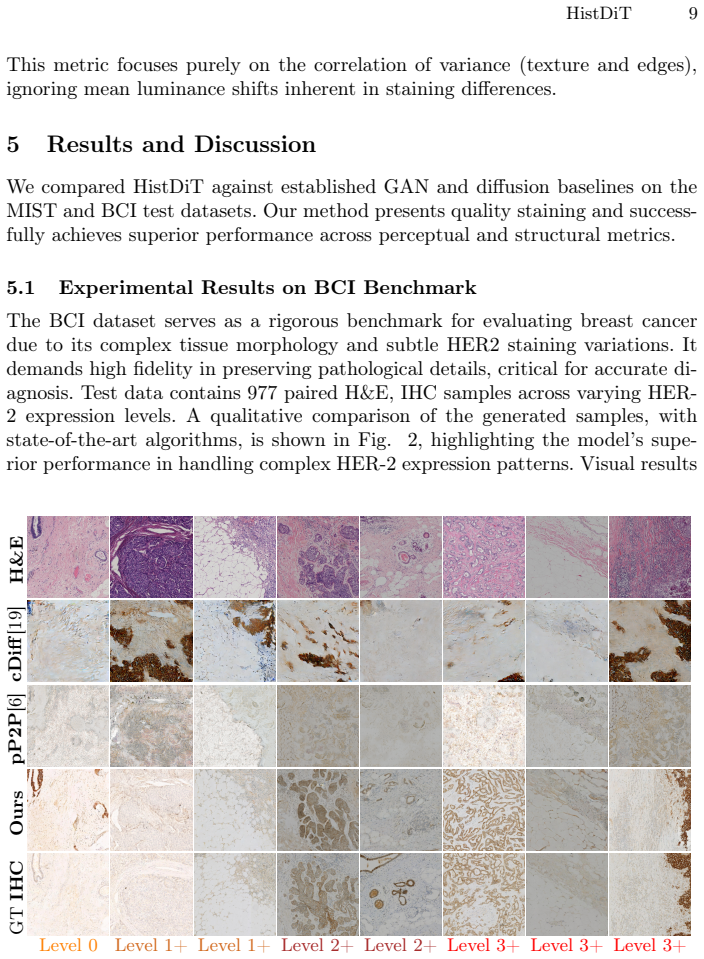

Figure 2
Figure 2. Figure 2: Qualitative comparison on BCI Dataset across HER2 expression levels, ranging from negative (Level 0) to strongly positive (Level 3+). Rows compare the input H&E and baseline methods against our HistDiT and Ground Truths. HistDiT demonstrates higher fidelity and accurate stain intensity, particularly in high-grade regions (2+, 3+). demonstrate that HistDiT effectively distinguishes between subtle staining v… view at source ↗

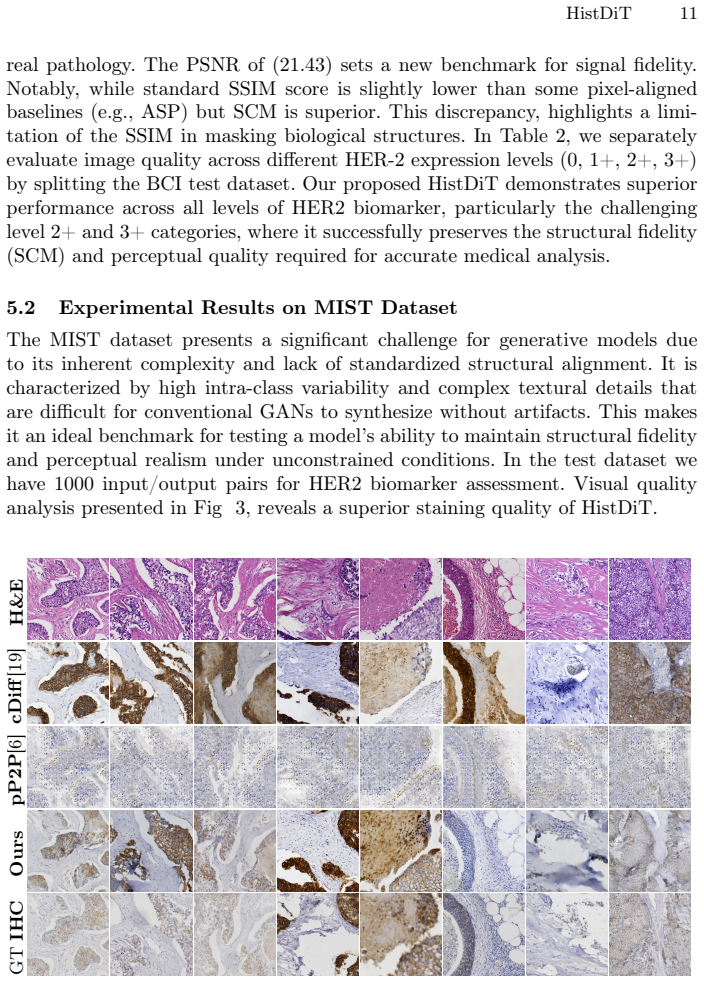

Figure 3
Figure 3. Figure 3: Visual comparison on the MIST dataset. Rows compare the input H&E and baselines against our HistDiT and Ground Truth. HistDiT demonstrates superior stain restoration, generating sharp morphological details. We identified multiple instances, where the Ground Truth IHC images suffered from acquisition artifacts, like defocus blur or scanning noise. In these cases, [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗

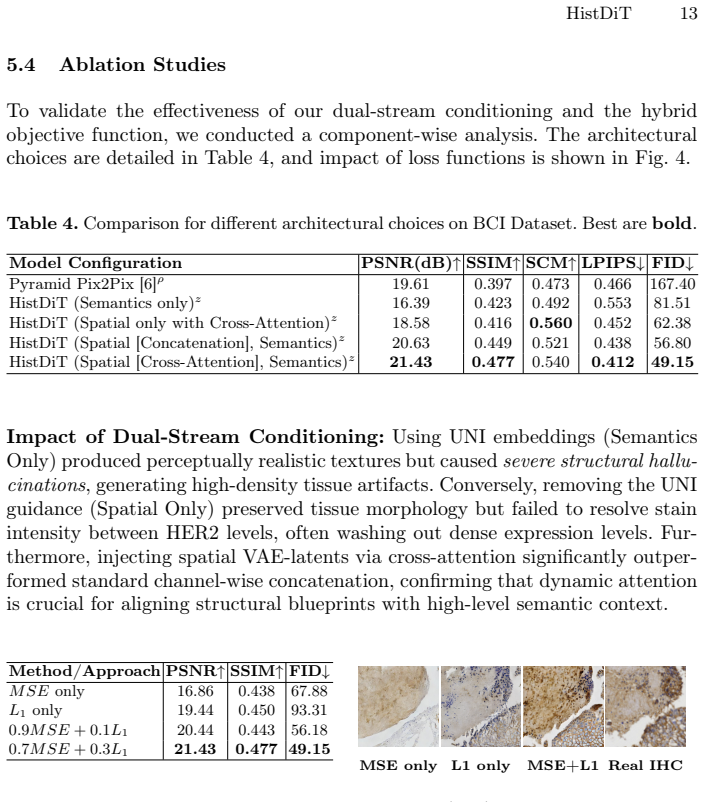

Figure 4
Figure 4. Figure 4: Ablation Study on Objective Functions: (Left) Quantitative comparison of loss components on the BCI dataset. MSE+L1 maintains high metric scores. (Right) Visual samples demonstrating that the combined objective produces sharper structures (column 3) compared to the smoothing artifacts seen in MSE only (column 1). Optimization of Training Objectives: We investigated the impact of train￾ing loss towards the … view at source ↗
read the original abstract

Immunohistochemistry (IHC) is essential for assessing specific immune biomarkers like Human Epidermal growth-factor Receptor 2 (HER2) in breast cancer. However, the traditional protocols of obtaining IHC stains are resource-intensive, time-consuming, and prone to structural damages. Virtual staining has emerged as a scalable alternative, but it faces significant challenges in preserving fine-grained cellular structures while accurately translating biochemical expressions. Current state-of-the-art methods still rely on Generative Adversarial Networks (GANs) or standard convolutional U-Net diffusion models that often struggle with "structure and staining trade-offs". The generated samples are either structurally relevant but blurry, or texturally realistic but have artifacts that compromise their diagnostic use. In this paper, we introduce HistDiT, a novel latent conditional Diffusion Transformer (DiT) architecture that establishes a new benchmark for visual fidelity in virtual histological staining. The novelty introduced in this work is, a) the Dual-Stream Conditioning strategy that explicitly maintains a balance between spatial constraints via VAE-encoded latents and semantic phenotype guidance via UNI embeddings; b) the multi-objective loss function that contributes to sharper images with clear morphological structure; and c) the use of the Structural Correlation Metric (SCM) to focus on the core morphological structure for precise assessment of sample quality. Consequently, our model outperforms existing baselines, as demonstrated through rigorous quantitative and qualitative evaluations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces HistDiT, a latent conditional Diffusion Transformer architecture for virtual IHC staining (e.g., HER2 in breast cancer). It proposes three novelties: (a) dual-stream conditioning that combines VAE-encoded latents for spatial structure with UNI embeddings for semantic phenotype guidance, (b) a multi-objective loss to produce sharper images with preserved morphology, and (c) a new Structural Correlation Metric (SCM) to assess core morphological fidelity. The central claim is that this approach outperforms existing GAN- and U-Net-based diffusion baselines in visual fidelity without the usual structure-staining trade-offs, as shown by quantitative and qualitative evaluations.

Significance. If the outperformance holds under validated metrics, HistDiT could meaningfully advance virtual staining as a scalable, non-destructive alternative to resource-intensive physical IHC protocols. The dual-stream design and explicit focus on morphological preservation address a recognized limitation of current generative methods in histopathology, with potential downstream benefits for diagnostic workflows.

major comments (2)
  1. [Abstract] Abstract: the claim that HistDiT 'outperforms existing baselines' and establishes a 'new benchmark for visual fidelity' is presented without any numerical results, baseline names, dataset statistics, error bars, or ablation tables. Because the central claim rests entirely on these evaluations, their absence prevents assessment of whether the reported gains are statistically meaningful or clinically relevant.
  2. [Abstract] Abstract (SCM description): SCM is introduced as the key metric for 'precise assessment of sample quality' focused on morphological structure, yet the manuscript supplies no calibration, correlation with inter-pathologist agreement, or comparison against ground-truth biomarker quantification (e.g., HER2 expression accuracy). Without such external validation, improvements in SCM do not necessarily establish that generated stains avoid diagnostic artifacts or preserve biochemical fidelity.
minor comments (2)
  1. The abstract refers to 'rigorous quantitative and qualitative evaluations' but does not name the datasets (slide count, staining types, train/test splits) or the exact baselines (specific GAN or diffusion models) used for comparison.
  2. Notation for the dual-stream conditioning and the individual terms of the multi-objective loss should be defined explicitly, ideally with an equation or diagram, to clarify how spatial and semantic streams are balanced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the constructive review of our manuscript on HistDiT. We appreciate the emphasis on strengthening the abstract's claims with concrete evidence and on providing more context for the SCM metric. We address each major comment point by point below, proposing targeted revisions where they improve clarity and rigor without altering the core contributions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that HistDiT 'outperforms existing baselines' and establishes a 'new benchmark for visual fidelity' is presented without any numerical results, baseline names, dataset statistics, error bars, or ablation tables. Because the central claim rests entirely on these evaluations, their absence prevents assessment of whether the reported gains are statistically meaningful or clinically relevant.

    Authors: We agree that the abstract would be strengthened by including indicative quantitative details to support the outperformance claim. The full manuscript reports these results in Section 4, including comparisons against GAN-based and U-Net diffusion baselines on the HER2 breast cancer dataset, with metrics such as SCM, PSNR, and SSIM, along with error bars from multiple runs and ablation studies. To address the concern, we will revise the abstract to briefly state key numerical improvements (e.g., SCM gains and baseline names) and dataset scale while preserving conciseness. This change will allow readers to better evaluate the statistical and clinical relevance of the gains. revision: yes

  2. Referee: [Abstract] Abstract (SCM description): SCM is introduced as the key metric for 'precise assessment of sample quality' focused on morphological structure, yet the manuscript supplies no calibration, correlation with inter-pathologist agreement, or comparison against ground-truth biomarker quantification (e.g., HER2 expression accuracy). Without such external validation, improvements in SCM do not necessarily establish that generated stains avoid diagnostic artifacts or preserve biochemical fidelity.

    Authors: We acknowledge the importance of external validation for SCM. The metric is introduced in the methods to specifically quantify morphological correlation beyond standard perceptual losses, and the results section demonstrates its alignment with reduced structural artifacts through both quantitative tables and qualitative examples. However, the current study does not include direct calibration against inter-pathologist agreement scores or HER2 biomarker quantification accuracy, as these would require additional expert-annotated clinical data beyond our available dataset. We will revise the manuscript to expand the SCM description with its mathematical formulation, comparisons to SSIM/LPIPS, and an explicit limitations paragraph noting that full clinical validation (including pathologist correlation and biomarker fidelity) remains future work. This partial update clarifies the metric's scope without overclaiming diagnostic equivalence. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical architecture evaluated against external baselines

full rationale

The paper presents HistDiT as a new latent conditional Diffusion Transformer with dual-stream conditioning (VAE latents + UNI embeddings), multi-objective loss, and a proposed Structural Correlation Metric (SCM). The central claim of outperforming baselines rests on quantitative/qualitative evaluations rather than any mathematical derivation chain. No equations, predictions, or self-referential definitions appear that reduce a result to its own inputs by construction. No load-bearing self-citations or uniqueness theorems are invoked. The work is self-contained as an empirical proposal whose performance assertions can be checked against independent baselines and established metrics.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the approach builds on standard diffusion transformers and pre-trained encoders (VAE, UNI) without detailing any ad-hoc constants or new postulated objects.

pith-pipeline@v0.9.0 · 5601 in / 1085 out tokens · 41481 ms · 2026-05-10T17:28:47.543431+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

38 extracted references · 38 canonical work pages · 1 internal anchor

  1. [1]

    Sedeta,E.T.,Jobre,B.,Avezbakiyev,B.:Breastcancer:Globalpatternsofincidence, mortality, and trends. J. Clin. Oncol.41(16-suppl) (2023)

    work page 2023

  2. [2]

    BMC Cancer 24(1), 155 (2024).https://doi.org/10.1186/s12885-024-11913-7

    Golestan, A., et al.: Unveiling promising breast cancer biomarkers. BMC Cancer 24(1), 155 (2024).https://doi.org/10.1186/s12885-024-11913-7

    work page doi:10.1186/s12885-024-11913-7 2024

  3. [3]

    Light Science & Applications12(1), 57 (2023)

    Bai, B., et al.: Deep learning-enabled virtual histological staining. Light Science & Applications12(1), 57 (2023)

    work page 2023

  4. [4]

    arXiv preprint arXiv:1901.04059 (2019)

    Xu, Z., et al.: GAN-based virtual re-staining. arXiv:1901.04059 (2019)

    work page arXiv 1901

  5. [5]

    In: CVPR, pp

    Isola, P., Zhu, J., Zhou, T., Efros, A.A.: Image-to-image translation with conditional adversarial networks. In: CVPR, pp. 1125–1134. IEEE (2017)

    work page 2017

  6. [6]

    In: CVPR Workshops, pp

    Liu, S., et al.: BCI: Breast cancer immunohistochemical image generation through pyramid pix2pix. In: CVPR Workshops, pp. 1815–1824. IEEE (2022)

    work page 2022

  7. [7]

    In: MICCAI, pp

    Li, F., et al.: Adaptive supervised PatchNCE loss for learning H&E-to-IHC stain translation. In: MICCAI, pp. 41–51. Springer (2023)

    work page 2023

  8. [8]

    In: NeurIPS, vol

    Dhariwal, P., Nichol, A.: Diffusion models beat GANs on image synthesis. In: NeurIPS, vol. 34, pp. 8780–8794 (2021)

    work page 2021

  9. [9]

    IEEE Transaction on Medical Imaging42(12), 3524–3539 (2023)

    Özbey, M., et al.: Unsupervised medical image translation with adversarial diffusion models. IEEE Transaction on Medical Imaging42(12), 3524–3539 (2023)

    work page 2023

  10. [10]

    Staindiffuser: mul- titask dual diffusion model for virtual staining,

    Kataria, T., Knudsen, B., Elhabian, S.Y.: StainDiffuser: Multi-task dual diffusion model. arXiv:2403.11340 (2024) HistDiT 15

    work page arXiv 2024

  11. [11]

    IEEE TMI (2024)

    He, Y., et al.: PST-Diff: Achieving high-consistency stain transfer by diffusion models with pathological and structural constraints. IEEE TMI (2024)

    work page 2024

  12. [12]

    Medical Image Analysis88, 102846 (2023)

    Kazerouni,A.,etal.:Diffusionmodelsinmedicalimaging:Acomprehensivesurvey. Medical Image Analysis88, 102846 (2023)

    work page 2023

  13. [13]

    In: NeurIPS, vol

    Goodfellow, I., et al.: Generative adversarial nets. In: NeurIPS, vol. 27 (2014)

    work page 2014

  14. [14]

    In: CISP-BMEI, pp

    Duan, G., et al.: A virtual staining method for immunohistochemical images of breast cancer. In: CISP-BMEI, pp. 1–5. IEEE (2023)

    work page 2023

  15. [15]

    Towards AI Medium (2023).https: //pub.towardsai.net/gan-mode-collapse-explanation-fa5f9124ee73

    G., Ainur: GAN mode collapse explanation. Towards AI Medium (2023).https: //pub.towardsai.net/gan-mode-collapse-explanation-fa5f9124ee73

    work page 2023

  16. [16]

    In: NeurIPS, vol

    Ho, J., Jain, A., Abbeel, P.: Denoising diffusion probabilistic models. In: NeurIPS, vol. 33, pp. 6840–6851 (2020)

    work page 2020

  17. [17]

    In: CVPR, pp

    Rombach, R., et al.: High-resolution image synthesis with latent diffusion models. In: CVPR, pp. 10684–10695. IEEE (2022)

    work page 2022

  18. [18]

    In: WACV, pp

    Moghadam, P.A., et al.: A morphology focused diffusion probabilistic model for synthesis of histopathology images. In: WACV, pp. 2000–2009. IEEE (2023)

    work page 2000

  19. [19]

    In: ICPR, pp

    Er, X., et al.: Conditional diffusion-based virtual staining. In: ICPR, pp. 193–207. Springer, Cham (2024)

    work page 2024

  20. [20]

    Liu, J., et al.: From pixels to pathology: Restoration diffusion for diagnostic- consistent virtual IHC. Comput. Biol. Med.198, 111264 (2025)

    work page 2025

  21. [21]

    arXiv:2505.06793 (2025)

    Großkopf, E., et al.: HistDiST: Histopathological diffusion-based stain transfer. arXiv:2505.06793 (2025)

    work page arXiv 2025

  22. [22]

    GPT-4 Technical Report

    OpenAI, et al.: GPT-4 Technical Report. arXiv:2303.08774 (2023)

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  23. [23]

    arXiv:2310.15144 (2023)

    Lin, K., et al.: DEsignBench: Exploring and benchmarking DALL-E 3. arXiv:2310.15144 (2023)

    work page arXiv 2023

  24. [24]

    Hugging Face (2024)

    Stability AI: Stable Diffusion 3.5 Medium. Hugging Face (2024)

    work page 2024

  25. [25]

    In: ICCV, pp

    Peebles, W., Xie, S.: Scalable diffusion models with transformers. In: ICCV, pp. 4195–4205. IEEE (2023)

    work page 2023

  26. [26]

    In: NeurIPS, vol

    Wu, J., et al.: PTQ4DiT: Post-training quantization for diffusion transformers. In: NeurIPS, vol. 37 (2024)

    work page 2024

  27. [27]

    Nature Medicine30(3), 850–862 (2024)

    Chen, R.J., et al.: Towards a general-purpose foundation model for computational pathology. Nature Medicine30(3), 850–862 (2024)

    work page 2024

  28. [28]

    Medical Image Analysis81, 102559 (2022)

    Wang, X., et al.: Transformer-based unsupervised contrastive learning for histopathological image classification. Medical Image Analysis81, 102559 (2022)

    work page 2022

  29. [29]

    In: ICML, PMLR, vol

    Nichol, A.Q., Dhariwal, P.: Improved denoising diffusion probabilistic models. In: ICML, PMLR, vol. 139, pp. 8162–8171 (2021)

    work page 2021

  30. [30]

    Hugging Face (2024)

    Stability AI: SD-VAE-FT-MSE. Hugging Face (2024)

    work page 2024

  31. [31]

    In: ICCV (2025)

    Hang, T., et al.: Improved noise schedule for diffusion training. In: ICCV (2025)

    work page 2025

  32. [32]

    In: ICLR (2021)

    Dosovitskiy, A., et al.: An image is worth 16x16 words: Transformers for image recognition at scale. In: ICLR (2021)

    work page 2021

  33. [33]

    Hore, A., Ziou, D.: Image quality metrics: PSNR vs. SSIM. In: ICPR, pp. 2366–

    work page

  34. [34]

    IEEE TIP13(4), 600–612 (2004)

    Wang, Z., Bovik, A.C., Sheikh, H.R., Simoncelli, E.P.: Image quality assessment: From error visibility to structural similarity. IEEE TIP13(4), 600–612 (2004)

    work page 2004

  35. [35]

    In: CVPR, pp

    Zhang, R., et al.: The unreasonable effectiveness of deep features as a perceptual metric. In: CVPR, pp. 586–595. IEEE (2018)

    work page 2018

  36. [36]

    In: CVPR, pp

    Parmar, G., Zhang, R., Zhu, J.-Y.: On aliased resizing and surprising subtleties in GAN evaluation. In: CVPR, pp. 11410–11420. IEEE (2022)

    work page 2022

  37. [37]

    IEEE Access9, 28872–28896 (2021)

    Venkataramanan, A.K., et al.: A hitchhiker’s guide to structural similarity. IEEE Access9, 28872–28896 (2021)

    work page 2021

  38. [38]

    arXiv:2506.05127 (2025)

    Yellapragada, S., et al.: PixCell: A generative foundation model for digital histopathology images. arXiv:2506.05127 (2025)

    work page arXiv 2025
