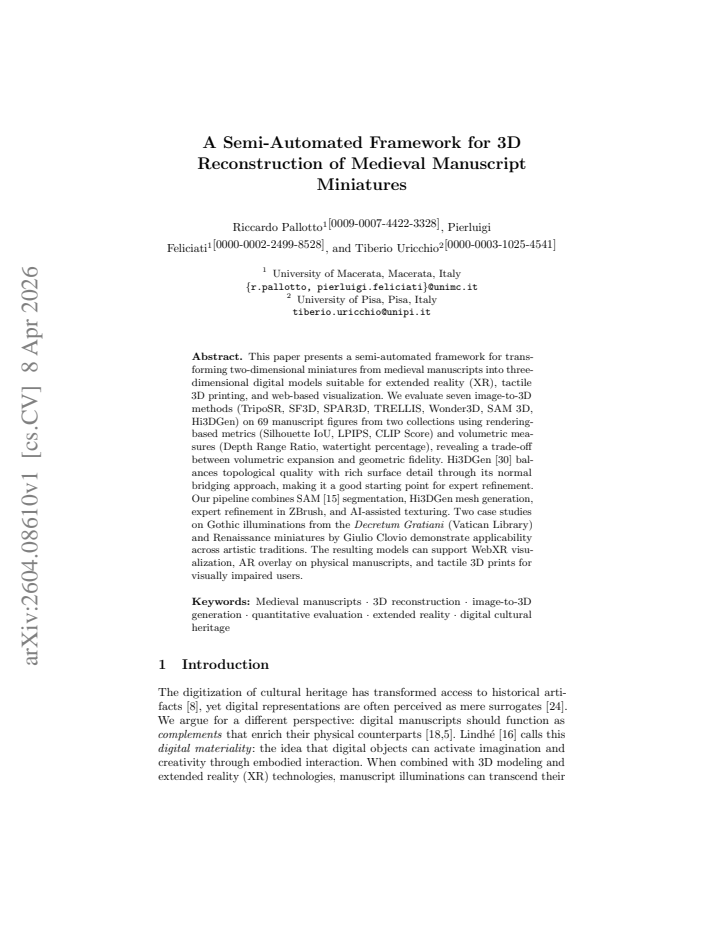

A Semi-Automated Framework for 3D Reconstruction of Medieval Manuscript Miniatures

Riccardo Pallotto , Pierluigi Feliciati , Tiberio Uricchio

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:26 UTC · model grok-4.3

classification 💻 cs.CV

keywords 3D reconstructionmedieval manuscriptsimage-to-3D conversionsemi-automated frameworkHi3DGenXR visualizationtactile printingmanuscript miniatures

0 comments

The pith

A semi-automated pipeline converts medieval manuscript miniatures into 3D models for XR, printing, and visualization after targeted refinement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work tests seven image-to-3D conversion tools on 69 figures drawn from two manuscript collections and selects Hi3DGen as the method that best preserves topology while adding surface detail. The resulting pipeline chains automatic segmentation, mesh generation, expert sculpting in ZBrush, and AI texturing to produce models ready for WebXR display, AR overlays on original pages, and tactile prints. A sympathetic reader would care because the approach lowers the barrier to creating accessible digital and physical versions of fragile historical art without requiring full manual modeling from scratch.

Core claim

The framework evaluates multiple AI-based image-to-3D conversion tools on manuscript figures and identifies Hi3DGen as the method that provides the optimal trade-off between maintaining geometric fidelity and generating rich surface details through its normal bridging technique, serving as an effective base for subsequent expert editing to produce usable 3D models.

What carries the argument

Hi3DGen image-to-3D generation with its normal bridging approach, placed inside a pipeline that begins with SAM segmentation and ends with ZBrush refinement plus AI texturing.

If this is right

The generated models support interactive WebXR visualization of the original miniatures.
AR overlays can place the 3D versions directly on physical manuscript pages.
Tactile 3D prints become feasible for visually impaired users to explore the artwork by touch.
The same workflow applies across Gothic illuminations and Renaissance miniatures without style-specific changes.
Expert refinement in ZBrush consistently improves initial AI meshes to production-ready quality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The pipeline could be adapted for other categories of flat historical imagery such as prints or drawings.
Substituting newer image-to-3D generators into the same segmentation-plus-refinement structure might raise baseline quality further.
Integration with museum digitization workflows would test scalability beyond the 69-figure test set.
Automated quality checks based on the same metrics could flag cases needing extra manual work before printing.

Load-bearing premise

The chosen rendering-based and volumetric metrics sufficiently predict real-world usability for XR visualization and tactile 3D printing.

What would settle it

A controlled comparison measuring expert refinement time and final model quality when starting from Hi3DGen versus the next-best tool, or direct user testing of the resulting tactile prints by visually impaired participants.

Figures

Figures reproduced from arXiv: 2604.08610 by Pierluigi Feliciati, Riccardo Pallotto, Tiberio Uricchio.

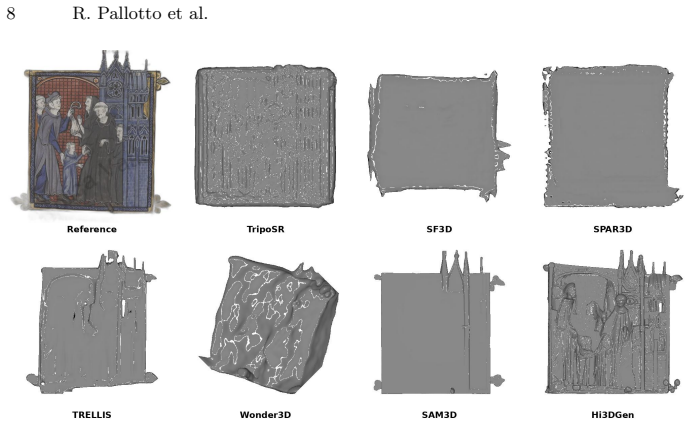

**Figure 2.** Figure 2: Qualitative comparison on a Vatican figure (bishop from [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

**Figure 3.** Figure 3: Qualitative comparison on a Monteprandone figure. SF3D and SPAR3D [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

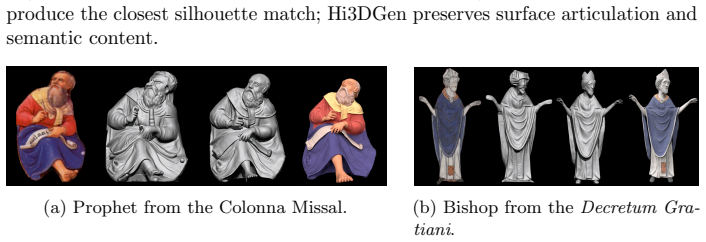

**Figure 4.** Figure 4: Pipeline stages: original miniature, Hi3DGen output, refined mesh, textured [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
