A Benchmark of Dexterity for Anthropomorphic Robotic Hands

Davide Liconti , Yuning Zhou , Yasunori Toshimitsu , Ronan Hinchet , Robert K. Katzschmann This is my paper

Pith reviewed 2026-05-10 17:35 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic dexterityanthropomorphic handsmanipulation benchmarkmotor control taxonomyperformance evaluationgrasping tasksstandardized testingthroughput metric
0
0 comments X

The pith

POMDAR defines dexterity for robot hands as combined accuracy and speed on a fixed set of taxonomy-derived tasks with physical constraints.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces POMDAR as a benchmark that turns the vague idea of dexterity into concrete task performance. Tasks come from human motor control taxonomies and use mechanical scaffolding to force specific motions while blocking workarounds. Each trial receives a single score that rewards both correctness and quick completion, so dexterity is treated as throughput. The benchmark runs in both physical setups and simulation, and all files are released openly. This setup lets different hand designs be compared on identical, reproducible terms instead of scattered custom tests.

Core claim

Dexterity is operationalized as measurable performance across four configurations of manipulation and grasping motions systematically taken from human motor control taxonomies. Mechanical scaffolding constrains the motion paths, suppresses compensatory strategies, and allows unambiguous recording of outcomes. A quantitative metric combines task success with execution time to produce a throughput score, yielding objective, reproducible rankings of anthropomorphic hands in both real and simulated environments.

What carries the argument

POMDAR benchmark: a structured suite of four manipulation configurations (vertical, horizontal, continuous rotation, pure grasping) equipped with mechanical scaffolding that isolates intended motions and a scoring rule that treats dexterity as the product of correctness and speed.

If this is right

  • Hand designs can now be ranked and tracked over time using identical tasks and a single numeric score.
  • Both physical prototypes and simulated models become directly comparable under the same rules.
  • Systematic progress becomes possible because results are reproducible and open rather than ad-hoc.
  • The open release of CAD files, simulation models, and videos allows other groups to adopt or extend the tests without starting from scratch.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Widespread use could steer hand design toward the specific motion classes emphasized in the benchmark and away from others.
  • The same scaffolding-plus-throughput pattern might be adapted to evaluate other robot capabilities such as in-hand reorientation or tool use.
  • If the mechanical constraints prove too restrictive, hands that rely on flexible strategies outside the tested motions could be undervalued.

Load-bearing premise

The tasks and physical constraints taken from human motor control taxonomies isolate exactly the dexterity features that matter most for useful robotic manipulation.

What would settle it

If multiple hands ranked by POMDAR scores show reversed or uncorrelated performance on independent, unconstrained real-world manipulation problems outside the benchmark tasks, the claim that the benchmark captures relevant dexterity would be undermined.

Figures

Figures reproduced from arXiv: 2604.09294 by Davide Liconti, Robert K. Katzschmann, Ronan Hinchet, Yasunori Toshimitsu, Yuning Zhou.

Figure 1

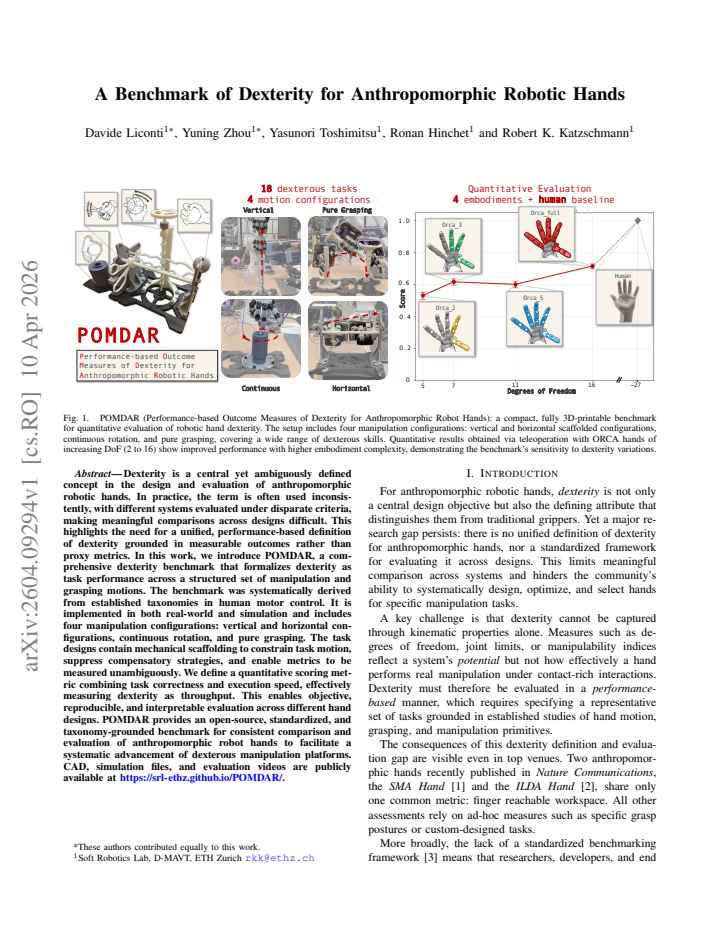

Figure 1. Figure 1: POMDAR (Performance-based Outcome Measures of Dexterity for Anthropomorphic Robot Hands): a compact, fully 3D-printable benchmark [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

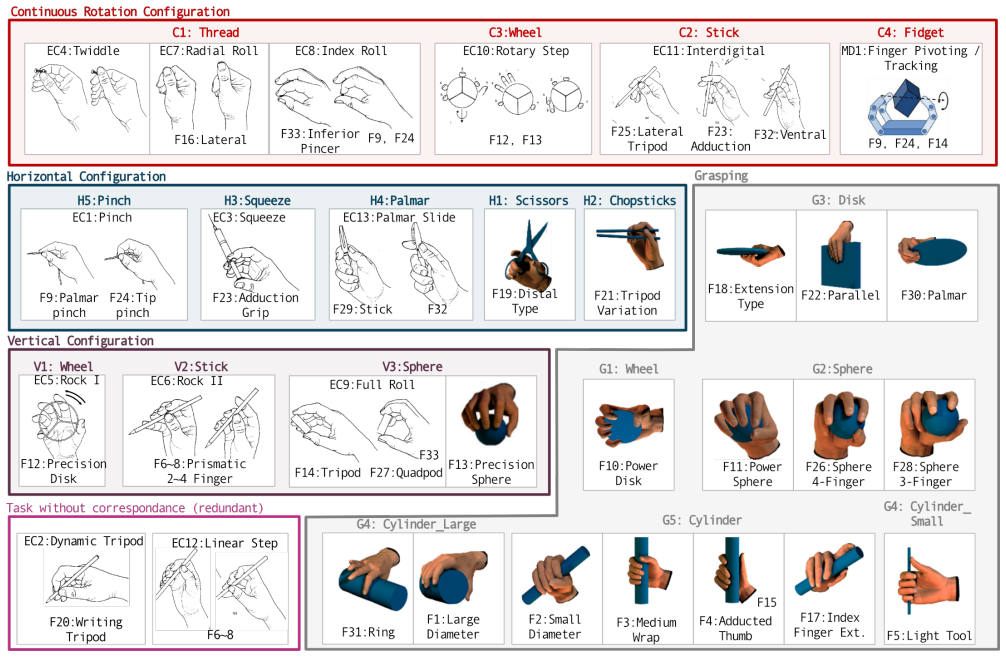

Figure 2. Figure 2: Overview of hand tasks based on those identified in Elliott & Connolly’s taxonomy for manipulation [6], Ma & Dollar’s extension [7], and Feix’s [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

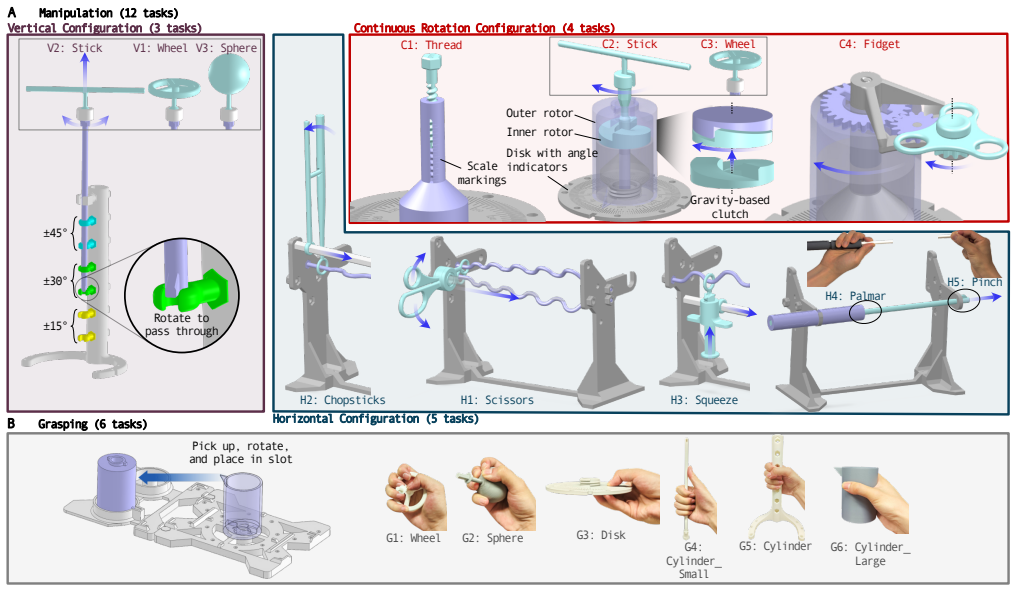

Figure 3. Figure 3: The benchmark comprises four task configurations: two scaffolded manipulation setups (vertical and horizontal), a continuous rotation configuration, [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

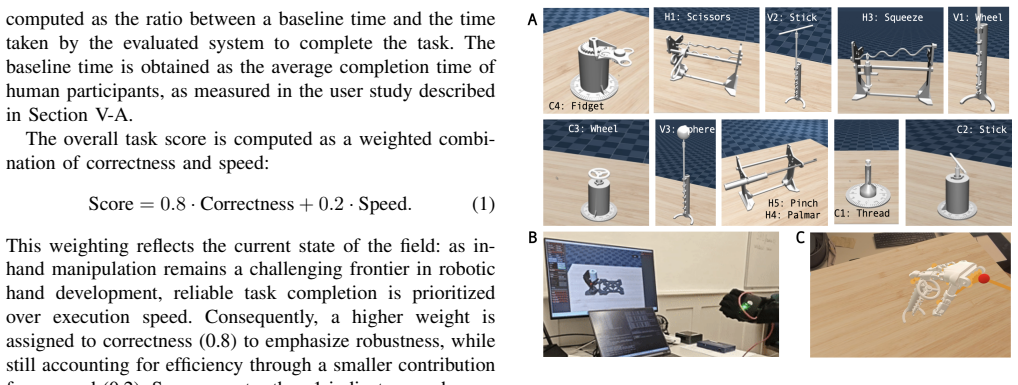

Figure 4. Figure 4: (A) Examples of the POMDAR tasks implemented in Mu [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

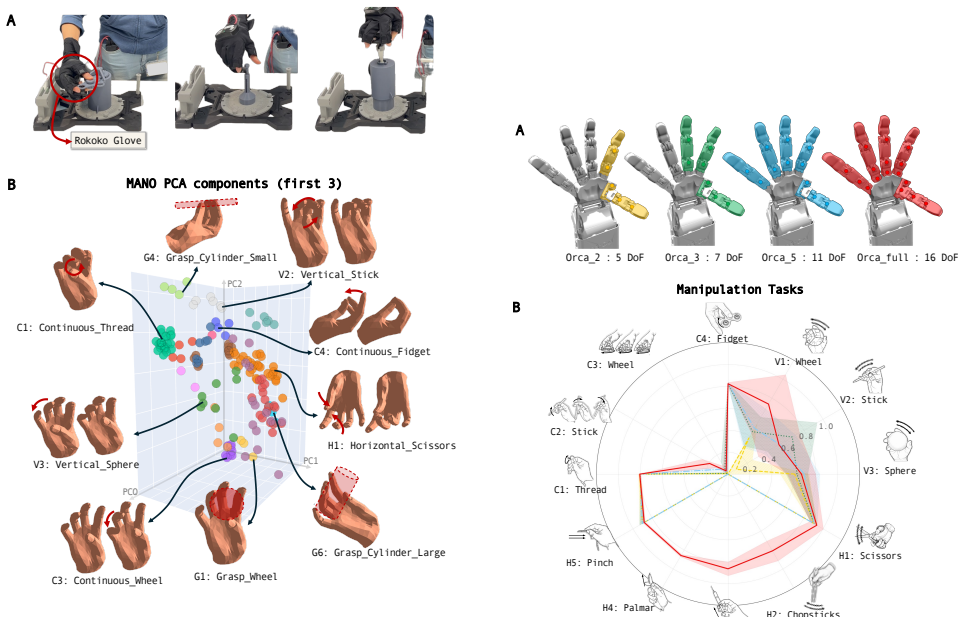

Figure 5. Figure 5: Human study and motion analysis. (A) Example snapshots of the hu [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

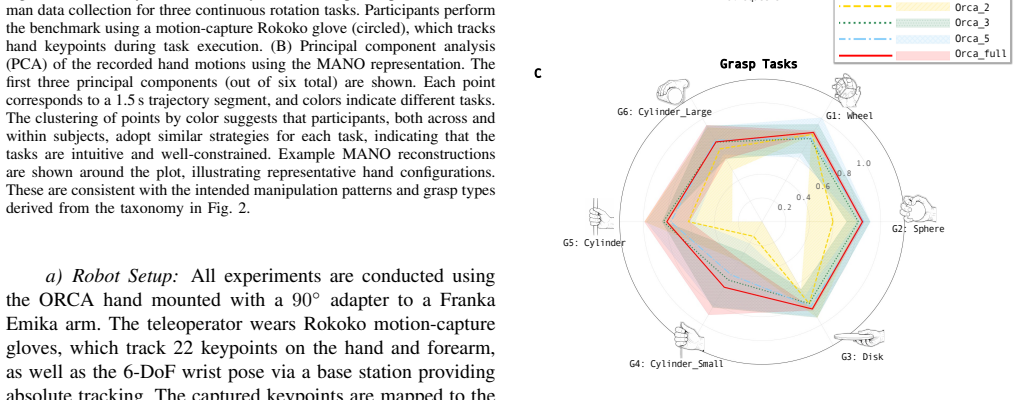

Figure 6. Figure 6: Results of the POMDAR benchmark across different ORCA hand [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

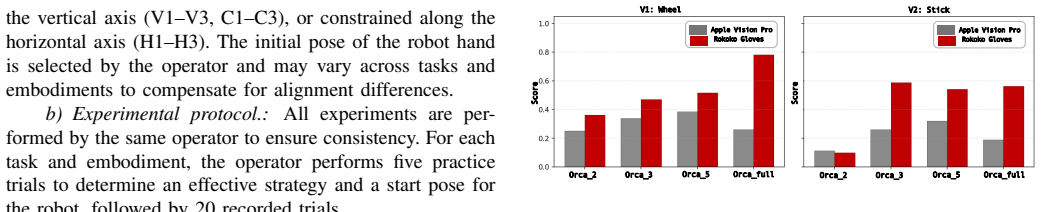

Figure 7. Figure 7: Comparison of teleoperation methods using motion-capture gloves [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

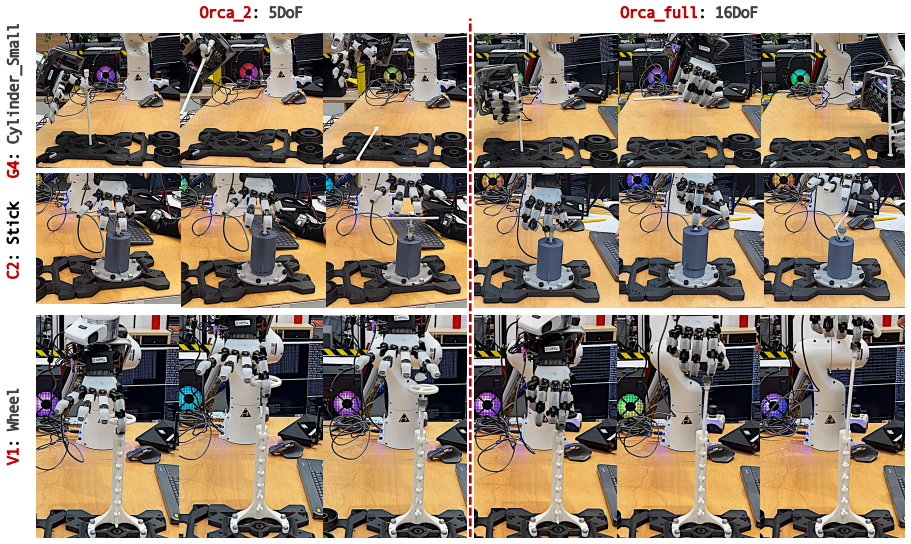

Figure 8. Figure 8: Qualitative example task execution sequences for the 5Dof (left) and 16 Dof (right) versions of the ORCA hand. The shown tasks where selected [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
read the original abstract

Dexterity is a central yet ambiguously defined concept in the design and evaluation of anthropomorphic robotic hands. In practice, the term is often used inconsistently, with different systems evaluated under disparate criteria, making meaningful comparisons across designs difficult. This highlights the need for a unified, performance-based definition of dexterity grounded in measurable outcomes rather than proxy metrics. In this work, we introduce POMDAR, a comprehensive dexterity benchmark that formalizes dexterity as task performance across a structured set of manipulation and grasping motions. The benchmark was systematically derived from established taxonomies in human motor control. It is implemented in both real-world and simulation and includes four manipulation configurations: vertical and horizontal configurations, continuous rotation, and pure grasping. The task designs contain mechanical scaffolding to constrain task motion, suppress compensatory strategies, and enable metrics to be measured unambiguously. We define a quantitative scoring metric combining task correctness and execution speed, effectively measuring dexterity as throughput. This enables objective, reproducible, and interpretable evaluation across different hand designs. POMDAR provides an open-source, standardized, and taxonomy-grounded benchmark for consistent comparison and evaluation of anthropomorphic robot hands to facilitate a systematic advancement of dexterous manipulation platforms. CAD, simulation files, and evaluation videos are publicly available at https://srl-ethz.github.io/POMDAR/.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces POMDAR, a benchmark for dexterity in anthropomorphic robotic hands derived systematically from human motor control taxonomies. Dexterity is formalized as task performance (throughput) across four configurations—vertical, horizontal, continuous rotation, and pure grasping—with mechanical scaffolding to constrain motion, suppress compensatory strategies, and enable unambiguous scoring via a metric combining correctness and speed. The benchmark is implemented in both real-world and simulation settings, with open-source CAD, simulation files, and videos provided to support reproducible comparisons across hand designs.

Significance. If the benchmark holds, it offers a standardized, taxonomy-grounded alternative to inconsistent proxy-based evaluations, enabling objective comparisons that could accelerate systematic progress in dexterous manipulation. The open-source release and dual real/sim implementation are strengths that directly support reproducibility and adoption.

major comments (2)
  1. [Task Design] Task Design section: The mechanical scaffolding is presented as constraining motion to suppress compensatory strategies and isolate dexterity, but no sensitivity analysis or comparison to human performance data is reported to verify that it does not exclude adaptive behaviors needed in unstructured settings or bias results toward specific kinematic designs. This assumption is load-bearing for the central claim that POMDAR measures dexterity properties most relevant to robotic applications.
  2. [Benchmark Derivation and Scoring] Benchmark Derivation and Scoring section: While the benchmark is derived from external taxonomies and the scoring metric is defined to measure throughput, the manuscript provides limited empirical validation of transferability to robotic hands (differing in actuation and sensing) or robustness of the metric to parameter variations, undermining the assertion of unambiguous, generalizable evaluation.
minor comments (2)
  1. [Abstract] The abstract would benefit from explicitly naming the specific human motor control taxonomies used in the derivation for improved traceability.
  2. [Implementation] Implementation details on differences between real-world and simulation setups (e.g., sensor noise modeling or fixture tolerances) could be clarified to strengthen reproducibility claims.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for the detailed feedback and the recommendation of minor revision. Below, we provide point-by-point responses to the major comments, outlining our clarifications and the revisions we will implement in the updated manuscript.

read point-by-point responses

  1. Referee: [Task Design] Task Design section: The mechanical scaffolding is presented as constraining motion to suppress compensatory strategies and isolate dexterity, but no sensitivity analysis or comparison to human performance data is reported to verify that it does not exclude adaptive behaviors needed in unstructured settings or bias results toward specific kinematic designs. This assumption is load-bearing for the central claim that POMDAR measures dexterity properties most relevant to robotic applications.

    Authors: The mechanical scaffolding was designed to provide clear constraints based on the task taxonomies, aiming to isolate dexterity by limiting compensatory movements. Although the current manuscript does not include sensitivity analysis or human data comparisons, this is because the primary focus was on establishing the benchmark framework. We will revise the Task Design section to include a more detailed justification of the scaffolding choices and acknowledge the need for future studies on adaptive behaviors in unstructured settings. This will help contextualize the benchmark's scope. revision: yes

  2. Referee: [Benchmark Derivation and Scoring] Benchmark Derivation and Scoring section: While the benchmark is derived from external taxonomies and the scoring metric is defined to measure throughput, the manuscript provides limited empirical validation of transferability to robotic hands (differing in actuation and sensing) or robustness of the metric to parameter variations, undermining the assertion of unambiguous, generalizable evaluation.

    Authors: The benchmark's derivation from taxonomies ensures a principled approach, and the scoring metric emphasizes throughput to allow generalizability. We have applied it to various hands, but agree that more extensive validation on transferability and parameter robustness would be valuable. In the revision, we will add empirical checks on metric sensitivity to parameter variations and discuss its applicability to hands with different actuation and sensing capabilities. The open-source code will aid in such extensions. revision: partial

Circularity Check

0 steps flagged

No circularity: benchmark is a definitional framework grounded in external taxonomies

full rationale

The paper presents POMDAR as a standardized benchmark whose tasks and scoring are systematically derived from established external human motor control taxonomies, with mechanical scaffolding introduced as an explicit design choice to enable unambiguous metrics. No equations, fitted parameters, or predictions appear in the provided text; the central contribution is a taxonomy-grounded evaluation protocol rather than any derivation that reduces to self-defined inputs or self-citations. The derivation chain is therefore self-contained against external benchmarks and does not exhibit self-definitional, fitted-input, or load-bearing self-citation patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests primarily on the domain assumption that human-derived taxonomies transfer to robotic dexterity measurement; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Established taxonomies in human motor control provide a valid basis for defining and measuring dexterity in anthropomorphic robotic hands.
    The benchmark is explicitly derived from these taxonomies as stated in the abstract.
