arxiv: 2604.09691 · v1 · submitted 2026-04-06 · 💻 cs.CV · cs.AI

Recognition: 2 theorem links

· Lean Theorem

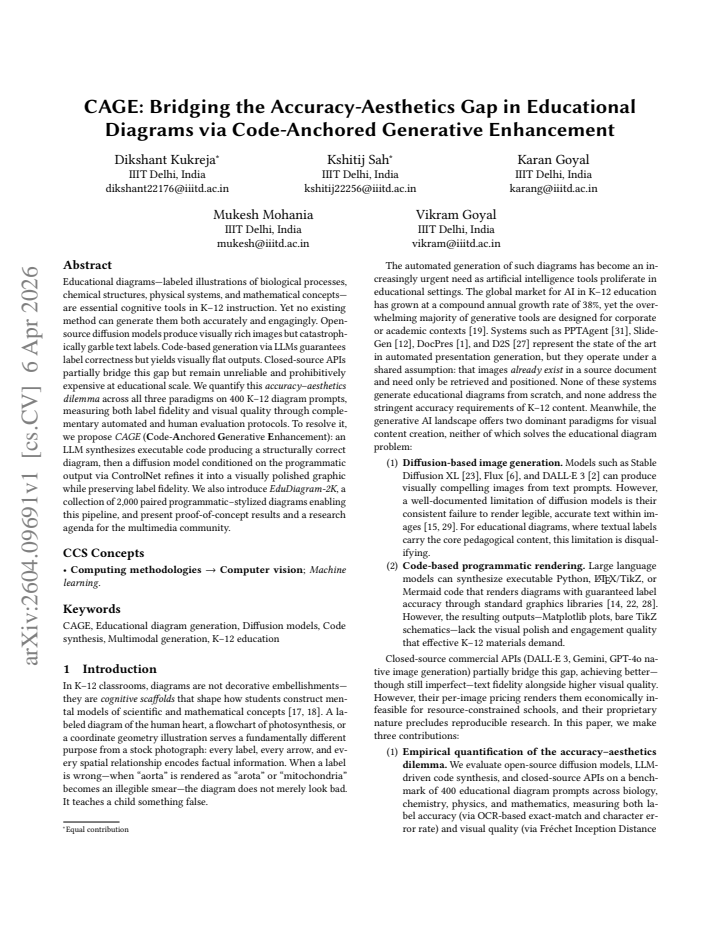

CAGE: Bridging the Accuracy-Aesthetics Gap in Educational Diagrams via Code-Anchored Generative Enhancement

Dikshant Kukreja , Kshitij Sah , Karan Goyal , Mukesh Mohania , Vikram Goyal
Authors on Pith no claims yet

Pith reviewed 2026-05-10 19:22 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords educational diagramsLLM code generationdiffusion modelsControlNetlabel fidelityK-12 educationgenerative enhancementvisual quality
0
0 comments X

The pith

An LLM creates correct diagram code that a ControlNet-guided diffusion model then refines into visually polished educational graphics without label errors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Educational diagrams require both accurate labels and engaging visuals, yet open diffusion models garble text, code generation stays flat, and closed APIs prove costly and inconsistent. The paper measures this accuracy-aesthetics gap on 400 K-12 prompts using automated and human metrics. CAGE addresses it by directing an LLM to output executable code that guarantees structural and label correctness, then feeding that programmatic diagram into a diffusion model via ControlNet for stylistic enhancement. The approach keeps fidelity intact while improving appearance. The authors release EduDiagram-2K, a set of 2,000 paired code-style diagrams, and show initial results.

Core claim

CAGE resolves the accuracy-aesthetics dilemma by having an LLM synthesize executable code for a structurally correct diagram, then using a diffusion model conditioned on the programmatic output via ControlNet to refine it into a visually polished graphic while preserving label fidelity.

What carries the argument

The CAGE pipeline: LLM-generated executable code that renders a correct base diagram, followed by ControlNet conditioning of a diffusion model on that code output to add visual style.

If this is right

  • Scalable production of accurate labeled diagrams becomes feasible without relying on expensive closed APIs.
  • Educational materials can combine the label reliability of code with the visual richness of diffusion outputs.
  • The EduDiagram-2K dataset supplies training pairs for developing further hybrid generation methods.
  • A concrete research agenda emerges for multimedia and education communities on diagram generation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same anchoring idea could apply to technical illustrations in engineering or medical education where label precision is critical.
  • Integration into learning platforms might enable on-demand customization of diagrams for individual students.
  • Testing the pipeline on non-K-12 topics such as advanced mathematics or biology could reveal limits in generalization.

Load-bearing premise

Conditioning the diffusion model on the LLM code output via ControlNet will preserve the label and structure correctness without introducing garbling or new errors.

What would settle it

Human or automated evaluation of CAGE outputs on the 400 prompts showing label errors or structural mistakes at rates comparable to pure diffusion models.

Figures

Figures reproduced from arXiv: 2604.09691 by Dikshant Kukreja, Karan Goyal, Kshitij Sah, Mukesh Mohania, Vikram Goyal.

Figure 1
Figure 1. Figure 1: The accuracy–aesthetics dilemma visualized on the prompt “labeled diagram of photosynthesis.” (a) Open-source [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The CAGE pipeline. Stage 1 synthesizes executable code via an LLM, executes it to produce a structurally correct [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Sample pairs from EduDiagram-2K. Each row shows a code-generated diagram ( [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
read the original abstract

Educational diagrams -- labeled illustrations of biological processes, chemical structures, physical systems, and mathematical concepts -- are essential cognitive tools in K-12 instruction. Yet no existing method can generate them both accurately and engagingly. Open-source diffusion models produce visually rich images but catastrophically garble text labels. Code-based generation via LLMs guarantees label correctness but yields visually flat outputs. Closed-source APIs partially bridge this gap but remain unreliable and prohibitively expensive at educational scale. We quantify this accuracy-aesthetics dilemma across all three paradigms on 400 K-12 diagram prompts, measuring both label fidelity and visual quality through complementary automated and human evaluation protocols. To resolve it, we propose CAGE (Code-Anchored Generative Enhancement): an LLM synthesizes executable code producing a structurally correct diagram, then a diffusion model conditioned on the programmatic output via ControlNet refines it into a visually polished graphic while preserving label fidelity. We also introduce EduDiagram-2K, a collection of 2,000 paired programmatic-stylized diagrams enabling this pipeline, and present proof-of-concept results and a research agenda for the multimedia community.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper claims that educational diagram generation faces an accuracy-aesthetics trade-off: diffusion models produce visually appealing but text-garbled outputs, while LLM-generated code ensures label correctness but yields flat visuals. It quantifies this gap across paradigms on 400 K-12 prompts using automated and human metrics, introduces the EduDiagram-2K paired dataset, and proposes CAGE: an LLM first synthesizes executable code for a structurally accurate diagram, which is then refined by a diffusion model conditioned via ControlNet on the programmatic output to enhance aesthetics while preserving label fidelity. Proof-of-concept results and a research agenda are presented.

Significance. If the central claim holds, CAGE would provide a practical, scalable solution for generating accurate and engaging K-12 educational diagrams, addressing a clear limitation in current generative AI for education. The paired EduDiagram-2K dataset would be a reusable resource for training and benchmarking hybrid code-diffusion pipelines, with potential impact on multimedia and AI-for-education communities.

major comments (2)
  1. [CAGE pipeline (methods section)] CAGE pipeline (methods section): The claim that ControlNet conditioning on the LLM-generated programmatic diagram reliably preserves exact label text, positions, and structure is load-bearing for resolving the accuracy-aesthetics dilemma, yet the manuscript provides no details on the ControlNet control type (edge, depth, or custom), conditioning strength, whether the code output is rasterized before conditioning, or quantitative fidelity metrics (e.g., OCR accuracy, label position error, or structural similarity scores) comparing the code-rendered input to the final diffusion output. This leaves the preservation guarantee unverified and open to the risk of diffusion-induced garbling or hallucinations on small labels.
  2. [Evaluation on 400 prompts (results section)] Evaluation on 400 prompts (results section): The quantification of the accuracy-aesthetics dilemma and the proof-of-concept results for CAGE are central to the contribution, but the manuscript lacks specifics on the exact automated metrics for label fidelity, the human evaluation protocol (e.g., number of raters, criteria for aesthetics vs. accuracy), baseline implementations, and any error analysis or failure cases where label preservation failed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments highlight important areas for improving clarity and reproducibility. We address each major comment below and will revise the manuscript to incorporate the requested details.

read point-by-point responses

  1. Referee: CAGE pipeline (methods section): The claim that ControlNet conditioning on the LLM-generated programmatic diagram reliably preserves exact label text, positions, and structure is load-bearing for resolving the accuracy-aesthetics dilemma, yet the manuscript provides no details on the ControlNet control type (edge, depth, or custom), conditioning strength, whether the code output is rasterized before conditioning, or quantitative fidelity metrics (e.g., OCR accuracy, label position error, or structural similarity scores) comparing the code-rendered input to the final diffusion output. This leaves the preservation guarantee unverified and open to the risk of diffusion-induced garbling or hallucinations on small labels.

    Authors: We agree that these implementation details are essential to substantiate the label-preservation claim. The current manuscript does not include them, which is an oversight. In the revised methods section, we will specify the ControlNet configuration (Canny edge maps as the control type, conditioning strength of 1.0, and explicit rasterization of the code-rendered diagram prior to conditioning). We will also add quantitative fidelity metrics, including OCR accuracy (via Tesseract) and label-position error (via bounding-box overlap), comparing the programmatic input to the final output, along with a brief discussion of any observed diffusion-induced changes on small labels. revision: yes

  2. Referee: Evaluation on 400 prompts (results section): The quantification of the accuracy-aesthetics dilemma and the proof-of-concept results for CAGE are central to the contribution, but the manuscript lacks specifics on the exact automated metrics for label fidelity, the human evaluation protocol (e.g., number of raters, criteria for aesthetics vs. accuracy), baseline implementations, and any error analysis or failure cases where label preservation failed.

    Authors: We concur that greater specificity on the evaluation protocol is needed for reproducibility. The manuscript currently provides only high-level descriptions. In the revision, we will expand the results section to define the automated label-fidelity metrics (OCR-based text accuracy and SSIM for structure), detail the human evaluation protocol (five raters, separate 1-5 Likert scales for accuracy and aesthetics, with inter-rater agreement reported), describe the baseline implementations (direct diffusion, code-only, and closed-source API), and add an error-analysis subsection that discusses failure cases, including instances of label alteration. revision: yes

Circularity Check

0 steps flagged

No circularity; constructive pipeline with new dataset and evaluation

full rationale

The paper proposes CAGE as an empirical pipeline: an LLM generates executable code for structurally correct diagrams, followed by ControlNet-conditioned diffusion for visual refinement, plus the new EduDiagram-2K dataset and evaluation on 400 prompts. No equations, parameter fits, self-citations as load-bearing premises, uniqueness theorems, or ansatzes appear in the provided text. The central claim is a new synthesis method rather than a derivation that reduces to its own inputs by construction. The approach is self-contained against external benchmarks and does not rename known results or smuggle assumptions via citation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on the unproven assumption that LLMs can reliably produce executable diagram code and that ControlNet conditioning will not degrade label fidelity; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (2)
  • domain assumption LLMs can synthesize executable code that produces structurally correct and label-accurate diagrams for K-12 topics.
    Central to the first stage of the CAGE pipeline as described.
  • domain assumption ControlNet conditioning on programmatic diagram output allows diffusion models to enhance visuals without compromising label fidelity.
    This is the key bridging mechanism claimed to resolve the accuracy-aesthetics gap.
