arxiv: 2604.09886 · v1 · submitted 2026-04-10 · 💻 cs.CV · cs.AI· cs.LG· cs.MM· eess.IV

Recognition: unknown

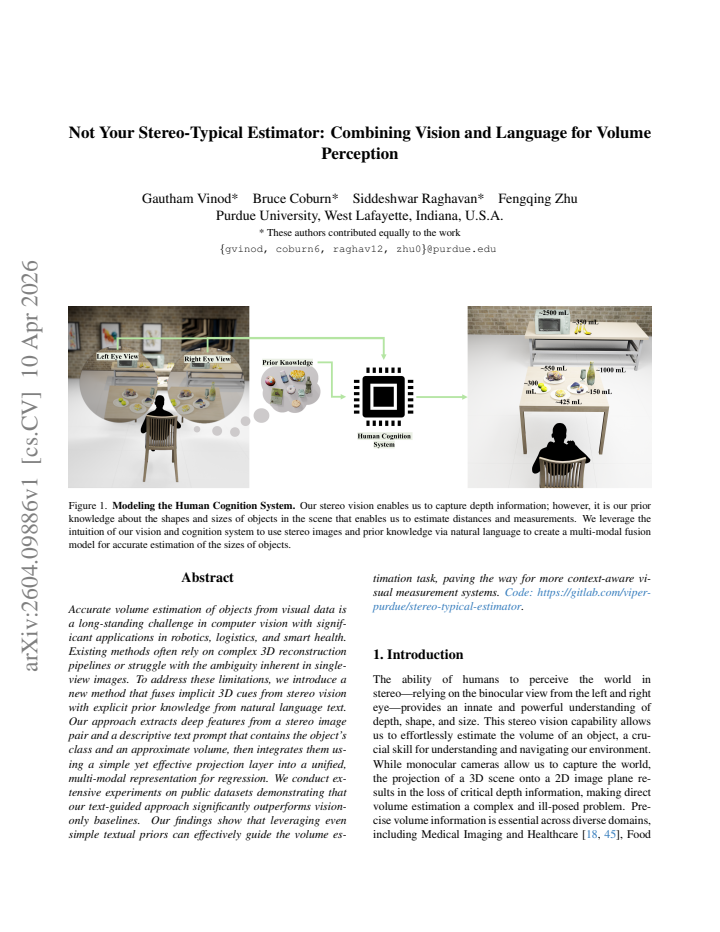

Not Your Stereo-Typical Estimator: Combining Vision and Language for Volume Perception

Gautham Vinod , Bruce Coburn , Siddeshwar Raghavan , Fengqing Zhu

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:18 UTC · model grok-4.3

classification 💻 cs.CV cs.AIcs.LGcs.MMeess.IV

keywords volume estimationstereo visionmulti-modal fusiontext priorscomputer visionobject measurementfeature projectionregression

0 comments

The pith

Combining stereo image features with text prompts containing object class and approximate volume improves estimation accuracy over vision-only methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to establish that even basic textual priors can guide volume estimation from stereo images by supplying class information and a rough size hint that resolves visual ambiguities. This would matter because existing approaches either demand full 3D reconstruction pipelines or produce unreliable results from single-view data, restricting use in robotics, logistics, and health monitoring. The proposed system extracts deep features from both the stereo pair and the text prompt, then merges them through a projection layer into one representation for regression. Experiments on public datasets show consistent gains over baselines that use images alone. A sympathetic reader would conclude that language can serve as lightweight context without requiring complex geometric modeling.

Core claim

The central claim is that a fusion method extracts deep features from a stereo image pair and from a descriptive text prompt that includes the object's class and an approximate volume, projects these features into a unified multi-modal representation via a simple layer, and regresses volume from the combined output. This text-guided estimator significantly outperforms vision-only baselines on public datasets, showing that textual priors effectively direct the estimation task.

What carries the argument

A projection layer that integrates deep features from a stereo image pair with features from a text prompt into a single multi-modal representation used for volume regression.

If this is right

The text-guided approach significantly outperforms vision-only baselines on public datasets.
Simple textual priors can effectively guide the volume estimation task without complex 3D pipelines.
The method supports development of more context-aware visual measurement systems.
Applications in robotics, logistics, and smart health gain from reduced ambiguity in stereo or single-view data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same projection-layer fusion could extend to estimating other scalar properties such as mass or density if matching language priors are supplied.
If text prompts are produced automatically by a separate object classifier, the system could run with little human input.
Evaluating performance when text priors contain moderate noise would show how robust the fusion remains in realistic settings.

Load-bearing premise

The text prompt supplies an approximate volume that is accurate enough to act as a useful prior and can be integrated without the visual features being dominated or the result becoming a trivial refinement of the text input.

What would settle it

Replace the volume value in the text prompt with a deliberately inaccurate number on the same test set and measure whether estimation error rises above the vision-only baseline; if error stays the same or drops, the claim that text acts as a guiding prior is falsified.

Figures

Figures reproduced from arXiv: 2604.09886 by Bruce Coburn, Fengqing Zhu, Gautham Vinod, Siddeshwar Raghavan.

**Figure 1.** Figure 1: Modeling the Human Cognition System. Our stereo vision enables us to capture depth information; however, it is our prior knowledge about the shapes and sizes of objects in the scene that enables us to estimate distances and measurements. We leverage the intuition of our vision and cognition system to use stereo images and prior knowledge via natural language to create a multi-modal fusion model for accurat… view at source ↗

**Figure 2.** Figure 2: Overview of Our Method: Stereo images are passed through a feature extractor to generate embeddings, which are concatenated and used for classification to obtain the corresponding text prior for each class. The text embedding is generated from the constructed prompt with the text and volume prior. The combined image and text features are projected into a shared space. Finally, a regression network estimate… view at source ↗

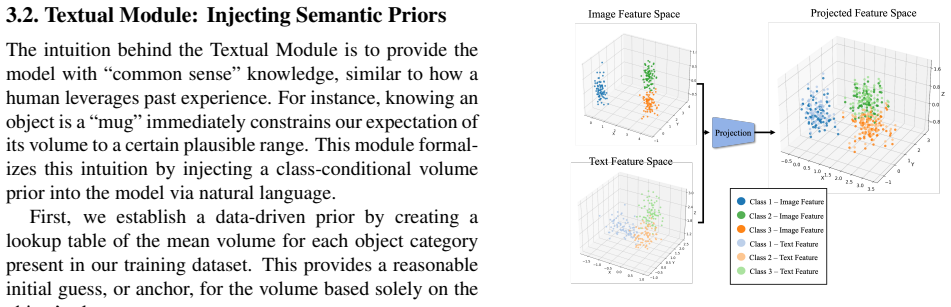

**Figure 3.** Figure 3: Visualization of our multimodal projection - The image and text features each form three separate clusters corresponding to the same class. Our projection maps these modalities into a unified space, where semantically similar image and text features cluster together. Next, we project the combined visual and textual features into a common latent space of dimension K using a Multi-Layer Perceptron (MLP) θ… view at source ↗

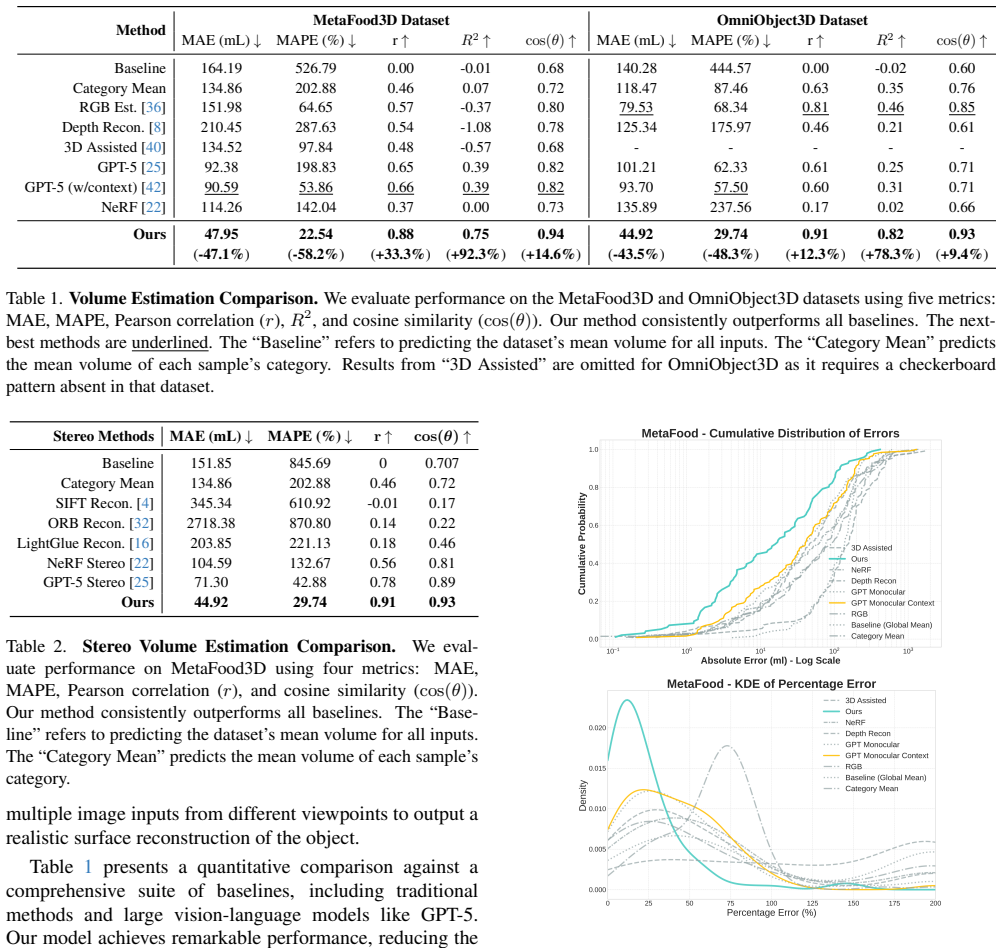

**Figure 4.** Figure 4: Error Distribution of Volume Estimation Methods. We highlight our method (blue) against the second-best performing method, GPT-5 with context (orange), with regards to MAPE. (Top) The Cumulative Distribution Function (CDF) of absolute errors on a log scale where a shift or curve to the upper left indicates better performance. (Bottom) The Kernel Density Estimation (KDE) of percentage errors where a tall… view at source ↗

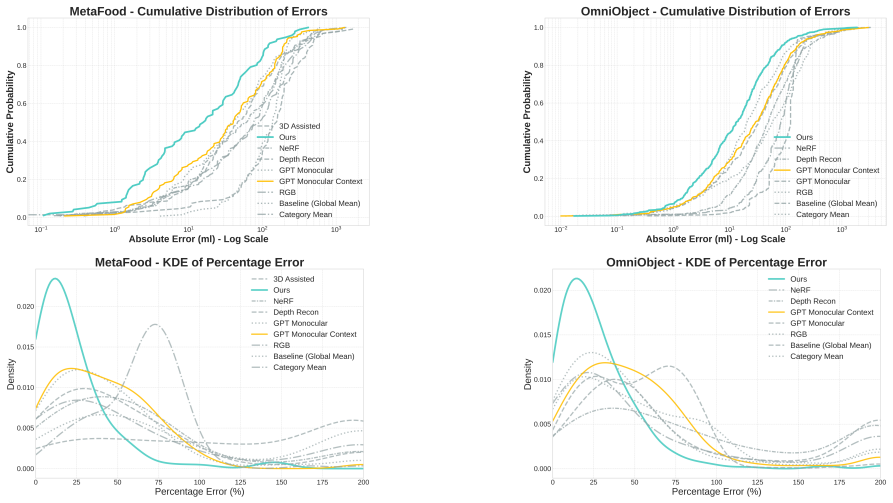

**Figure 5.** Figure 5: Error Distribution of Volume Estimation Methods. We highlight our method (blue) against the second-best performing method, GPT-5 with context (orange), with regards to MAPE. (Top) The Cumulative Distribution Function (CDF) of absolute errors on a log scale where a shift or curve to the upper left indicates better performance. (Bottom) The Kernel Density Estimation (KDE) of percentage errors where a tall… view at source ↗

**Figure 7.** Figure 7: Predicted volumes plotted against ground truth volumes [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

**Figure 8.** Figure 8: Predicted volumes plotted against ground truth volumes [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗

read the original abstract

Accurate volume estimation of objects from visual data is a long-standing challenge in computer vision with significant applications in robotics, logistics, and smart health. Existing methods often rely on complex 3D reconstruction pipelines or struggle with the ambiguity inherent in single-view images. To address these limitations, we introduce a new method that fuses implicit 3D cues from stereo vision with explicit prior knowledge from natural language text. Our approach extracts deep features from a stereo image pair and a descriptive text prompt that contains the object's class and an approximate volume, then integrates them using a simple yet effective projection layer into a unified, multi-modal representation for regression. We conduct extensive experiments on public datasets demonstrating that our text-guided approach significantly outperforms vision-only baselines. Our findings show that leveraging even simple textual priors can effectively guide the volume estimation task, paving the way for more context-aware visual measurement systems. Code: https://gitlab.com/viper-purdue/stereo-typical-estimator.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper fuses stereo features with a text prompt that already includes an approximate volume for object volume regression, but the abstract gives no numbers or ablations so the real value of the fusion is hard to judge.

read the letter

The punchline is that this work fuses stereo image features with a text prompt that includes both the object class and an approximate volume, then regresses the final volume through a projection layer. It reports better results than vision-only baselines on public datasets. What is new is the explicit inclusion of a volume hint in the language input for this regression task. Most multimodal vision-language work uses text for classification or description, not as a direct prior for a continuous measurement like volume. The approach keeps the fusion simple with one projection layer, which is a practical choice. The paper does a decent job framing the problem and linking it to applications in robotics and logistics. Having code available is helpful for anyone wanting to reproduce or build on it. The soft spots are around the evidence. The abstract says the method significantly outperforms baselines but provides no actual numbers, no ablation studies, and no details on how the text prompt's volume is generated or how approximate it is. The stress-test concern is on point: if the text already supplies a usable volume estimate, the stereo features might not be contributing much, and the claim of effective guidance from priors would need a text-only control to hold up. Without those, it's difficult to separate the contribution of the multimodal part from just using the prior. This paper is for people working on practical computer vision applications where some side information like rough size estimates might be available from language. A reader interested in multimodal methods for measurement tasks could get some ideas from it, though they would need to dig into the full experiments to see the effect sizes. I would recommend sending it to peer review. The core idea is coherent and the method is straightforward enough that referees can assess the experimental claims once the details are in front of them.

Referee Report

3 major / 0 minor

Summary. The paper proposes fusing deep features extracted from stereo image pairs with embeddings from natural language text prompts (containing object class and an approximate volume) via a projection layer to produce a multimodal representation for direct volume regression. It claims this text-guided approach significantly outperforms vision-only baselines on public datasets and demonstrates that even simple textual priors can effectively guide volume estimation.

Significance. If the central claim is supported by appropriate controls showing that the text prior is only approximate and that the fusion adds value beyond the prior alone, the work would provide evidence for practical multimodal guidance in visual measurement tasks, with potential impact in robotics and logistics. The availability of a public code repository strengthens the contribution by enabling reproducibility.

major comments (3)

Abstract: the claim of 'significant outperformance' on public datasets is presented without any quantitative metrics, ablation results, or error analysis, leaving the headline result without visible empirical grounding in the manuscript text.
Method section (projection layer description): the integration is characterized only as 'a simple yet effective projection layer' with no equations or architectural details showing how stereo features remain influential when the text prompt already encodes an approximate volume; this leaves open the possibility that the model reduces to a trivial refinement of the text prior.
Experiments section: to substantiate that textual priors 'guide' rather than replace vision, the paper requires (a) a text-only ablation whose performance is substantially worse than the fused model and (b) explicit reporting of how approximate the volume values in the prompts actually are; neither control is described.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight important areas for improving the clarity and rigor of our presentation. We address each major comment below and commit to revisions that will strengthen the empirical support and methodological transparency without altering the core contributions.

read point-by-point responses

Referee: Abstract: the claim of 'significant outperformance' on public datasets is presented without any quantitative metrics, ablation results, or error analysis, leaving the headline result without visible empirical grounding in the manuscript text.

Authors: We agree that the abstract would benefit from more concrete grounding. In the revised version we will insert the key quantitative results (e.g., relative reductions in mean absolute error and root-mean-square error versus the strongest vision-only baseline) together with a brief reference to the ablation studies reported in Section 4. revision: yes
Referee: Method section (projection layer description): the integration is characterized only as 'a simple yet effective projection layer' with no equations or architectural details showing how stereo features remain influential when the text prompt already encodes an approximate volume; this leaves open the possibility that the model reduces to a trivial refinement of the text prior.

Authors: We acknowledge the description is currently high-level. The projection layer is a learned linear transformation followed by a non-linear fusion that preserves the contribution of the stereo feature vector; we will add the explicit equations for the concatenation, projection matrix, and subsequent regression head so that readers can verify the stereo features are not overridden by the text prior. revision: yes
Referee: Experiments section: to substantiate that textual priors 'guide' rather than replace vision, the paper requires (a) a text-only ablation whose performance is substantially worse than the fused model and (b) explicit reporting of how approximate the volume values in the prompts actually are; neither control is described.

Authors: We agree these controls are necessary. We will add a text-only baseline (using only the language embedding) to Table 2 and report its error relative to the fused model. We will also include a new paragraph and supplementary table quantifying the approximation error distribution of the volume values supplied in the prompts (mean and standard deviation of the difference from ground-truth volumes) to demonstrate they function as coarse priors. revision: yes

Circularity Check

0 steps flagged

No circularity: multimodal fusion remains independent of input priors

full rationale

The paper describes a fusion architecture that ingests stereo image pairs and an independent text prompt (containing class and approximate volume) and produces a regressed volume via a projection layer. No equations or steps in the abstract or described method reduce the output to a direct function of the text prior by construction, nor do any self-citations serve as load-bearing uniqueness theorems. Experiments on public datasets are presented as external validation, keeping the central claim self-contained against the inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The approach rests on standard computer-vision and multimodal-learning assumptions without introducing new physical entities or many hand-chosen constants beyond ordinary neural-network training.

free parameters (1)

Projection layer parameters
Learned weights that map concatenated vision and language features into a shared space; fitted during end-to-end training.

axioms (2)

domain assumption Stereo image pairs encode usable implicit 3D cues for volume tasks.
Invoked when the method extracts features from stereo pairs to supplement single-view ambiguity.
domain assumption Natural-language text can supply reliable approximate priors for visual regression.
Stated when the text prompt (class plus approximate volume) is treated as useful guidance.
