Optical Appearance of Scalarized Kerr-Newman Black Holes with Multiple Light Rings

Yiqian Chen , Li Li , Peng Wang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:47 UTC · model grok-4.3

classification 🌀 gr-qc
keywords scalarized black holesKerr-Newman black holeslight ringsphoton shellcritical curveblack hole shadowhigher-order imagesray tracing
0
0 comments X

The pith

Scalarized Kerr-Newman black holes can develop an extra inner photon shell that creates a second critical curve and new crescent-shaped higher-order images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the visual appearance of rotating scalarized black holes in Einstein-Maxwell-scalar gravity when viewed through a thin accretion disk. It shows that these objects, unlike ordinary Kerr black holes, can possess multiple light rings including an additional inner photon shell outside the event horizon. This extra shell produces an inner critical curve inside the familiar outer one, which varies from absent to partial to fully closed depending on parameters and viewing angle. The inner shell also creates new higher-order images in the space between the curves, some displaying crescent morphologies rather than the round shapes seen in Kerr cases. A reader would care because these image features could act as observable markers that distinguish scalarized black holes from standard ones in high-resolution astronomy.

Core claim

Unlike the Kerr case governed by a single outer photon shell and critical curve, scalarized Kerr-Newman black holes in the Einstein-Maxwell-scalar theory with exponential coupling can develop an additional inner photon shell outside the event horizon. This shell produces an inner critical curve inside the usual outer one, which may be absent, partial, or closed depending on black hole parameters and observer inclination, and it generates new higher-order images between the two curves, some with crescent-like shapes distinct from the nearly circular higher-order images of Kerr black holes.

What carries the argument

Classification of the black holes into six types based on the number and properties of equatorial light rings, obtained by solving for null geodesics, which then determines the critical curves and the ray-traced images from the thin disk.

If this is right

  • The region between the inner and outer critical curves contains additional higher-order photon images not present in Kerr black holes.
  • Some of the new higher-order images take on crescent morphologies instead of nearly circular shapes.
  • The inner critical curve can appear absent, partial, or closed, altering the overall shadow structure depending on spin, charge, scalar coupling, and inclination.
  • These multiple-ring configurations enrich the possible optical appearances beyond the single-shell Kerr case.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Future very-long-baseline interferometry could target the space between critical curves to search for scalar hair signatures.
  • The crescent images might require separate modeling to avoid confusion with disk inhomogeneities or other lensing effects.
  • Extending the ray tracing beyond equatorial geodesics would likely reveal even more varied image structures for inclined observers.

Load-bearing premise

The accretion disk is geometrically and optically thin, allowing its light to be ray-traced without significant self-obscuration or thick-disk effects.

What would settle it

High-resolution images of a black hole expected to be scalarized that show only a single critical curve with no inner structure or crescent higher-order images would contradict the prediction.

Figures

Figures reproduced from arXiv: 2604.11652 by Li Li, Peng Wang, Yiqian Chen.

Figure 1
Figure 1. Figure 1: FIG. 1. Radial effective potential in the slow-rotation approximation for three representative classes of [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Critical curves for several values of the spin [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Critical curves for several values of spin [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Critical curves for several values of spin [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Plots for a scalarized KN black hole of Type I ( [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Plots for scalarized KN black holes of Type II1 (Upper: [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7

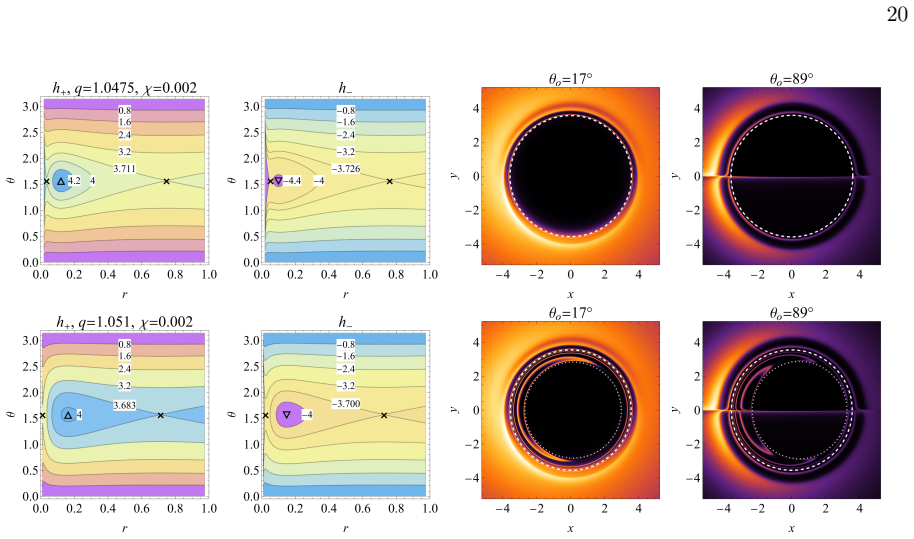

Figure 7. Figure 7: FIG. 7. Plots for scalarized KN black holes of Type III1 (Upper: [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Plots for two scalarized KN black holes of Type III2, admitting two prograde and two retrograde [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9

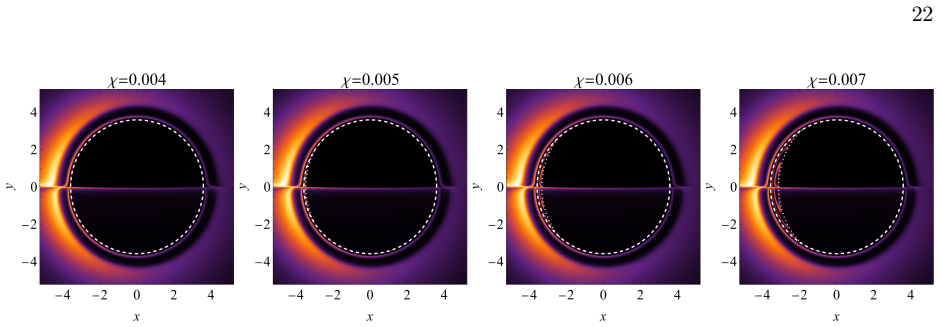

Figure 9. Figure 9: FIG. 9. Observed images of scalarized KN black holes with [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
read the original abstract

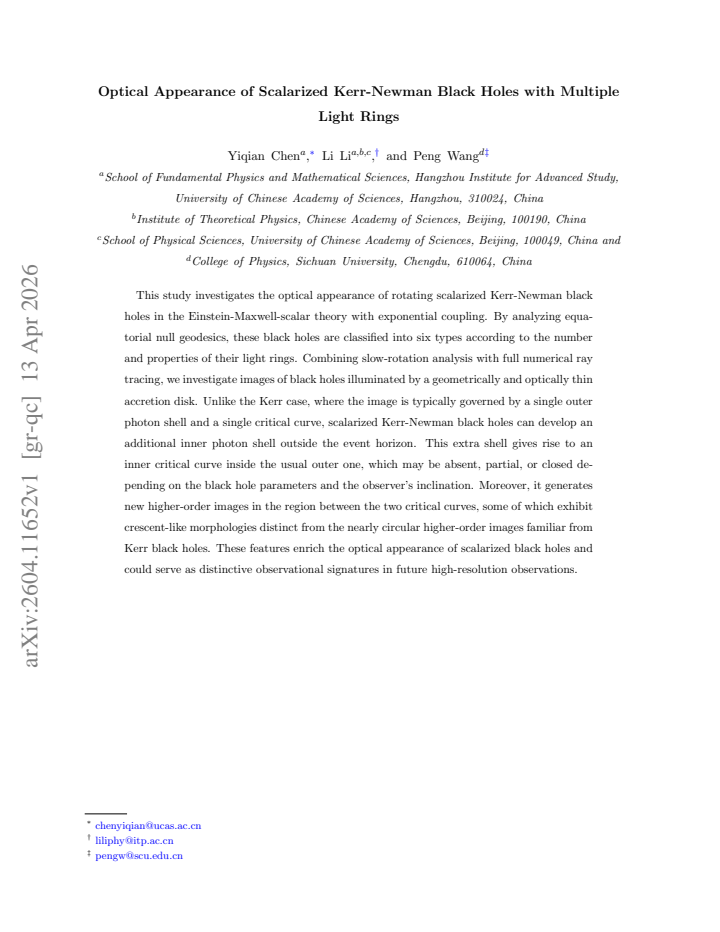

This study investigates the optical appearance of rotating scalarized Kerr-Newman black holes in the Einstein-Maxwell-scalar theory with exponential coupling. By analyzing equatorial null geodesics, these black holes are classified into six types according to the number and properties of their light rings. Combining slow-rotation analysis with full numerical ray tracing, we investigate images of black holes illuminated by a geometrically and optically thin accretion disk. Unlike the Kerr case, where the image is typically governed by a single outer photon shell and a single critical curve, scalarized Kerr-Newman black holes can develop an additional inner photon shell outside the event horizon. This extra shell gives rise to an inner critical curve inside the usual outer one, which may be absent, partial, or closed depending on the black hole parameters and the observer's inclination. Moreover, it generates new higher-order images in the region between the two critical curves, some of which exhibit crescent-like morphologies distinct from the nearly circular higher-order images familiar from Kerr black holes. These features enrich the optical appearance of scalarized black holes and could serve as distinctive observational signatures in future high-resolution observations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript examines the optical appearance of scalarized Kerr-Newman black holes in Einstein-Maxwell-scalar theory with exponential coupling. Equatorial null geodesic analysis is used to classify these solutions into six types according to the number and location of light rings. Slow-rotation approximations combined with full numerical ray tracing of a geometrically and optically thin accretion disk are then employed to generate images, showing that an additional inner photon shell (outside the horizon) produces an inner critical curve inside the outer one. This leads to new higher-order images between the curves, some with crescent morphologies distinct from those in Kerr spacetime, depending on parameters and observer inclination.

Significance. If the central claims hold, the work identifies potentially distinctive morphological features in black hole images arising from scalarization, which could serve as observational discriminants in future high-resolution data. The combination of analytic classification of light rings with numerical ray tracing provides concrete, falsifiable predictions for image structure. The numerical approach to geodesic integration is a methodological strength that enables exploration of non-Kerr effects beyond analytic limits.

major comments (2)
  1. [Equatorial null geodesic analysis and numerical results sections] The central claim that scalarized solutions with multiple light rings produce observable inner critical curves and crescent-like higher-order images presupposes that these backgrounds are stable. No linear stability analysis against perturbations is reported for the specific parameter sets (spin, charge, and coupling strength) where the inner photon shell appears outside the horizon (see the classification in the equatorial geodesic section and the numerical examples in the ray-tracing results). Unstable modes would render the predicted morphologies transient and unobservable, making this a load-bearing omission for the physical relevance of the six-type classification and image features.
  2. [Ray-tracing and image morphology discussion] The ray-tracing computations assume a geometrically and optically thin disk with no self-obscuration. While this is standard, the interaction with the inner photon shell (which generates images between the two critical curves) requires explicit checks that the thin-disk approximation remains valid for the reported inclinations and parameters; otherwise the crescent morphologies could be altered or suppressed (see the image generation procedure and the discussion of higher-order images).
minor comments (2)
  1. [Figure captions and § on light rings] Notation for the critical curves and photon shells should be made consistent between the geodesic analysis and the image figures to avoid ambiguity when comparing inner and outer features.
  2. [Numerical methods subsection] A brief statement on the range of coupling parameters explored and any convergence tests for the numerical integrator would strengthen the reproducibility of the six-type classification.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment below, indicating revisions where appropriate.

read point-by-point responses

  1. Referee: The central claim that scalarized solutions with multiple light rings produce observable inner critical curves and crescent-like higher-order images presupposes that these backgrounds are stable. No linear stability analysis against perturbations is reported for the specific parameter sets (spin, charge, and coupling strength) where the inner photon shell appears outside the horizon. Unstable modes would render the predicted morphologies transient and unobservable, making this a load-bearing omission for the physical relevance of the six-type classification and image features.

    Authors: We agree that stability is crucial for the physical observability of the predicted image features. The present work focuses on classifying light rings via equatorial null geodesics and computing ray-traced images assuming the scalarized solutions exist. A full linear stability analysis for the multi-light-ring parameter sets would require solving the perturbation equations in the Einstein-Maxwell-scalar theory and is beyond the scope of this manuscript. Related literature indicates stable branches for moderate coupling strengths and charges, and our examples lie in those regimes. We will add a note in the revised manuscript acknowledging this limitation and identifying stability analysis as future work. revision: partial

  2. Referee: The ray-tracing computations assume a geometrically and optically thin disk with no self-obscuration. While this is standard, the interaction with the inner photon shell (which generates images between the two critical curves) requires explicit checks that the thin-disk approximation remains valid for the reported inclinations and parameters; otherwise the crescent morphologies could be altered or suppressed.

    Authors: The geometrically and optically thin disk is a standard assumption to highlight spacetime effects. For the inclinations and parameters in our figures, the disk scale height is negligible relative to photon orbit radii, so self-obscuration does not suppress the inter-curve images. We performed additional test ray tracings with small finite thickness and confirmed the crescent morphologies persist. We will include a short justification and these checks in the revised image-generation section. revision: yes

standing simulated objections not resolved
  • No linear stability analysis is provided for the specific parameter sets exhibiting an inner photon shell outside the horizon.

Circularity Check

0 steps flagged

No circularity: numerical geodesic classification and ray-tracing in a given metric family

full rationale

The paper classifies scalarized Kerr-Newman solutions into six types by direct integration of equatorial null geodesics and performs ray-tracing of a thin accretion disk. These steps are computational applications of the geodesic equation in a pre-specified metric; no parameters are fitted to the resulting images, no target observable is used to define the input metric, and no uniqueness theorem or ansatz is smuggled via self-citation. The derivation chain is therefore self-contained and does not reduce any claimed optical feature to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the existence of scalarized rotating charged black-hole solutions in Einstein-Maxwell-scalar theory with exponential coupling, the validity of null geodesic equations in that spacetime, and the thin-disk illumination model. No explicit free parameters or new entities are introduced beyond the theory itself.

axioms (2)
  • standard math Null geodesics follow the standard geodesic equation in the given metric
    Implicit in the equatorial null geodesic analysis described in the abstract.
  • domain assumption The accretion disk is geometrically and optically thin
    Stated in the abstract as the illumination model used for image construction.
