arxiv: 2604.11713 · v1 · submitted 2026-04-13 · ❄️ cond-mat.stat-mech · cond-mat.soft

Thermodynamic fluctuations in freely jointed chains under force

Michael R. Buche , Alvin Chen This is my paper

Pith reviewed 2026-05-10 16:15 UTC · model grok-4.3

classification ❄️ cond-mat.stat-mech cond-mat.soft
keywords freely jointed chainthermodynamic fluctuationsisotensional ensemblepolymer extensionforce-extension relationstatistical mechanicsend-to-end vectorlink angles
0
0 comments X

The pith

Fluctuations in freely jointed polymer chain extensions and angles remain large until the applied force grows strong.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper quantifies the random variations around average values for the end-to-end length components and angles in the freely jointed chain model when held at fixed force. It computes probability densities and standard deviations for longitudinal, lateral, transverse, radial extensions, overall extension angle, and individual link angles, showing these spreads stay substantial at moderate forces. The analysis reveals that adding more links damps fluctuations in the extension measures but leaves link-angle statistics unchanged because the links orient independently. Many polymer studies treat mean force-extension relations as fixed numbers, yet these results indicate the underlying uncertainty can be comparable in size to the averages themselves in common regimes.

Core claim

In the isotensional ensemble of the freely jointed chain, the probability densities of the chain extension components and angles are obtained analytically or numerically, and their standard deviations are shown to be considerable until the force becomes large. Increasing the number of links reduces fluctuations in all extension-related quantities but not in the link angles, which remain independent of chain length because each link orients separately under the fixed force.

What carries the argument

The standard deviations and probability densities of longitudinal, lateral, transverse, radial extensions and of extension and link angles, computed in the isotensional ensemble for the freely jointed chain.

If this is right

  • Single-chain stretching models must incorporate variance in extension rather than relying solely on average force-extension curves at moderate forces.
  • Polymer network deformation calculations may require fluctuation corrections to capture additional compliance at low forces.
  • The independence of link angles allows their statistics to be computed without reference to total chain length.
  • Analytic expressions for small numbers of links supply exact checks for numerical polymer simulations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Single-molecule force experiments at low to moderate forces may need to report fluctuation-based uncertainties when comparing data to mean curves.
  • The same variance calculations could be repeated in the fixed-extension ensemble to compare fluctuation magnitudes across thermodynamic conditions.
  • Incorporating these spreads into coarse-grained network theories might adjust predicted elastic moduli for small-strain regimes.

Load-bearing premise

The chain consists of independent rigid links whose orientations are determined solely by the fixed force and thermal energy, with no interactions among links.

What would settle it

An experimental measurement of the standard deviation of end-to-end distance for a polymer with a known number of freely jointed segments held at a controlled moderate force, checked directly against the model's predicted value.

Figures

Figures reproduced from arXiv: 2604.11713 by Alvin Chen, Michael R. Buche.

Figure 1

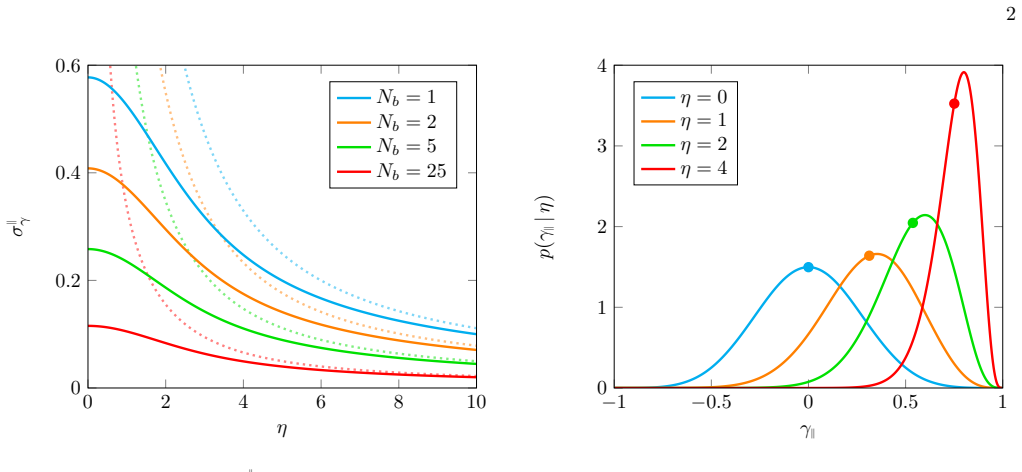

Figure 1. Figure 1: FIG. 1. Standard deviation [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

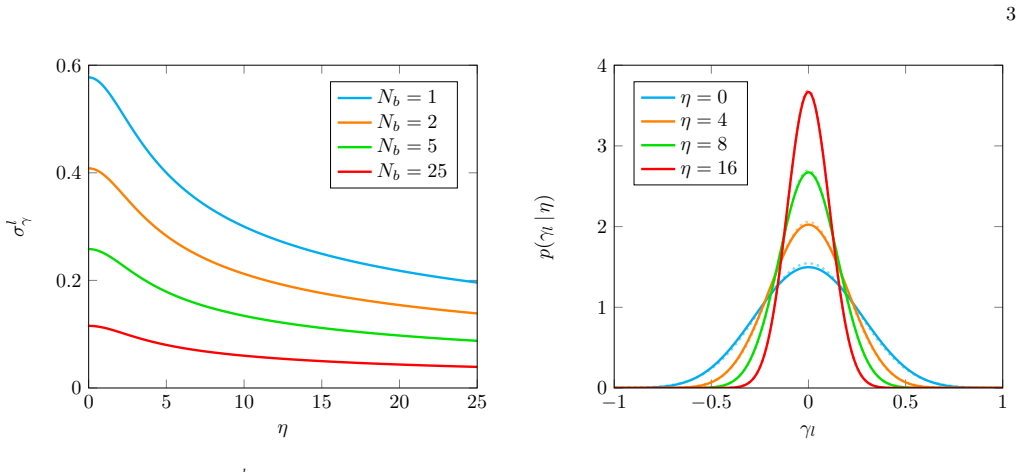

Figure 3. Figure 3: FIG. 3. Standard deviation [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5

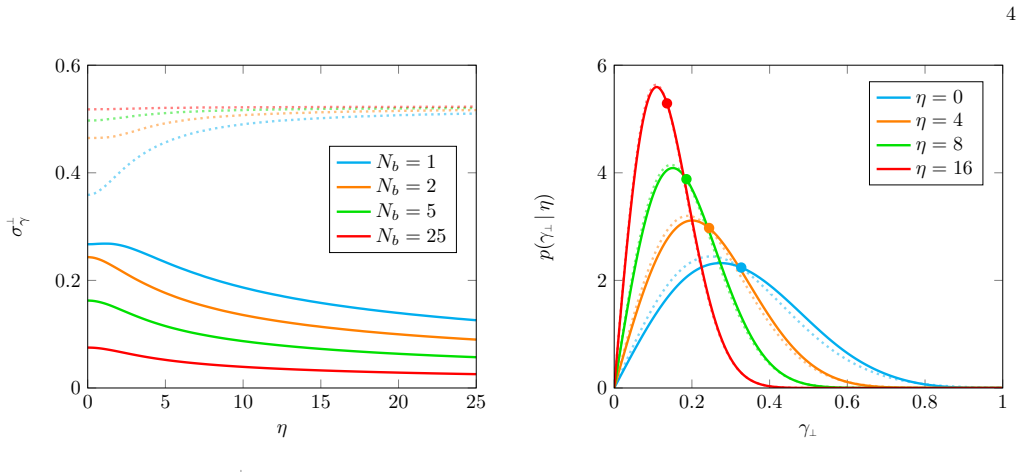

Figure 5. Figure 5: FIG. 5. Standard deviation [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 7

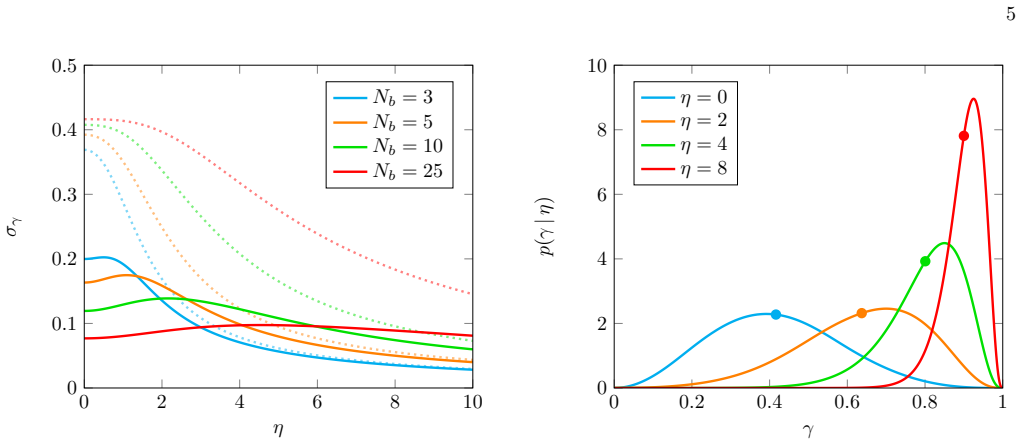

Figure 7. Figure 7: FIG. 7. Standard deviation [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 9

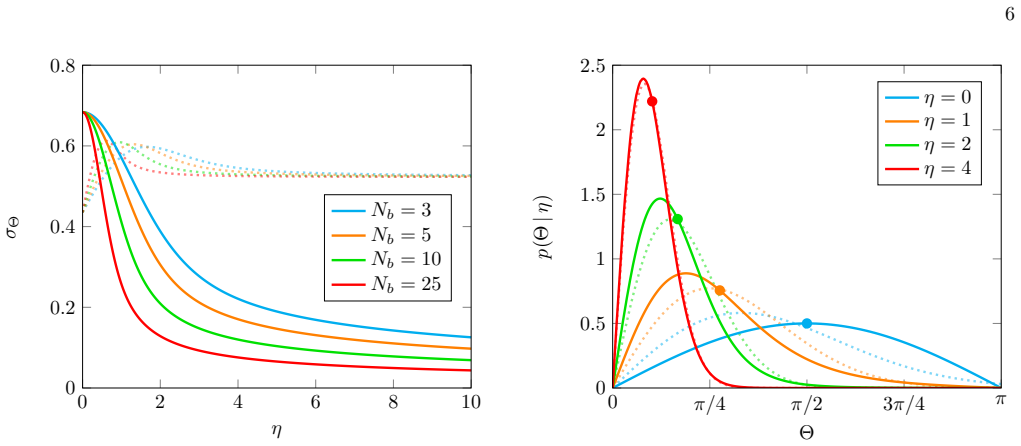

Figure 9. Figure 9: FIG. 9. Standard deviation [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 11

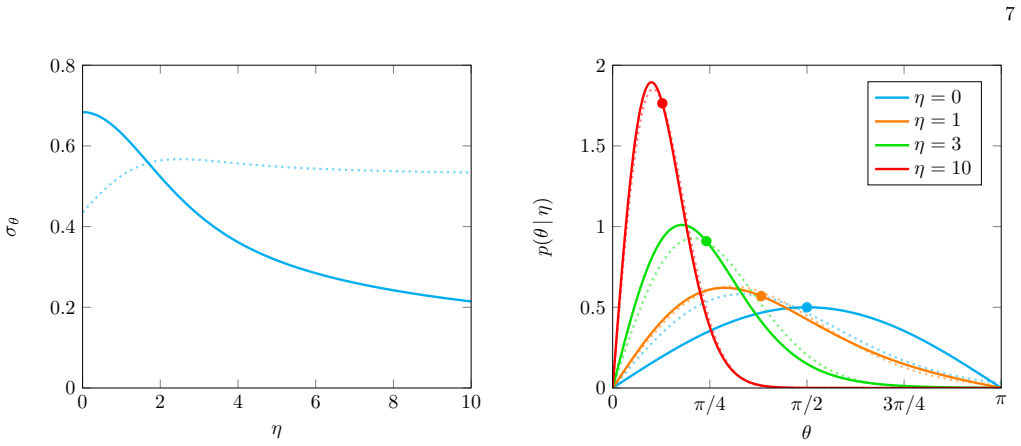

Figure 11. Figure 11: FIG. 11. Standard deviation [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
read the original abstract

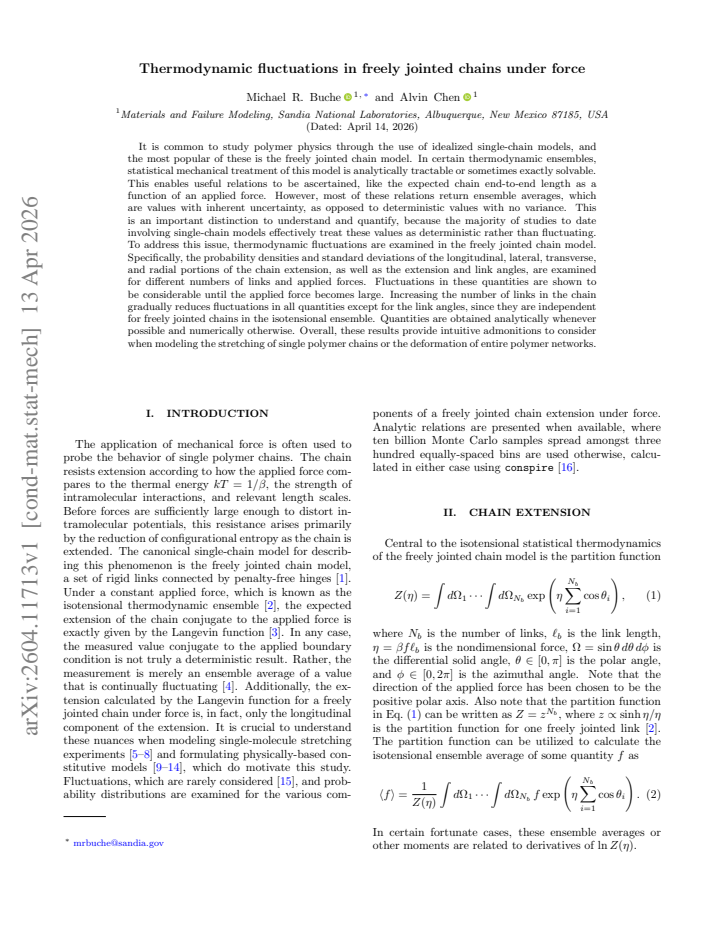

It is common to study polymer physics through the use of idealized single-chain models, and the most popular of these is the freely jointed chain model. In certain thermodynamic ensembles, statistical mechanical treatment of this model is analytically tractable or sometimes exactly solvable. This enables useful relations to be ascertained, like the expected chain end-to-end length as a function of an applied force. However, most of these relations return ensemble averages, which are values with inherent uncertainty, as opposed to deterministic values with no variance. This is an important distinction to understand and quantify, because the majority of studies to date involving single-chain models effectively treat these values as deterministic rather than fluctuating. To address this issue, thermodynamic fluctuations are examined in the freely jointed chain model. Specifically, the probability densities and standard deviations of the longitudinal, lateral, transverse, and radial portions of the chain extension, as well as the extension and link angles, are examined for different numbers of links and applied forces. Fluctuations in these quantities are shown to be considerable until the applied force becomes large. Increasing the number of links in the chain gradually reduces fluctuations in all quantities except for the link angles, since they are independent for freely jointed chains in the isotensional ensemble. Quantities are obtained analytically whenever possible and numerically otherwise. Overall, these results provide intuitive admonitions to consider when modeling the stretching of single polymer chains or the deformation of entire polymer networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript examines thermodynamic fluctuations in the freely jointed chain (FJC) model under applied force in the isotensional ensemble. It computes probability densities and standard deviations for longitudinal, lateral, transverse, and radial components of the end-to-end extension as well as for the overall extension angle and individual link angles, as functions of link number N and force magnitude. Results are obtained analytically where possible (leveraging link independence) and numerically otherwise, showing that fluctuations remain considerable until forces become large and that increasing N reduces fluctuations in extension-related quantities but leaves link-angle fluctuations unchanged due to independence.

Significance. If the derivations hold, the work supplies quantitative, model-specific guidance on the magnitude of fluctuations around ensemble averages in a canonical polymer model. This is useful for assessing the validity of mean-field treatments in single-chain stretching experiments and network elasticity calculations. Credit is due for the direct use of exact statistical mechanics (e.g., N-scaling of variances from independent links) and for distinguishing analytical from numerical results.

minor comments (3)
  1. [Abstract] The abstract states that 'quantities are obtained analytically whenever possible and numerically otherwise' but does not indicate which specific observables (e.g., radial extension variance) fall into each category; a short table or sentence in the results section would clarify this.
  2. [Abstract and Introduction] The distinction among 'lateral,' 'transverse,' and 'radial' components of extension is not defined in the abstract or early text; a brief coordinate-system definition or reference to a figure would prevent reader confusion.
  3. [Results section] Numerical procedures (sampling algorithm, number of realizations, convergence checks) are mentioned only in passing; adding a short methods paragraph or appendix would improve reproducibility.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our manuscript. We appreciate the acknowledgment of the significance of quantifying fluctuations in the freely jointed chain model and the credit given for the use of exact statistical mechanics. No specific major comments were raised, and we are pleased with the recommendation for minor revision. We will make any necessary minor adjustments for clarity in the revised version.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper derives probability densities, standard deviations, and scaling behaviors for chain extension components and link angles directly from the definitions of the freely jointed chain (independent rigid links) and the isotensional ensemble. These follow from standard moment calculations on the biased Langevin distribution and the exact independence of link angles, with no fitted parameters, no self-citations invoked as load-bearing premises, and no renaming or ansatz smuggling. All results are either analytic consequences of the model or direct numerical evaluation of its partition function; the central claims about fluctuation reduction with N and force are therefore self-contained statistical identities rather than reductions to prior inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the standard definition of the freely jointed chain and the principles of statistical mechanics in the constant-force ensemble.

axioms (2)
  • domain assumption The freely jointed chain consists of rigid links of fixed length that can rotate freely and independently.
    This is the core definition of the FJC model invoked for all calculations.
  • standard math Statistical mechanics applies via the Boltzmann distribution in the isotensional ensemble for constant force.
    Standard framework used to obtain probability densities and moments.

pith-pipeline@v0.9.0 · 5552 in / 1309 out tokens · 94175 ms · 2026-05-10T16:15:38.382786+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

23 extracted references · 23 canonical work pages

  1. [1]

    L. R. G. Treloar,The Physics of Rubber Elasticity (Clarendon Press, 1949)

    work page 1949

  2. [2]

    M. R. Buche, M. N. Silberstein, and S. J. Grutzik, Freely jointed chain models with extensible links, Physical Re- view E106, 024502 (2022)

    work page 2022

  3. [3]

    Kuhn and F

    W. Kuhn and F. Gr¨ un, Beziehungen zwischen elastischen konstanten und dehnungsdoppelbrechung hochelastischer stoffe, Kolloid-Zeitschrift101, 248 (1942)

    work page 1942

  4. [4]

    D. A. McQuarrie,Statistical Mechanics(University Sci- ence Books, 2000)

    work page 2000

  5. [5]

    M. Wang, H. Yin, R. Landick, J. Gelles, and S. Block, Stretching DNA with optical tweezers, Biophysical Jour- nal72, 1335 (1997)

    work page 1997

  6. [6]

    M. Rief, F. Oesterhelt, B. Heymann, and H. E. Gaub, Single molecule force spectroscopy on polysaccharides by atomic force microscopy, Science275, 1295 (1997)

    work page 1997

  7. [7]

    Janshoff, M

    A. Janshoff, M. Neitzert, Y. Oberd¨ orfer, and H. Fuchs, Force spectroscopy of molecular systems-single molecule spectroscopy of polymers and biomolecules, Angewandte Chemie International Edition39, 3212 (2000)

    work page 2000

  8. [8]

    E. W. Frey, A. A. Gooding, S. Wijeratne, and C.- H. Kiang, Understanding the physics of DNA us- ing nanoscale single-molecule manipulation, Frontiers of Physics7, 576 (2012)

    work page 2012

  9. [9]

    S. R. Lavoie, R. Long, and T. Tang, Modeling the me- chanics of polymer chains with deformable and active bonds, The Journal of Physical Chemistry B124, 253 (2019)

    work page 2019

  10. [10]

    M. R. Buche and M. N. Silberstein, Chain breaking in the statistical mechanical constitutive theory of polymer networks, Journal of the Mechanics and Physics of Solids 156, 104593 (2021)

    work page 2021

  11. [11]

    Mulderrig, B

    J. Mulderrig, B. Li, and N. Bouklas, Affine and non- affine microsphere models for chain scission in polydis- perse elastomer networks, Mechanics of Materials160, 103857 (2021)

    work page 2021

  12. [12]

    S. C. Lamont, J. Mulderrig, N. Bouklas, and F. J. Vernerey, Rate-dependent damage mechanics of poly- mer networks with reversible bonds, Macromolecules54, 10801 (2021)

    work page 2021

  13. [13]

    Grasinger, Polymer networks which locally rotate to accommodate stresses, torques, and deformation, Jour- nal of the Mechanics and Physics of Solids175, 105289 (2023)

    M. Grasinger, Polymer networks which locally rotate to accommodate stresses, torques, and deformation, Jour- nal of the Mechanics and Physics of Solids175, 105289 (2023)

    work page 2023

  14. [14]

    Mulderrig, M

    J. Mulderrig, M. Buche, and M. Grasinger, Polydisperse polymer networks with irregular topologies, arXiv2504, 17239 (2025)

    work page 2025

  15. [15]

    Fiasconaro and F

    A. Fiasconaro and F. Falo, Analytical results of the ex- tensible freely jointed chain model, Physica A: Statistical Mechanics and its Applications532, 121929 (2019)

    work page 2019

  16. [16]

    M. R. Buche,conspire, Zenodo (2026), v0.6.0

    work page 2026

  17. [17]

    Balabaev and T

    N. Balabaev and T. Khazanovich, Extension of chains composed of freely joined elastic segments, Russian Jour- nal of Physical Chemistry B3, 242 (2009)

    work page 2009

  18. [18]

    J. W. Strutt and L. Rayleigh, On the problem of random vibrations, and of random flights in one, two, or three dimensions, Philosophical Magazine37, 321 (1919)

    work page 1919

  19. [19]

    M. R. Buche and M. N. Silberstein, Statistical mechanical constitutive theory of polymer networks: The inextrica- ble links between distribution, behavior, and ensemble, Physical Review E102, 012501 (2020)

    work page 2020

  20. [20]

    M. C. Wang and E. Guth, Statistical theory of networks of non-gaussian flexible chains, The Journal of Chemical Physics20, 1144 (1952)

    work page 1952

  21. [21]

    M. R. Buche and J. M. Rimsza, Modeling single-molecule stretching experiments using statistical thermodynamics, Physical Review E108, 064503 (2023)

    work page 2023

  22. [22]

    Fiasconaro and F

    A. Fiasconaro and F. Falo, Elastic traits of the extensible discrete wormlike chain model, Physical Review E107, 024501 (2023)

    work page 2023

  23. [23]

    Manca, S

    F. Manca, S. Giordano, P. L. Palla, R. Zucca, F. Cleri, and L. Colombo, Elasticity of flexible and semiflexi- ble polymers with extensible bonds in the gibbs and helmholtz ensembles, The Journal of Chemical Physics 136, 154906 (2012)

    work page 2012
