RMGS-SLAM: Real-time Multi-sensor Gaussian Splatting SLAM

Dongen Li , Yi Liu , Junqi Liu , Zewen Sun , Zefan Huang , Shuo Sun , Jiahui Liu , Chengran Yuan
show 3 more authors
Hongliang Guo Francis E.H. Tay Marcelo H. Ang Jr
This is my paper

Pith reviewed 2026-05-10 14:55 UTC · model grok-4.3

classification 💻 cs.RO
keywords SLAM3D Gaussian SplattingMulti-sensor FusionReal-time MappingLoop ClosureLocalization AccuracyPhotorealistic ReconstructionLiDAR-Inertial-Visual
0
0 comments X

The pith

A tightly coupled LiDAR-inertial-visual 3D Gaussian splatting SLAM system performs real-time pose estimation and photorealistic mapping in large-scale looped scenes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a SLAM framework that fuses data from LiDAR, inertial measurement units, and cameras using 3D Gaussian splatting to track position and build maps simultaneously. It runs pose estimation and initial map building in parallel with ongoing map refinement so that neither task slows the other down. A two-stage initialization combines quick predictions with geometric details from voxel analysis to create better starting points for the map, while loop closure corrects accumulated errors by aligning the map directly with itself. If these elements work together, robots or vehicles could navigate extended outdoor areas while producing dense, visually accurate reconstructions without pausing or drifting. A reader would care because earlier Gaussian-splatting SLAM methods could not sustain real-time speed, accurate tracking, and high rendering quality at the same time across big environments with repeated paths.

Core claim

The authors claim that executing state estimation and 3D Gaussian primitive initialization in parallel with global Gaussian optimization, while using a cascaded feed-forward plus voxel-PCA strategy for initialization and Gaussian-based Generalized Iterative Closest Point registration for loop closure, produces a system that jointly achieves real-time efficiency, localization accuracy, and rendering quality on both public benchmarks and new large-scale outdoor looped sequences.

What carries the argument

Parallel execution of multi-sensor state estimation with global 3D Gaussian optimization, supported by cascaded feed-forward and voxel-PCA initialization plus Gaussian GICP loop closure.

If this is right

  • Continuous dense mapping proceeds without interrupting real-time operation because estimation and optimization run concurrently.
  • Global consistency holds across repeated paths because loop constraints are derived directly from the optimized Gaussian map.
  • The combination of sensors and initialization yields higher localization accuracy and rendering quality than prior real-time 3DGS SLAM methods on diverse real-world data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same parallel architecture could support incremental addition of new sensors without redesigning the core pipeline.
  • If voxel-PCA priors prove stable, similar geometric cues might reduce reliance on learned feed-forward networks in other reconstruction tasks.
  • The Gaussian map produced by the system offers a ready representation for downstream tasks such as path planning or object interaction.

Load-bearing premise

The assumption that the cascaded initialization and Gaussian-based loop closure will reliably speed convergence and remove drift without adding latency or new errors in large looped environments.

What would settle it

Deploy the system on one of the authors' large-scale looped outdoor sequences with ground-truth trajectories and measure whether tracking error, frame rate, or rendered image quality falls below the reported state-of-the-art levels.

Figures

Figures reproduced from arXiv: 2604.12942 by Chengran Yuan, Dongen Li, Francis E.H. Tay, Hongliang Guo, Jiahui Liu, Junqi Liu, Marcelo H. Ang Jr, Shuo Sun, Yi Liu, Zefan Huang, Zewen Sun.

Figure 1
Figure 1. Figure 1: Overview of the proposed system. The framework follows a four-module design. (i) A LIV front-end developed upon a Sequential IESKF system [4] [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

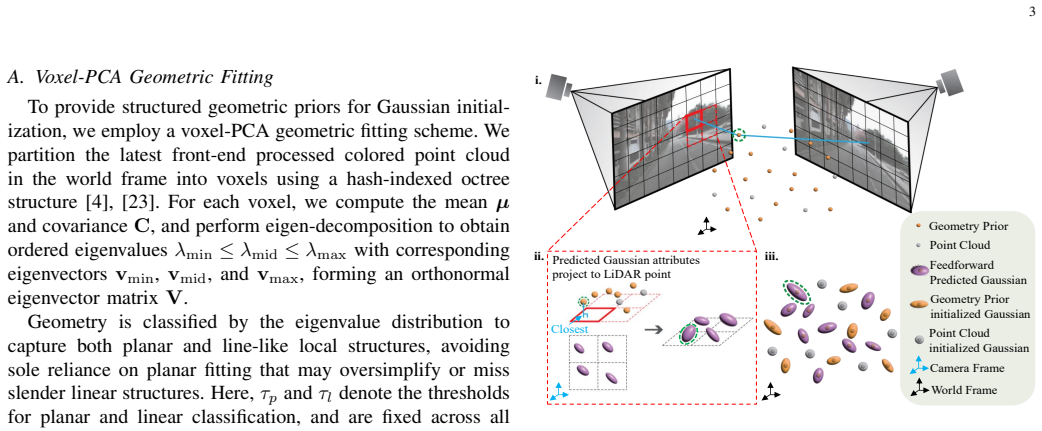

Figure 2. Figure 2: Cascaded Gaussian Primitive Initialization. (i) Each point is projected [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

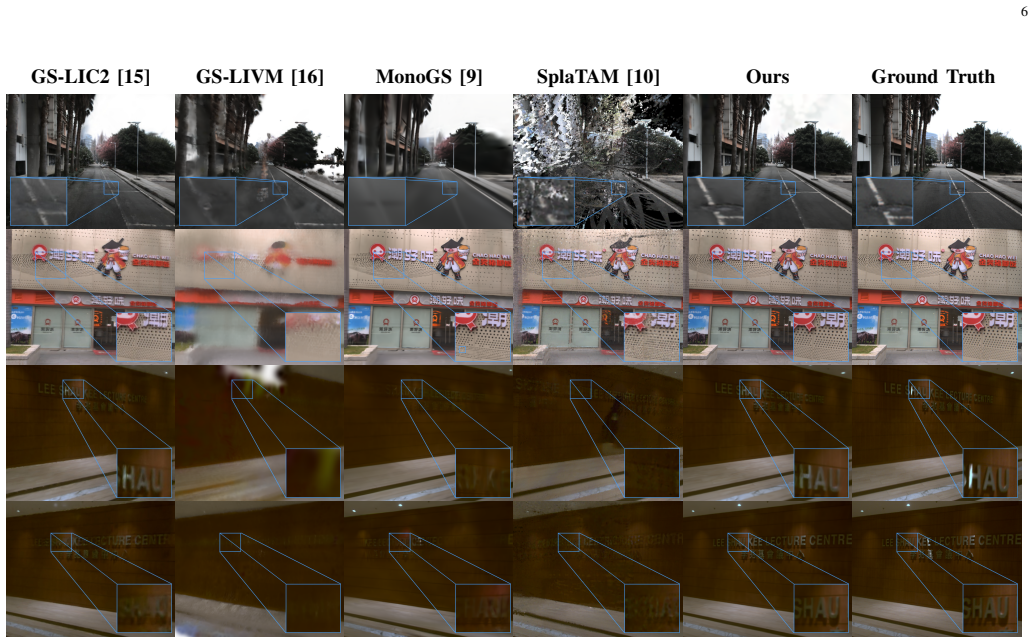

Figure 3. Figure 3: Qualitative comparison of rendering results. The blue boxed region is enlarged and displayed in the corner for detailed visual inspection. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5

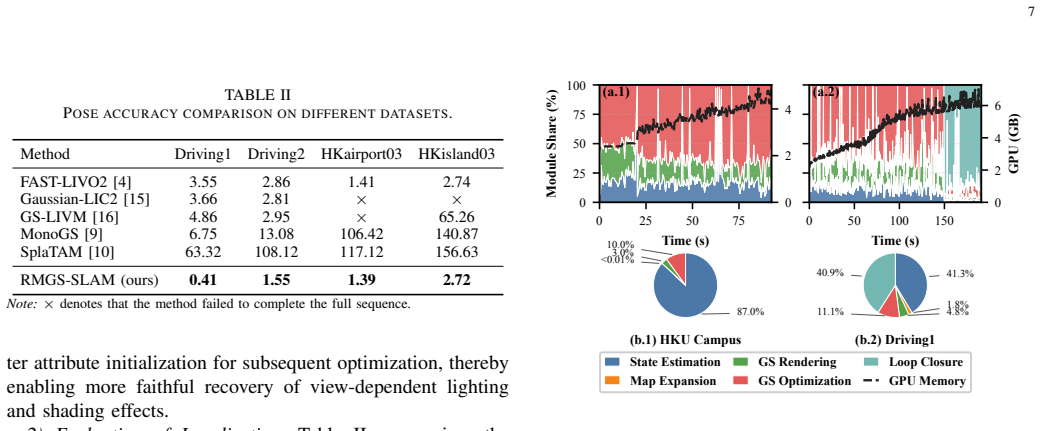

Figure 5. Figure 5: Runtime analysis across small (1, HKU Campus) and large (2, [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 4

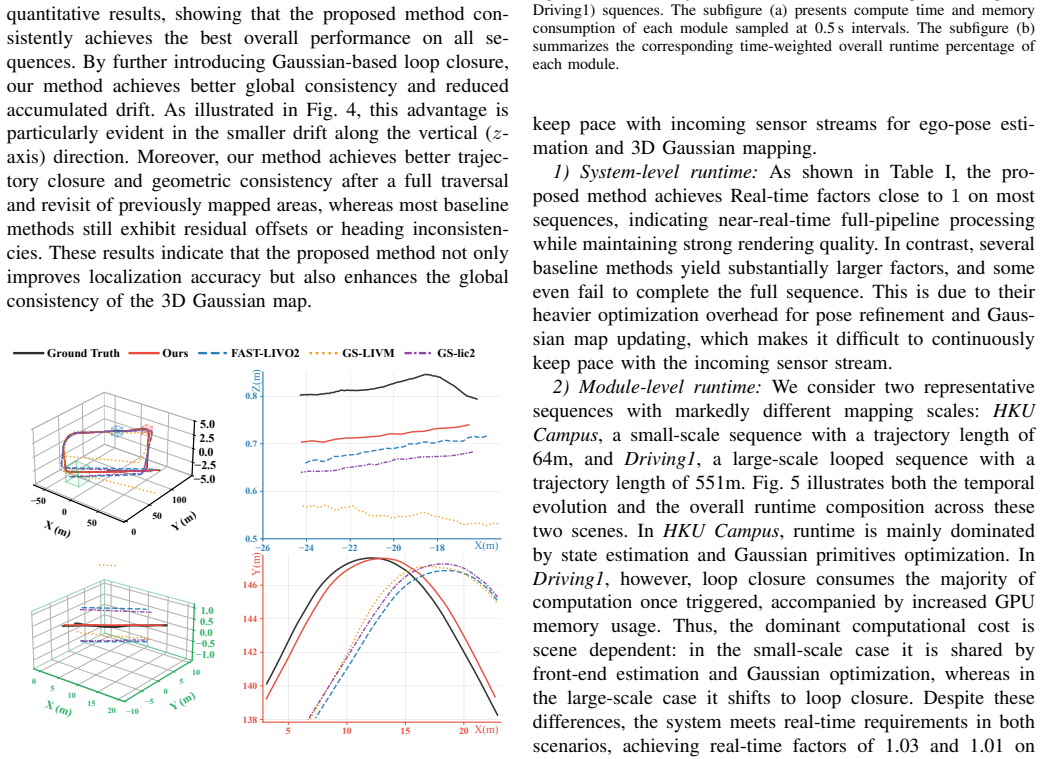

Figure 4. Figure 4: Trajectory comparison for the Driving1 sequence. The upper-left subfigure shows the overall 3D trajectory, and the others show local zoomed￾in views at approximately 8.3× magnification. C. Runtime Analysis We benchmark the runtime performance of our proposed method from both system-level and module-level perspectives. Real-time operation is essential for long-term reliability and downstream applications su… view at source ↗
read the original abstract

Achieving real-time Simultaneous Localization and Mapping (SLAM) based on 3D Gaussian splatting (3DGS) in large-scale real-world environments remains challenging, as existing methods still struggle to jointly achieve low-latency pose estimation, continuous 3D Gaussian reconstruction, and long-term global consistency. In this paper, we present a tightly coupled LiDAR-Inertial-Visual 3DGS-based SLAM framework for real-time pose estimation and photorealistic mapping in large-scale real-world scenes. The system executes state estimation and 3D Gaussian primitive initialization in parallel with global Gaussian optimization, enabling continuous dense mapping. To improve Gaussian initialization quality and accelerate optimization convergence, we introduce a cascaded strategy that combines feed-forward predictions with geometric priors derived from voxel-based principal component analysis. To enhance global consistency, we perform loop closure directly on the optimized global Gaussian map by estimating loop constraints through Gaussian-based Generalized Iterative Closest Point registration, followed by pose-graph optimization. We also collect challenging large-scale looped outdoor sequences with hardware-synchronized LiDAR-camera-IMU and ground-truth trajectories for realistic evaluation. Extensive experiments on both public datasets and our dataset demonstrate that the proposed method achieves a state of the art among real-time efficiency, localization accuracy, and rendering quality across diverse real-world scenes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents RMGS-SLAM, a tightly-coupled LiDAR-inertial-visual SLAM framework that performs real-time pose estimation and photorealistic 3D Gaussian Splatting mapping in large-scale scenes. State estimation and Gaussian primitive initialization run in parallel with global map optimization; a cascaded feed-forward plus voxel-PCA initializer improves Gaussian quality and convergence speed, while loop closure is performed via Gaussian-based GICP registration on the optimized map followed by pose-graph optimization. The authors also release a new hardware-synchronized large-scale looped outdoor dataset and report state-of-the-art results in real-time efficiency, localization accuracy, and rendering quality on both public benchmarks and their own sequences.

Significance. If the experimental comparisons hold, the work offers a practical advance in real-time 3DGS SLAM by demonstrating that multi-sensor fusion, parallel execution, and Gaussian-native loop closure can jointly deliver low-latency tracking and consistent dense mapping at scale. The parallel architecture and the new dataset are concrete strengths that could serve as baselines for future systems work.

major comments (2)
  1. [§4] §4 (Experiments): the SOTA claims rest on quantitative tables comparing against prior real-time 3DGS SLAM methods, yet no ablation isolating the contribution of the cascaded initializer versus the Gaussian GICP loop closure is presented; without these controls it is unclear whether the reported accuracy and runtime gains are attributable to the proposed components or to implementation details.
  2. [§3.3] §3.3 (Loop Closure): the Gaussian GICP registration is asserted to maintain global consistency without added latency in large looped environments, but no timing profile or drift analysis on the longest sequences is supplied to confirm that the registration overhead remains bounded as map size grows.
minor comments (2)
  1. [Abstract] Abstract and §1: the phrase 'our dataset' is used without a citation or availability statement; adding a footnote or URL would aid reproducibility.
  2. [Figures] Figure captions: several figures lack explicit axis labels or scale bars, making it harder to interpret the visual quality comparisons at a glance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and the recommendation for minor revision. The recognition of the parallel architecture and new dataset as strengths is appreciated. We address each major comment below and will incorporate the suggested additions in the revised manuscript.

read point-by-point responses

  1. Referee: [§4] §4 (Experiments): the SOTA claims rest on quantitative tables comparing against prior real-time 3DGS SLAM methods, yet no ablation isolating the contribution of the cascaded initializer versus the Gaussian GICP loop closure is presented; without these controls it is unclear whether the reported accuracy and runtime gains are attributable to the proposed components or to implementation details.

    Authors: We agree that isolating the contributions of the cascaded initializer and Gaussian GICP loop closure would clarify the source of the observed gains. In the revised manuscript we will add targeted ablation studies: one disabling the cascaded initializer (reverting to standard feed-forward initialization) and one disabling Gaussian-based loop closure (relying only on visual-inertial odometry). These will report localization accuracy (ATE/RPE), runtime, and rendering metrics (PSNR/SSIM) on both public benchmarks and our longest sequences, enabling direct attribution of improvements to each component. revision: yes

  2. Referee: [§3.3] §3.3 (Loop Closure): the Gaussian GICP registration is asserted to maintain global consistency without added latency in large looped environments, but no timing profile or drift analysis on the longest sequences is supplied to confirm that the registration overhead remains bounded as map size grows.

    Authors: We acknowledge that explicit timing profiles and drift analysis would better substantiate the bounded-overhead claim. In the revision we will add (i) a per-module timing table showing Gaussian GICP registration time versus map size on all sequences, and (ii) before/after loop-closure ATE plots together with cumulative drift curves for the longest looped outdoor sequences. These will confirm that voxel-based downsampling and parallel execution keep registration latency low even as the global map grows. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

This is a systems-engineering paper describing a multi-sensor 3DGS SLAM pipeline (LiDAR-inertial-visual fusion, cascaded feed-forward + voxel-PCA initialization, Gaussian GICP loop closure, and parallel state estimation with global optimization). No mathematical derivations, first-principles predictions, or parameter-fitting steps are presented that reduce to the inputs by construction. Central claims rest on experimental tables comparing runtime, ATE, and rendering metrics against baselines on public and custom datasets; these comparisons are external and falsifiable. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The architecture is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an applied systems contribution that relies on standard assumptions from multi-sensor SLAM and 3D Gaussian splatting literature; no new free parameters, axioms, or invented physical entities are introduced in the abstract.

pith-pipeline@v0.9.0 · 5567 in / 1212 out tokens · 40213 ms · 2026-05-10T14:55:12.259151+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages

  1. [1]

    Past, present, and future of simultaneous localization and mapping: Toward the robust-perception age,

    C. Cadena, L. Carlone, H. Carrillo, Y . Latif, D. Scaramuzza, J. Neira, I. Reid, and J. J. Leonard, “Past, present, and future of simultaneous localization and mapping: Toward the robust-perception age,”IEEE Transactions on robotics, vol. 32, no. 6, pp. 1309–1332, 2017

    work page 2017

  2. [2]

    Loam: Lidar odometry and mapping in real- time

    J. Zhang, S. Singhet al., “Loam: Lidar odometry and mapping in real- time.” inRobotics: Science and systems, vol. 2, no. 9. Berkeley, CA, 2014, pp. 1–9

    work page 2014

  3. [3]

    Orb-slam2: An open-source slam system for monocular, stereo, and rgb-d cameras,

    R. Mur-Artal and J. D. Tard ´os, “Orb-slam2: An open-source slam system for monocular, stereo, and rgb-d cameras,”IEEE transactions on robotics, vol. 33, no. 5, pp. 1255–1262, 2017

    work page 2017

  4. [4]

    Fast-livo2: Fast, direct lidar–inertial–visual odometry,

    C. Zheng, W. Xu, Z. Zou, T. Hua, C. Yuan, D. He, B. Zhou, Z. Liu, J. Lin, F. Zhuet al., “Fast-livo2: Fast, direct lidar–inertial–visual odometry,”IEEE Transactions on Robotics, vol. 41, pp. 326–346, 2024

    work page 2024

  5. [5]

    3d gaussian splatting for real-time radiance field rendering,

    B. Kerbl, G. Kopanas, T. Leimk ¨uhler, and G. Drettakis, “3d gaussian splatting for real-time radiance field rendering,”ACM Transactions on Graphics, vol. 42, no. 4, July 2023

    work page 2023

  6. [6]

    Driv- inggaussian: Composite gaussian splatting for surrounding dynamic au- tonomous driving scenes,

    X. Zhou, Z. Lin, X. Shan, Y . Wang, D. Sun, and M.-H. Yang, “Driv- inggaussian: Composite gaussian splatting for surrounding dynamic au- tonomous driving scenes,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2024, pp. 21 634–21 643

    work page 2024

  7. [7]

    2d gaussian splatting for geometrically accurate radiance fields,

    B. Huang, Z. Yu, A. Chen, A. Geiger, and S. Gao, “2d gaussian splatting for geometrically accurate radiance fields,” inACM SIGGRAPH 2024 conference papers, 2024, pp. 1–11

    work page 2024

  8. [8]

    Gs-slam: Dense visual slam with 3d gaussian splatting,

    C. Yan, D. Qu, D. Xu, B. Zhao, Z. Wang, D. Wang, and X. Li, “Gs-slam: Dense visual slam with 3d gaussian splatting,” inCVPR, 2024

    work page 2024

  9. [9]

    Gaussian splatting slam,

    H. Matsuki, R. Murai, P. H. Kelly, and A. J. Davison, “Gaussian splatting slam,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2024, pp. 18 039–18 048

    work page 2024

  10. [10]

    Splatam: Splat track & map 3d gaussians for dense rgb-d slam,

    N. Keetha, J. Karhade, K. M. Jatavallabhula, G. Yang, S. Scherer, D. Ramanan, and J. Luiten, “Splatam: Splat track & map 3d gaussians for dense rgb-d slam,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2024, pp. 21 357–21 366

    work page 2024

  11. [11]

    Vpgs-slam: V oxel-based progressive 3d gaussian slam in large-scale scenes.arXiv preprint arXiv:2505.18992, 2025

    T. Deng, W. Wu, J. He, Y . Pan, X. Jiang, S. Yuan, D. Wang, H. Wang, and W. Chen, “Vpgs-slam: V oxel-based progressive 3d gaussian slam in large-scale scenes,”arXiv preprint arXiv:2505.18992, 2025

    work page arXiv 2025

  12. [12]

    Gs- livo: Real-time lidar, inertial, and visual multi-sensor fused odometry with gaussian mapping,

    S. Hong, C. Zheng, Y . Shen, C. Li, F. Zhang, T. Qin, and S. Shen, “Gs- livo: Real-time lidar, inertial, and visual multi-sensor fused odometry with gaussian mapping,”IEEE Transactions on Robotics, 2025

    work page 2025

  13. [13]

    Fusiongs-slam: Multiple sensors fusion for localization and real-time photorealistic mapping,

    T.-D. Phan and G.-W. Kim, “Fusiongs-slam: Multiple sensors fusion for localization and real-time photorealistic mapping,”IEEE Robotics and Automation Letters, 2025

    work page 2025

  14. [14]

    Gaussian-lic: Real-time photo-realistic slam with gaussian splatting and lidar-inertial-camera fusion,

    X. Lang, L. Li, C. Wu, C. Zhao, L. Liu, Y . Liu, J. Lv, and X. Zuo, “Gaussian-lic: Real-time photo-realistic slam with gaussian splatting and lidar-inertial-camera fusion,” in2025 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2025, pp. 8500–8507

    work page 2025

  15. [15]

    Gaussian-lic2: Lidar-inertial-camera gaussian splatting slam,

    X. Lang, J. Lv, K. Tang, L. Li, J. Huang, L. Liu, Y . Liu, and X. Zuo, “Gaussian-lic2: Lidar-inertial-camera gaussian splatting slam,”arXiv, 2025

    work page 2025

  16. [16]

    Gs-livm: Real-time photo-realistic lidar-inertial-visual mapping with gaussian splatting,

    Y . Xie, Z. Huang, J. Wu, and J. Ma, “Gs-livm: Real-time photo-realistic lidar-inertial-visual mapping with gaussian splatting,” inProceedings of the IEEE/CVF International Conference on Computer Vision, 2025, pp. 26 869–26 878

    work page 2025

  17. [17]

    Depthsplat: Connecting gaussian splatting and depth,

    H. Xu, S. Peng, F. Wang, H. Blum, D. Barath, A. Geiger, and M. Polle- feys, “Depthsplat: Connecting gaussian splatting and depth,” inProceed- ings of the Computer Vision and Pattern Recognition Conference, 2025, pp. 16 453–16 463

    work page 2025

  18. [18]

    Geometrically consistent generalizable gaus- sian splatting,

    M. Hosseinzadehet al., “Geometrically consistent generalizable gaus- sian splatting,”arXiv preprint arXiv:2512.17547, 2025

    work page arXiv 2025

  19. [19]

    Tls-slam: Gaussian splatting slam tailored for large-scale scenes,

    S. Cheng, S. He, F. Duan, and N. An, “Tls-slam: Gaussian splatting slam tailored for large-scale scenes,”IEEE Robotics and Automation Letters, vol. 10, no. 3, pp. 2814–2821, 2025

    work page 2025

  20. [20]

    Liv-gaussmap: Lidar-inertial- visual fusion for real-time 3d radiance field map rendering,

    S. Hong, J. He, X. Zheng, and C. Zheng, “Liv-gaussmap: Lidar-inertial- visual fusion for real-time 3d radiance field map rendering,”IEEE Robotics and Automation Letters, vol. 9, no. 11, pp. 9765–9772, 2024

    work page 2024

  21. [21]

    Liv-gs: Lidar-vision integration for 3d gaussian splatting slam in outdoor environments,

    R. Xiao, W. Liu, Y . Chen, and L. Hu, “Liv-gs: Lidar-vision integration for 3d gaussian splatting slam in outdoor environments,”IEEE Robotics and Automation Letters, vol. 10, no. 1, pp. 421–428, 2024

    work page 2024

  22. [22]

    Lvi-gs: Tightly-coupled lidar-visual- inertial slam using 3d gaussian splatting,

    H. Zhao, W. Guan, and P. Lu, “Lvi-gs: Tightly-coupled lidar-visual- inertial slam using 3d gaussian splatting,”IEEE Transactions on Instru- mentation and Measurement, 2025

    work page 2025

  23. [23]

    Efficient and probabilistic adaptive voxel mapping for accurate online lidar odometry,

    C. Yuan, W. Xu, X. Liu, X. Hong, and F. Zhang, “Efficient and probabilistic adaptive voxel mapping for accurate online lidar odometry,” IEEE Robotics and Automation Letters, vol. 7, no. 3, pp. 8518–8525, 2022

    work page 2022

  24. [24]

    Balm: Bundle adjustment for lidar mapping,

    Z. Liu and F. Zhang, “Balm: Bundle adjustment for lidar mapping,” IEEE Robotics and Automation Letters, vol. 6, no. 2, pp. 3184–3191, 2021

    work page 2021

  25. [25]

    Generalized-icp

    A. Segal, D. Haehnel, S. Thrunet al., “Generalized-icp.” inRobotics: science and systems, vol. 2, no. 4. Seattle, W A, 2009, p. 435

    work page 2009

  26. [26]

    isam2: Incremental smoothing and mapping using the bayes tree,

    M. Kaess, H. Johannsson, R. Roberts, V . Ila, J. J. Leonard, and F. Dellaert, “isam2: Incremental smoothing and mapping using the bayes tree,”International Journal of Robotics Research, vol. 31, no. 2, pp. 216–235, 2012

    work page 2012

  27. [27]

    Mars-lvig dataset: A multi-sensor aerial robots slam dataset for lidar-visual-inertial-gnss fusion,

    H. Li, Y . Zou, N. Chen, J. Lin, X. Liu, W. Xu, C. Zheng, R. Li, D. He, F. Konget al., “Mars-lvig dataset: A multi-sensor aerial robots slam dataset for lidar-visual-inertial-gnss fusion,”The International Journal of Robotics Research, vol. 43, no. 8, pp. 1114–1127, 2024

    work page 2024
