Symmetry-protected coexistence of a nodal surface and multiple types of Weyl fermions in P6₃-B₃₀

Xiao-Jing Gao , Yanfeng Ge , Yan Gao This is my paper

Pith reviewed 2026-05-10 13:02 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.comp-ph
keywords boron allotropetopological semimetalnodal surfaceWeyl fermionssymmetry protectionFermi arcsspinless fermionscrystalline symmetries
0
0 comments X

The pith

Combined time-reversal and screw symmetry protects a two-dimensional nodal surface while rotations protect multiple Weyl points in boron allotrope P6_{3}-B_{30}.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the three-dimensional boron allotrope P6_{3}-B_{30} realizes the coexistence of a two-dimensional nodal surface and zero-dimensional Weyl fermions of different kinds in one stable material. This occurs because the combined time-reversal and twofold screw symmetry creates a Kramers-like degeneracy on the k_z = π plane, while C6 and C3 rotations protect double-Weyl, type-I, and type-II Weyl points at high-symmetry locations. A sympathetic reader would care because the substantial separation between these features in momentum space allows clear experimental distinction, and the negligible spin-orbit coupling from light boron atoms keeps the system in a clean spinless regime. This provides a platform to investigate how different dimensional topological states interact.

Core claim

The combined time-reversal and twofold screw symmetry (TS_{2z}) enforces a robust two-dimensional nodal surface on the k_z = π plane via a Kramers-like degeneracy in P6_{3}-B_{30}. Concurrently, C6 and C3 crystalline rotational symmetries protect a diverse set of zero-dimensional Weyl fermions, including an unconventional double-Weyl point with chirality -2, conventional Type-I Weyl points with chirality -1, and completely tilted Type-II Weyl points with chirality +1, emerging at Γ, K, and along the H-K path. The system is a pristine spinless topological semimetal with negligible spin-orbit coupling, and its (100) surface states feature nontrivial Fermi arcs connecting Weyl nodes of opposite

What carries the argument

Combined time-reversal and twofold screw symmetry (TS_{2z}) that enforces Kramers-like degeneracy for the nodal surface, together with C6 and C3 rotations that protect the various Weyl points.

If this is right

  • The nodal surface and Weyl points remain well-separated in momentum space and can be resolved independently.
  • Nontrivial Fermi arcs appear on the (100) surface states and connect Weyl nodes of opposite chirality.
  • The material functions as a platform for studying the interplay between multidimensional topological fermions.
  • Structural stability and light-element composition enable experimental access without strong spin-orbit coupling effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Analogous symmetry combinations could produce similar hybrid topologies in other boron allotropes or light-element crystals.
  • The mix of type-I and type-II Weyl points may produce distinctive responses in magnetotransport or optical measurements.
  • Surface-sensitive probes could map the Fermi arcs without overlap from the nodal surface due to their momentum separation.

Load-bearing premise

First-principles calculations accurately capture the band structure, topological invariants, and structural stability of the P6_{3}-B_{30} phase.

What would settle it

Angle-resolved photoemission spectroscopy on a synthesized P6_{3}-B_{30} crystal that fails to detect the two-dimensional nodal surface on the k_z = π plane or the predicted Weyl points at Γ, K, and the H-K path would rule out the claimed topological features.

Figures

Figures reproduced from arXiv: 2604.13948 by Xiao-Jing Gao, Yanfeng Ge, Yan Gao.

Figure 1
Figure 1. Figure 1: (Color online) Crystal structure and Brillouin zone (BZ) of P63-B30. (a) The primitive cell of P63-B30 showing the 30-atom hexagonal lattice. (b) Top views of the cage-like B9 unit (c) and the bilayer triangular B6 unit. (d) Top view of the P63-B30 primitive cell. (e) The first BZ and its projection onto the (100) surface. The red, blue, and green dots illustrate Weyl points with topological charges of +1,… view at source ↗
Figure 2

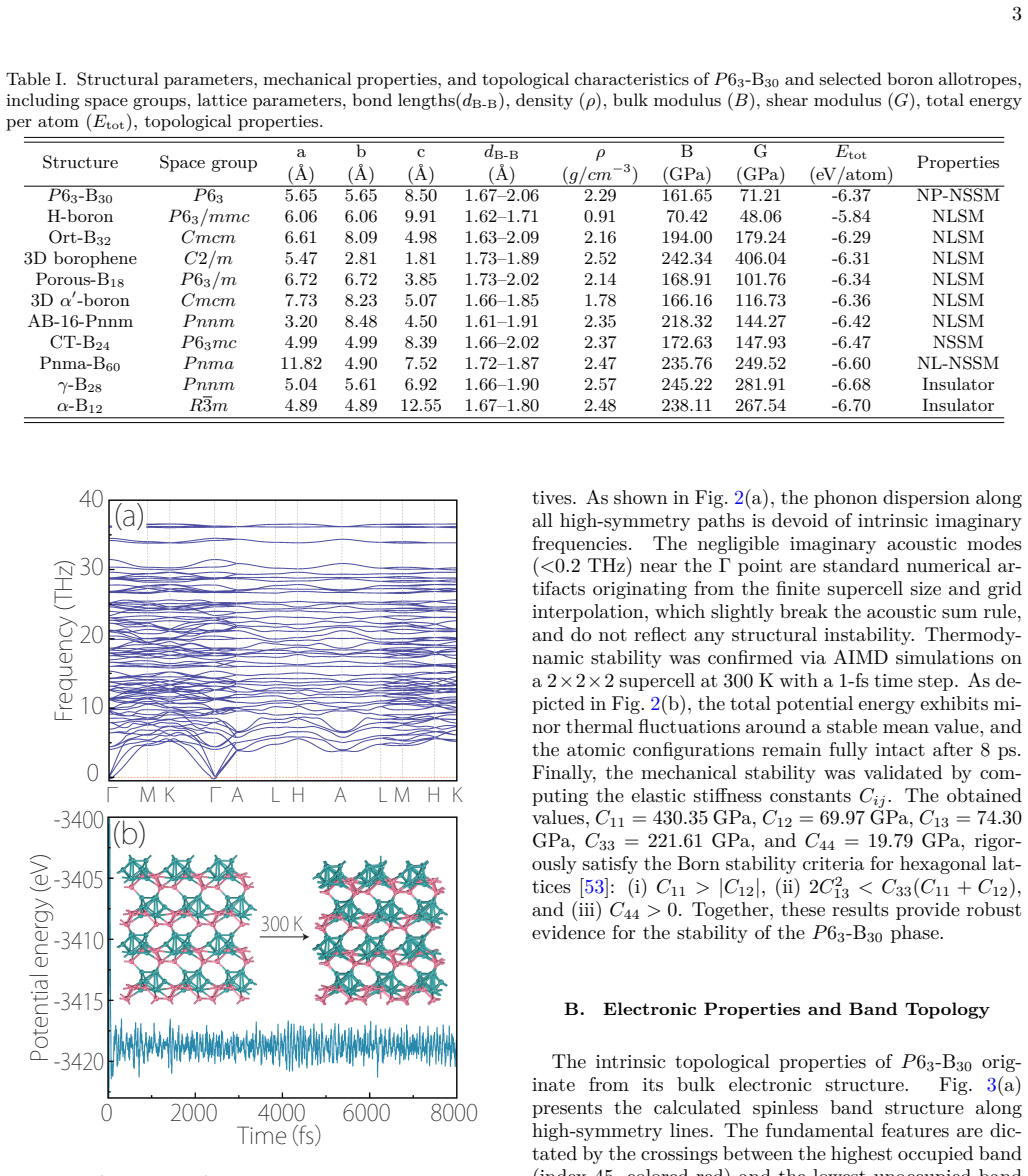

Figure 2. Figure 2: (Color online) Stability characterization of P63- B30. (a) Phonon dispersion spectrum along high-symmetry directions calculated using a 3 × 3 × 1 supercell. (b) Total potential energy evolution from AIMD simulation at 300 K. The left and right insets show the atomic configurations before and after 8 ps of simulation, respectively. tives. As shown in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (Color online) Electronic band structure and topological properties of P63-B30. (a) Band structure of P63-B30 along high-symmetry paths. The red and cyan bands represent the highest occupied band and the lowest unoccupied band, respectively. The left inset shows the band dispersion along the direction normal to the NS, with B-Z-B′ indicating a generic path. The right inset provides a magnified view of the … view at source ↗
Figure 4

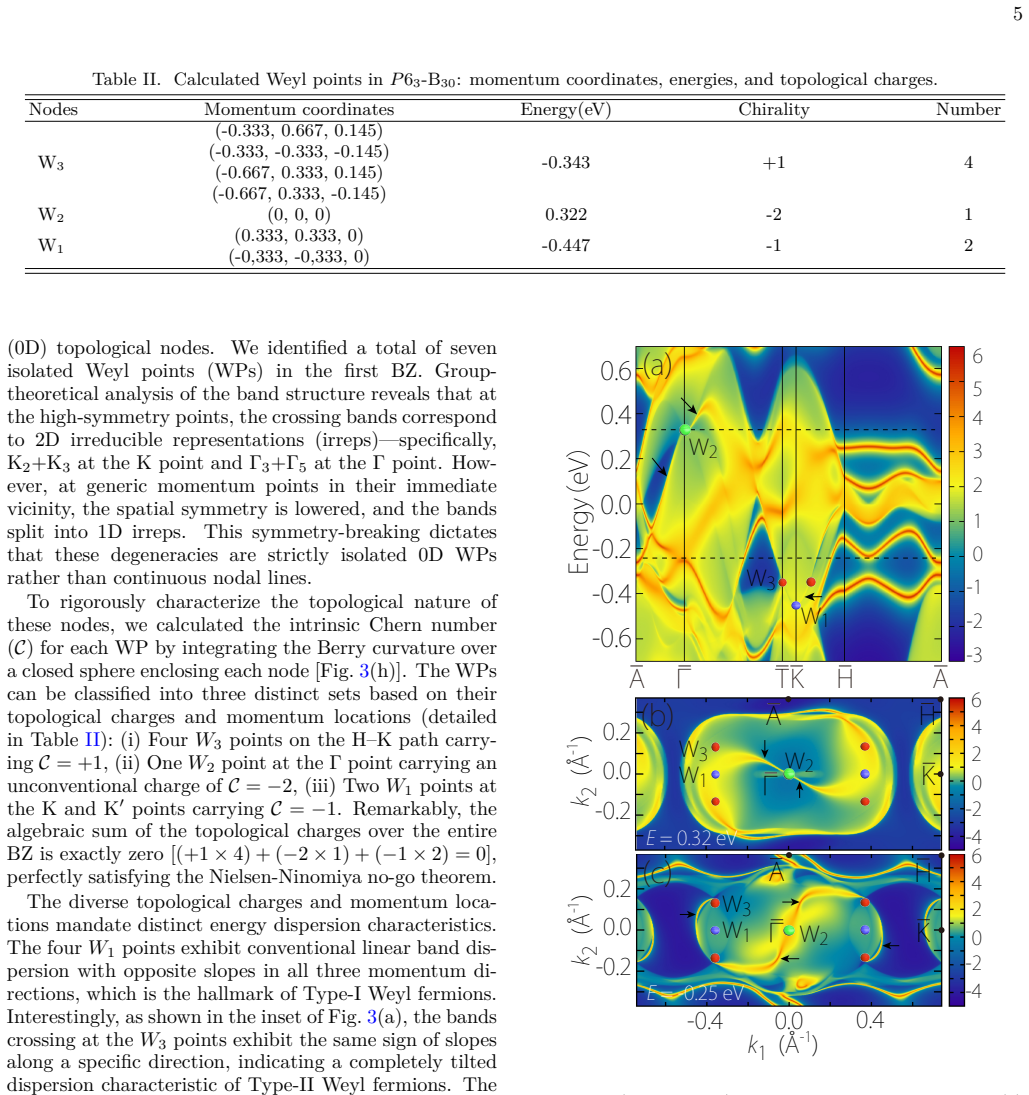

Figure 4. Figure 4: (Color online) Surface states and Fermi arcs. (a) Surface density of states projected onto the (100) surface. (b– c) Constant energy contours at E = 0.32 eV and E = −0.25 eV, respectively. The red, blue, and green dots indicate the surface projections of the bulk Weyl points. Arrows indicate the flow of the Fermi arcs from positive to negative topological charges. by the combined C6 and T symmetries at the… view at source ↗
read the original abstract

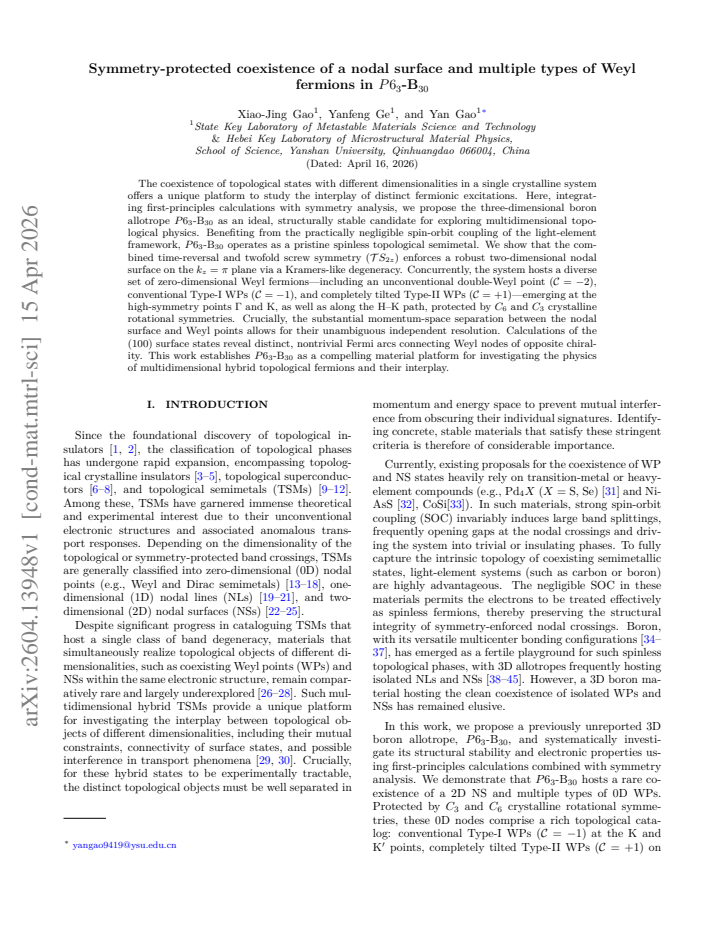

The coexistence of topological states with different dimensionalities in a single crystalline system offers a unique platform to study the interplay of distinct fermionic excitations. Here, integrating first-principles calculations with symmetry analysis, we propose the three-dimensional boron allotrope $P6_3$-$\text{B}_{30}$ as an ideal, structurally stable candidate for exploring multidimensional topological physics. Benefiting from the practically negligible spin-orbit coupling of the light-element framework, $P6_3$-$\text{B}_{30}$ operates as a pristine spinless topological semimetal. We show that the combined time-reversal and twofold screw symmetry ($\mathcal{T}S_{2z}$) enforces a robust two-dimensional nodal surface on the $k_z = \pi$ plane via a Kramers-like degeneracy. Concurrently, the system hosts a diverse set of zero-dimensional Weyl fermions -- including an unconventional double-Weyl point ($\mathcal{C} = -2$), conventional Type-I WPs ($\mathcal{C} = -1$), and completely tilted Type-II WPs ($\mathcal{C} = +1$) -- emerging at the high-symmetry points $\Gamma$ and K, as well as along the H-K path, protected by $C_6$ and $C_3$ crystalline rotational symmetries. Crucially, the substantial momentum-space separation between the nodal surface and Weyl points allows for their unambiguous independent resolution. Calculations of the (100) surface states reveal distinct, nontrivial Fermi arcs connecting Weyl nodes of opposite chirality. This work establishes $P6_3$-$\text{B}_{30}$ as a compelling material platform for investigating the physics of multidimensional hybrid topological fermions and their interplay.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes the three-dimensional boron allotrope P6₃-B₃₀ as a structurally stable, spinless topological semimetal in which the combined time-reversal and twofold screw symmetry (𝒯S_{2z}) enforces a two-dimensional nodal surface on the entire k_z = π plane via Kramers-like degeneracy. First-principles calculations combined with symmetry analysis further identify a set of zero-dimensional Weyl fermions at high-symmetry points and lines—including an unconventional double-Weyl point (C = −2) at Γ, conventional Type-I points (C = −1) at K, and completely tilted Type-II points (C = +1) along H–K—protected by C₆ and C₃ rotational symmetries. The nodal surface and Weyl nodes are well separated in momentum space, and the (100) surface exhibits distinct Fermi arcs connecting Weyl nodes of opposite chirality.

Significance. If the reported band crossings and topological charges are robust, the work supplies a concrete, light-element material platform in which a symmetry-protected nodal surface coexists with multiple distinct Weyl fermion types, all without appreciable spin-orbit coupling. The symmetry arguments themselves are general and parameter-free, while the first-principles results locate the features and demonstrate surface-state signatures; together they offer a clean setting for studying the interplay of two- and zero-dimensional topological fermions.

major comments (2)
  1. [Computational Methods / Results] Computational Methods / Results sections: No k-point mesh density, plane-wave cutoff, or convergence tests are reported for the band structures near Γ, K, the H–K line, or the k_z = π plane. Because the central claims rest on the precise degeneracy of the nodal surface and the correct identification of monopole charges (C = −2, −1, +1), the absence of these tests leaves open the possibility that numerical artifacts could open small gaps or shift the locations of the crossings.
  2. [Topological characterization] Section on topological characterization: The manuscript states the Chern numbers for the Weyl points but does not specify the computational protocol (e.g., Berry-curvature integration surface, Wilson-loop winding, or number of k-points used). For the unconventional double-Weyl point (C = −2) in particular, small shifts in band energies or Fermi velocities under a refined mesh or different functional could alter the reported charge, undermining the claim of an unconventional node.
minor comments (2)
  1. [Abstract / Introduction] The abstract and main text repeatedly describe the SOC as “practically negligible,” yet no quantitative estimate (e.g., maximum SOC-induced gap at the claimed nodes) is supplied; a single sentence with the computed gap size would make the spinless approximation explicit.
  2. [Surface states] Figure captions for the surface-state plots should explicitly state the surface termination and the projection direction used to obtain the Fermi arcs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments on computational reproducibility and topological characterization. We address each major point below and will incorporate the requested details into the revised version.

read point-by-point responses

  1. Referee: [Computational Methods / Results] Computational Methods / Results sections: No k-point mesh density, plane-wave cutoff, or convergence tests are reported for the band structures near Γ, K, the H–K line, or the k_z = π plane. Because the central claims rest on the precise degeneracy of the nodal surface and the correct identification of monopole charges (C = −2, −1, +1), the absence of these tests leaves open the possibility that numerical artifacts could open small gaps or shift the locations of the crossings.

    Authors: We agree that explicit reporting of these parameters is necessary to substantiate the robustness of the nodal surface and Weyl charges. In the revised manuscript we will expand the Computational Methods section to specify a Γ-centered 12×12×12 k-mesh for self-consistent calculations, a plane-wave cutoff of 550 eV, and convergence tests (varying mesh density up to 16×16×16 and cutoff to 700 eV) that confirm the k_z=π nodal surface remains gapless to within 0.5 meV and that the Weyl-point locations and charges are unchanged. revision: yes

  2. Referee: [Topological characterization] Section on topological characterization: The manuscript states the Chern numbers for the Weyl points but does not specify the computational protocol (e.g., Berry-curvature integration surface, Wilson-loop winding, or number of k-points used). For the unconventional double-Weyl point (C = −2) in particular, small shifts in band energies or Fermi velocities under a refined mesh or different functional could alter the reported charge, undermining the claim of an unconventional node.

    Authors: We acknowledge that the protocol for computing the Chern numbers must be stated explicitly. The charges were obtained via Berry-curvature integration over a small sphere (radius 0.05 Å⁻¹) enclosing each node using a 25×25×25 k-mesh, cross-checked with Wilson-loop winding numbers on a 2D plane perpendicular to the node. For the double-Weyl point at Γ we further verified C = −2 remains stable under mesh refinement and with the PBE+U functional. In the revision we will describe this protocol in detail, add the relevant supplementary figures showing the Berry curvature and Wilson-loop spectra, and note that the charge is insensitive to the tested variations. revision: yes

Circularity Check

0 steps flagged

Symmetry protections are general and independent; first-principles locate features without reduction to inputs

full rationale

The paper's derivation begins with general symmetry analysis: combined T S_{2z} enforces Kramers-like degeneracy on the entire kz=π plane, and C6/C3 rotations protect Weyl nodes of specified charges at high-symmetry points. These are standard group-theoretic results, not derived from or fitted to the material's Hamiltonian. First-principles calculations (DFT) are invoked only to confirm that the bands realize these crossings in P6₃-B₃₀, compute Chern numbers, and show surface arcs; they do not redefine the symmetries or turn fitted parameters into 'predictions.' No self-citations, ansatzes smuggled via prior work, or self-definitional steps appear in the abstract or described chain. The central claims remain externally falsifiable via independent symmetry theorems and reproducible band-structure codes.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard density functional theory approximations and crystal symmetry principles drawn from prior literature; no new entities are postulated and no parameters are fitted specifically to produce the topological features.

axioms (2)
  • domain assumption Spin-orbit coupling is negligible due to the light-element boron framework.
    Invoked explicitly to justify the spinless topological semimetal description.
  • domain assumption The proposed P6_3-B30 structure is energetically stable.
    Stated as a prerequisite for the material being a viable candidate.
