arxiv: 2604.14089 · v1 · submitted 2026-04-15 · 💻 cs.RO · cs.AI

Recognition: unknown

UMI-3D: Extending Universal Manipulation Interface from Vision-Limited to 3D Spatial Perception

Ziming Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:52 UTC · model grok-4.3

classification 💻 cs.RO cs.AI

keywords universal manipulation interfaceLiDAR SLAMvisuomotor policymultimodal data collection3D spatial perceptionembodied manipulationdeformable object manipulationrobot learning

0 comments

The pith

Adding a lightweight LiDAR sensor to the wrist-mounted UMI produces reliable metric-scale 3D pose data that raises policy success rates and unlocks tasks with deformable and articulated objects.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the original Universal Manipulation Interface by mounting a low-cost LiDAR alongside the camera on the wrist device. This change replaces fragile monocular visual SLAM with LiDAR-centric SLAM that stays accurate even when scenes contain occlusions or fast motion. The collected demonstrations gain consistent 3D structure and metric scale while the downstream policy remains a standard 2D visuomotor network. Because the input data are now higher quality, the same training pipeline yields policies that succeed more often on everyday tasks and can also master new problems such as handling large soft objects or opening articulated mechanisms.

Core claim

UMI-3D integrates a hardware-synchronized LiDAR into the portable wrist interface and supplies a unified spatiotemporal calibration that aligns images with point clouds, delivering accurate 3D pose trajectories; these trajectories raise demonstration quality enough to improve policy performance on standard tasks and to enable previously infeasible ones, all without altering the 2D policy formulation.

What carries the argument

Lightweight LiDAR integration with a unified spatiotemporal calibration framework that fuses visual observations and LiDAR point clouds into consistent metric-scale 3D demonstration representations.

If this is right

Standard manipulation tasks reach high success rates because the collected demonstrations contain fewer tracking failures and more consistent geometry.
Large deformable-object manipulation and articulated-object operation become learnable even though the policy itself stays 2D.
The full pipeline from synchronized capture through calibration, training, and deployment remains portable and open-source.
The same hardware-software stack supports large-scale data collection without sacrificing accessibility.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The 3D data could later be fed directly into 3D-aware policies to test whether further gains are possible beyond the current 2D formulation.
Similar LiDAR upgrades might be applied to other portable demonstration interfaces to improve robustness in unstructured environments.
Open-sourced calibration tools could become a shared resource for aligning multimodal sensors in other robotics data pipelines.

Load-bearing premise

The added LiDAR and calibration produce accurate metric-scale poses in real scenes without creating new systematic errors or drift that cancel the claimed data-quality gains.

What would settle it

A controlled comparison in which policies trained on UMI-3D demonstrations achieve no higher success rates than policies trained on the original vision-only UMI data for the same set of tasks.

Figures

Figures reproduced from arXiv: 2604.14089 by Ziming Wang.

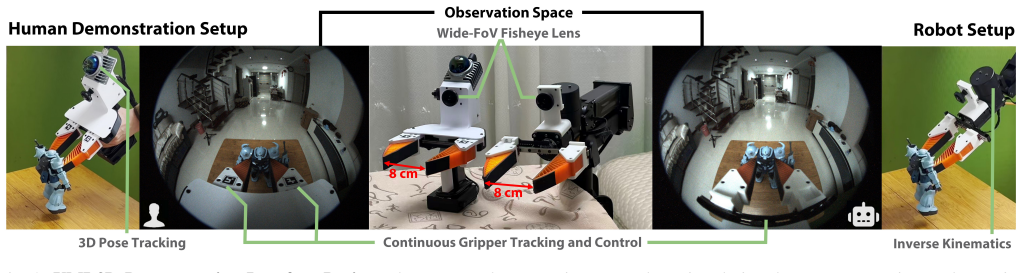

**Figure 2.** Figure 2: UMI-3D Demonstration Interface Design. The system adopts a wrist-mounted sensing design that ensures consistent observation between human demonstrations (left) and robot execution (right). A wide-FoV fisheye camera provides a shared observation space across embodiments, while continuous gripper tracking enables precise action recording and control. This design establishes a unified perceptionaction interf… view at source ↗

**Figure 4.** Figure 4: Fisheye camera intrinsic calibration. (A) Raw fisheye image capturing a planar checkerboard calibration target under a wide field of view. (B) Undistorted image using the estimated intrinsic parameters under the equidistant projection model. This calibration enables precise pixel-to-ray mapping, which is essential for subsequent perception tasks including marker detection, spatial alignment, and multimodal… view at source ↗

**Figure 5.** Figure 5: LiDAR–camera extrinsic calibration. (A) Calibration setup in a typical home environment, demonstrating the practicality and ease of deployment only with a calibration board. (B) Design specification of the calibration target, including geometric layout and fiducial markers. (C) Multimodal observations: (i) fisheye image with detected markers and calibration features; (ii) corresponding LiDAR point cloud. (… view at source ↗

**Figure 6.** Figure 6: Overview of the UMI-3D LiDAR–inertial odometry system. The system follows an iterated error-state Kalman filtering (ESIKF) framework on differentiable manifolds. IMU measurements drive high-frequency forward propagation, while LiDAR scans are processed through scan recombination and residual computation against a voxelized map representation. The state is iteratively refined through backward propagation an… view at source ↗

**Figure 7.** Figure 7: Unified coordinate system and frame transformations in UMI-3D. The global frame G is initialized as the first IMU frame, and all states are estimated incrementally with respect to this reference. The LiDAR trajectory is directly estimated through LiDAR–inertial odometry, while the camera trajectory is obtained by transforming LiDAR poses using the calibrated extrinsic LTC. The transformation between the Li… view at source ↗

**Figure 8.** Figure 8: Policy interface and relative action representation in UMI-3D. (Left) The policy takes synchronized multimodal observations, including RGB images, relative end-effector (EE) poses, and gripper states, with explicit latency alignment across sensing and actuation streams. A diffusion policy predicts a sequence of future EE poses, which are executed in a receding-horizon manner with temporal ensembling. (Righ… view at source ↗

**Figure 9.** Figure 9: Evaluation tasks and policy rollouts. We evaluate UMI-3D across four real-world manipulation tasks. Task 1. Cup arrangement, including both in-distribution and unseen scene/object generalization. Task 2. Curtain pulling, involving large deformable objects under varying lighting conditions. Task 3. Door opening and cup arrangement, a long-horizon task requiring interaction with articulated structures follow… view at source ↗

**Figure 10.** Figure 10: Robust LiDAR-centric SLAM under challenging real-world conditions. Three representative scenarios are shown: (1) a textureless white wall with minimal visual features, (2) rapid curtain pulling under strong illumination changes with large deformable motion, and (3) a long-horizon manipulation task involving articulated structures and dynamic occlusions. In all cases, UMI-3D achieves stable and accurate po… view at source ↗

**Figure 11.** Figure 11: Cup arrangement performance across object combinations. Left: Quantitative results over 8 × 8 cup–saucer combinations. Each cell corresponds to one object pair evaluated over 10 trials. The number in the top-right corner indicates the percentage of this combination in the 3,500 training demonstrations. The gray value denotes the accumulated score (out of 60), and the red value shows the normalized score. … view at source ↗

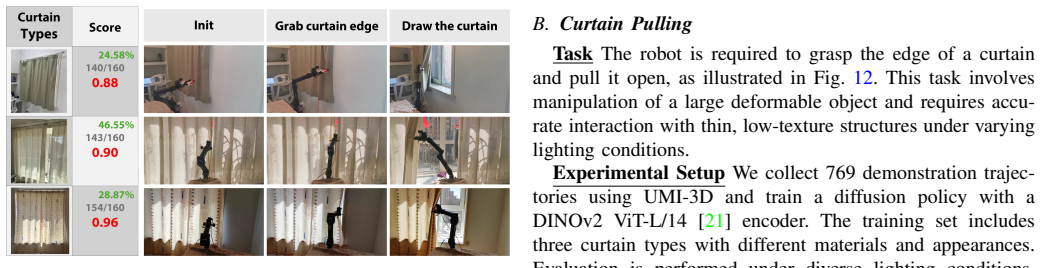

**Figure 12.** Figure 12: Curtain pulling performance under varying conditions. Left: Three representative curtain types used in training and evaluation, along with their occurrence ratios in the 769 demonstration trajectories. For each curtain type, we report the accumulated score (out of 160) and the normalized score across 40 trials. Right: Representative execution sequences for each curtain type, including the initial configu… view at source ↗

**Figure 13.** Figure 13: Long-horizon manipulation: door opening, cup grasping, and placement. Left: Task decomposition into three spatial regions: outside the door, inside the cabinet, and above the table. The robot sequentially performs door opening, cup retrieval, and placement, with all trials and corresponding scores shown. Please check our website for more comparison videos. Right: Failure propagation analysis using a Sanke… view at source ↗

**Figure 14.** Figure 14: Cross-embodiment policy transfer from UMI to UMI-3D. Left: Illustration of the training–deployment pipeline. Policies are trained using the original UMI system and directly deployed on UMI-3D hardware without finetuning. Middle: Quantitative results across 4 × 4 mouse–pad combinations in unseen environments. Each cell reports the accumulated score (out of 30) and normalized score over 5 trials. Right: Rep… view at source ↗

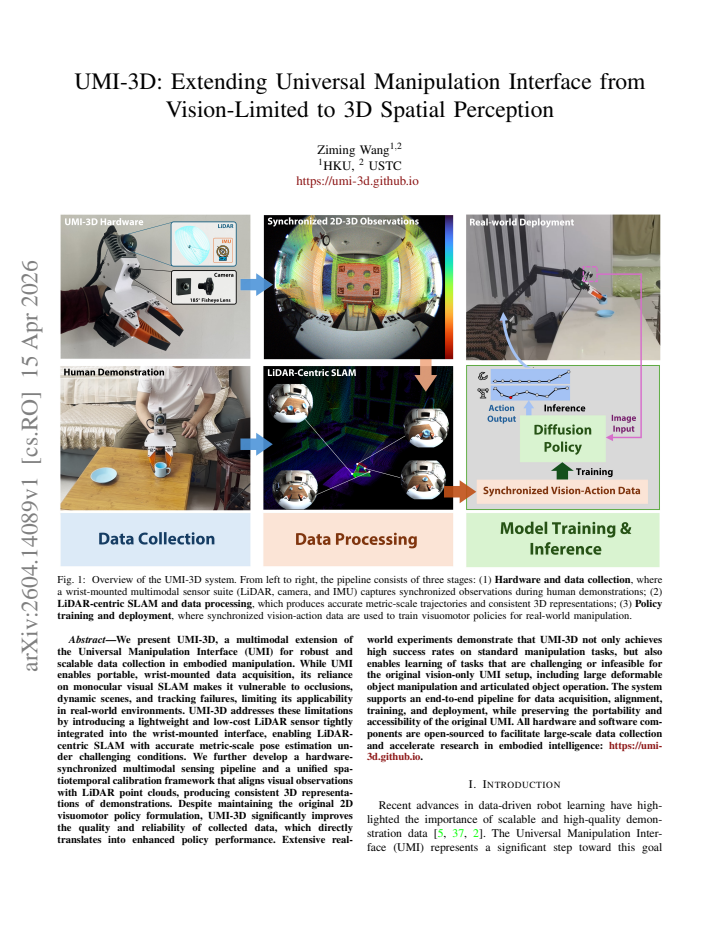

read the original abstract

We present UMI-3D, a multimodal extension of the Universal Manipulation Interface (UMI) for robust and scalable data collection in embodied manipulation. While UMI enables portable, wrist-mounted data acquisition, its reliance on monocular visual SLAM makes it vulnerable to occlusions, dynamic scenes, and tracking failures, limiting its applicability in real-world environments. UMI-3D addresses these limitations by introducing a lightweight and low-cost LiDAR sensor tightly integrated into the wrist-mounted interface, enabling LiDAR-centric SLAM with accurate metric-scale pose estimation under challenging conditions. We further develop a hardware-synchronized multimodal sensing pipeline and a unified spatiotemporal calibration framework that aligns visual observations with LiDAR point clouds, producing consistent 3D representations of demonstrations. Despite maintaining the original 2D visuomotor policy formulation, UMI-3D significantly improves the quality and reliability of collected data, which directly translates into enhanced policy performance. Extensive real-world experiments demonstrate that UMI-3D not only achieves high success rates on standard manipulation tasks, but also enables learning of tasks that are challenging or infeasible for the original vision-only UMI setup, including large deformable object manipulation and articulated object operation. The system supports an end-to-end pipeline for data acquisition, alignment, training, and deployment, while preserving the portability and accessibility of the original UMI. All hardware and software components are open-sourced to facilitate large-scale data collection and accelerate research in embodied intelligence: \href{https://umi-3d.github.io}{https://umi-3d.github.io}.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

UMI-3D adds a cheap wrist LiDAR and calibration pipeline to the original UMI setup, but the evidence that this actually delivers better pose data under real manipulation conditions is missing.

read the letter

The main thing to know is that this paper takes the portable wrist-mounted UMI data collection rig and bolts on a low-cost LiDAR to get metric-scale 3D tracking where monocular vision fails on occlusions and fast motion. They keep the downstream policy in 2D and focus on the sensing side, with a synchronized multimodal pipeline and spatiotemporal calibration to align the streams. The open-source release of hardware and software is a practical plus for anyone scaling up manipulation datasets without lab-grade equipment. That part is straightforward and addresses a real pain point in embodied learning.

Referee Report

1 major / 2 minor

Summary. The manuscript presents UMI-3D, a multimodal extension of the Universal Manipulation Interface (UMI) that integrates a lightweight LiDAR sensor into the wrist-mounted data collection device. This enables LiDAR-centric SLAM for metric-scale 6-DoF pose estimation that is more robust to occlusions and dynamic scenes than the original monocular visual SLAM. The authors describe a hardware-synchronized multimodal sensing pipeline and a unified spatiotemporal calibration framework to align visual observations with LiDAR point clouds. Despite retaining the original 2D visuomotor policy formulation, the paper claims that the resulting higher-quality and more reliable demonstration data directly improves policy performance and enables learning of previously challenging tasks such as large deformable object manipulation and articulated object operation. Extensive real-world experiments are reported to demonstrate high success rates on standard tasks along with new capabilities, and all hardware and software components are open-sourced.

Significance. If the empirical claims hold, the work offers a practical, portable, and low-cost advance for scalable data collection in embodied manipulation, addressing key limitations of vision-only systems in real-world conditions. The decision to preserve the original policy architecture while upgrading only the sensing pipeline is a pragmatic strength that lowers barriers to adoption. The open-sourcing of the full pipeline is a clear positive that supports reproducibility and community-scale data efforts. The significance is tempered by the need for rigorous validation that the added perception is the causal driver of the reported gains.

major comments (1)

[Section 5] Section 5 (Experiments) and the abstract: The central claim that the LiDAR integration and spatiotemporal calibration produce demonstrably higher-quality 6-DoF trajectories (leading to policy gains) is not supported by independent ground-truth validation. No quantitative metrics (e.g., ATE, RPE, or failure rates) are reported comparing the estimated poses against an external reference such as motion capture on real manipulation sequences that include hand occlusions, fast wrist rotations, and deformable-object contact. This is load-bearing for the contribution because, without such evidence, observed policy improvements cannot be confidently attributed to the 3D perception rather than confounding factors such as operator behavior or post-processing.

minor comments (2)

[Section 4] Figure 2 and Section 4: The description of the unified spatiotemporal calibration could include a brief quantitative assessment of residual alignment error after calibration to help readers assess consistency across modalities.
[Abstract] Abstract: The statement that improved data quality 'directly translates into enhanced policy performance' would benefit from a forward reference to the specific success-rate tables or ablations that support this causal link.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We are grateful to the referee for the thorough review and the recognition of the practical contributions of UMI-3D. Below we provide a point-by-point response to the major comment and indicate the planned revisions to the manuscript.

read point-by-point responses

Referee: [Section 5] Section 5 (Experiments) and the abstract: The central claim that the LiDAR integration and spatiotemporal calibration produce demonstrably higher-quality 6-DoF trajectories (leading to policy gains) is not supported by independent ground-truth validation. No quantitative metrics (e.g., ATE, RPE, or failure rates) are reported comparing the estimated poses against an external reference such as motion capture on real manipulation sequences that include hand occlusions, fast wrist rotations, and deformable-object contact. This is load-bearing for the contribution because, without such evidence, observed policy improvements cannot be confidently attributed to the 3D perception rather than confounding factors such as operator behavior or post-processing.

Authors: We thank the referee for emphasizing the need for rigorous validation of the pose estimation quality. We agree that independent ground-truth metrics such as ATE or RPE against motion capture would provide stronger causal evidence. However, setting up motion capture for the full spectrum of dynamic, occluded, and contact-rich manipulation sequences is practically challenging in our real-world setup. Instead, we evaluated the system through end-to-end policy success rates and the enabling of previously infeasible tasks, using consistent data collection protocols across comparisons. In the revised manuscript, we will add a dedicated subsection in Section 5 with internal quantitative metrics on SLAM robustness (e.g., tracking failure rates, trajectory consistency, and point-cloud alignment quality) and qualitative trajectory visualizations contrasting UMI and UMI-3D on the same sequences. This will better support attribution of the observed gains to the multimodal perception while preserving the pragmatic focus on policy performance. revision: yes

Circularity Check

0 steps flagged

No circularity: hardware extension with experimental validation only

full rationale

The paper presents a hardware and sensing pipeline extension to the prior UMI system, adding a LiDAR sensor and spatiotemporal calibration for metric-scale pose estimation. No mathematical derivations, equations, fitted parameters, or predictions appear in the abstract or described content. Central claims rest on real-world experimental success rates for manipulation tasks rather than any self-referential reduction, self-citation chain, or ansatz smuggled via prior work. The contribution is self-contained as an empirical engineering improvement evaluated externally.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an engineering systems paper; the abstract introduces no explicit free parameters, mathematical axioms, or new postulated entities. The work builds on standard SLAM techniques and the existing UMI framework without adding ungrounded constructs.

pith-pipeline@v0.9.0 · 5580 in / 1235 out tokens · 54045 ms · 2026-05-10T12:52:48.855333+00:00 · methodology
