arxiv: 2604.15665 · v1 · submitted 2026-04-17 · 💻 cs.CV · cs.PF

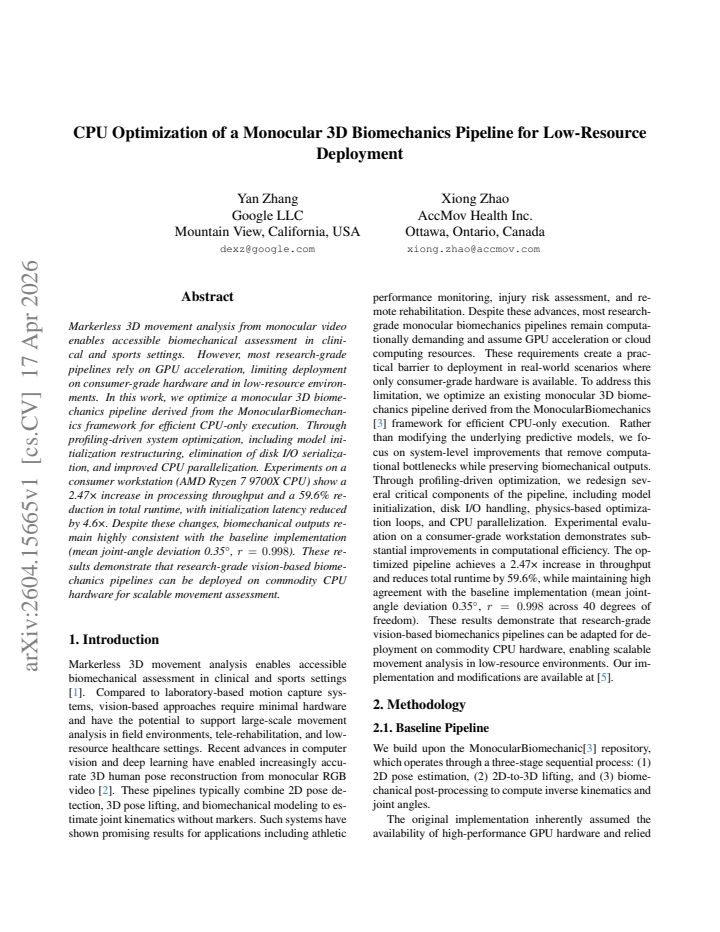

CPU Optimization of a Monocular 3D Biomechanics Pipeline for Low-Resource Deployment

Yan Zhang , Xiong Zhao This is my paper

Pith reviewed 2026-05-10 09:16 UTC · model grok-4.3

classification 💻 cs.CV cs.PF
keywords monocular 3D biomechanicsCPU optimizationmarkerless motion analysispipeline performancelow-resource deploymentvision-based assessment
0
0 comments X

The pith

Optimizing a monocular 3D biomechanics pipeline for CPU execution yields 2.47 times higher throughput with outputs nearly identical to the baseline.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a monocular 3D movement analysis pipeline originally reliant on GPU resources can be restructured for efficient CPU-only operation. Targeted changes to initialization, I/O handling, and parallelization produce large gains in speed on ordinary consumer hardware. This matters because it removes a major barrier to using research-grade biomechanical tools in clinics, sports fields, and other low-resource locations where GPUs are unavailable. The work also shows that these speed improvements do not meaningfully alter the resulting joint-angle measurements.

Core claim

Through profiling-driven system optimization, including model initialization restructuring, elimination of disk I/O serialization, and improved CPU parallelization, the pipeline achieves a 2.47x increase in processing throughput and a 59.6% reduction in total runtime on an AMD Ryzen 7 9700X CPU, with initialization latency reduced by 4.6x, while biomechanical outputs remain highly consistent with the baseline implementation (mean joint-angle deviation 0.35°, r=0.998).

What carries the argument

Profiling-driven optimizations of model initialization restructuring, disk I/O elimination, and CPU parallelization.

Load-bearing premise

The observed consistency between optimized and baseline outputs on the tested videos will continue to hold for other videos, movement types, and hardware without introducing hidden biases.

What would settle it

Running the optimized pipeline on a fresh collection of videos that include different movement patterns or on a different CPU model and finding mean joint-angle deviation above 1° or correlation below 0.99.

Figures

Figures reproduced from arXiv: 2604.15665 by Xiong Zhao, Yan Zhang.

Figure 1
Figure 1. Figure 1: Temporal trajectories of six representative joint angles across five running sequences. Blue solid lines: baseline; red dashed lines: [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
read the original abstract

Markerless 3D movement analysis from monocular video enables accessible biomechanical assessment in clinical and sports settings. However, most research-grade pipelines rely on GPU acceleration, limiting deployment on consumer-grade hardware and in low-resource environments. In this work, we optimize a monocular 3D biomechanics pipeline derived from the MonocularBiomechanics framework for efficient CPU-only execution. Through profiling-driven system optimization, including model initialization restructuring, elimination of disk I/O serialization, and improved CPU parallelization. Experiments on a consumer workstation (AMD Ryzen 7 9700X CPU) show a 2.47x increase in processing throughput and a 59.6\% reduction in total runtime, with initialization latency reduced by 4.6x. Despite these changes, biomechanical outputs remain highly consistent with the baseline implementation (mean joint-angle deviation 0.35$^\circ$, $r=0.998$). These results demonstrate that research-grade vision-based biomechanics pipelines can be deployed on commodity CPU hardware for scalable movement assessment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper optimizes a monocular 3D biomechanics pipeline (derived from MonocularBiomechanics) for CPU-only execution via profiling-driven changes: model initialization restructuring, elimination of disk I/O serialization, and improved CPU parallelization. On an AMD Ryzen 7 9700X workstation, it reports 2.47× throughput, 59.6% total runtime reduction, 4.6× lower initialization latency, and high output consistency with the baseline (mean joint-angle deviation 0.35°, r=0.998).

Significance. If the fidelity claims hold, the work is significant for enabling research-grade 3D movement analysis on commodity hardware without GPUs, directly addressing accessibility barriers in clinical and sports biomechanics. The concrete speedups and explicit consistency metrics are strengths; reproducible profiling-driven optimizations on a standard CPU platform add practical value.

major comments (1)
  1. [Experiments] Experiments section: The test videos used for the consistency metrics (0.35° mean deviation, r=0.998) are not characterized by number, duration, movement types (gait vs. non-gait, rapid motions, occlusions), or kinematic complexity. This detail is load-bearing for the central claim that optimizations preserve biomechanical fidelity, as aggregate statistics on an unknown corpus cannot rule out systematic biases from altered parallel schedules or floating-point ordering.
minor comments (2)
  1. [Abstract] Abstract: The sentence listing optimizations is grammatically incomplete ('including model initialization restructuring, elimination of disk I/O serialization, and improved CPU parallelization').
  2. [Results] Notation: The correlation coefficient is given as r=0.998 without specifying whether it is Pearson's r or another measure, and without reporting per-joint or per-video breakdowns.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback and recommendation for major revision. We address the single major comment point-by-point below and will incorporate the requested details into the revised manuscript.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: The test videos used for the consistency metrics (0.35° mean deviation, r=0.998) are not characterized by number, duration, movement types (gait vs. non-gait, rapid motions, occlusions), or kinematic complexity. This detail is load-bearing for the central claim that optimizations preserve biomechanical fidelity, as aggregate statistics on an unknown corpus cannot rule out systematic biases from altered parallel schedules or floating-point ordering.

    Authors: We agree that characterizing the test videos is essential to substantiate the fidelity claims and to address potential concerns about systematic biases. In the revised manuscript, we will expand the Experiments section with a dedicated subsection describing the test dataset: the total number of videos, average and range of durations, movement categories (including gait cycles, non-gait activities, rapid motions, and sequences containing occlusions), and an overview of kinematic complexity (e.g., joint ranges and degrees of freedom involved). This will enable readers to assess the generalizability of the reported consistency metrics (mean deviation 0.35°, r=0.998) across diverse conditions. revision: yes

Circularity Check

0 steps flagged

No circularity; all claims are direct empirical measurements

full rationale

The paper reports profiling-driven CPU optimizations (model init restructuring, I/O elimination, parallelization) on an existing MonocularBiomechanics-derived pipeline. All headline results—2.47× throughput, 59.6% runtime reduction, 4.6× init latency reduction, and consistency metrics (0.35° mean deviation, r=0.998)—are presented as direct runtime and output comparisons against a baseline implementation on specific hardware. No equations, predictions, or uniqueness claims appear; no self-citations are load-bearing; no fitted parameters are relabeled as predictions. The derivation chain is standard engineering measurement and therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the correctness of the original MonocularBiomechanics framework and on the assumption that the three listed optimizations preserve biomechanical fidelity; no new free parameters, axioms, or invented entities are introduced in the abstract.
