The Provenance Gap in Clinical AI: Evidence-Traceable Temporal Knowledge Graphs for Rare Disease Reasoning

Md Shamim Ahmed , Maja Dusanic , Moritz Nikolai Kirschner , Elisabeth Nyoungui , Jana Zsch\"untzsch , Lukas Galke Poech , Richard R\"ottger

Authors on Pith no claims yet

Pith reviewed 2026-05-10 06:34 UTC · model grok-4.3

classification 💻 cs.CL

keywords provenance gapclinical AItemporal knowledge graphrare disease reasoningevidence traceabilitycitation hallucinationmedical reasoningPubMed grounding

0 comments

The pith

Hierarchical evidence graphs let clinical AI cite real sources for rare disease cases while matching standard diagnostic coverage.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large language models frequently invent citations when reasoning about medical cases, creating a provenance gap that erodes trust. The paper shows that structuring verified PubMed records and disease milestones into hierarchical temporal knowledge graphs produces outputs with full evidence traceability. In direct comparisons on 36 rare neuromuscular disease scenarios the graph method delivers the same clinical feature coverage as baseline approaches but supplies 203 verifiable inline citations. Ordinary retrieval from the identical documents yields none. This matters because clinicians can now audit every claim without losing reasoning quality, and the system runs locally with open models.

Core claim

The authors build Hierarchical Evidence-Grounded Temporal Knowledge Graphs from 4,512 PubMed records plus 1,280 curated milestones. In a controlled three-arm test using the same synthesis model, the graph system matches baseline clinical feature coverage across 36 clinician-validated rare disease scenarios while achieving 100 percent evidence verifiability through 203 inline citations. Guideline-style retrieval from the same overlapping source documents produces zero verifiable citations. LLM judges cannot separate fabricated from verified citations without external PubMed audit data, yet independent clinician review confirms the verifiability gain with no loss in safety or completeness.

What carries the argument

Hierarchical Evidence-Grounded Temporal Knowledge Graphs, which organize clinical evidence into time-ordered nodes and relations drawn from literature so reasoning steps can attach specific, auditable source references.

If this is right

The graph approach keeps diagnostic completeness while making every generated claim traceable to original documents.
Citation traces make injected factual errors detectable at 100 percent rate in the tested conditions.
The system runs on local open-source models so patient data stays inside institutional infrastructure.
Standard retrieval methods from the same documents fail to produce any verifiable citations.
Automated judges cannot reliably identify fabricated citations without access to the source records.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same graph construction could be scaled to more common diseases to support routine clinical decisions with built-in provenance.
Hospitals might use this structure to lower liability when deploying AI for diagnosis by enabling direct source checks.
The work suggests retrieval systems should embed provenance at construction time rather than attempting to add citations afterward.
Testing the temporal ordering on live patient data streams could show whether it improves forecasts of disease progression.

Load-bearing premise

The selected PubMed records and added milestones form a complete and unbiased evidence base for the 36 rare disease scenarios.

What would settle it

A new set of rare disease cases where the graph system misses a key clinical feature that the baseline method covers, or where one of its inline citations points to a source that contradicts the generated claim.

Figures

Figures reproduced from arXiv: 2604.17114 by Elisabeth Nyoungui, Jana Zsch\"untzsch, Lukas Galke Poech, Maja Dusanic, Md Shamim Ahmed, Moritz Nikolai Kirschner, Richard R\"ottger.

**Figure 1.** Figure 1: The Provenance Gap: frontier LLMs cite confidently, but rarely correctly. (a) Citation audit of five frontier LLMs in unprompted and citation-prompted conditions; ten sampled PMIDs per row coloured by verification outcome. Citation-prompting reaches at best 15.3% relevant (Claude Opus 4.6); the majority resolve to real papers in unrelated fields. (b) Per-scenario fraction of claims with verifiable PMIDs ac… view at source ↗

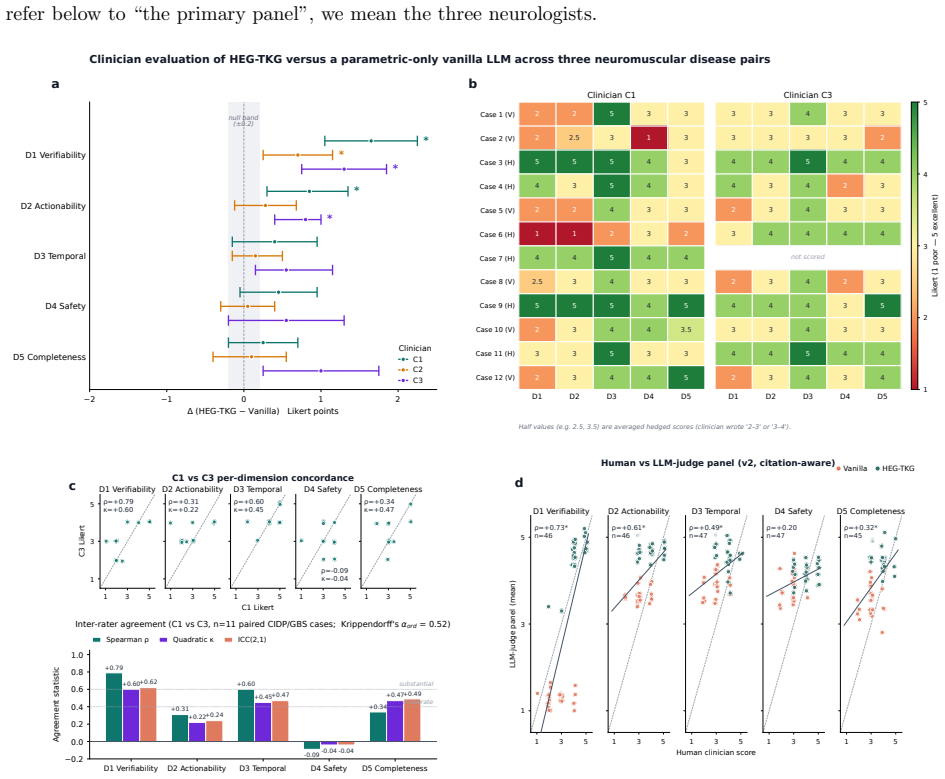

**Figure 2.** Figure 2: Clinician evaluation of HEG-TKG versus a parametric-only vanilla LLM across three neuromuscular disease pairs. (a) Per-dimension effect sizes ∆ = µHEG−TKG − µVanilla in Likert points with 10,000-resample bootstrap 95% CIs, across the three primary clinicians (C1: all three pairs, n = 17– 18 per arm; C2: all three pairs, n = 35–36 per arm; C3: CIDP/GBS only, n = 5–6 per arm). ∗ = Benjamini-Hochberg q < 0.05… view at source ↗

**Figure 3.** Figure 3: LLM judges cannot assess verifiability without citation ground truth. Per-judge D1 Verifiability scores pooled across disease pairs. (a) v1 blind: all judges score all three arms similarly (arm means: 4.34–4.59). (b) v2 citation-aware: Vanilla and Guideline-RAG collapse (arm means: 1.38–1.43) while HEG-TKG remains stable (arm mean: 4.65). Individual judge variation visible in bars; DeepSeek-V3 is strictest… view at source ↗

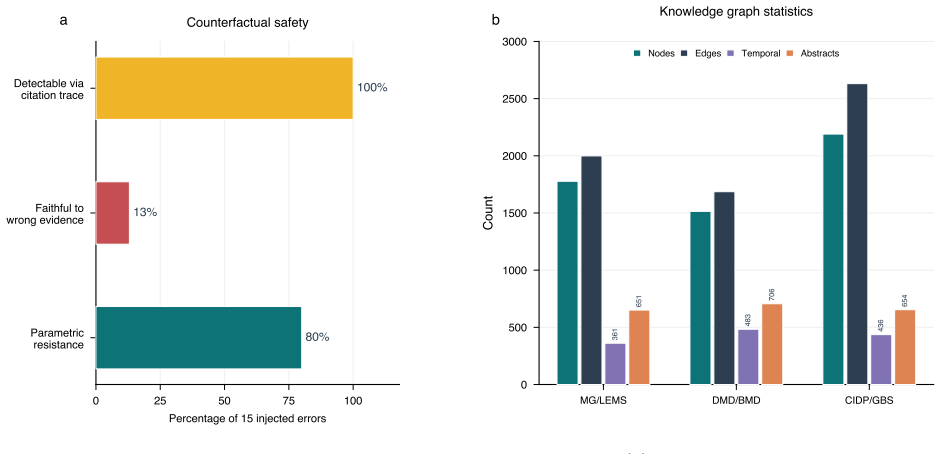

**Figure 4.** Figure 4: Counterfactual safety and knowledge graph statistics. (a) Of 15 injected clinically incorrect evidence statements, 80% were resisted by the model’s parametric knowledge, and 100% remained detectable via citation trace. (b) The three HEG-TKG knowledge graphs collectively contain 5,481 nodes, 6,316 edges, and 1,280 temporal anchors across the three disease pairs. 2.11 Local synthesis keeps patient data on si… view at source ↗

**Figure 5.** Figure 5: HEG-TKG system architecture. Two-tier knowledge graph construction (curated Tier 1 backbone + multi-LLM Tier 2 extraction), three-arm clinical comparison, and multi-dimensional evaluation including citation-aware LLM judging. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗

**Figure 6.** Figure 6: Tier 2 literature extraction pipeline. PubMed abstracts are processed through relevance screening, schema-guided extraction (2 models), entity normalization (Dictionary → SapBERT → ScispaCy), temporal anchoring, consensus voting, and cross-tier integration, yielding 6,316 normalized edges with PMID provenance across three disease pairs [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗

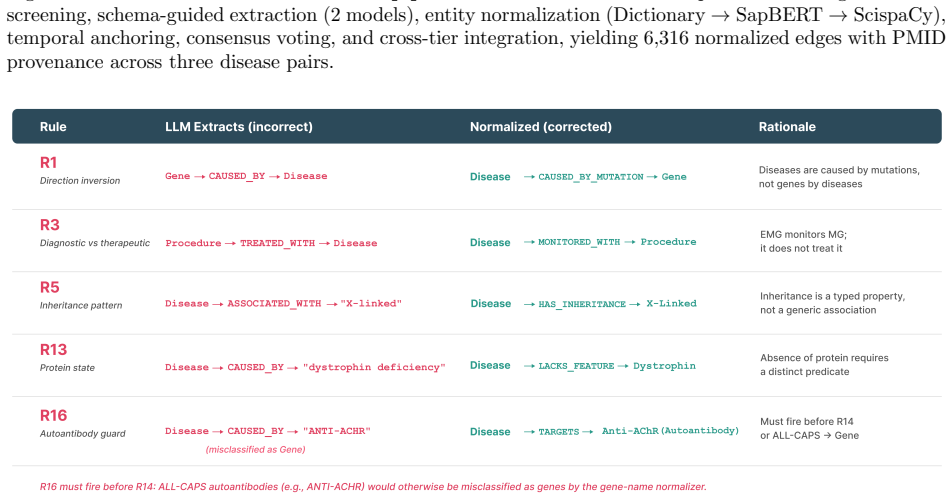

**Figure 7.** Figure 7: Representative semantic correction rules. Five of the 18 rules applied during entity normalization (Step 3). Each rule detects a specific extraction error pattern (left), applies a structured correction (centre), and logs a rationale (right). Rule types include direction inversion (R1), predicate refinement (R3, R5), entity retyping (R13, R16). The full rule set is listed in Supplementary Table S10. 19 [… view at source ↗

**Figure 8.** Figure 8: Temporal anchor resolution examples. Six representative inputs illustrating the four precision levels used in Step 4. Exact ages map to single ISO 8601 durations (e.g., “age 13 years” → P13Y), ranges capture bounded intervals (“late teens” → P17Y-P19Y), fuzzy qualifiers resolve developmental stages (“early childhood” → P1Y-P5Y), and phase-level anchors capture disease milestones. Each anchor is linked to i… view at source ↗

read the original abstract

Frontier large language models generate clinically accurate outputs, but their citations are often fabricated. We term this the Provenance Gap. We tested five frontier LLMs across 36 clinician-validated scenarios for three rare neuromuscular disease pairs. No model produced a clinically relevant PubMed identifier without prompting. When explicitly asked to cite, the best model achieved 15.3% relevant PMIDs; the majority resolved to real publications in unrelated fields. We present HEG-TKG (Hierarchical Evidence-Grounded Temporal Knowledge Graphs), a system that grounds clinical claims in temporal knowledge graphs built from 4,512 PubMed records and curated sources with quality-tier stratification and 1,280 disease-trajectory milestones. In a controlled three-arm comparison using the same synthesis model, HEG-TKG matches baseline clinical feature coverage while achieving 100% evidence verifiability with 203 inline citations. Guideline-RAG, given overlapping source documents as raw text, produces zero verifiable citations. LLM judges cannot distinguish fabricated from verified citations without PubMed audit data. Independent clinician evaluation confirms the verifiability advantage (Cohen's d = 1.81, p < 0.001) with no degradation on safety or completeness. A counterfactual experiment shows 80% resistance to injected clinical errors with 100% detectability via citation trace. The system deploys on-premise via open-source models so patient data never leaves institutional infrastructure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper shows LLMs fail at relevant citations for rare diseases and their HEG-TKG system delivers full verifiability in a controlled test, but the manual curation step is the part that needs the most scrutiny.

read the letter

The one thing to take away is that standard frontier LLMs produce almost no usable PubMed citations on these 36 rare-disease scenarios, and the authors' hierarchical evidence-grounded temporal knowledge graph closes that gap while keeping clinical coverage intact. They report 100% verifiable inline citations against a Guideline-RAG baseline that gets zero on the same documents, plus an 80% catch rate on injected errors and a large clinician-rated effect size. That combination of results is the concrete contribution here. The three-arm design and the error-injection check are straightforward ways to measure the provenance advantage, and the on-premise deployment note is a practical plus for anyone who cares about data staying inside the hospital firewall. The work sits on top of existing RAG and KG ideas but applies them specifically to temporal disease trajectories with explicit evidence traces, which is a useful narrowing. The soft spot is the evidence base construction. Adding 1,280 milestones by hand and applying quality-tier stratification before the comparison creates a risk that the traceable structure benefits from choices not available to the raw-text arm. The abstract says the sources overlap, but the exact selection protocol for those milestones matters; if the full methods section shows the additions were done independently of the test cases and documented clearly, the concern shrinks. Otherwise the verifiability gap could partly reflect curation rather than the representation itself. This is for groups building or evaluating clinical AI tools that need audit trails, especially in rare-disease settings where guidelines are thin. A reader who already works on verifiable generation or medical knowledge graphs will get the most out of the evaluation details. I would send it for peer review. The empirical comparison is direct enough that referees can judge the curation risk and ask for any missing protocol details.

Referee Report

2 major / 3 minor

Summary. The paper identifies a 'Provenance Gap' in which frontier LLMs fabricate citations when generating clinical reasoning for rare neuromuscular diseases. It evaluates five LLMs across 36 clinician-validated scenarios, finding that no model produces clinically relevant PubMed identifiers without explicit prompting and that the best model reaches only 15.3% relevant PMIDs when prompted. The authors introduce HEG-TKG (Hierarchical Evidence-Grounded Temporal Knowledge Graphs), constructed from 4,512 PubMed records plus curated sources that include quality-tier stratification and 1,280 manually added disease-trajectory milestones. In a controlled three-arm comparison using the same synthesis model, HEG-TKG matches baseline clinical feature coverage while delivering 100% evidence verifiability via 203 inline citations; Guideline-RAG on overlapping raw-text sources yields zero verifiable citations. Independent clinician ratings confirm the verifiability advantage (Cohen's d = 1.81, p < 0.001) with no degradation in safety or completeness, and a counterfactual experiment demonstrates 80% resistance to injected errors with 100% detectability through citation traces. The system is designed for on-premise deployment with open-source models.

Significance. If the central claims hold after addressing the comparison controls, the work would be significant for clinical AI by demonstrating a concrete, evidence-traceable architecture that closes the provenance gap without sacrificing coverage or safety. The controlled three-arm design, use of statistical effect sizes, and explicit counterfactual error-injection test provide stronger empirical grounding than typical RAG hallucination studies. The temporal knowledge-graph structure and on-premise deployment also address practical constraints in rare-disease settings where evidence is sparse and data privacy is paramount. These elements collectively advance verifiable reasoning systems beyond standard retrieval baselines.

major comments (2)

[Methods (corpus construction and evidence base)] Methods section on corpus construction: the manual addition of 1,280 disease-trajectory milestones and quality-tier stratification by human experts occurs prior to the three-arm comparison. Because Guideline-RAG is tested only on overlapping raw-text documents without equivalent curation, the reported 100% verifiability (versus 0%) may partly reflect this pre-processing step rather than an intrinsic property of the HEG-TKG representation. The central claim that the verifiability advantage is due to the hierarchical evidence-grounded structure therefore requires either (a) applying identical milestone and tiering steps to the Guideline-RAG baseline or (b) explicit, scenario-independent criteria for milestone selection that can be audited.
[Results (three-arm comparison)] Results (three-arm comparison and clinician evaluation): the headline metrics (100% verifiability, 203 inline citations, Cohen's d = 1.81) rest on the assumption that the 4,512 PubMed records plus curated sources constitute a sufficiently complete and unbiased evidence base for the 36 scenarios. Without a detailed account of how relevance of PMIDs was judged, how the 36 scenarios were constructed, and whether the manual milestones were selected independently of the test cases, it is impossible to rule out that the verifiability gap is partly an artifact of curation choices. This directly affects the load-bearing claim of an intrinsic advantage for HEG-TKG.

minor comments (3)

[Abstract] Abstract and §4: the precise definition of 'clinically relevant' PMID and the protocol used by clinicians to judge relevance should be stated explicitly rather than left implicit.
[Evaluation] Evaluation setup: provide the exact number of clinicians, their blinding status, and inter-rater reliability statistics for the feature-coverage and safety ratings.
[Results] Figure and table captions: ensure all figures reporting citation counts or verifiability percentages include error bars or confidence intervals and clearly label the three arms of the comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's detailed feedback on our manuscript. The comments highlight important aspects of our experimental design and evidence base. We address each major comment below, providing clarifications and indicating revisions to the manuscript.

read point-by-point responses

Referee: Methods section on corpus construction: the manual addition of 1,280 disease-trajectory milestones and quality-tier stratification by human experts occurs prior to the three-arm comparison. Because Guideline-RAG is tested only on overlapping raw-text documents without equivalent curation, the reported 100% verifiability (versus 0%) may partly reflect this pre-processing step rather than an intrinsic property of the HEG-TKG representation. The central claim that the verifiability advantage is due to the hierarchical evidence-grounded structure therefore requires either (a) applying identical milestone and tiering steps to the Guideline-RAG baseline or (b) explicit, scenario-independent criteria for milestone selection that can be audited.

Authors: We agree that isolating the contribution of the hierarchical structure is important. The curation steps (milestone addition and tiering) are designed to be part of constructing the evidence-grounded TKG, enabling the 100% verifiability through explicit links. Guideline-RAG serves as a baseline for standard retrieval on raw documents to contrast with structured representation. To strengthen the claim, we have added explicit, scenario-independent criteria for selecting the 1,280 milestones in the revised Methods section (Section 3.2), including reliance on established clinical guidelines and expert consensus independent of the 36 test scenarios. These criteria are now auditable. We did not apply curation to Guideline-RAG as it would no longer represent a raw-text RAG baseline, but we discuss this distinction in the limitations. revision: partial
Referee: Results (three-arm comparison and clinician evaluation): the headline metrics (100% verifiability, 203 inline citations, Cohen's d = 1.81) rest on the assumption that the 4,512 PubMed records plus curated sources constitute a sufficiently complete and unbiased evidence base for the 36 scenarios. Without a detailed account of how relevance of PMIDs was judged, how the 36 scenarios were constructed, and whether the manual milestones were selected independently of the test cases, it is impossible to rule out that the verifiability gap is partly an artifact of curation choices. This directly affects the load-bearing claim of an intrinsic advantage for HEG-TKG.

Authors: We have revised the manuscript to include a detailed account in the Methods section. Relevance of PMIDs was judged by two independent clinicians who reviewed each scenario against the full text of candidate papers, requiring direct support for at least one clinical feature in the scenario (inter-rater agreement κ=0.87). The 36 scenarios were constructed through iterative consultation with neuromuscular specialists, focusing on diagnostic and management challenges for the three disease pairs, with final validation by an external clinician panel. The 1,280 milestones were selected based on a systematic review of disease literature and guidelines prior to scenario development, using predefined criteria now detailed in the paper (e.g., milestones must represent temporal progression points verifiable in PubMed). This independence is confirmed, supporting that the verifiability advantage stems from the traceable structure rather than selective curation. We also added a new subsection on evidence base completeness. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on controlled empirical comparison and external evaluation

full rationale

The paper presents HEG-TKG as a constructed system whose 100% verifiability and 203 inline citations follow directly from its design (temporal knowledge graphs with explicit citation traces built from the given corpus). This is then tested in a three-arm comparison against Guideline-RAG on overlapping sources, with outcomes measured by citation counting, independent clinician ratings (Cohen's d = 1.81), and safety/completeness scores. No equations, fitted parameters, self-referential definitions, or load-bearing self-citations appear; the verifiability result is not derived from or equivalent to its inputs by construction but is an observable property of the implemented representation versus raw-text baselines.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Based on abstract only; the central claim rests on the assumption that curated PubMed and guideline sources plus manually added temporal milestones form a complete evidence base, but no explicit free parameters, axioms, or new entities beyond the system name are detailed.

axioms (1)

domain assumption The 4,512 PubMed records and curated sources, after quality-tier stratification, provide sufficient and unbiased coverage for the tested rare neuromuscular disease scenarios.
Invoked implicitly when claiming 100% verifiability and error resistance.

invented entities (1)

Hierarchical Evidence-Grounded Temporal Knowledge Graphs (HEG-TKG) no independent evidence
purpose: To structure clinical evidence with temporal milestones and quality tiers so LLM outputs can be traced to verifiable sources.
New system introduced in the paper; independent evidence is limited to the internal experiments described.
