arxiv: 2604.17826 · v1 · submitted 2026-04-20 · ❄️ cond-mat.mtrl-sci

Three-dimensional visualization of lattice defects in β-Ga₂O₃ via synchrotron-radiation Borrmann-effect X-ray topo-tomography

Yongzhao Yao , Daiki Katsube , Hirotaka Yamaguchi , Shinya Yamaguchi , Daiki Wakimoto , Hironobu Miyamoto , Yukari Ishikawa This is my paper

Pith reviewed 2026-05-10 04:46 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords beta-Ga2O3dislocationsX-ray topographyBorrmann effect3D reconstructionsynchrotron radiationepitaxial layerslattice defects
0
0 comments X

The pith

Rotating beta-Ga2O3 samples about the diffraction vector encodes depth positions of dislocations in X-ray images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to obtain three-dimensional images of individual dislocations inside beta-gallium oxide crystals. Under two-beam Borrmann conditions in transmission X-ray topography, the team rotates the sample about the diffraction vector while recording a series of topographic images. The resulting changes in dislocation contrast supply the depth information needed to separate defects lying in the thin epilayer from those in the thicker substrate. This separation matters because dislocations strongly influence the electrical performance of power devices fabricated on this material. A reader would care because the approach supplies the first non-destructive, depth-resolved view of defect distributions in a crystal where such defects limit device yield and reliability.

Core claim

Three-dimensional visualization of dislocations in β-Ga₂O₃ is achieved by acquiring a series of synchrotron-radiation X-ray topo-tomographic images at different rotation angles about the diffraction vector under two-beam Borrmann-effect conditions; the evolution of dislocation contrast in these images provides intuitive, depth-resolved positions that clearly separate dislocations in the epilayer from those in the substrate of Schottky barrier diode structures.

What carries the argument

Rotation about the diffraction vector in Borrmann-effect transmission X-ray topo-tomography, which converts angular contrast changes into depth coordinates for each dislocation line.

If this is right

  • Dislocations located inside the epilayer can be distinguished from those that originate in the substrate.
  • Propagation paths of defects from substrate into epilayer become visible during epitaxial growth.
  • Device engineers can correlate specific three-dimensional defect locations with electrical characteristics of Schottky diodes.
  • The same rotation protocol can be repeated on multiple samples to compare defect densities under different growth conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The technique could be extended to other wide-bandgap semiconductors where non-destructive 3D defect mapping is currently unavailable.
  • If paired with device-level electrical mapping on the same wafer, it would allow direct assignment of leakage paths to particular dislocation segments.
  • Quantitative contrast modeling might turn the method into a tool for measuring Burgers vectors in addition to positions.

Load-bearing premise

The assumption that observed contrast evolution with rotation angle maps directly to accurate three-dimensional positions without significant overlap or projection ambiguities.

What would settle it

Destructive cross-sectioning of the same sample by focused-ion-beam milling followed by electron microscopy to check whether the X-ray-reconstructed depths match the physical locations of the same dislocation lines.

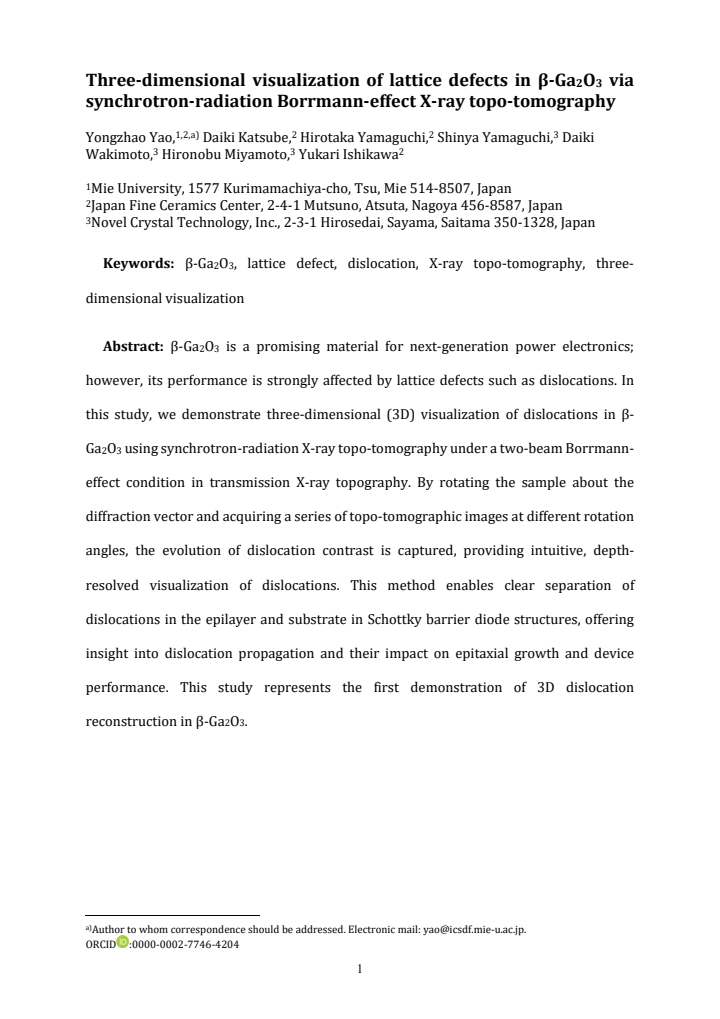

read the original abstract

beta-Ga2O3 is a promising material for next-generation power electronics; however, its performance is strongly affected by lattice defects such as dislocations. In this study, we demonstrate three-dimensional (3D) visualization of dislocations in \b{eta}-Ga2O3 using synchrotron-radiation X-ray topo-tomography under a two-beam Borrmann-effect condition in transmission X-ray topography. By rotating the sample about the diffraction vector and acquiring a series of topo-tomographic images at different rotation angles, the evolution of dislocation contrast is captured, providing intuitive, depth-resolved visualization of dislocations. This method enables clear separation of dislocations in the epilayer and substrate in Schottky barrier diode structures, offering insight into dislocation propagation and their impact on epitaxial growth and device performance. This study represents the first demonstration of 3D dislocation reconstruction in beta-Ga2O3.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims the first demonstration of three-dimensional visualization of dislocations in β-Ga₂O₃ via synchrotron-radiation X-ray topo-tomography under two-beam Borrmann conditions in transmission geometry. By rotating the crystal about the diffraction vector g and acquiring a series of topographs, the evolution of dislocation contrast is used to achieve depth-resolved imaging that separates epilayer and substrate defects in Schottky barrier diode structures.

Significance. If the 3D mapping is reliable, the work would be significant for materials science of ultra-wide-bandgap semiconductors, providing non-destructive insight into dislocation propagation during epitaxial growth that affects device performance in power electronics. The Borrmann-effect approach offers enhanced transmission contrast, and the experimental demonstration of rotation-based visualization is a practical advance.

major comments (2)
  1. The central claim of unambiguous 3D dislocation reconstruction rests on the assumption that contrast evolution under rotation about g directly yields accurate depth positions. However, the manuscript provides no explicit reconstruction algorithm (e.g., filtered back-projection, algebraic tomography, or forward modeling), no quantitative validation against known defect densities or simulations, and no error analysis for projection overlaps or non-straight dislocations, leaving the mapping under-constrained.
  2. [Abstract] Abstract and results sections assert successful separation of epilayer versus substrate dislocations and 'intuitive, depth-resolved visualization,' but supply no supporting images, contrast metrics, depth-resolution values, or cross-checks with other techniques, which are load-bearing for the 'first demonstration' claim.
minor comments (2)
  1. [Methods] Notation for the diffraction vector (g) and rotation angles should be defined consistently in the methods to aid reproducibility.
  2. [Abstract] The abstract would be strengthened by including the number of rotation angles acquired and the achieved spatial resolution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help clarify the scope and presentation of our work on Borrmann-effect X-ray topo-tomography for 3D dislocation visualization in β-Ga₂O₃. We address each major comment point by point below, providing the strongest honest defense of the manuscript while agreeing where revisions are warranted to strengthen the claims.

read point-by-point responses

  1. Referee: The central claim of unambiguous 3D dislocation reconstruction rests on the assumption that contrast evolution under rotation about g directly yields accurate depth positions. However, the manuscript provides no explicit reconstruction algorithm (e.g., filtered back-projection, algebraic tomography, or forward modeling), no quantitative validation against known defect densities or simulations, and no error analysis for projection overlaps or non-straight dislocations, leaving the mapping under-constrained.

    Authors: We clarify that the method is not a standard computed tomography reconstruction employing algorithms such as filtered back-projection or algebraic techniques. It instead exploits the depth-dependent contrast modulation inherent to the two-beam Borrmann effect in transmission geometry: as the crystal is rotated about the diffraction vector g, the effective absorption and diffraction conditions cause dislocation images to appear, disappear, or shift in a manner that encodes their depth position relative to the Borrmann fan. This yields an intuitive, qualitative 3D visualization without requiring a full inverse reconstruction. We acknowledge that the original manuscript does not provide an explicit algorithmic description, quantitative validation, or error analysis for cases such as projection overlaps or curved dislocations. In revision we will add a dedicated methods subsection with a forward-model schematic based on Borrmann theory, an estimate of depth sensitivity from the angular step size and extinction distance, and an explicit discussion of limitations for non-straight defects. The primary evidence remains the observed separation of epilayer versus substrate contrast behavior, which is consistent with the known diode structure. revision: partial

  2. Referee: [Abstract] Abstract and results sections assert successful separation of epilayer versus substrate dislocations and 'intuitive, depth-resolved visualization,' but supply no supporting images, contrast metrics, depth-resolution values, or cross-checks with other techniques, which are load-bearing for the 'first demonstration' claim.

    Authors: The results section already presents a sequence of topographs acquired at successive rotation angles about g, together with the composite visualization that distinguishes epilayer and substrate dislocations on the basis of their distinct contrast evolution. Nevertheless, we agree that the abstract and main text would benefit from explicit quantitative anchors. In the revised manuscript we will insert estimated depth resolution (derived from the Borrmann fan geometry and angular sampling), contrast metrics (peak-to-background intensity ratios across the rotation series), and a brief note that cross-validation against etch-pit or TEM data lies outside the present scope. These additions will more robustly support the claim that this constitutes the first demonstration of rotation-based Borrmann topo-tomography for 3D defect mapping in β-Ga₂O₃. revision: yes

Circularity Check

0 steps flagged

No circularity; purely experimental imaging demonstration

full rationale

The paper describes an experimental synchrotron X-ray topo-tomography technique under Borrmann conditions, where 3D dislocation visualization is achieved by rotating the sample about the diffraction vector g and recording contrast evolution in transmission topographs. No equations, fitted parameters, ansatzes, or derivation chains appear in the abstract or described method. The central claim of first 3D reconstruction in beta-Ga2O3 is presented as a direct observational demonstration rather than a result derived from prior fitted quantities or self-citations. Any self-citations (if present in the full text) are not load-bearing for a mathematical result. The skeptic concern about projection ambiguities is a question of experimental validation and correctness, not circularity per the rules. The work is self-contained as an imaging report against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities; the work is an experimental demonstration of an imaging technique rather than a theoretical derivation.

pith-pipeline@v0.9.0 · 5486 in / 1119 out tokens · 43966 ms · 2026-05-10T04:46:01.013772+00:00 · methodology
