Conceptual Design and Analysis of a NanoTug Swarm for Active Debris Removal

F. Alnaqbi , S. Biktimirov , G. Gaias This is my paper

Pith reviewed 2026-05-10 02:07 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.IMphysics.space-ph
keywords active debris removalnanosatellite swarmde-orbitingspace debrisattitude controlswarm sizingthruster allocation
0
0 comments X

The pith

A swarm of NanoTugs can cooperatively stabilize and de-orbit space debris, with an analytical sizing method verified by simulations and predefined placement requiring fewer units than random distribution.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a concept in which a mother spacecraft deploys multiple nanosatellites called NanoTugs to capture, stabilize, and de-orbit space debris together. An analytical method is derived to estimate the swarm size needed from debris mass, orbit parameters, and thruster performance, then checked against numerical simulations of the full mission phases. De-orbiting thrust is directed to reduce semi-major axis most efficiently using Gauss variational equations, while attitude is held stable by a Lyapunov control law and thruster commands are allocated across the swarm. Two placement strategies are tested: random attachment versus a planned distribution across the debris surface. The simulations confirm that the analytical sizing works with added margins, the control laws keep the combined system stable, and the predefined placement uses fewer NanoTugs while producing steadier thruster activity.

Core claim

The central claim is that an analytical first-order estimation of swarm parameters combined with Lyapunov-based attitude control and Gauss-equation-directed thrusting enables feasible cooperative de-orbiting of debris; simulations show the sizing method is applicable once margins are included, and a predefined NanoTug distribution across the debris surface yields better performance than random placement by needing fewer units and producing more predictable thruster switching.

What carries the argument

The analytical swarm sizing relation that links NanoTug count, thrust level, and debris properties to de-orbit time, paired with Lyapunov attitude stabilization and task allocation of on-off thruster commands.

If this is right

  • Predefined distribution of NanoTugs across the debris surface requires fewer units and produces more predictable thruster behavior than random distribution.
  • The Lyapunov control law and Gauss-based thrusting direction keep the combined system attitude stable and reduce semi-major axis efficiently in representative simulations.
  • The first-order analytical sizing provides a usable preliminary estimate but requires added margins because of its simplifying assumptions.
  • Task allocation of on-off commands to individual NanoTug thrusters works effectively once the swarm is attached.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sizing relation could support rapid trade studies for different debris sizes or orbit regimes before committing to detailed mission design.
  • The separation of attitude stabilization from de-orbit thrusting might allow the same control structure to be reused on other multi-vehicle capture or towing tasks.

Load-bearing premise

The first-order analytical estimation captures the dominant dynamics of the combined debris-NanoTugs system accurately enough that only moderate safety margins are needed for actual mission sizing.

What would settle it

A high-fidelity simulation or orbital test in which the predicted swarm size from the analytical formula is compared against the actual number of NanoTugs required to complete de-orbiting within the target time under realistic perturbations and attachment uncertainties.

Figures

Figures reproduced from arXiv: 2604.19214 by F. Alnaqbi, G. Gaias, S. Biktimirov.

Figure 1
Figure 1. Figure 1: Mission Concept Overview. The work focuses on the preliminary design of such a system, requiring the derivation of feasible NanoTug characteristics and the determination of the swarm size for a given debris de-orbiting mission. The ADR system design is supported by numerical modeling of the coupled 6-DoF (translational and rotational) dynamics and control of a debris object with attached NanoTugs, treated … view at source ↗
Figure 2
Figure 2. Figure 2: Debris Lifetime. Debris De-Orbiting Analysis Debris de-orbiting analysis enables the assessment of the minimum required number of NanoTugs and the time needed to de-orbit a debris of a given mass from its initial altitude to the disposal orbit. The analysis does not account for the propellant consumed during debris stabilization and assumes idealistic control authority of the ADR system. Therefore, this an… view at source ↗
Figure 3
Figure 3. Figure 3: Number of NanoTugs Required for De-orbiting using 5 kg Propellant Mass with a [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: De-orbit Time per System Total Mass for a Range of Initial Debris Altitude and [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Propellant mass required to detumble a cylindrical debris object as a function of [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: De-tumbling time for a 1000 kg cylinder as a function of initial angular velocity [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Preliminary 3D Model of the NanoTugs (gripping mechanism inspired by (Hu [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Reference Frames Illustration. 1. The Earth-Centered Inertial (ECI) frame, F I : the origin is at the Earth’s center of mass O, its e I x -axis is pointed to the Sun at vernal equinox, e I z -axis is aligned with the Earth’s rotation axis, e I y -axis completes the reference frame to the right-hand triad. 2. The Debris-Fixed Body frame, F D, is defined with its origin at the debris’s 20 [PITH_FULL_IMAGE:f… view at source ↗
Figure 9
Figure 9. Figure 9: Debris with (a) Random and (b) Predefined Allocation of 20 NanoTugs. [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: NanoTugs Distribution (a) Random, (b) Predefined. [PITH_FULL_IMAGE:figures/full_fig_p031_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Simulation Results: Random Distribution. [PITH_FULL_IMAGE:figures/full_fig_p033_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Simulation Results: Predefined Distribution. [PITH_FULL_IMAGE:figures/full_fig_p034_12.png] view at source ↗

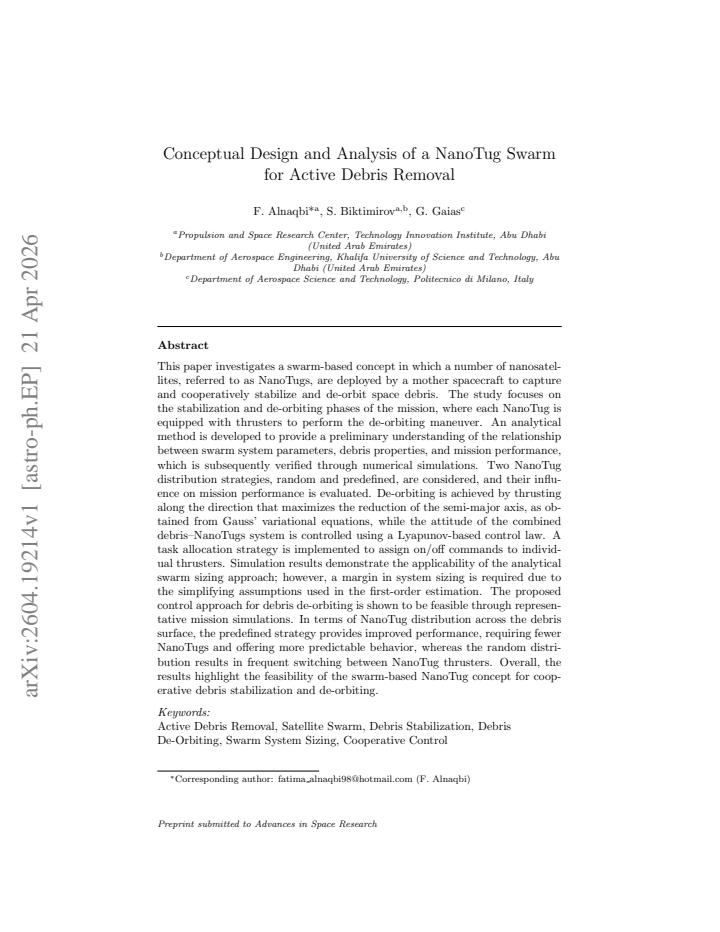

read the original abstract

This paper investigates a swarm-based concept in which a number of nanosatellites, referred to as NanoTugs, are deployed by a mother spacecraft to capture and cooperatively stabilize and de-orbit space debris. The study focuses on the stabilization and de-orbiting phases of the mission, where each NanoTug is equipped with thrusters to perform the de-orbiting maneuver. An analytical method is developed to provide a preliminary understanding of the relationship between swarm system parameters, debris properties, and mission performance, which is subsequently verified through numerical simulations. Two NanoTug distribution strategies, random and predefined, are considered, and their influence on mission performance is evaluated. De-orbiting is achieved by thrusting along the direction that maximizes the reduction of the semi-major axis, as obtained from Gauss variational equations, while the attitude of the combined debris-NanoTugs system is controlled using a Lyapunov-based control law. A task allocation strategy is implemented to assign on-off commands to individual thrusters. Simulation results demonstrate the applicability of the analytical swarm sizing approach; however, a margin in system sizing is required due to the simplifying assumptions used in the first-order estimation. The proposed control approach for debris de-orbiting is shown to be feasible through representative mission simulations. In terms of NanoTug distribution across the debris surface, the predefined strategy provides improved performance, requiring fewer NanoTugs and offering more predictable behavior, whereas the random distribution results in frequent switching between NanoTug thrusters. Overall, the results highlight the feasibility of the swarm-based NanoTug concept for cooperative debris stabilization and de-orbiting.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. This manuscript presents a conceptual design for a swarm of nanosatellites (NanoTugs) deployed by a mother spacecraft to capture, stabilize, and de-orbit space debris. It develops a first-order analytical method to size the swarm as a function of debris properties and mission parameters, which is verified through numerical simulations of the stabilization and de-orbiting phases. Two NanoTug distribution strategies (random and predefined) are compared; de-orbiting thrust directions are chosen via Gauss variational equations to maximize semi-major axis decay, attitude is stabilized with a Lyapunov-based controller, and a task allocation scheme commands individual thrusters. Simulations indicate that the analytical sizing approach is applicable provided additional margins are included due to simplifying assumptions, that the predefined distribution yields better performance with fewer NanoTugs and more predictable behavior, and that the overall control strategy is feasible.

Significance. If the central claims hold, the work supplies a practical preliminary analytical tool for swarm-based active debris removal mission design, together with concrete evidence that predefined distributions improve efficiency and predictability over random placement. The integration of Gauss variational equations for thrust planning and Lyapunov control for rigid-body attitude stabilization, plus the explicit comparison of the two distribution strategies, constitutes a useful contribution to conceptual ADR studies. The simulation-based verification of control feasibility is a clear strength.

major comments (2)
  1. [Analytical sizing method (Section 3)] Analytical sizing method (Section 3): the first-order estimation is presented as independently derived and then checked numerically, yet the manuscript provides no a priori error bounds, sensitivity analysis, or quantified estimate of the neglected dynamics (e.g., non-rigid attachment effects, unaveraged perturbations) on the predicted semi-major axis decay rate or stability margins, even though the abstract and conclusions explicitly state that simplifying assumptions require extra margin.
  2. [Numerical verification (Section 4)] Numerical verification (Section 4): while representative mission simulations are used to claim applicability of the analytical swarm-sizing approach, the results are reported without direct quantitative comparison (e.g., analytical vs. simulated semi-major axis decay curves), error bars, or explicit exclusion criteria for the tested cases, leaving the verification largely qualitative and post-hoc.
minor comments (2)
  1. [Abstract] The abstract states that 'a margin in system sizing is required' but does not indicate the magnitude of the margin or the specific assumptions that drive it; this should be clarified for readers.
  2. [Throughout] Notation for swarm size, placement parameters, and thruster on/off commands should be introduced once and used consistently; occasional redefinition of symbols reduces readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript on the NanoTug swarm concept. We agree that additional quantitative support would strengthen the presentation of the analytical sizing method and its numerical verification. We address each major comment below and will incorporate the suggested improvements in the revised manuscript.

read point-by-point responses

  1. Referee: Analytical sizing method (Section 3): the first-order estimation is presented as independently derived and then checked numerically, yet the manuscript provides no a priori error bounds, sensitivity analysis, or quantified estimate of the neglected dynamics (e.g., non-rigid attachment effects, unaveraged perturbations) on the predicted semi-major axis decay rate or stability margins, even though the abstract and conclusions explicitly state that simplifying assumptions require extra margin.

    Authors: We agree that the first-order analytical method would benefit from explicit quantification of its limitations. Although the abstract and conclusions already note that margins are required due to simplifying assumptions, we did not include a priori error bounds or sensitivity analysis. In the revised manuscript we will add a dedicated sensitivity study examining the influence of key neglected effects (non-rigid attachment compliance and unaveraged perturbations) on the predicted semi-major axis decay rate and stability margins. This will supply readers with concrete estimates of the additional margins needed. revision: yes

  2. Referee: Numerical verification (Section 4): while representative mission simulations are used to claim applicability of the analytical swarm-sizing approach, the results are reported without direct quantitative comparison (e.g., analytical vs. simulated semi-major axis decay curves), error bars, or explicit exclusion criteria for the tested cases, leaving the verification largely qualitative and post-hoc.

    Authors: We concur that the verification in Section 4 remains largely qualitative. The simulations demonstrate feasibility and the necessity of margins, but direct overlays of analytical predictions against simulated trajectories and explicit error metrics were not provided. We will revise Section 4 to include side-by-side comparisons of analytical versus simulated semi-major axis decay curves, add error bars or quantitative discrepancy measures where feasible, and clearly state the parameter ranges and exclusion criteria applied to the simulation cases. revision: yes

Circularity Check

0 steps flagged

No significant circularity: analytical sizing derived from first-order dynamics then checked by independent simulation

full rationale

The paper derives an analytical swarm-sizing relation from first-order modeling of the combined rigid-body debris-NanoTugs system (using Gauss variational equations for thrust direction and Lyapunov control for attitude) and then performs separate numerical simulations to verify feasibility. No step equates a performance prediction to a quantity fitted from the same data, renames a simulation output as an analytical result, or relies on a self-citation chain whose prior result is itself unverified. The noted need for safety margins is an explicit acknowledgment of modeling limitations rather than a hidden definitional loop. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The central claim rests on standard orbital perturbation equations and control theory plus the new conceptual NanoTug entity and first-order sizing assumptions; full details unavailable from abstract alone.

free parameters (2)
  • swarm size / number of NanoTugs
    Determined by the analytical method relating system parameters to debris properties and required de-orbit performance
  • NanoTug placement parameters
    Two discrete strategies (random vs. predefined) whose effect on performance is evaluated
axioms (2)
  • standard math Gauss variational equations govern the effect of thrust on orbital elements
    Invoked to select the thrusting direction that maximizes semi-major axis reduction
  • standard math Lyapunov stability theory yields a control law for attitude regulation of the rigid combined body
    Used to derive the attitude control commands for the debris-NanoTugs system
invented entities (1)
  • NanoTug no independent evidence
    purpose: Nanosatellite platform equipped with thrusters for cooperative capture, stabilization, and de-orbiting of debris
    New conceptual entity introduced to realize the swarm architecture
