Learning to count small and clustered objects with application to bacterial colonies

Minghua Zheng , Na Helian , Peter C. R. Lane , Yi Sun , Allen Donald
Authors on Pith no claims yet

Pith reviewed 2026-05-10 01:58 UTC · model grok-4.3

classification 💻 cs.CV
keywords bacterial colony countingobject countingFamNetmulti-head attentionresidual connectionscomputer visionimage analysisACFamNet Pro
0
0 comments X

The pith

A neural network extension called ACFamNet Pro counts small and clustered bacterial colonies with a mean error of 9.64 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the problem of automated bacterial colony counting from images, which is needed for vaccine and antibiotic development but challenged by small object sizes, clustering, annotation costs, and generalization across species. Building on FamNet, which handles clustered objects with few labels, the authors introduce ACFamNet with a new region of interest pooling that aligns features to manage small colonies better. ACFamNet Pro then adds multi-head attention to weigh objects dynamically and residual connections to improve learning. Under 5-fold cross-validation, this yields a mean normalised absolute error of 9.64%, which is 2.23% better than ACFamNet and 12.71% better than the original FamNet. A sympathetic reader would care because this could speed up lab work by replacing tedious manual counts with reliable automation.

Core claim

The authors establish that augmenting FamNet with region of interest pooling with alignment, optimised feature engineering, multi-head attention, and residual connections produces ACFamNet Pro, which counts bacterial colonies more accurately than prior versions, reaching a mean normalised absolute error of 9.64% in cross-validation tests on colony images.

What carries the argument

ACFamNet Pro, which applies multi-head attention and residual connections to FamNet along with aligned region of interest pooling to process small clustered objects in images.

If this is right

  • Counts of bacterial colonies can be obtained automatically with lower error for vaccine development data.
  • The approach reduces the impact of high annotation costs by building on FamNet's few-shot capabilities.
  • Dynamic weighting via attention improves performance on varying cluster densities and sizes.
  • Residual connections allow better training for these dense small-object scenes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same architecture changes could apply to counting other small clustered items, such as cells in medical imaging.
  • Testing on images from more bacterial species would strengthen claims of cross-species generalization.
  • Combining this with newer vision transformers might push errors lower still.

Load-bearing premise

The improvements in error rates result directly from the added architectural components rather than from dataset-specific optimizations or the particular choice of cross-validation folds.

What would settle it

An experiment that applies the models to a fresh collection of bacterial colony images from unseen species and measures whether ACFamNet Pro still shows lower error than FamNet.

Figures

Figures reproduced from arXiv: 2604.20030 by Allen Donald, Minghua Zheng, Na Helian, Peter C. R. Lane, Yi Sun.

Figure 1
Figure 1. Figure 1: Four example plate images with colonies of different species, sizes, and colours. [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Distribution of colony counts in the training and test sets. [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Overall structure of ACFamNet. The feature correlation and regression modules [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4

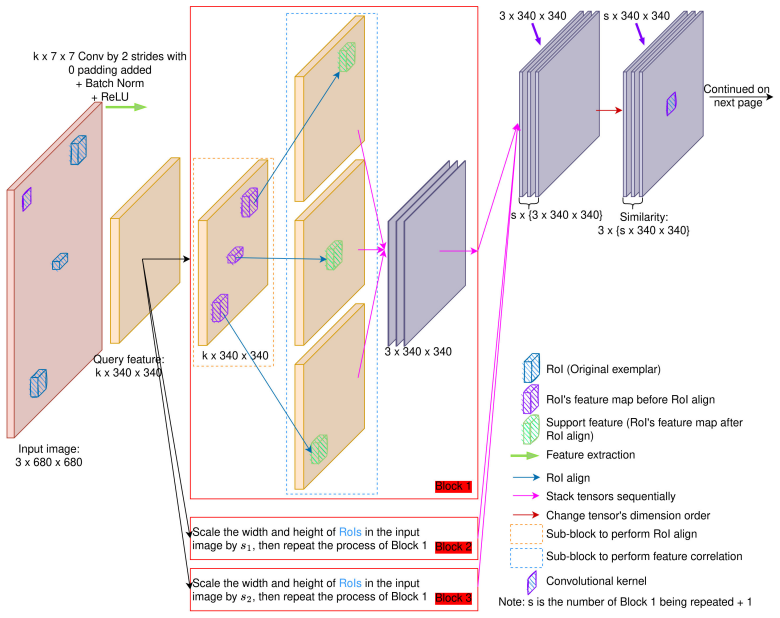

Figure 4. Figure 4: Illustration of the ACFamNet feature correlation module. [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Illustration of ACFamNet regression module. [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Overall structure of ACFamNet Pro. Details of the residual feature enhancement [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Feature extractor. mechanism allows the model to control the mixing of information between elements, i.e. support feature, to enrich feature representations. The detailed design of the residual feature enhancement module is illus￾trated in [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Residual feature enhancement module. Feature correlation block. The aim of feature correlation block is to produce a similarity map to robustly highlight regions in the query feature fQ that are similar to the support feature fS. It has three steps: learnable feature projection, feature comparison, and score normalisation. Learnable feature projection The useful features from the support feature fS and que… view at source ↗
Figure 9
Figure 9. Figure 9: Illustration of kernel flipping in FEM. Its purpose is to preserve the spatial structure from the projected support feature fP S. In this illustration, the K dimension is removed from R, fP S, and fR for simplicity, meaning only a support image is used in this example. The motivation behind this design is as follows: suppose that the feature in the projected query feature fP Q corresponding to the position… view at source ↗
Figure 10

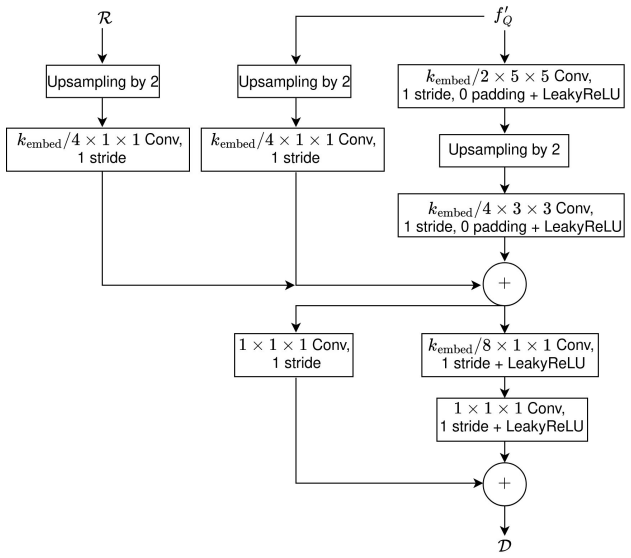

Figure 10. Figure 10: Regression module. passed through a 1×1 convolution, and added to the input of the third con￾volutional layer. Finally, the input to the third convolutional layer is added to the output of the final convolutional layer to produce the density map D. The number of convolutional kernels and the kernel size in each convolutional layer are detailed in [PITH_FULL_IMAGE:figures/full_fig_p021_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Counting results for an image with 83 colonies. Left: OpenCFU detects 66 [PITH_FULL_IMAGE:figures/full_fig_p030_11.png] view at source ↗
Figure 12

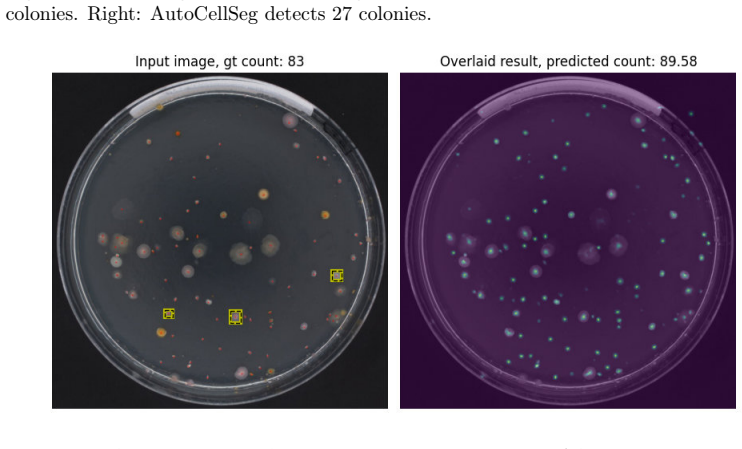

Figure 12. Figure 12: Counting results for an image with 83 colonies. ACFamNet detects 89.58 [PITH_FULL_IMAGE:figures/full_fig_p030_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Four plate images with colonies that are completely different from the Synoptics [PITH_FULL_IMAGE:figures/full_fig_p031_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Illustration of ACFamNet Pro’s prediction. The predicted count and ground [PITH_FULL_IMAGE:figures/full_fig_p037_14.png] view at source ↗

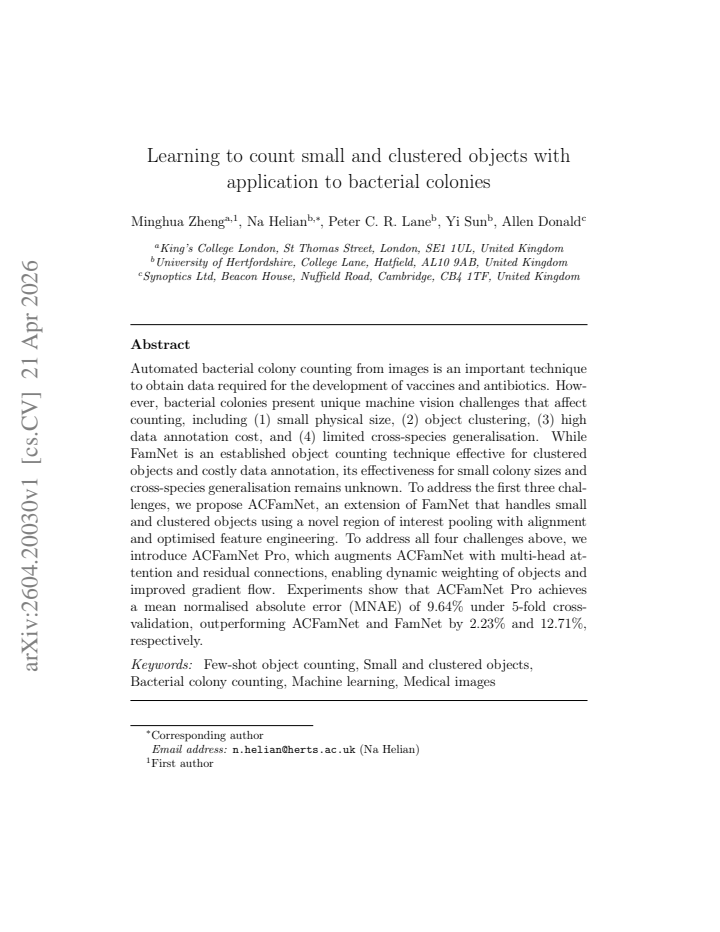

read the original abstract

Automated bacterial colony counting from images is an important technique to obtain data required for the development of vaccines and antibiotics. However, bacterial colonies present unique machine vision challenges that affect counting, including (1) small physical size, (2) object clustering, (3) high data annotation cost, and (4) limited cross-species generalisation. While FamNet is an established object counting technique effective for clustered objects and costly data annotation, its effectiveness for small colony sizes and cross-species generalisation remains unknown. To address the first three challenges, we propose ACFamNet, an extension of FamNet that handles small and clustered objects using a novel region of interest pooling with alignment and optimised feature engineering. To address all four challenges above, we introduce ACFamNet Pro, which augments ACFamNet with multi-head attention and residual connections, enabling dynamic weighting of objects and improved gradient flow. Experiments show that ACFamNet Pro achieves a mean normalised absolute error (MNAE) of 9.64% under 5-fold cross-validation, outperforming ACFamNet and FamNet by 2.23% and 12.71%, respectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces ACFamNet as an extension of FamNet that uses region-of-interest pooling with alignment and optimised feature engineering to handle small object sizes and clustering in bacterial colony images while mitigating high annotation costs. It further proposes ACFamNet Pro, which adds multi-head attention and residual connections to enable dynamic object weighting and improved gradient flow for better cross-species generalisation. Experiments under 5-fold cross-validation report that ACFamNet Pro attains a mean normalised absolute error (MNAE) of 9.64%, outperforming ACFamNet by 2.23% and FamNet by 12.71%.

Significance. If the reported gains are shown to stem from the architectural changes rather than dataset-specific tuning, the work could provide a targeted improvement for automated colony counting in microbiology, directly supporting data acquisition for vaccine and antibiotic development by reducing manual effort on small, clustered objects across species.

major comments (2)
  1. [Abstract] Abstract: The claim that ACFamNet Pro addresses the core challenge of limited cross-species generalisation is not supported by the described evaluation. The manuscript supplies no information on the number of species, image counts per species, species balance, or whether the 5-fold CV splits hold out entire species (as opposed to random image-level partitioning). Without species-stratified folds, the 2.23% and 12.71% MNAE reductions cannot be interpreted as evidence of improved cross-species robustness.
  2. [Experiments] Experiments section: The headline quantitative result (MNAE 9.64%) is presented without dataset size, total number of images, baseline re-implementation details for FamNet and ACFamNet, or ablation studies that isolate the contribution of ROI pooling with alignment, multi-head attention, and residual connections. These omissions leave the central performance claim only moderately supported and prevent attribution of gains to the proposed components.
minor comments (1)
  1. The abstract would be clearer if it briefly stated the dataset characteristics (e.g., number of images and species) alongside the MNAE figures to allow immediate assessment of the scale of the evaluation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which identifies key areas where additional details and clarifications will strengthen the manuscript. We address each major comment below and will incorporate revisions to improve transparency and support for our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that ACFamNet Pro addresses the core challenge of limited cross-species generalisation is not supported by the described evaluation. The manuscript supplies no information on the number of species, image counts per species, species balance, or whether the 5-fold CV splits hold out entire species (as opposed to random image-level partitioning). Without species-stratified folds, the 2.23% and 12.71% MNAE reductions cannot be interpreted as evidence of improved cross-species robustness.

    Authors: We agree that the abstract and evaluation description lack explicit details on dataset composition and split strategy, which limits interpretation of the cross-species generalization claim. The experiments use a multi-species bacterial colony dataset, with 5-fold CV performed at the image level. In the revision, we will expand the abstract and add a dataset subsection specifying the number of species, image counts per species, and balance. We will also clarify that the splits are not species-holdout and adjust the language to indicate that the results show improved performance on the multi-species collection rather than proving explicit cross-species robustness. This addresses the concern without overstating the evidence. revision: yes

  2. Referee: [Experiments] Experiments section: The headline quantitative result (MNAE 9.64%) is presented without dataset size, total number of images, baseline re-implementation details for FamNet and ACFamNet, or ablation studies that isolate the contribution of ROI pooling with alignment, multi-head attention, and residual connections. These omissions leave the central performance claim only moderately supported and prevent attribution of gains to the proposed components.

    Authors: We concur that these omissions reduce the strength of the central claims. The revised manuscript will report the total number of images and dataset size. We will detail the re-implementation of FamNet and ACFamNet, including hyperparameters, training protocols, and any dataset-specific adaptations. We will also include ablation studies that add components sequentially (ROI pooling with alignment, then multi-head attention, then residual connections) to isolate their contributions to the MNAE improvement. These additions will enable better attribution of gains to the proposed elements. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results on held-out CV folds are independent of model equations

full rationale

The paper's central claims rest on proposing ACFamNet and ACFamNet Pro as architectural extensions to FamNet, followed by reporting MNAE under 5-fold cross-validation. These performance numbers are computed directly on held-out image folds and do not reduce, via any equation in the paper, to quantities defined solely by fitted parameters or by the model's own definitions. No self-definitional loops, fitted-input-as-prediction steps, or load-bearing self-citations appear in the reported derivation or evaluation chain. The result is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard deep-learning training assumptions and the prior effectiveness of FamNet for clustered objects; no new physical entities or ad-hoc constants are introduced.

free parameters (1)
  • neural network hyperparameters
    Learning rate, attention heads, residual scaling, and pooling parameters are chosen or tuned during training; exact values not stated in abstract.
axioms (1)
  • domain assumption FamNet is effective for clustered objects and costly annotation scenarios
    Invoked as the established baseline whose limitations the new models address.
